Availability:
1 in stock

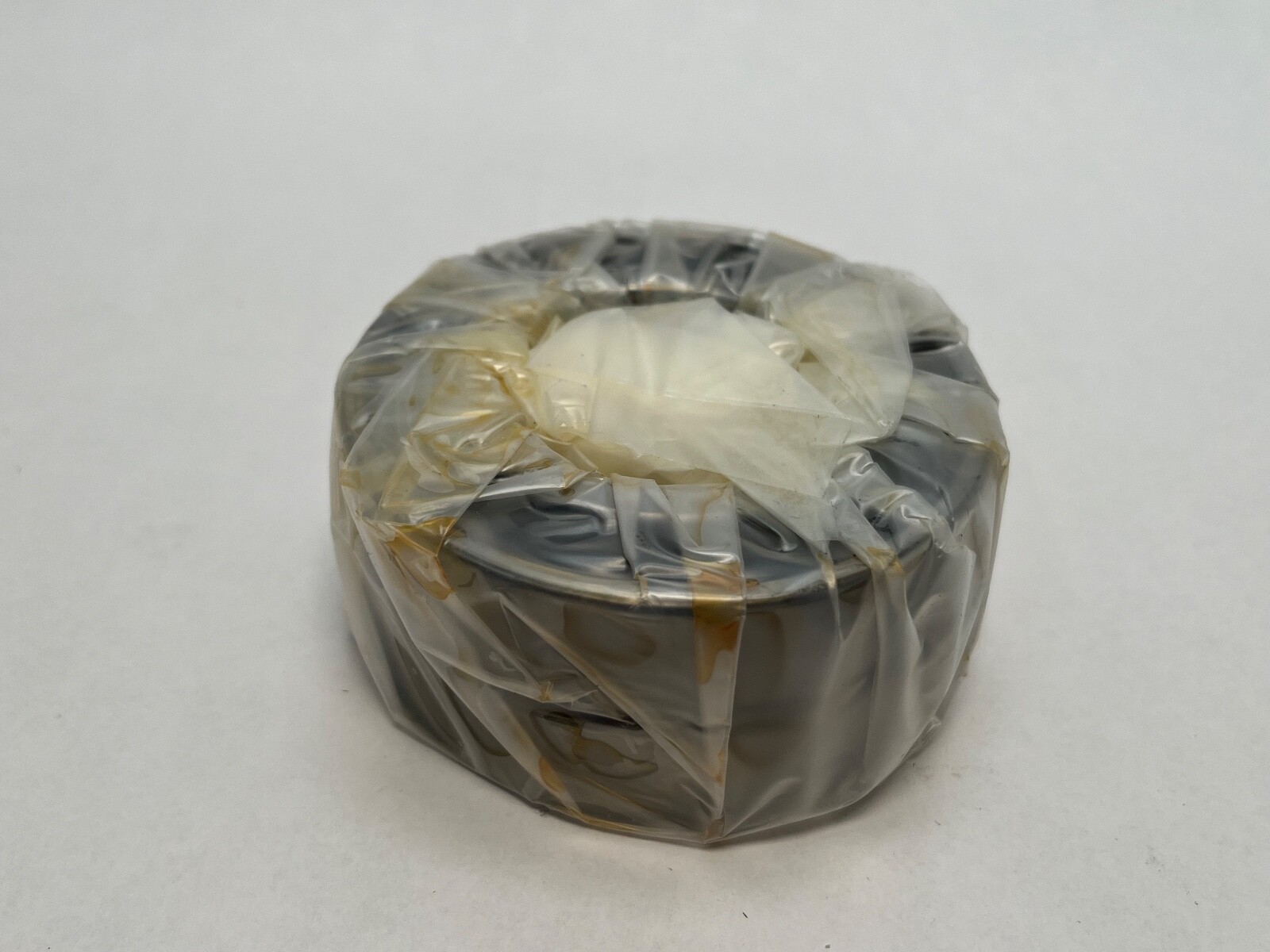

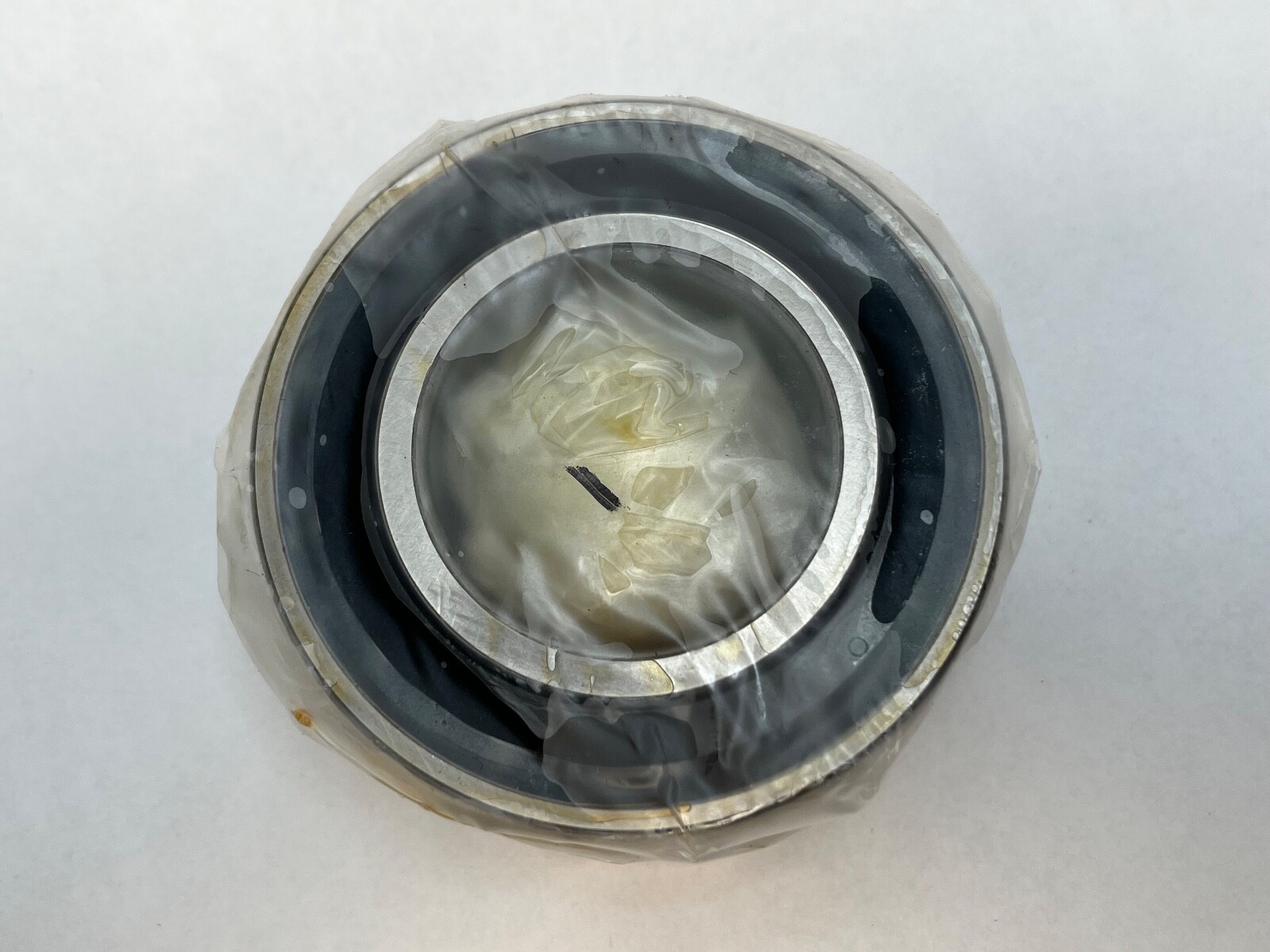

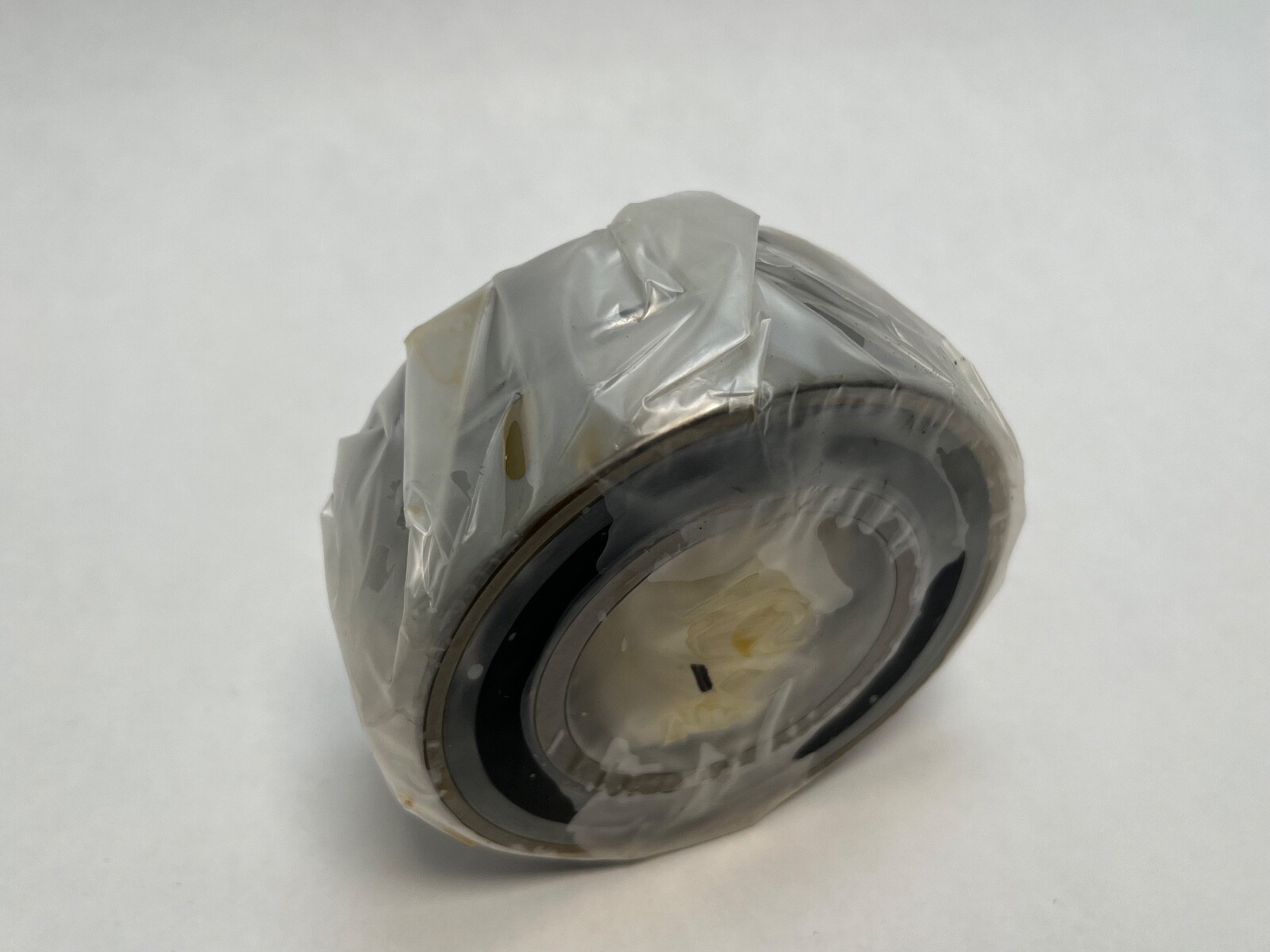

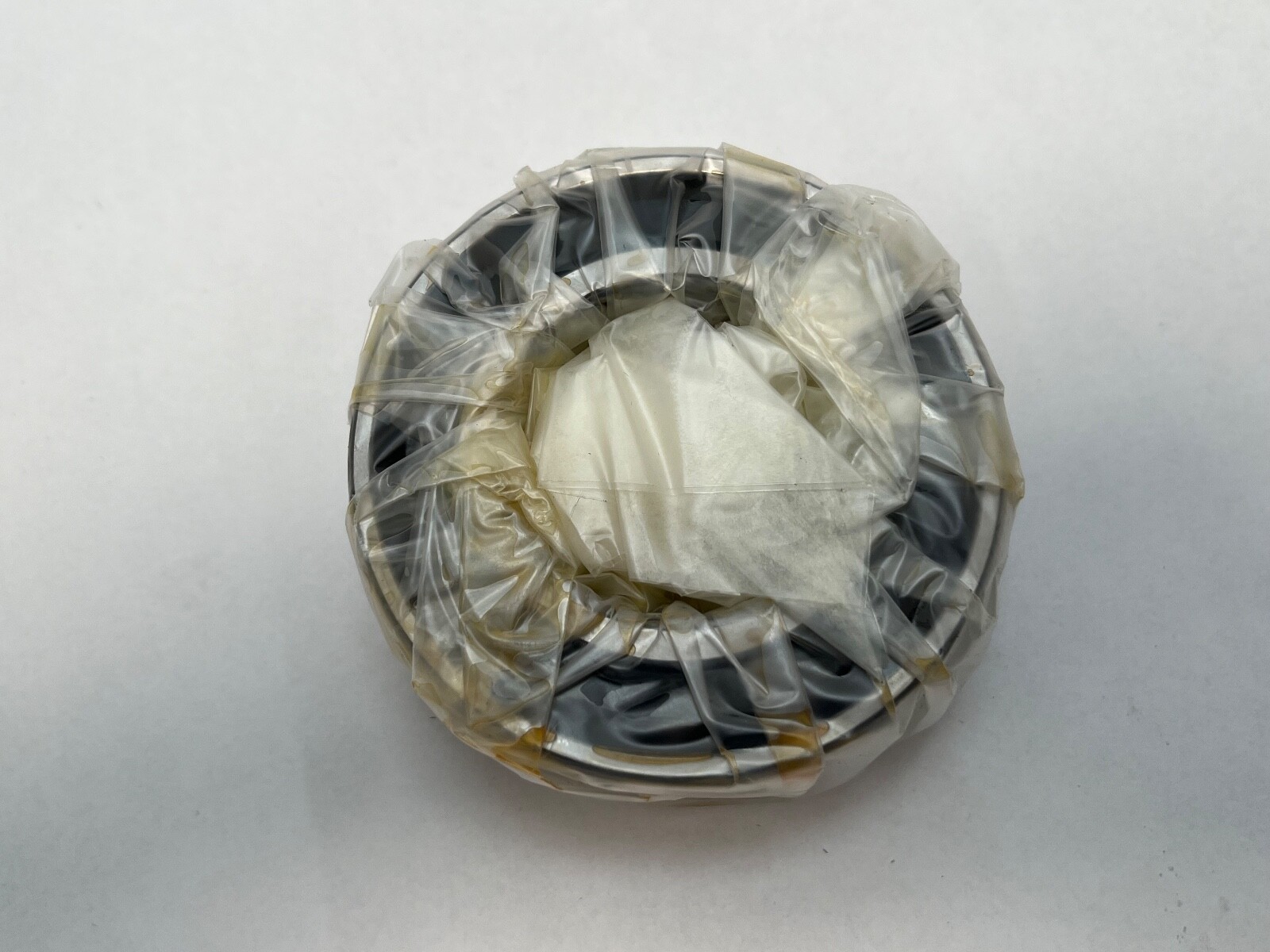

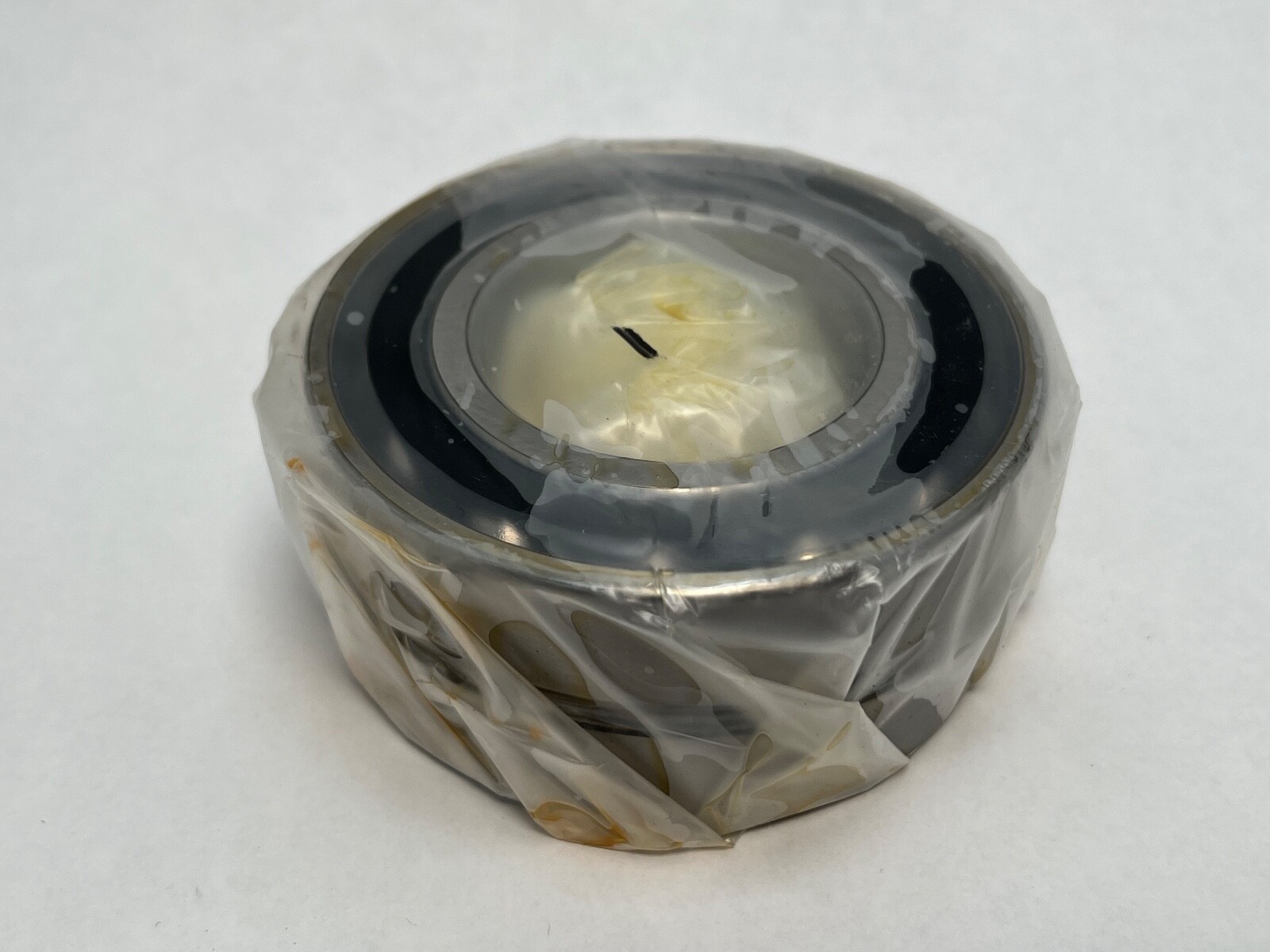

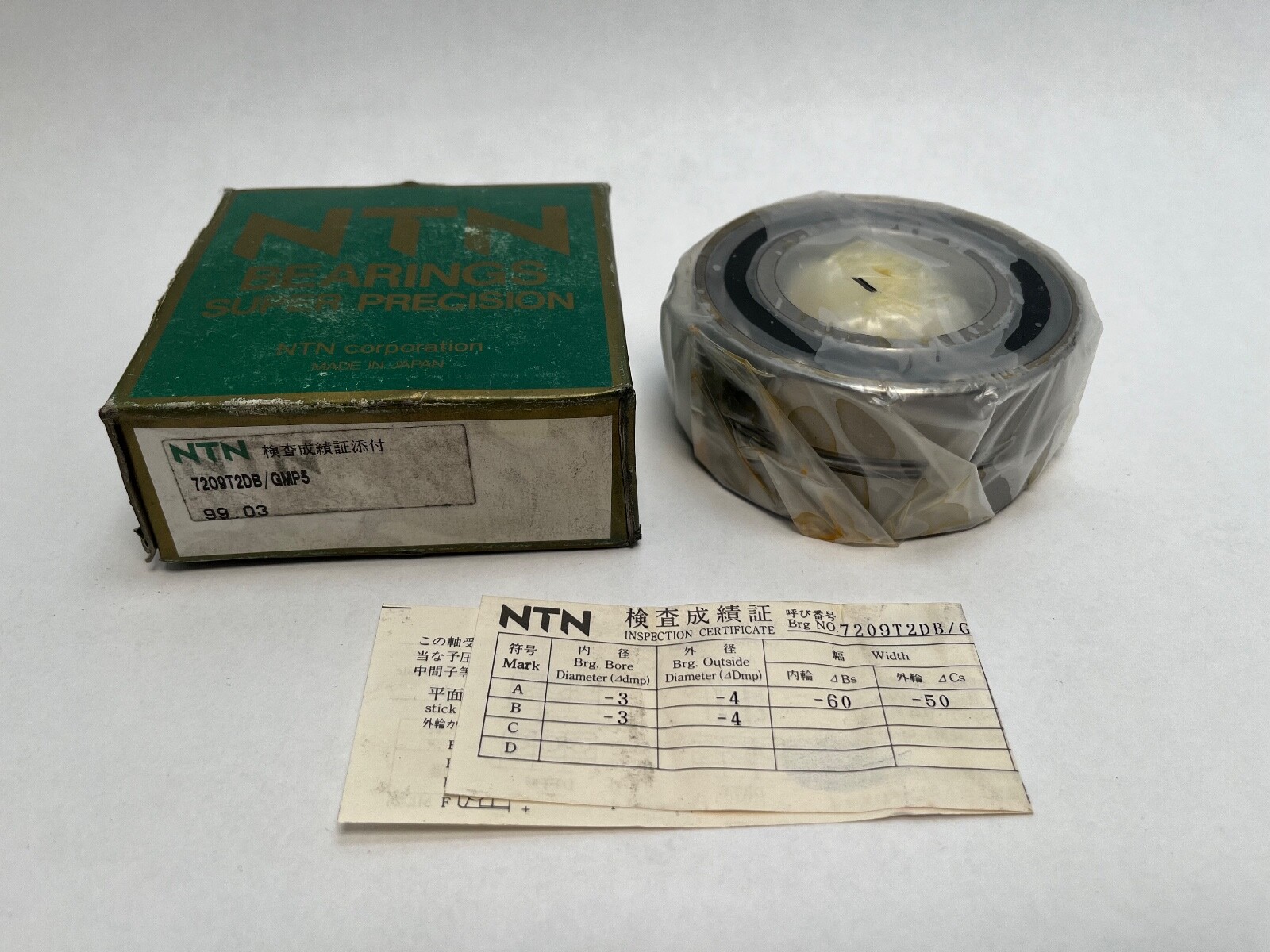

Angular contact ball bearing pair, 45 x 85 x 19 mm, 30° contact angle, back-to-back, medium preload, ISO P5. NTN 7209T2DB/GMP5 matched set, 2 pieces.
List Price
$191.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7209T2DBGMP5 |
| Model | 7209-T2-DB-GM-P5 2MM209WI CR DB M |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Medium |
| Total Width | 38 mm |
| Mpn Variants | 7209T2DBGMP5, 7209T2DB/GMP5, 7209 T2 DB GM P5, 7209T2DB |
| Precision Class | ABEC 5 / P5 |
| Closure Type | Open |
| Min Temp | -40 °C |
| Dynamic Load Rating | 64,500 N (pair) |
| Static Load Rating | 57,500 N (pair) |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.80 kg (1.76 lb) pair |
| Cage Material | Glass-fibre reinforced polyamide |
| Limiting Speed | 6,900 rpm grease; 9,200 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (DB) |
NTN 7209T2DB/GMP5 angular contact ball bearings, supplied as a matched back-to-back pair. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 19 mm per bearing, 38 mm for the pair. Contact Angle: 30°. Preload: Medium. Precision Class: ABEC 5 / P5.
7209 — ISO 72 series (light section), 45 mm bore. No angle letter: 30° contact angle.
T2 — glass-fibre reinforced polyamide cage.
DB — matched pair for back-to-back mounting.
GM — medium preload.
P5 — ISO Class 5 precision, equivalent to ABEC 5.
Figures for the pair, from NTN. Dynamic Load Rating: 64,500 N. Static Load Rating: 57,500 N. Limiting Speed: 6,900 rpm grease; 9,200 rpm oil. Item Weight: 0.80 kg (1.76 lb) for the pair. Cage Material: Glass-fibre reinforced polyamide. Operating Temperature: -40 °C to 120 °C. The back-to-back arrangement takes axial load in both directions and resists tilting moment; medium preload gives a rigid, repeatable shaft position.
Shaft abutment da min: 52 mm. Housing abutment Db max: 80.5 mm. Fillet ras max: 1.0 mm; r1as max: 0.6 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Back-to-back (DB).
