FAG NU2305.C5 cylindrical roller bearing, type NU, 25 x 62 x 24 mm, single row, C5 radial internal clearance, non-locating, separable inner ring. 1 Pc.
List Price
$25.03
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NU2305.C5 |
| Model | NU2305-C5 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 25 mm |
| OD | 62 mm |
| Width | 24 mm |
| Series | 23 |
|---|---|
| Dynamic Load Rating | 67,000 N |
| Static Load Rating | 56,000 N |
| Rolling Elements | Cylindrical Roller |
| Item Weight | 0.344 kg (0.76 lb) |
| Limiting Speed | 16,500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Internal Clearance | C5 |
| Base Number | NU2305 |
| Industry Terms | cylindrical roller bearing, NU type, non-locating bearing, C5 clearance, 23 series |
| Common Misspellings | NU 2305 C5, NU2305-C-5, N2305C5 |
| Application Types | Electric motors, gearboxes, pumps, vibrating machinery |
| Overall Width | 24 mm |
| Mpn Variants | NU2305-C5, NU2305.C5, NU2305C5, NU-2305-C5, NU2305 |
| Compatible With Replaces | Successor: FAG NU2305-E-XL-TVP2 (C5 execution) |
| Additional Attributes | Successor NU2305-E-XL-TVP2 data (load ratings, speeds, weight and mounting rows): Reference Speed 8,200 rpm; axial displacement 1.9 mm; min shaft shoulder 32 mm; max shaft shoulder 33 mm; max housing shoulder 55 mm; max fillet radius 1 mm |
| Closure Type | Open |
| Cross Reference 1 | SKF NU 2305 ECP/C5 |
|---|---|
| Cross Reference 2 | NSK NU2305ET |
| Cross Reference 3 | NTN NU2305E |
| Cross Reference 4 | Koyo NU2305 |

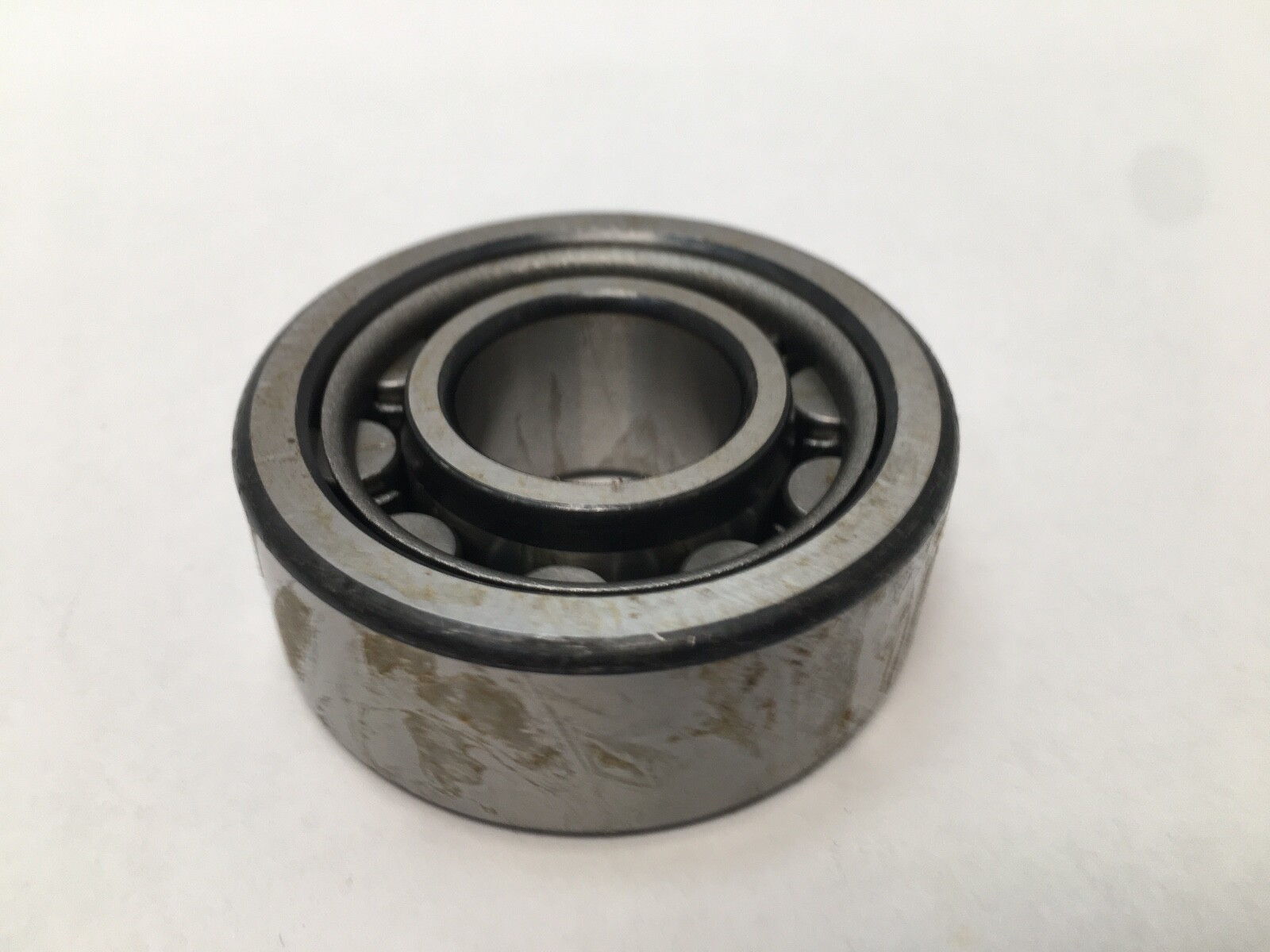

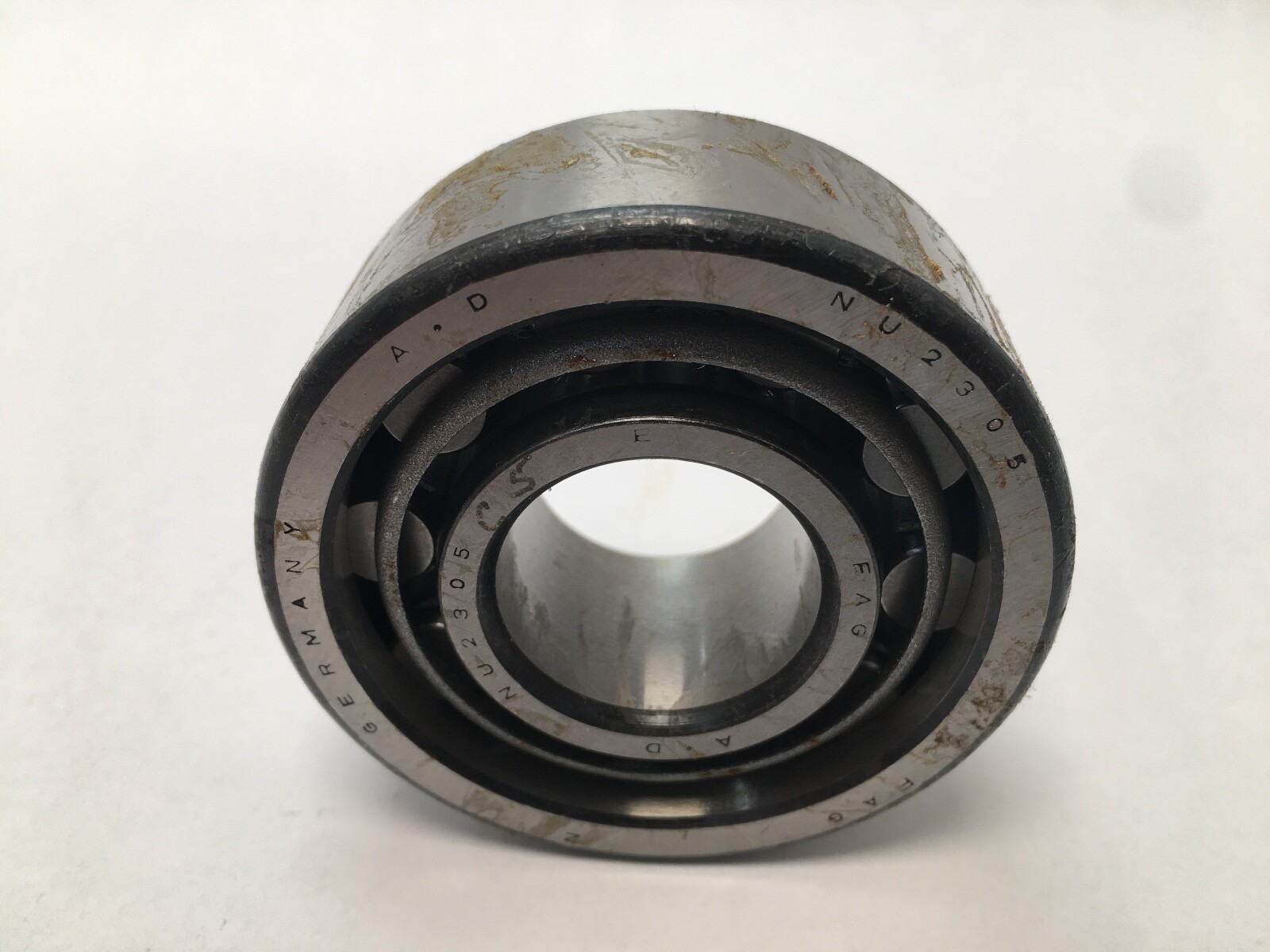

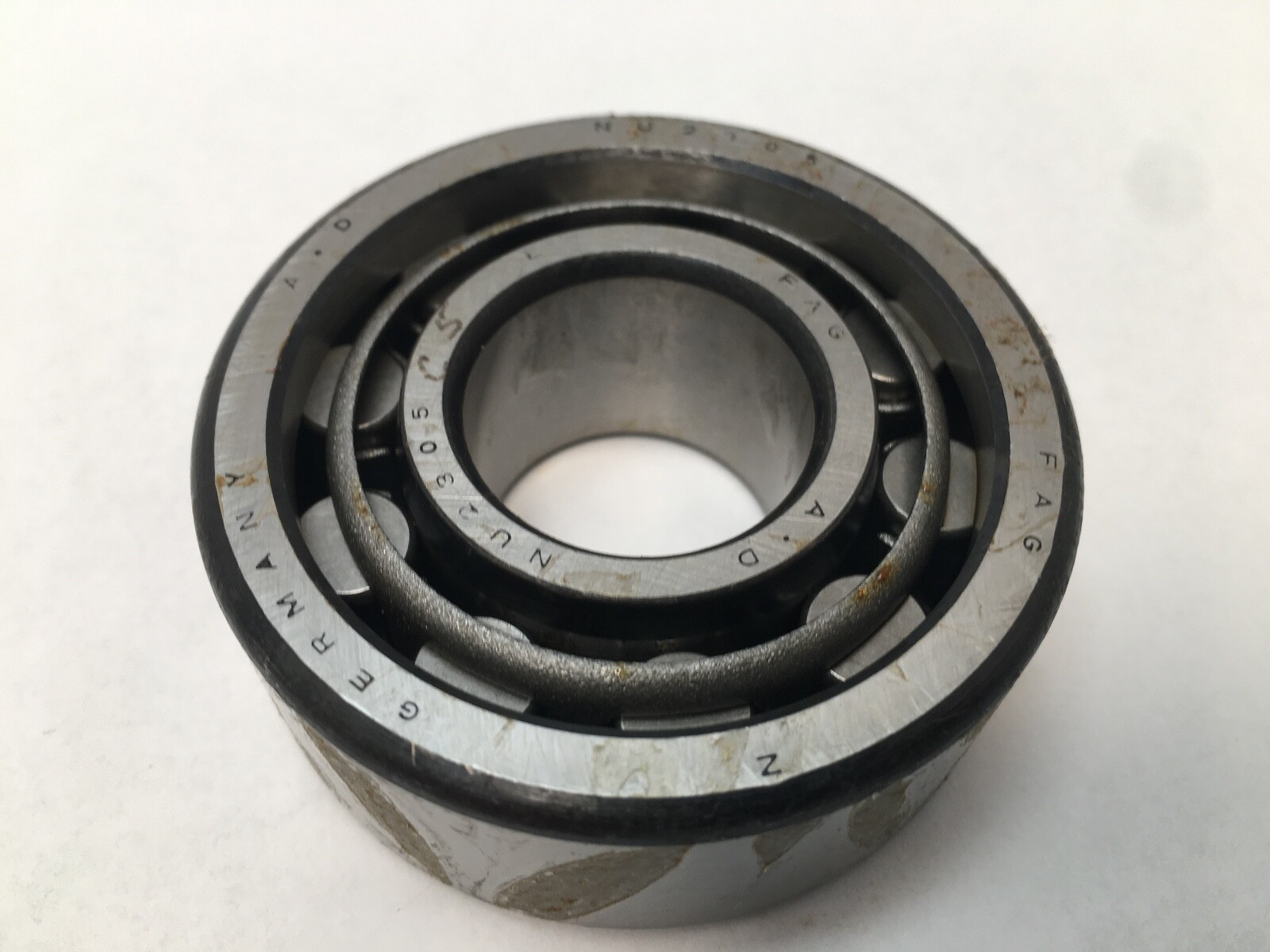

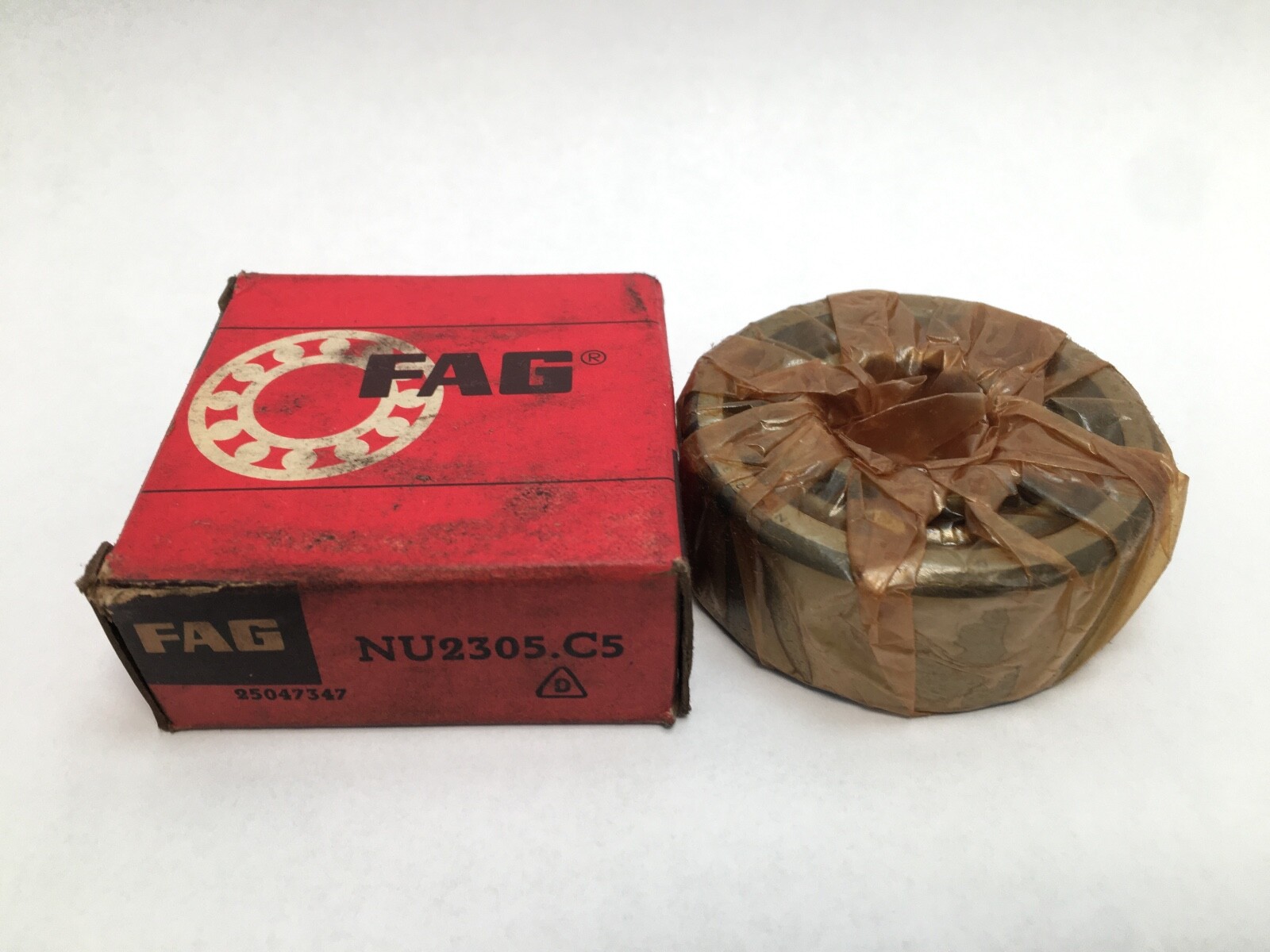

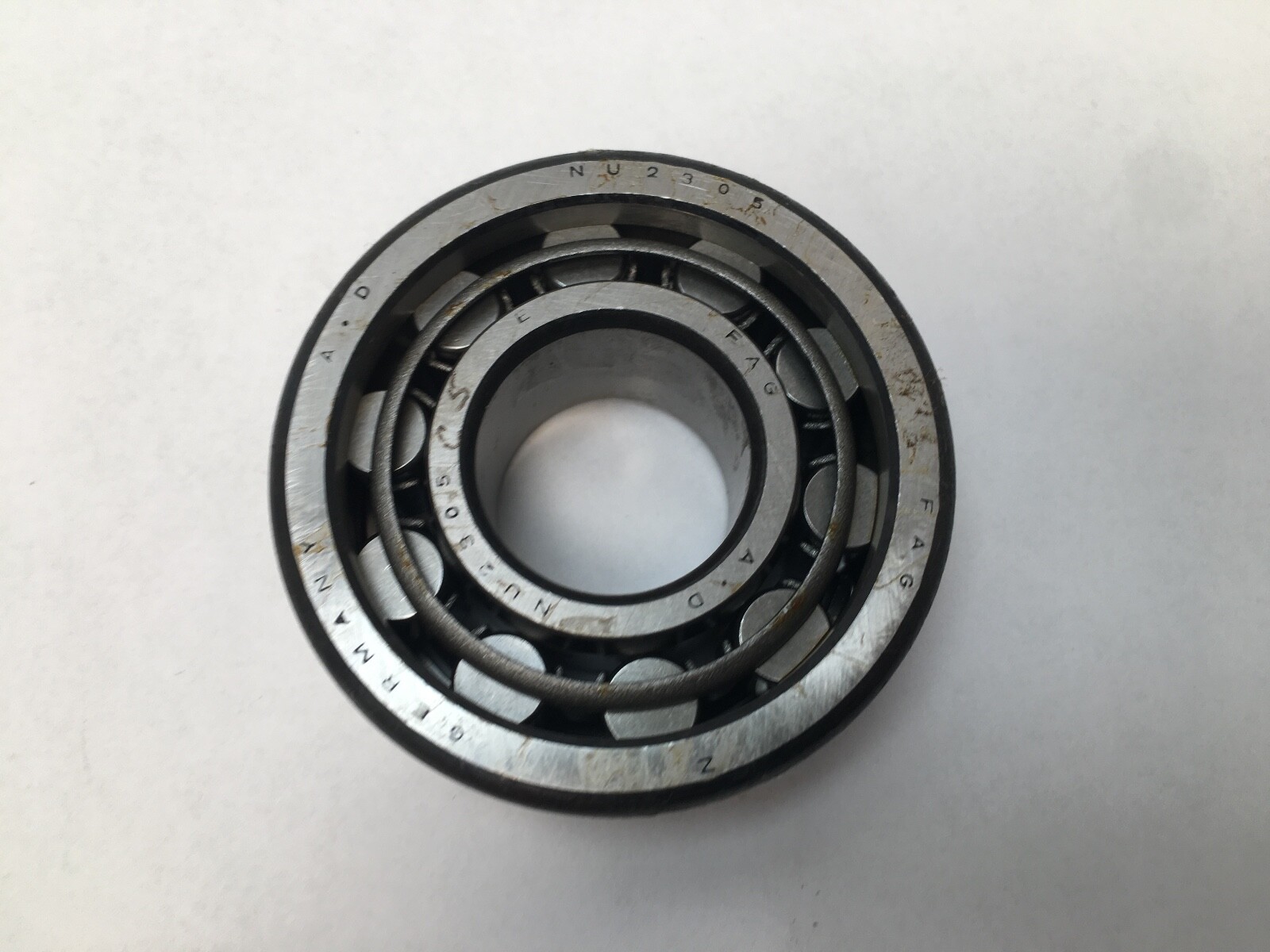

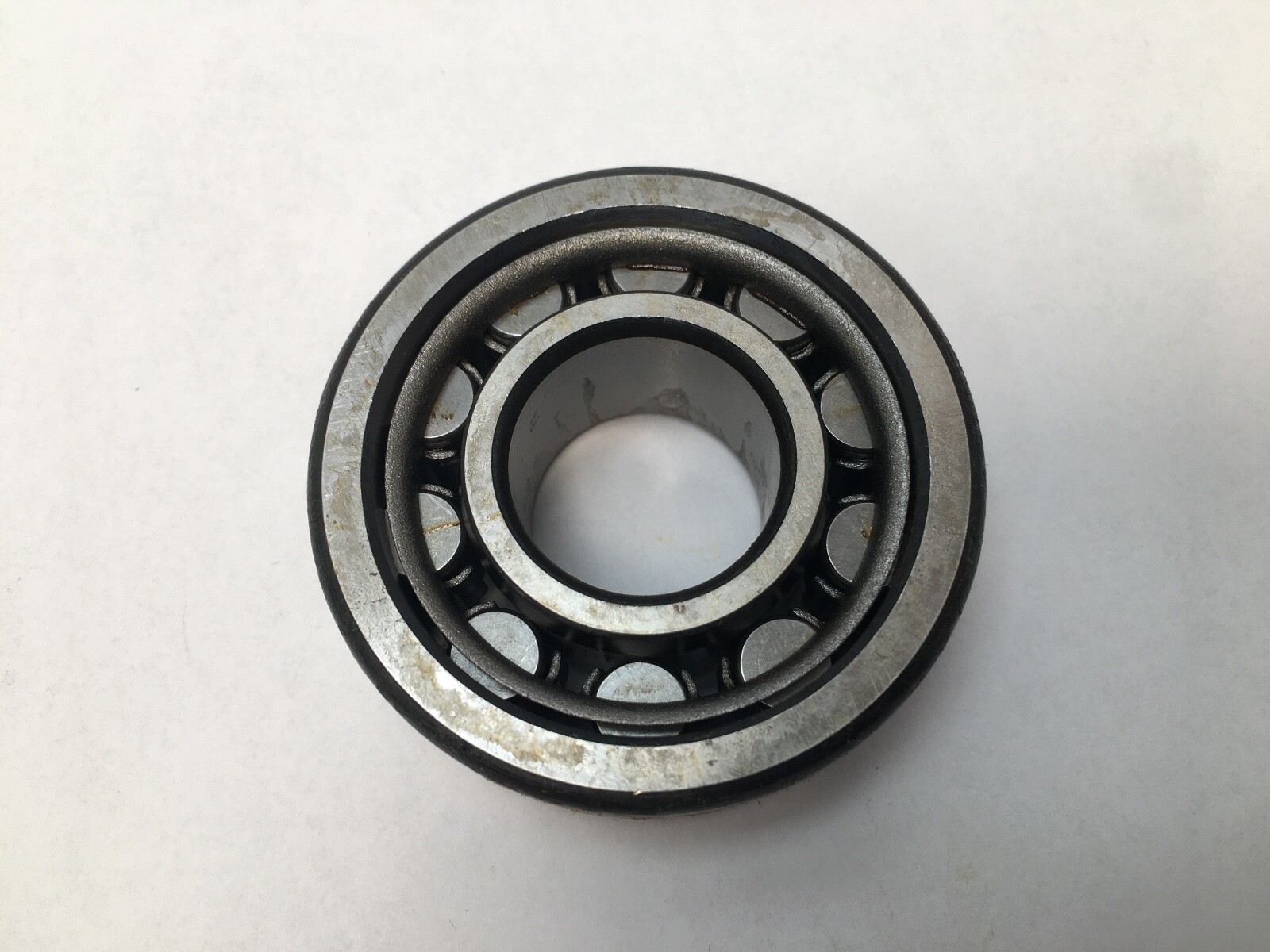

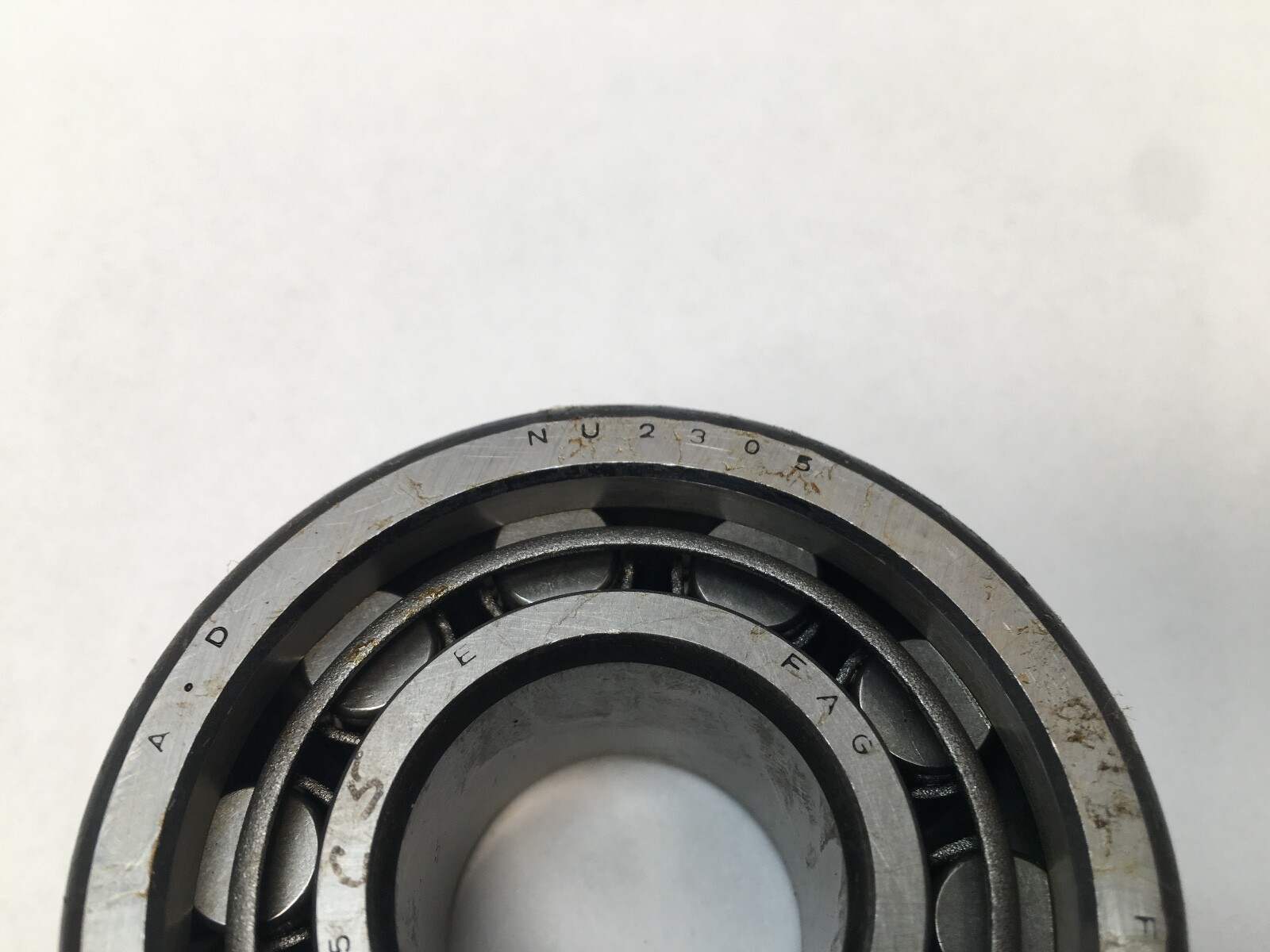

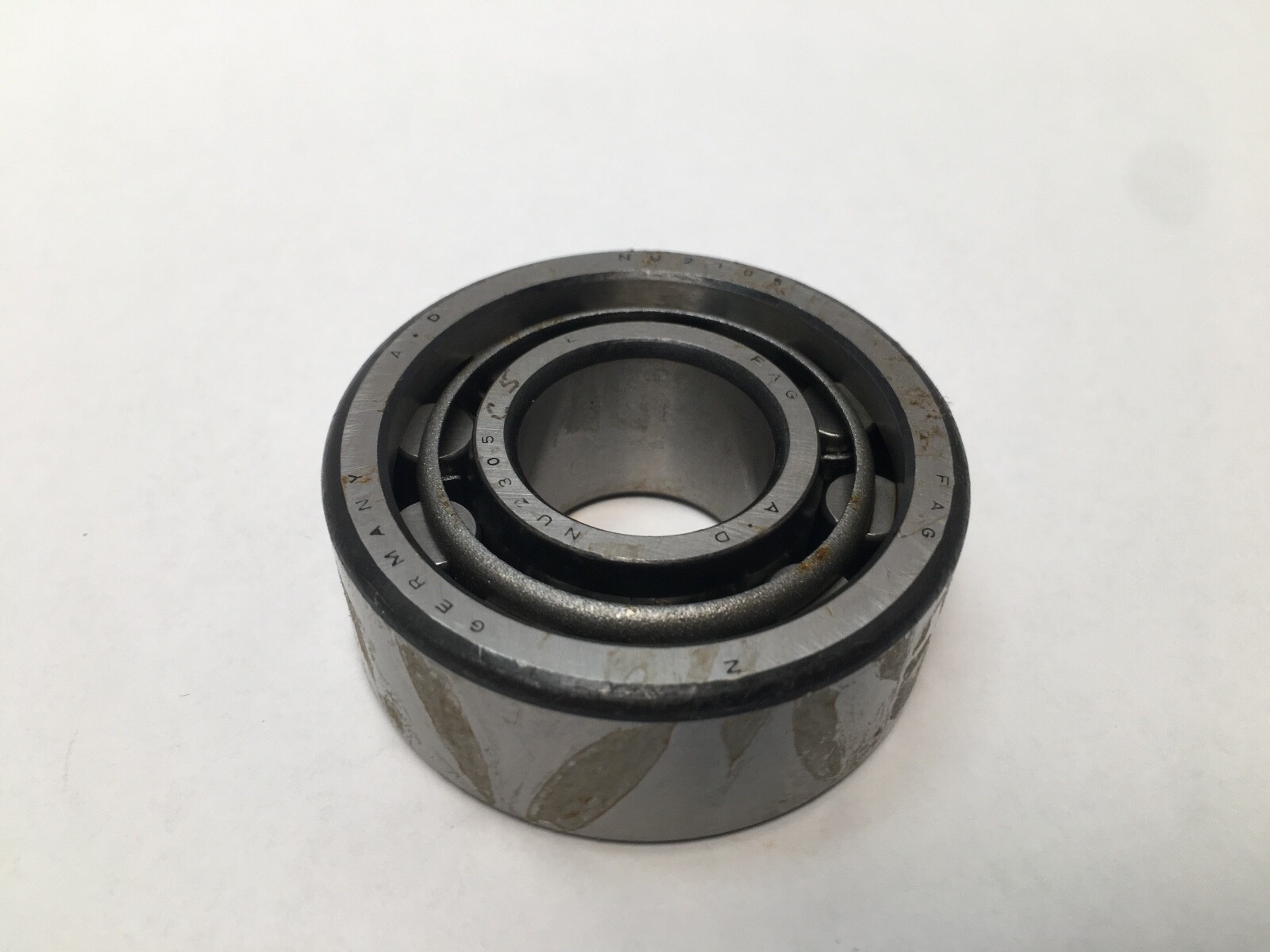

FAG NU2305.C5 (NU2305-C5) single-row cylindrical roller bearing, type NU, C5 radial internal clearance, 25 x 62 x 24 mm. Two ribs on the outer ring and a rib-free inner ring: non-locating, separable. Unit Quantity: 1 Pc.
NU — two integral ribs on the outer ring, inner ring without ribs, separable.
2305 — dimension series 23, bore code 05 = 25 mm.
C5 — radial internal clearance greater than C4, the largest standard clearance group.
Bore Diameter: 25 mm. Outside Diameter: 62 mm. Overall Width: 24 mm. Series: 23. Base Number: NU2305. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Internal Clearance: C5. Expansion Type: Non-locating (type NU). Harmonization Code: 8482.50.00. Unit Quantity: 1 Pc.
Bore Diameter: 25 mm. Outside Diameter: 62 mm. Overall Width: 24 mm. Bore Type: Straight.
Current Schaeffler successor: FAG NU2305-E-XL-TVP2. Successor data: Dynamic Load Rating: 67,000 N. Static Load Rating: 56,000 N. Limiting Speed: 16,500 rpm. Reference Speed: 8,200 rpm. Item Weight: 0.344 kg (0.76 lb). Permissible axial displacement: 1.9 mm. Minimum shaft shoulder diameter: 32 mm. Maximum shaft shoulder diameter: 33 mm. Maximum housing shoulder diameter: 55 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1.1 mm. Cross-references at 25 x 62 x 24 mm, clearance and cage varying by suffix: SKF NU 2305 ECP/C5, NSK NU2305ET, NTN NU2305E, Koyo NU2305.
Bore Diameter: 25 mm. Outside Diameter: 62 mm. Overall Width: 24 mm.

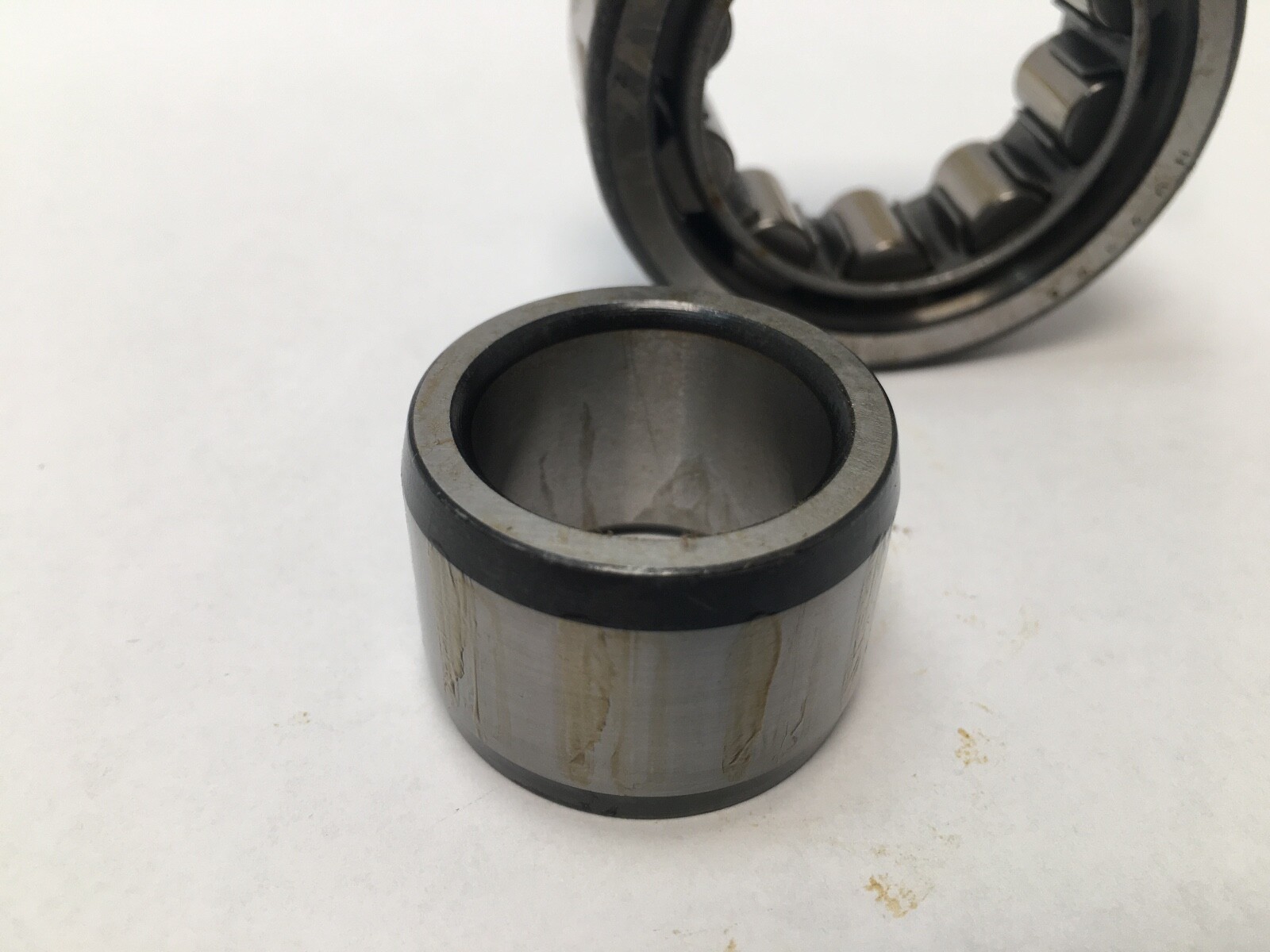

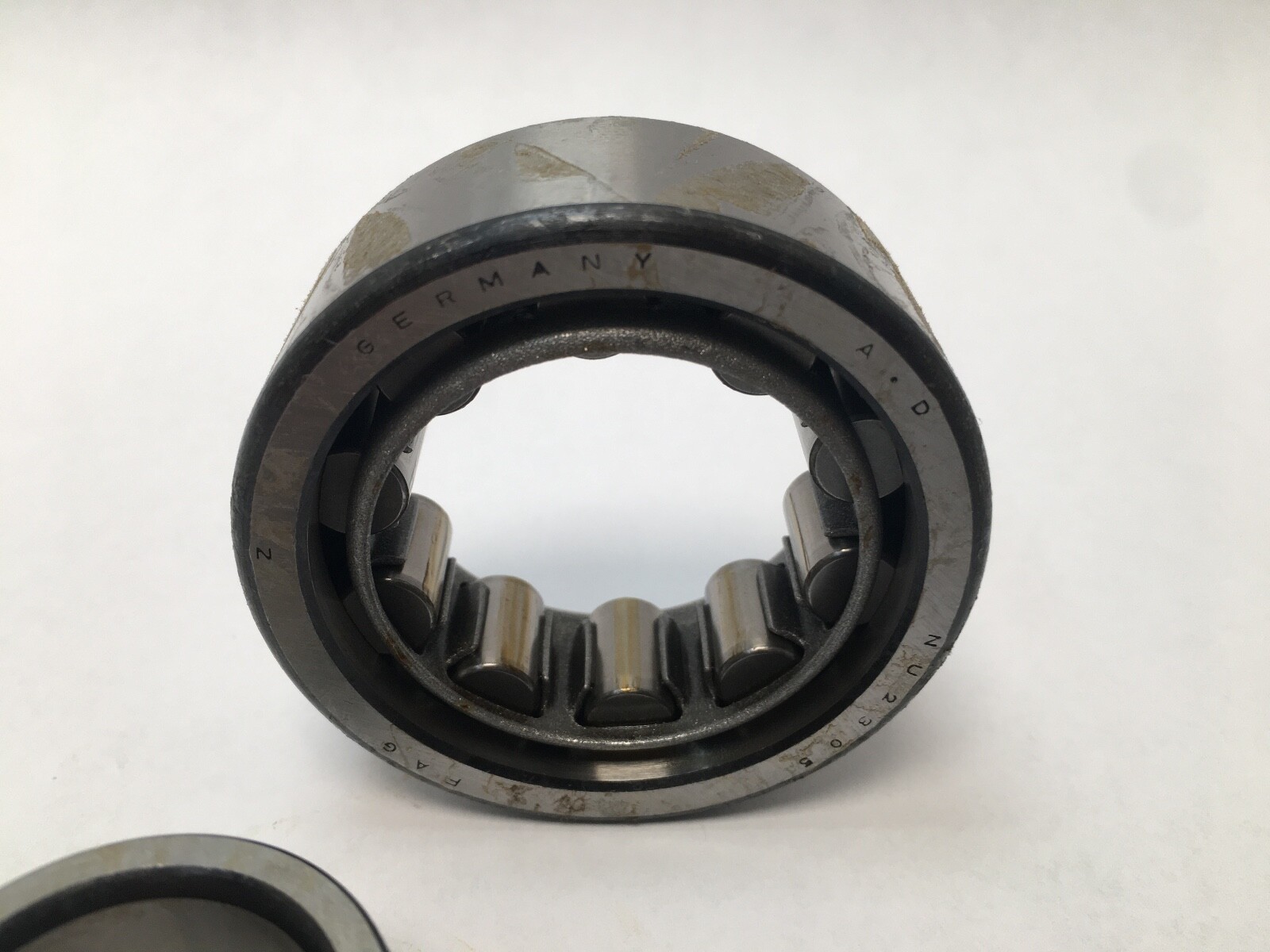

Two integral ribs on the outer ring and an inner ring without ribs. The bearing is non-locating and separable.
Internal Clearance: C5, radial clearance greater than C4.
