Availability:
7 in stock

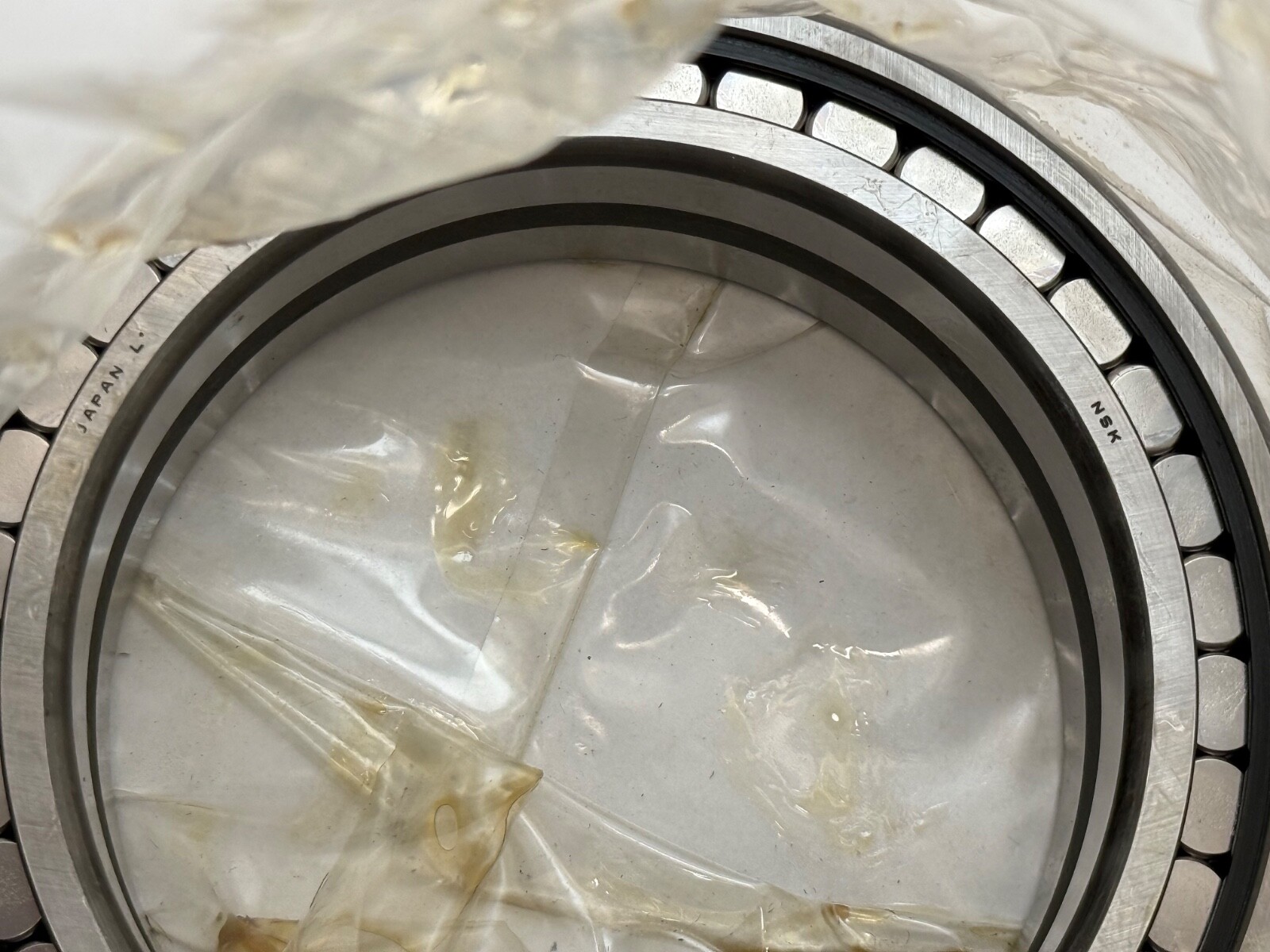

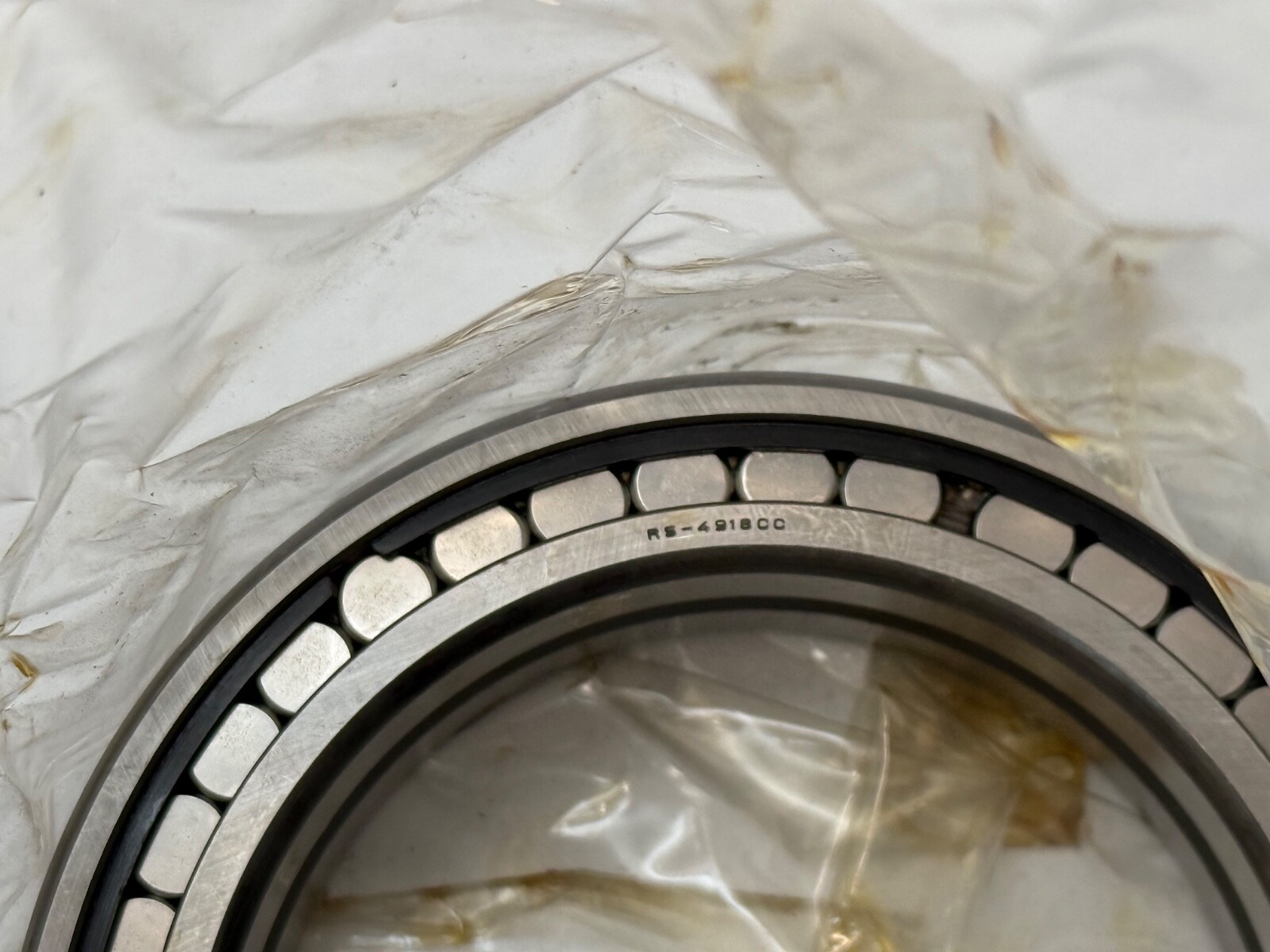

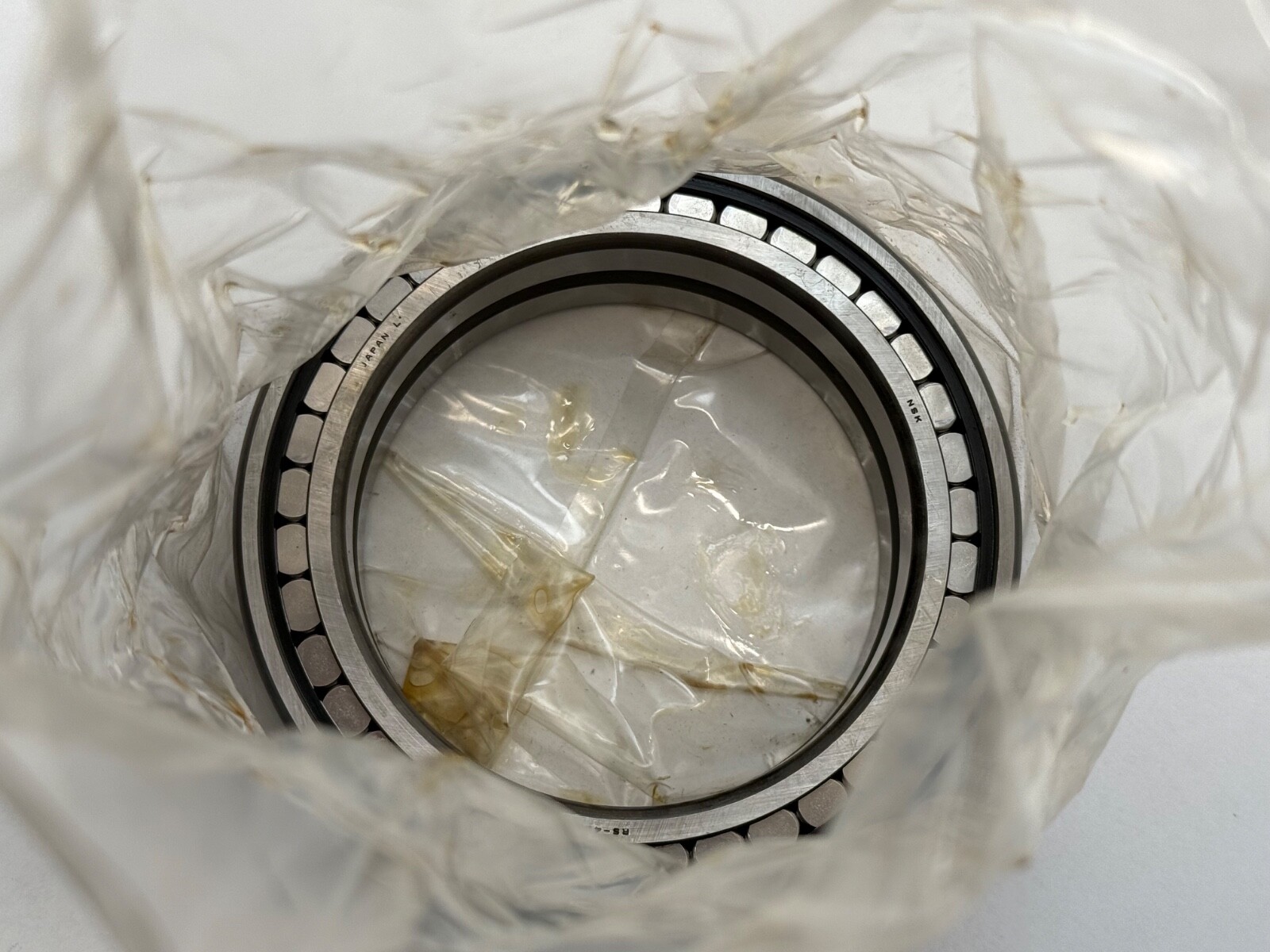

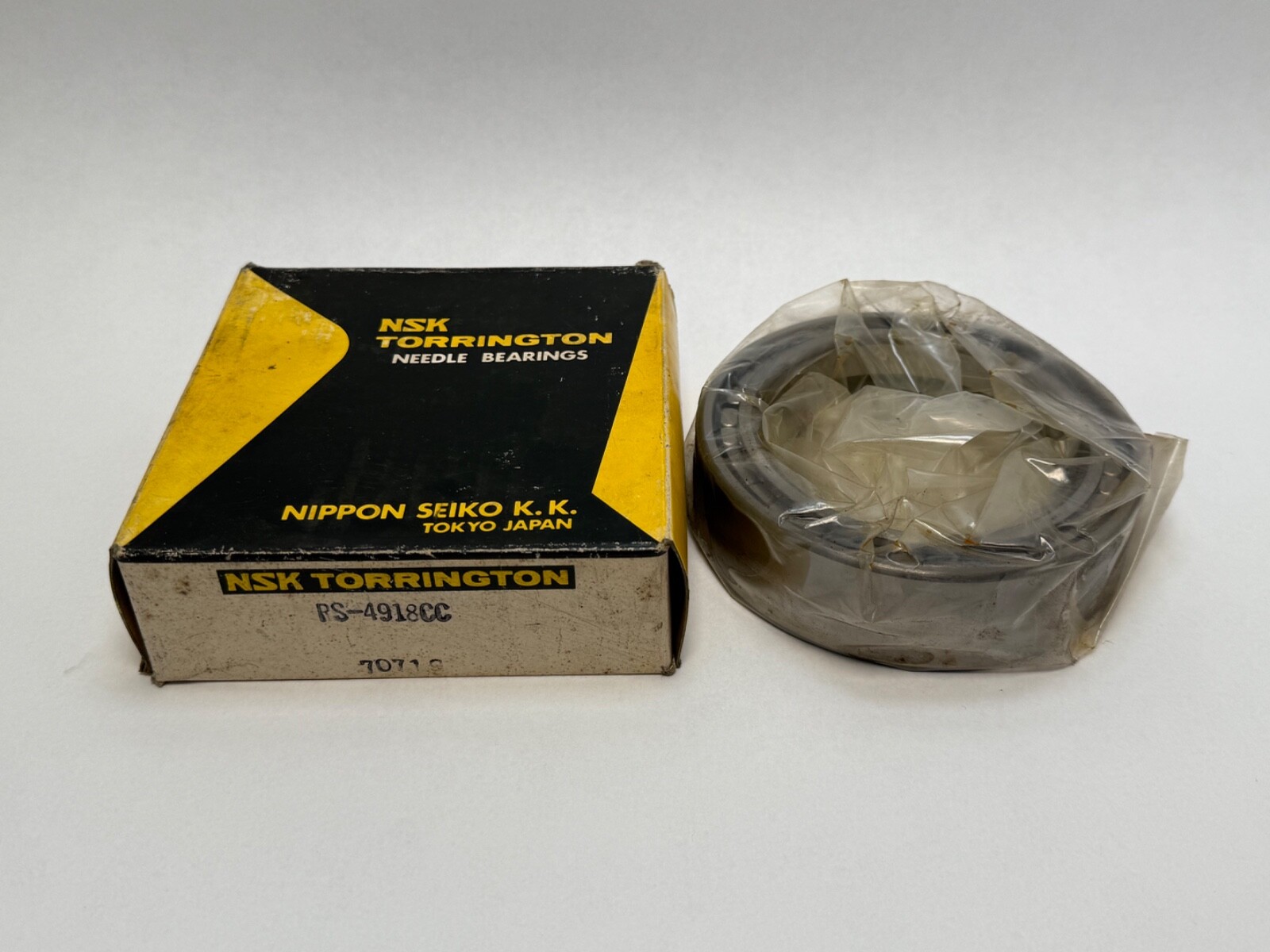

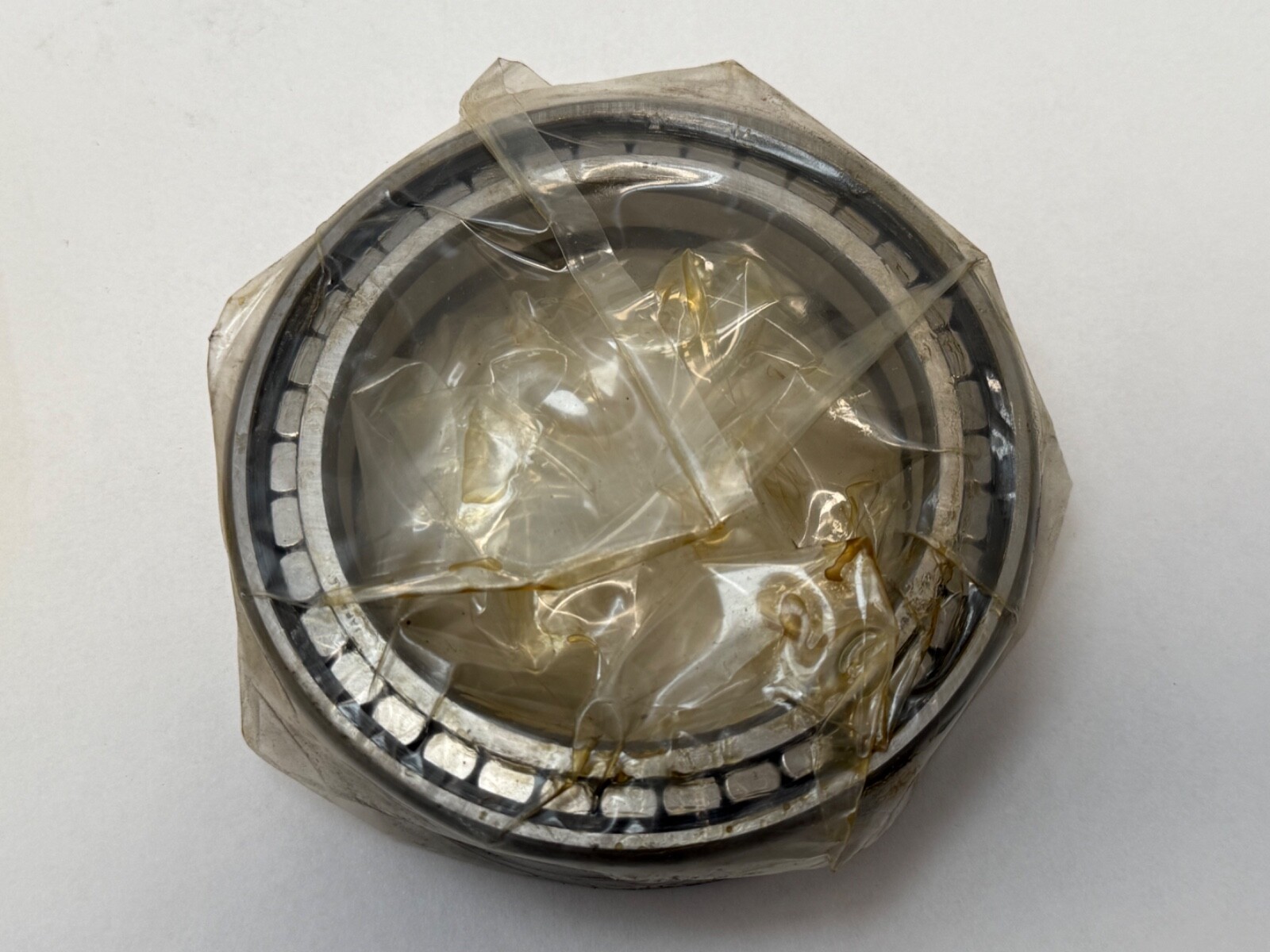

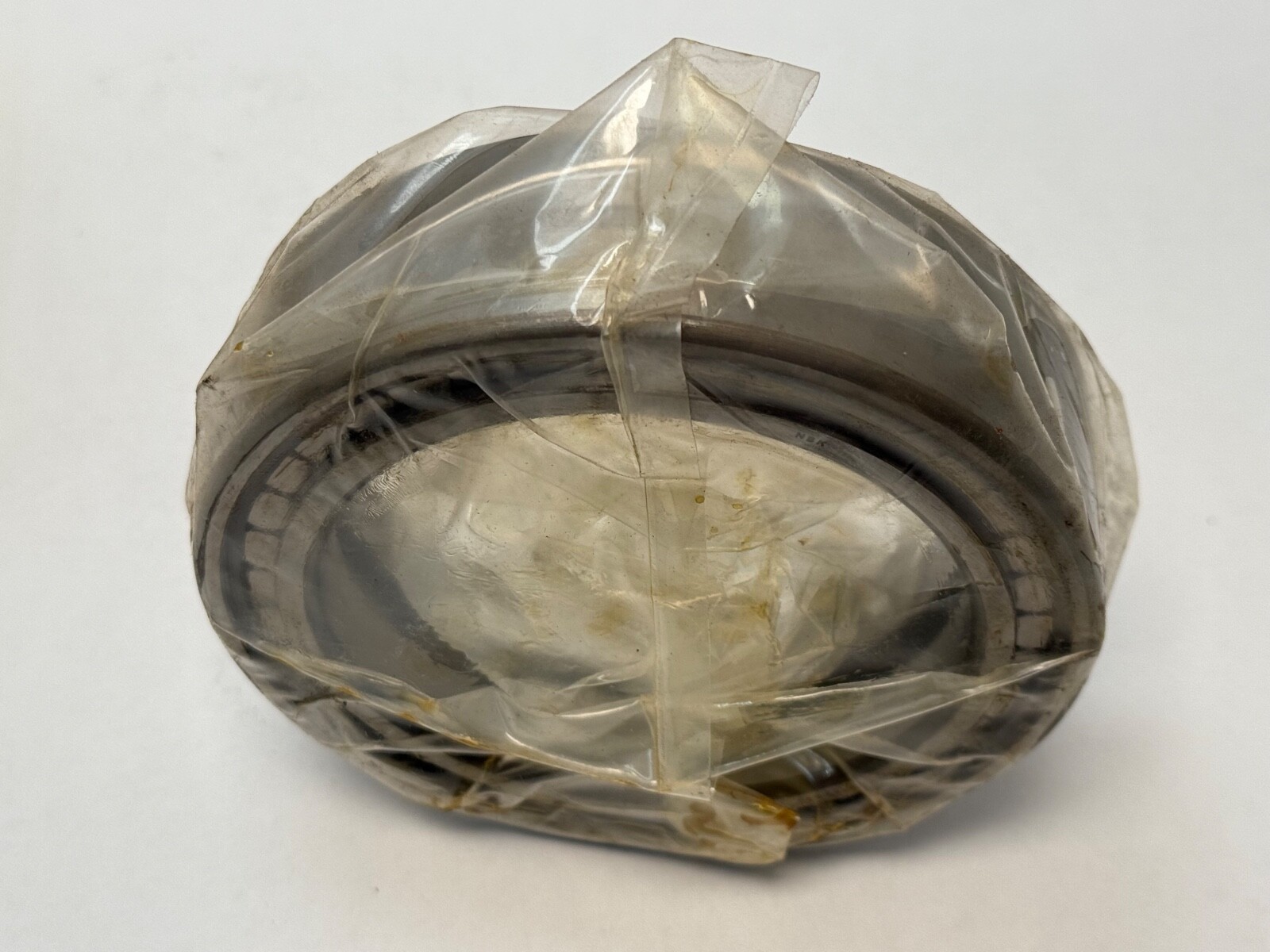

NSK RS4918CC double-row full-complement cylindrical roller bearing, 90x125x35 mm. Straight bore, open, no cage. Crosses to NNC4918CV.
List Price
$273.82
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | RS4918CC |
| GTIN | 637410023581 |
| Model | RS 4918 CC / NNC 4918 C V |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 90 mm |
| OD | 125 mm |
| Width | 35 mm |
| Material | Chrome Steel |
|---|---|
| Series | RS4900 |
| Closure Type | Open |
| Cage Type | Full complement, no cage |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Base Number | NNC4918 |
| Industry Terms | cylindrical roller bearing; double row cylindrical; full complement roller bearing; caseless roller bearing; thin section roller bearing |
| Common Misspellings | RS4918CCC; RS49I8CC; NNC4918VC; RS4918-C; NCC4918CV |
| Application Types | Machine tool spindles; rolling mill roll necks; gearboxes; precision index drives; heavy radial load shafts |
| Overall Width | 35 mm |
| Mpn Variants | RS4918CC; RS-4918-CC; RS 4918 CC; RS4918; NNC4918CV; NNC4918V; NNC 4918 C V; NNC-4918-CV |
| Additional Attributes | Full complement roller set, no cage; one-piece inner and outer rings |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF NNC 4918 CV |
|---|---|
| Cross Reference 2 | FAG NNC4918-V |
| Cross Reference 3 | INA SL014918 |
| Cross Reference 4 | NTN SL014918 |
| Cross Reference 5 | Koyo NNC4918V |
A double-row full-complement cylindrical roller bearing. Bore Diameter: 90 mm. Outside Diameter: 125 mm. Overall Width: 35 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Cage Type: Full complement, no cage. Bearing Material: Chrome steel. Series: RS4900.
NNC — double-row cylindrical roller bearing. Two rows of rollers between a one-piece inner ring and a one-piece outer ring.
V — full complement. The cage is omitted and the roller pockets are filled, which raises the roller count and with it the radial load capacity.
4918 — the 49 section at 90 mm bore, 125 mm outside diameter, 35 mm width.
A 35 mm width on a 90 mm bore and a 125 mm outside diameter is a thin section, so the bearing fits where radial space is short and load is high.
A full complement carries more radial load than a caged bearing of the same envelope. Without a cage to separate them, adjacent rollers touch and their contact surfaces run against each other, so the practical speed range is lower than a caged equivalent.
Bore Diameter: 3.5433 in. Outside Diameter: 4.9213 in. Overall Width: 1.3780 in. Bore Type: Straight, so the inner ring mounts directly on a cylindrical shaft seat. Snap ring included: No.
Unit Quantity: 1 Pc.
The 90 by 125 by 35 mm envelope with a double-row full-complement roller set is the NNC 4918 V size, and the crosses listed are the designations other makers carry for it.
