Availability:
8 in stock

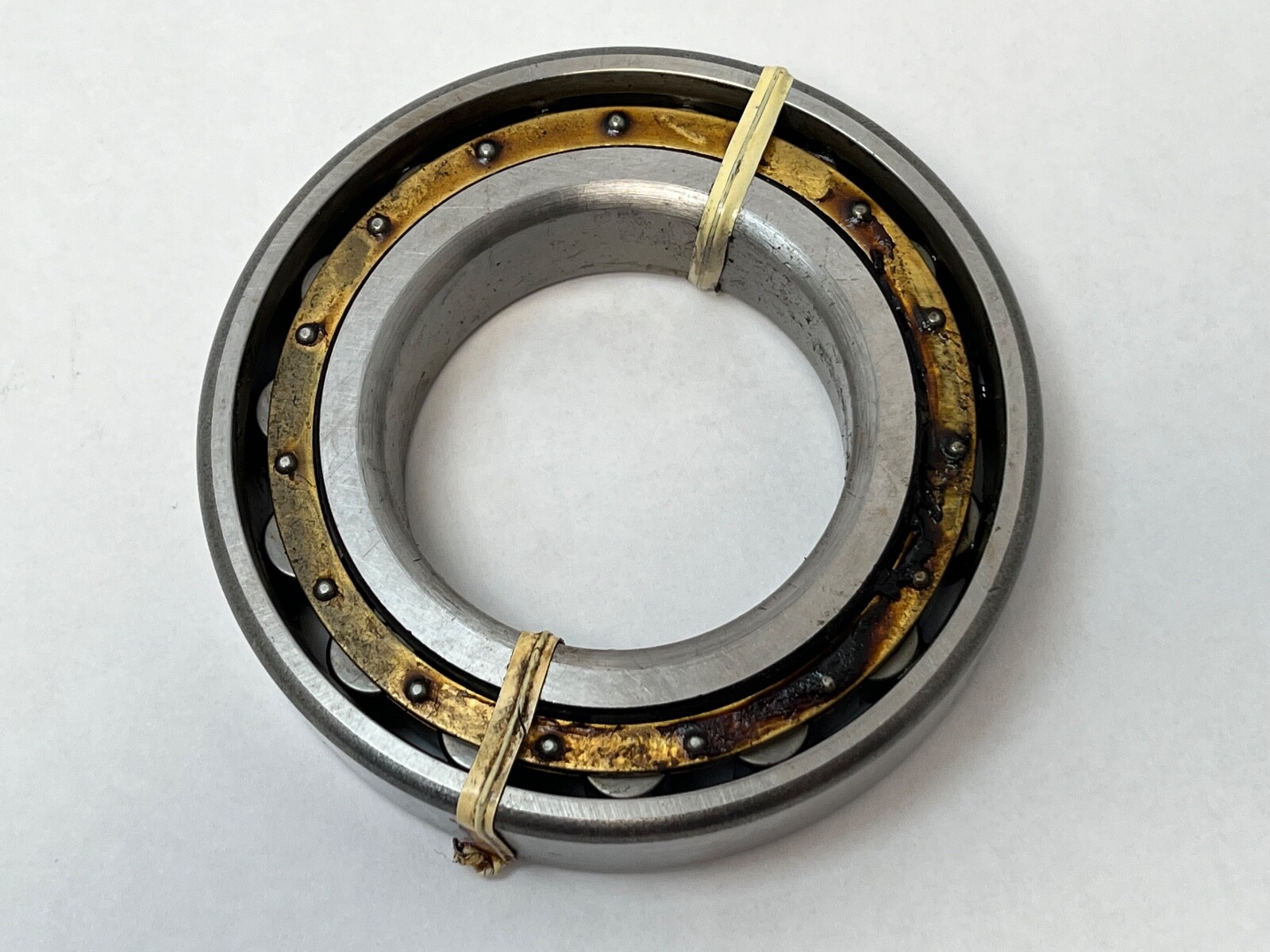

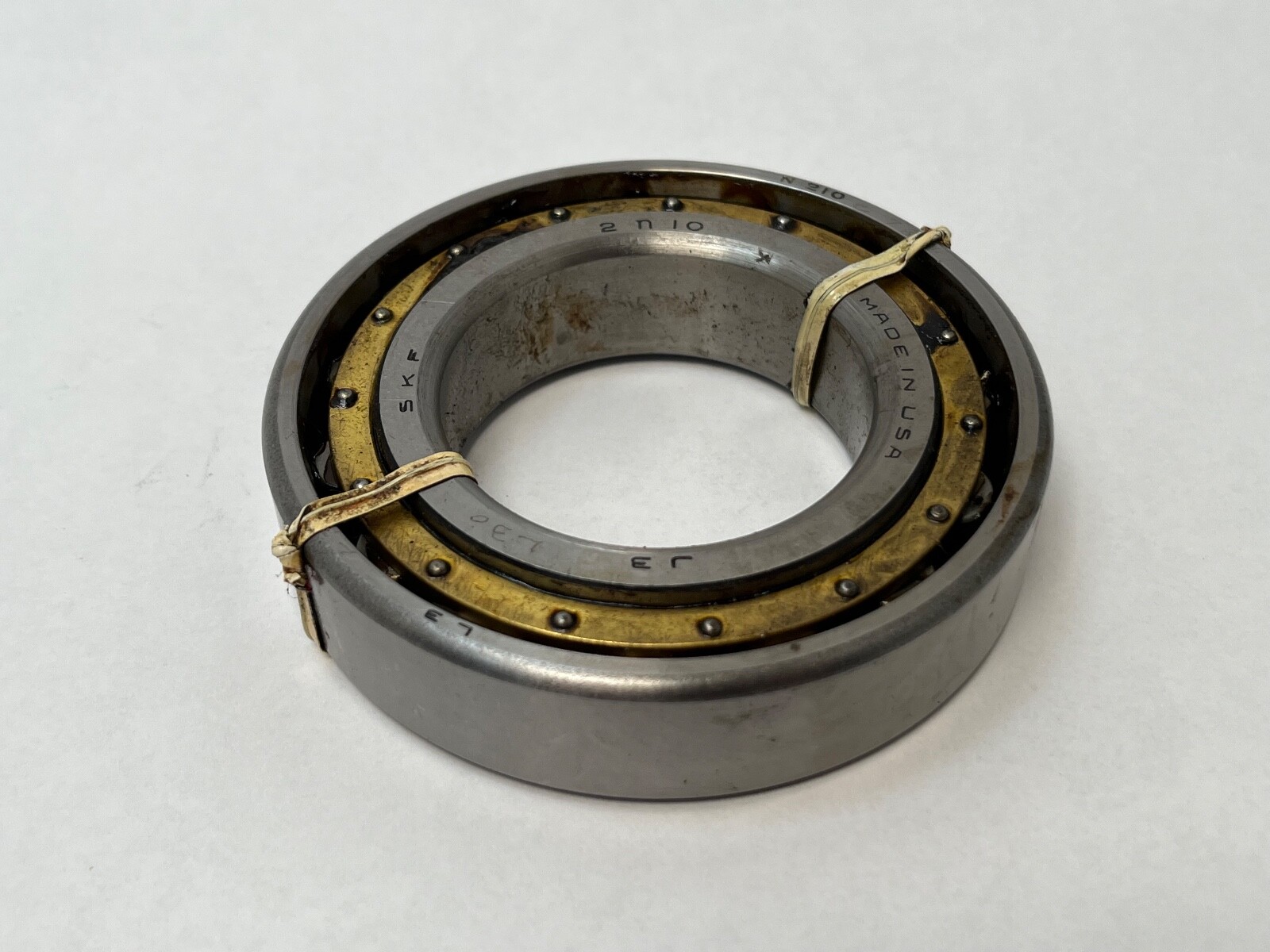

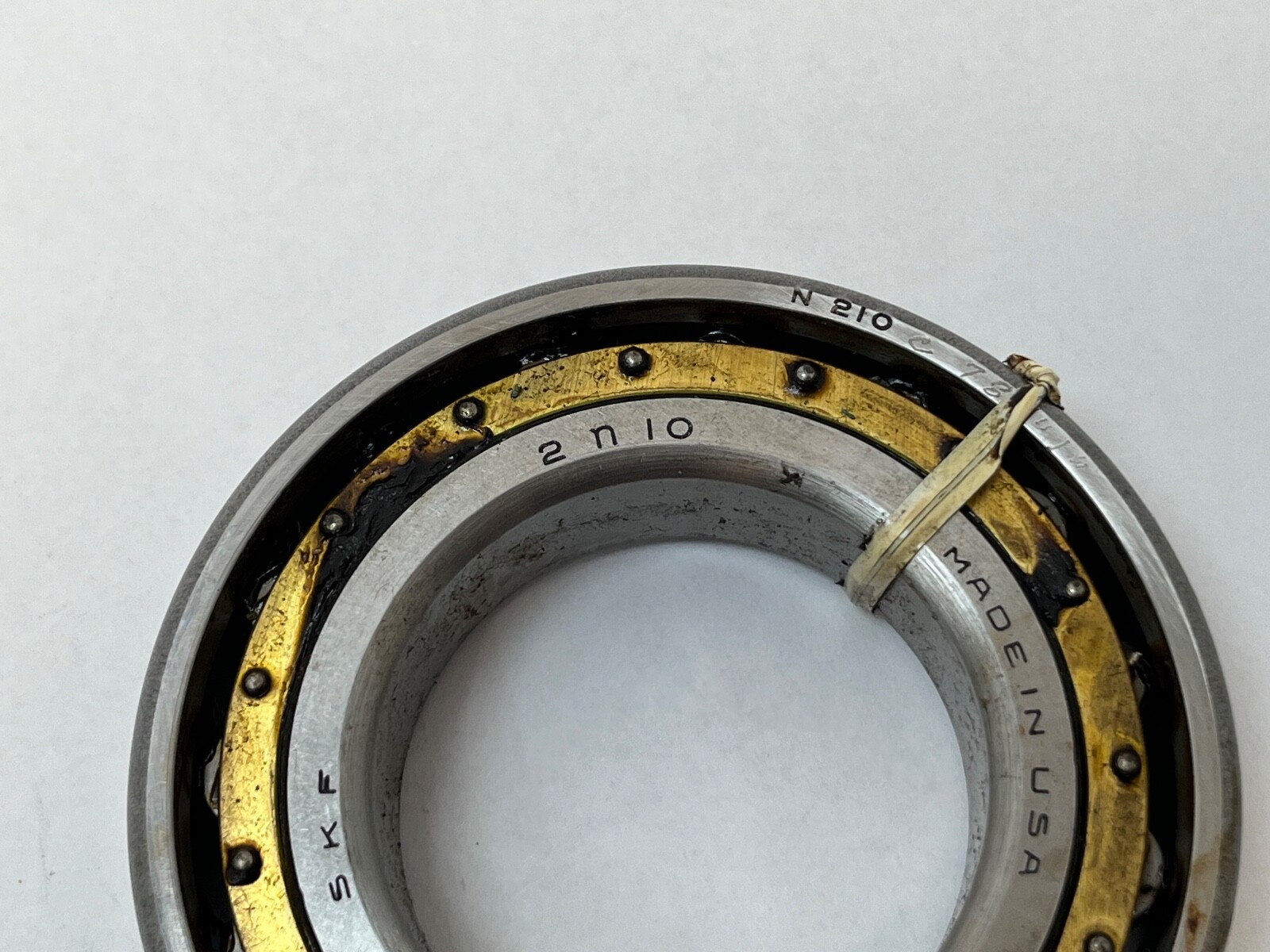

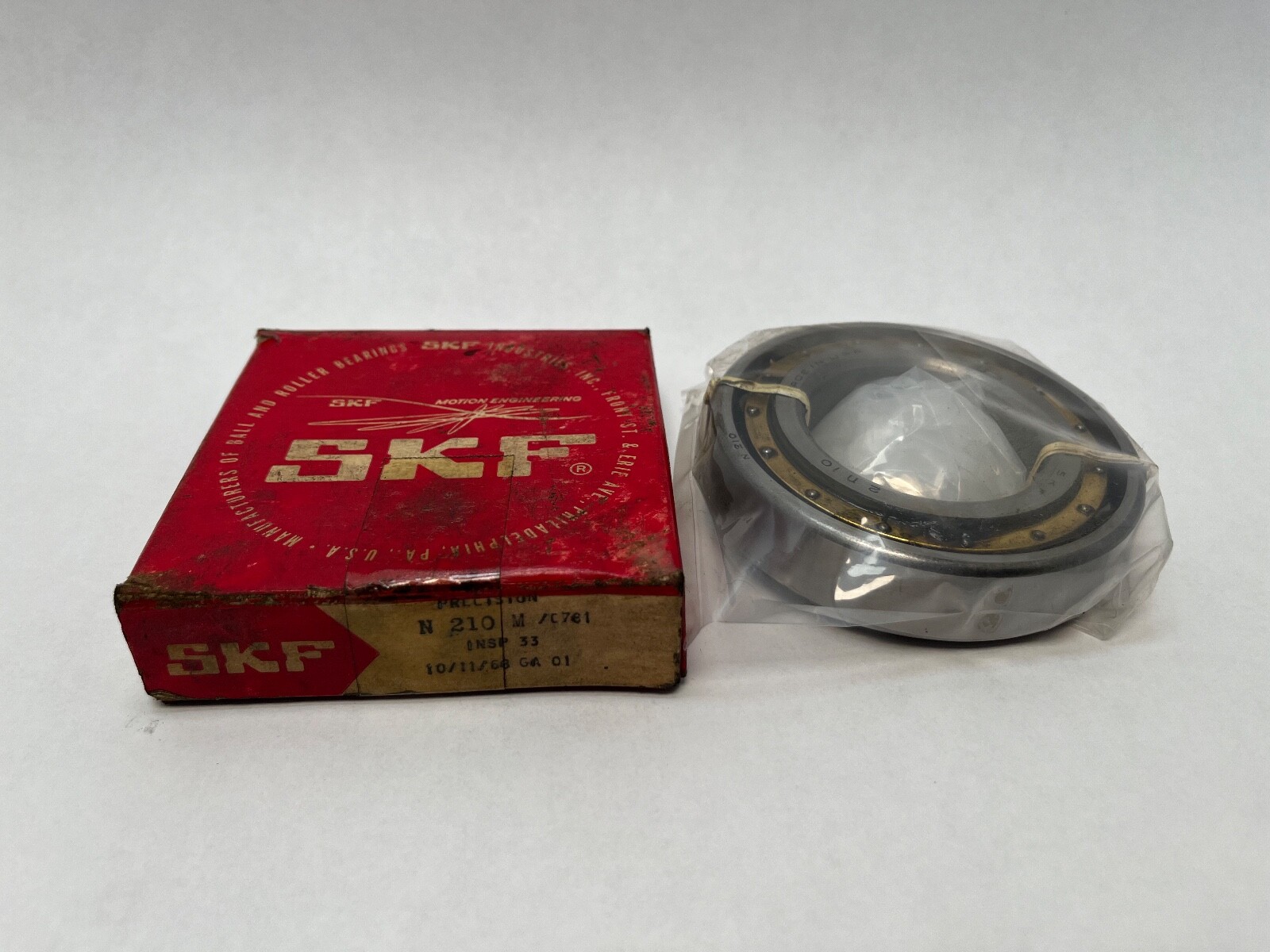

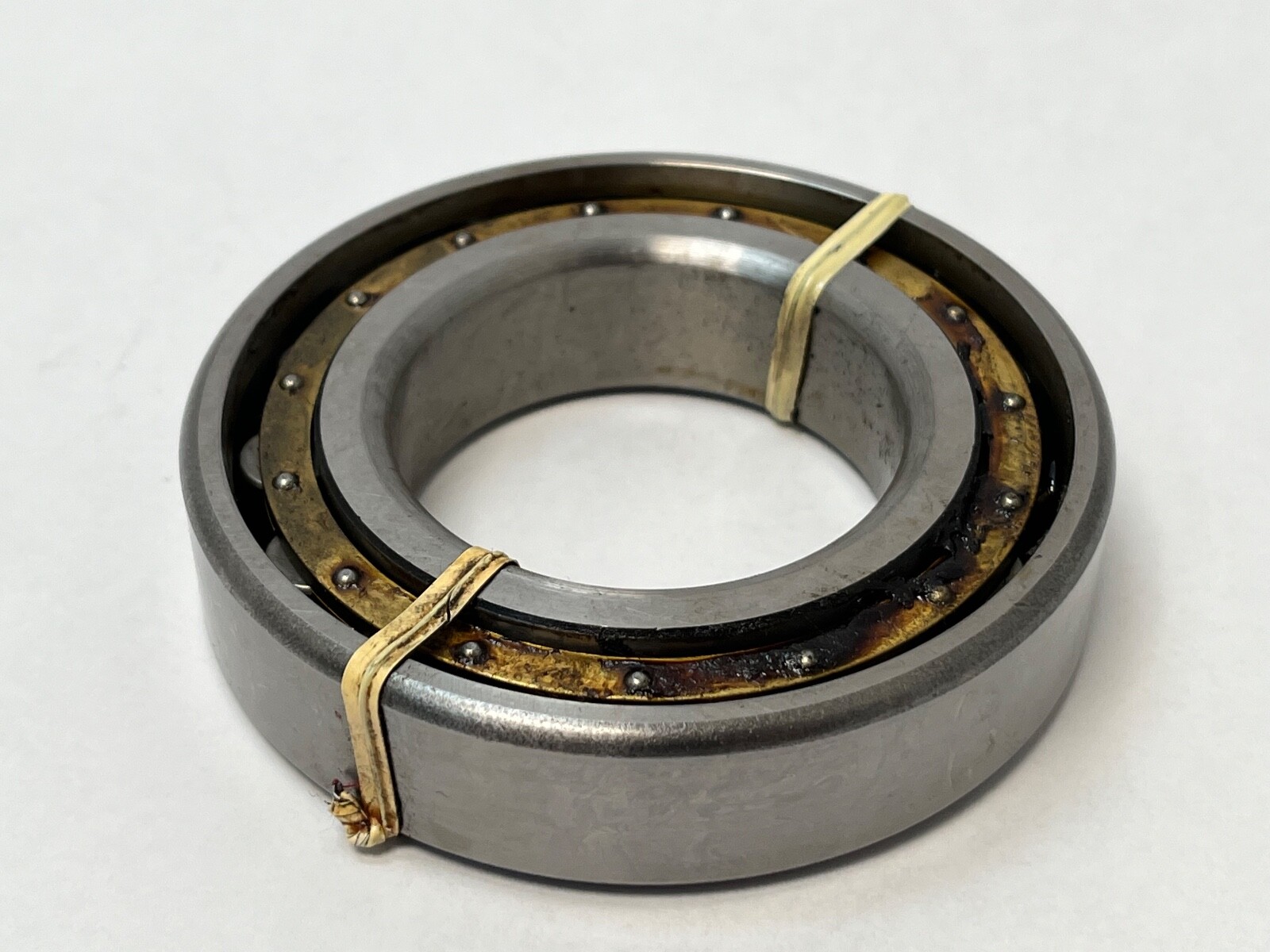

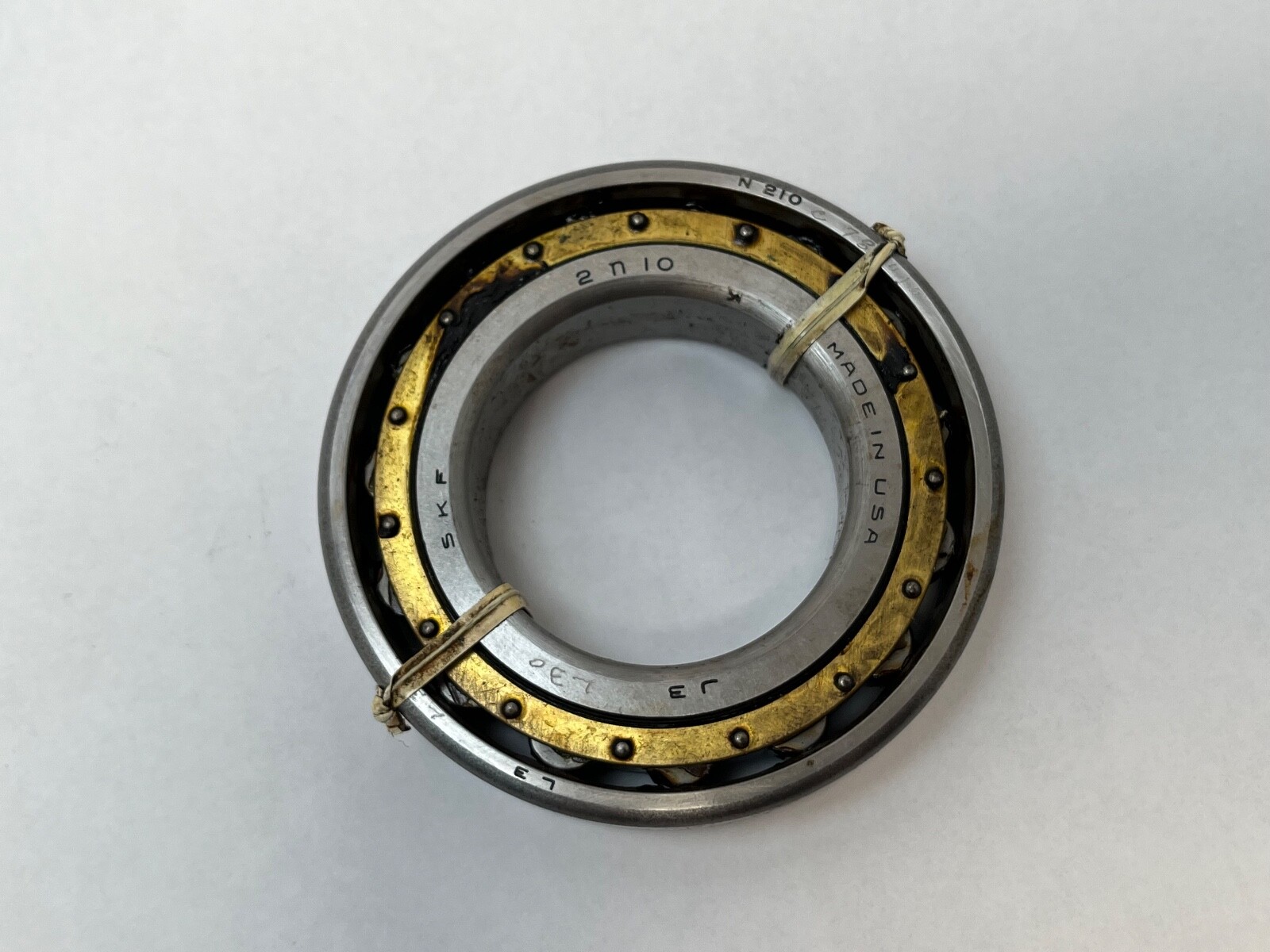

SKF N 210 M P5 cylindrical roller bearing, 50 x 90 x 20 mm, N design, machined brass cage, P5 precision. Single row, straight bore, non-locating.
List Price
$44.99
8 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | N210MP5 |
| Model | N 210 M P5 2N10C781 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Chrome Steel |
|---|---|
| Series | 200 |
| Base Number | N210 |
| Industry Terms | cylindrical roller bearing, N type roller bearing, precision roller bearing, brass cage bearing, non-locating bearing |
| Common Misspellings | N201MP5, N210PM5, NU210MP5, N 210M P5 |
| Overall Width | 20 mm |
| Number Of Flanges | 2 |
| Mpn Variants | N 210 M/P5, N210MP5, N210M, N-210-M-P5, N 210 M P5 2N10C781, N210 C781 |
| Precision Class | RBEC 5 / P5 |
| Rolling Elements | Cylindrical Rollers |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Application Types | Machine tool spindles; Precision drive shafts; Electric motors |
| Closure Type | Open |
| Cross Reference 1 | NSK N210M – brass cage, Normal class |
|---|---|
| Cross Reference 2 | NTN N210 – Normal class |
| Cross Reference 3 | FAG N210-E-M1 – E design, Normal class |
SKF N 210 M P5 single-row cylindrical roller bearing, N design, with machined brass cage and ISO P5 precision. Two integral flanges on the outer ring, flangeless inner ring; separable and non-locating. Unit Quantity: 1 Pc.
N — single-row cylindrical roller bearing, two integral flanges on the outer ring, inner ring without flanges.
2 — dimension series 02, light series.
10 — bore code, 10 x 5 = 50 mm.
M — machined brass cage.
P5 — dimensional and running accuracy to ISO tolerance class 5, tighter than Normal.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 20 mm. Series: 200. Base Number: N210. Number Of Rows: 1. Number Of Flanges: 2. Rolling Elements: Cylindrical Rollers. Bore Type: Straight. Cage Material: Machined brass. Precision Class: RBEC 5 / P5. Closure Type: Open.
Separable bearing: the inner ring slides out of the outer ring, roller and cage assembly. Non-locating design allows axial shaft displacement in both directions.
Cross-references: NSK N210M (brass cage, Normal class); NTN N210 (Normal class); FAG N210-E-M1 (E design with higher capacity, Normal class). Also written N210MP5, N-210-M-P5 and N 210 M P5.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 20 mm.
N is a single-row cylindrical roller bearing with two integral flanges on the outer ring and an inner ring without flanges.
M is a machined brass cage. P5 is ISO tolerance class 5, tighter than Normal.
