Double-row precision cylindrical roller bearing, 60 mm tapered bore x 95 mm OD x 26 mm wide, 1:12 taper, machined brass cage, non-locating design for machine-tool spindles. Sold as 1 Pc.
List Price
Original price was: $167.48.$125.61Current price is: $125.61.
9 in stock
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | NN-3012-AKMC/C481 |
| Model | NN 3012 A K M C481 NN3012KMP5 NN-3012-K-M-C481 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 3000 |
| Condition | New |
| Lubricant | Oil/Grease |
| Base Number | NN3012K |
| Industry Terms | double row cylindrical roller, spindle bearing, tapered bore roller bearing, precision roller bearing, machine tool spindle bearing |
| Common Misspellings | SKF NN3012AKMC C481, NN-3012-AKM-C481, NN3O12, SKF NN 3012 AKMC, NN3012AKMCC48 |
| Application Types | Grinding spindles, turning and milling spindles, precision gearboxes, rolling mill work rolls |
| Number Of Flanges | 3 |
| Bore Shaft Size | 60 mm (2.3622 in), tapered 1:12 |
| Mpn Variants | NN-3012-AKMC/C481, NN3012AKMC/C481, NN 3012 A K M C481, NN3012-A-K-M-P5, NN3012K, NN3012KM |
| Rolling Elements | Cylindrical Rollers |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.50.00 |
| Part Number | NN-3012-AKMC/C481 |

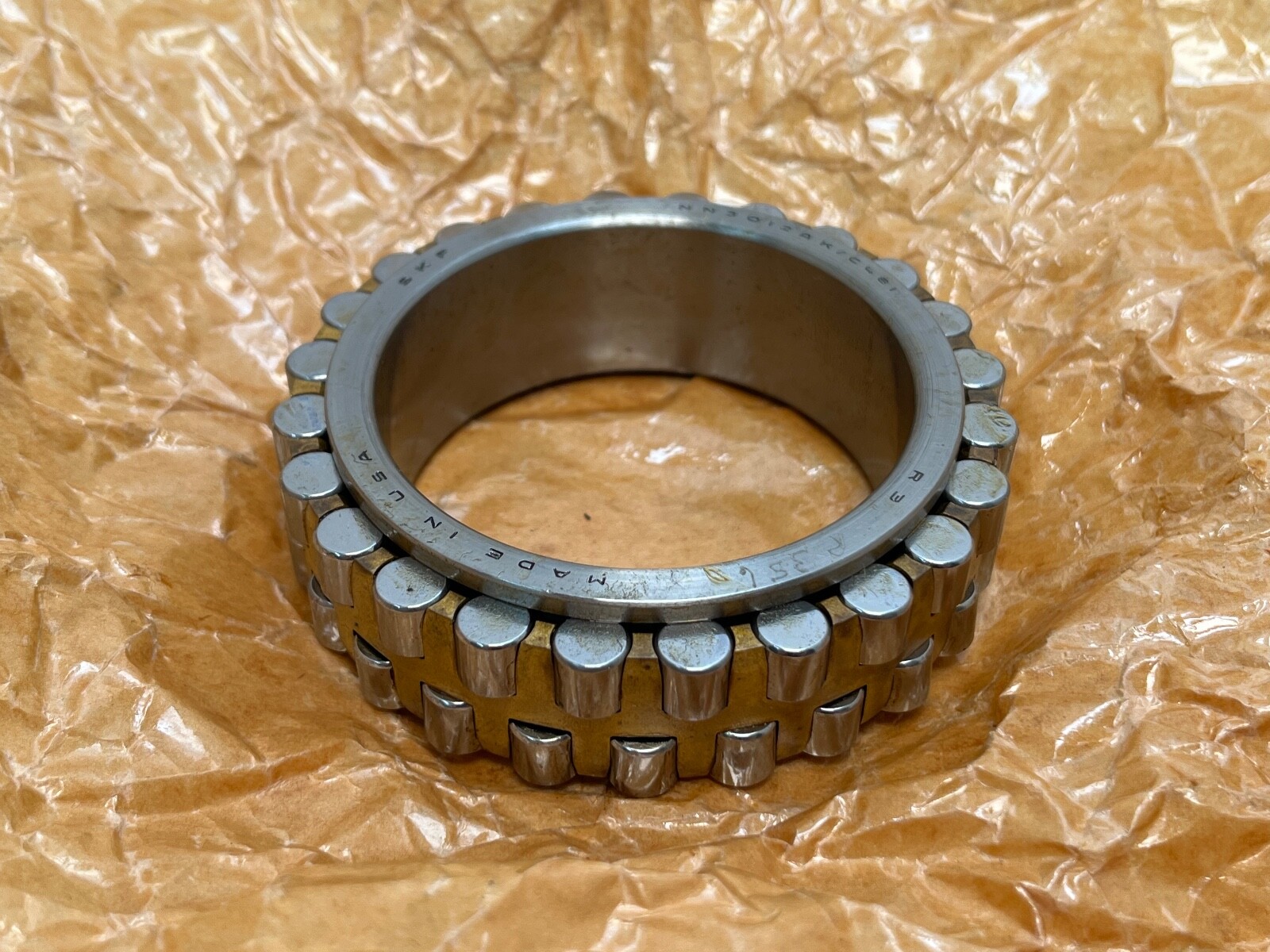

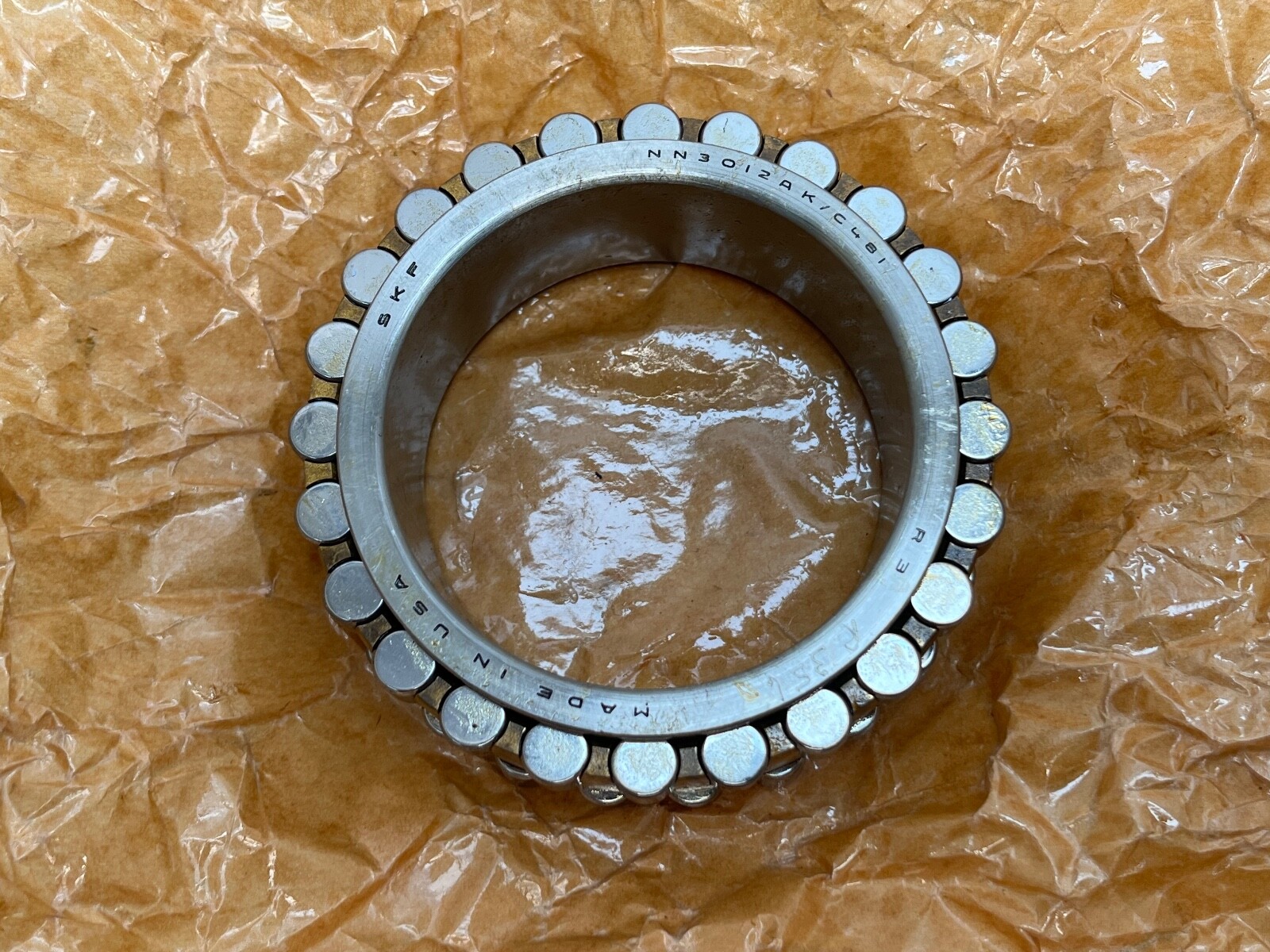

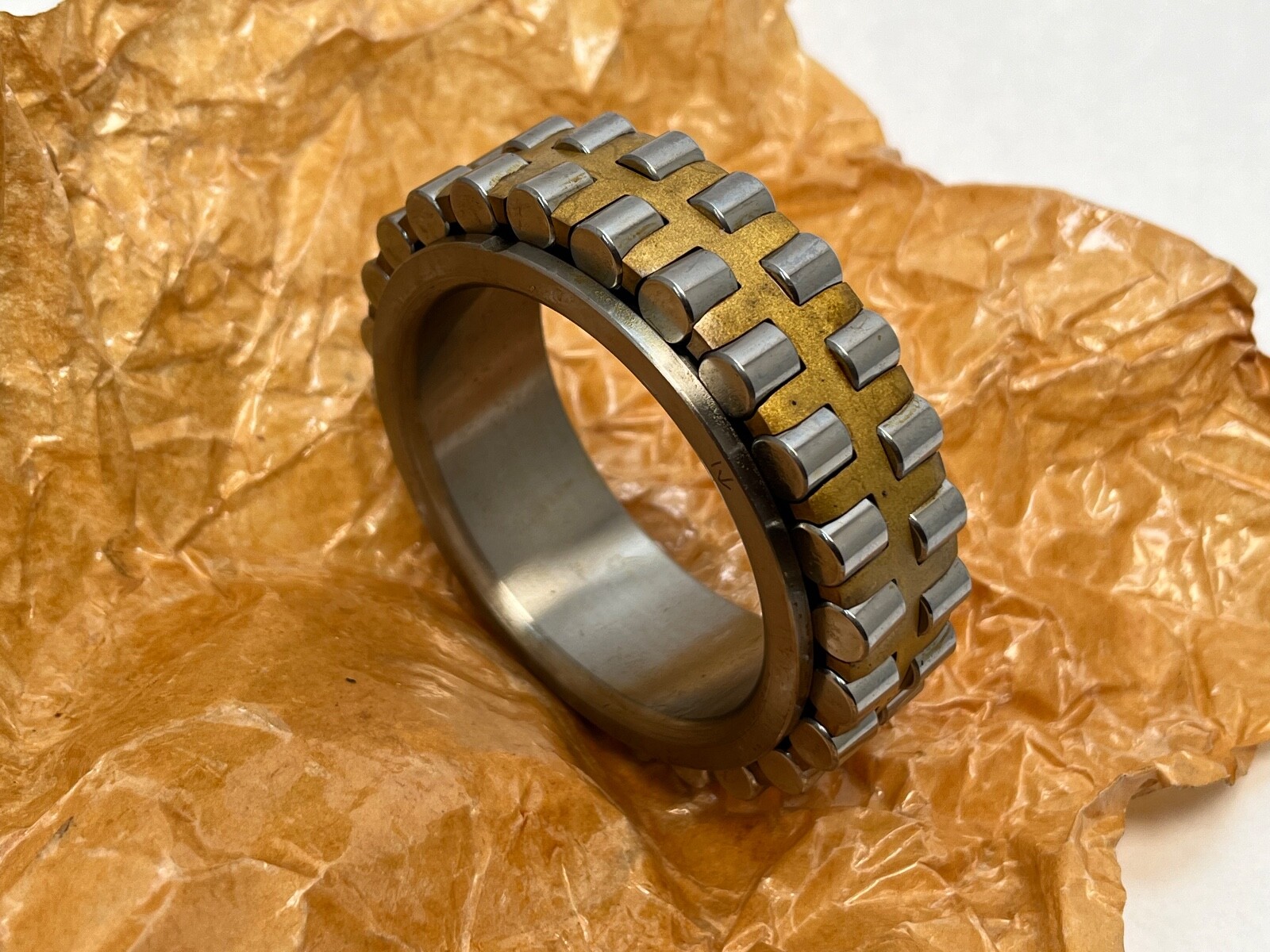

An SKF NN 3012 K double-row cylindrical roller bearing with a 60 mm tapered bore, a 95 mm outside diameter and a 26 mm width. It is a precision spindle bearing with a machined brass cage.

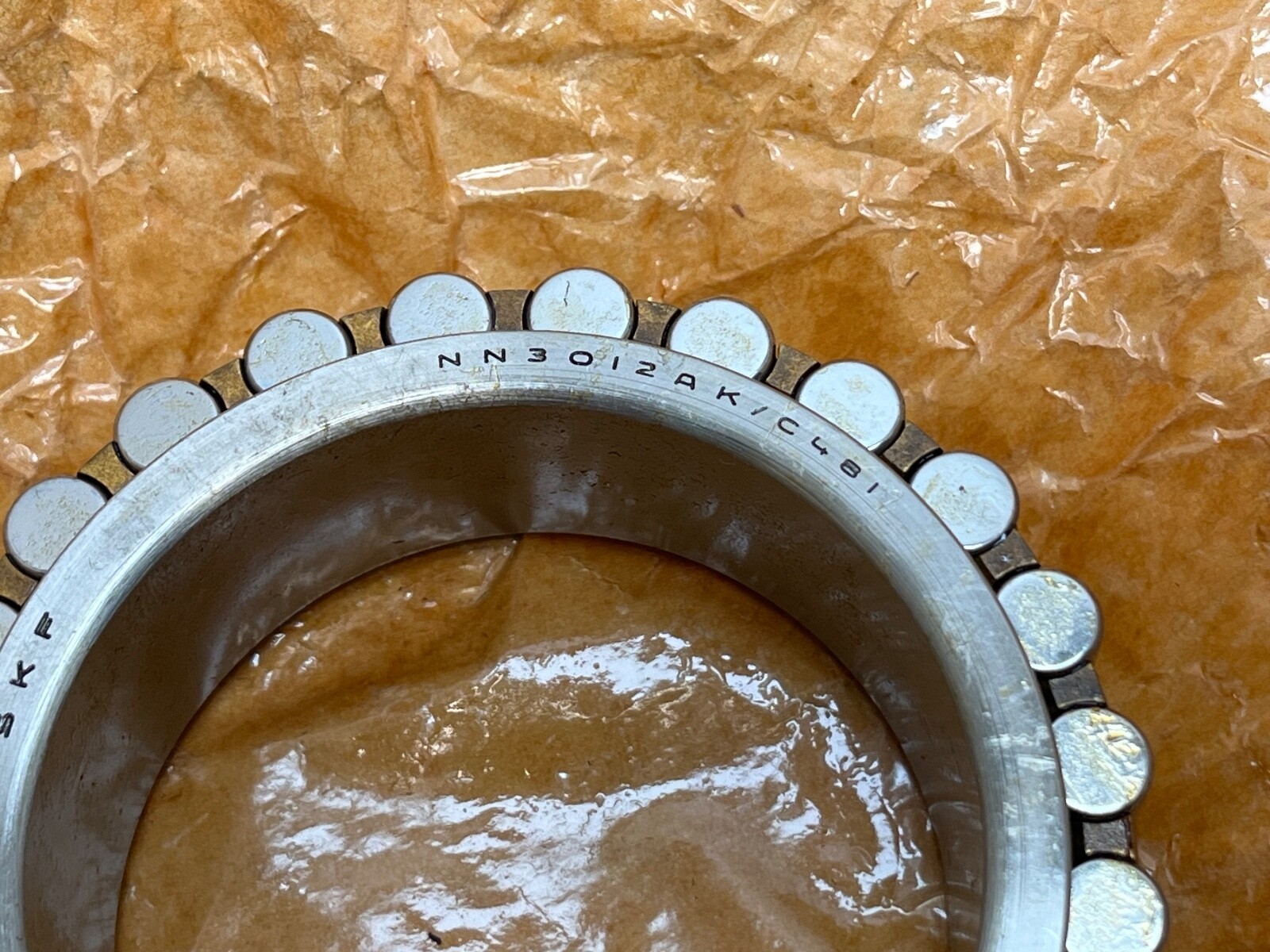

NN: double-row cylindrical roller design, rollers guided by the inner ring, outer ring ribless. 3012: 30 series, 60 mm bore, 95 mm OD, 26 mm width. A: SKF internal design variant. K: 1:12 tapered bore. M: machined brass cage. P5: precision class 5, equivalent to ABEC 5. C481: SKF special-execution code, retained as a search term.

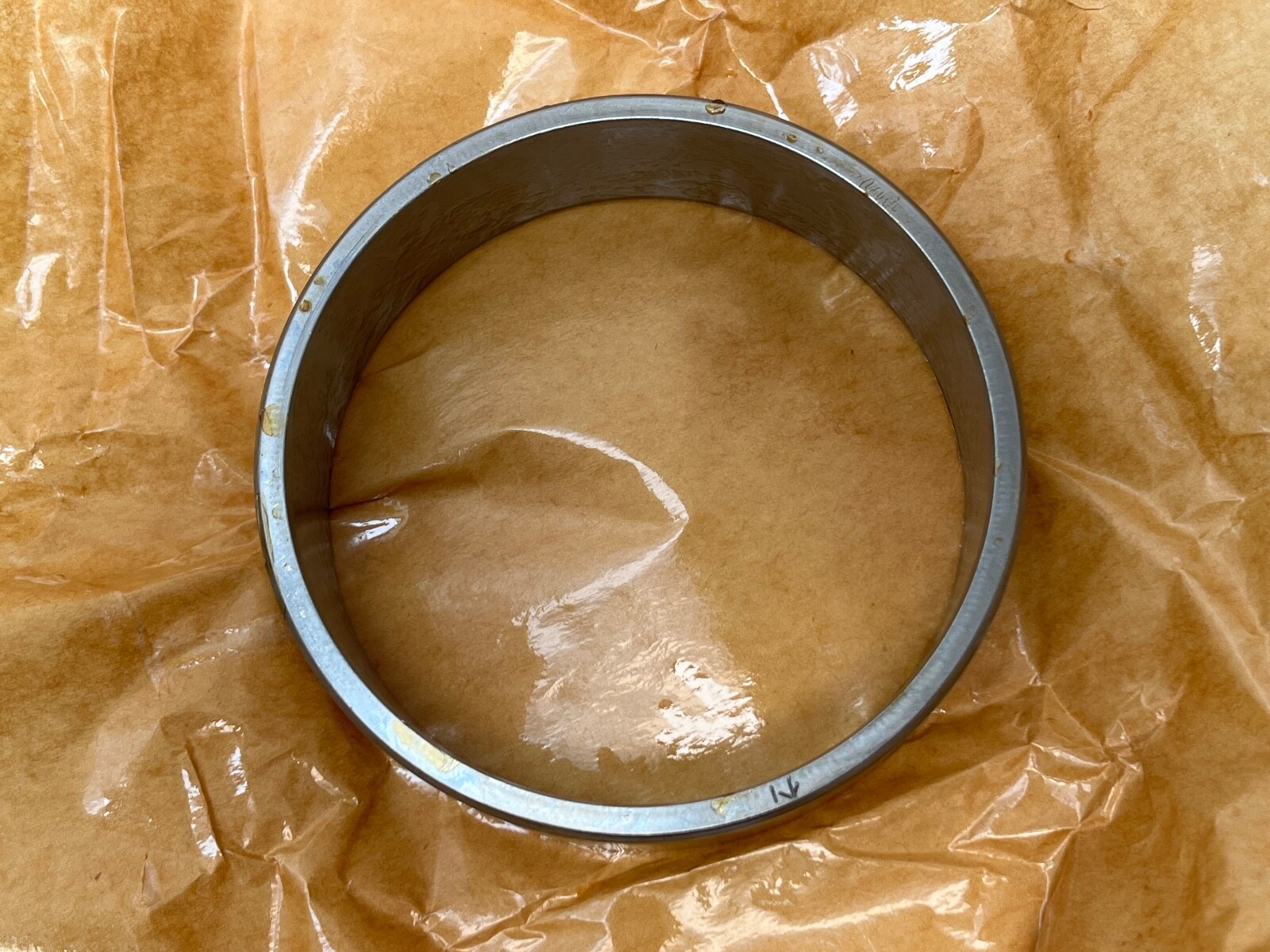

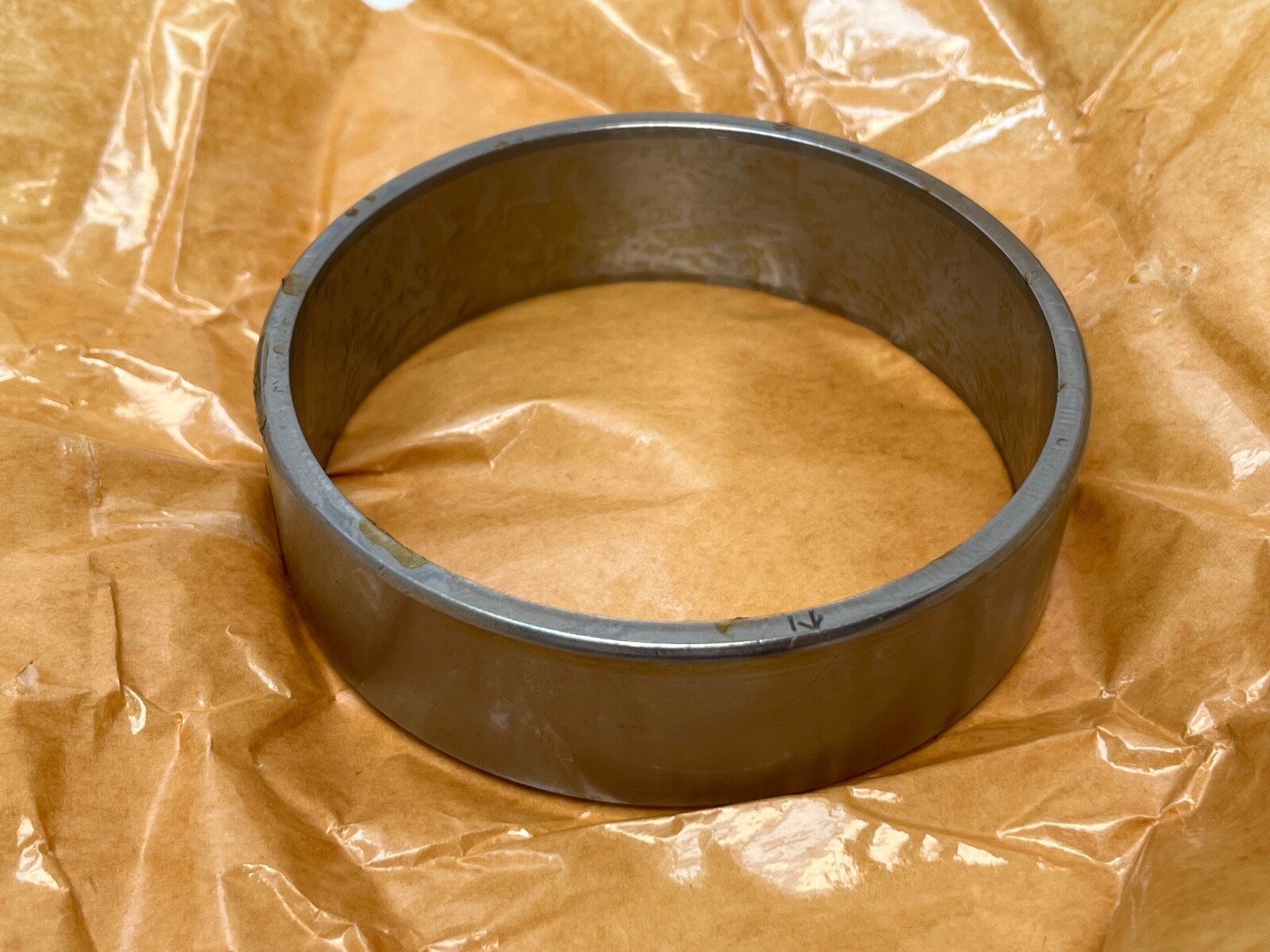

Two rows of cylindrical rollers give this bearing very high radial load capacity and high radial rigidity in a narrow section, which is why it is the standard front bearing in grinding and turning spindles. The design is non-locating: the ribless outer ring lets the shaft expand axially inside the bearing, so axial location is taken by a separate thrust or angular contact bearing at the other end of the spindle. Substituting a locating cylindrical design such as NJ or NUP changes that behaviour, and substituting a plain cylindrical NU removes the second row of load capacity.
Bore: 60 mm (2.3622 in), tapered 1:12. Outside diameter: 95 mm (3.7402 in). Width: 26 mm (1.0236 in). Number of rows: 2. Rolling elements: cylindrical rollers. Cage material: machined brass. Precision class: P5, ABEC 5. Axial location: non-locating. Closure: open.

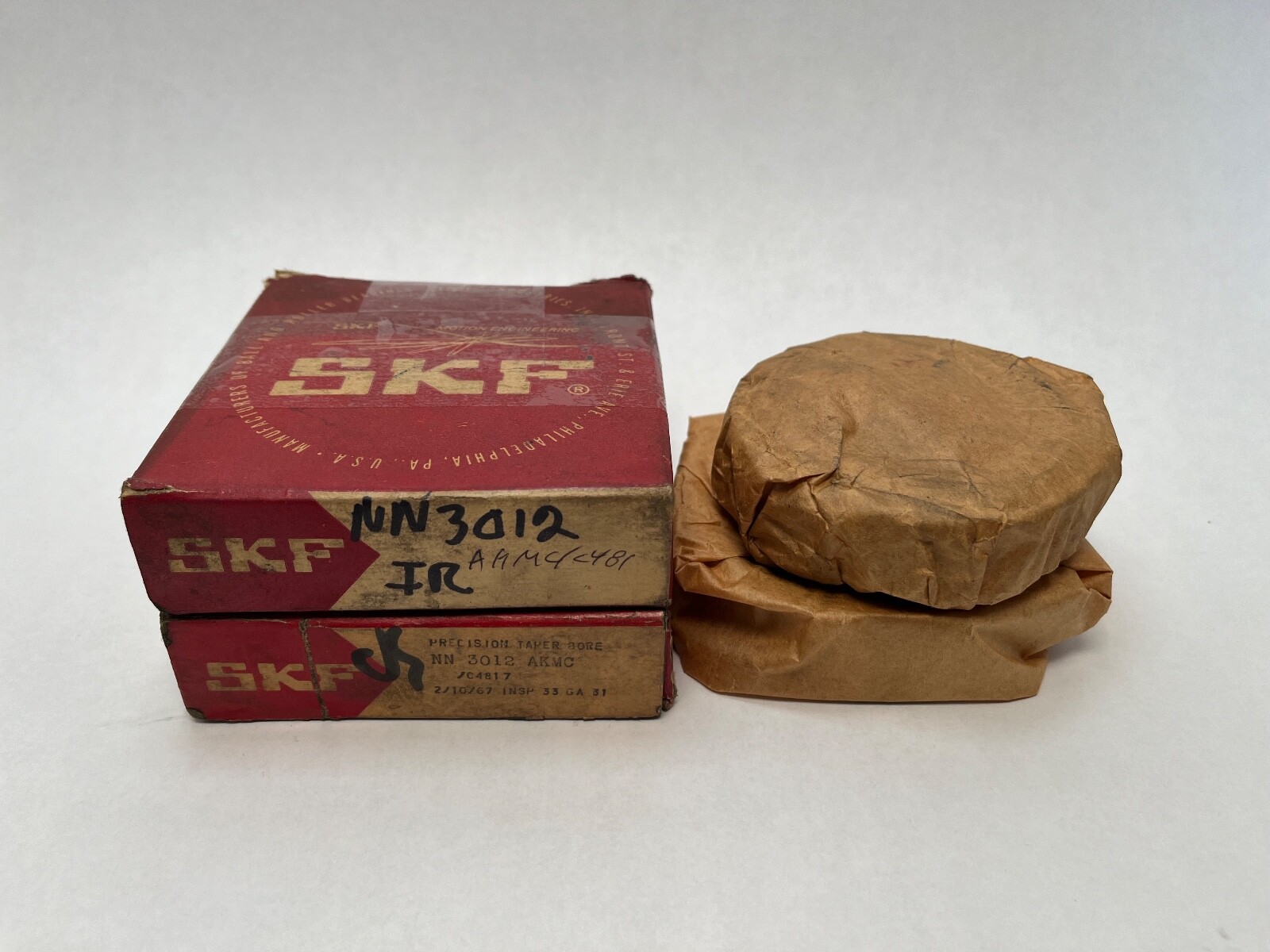

Supplied as 1 Pc, bearing only.
The 1:12 tapered bore seats directly on a matching tapered spindle journal. This design does not use an adapter sleeve.
Genuine equivalents are P5 double-row tapered-bore cylindrical roller bearings in the same 60x95x26 mm envelope with a machined cage: FAG NN3012-AS-K-M-SP, NSK NN3012TBKRE44CC1P4 and Nachi NN3012K. The straight-bore NN 3012 without the K suffix is a related size, not an interchange, because it needs a cylindrical shaft seat and offers no clearance adjustment.
