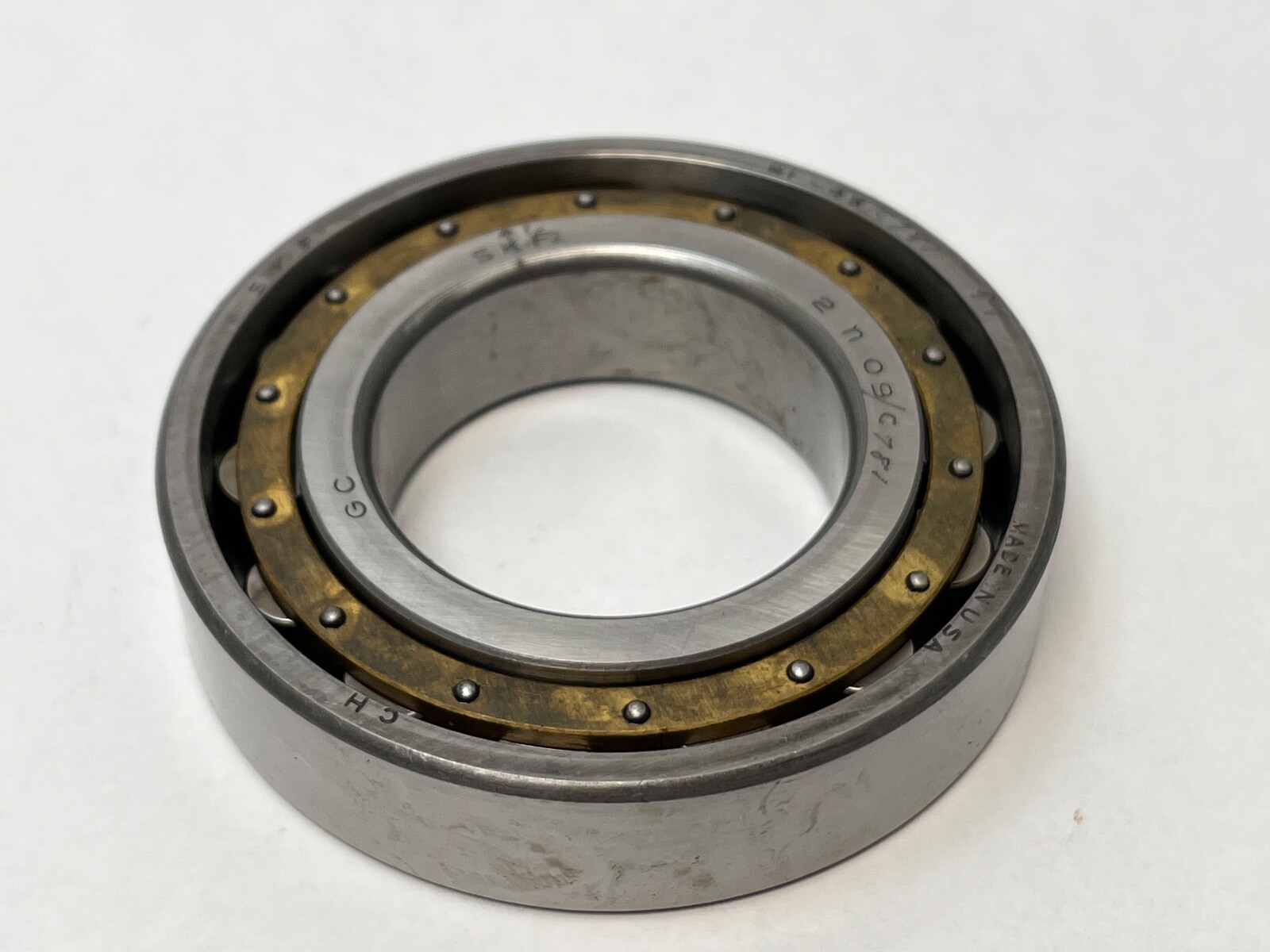

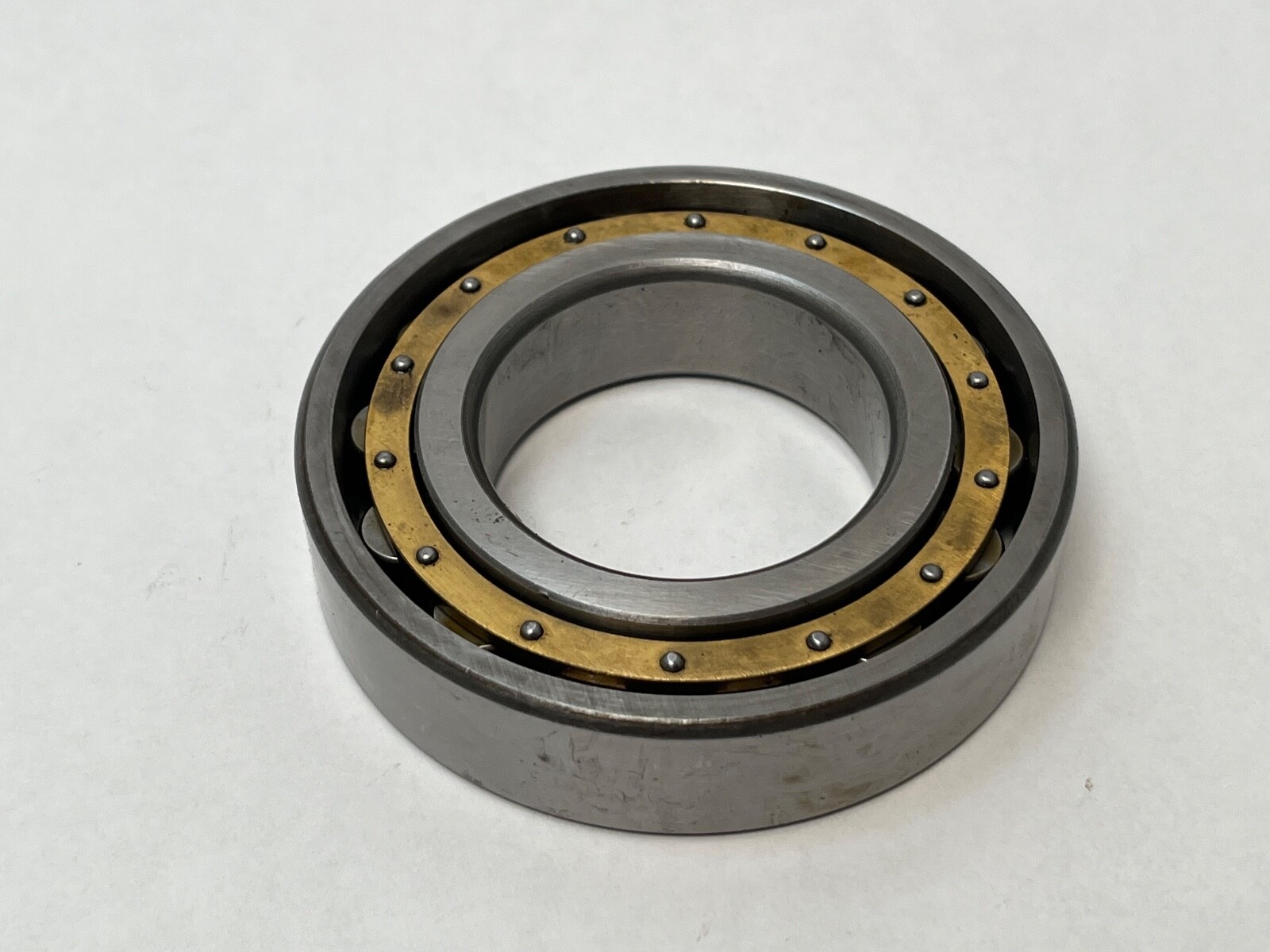

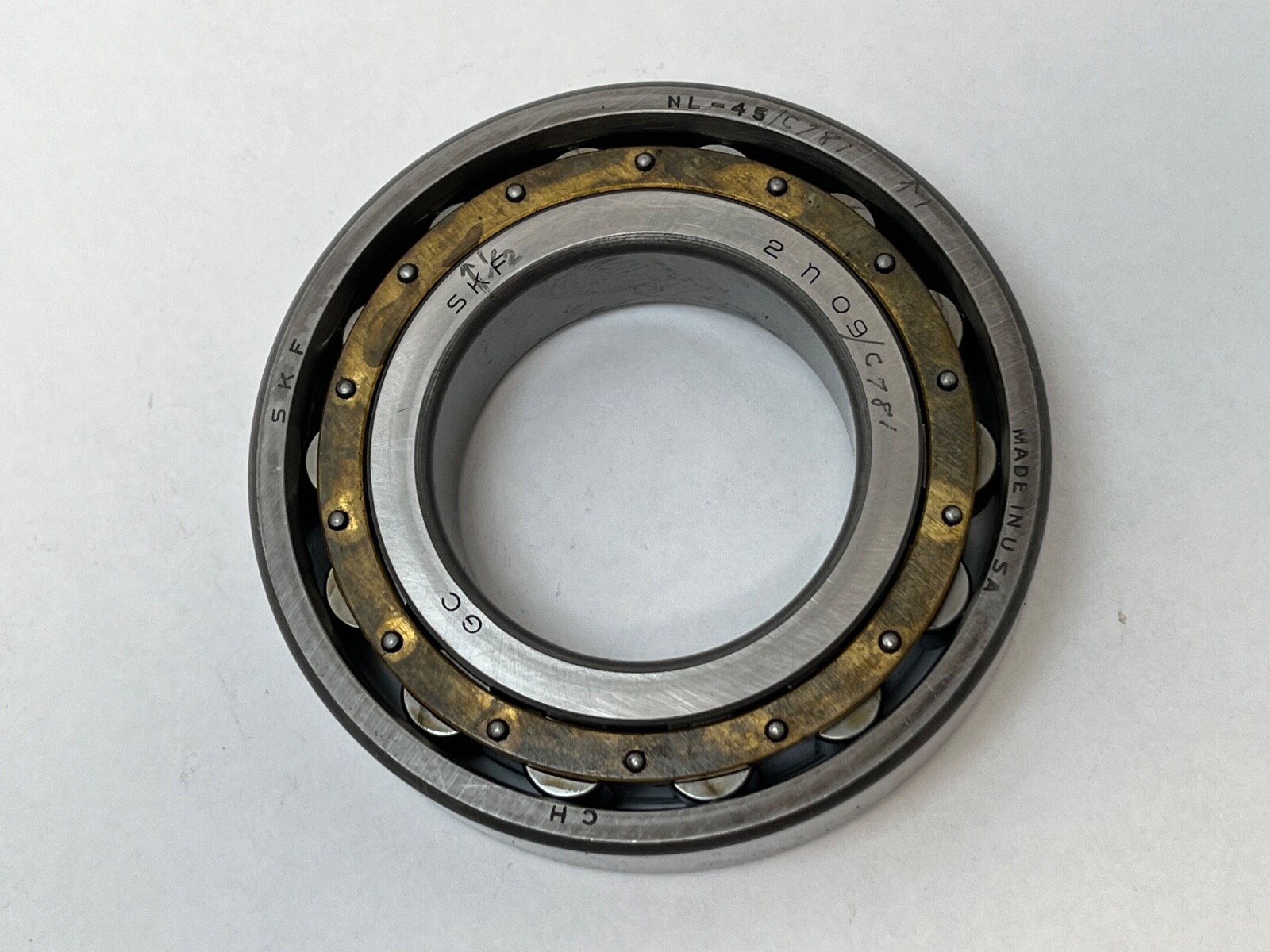

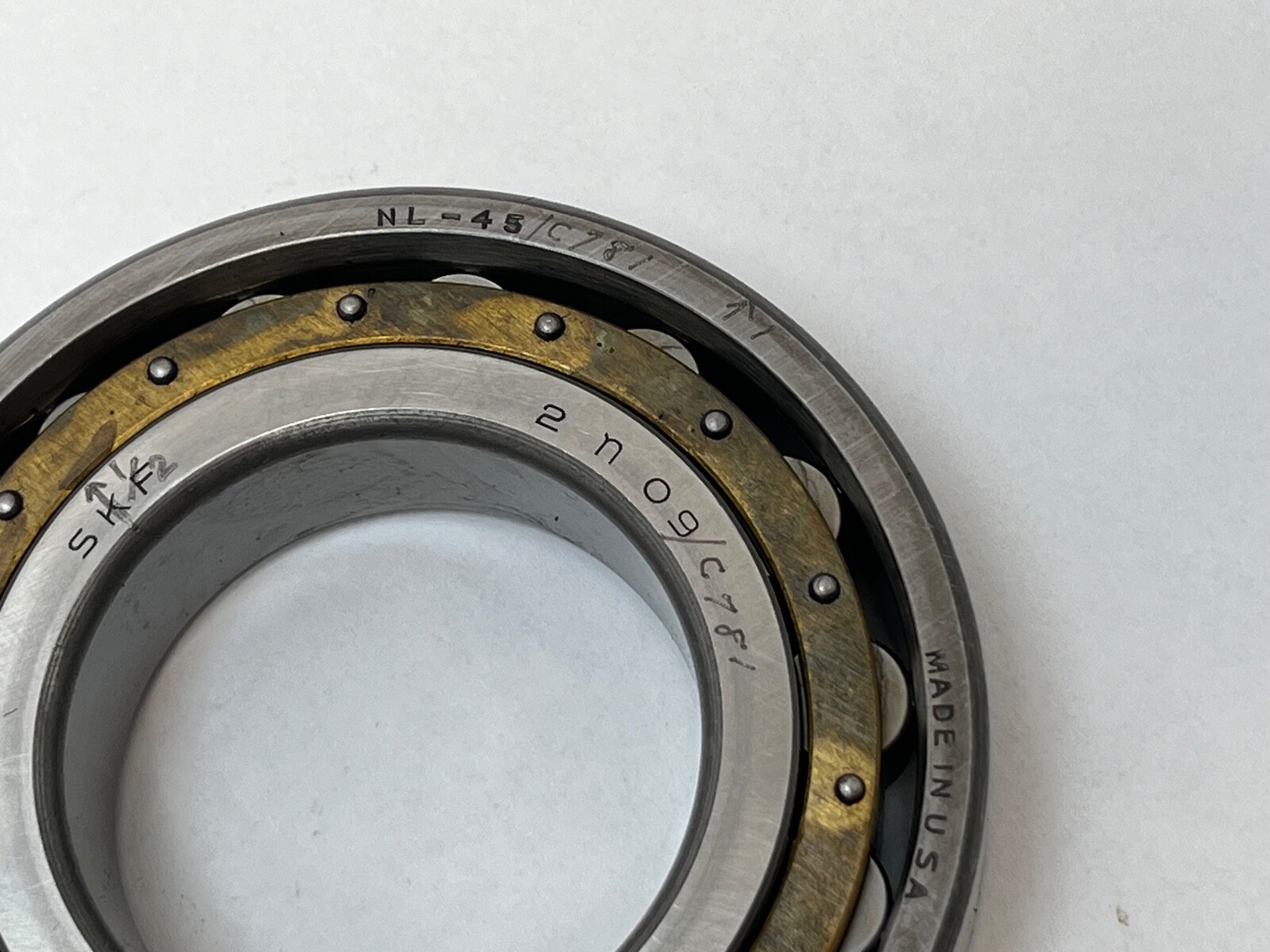

SKF N 209 M/P5 single-row cylindrical roller bearing, 45 mm bore, 85 mm OD, 19 mm wide, non-locating N design, machined brass cage, P5 class. 1 Pc.
List Price
$51.26
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | N 209 M/P5 |
| Model | N 209 M P5 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 200 |
| Lubricant | Oil |
| Base Number | N 209 |
| Industry Terms | cylindrical roller bearing; non-locating roller bearing; free-end roller bearing; precision roller bearing; ABEC 5 roller bearing |
| Common Misspellings | N209-M-P5; N 209M/P5; N209 MP5; SKF N209 P5 |
| Application Types | machine-tool spindles; gearbox free-end shafts; electric motors; pumps and compressors |
| Bore Shaft Size | 45 mm (1.7717 in) |
| Mpn Variants | N 209 M/P5; N-209-M/P5; N209MP5; N209M P5; N 209 M P5; N209 |
| Rolling Elements | Cylindrical Rollers |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Part Number | N 209 M/P5 |
SKF N 209 M/P5 single-row cylindrical roller bearing, 45 mm bore, 85 mm outside diameter, 19 mm width. Non-locating N design with a machined brass cage and ISO class 5 precision. Unit Quantity: 1 Pc.
N — non-locating cylindrical roller arrangement: the outer ring has no integral ribs and the inner ring has two, so the roller set floats axially against the outer raceway.
2 — dimension series 02.
09 — bore code, 45 mm bore in the 85 x 19 mm envelope.
M — machined solid brass cage.
/P5 — ISO tolerance class 5, equivalent to ABEC 5.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 19 mm. Bearing Type: Cylindrical Roller Bearing. Rolling Elements: Cylindrical rollers. Number Of Rows: 1. Bore Type: Straight. Seal Type: Open. Precision Class: ISO class 5 (ABEC 5). Cage Material: Machined brass.
Bore: 45 mm, straight. Outside diameter: 85 mm. Width: 19 mm. Open on both faces. Non-locating N design: pure radial load, shaft free axially within the bearing.
Other makers’ N 209 in class 5 with a machined brass cage: FAG N209-E-M1-P5, NSK N209MP5 and NTN N209MP5, all 45 x 85 x 19 mm and non-locating. NU 209, NJ 209 and NUP 209 share the 45 x 85 x 19 mm envelope but locate the shaft axially in one or both directions, so they are related sizes.
The bore is 45 mm, the outside diameter is 85 mm and the width is 19 mm.
N is a non-locating cylindrical roller arrangement: the outer ring has no integral ribs and the inner ring has two.
M is a machined solid brass cage and P5 is ISO tolerance class 5, equivalent to ABEC 5.
