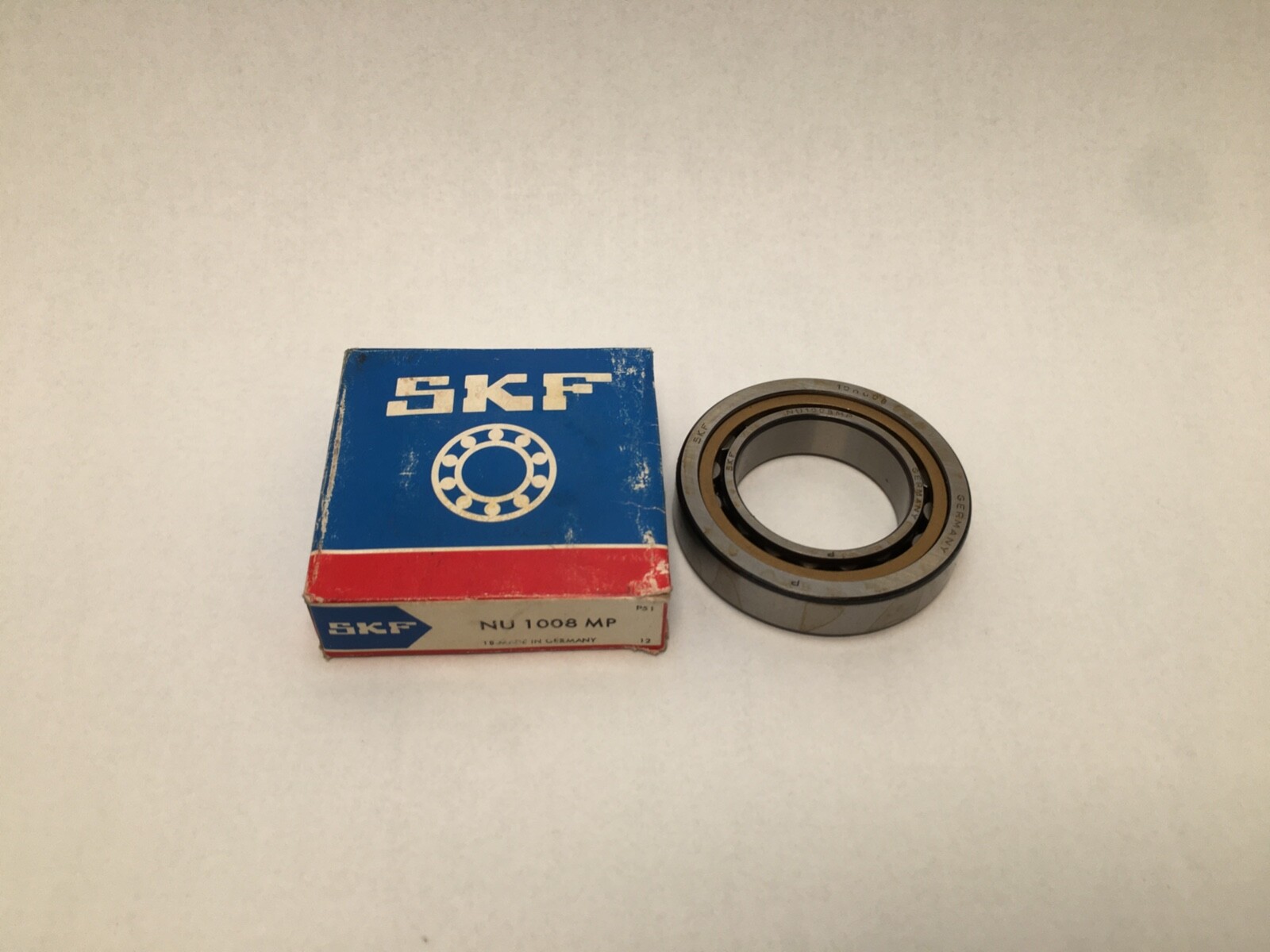

SKFNU 1008 MPCylindrical Roller Bearing – 40 mm Bore, 68 mm OD, 15 mm Width, Machined Brass Cage, NU Design

Product Description

What this part is:

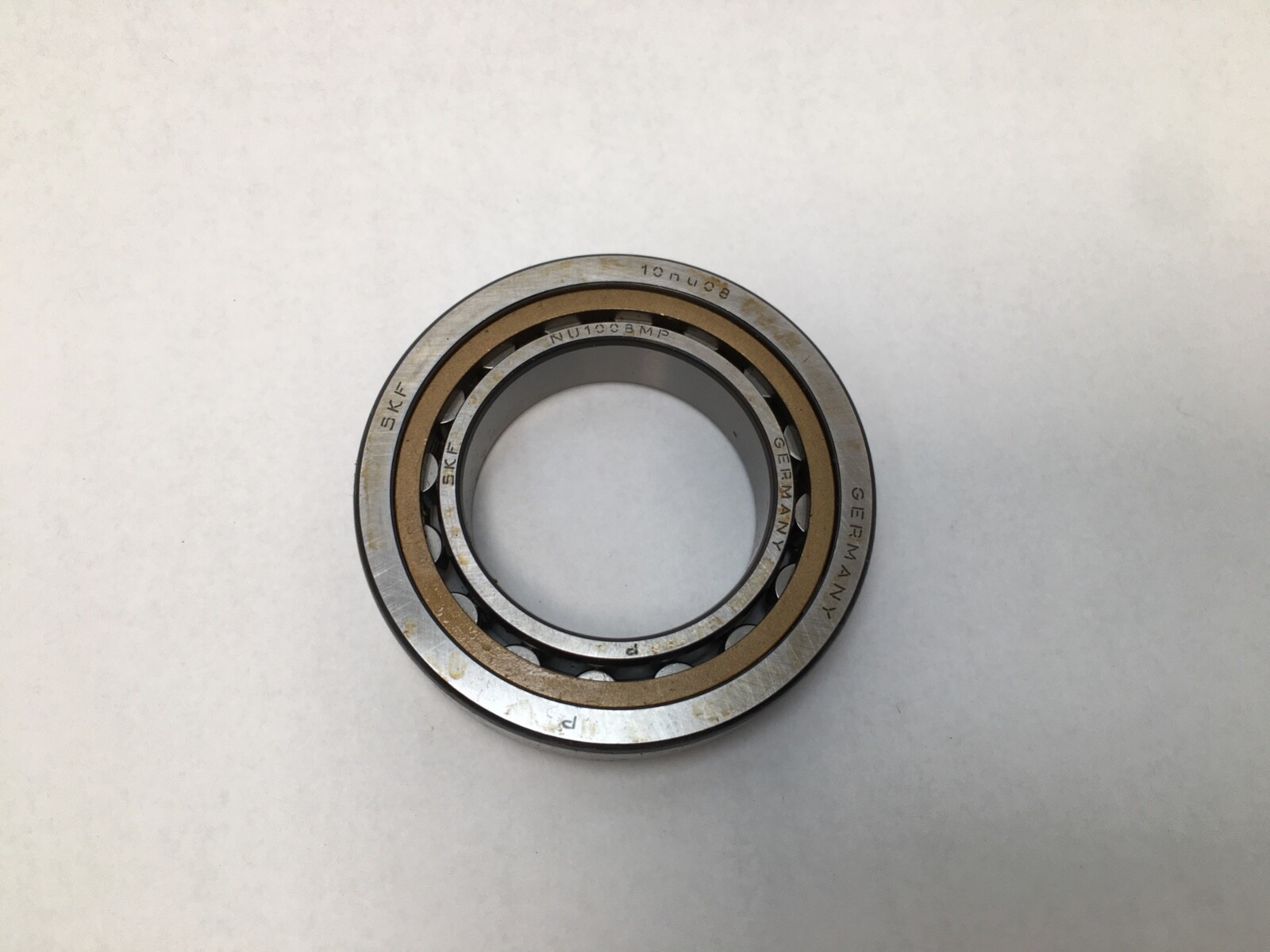

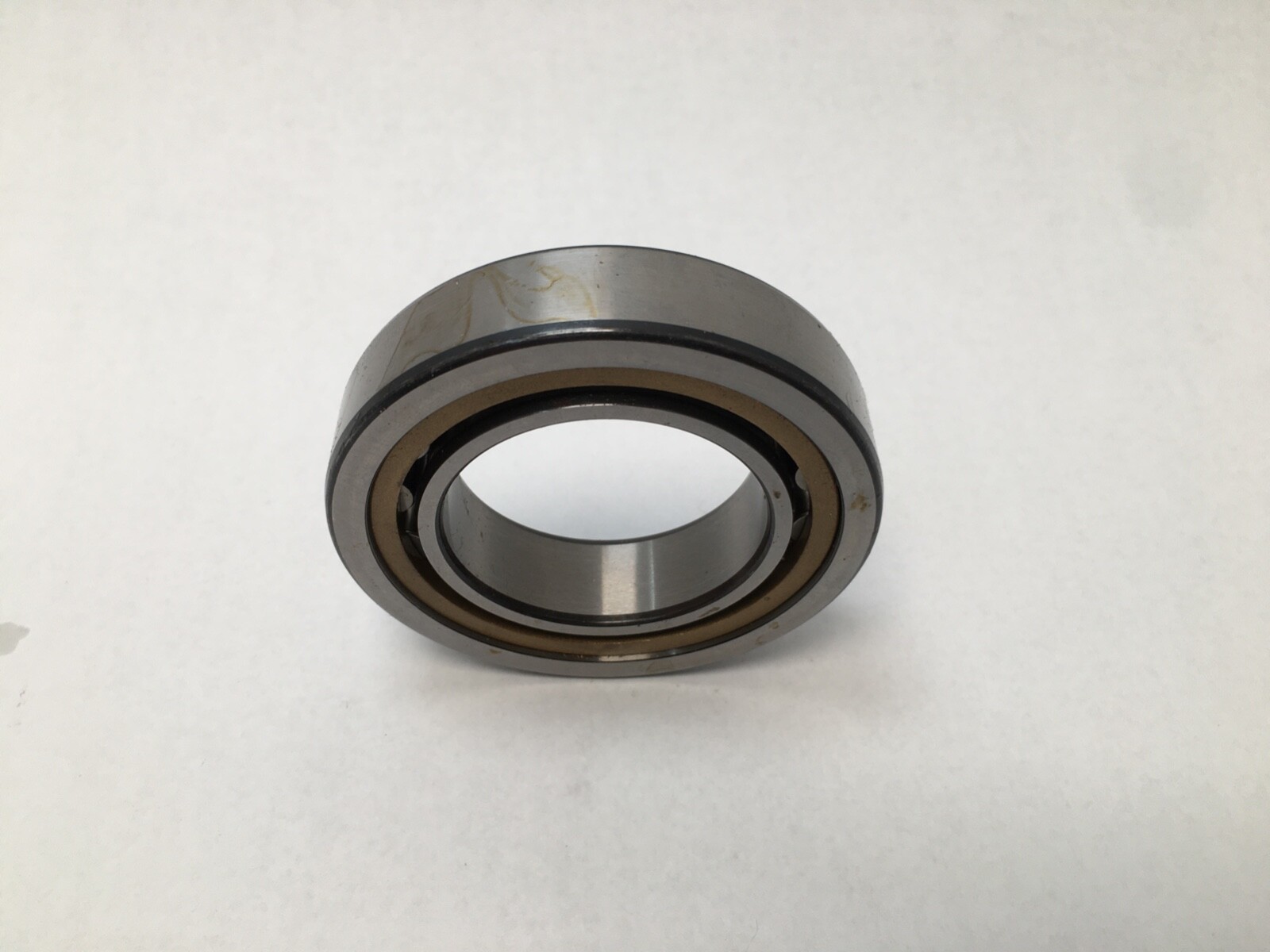

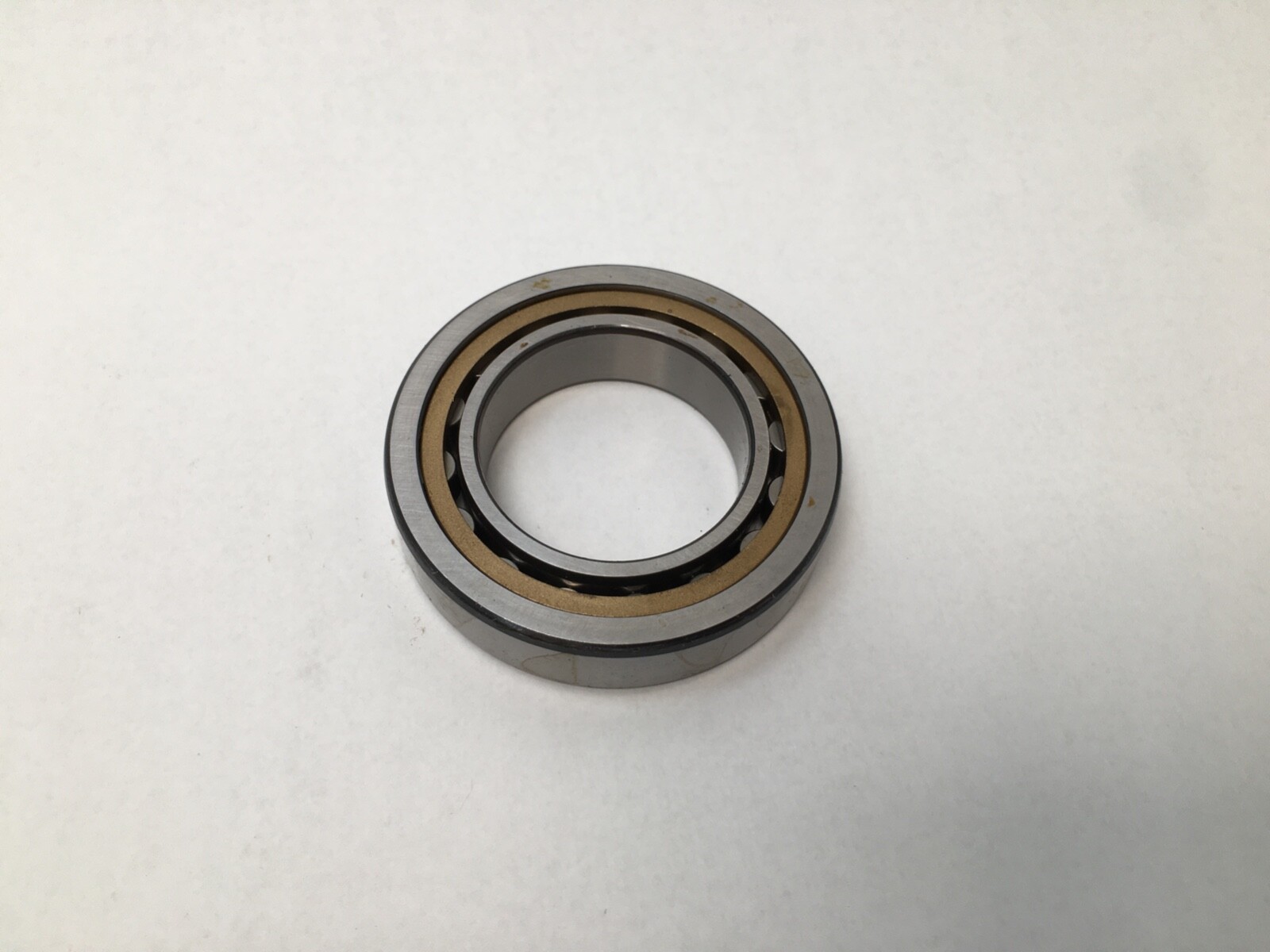

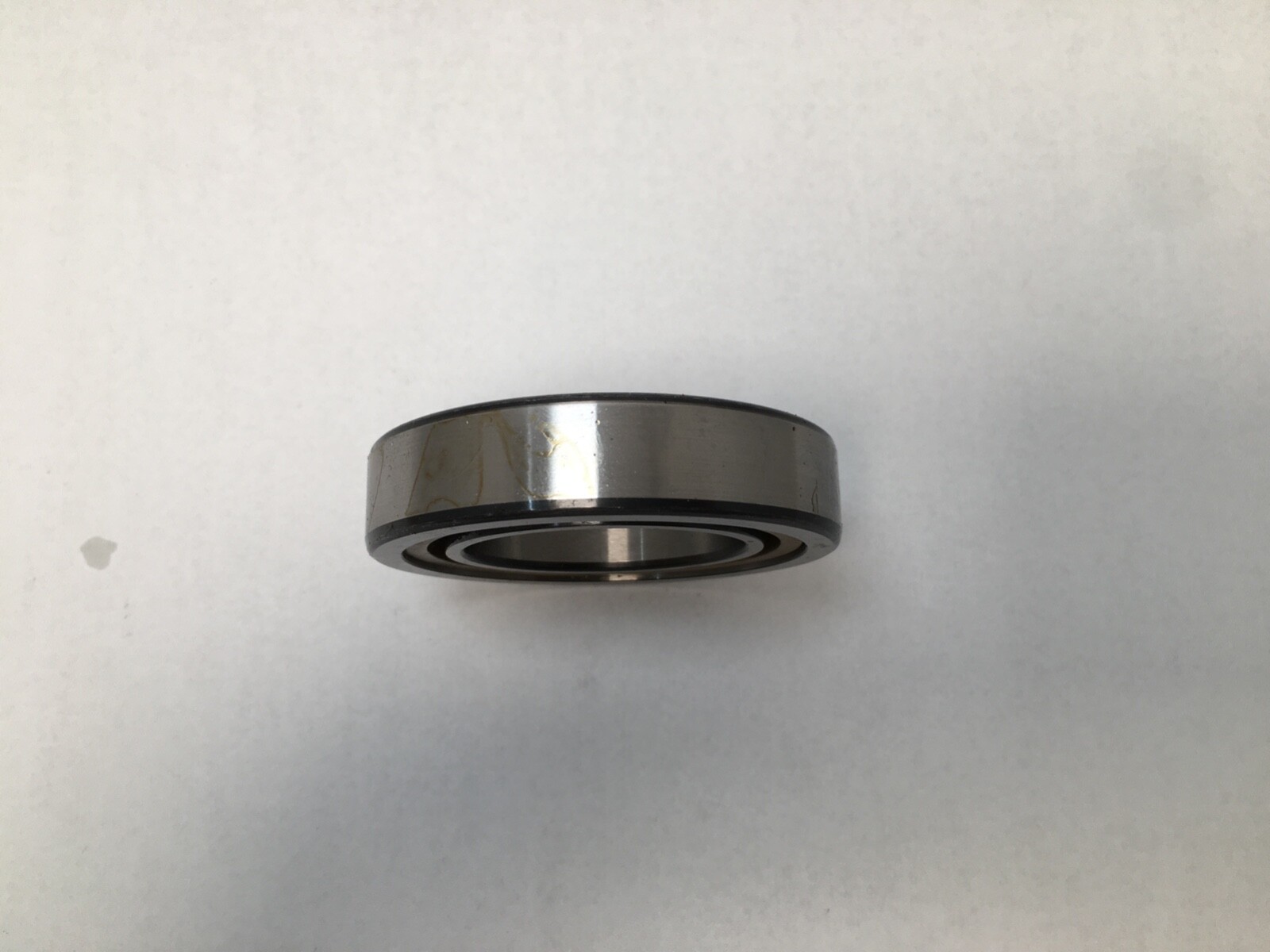

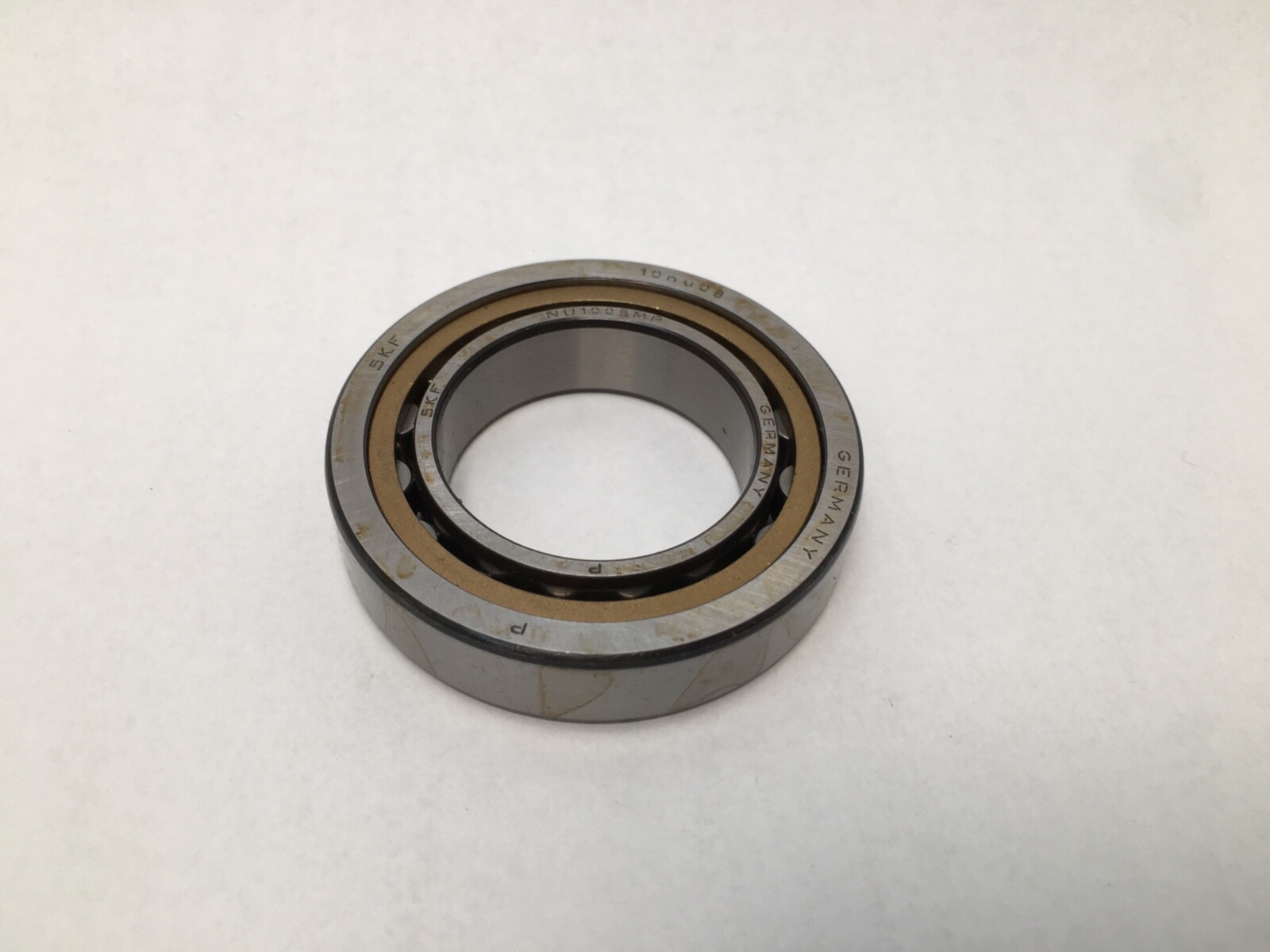

SKF NU 1008 MP is a single-row cylindrical roller bearing, open, with a machined brass cage and a non-locating NU design. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Cylindrical. Cage Material: Machined brass. Closure Type: Open. Bearing Material: Bearing steel.

Decoding the designation:

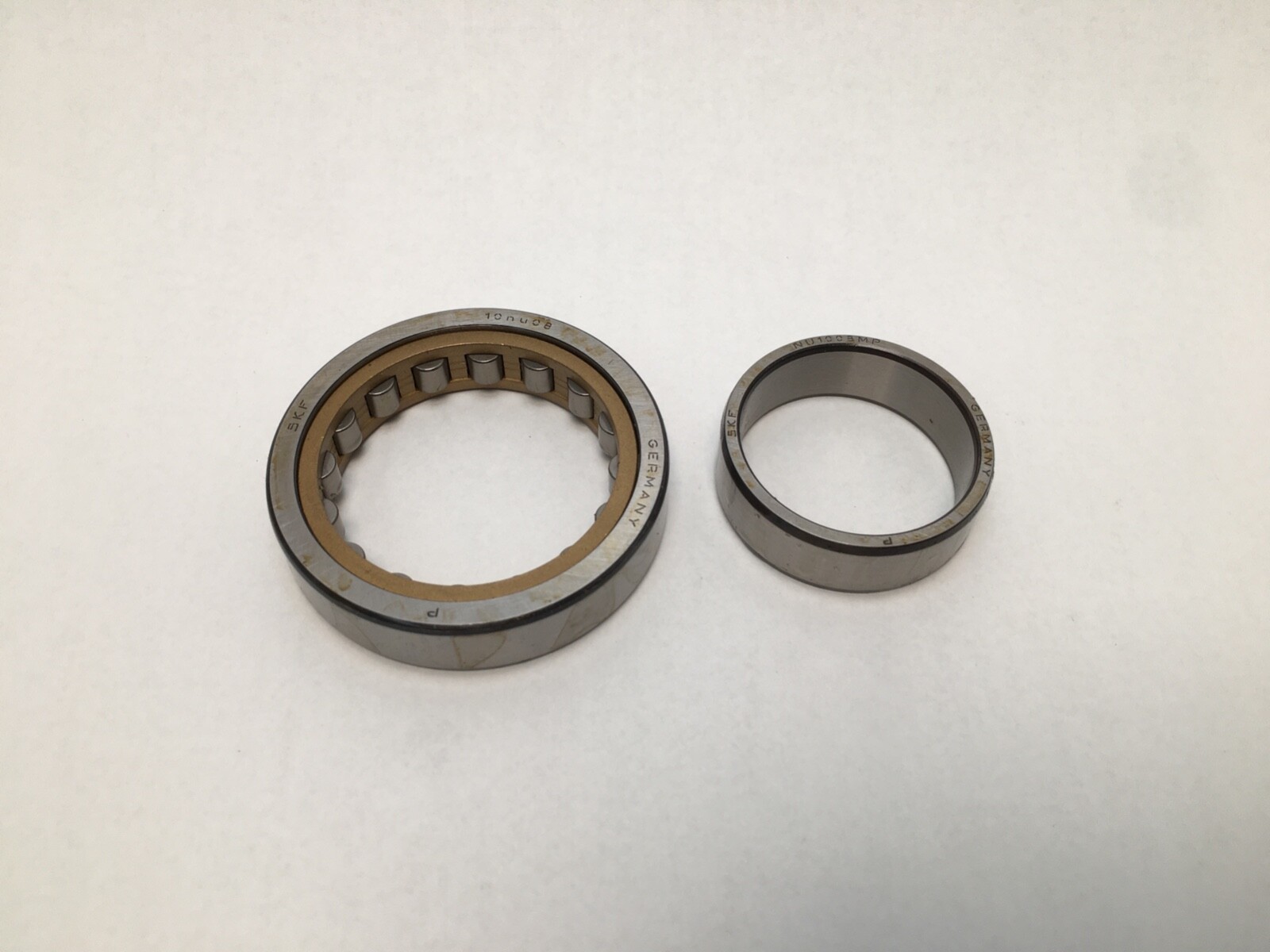

NU — cylindrical roller design with two integral ribs on the outer ring and a plain, ribless inner ring.

1008 — 10 extra-light dimension series at a 40 mm bore.

M — machined brass cage.

Specifications:

Bearing Type: Cylindrical Roller Bearing. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Dynamic Load Rating: 28,500 N. Static Load Rating: 26,000 N. Reference Speed: 12,000 rpm. Limiting Speed: 18,000 rpm. Expansion Type: Non-locating, 2.4 mm permissible axial displacement. Precision Class: RBEC 1 / P0. Series: NU 10. Base Number: NU 1008. Snap Ring Included: No. Harmonization Code: 8482.50.00.00. Unit Quantity: 1 Pc.

Dimensions and mounting:

Permissible axial displacement: 2.4 mm maximum. Spacer sleeve diameter da: 43 mm minimum to 46 mm maximum. Shaft abutment diameter db: 49 mm minimum. Housing abutment diameter Da: 62.3 mm maximum. Shaft fillet radius ra: 1 mm maximum. Housing fillet radius rb: 0.6 mm maximum. Bearing chamfers r1,2: 1 mm minimum and r3,4: 0.6 mm minimum. Inner ring raceway diameter F: 47 mm. Outer ring shoulder diameter D1: approximately 57.6 mm. Calculation factors e 0.2 and Y 0.6.

Compatibility and replacement:

Cross-references: FAG NU1008-M1 (brass cage); NSK NU1008M (brass cage); NTN NU1008 (cage execution differs); Koyo NU1008 (cage execution differs); NACHI NU1008 (cage execution differs). Designation variants: NU1008MP, NU 1008 MP, NU1008M, NU1008.

Frequently asked questions:

What are the dimensions of the SKF NU1008MP?

Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm.

What are its load ratings and speeds?

Dynamic Load Rating: 28,500 N. Static Load Rating: 26,000 N. Reference Speed: 12,000 rpm. Limiting Speed: 18,000 rpm.

Is it a locating or non-locating bearing?

Expansion Type: Non-locating, 2.4 mm permissible axial displacement.
