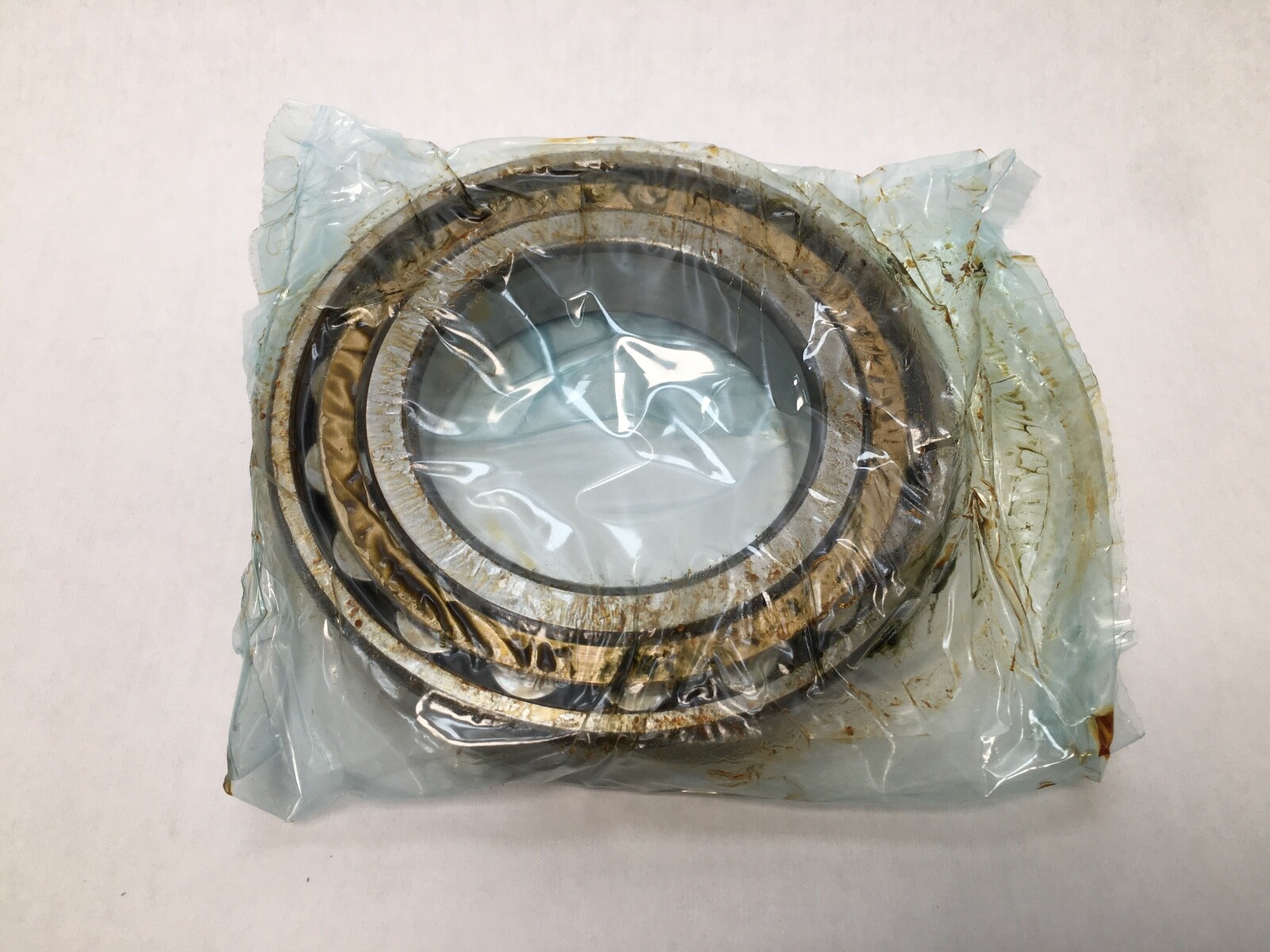

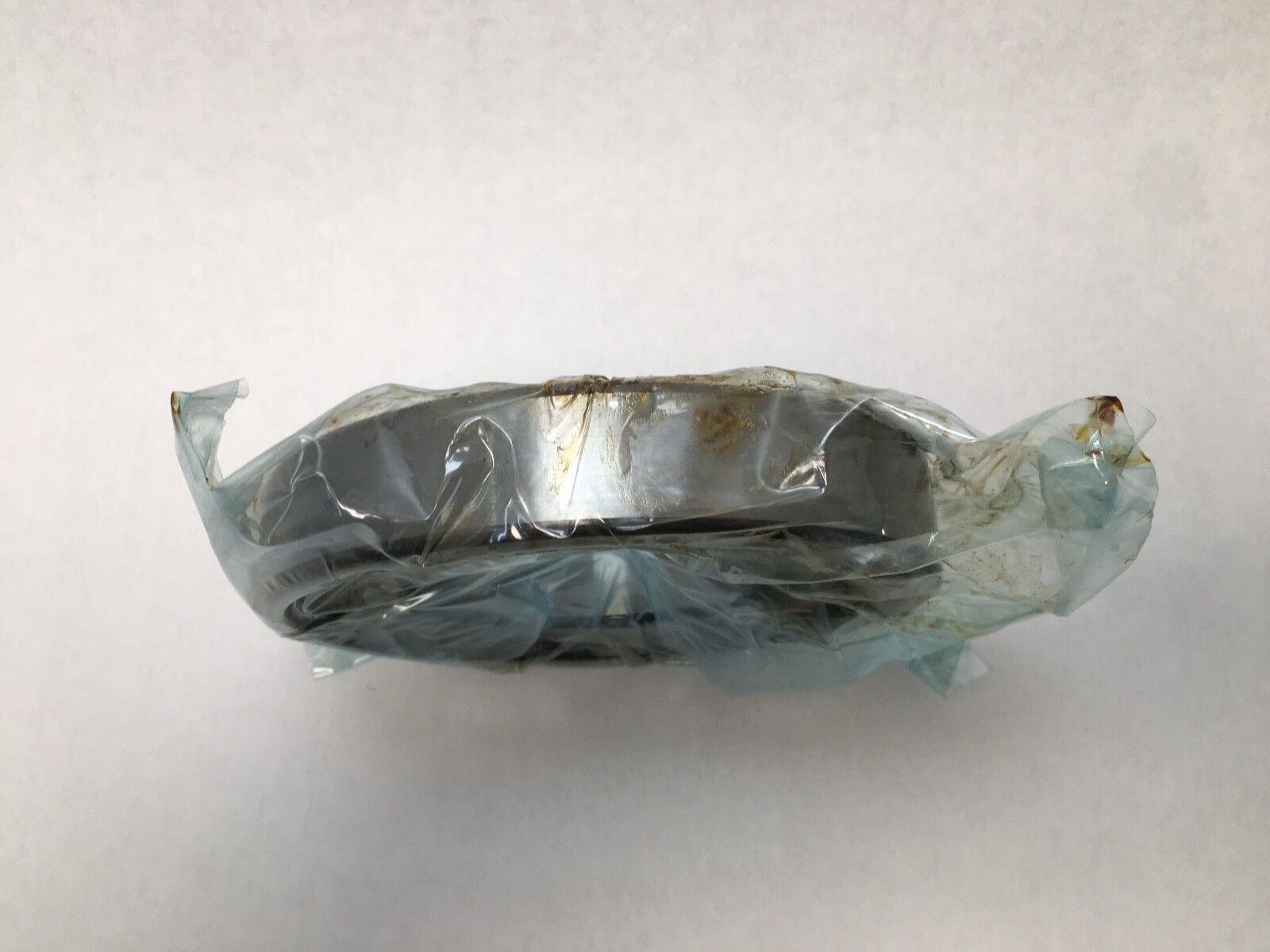

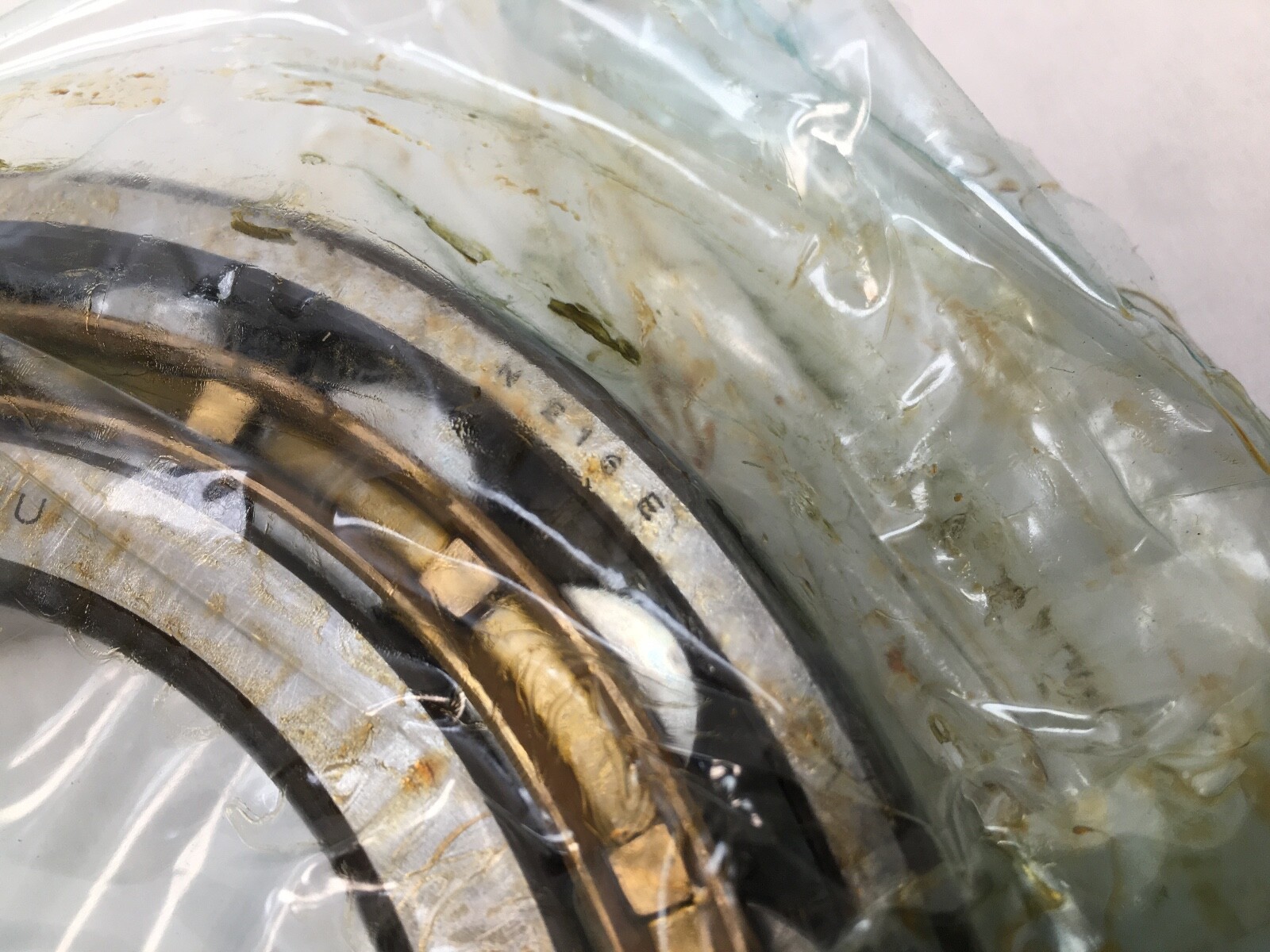

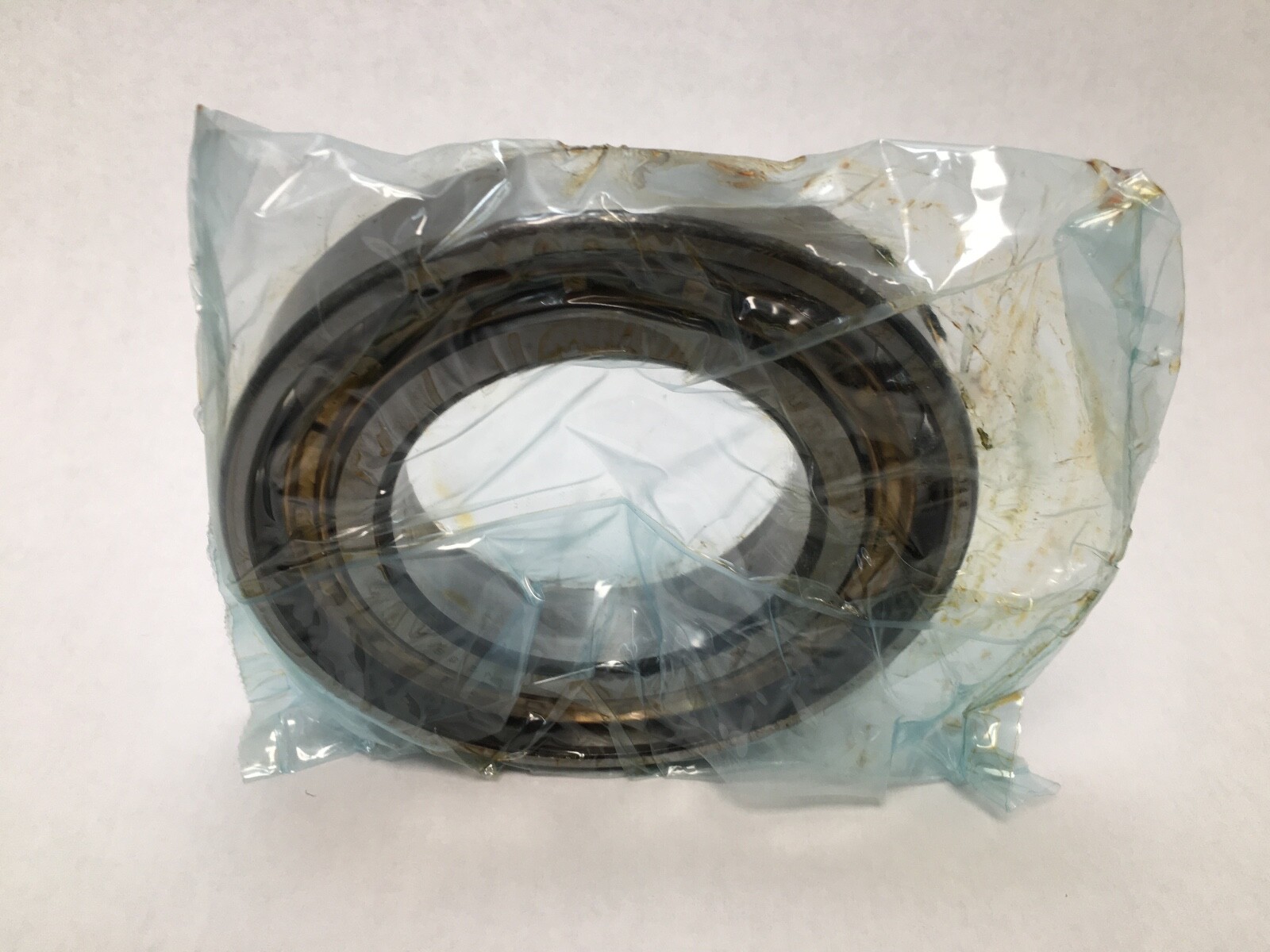

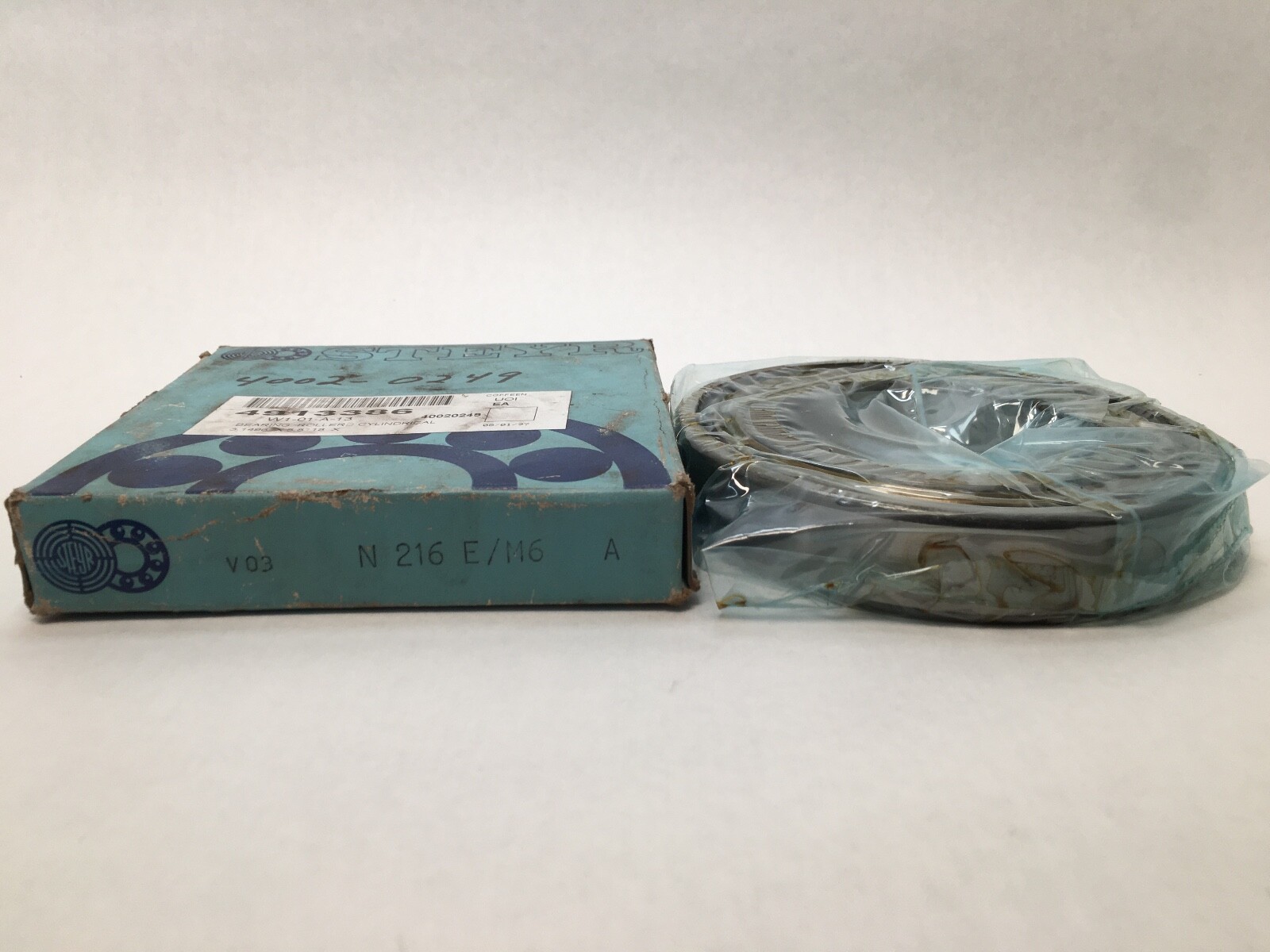

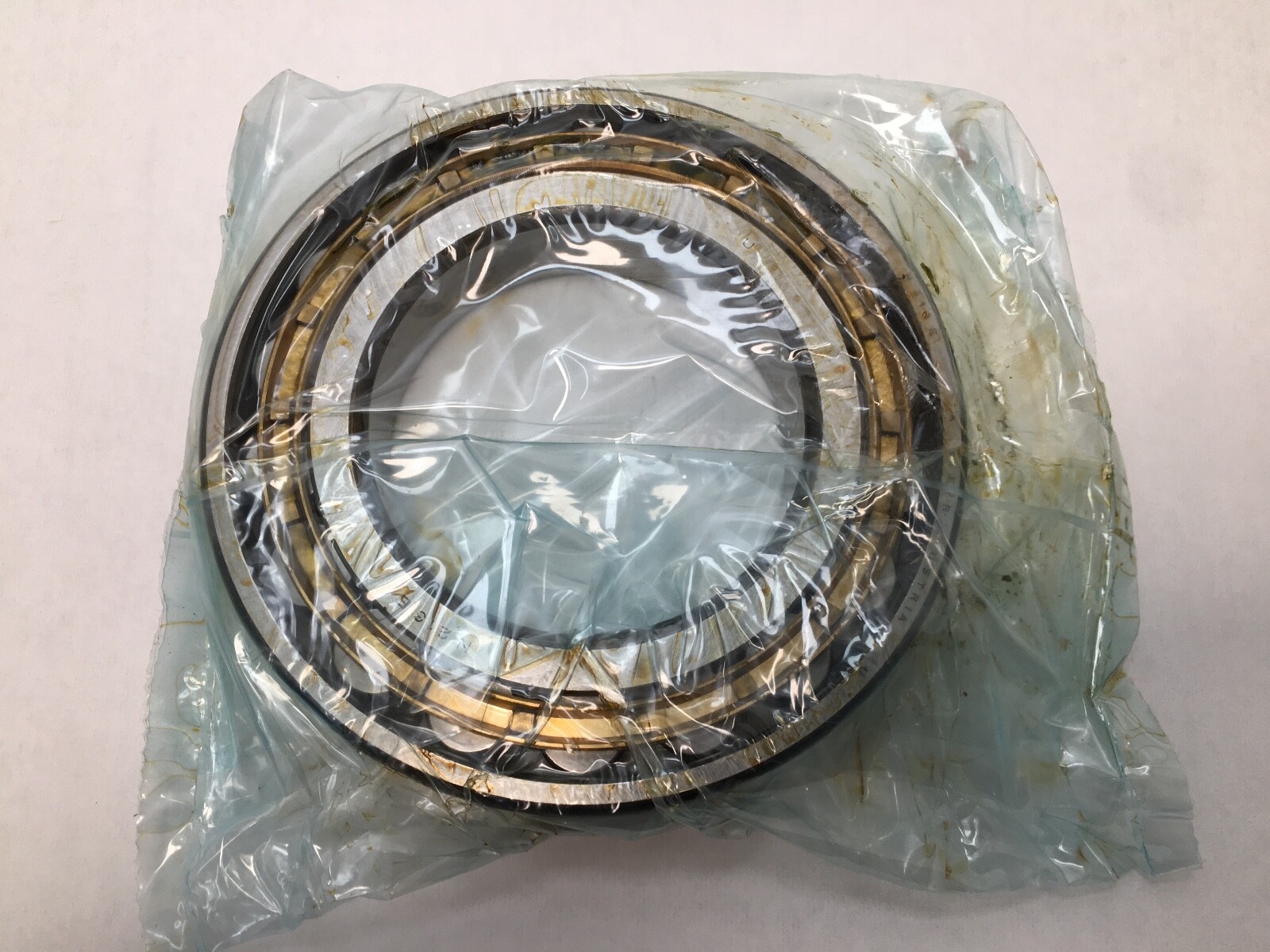

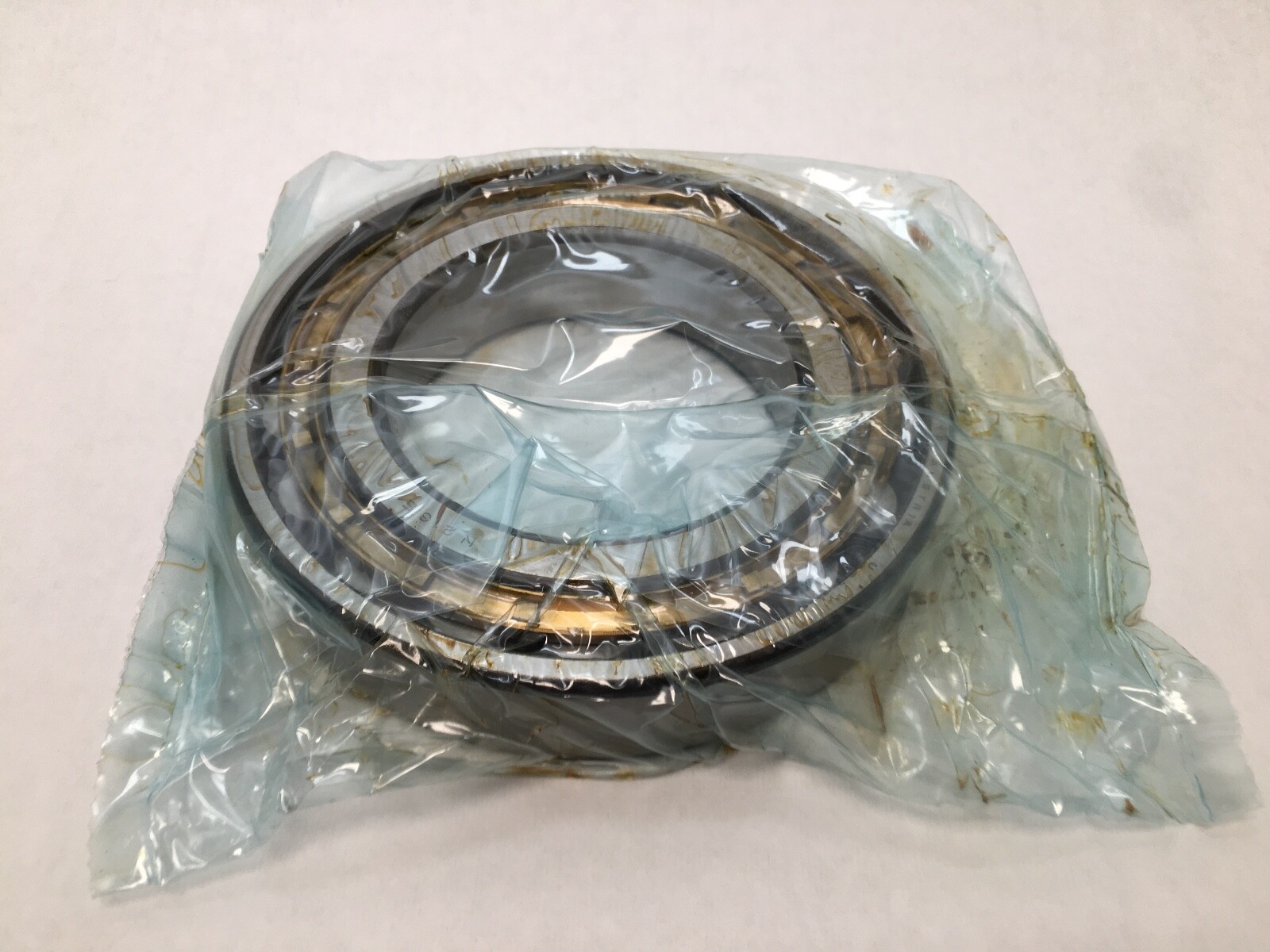

SteyrN216EM6Cylindrical Roller Bearing — 80 mm ID, 140 mm OD, 26 mm Width, N Design, E High Capacity

Product Description

What this part is:

The Steyr N216EM6 is a single row cylindrical roller bearing, N design, in the 02 dimension series, with a straight bore and the E high-capacity internal design. The N design is non-locating.

Decoding the designation:

N — two integral ribs on the inner ring, outer ring without ribs. The outer ring moves axially relative to the inner ring, making the bearing non-locating.

2 — 02 dimension series.

16 — bore code, 16 x 5 = 80 mm.

E — high-capacity internal design.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Straight. Internal Clearance: CN. Closure Type: Open. Snap Ring Included: No. Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope: 80 x 140 x 26 mm, ISO N216 E. Mounting Arrangement: non-locating, outer ring free to move axially against the inner ring.

Compatibility and replacement:

ISO N216 E, 80 x 140 x 26 mm. Related E-design parts: FAG N216-E-TVP2 and SKF N 216 ECP. Also written N216E, N 216 E M6 and N216 E/M6.

Frequently asked questions:

What is the Steyr N216EM6?

The Steyr N216EM6 is a single row N-type cylindrical roller bearing, 80 x 140 x 26 mm, in the high-capacity E design.

What size is it?

Bore 80 mm, outside diameter 140 mm, width 26 mm.

What other bearings fit this size?

FAG N216-E-TVP2 and SKF N 216 ECP are N216 E designs with the same bore, outside diameter and width.
