SKFNN-3015-KTN/W33Double-Row Cylindrical Roller Bearing – 75 mm Tapered Bore, 115 mm OD, 30 mm Width, W33 Lubrication Feature, Super-Precision

Product Description

What this part is

SKF NN 3015 KTN/W33 super-precision double-row cylindrical roller bearing with a tapered bore and a lubrication feature. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 30 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Dynamic Load Rating: 96,800 N. Static Load Rating: 150,000 N. Limiting Speed: 7,500 rpm grease; 8,500 rpm oil. Internal Clearance: C1. Cage Material: Polyamide. Cage Type: Window-type. Closure Type: Open. Precision Class: RBEC 7 / P4. Lubricant: grease or oil. Bearing Material: Chrome steel. Series: NN 30. GTIN: 7316571383347. Unit Quantity: 1 Pc.

Decoding the designation

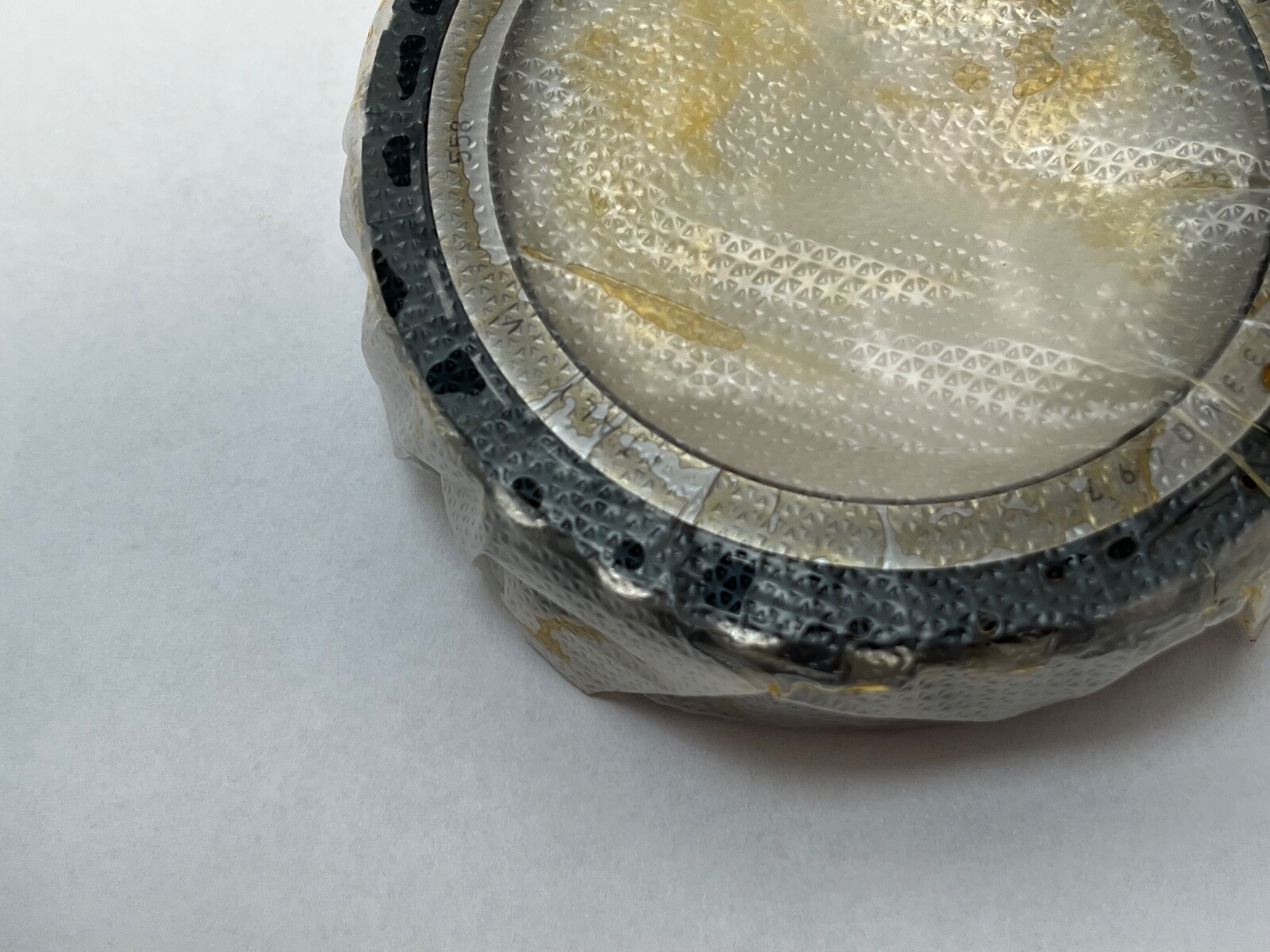

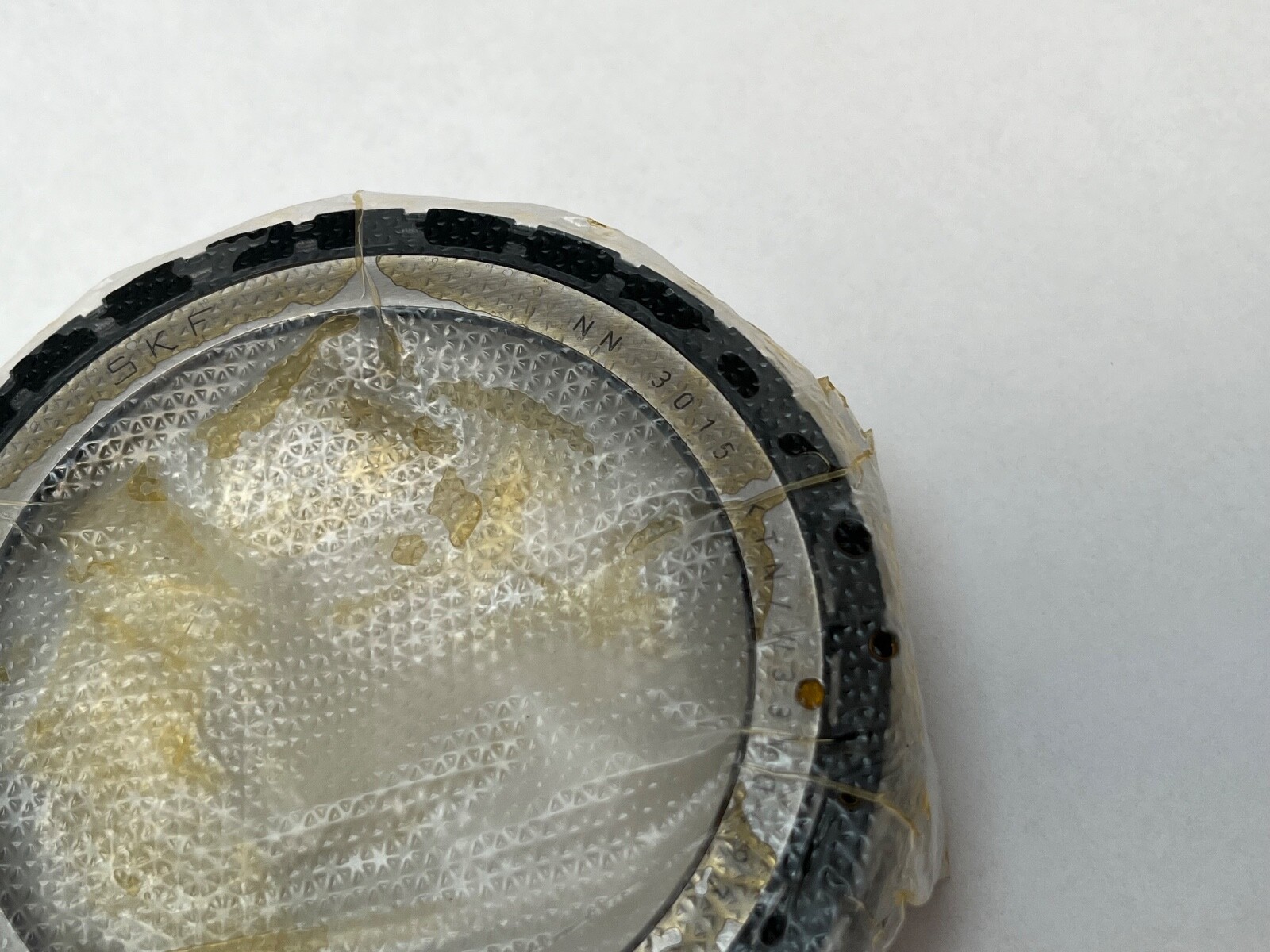

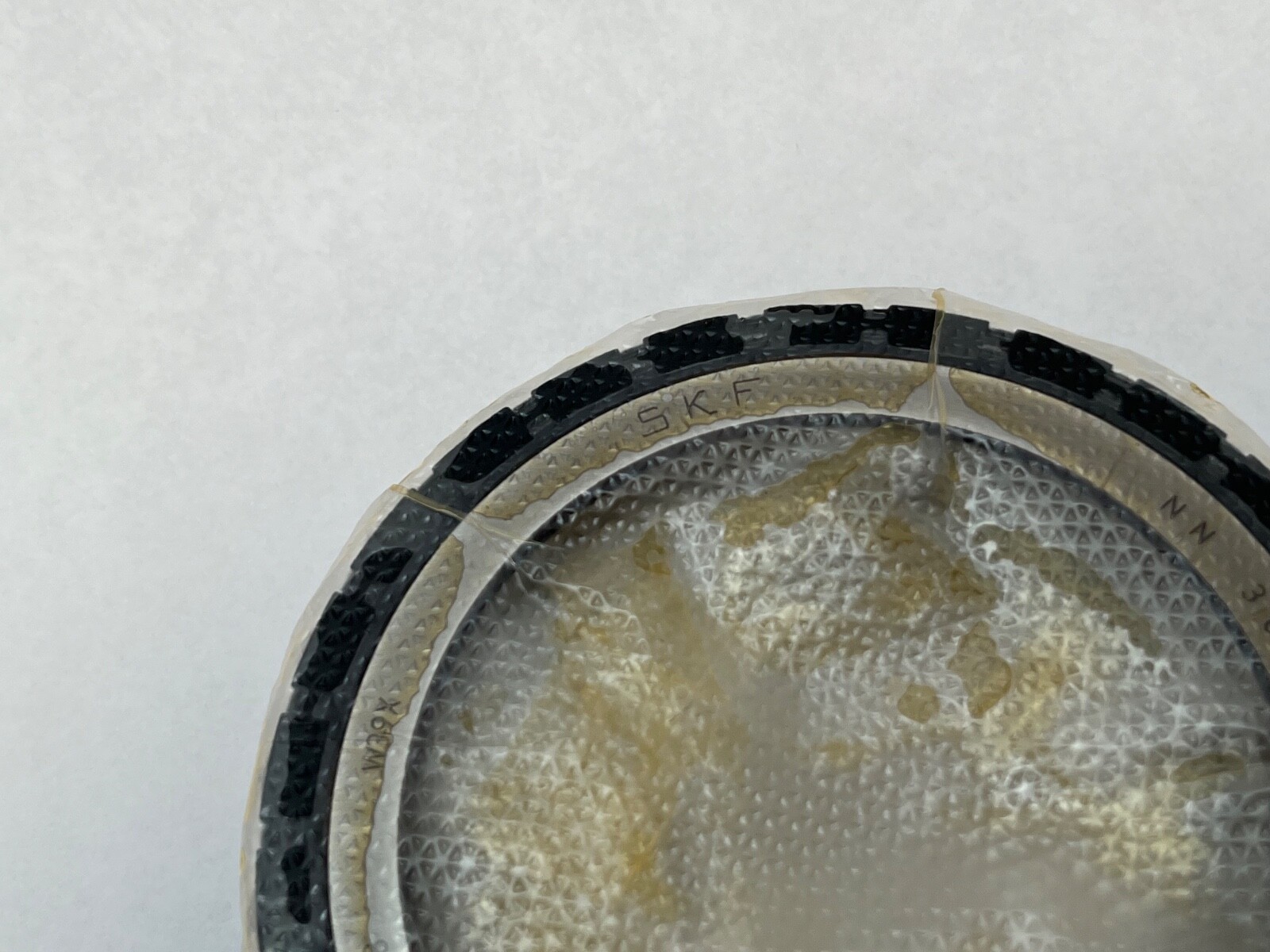

NN — double-row cylindrical roller bearing with three flanges on the inner ring and a flangeless outer ring. The rings separate, and the bearing accommodates axial displacement of the shaft in both directions.

30 — ISO dimension series 30. 15 — bore code. Bore Diameter: 75 mm.

K — 1:12 tapered bore. Driving the inner ring up the taper expands it and sets radial clearance or preload to a measured figure at assembly.

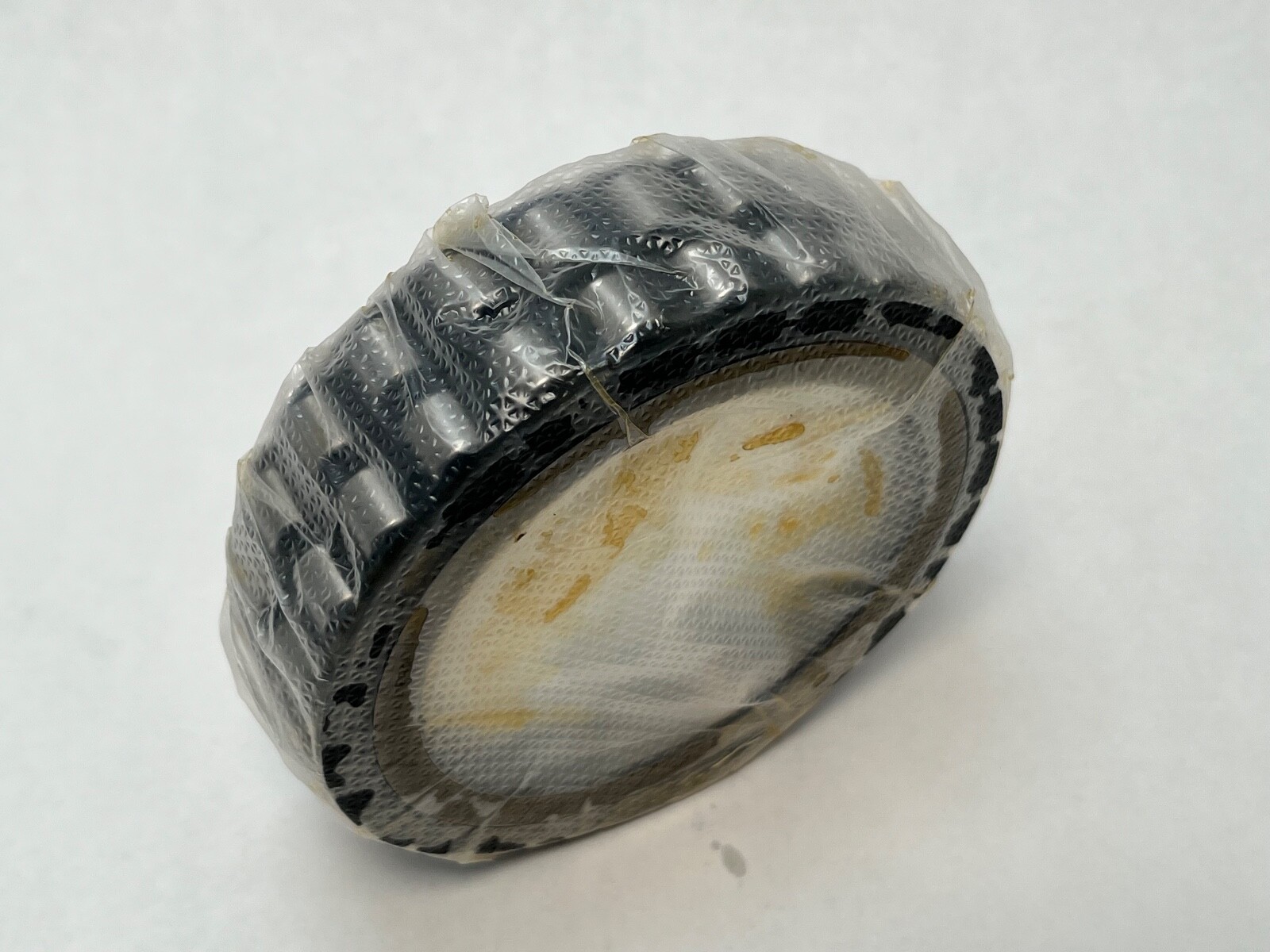

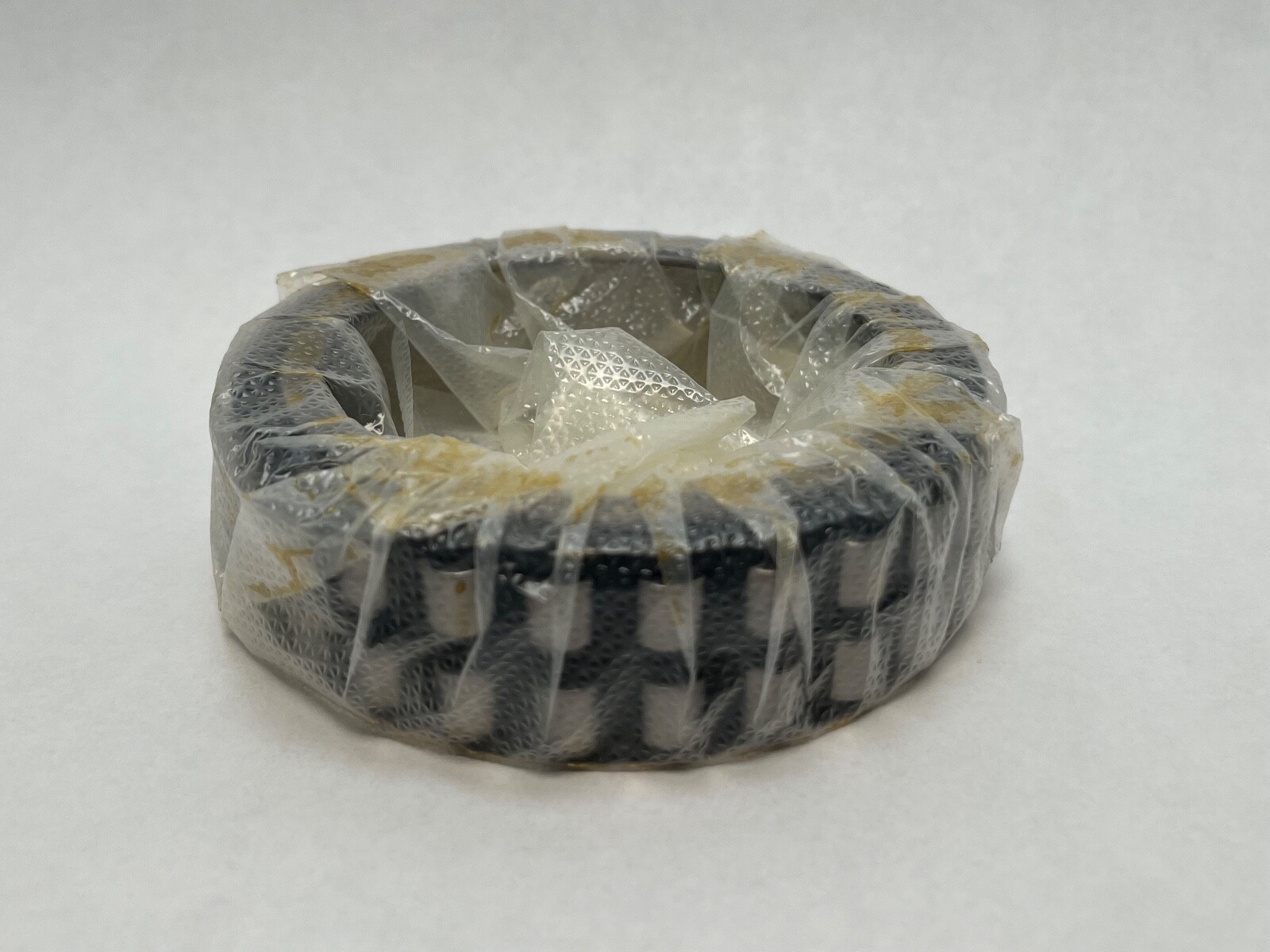

TN — glass-fibre reinforced polyamide window cage.

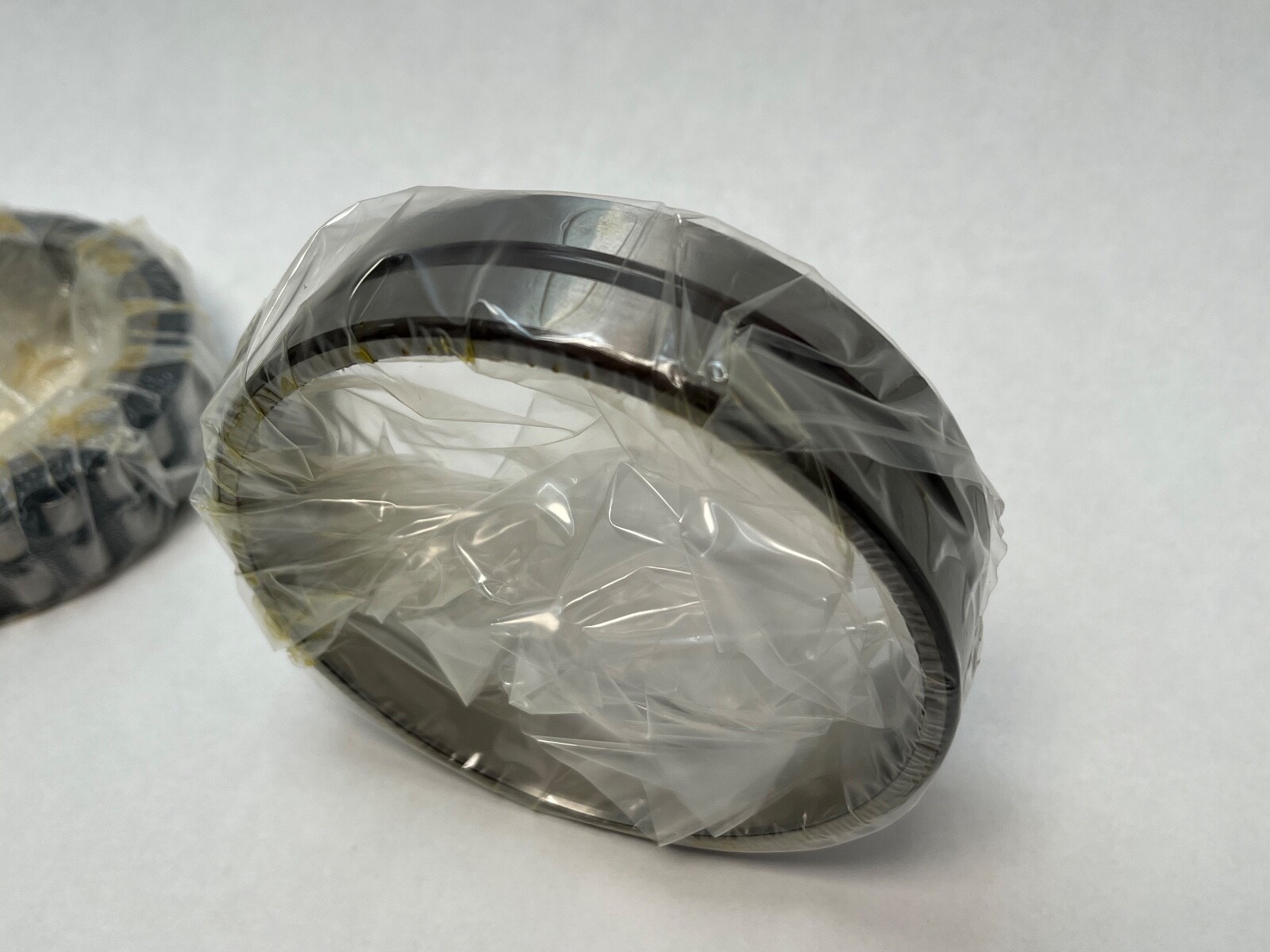

W33 — annular groove in the outer ring outside diameter with three radial feed holes. The groove distributes lubricant circumferentially and the holes carry it inward to the rollers.

SP — super-precision tolerance class, P4 equivalent.

What these specs mean in practice

Dynamic Load Rating: 96,800 N. Static Load Rating: 150,000 N. A static figure above the dynamic figure is the normal pattern on a double-row roller bearing, where the full roller complement spreads a stationary load over a long line contact.

Two rows of cylindrical rollers give very high radial capacity and very high radial rigidity in a 30 mm width. A cylindrical roller bearing has no contact angle and takes no axial load, which is why the NN 30 series is used as the front radial bearing of a machine-tool spindle with a separate thrust bearing setting axial position.

Limiting Speed: 7,500 rpm grease; 8,500 rpm oil. Internal Clearance: C1, tighter than normal, which is what a preloaded spindle arrangement calls for.

The W33 groove and its three radial holes take lubricant from the housing lubrication port. Grease guns, single-point lubricators, centralised grease systems, circulating oil and oil mist all feed through the same passages.

Mounting data

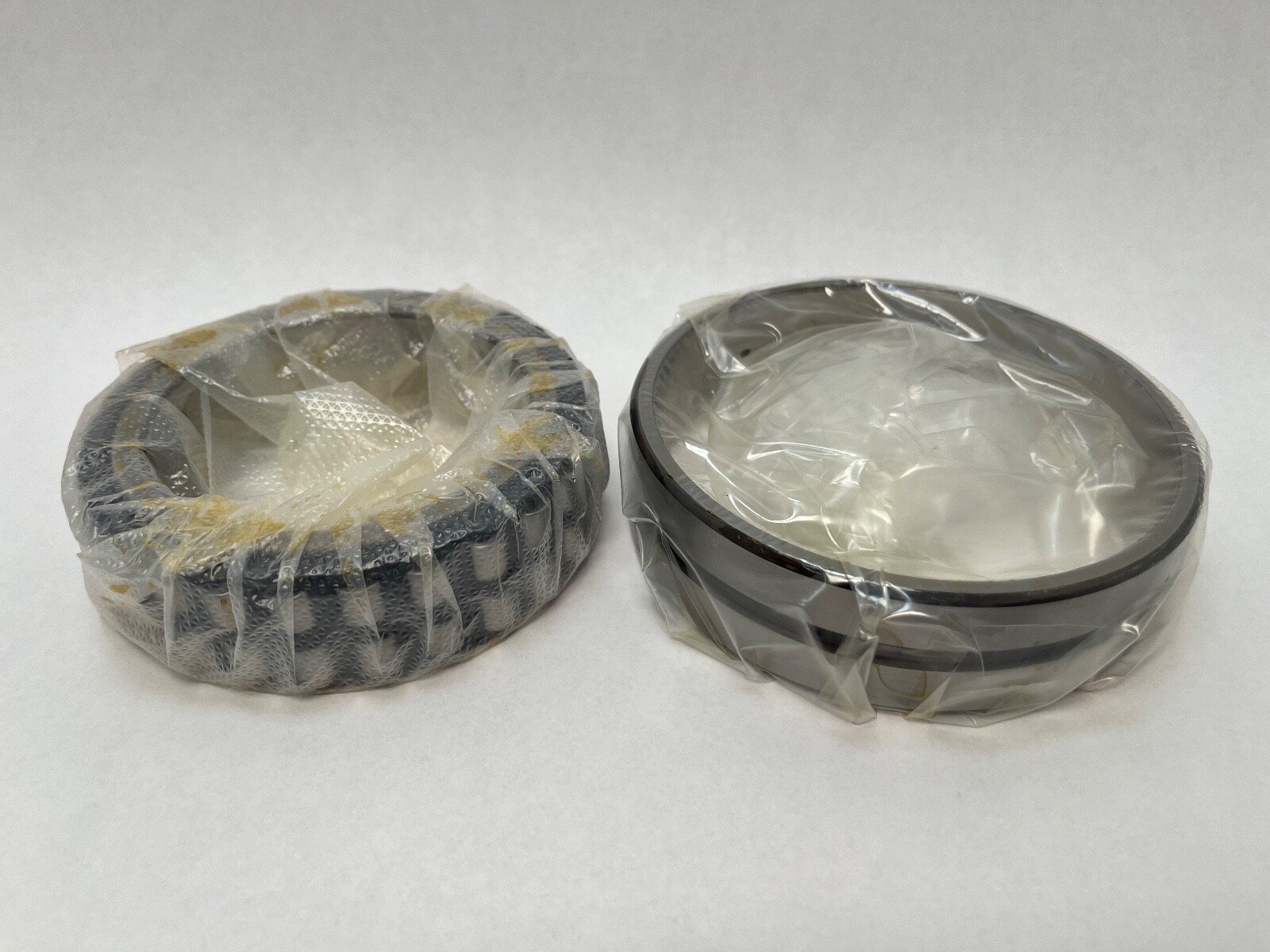

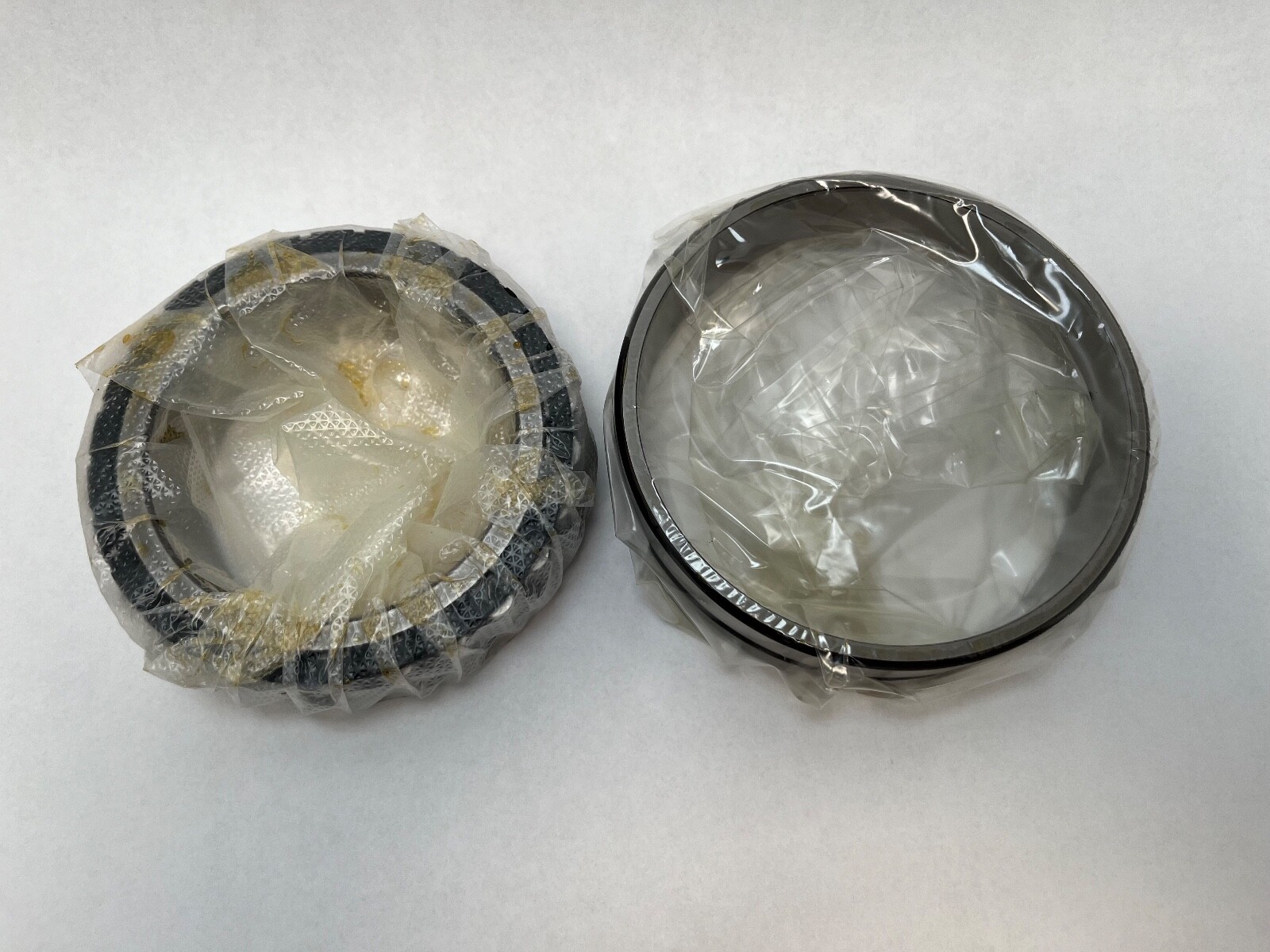

Bore Type: Tapered 1:12. On an NN-series cylindrical roller bearing the tapered bore seats directly on a matching tapered spindle journal. Outside Diameter: 115 mm to the housing bore. Overall Width: 30 mm. The separable design allows both rings to be given an interference fit and mounted independently.

Quantity and configuration

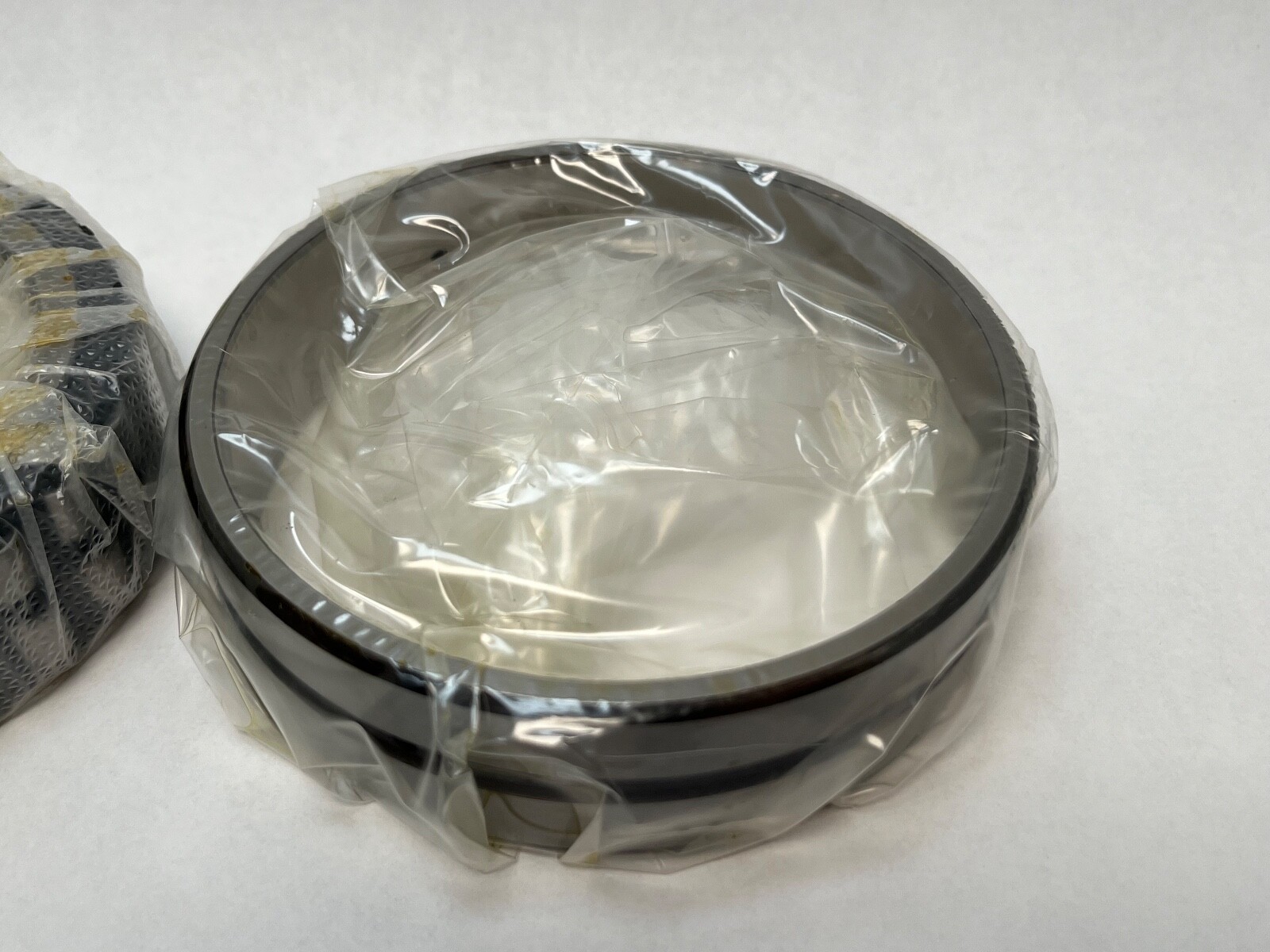

Unit Quantity: 1 Pc. One complete double-row bearing, open on both faces.

Interchange guidance

Cross-Reference 1: SKF NN 3015 KTN/SPW33. Cross-Reference 2: FAG NN3015-AS-K-M-SP. Cross-Reference 3: NSK NN3015TBKRCC1P4. Cross-Reference 4: NTN NN3015KC1NAP4. Cross-Reference 5: Koyo NN3015K. Cross-Reference 6: Nachi NN3015K.

All six share the 75 x 115 x 30 mm envelope, the 1:12 tapered bore and the double-row cylindrical roller design. Fafnir, RHP, MRC and SNR do not build this super-precision NN 30 range, so the interchange list stops at six.

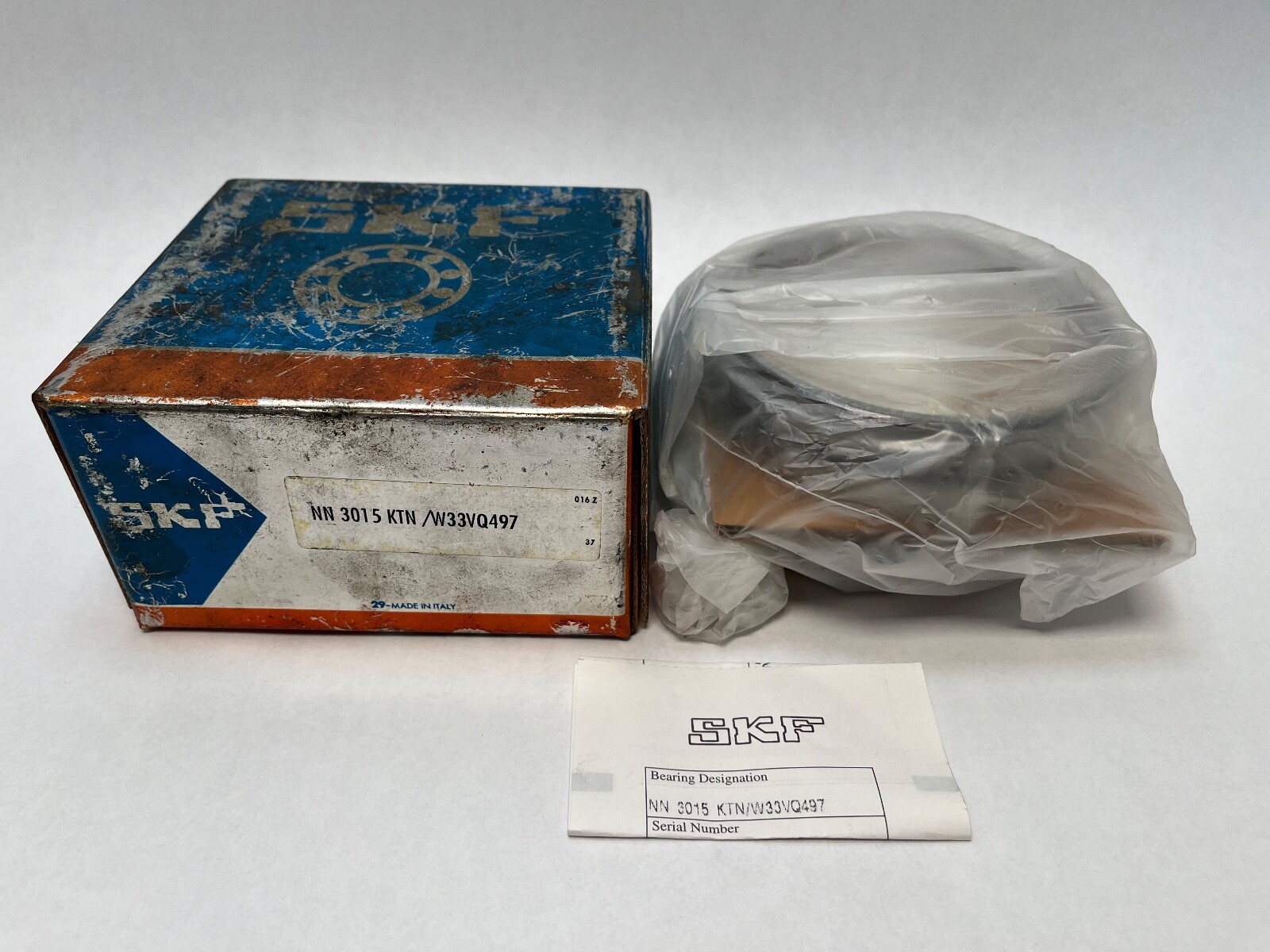

Searchable forms of the designation: NN3015KTN/W33, NN-3015-KTN-W33, NN 3015 KTN/SPW33, NN3015-K-TN-W33-VQ497, NN3015KTNW33.
