FAGNU1018MCylindrical Roller Bearing, Type NU – 90 mm ID, 140 mm OD, 24 mm Width, Machined Brass Cage, CN Clearance

Condition: New

Availability:

4 in stock

Single-row cylindrical roller bearing, type NU, 90 mm bore x 140 mm OD x 24 mm wide, machined brass cage, non-locating. Consolidated (FAG NU1018-M).

Same day shipment

List Price

$71.99

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

4 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNNU1018M
ModelNU1018 M
Bearing TypeCylindrical Roller Bearing, Open
ID90 mm
OD140 mm
Width24 mm

Technical Specifications

MaterialChrome Steel
SeriesNU10
Overall Width24 mm
Mpn VariantsNU-1018-M, NU1018M, NU1018 M, NU1018, NU1018-XL-M1, Consolidated NU-1018-M
Rolling ElementsCylindrical Roller

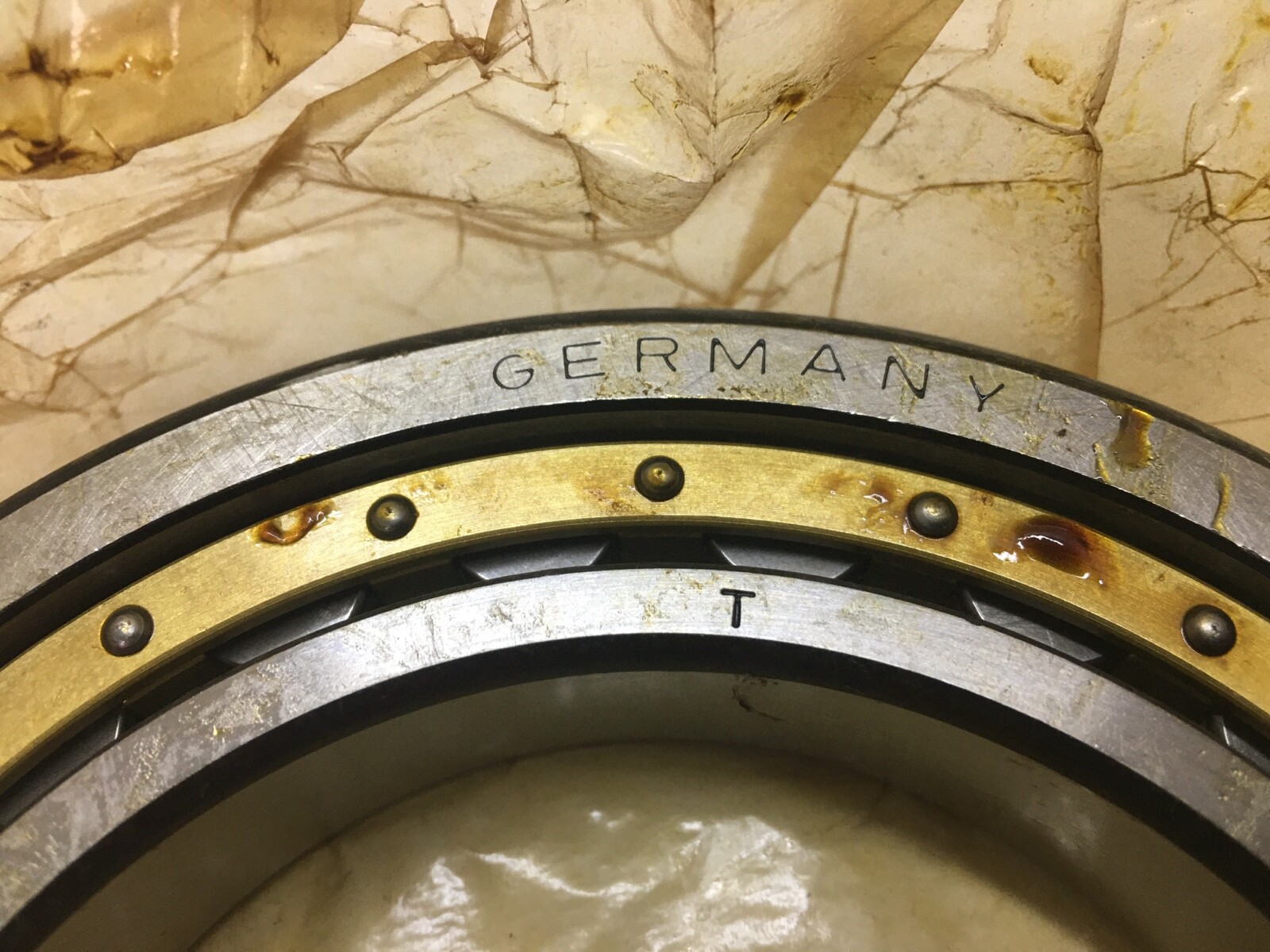

Cage MaterialMachined brass
Number Of Rows1
Bore TypeStraight
Internal ClearanceCN
Harmonization Code8482.50.00
Expansion TypeNon-locating (NU)
Total Width24 mm
Closure TypeOpen

Cross-References

Cross Reference 1FAG NU1018-XL-M1
Cross Reference 2SKF NU 1018 M
Cross Reference 3NSK NU1018M
Seller Part Number: BB3#VSAZS1

Product Description

What this part is:

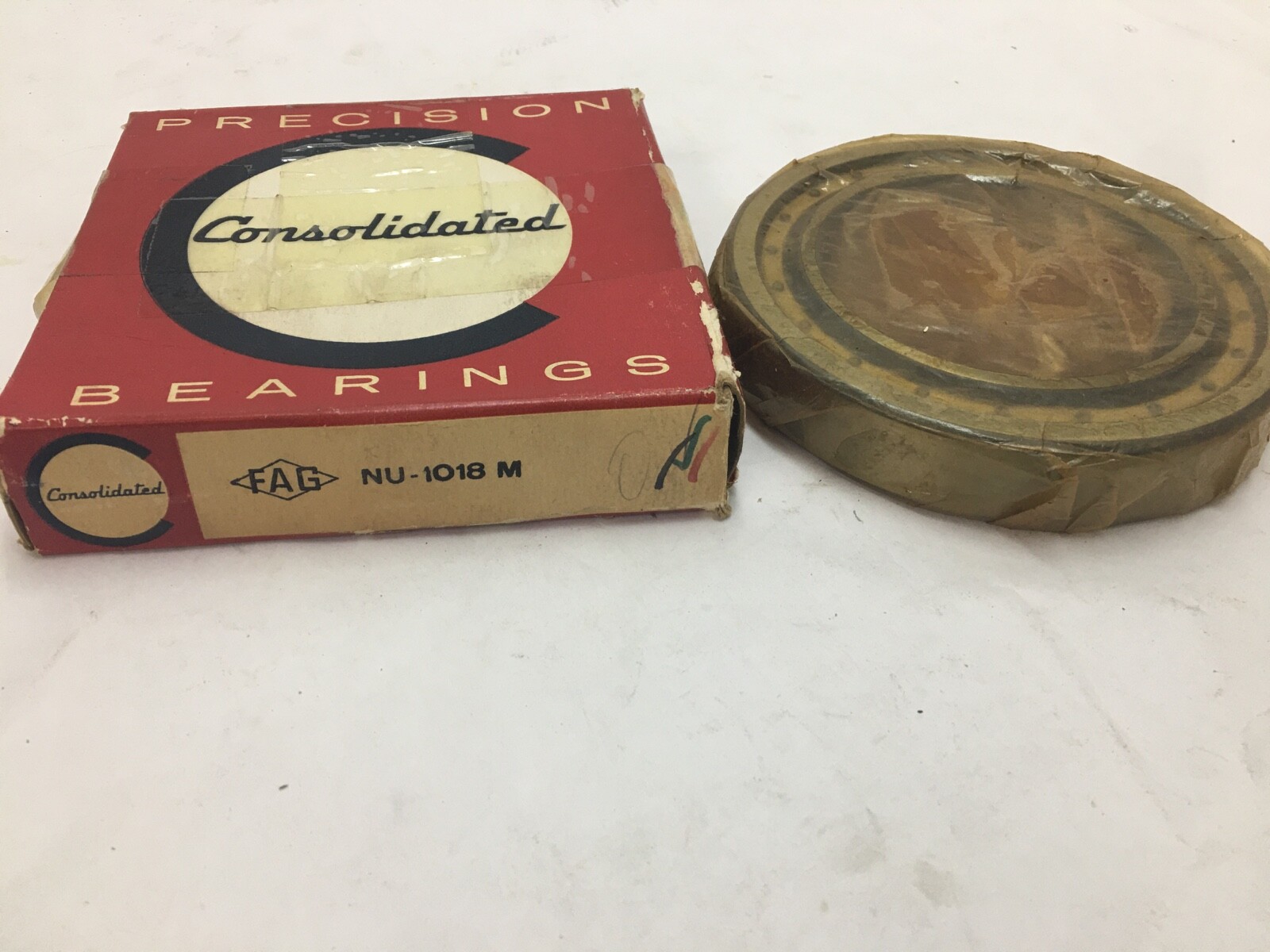

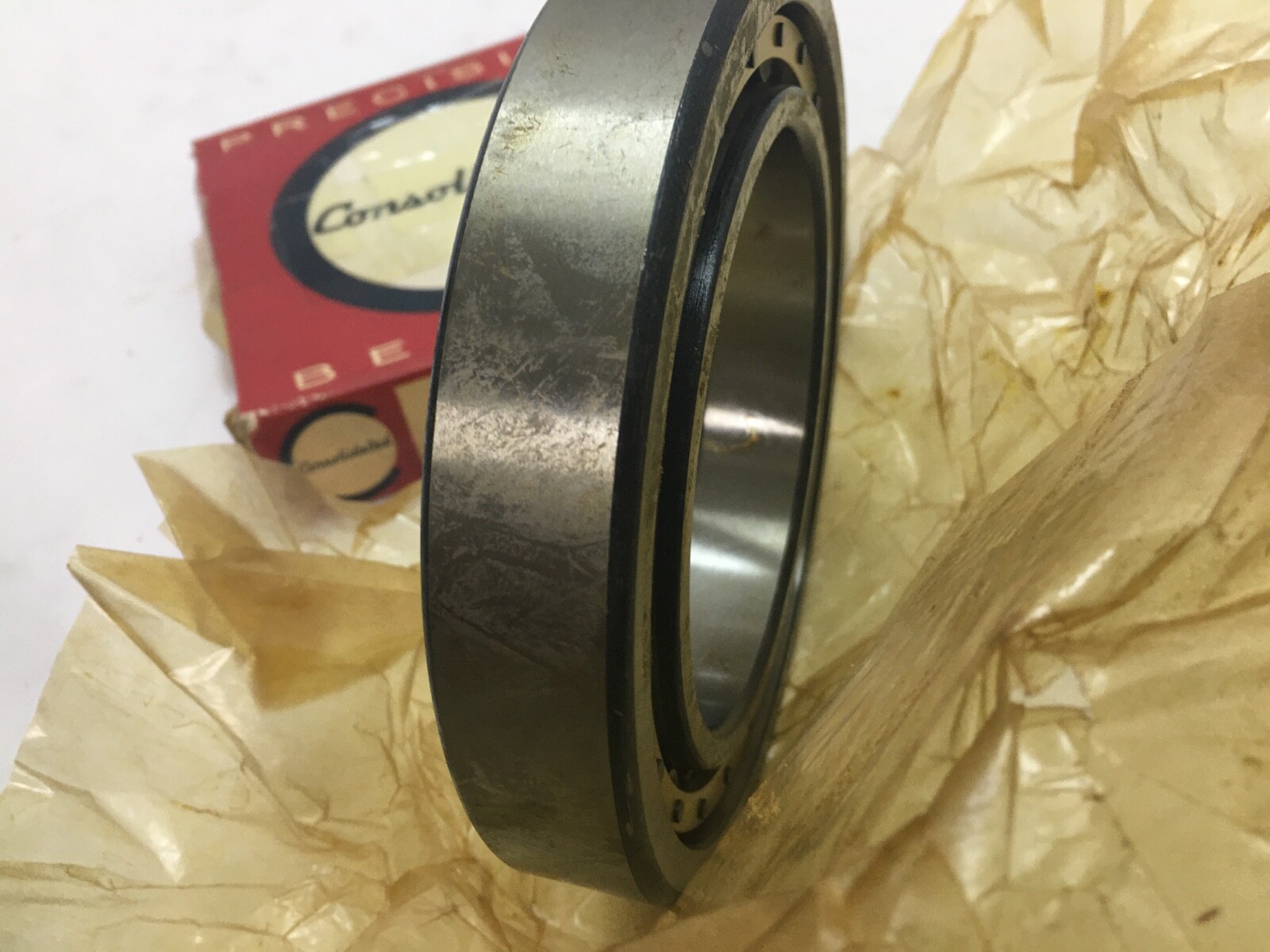

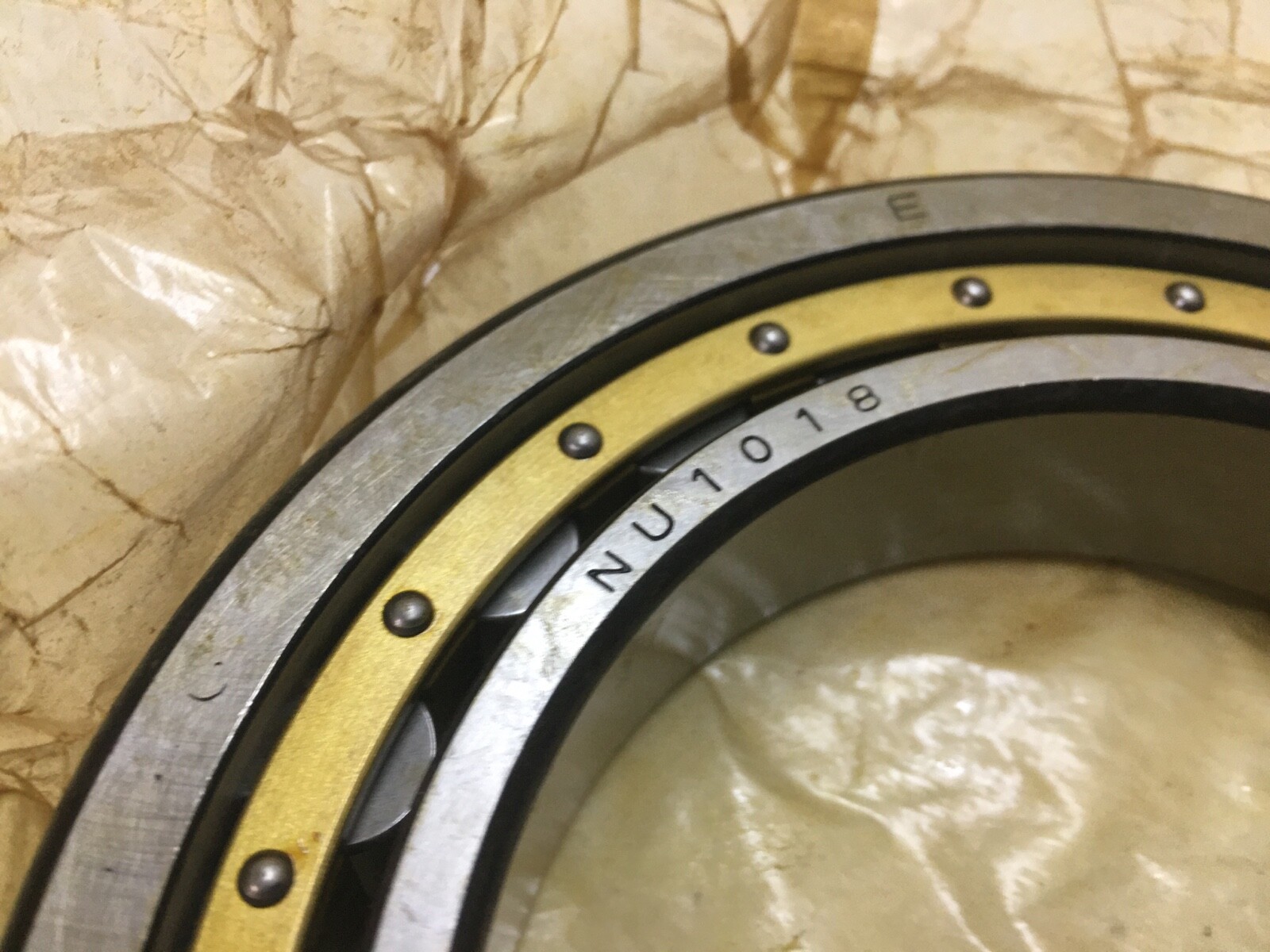

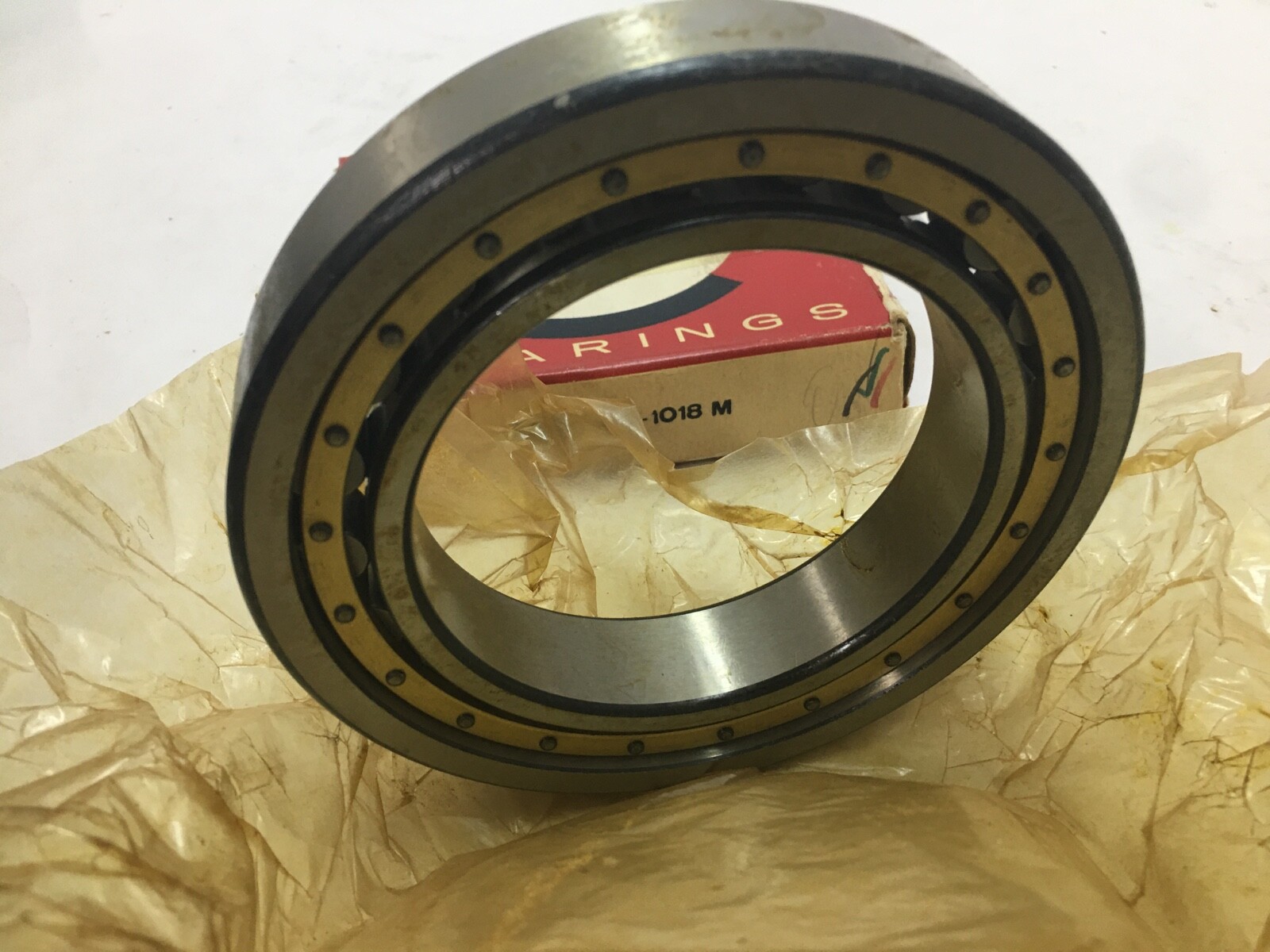

Consolidated NU-1018-M (FAG designation), a single-row cylindrical roller bearing, type NU, non-locating, open. Bore Diameter: 90 mm. Outside Diameter: 140 mm. Overall Width: 24 mm. Complete bearing: outer ring with roller and cage assembly, plus inner ring. Unit Quantity: 1 Pc.

Decoding the designation:

NU — two integral ribs on the outer ring, rib-less inner ring; non-locating bearing.

10 — dimension series 10.

18 — bore code, 18 x 5 = 90 mm.

M — machined brass cage.

No clearance suffix — normal internal clearance, CN.

Specifications:

Bore Diameter: 90 mm. Outside Diameter: 140 mm. Overall Width: 24 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Straight. Cage Material: Machined brass. Internal Clearance: CN. Closure Type: Open.

Dimensions and mounting:

Minimum Chamfer Dimension: 1.5 mm (outer ring), 1.1 mm (inner ring). Inner Ring Raceway Diameter: 103 mm. Outer Ring Raceway Diameter: 127 mm. Shaft Shoulder Diameter: 96 mm min, 101 mm max. Housing Shoulder Diameter: 133 mm. Maximum Recess Radius: 1.5 mm / 1 mm. Axial Displacement: 3 mm.

Compatibility and replacement:

Cross-references: FAG NU1018-XL-M1 (current successor); SKF NU 1018 M; NSK NU1018M. Geometry per Schaeffler data for NU1018-XL-M1.

Frequently asked questions:

What are the dimensions of the NU-1018-M?

Bore Diameter: 90 mm. Outside Diameter: 140 mm. Overall Width: 24 mm.

What does NU mean in NU-1018-M?

NU denotes two integral ribs on the outer ring and a rib-less inner ring, a non-locating design.

What cage does the NU-1018-M have?

The M denotes a machined brass cage.
