Double-row angular contact ball bearing, 25 x 52 x 20.6 mm, 30° contact angle, 2Z shields both sides. Cr 22,000 N, 10,700 rpm, glass-fibre polyamide cage.
List Price
$30.51
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3205-BD-2Z-TVH |
| Model | 3205-BD-2Z-TVH |
| Bearing Type | Angular Contact Ball Bearing, 2Z non-contact shields both sides |
| ID | 25 mm |
| OD | 52 mm |
| Width | 20.6 mm (13/16 in) |
| Series | 3200 |
|---|---|
| Min Temp | -20 °C |
| Dynamic Load Rating | 22,000 N |
| Static Load Rating | 15,200 N |
| Precision Rating | P6 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.171 kg (0.377 lb) |
| Cage Material | Glass-fibre reinforced polyamide PA66 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 30° |
| Limiting Speed | 10,700 rpm |
| Common Misspellings | 3205Z-BD-2Z-TVH, 3205BD2Z, 3205-2Z |
| Overall Width | 20.6 mm (13/16 in) |
| Mpn Variants | 3205-BD-2Z-TVH, 3205BD2ZTVH, 3205-BD-XL-2Z-TVH, 3205-B-2Z-TVH, 3205 BD 2Z TVH |
| Compatible With Replaces | Superseded by FAG 3205-BD-XL-2Z-TVH |
| Precision Class | P6 |
| Additional Attributes | Reference Speed: 12,500 rpm; Abutment da min: 30.6 mm; Abutment Da max: 46.4 mm; Fillet ra max: 1 mm; Chamfer r min: 1 mm; Load centre a: 30.8 mm; Grease: GA13; Current designation: 3205-BD-XL-2Z-TVH |
| Internal Clearance | CN |
| Lubricant | Grease, Schaeffler GA13 |
| Closure Type | Shields both sides |
| Cross Reference 1 | SKF 3205 A-2Z |
|---|---|
| Cross Reference 2 | NSK 5205ZZ |
| Cross Reference 3 | NSK 3205B-2ZTN |
| Cross Reference 4 | NTN 5205ZZ |

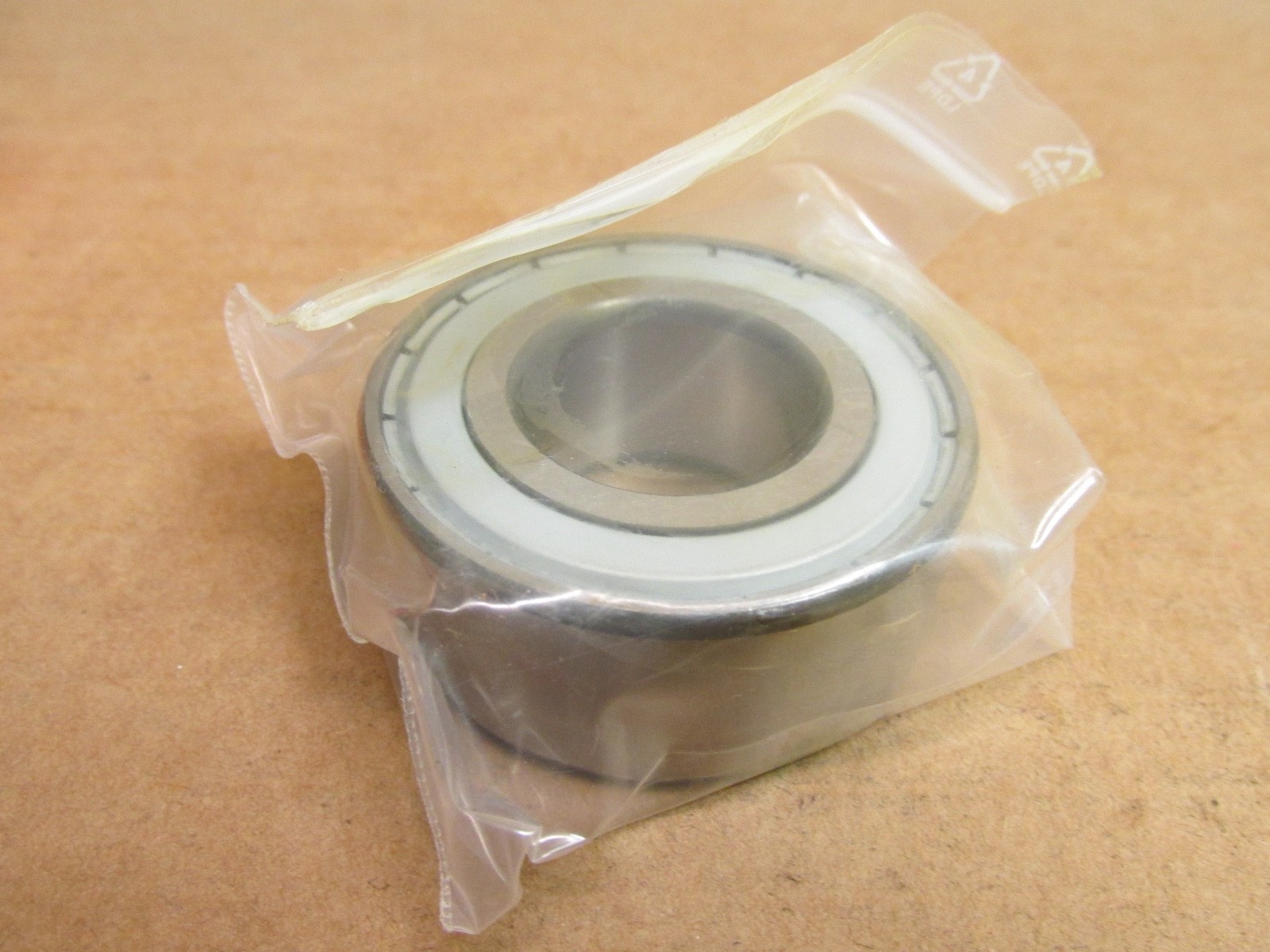

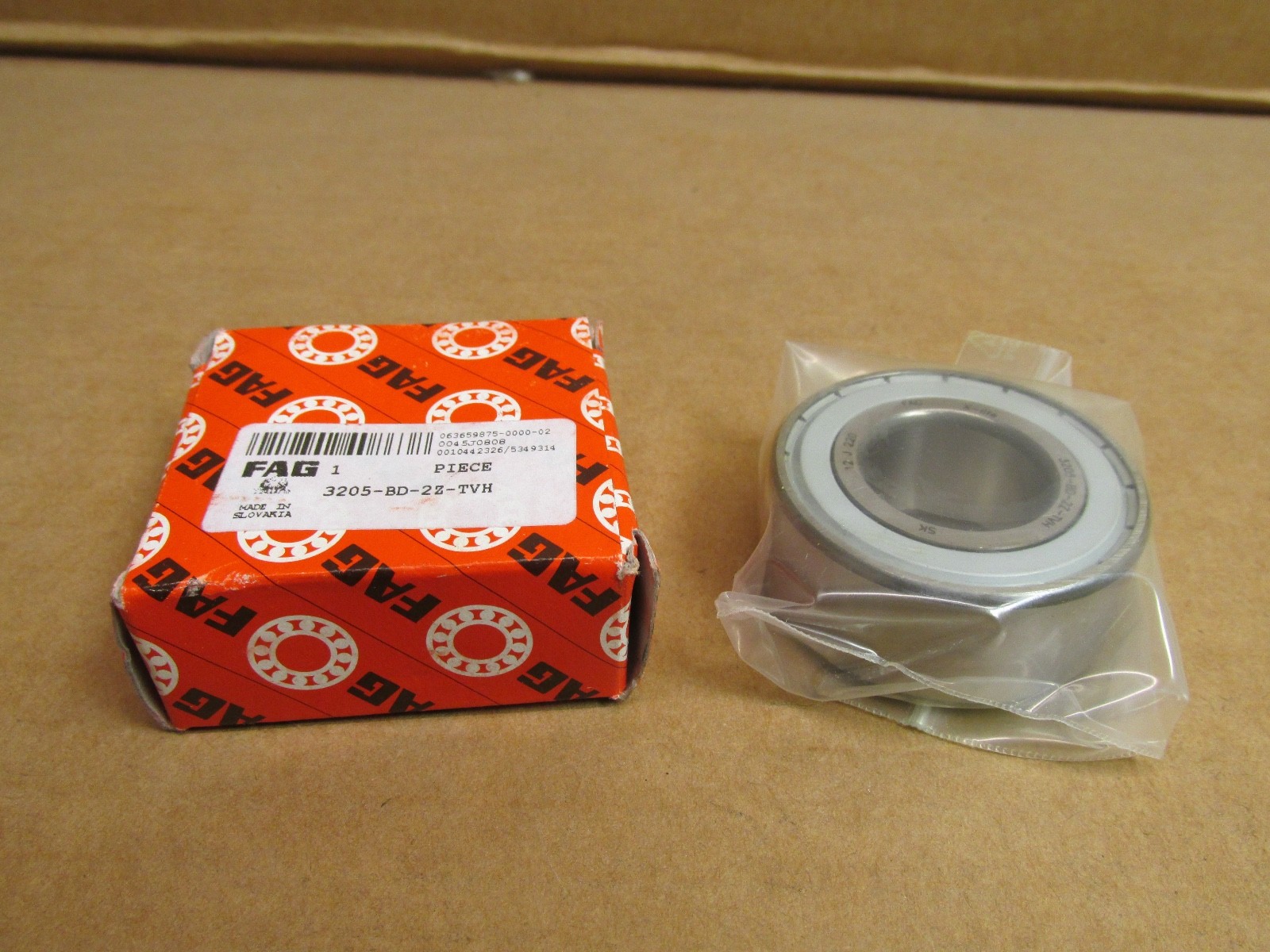

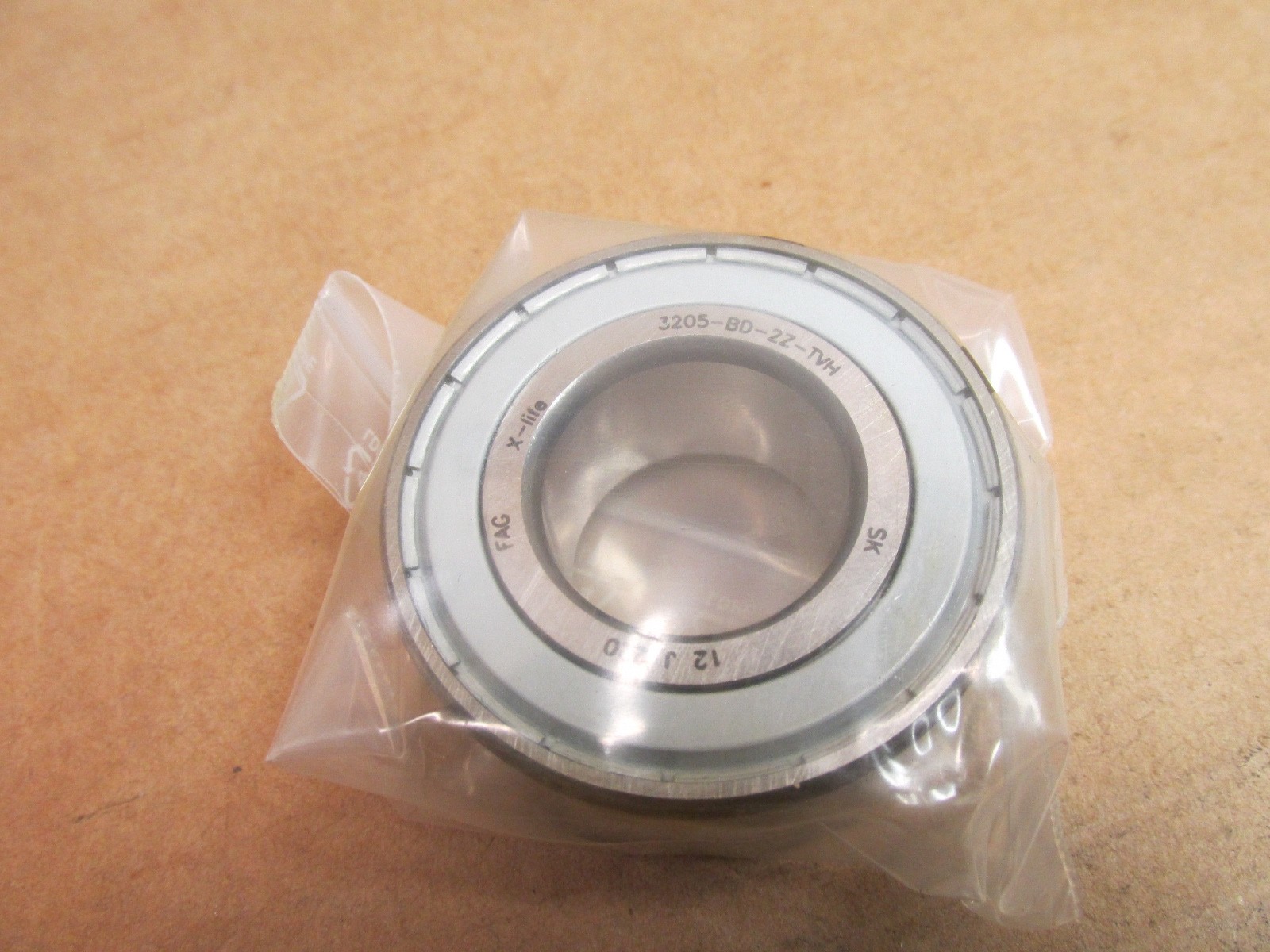

FAG 3205-BD-2Z-TVH double-row angular contact ball bearing with non-contact shields on both sides, supplied greased. The paired rows carry radial load together with axial load in both directions. Schaeffler lists 3205-BD-2Z-TVH as an earlier designation of the current 3205-BD-XL-2Z-TVH, and the current catalogue data applies.
32 — double-row angular contact ball bearing, dimension series 32, the 52 mm OD section.
05 — bore code, 25 mm bore.
BD — internal design with 30° contact angle.
2Z — non-contact shields on both sides.
TVH — solid window cage in glass-fibre reinforced polyamide PA66.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 20.6 mm (13/16 in). Number Of Rows: 2. Rolling Elements: Ball. Contact Angle: 30°. Closure Type: Shields both sides. Cage Material: Glass-fibre reinforced polyamide PA66. Internal Clearance: CN (axial). Precision Class: P6. Dynamic Load Rating: 22,000 N. Static Load Rating: 15,200 N. Limiting Speed: 10,700 rpm. Reference Speed: 12,500 rpm. Lubricant: Grease, Schaeffler GA13. Operating Temperature: -20 °C to +120 °C. Item Weight: 0.171 kg (0.377 lb). Unit Quantity: 1 Pc.
Abutment diameter da min: 30.6 mm. Abutment diameter Da max: 46.4 mm. Fillet radius ra max: 1 mm. Chamfer r min: 1 mm. Load centre distance a: 30.8 mm.
Cross-references: SKF 3205 A-2Z, NSK 5205ZZ, NSK 3205B-2ZTN, NTN 5205ZZ. Current Schaeffler designation: 3205-BD-XL-2Z-TVH. Also written 3205BD2ZTVH, 3205-B-2Z-TVH or 3205 BD 2Z TVH.
30°, given by the BD internal design.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 20.6 mm.
3205-BD-XL-2Z-TVH, the current Schaeffler designation.
