Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
5 in stock

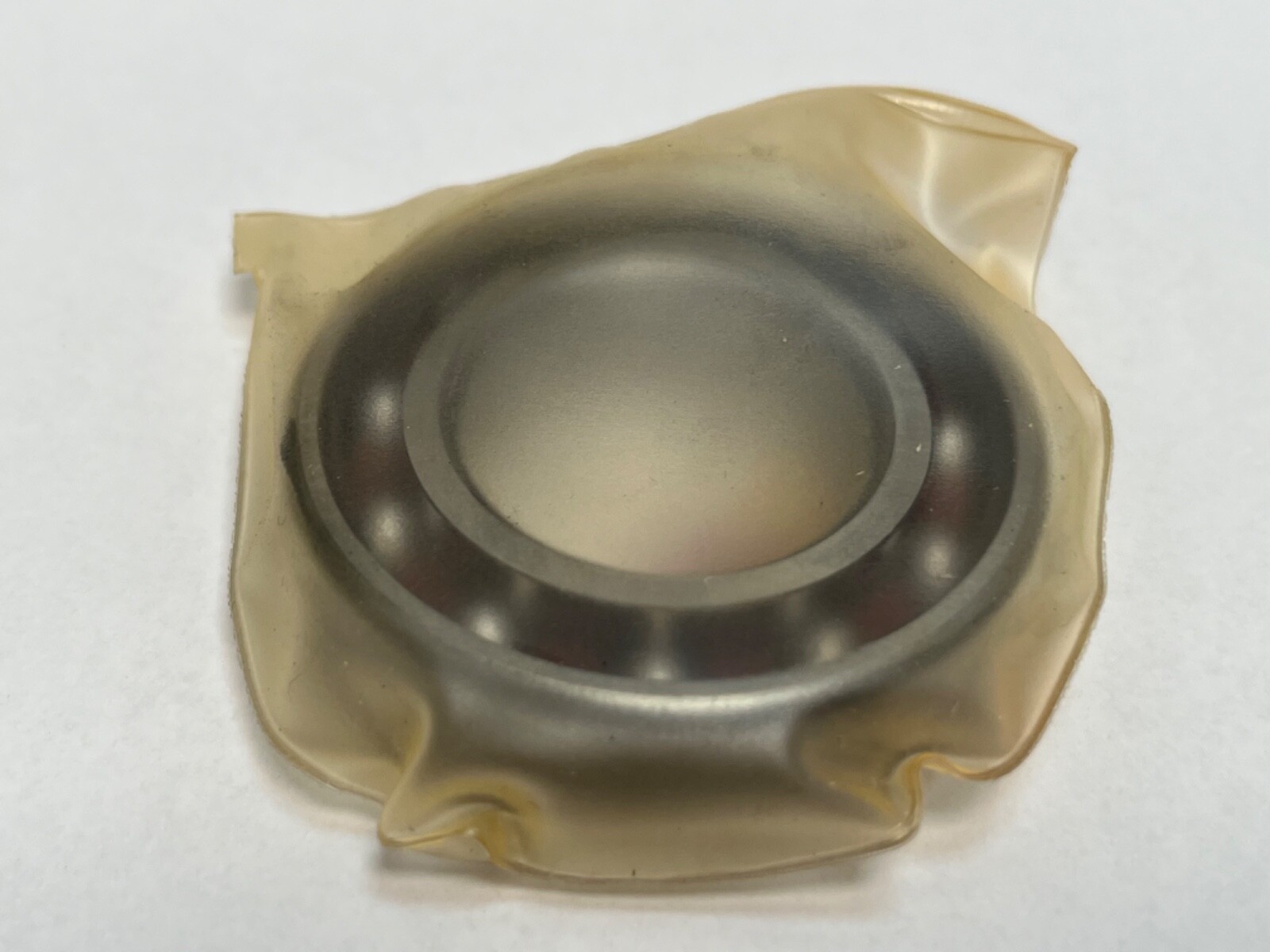

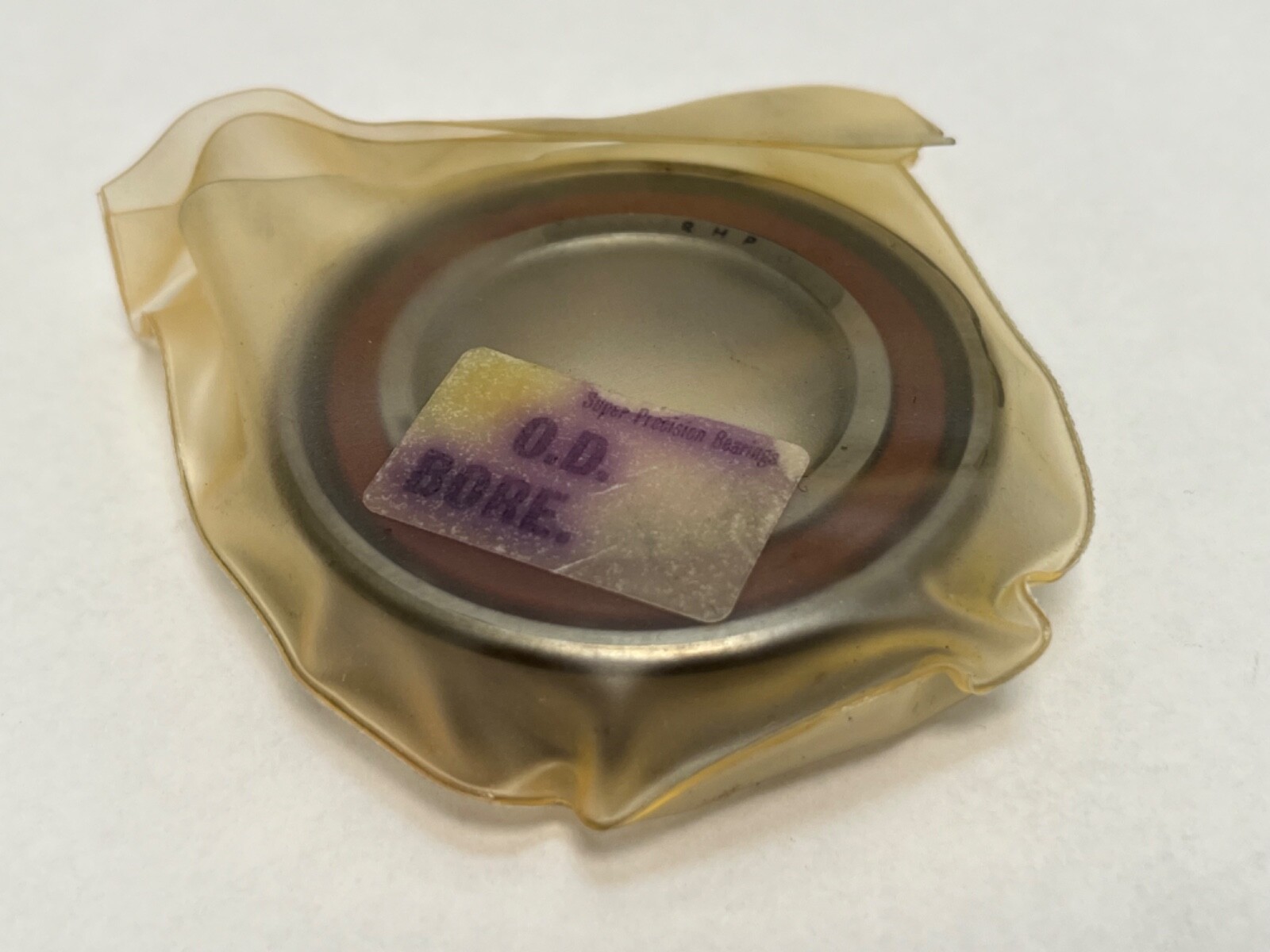

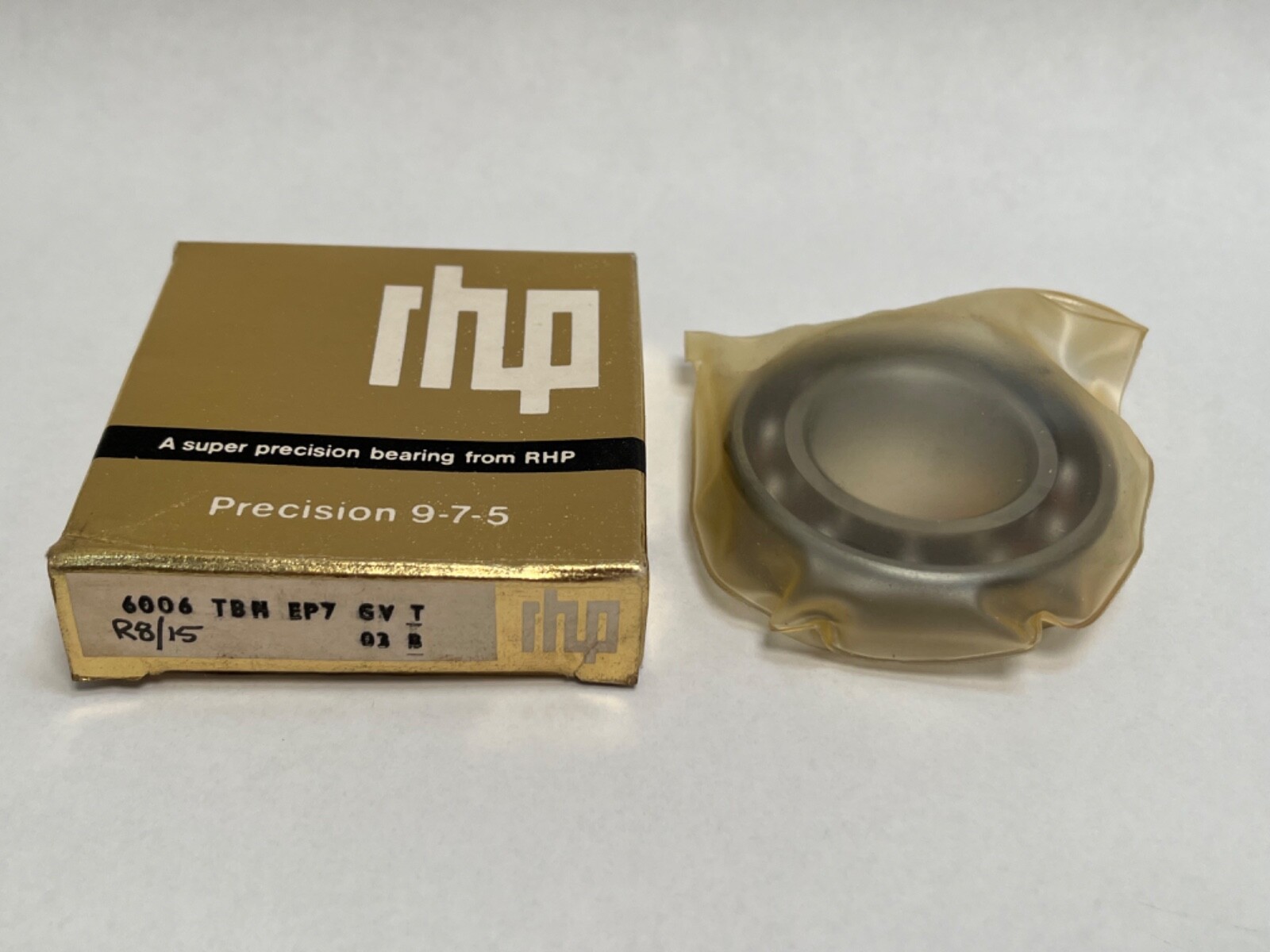

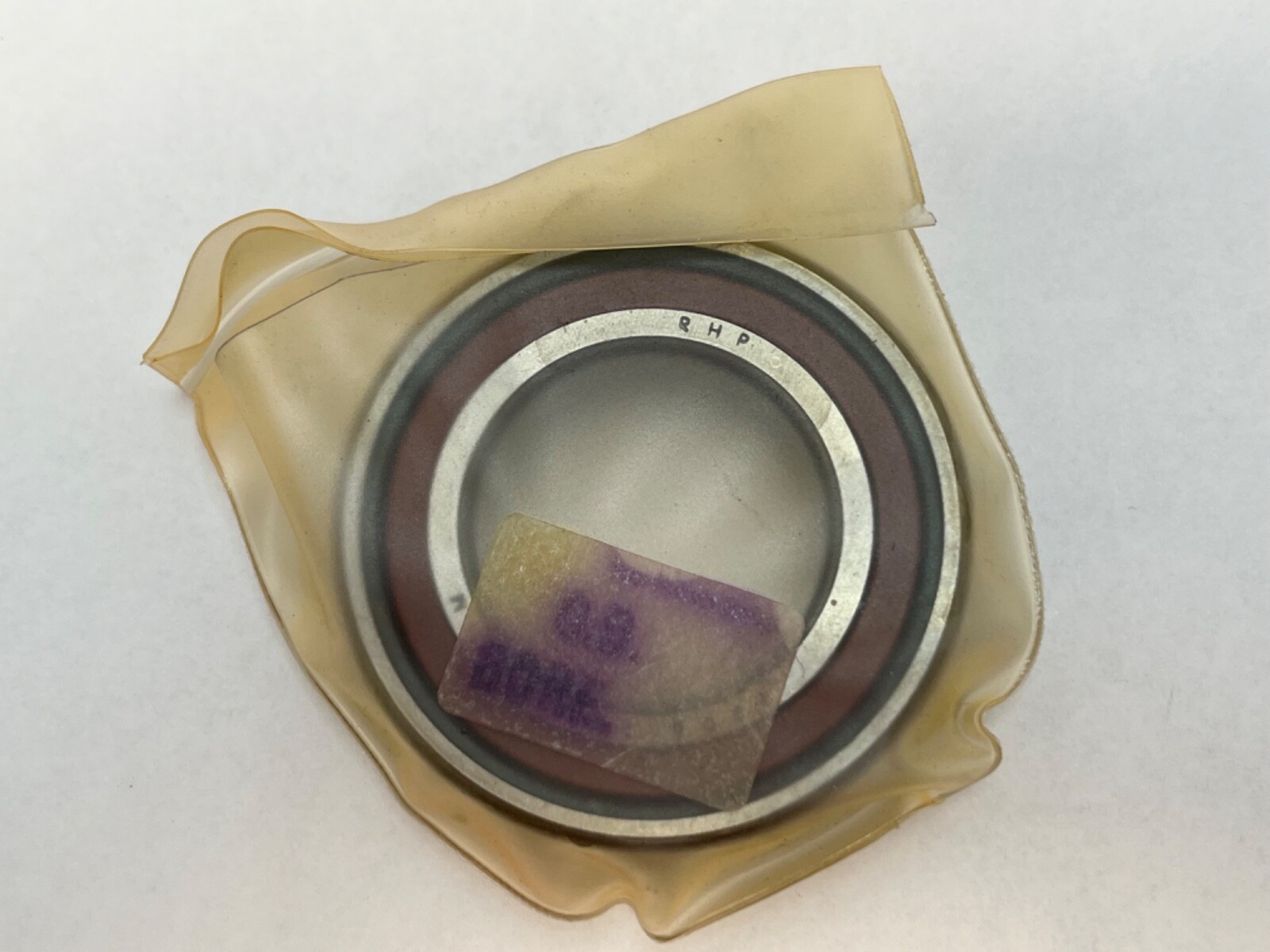

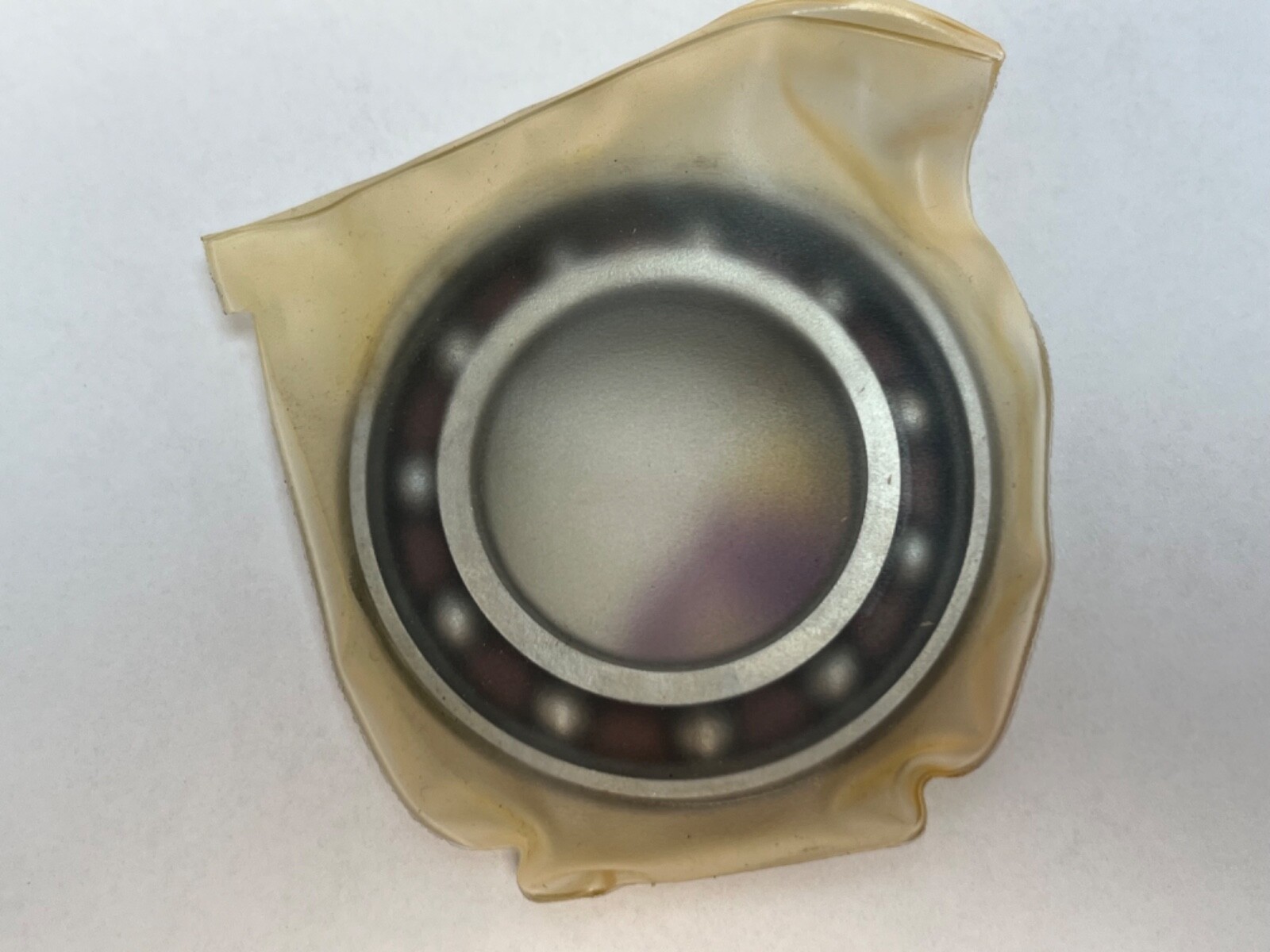

RHP 6006TBP4 deep groove ball bearing, 30 mm bore, 55 mm OD, 13 mm width, ABEC 7 / P4, phenolic cage, cross-references Fafnir/Timken MM9106K spindle bearing.
List Price
$49.60
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 6006TBP4 |
| Model | MM 9106 K CR / 6006 TB P4 6006TP4 |
| Bearing Type | Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6000 |
| Lubricant | Oil |
| Cage Type | Machined, inner-ring guided |
| Dynamic Load Rating | 14,700 N |
| Static Load Rating | 8,300 N |
| Rolling Elements | Ball |
| Item Weight | 0.109 kg (0.24 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 23,300 rpm grease; 46,600 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | Timken/Fafnir MM9106K - same spindle bearing |
|---|---|
| Cross Reference 2 | NSK 6006P4 - P4 size match, cage not confirmed |
| Cross Reference 3 | NTN 6006P4 - P4 size match, cage not confirmed |
Deep groove ball bearing, straight bore. Bore 30 mm, outside diameter 55 mm, width 13 mm.
6006 — ISO size code for the 30 x 55 x 13 mm deep groove envelope.
TB — one-piece machined, inner-ring guided phenolic cage.
P4 — RHP’s ABEC 7 precision grade.
MM9106K — Fafnir/Timken cross-designation for the same physical spindle deep-groove bearing.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Internal Clearance: CN. Cage Material: Phenolic. Cage Type: Machined, inner-ring guided. Dynamic Load Rating: 14,700 N. Static Load Rating: 8,300 N. Limiting Speed: 23,300 rpm grease; 46,600 rpm oil. Item Weight: 0.109 kg (0.24 lb).
$35.80
9 in stock
$51.32
5 in stock
$45.69
23 in stock
