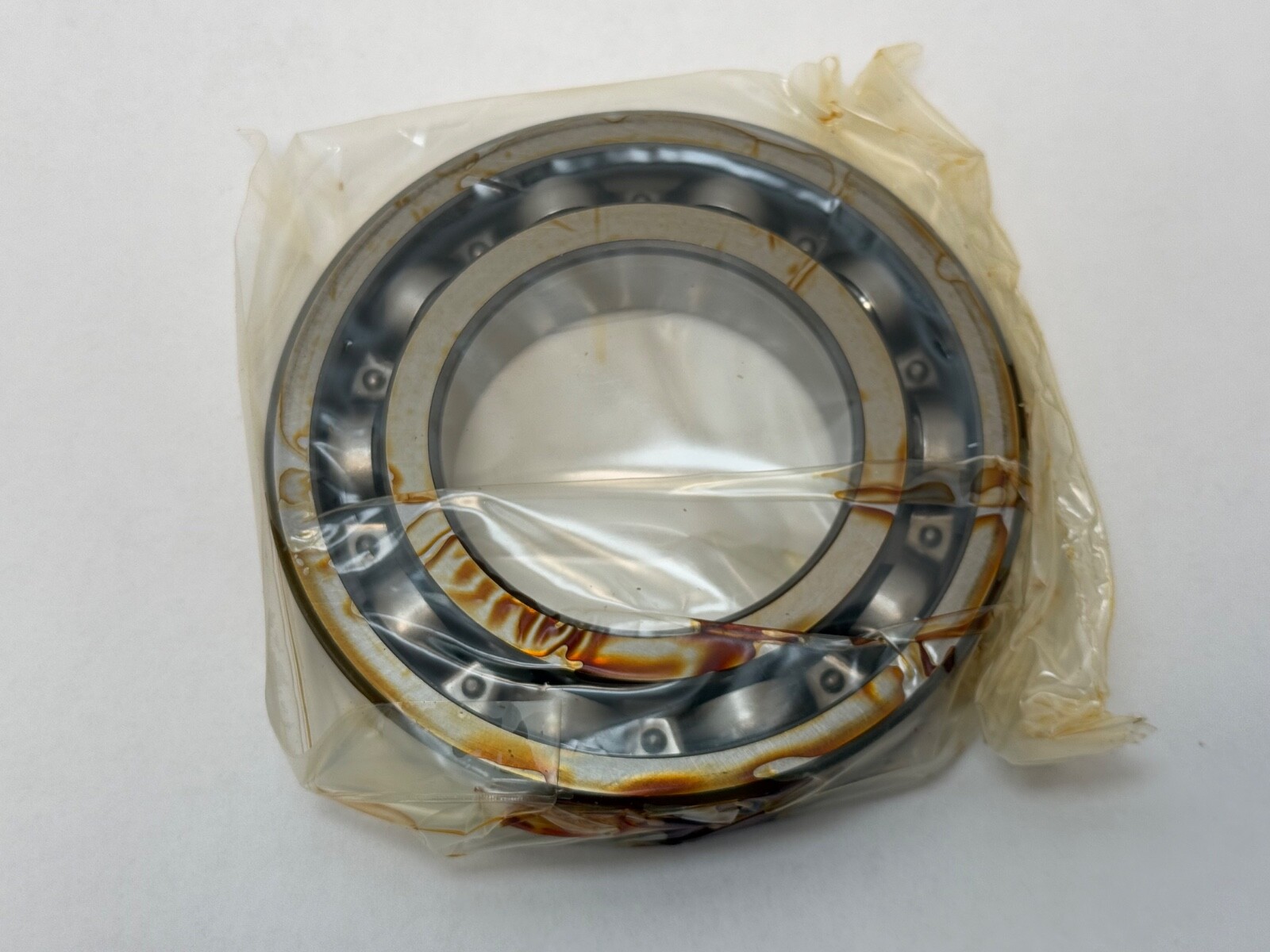

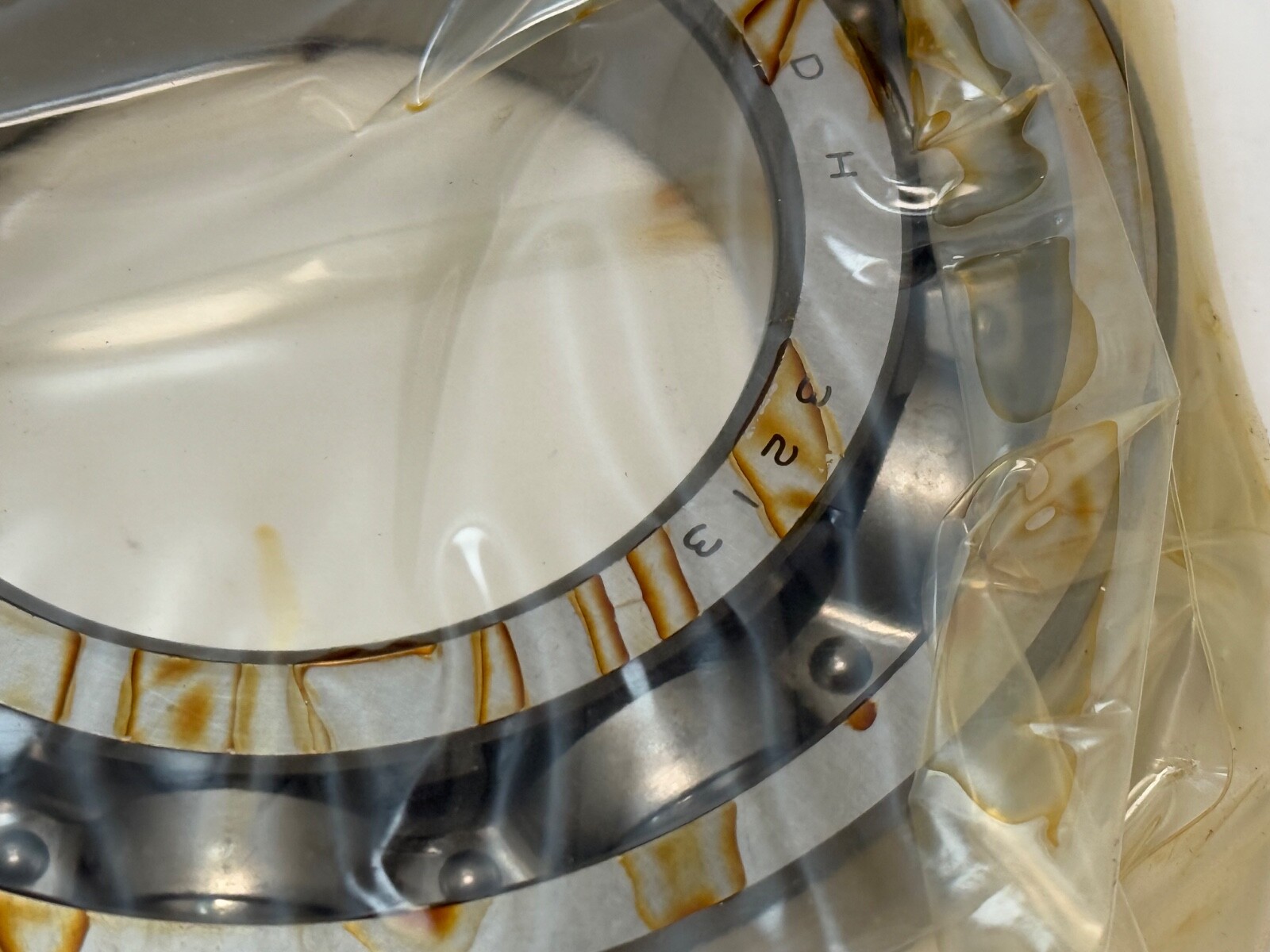

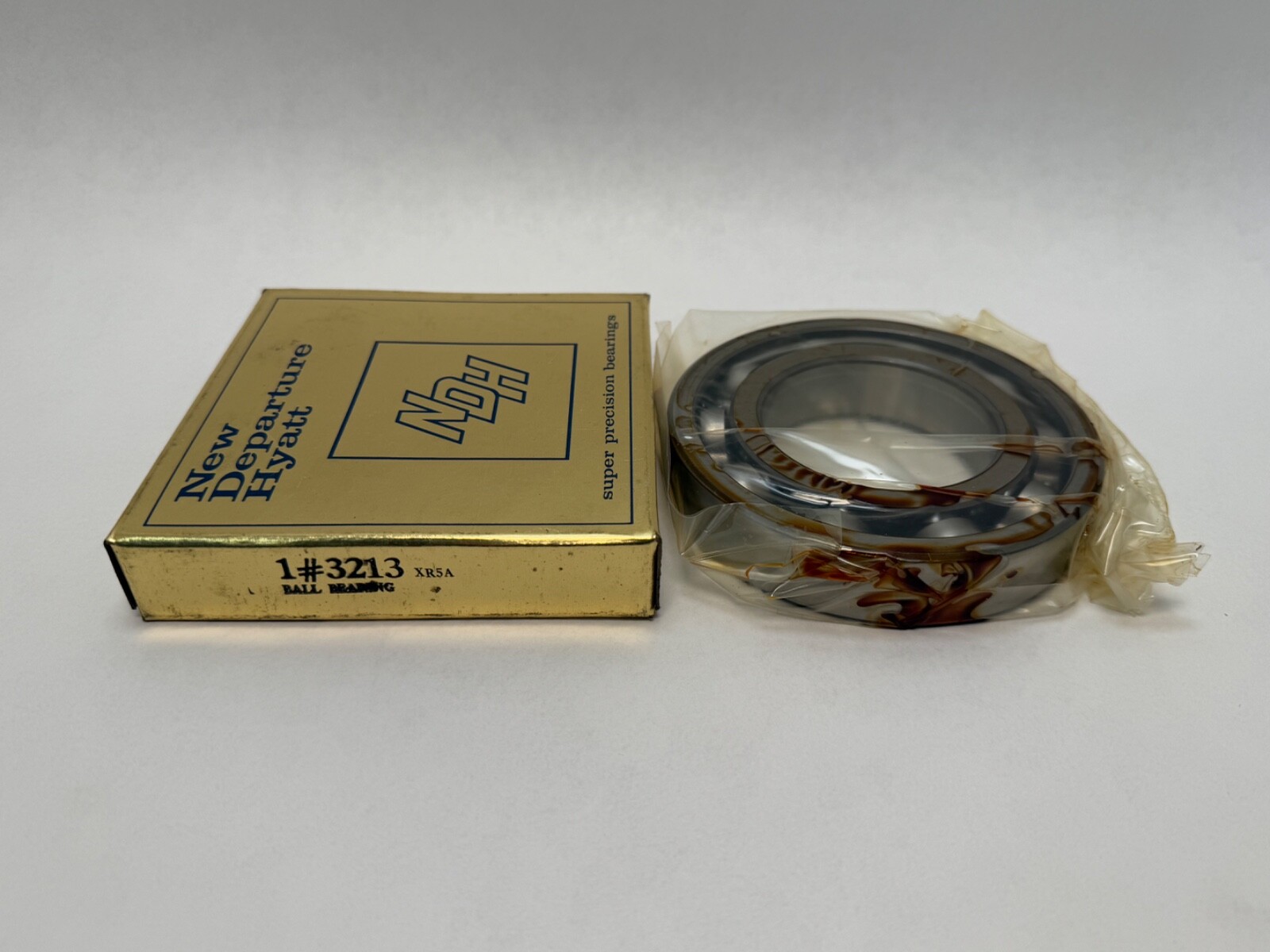

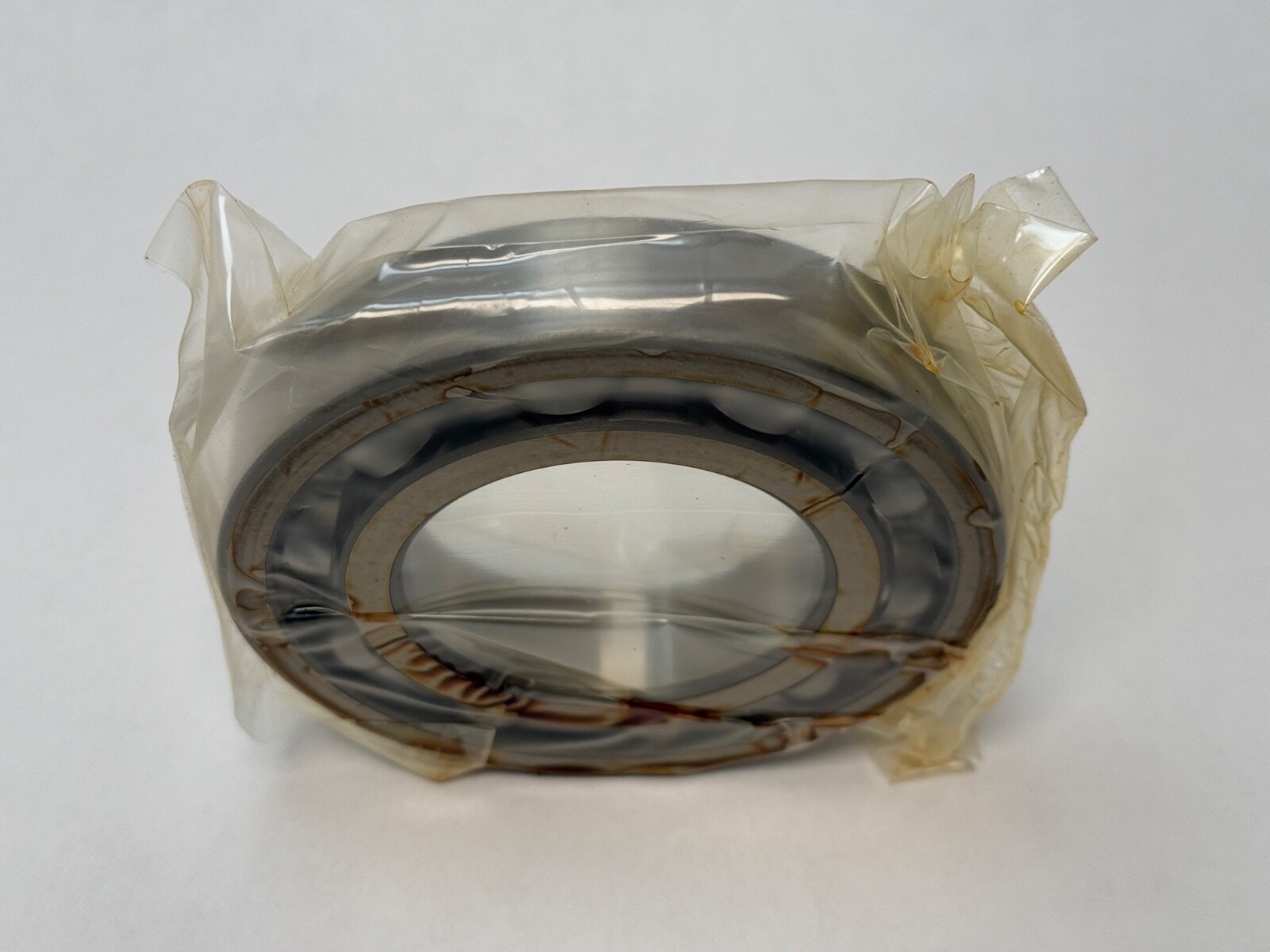

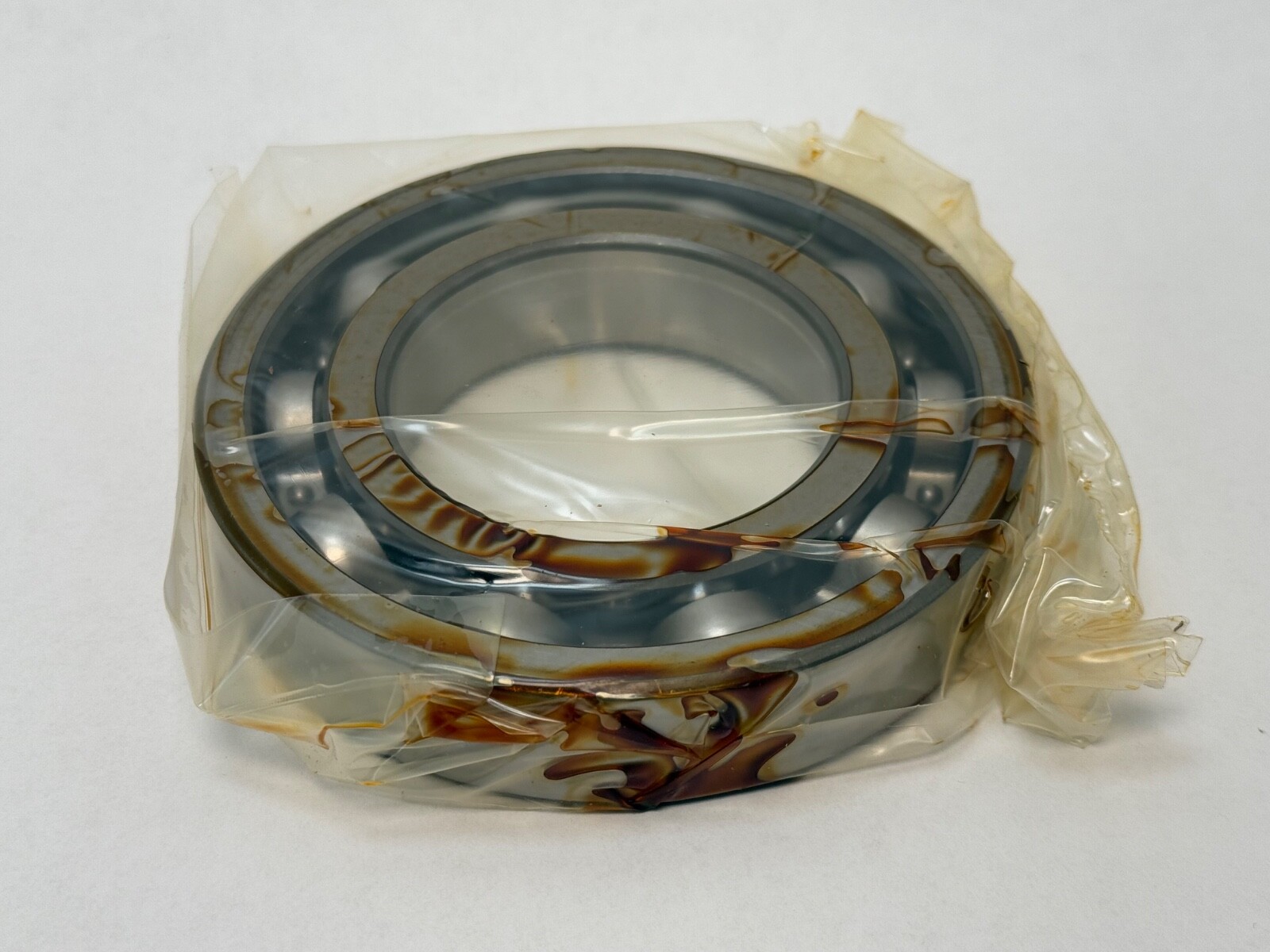

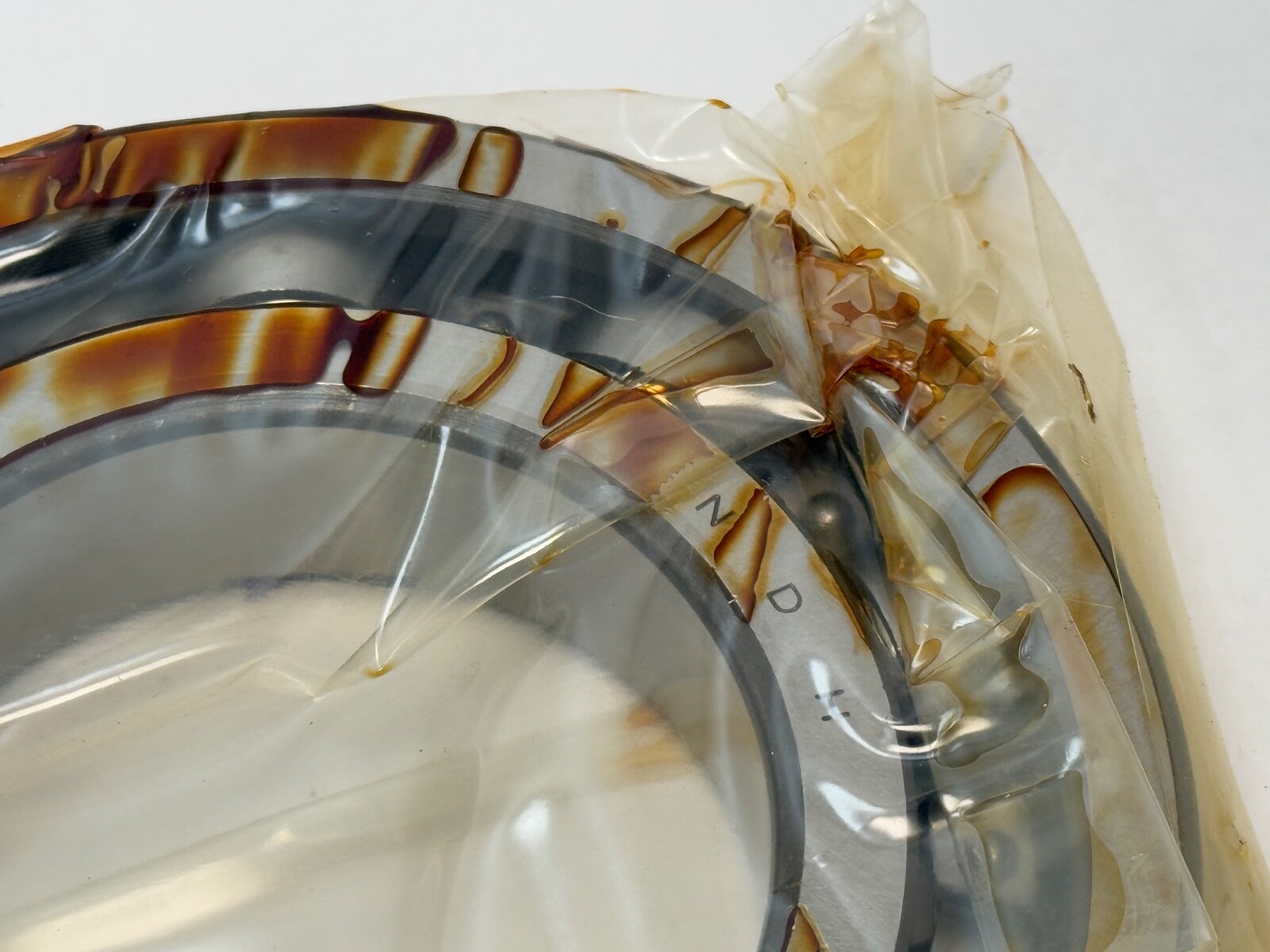

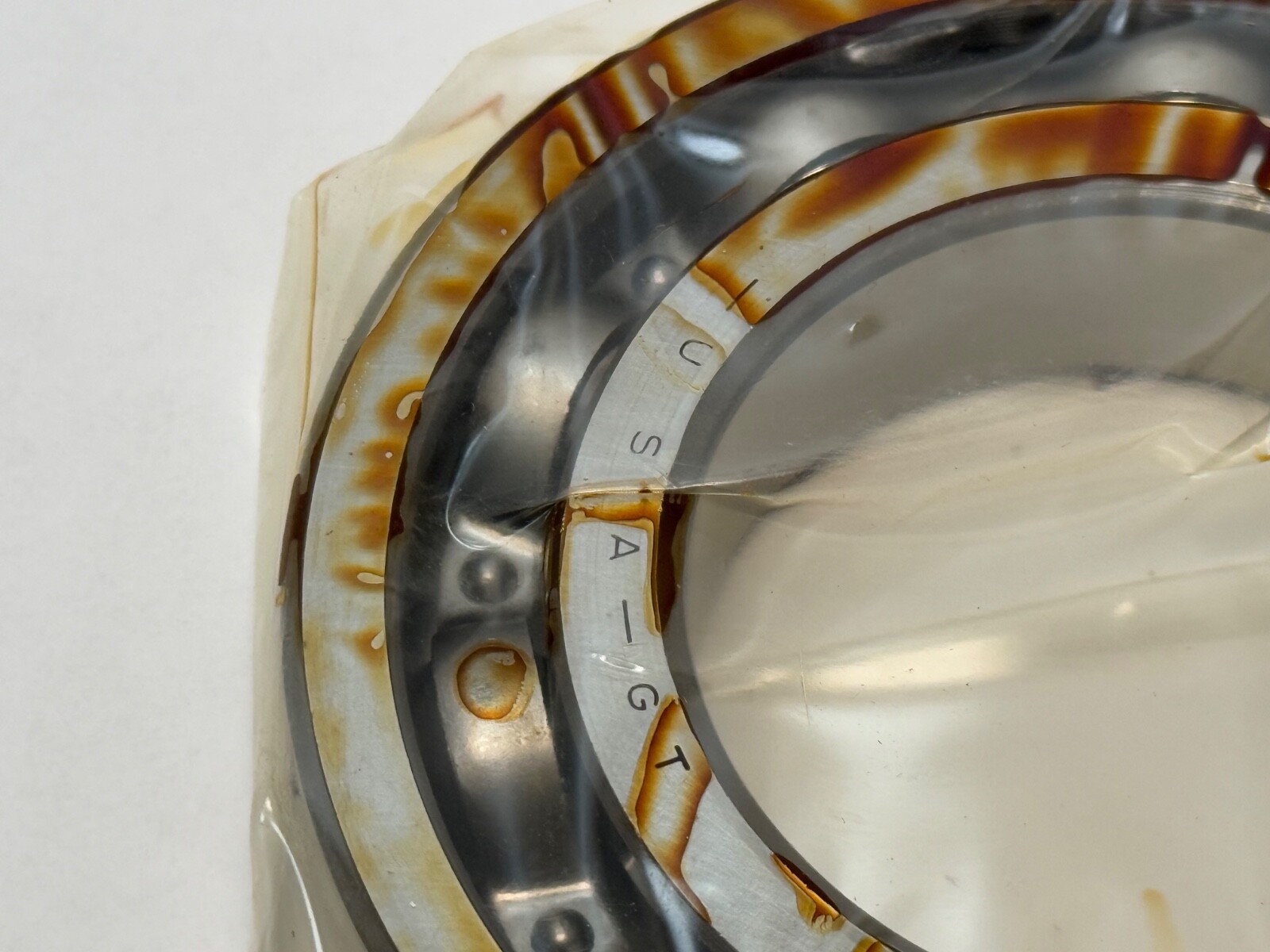

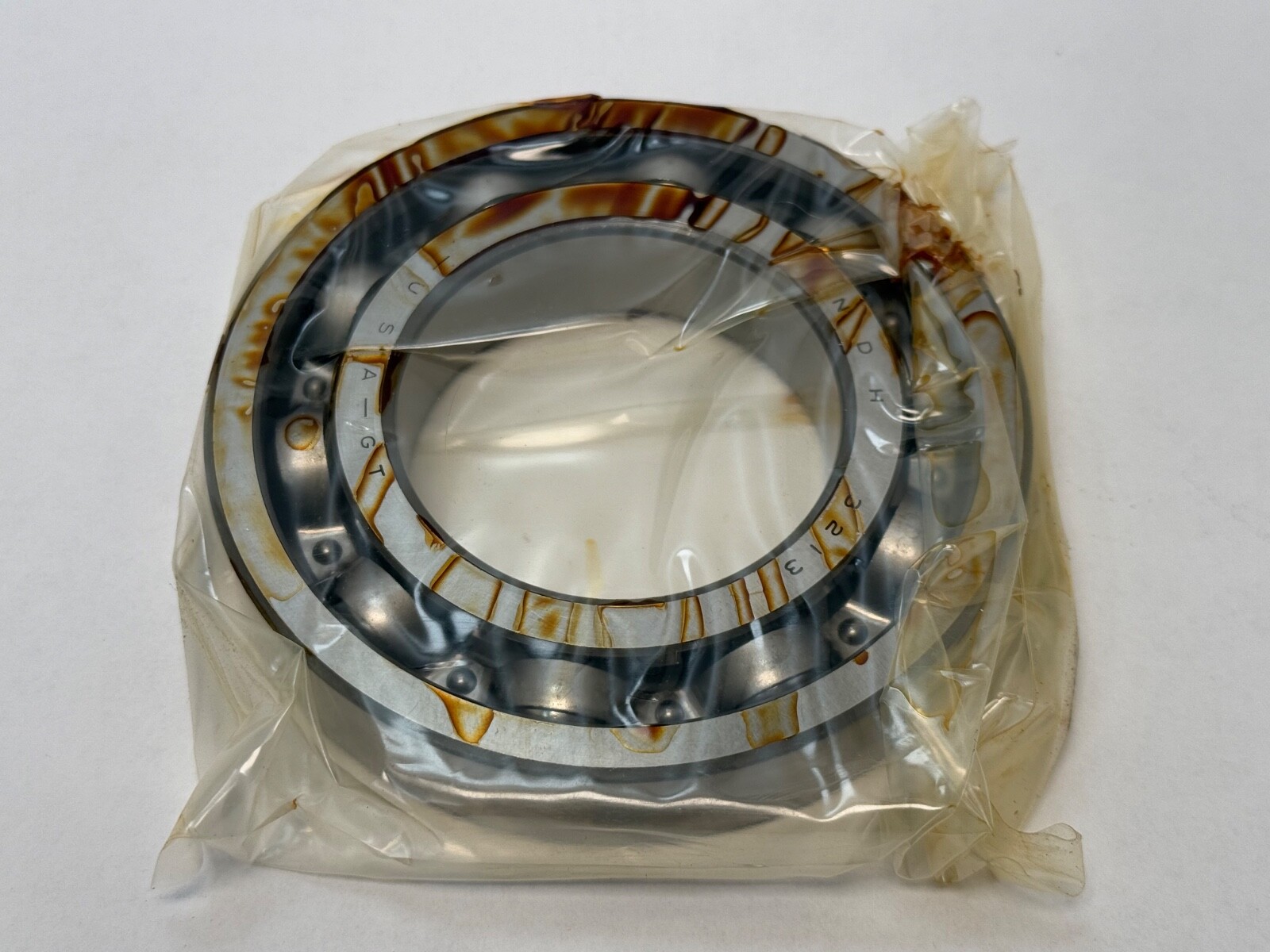

NDH 3213XR5A deep groove ball bearing, 65 x 120 x 23 mm, ABEC 5 precision, open, CN radial play. ISO 6213-P5 envelope from New Departure Hyatt.
List Price
$45.69
23 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | 3213XR5A |
| Model | 6213P5 / 3213 XR 5A |
| Bearing Type | Ball Bearing |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Base Number | 3213 |
|---|---|
| Industry Terms | Conrad bearing, radial ball bearing, single row deep groove, precision ball bearing, ABEC 5 bearing |
| Common Misspellings | 3213XRSA, 3213 XR5A, 3213-XR5A, NDH3213XR5A |
| Application Types | Electric motors, pumps, gearboxes, machine tool spindles, fans and blowers |
| Overall Width | 23 mm |
| Mpn Variants | 3213XR5A, 3213-XR-5A, 3213 XR 5A, 6213-P5, 6213P5 |
| Compatible With Replaces | 6213-P5, 6213 ABEC 5 |
| Precision Class | ABEC 5 / P5 |
| Series | NDH 3200 (ISO 62) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Internal Clearance | CN |
| Closure Type | Open |
| Cross Reference 1 | SKF 6213/P5 |
|---|---|
| Cross Reference 2 | FAG 6213-P5 |
| Cross Reference 3 | NSK 6213P5 |
| Cross Reference 4 | NTN 6213P5 |
| Cross Reference 5 | Koyo 6213P5 |
| Cross Reference 6 | Fafnir 213K - standard precision |
| Cross Reference 7 | MRC 213S - standard precision |
| Cross Reference 8 | SNR 6213 - standard precision |
NDH (New Departure Hyatt) 3213XR5A single-row, non-filling-slot deep groove ball bearing, open, ground to ABEC 5. ISO 6213 envelope: bore 65 mm, outside diameter 120 mm, width 23 mm. Unit Quantity: 1 Pc.
3213 — NDH basic number: single-row non-filling-slot radial ball bearing, 200 (light) series, 65 mm bore. Same envelope as ISO 6213.
XR — standard internal fit-up (radial play), ABMA symbol 0, equivalent to CN clearance.
5 — ABEC 5 tolerances.
A — rust preventive compound applied at the factory.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Precision Class: ABEC 5 / P5. Internal Clearance: CN. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Series: NDH 3200 (ISO 62). Unit Quantity: 1 Pc.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Single-row non-filling-slot Conrad design.
Cross-references: SKF 6213/P5, FAG 6213-P5, NSK 6213P5, NTN 6213P5, Koyo 6213P5. Standard-precision designations for the same envelope: Fafnir 213K, MRC 213S, SNR 6213. Also written as 3213-XR-5A, 3213 XR 5A, 6213-P5 and 6213P5.
Bore 65 mm, outside diameter 120 mm, width 23 mm, in the ISO 6213 envelope.
XR is standard internal radial play (ABMA symbol 0, equal to CN), 5 is ABEC 5 tolerance and A is a factory-applied rust preventive compound.
No. It is an open single-row deep groove ball bearing.
