Single-row deep groove ball bearing, 25 mm bore x 52 mm OD x 15 mm wide, open, P5 / ABEC 5 tolerance class, normal CN internal clearance, 1 piece.
List Price
$23.33
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6205.P5 |
| Model | 6205 P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6200 |
| Mpn Variants | 6205.P5, 6205-P5, 6205P5, 6205 |
| Precision Class | ABEC 5 / P5 |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 6205/P5 |
|---|---|
| Cross Reference 2 | NSK 6205P5 |
| Cross Reference 3 | Koyo 6205P5 |
| Cross Reference 4 | NTN 6205P5 |

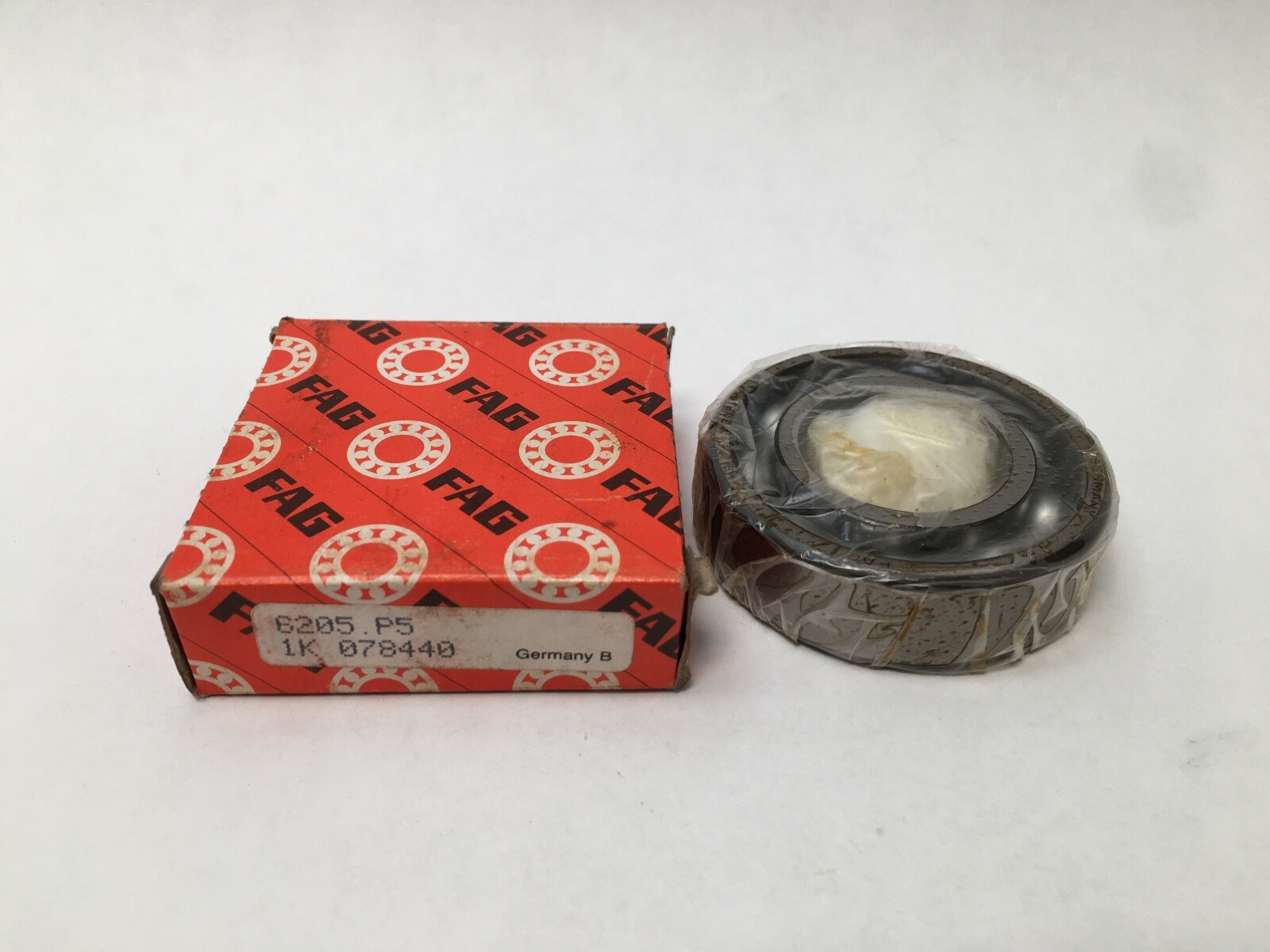

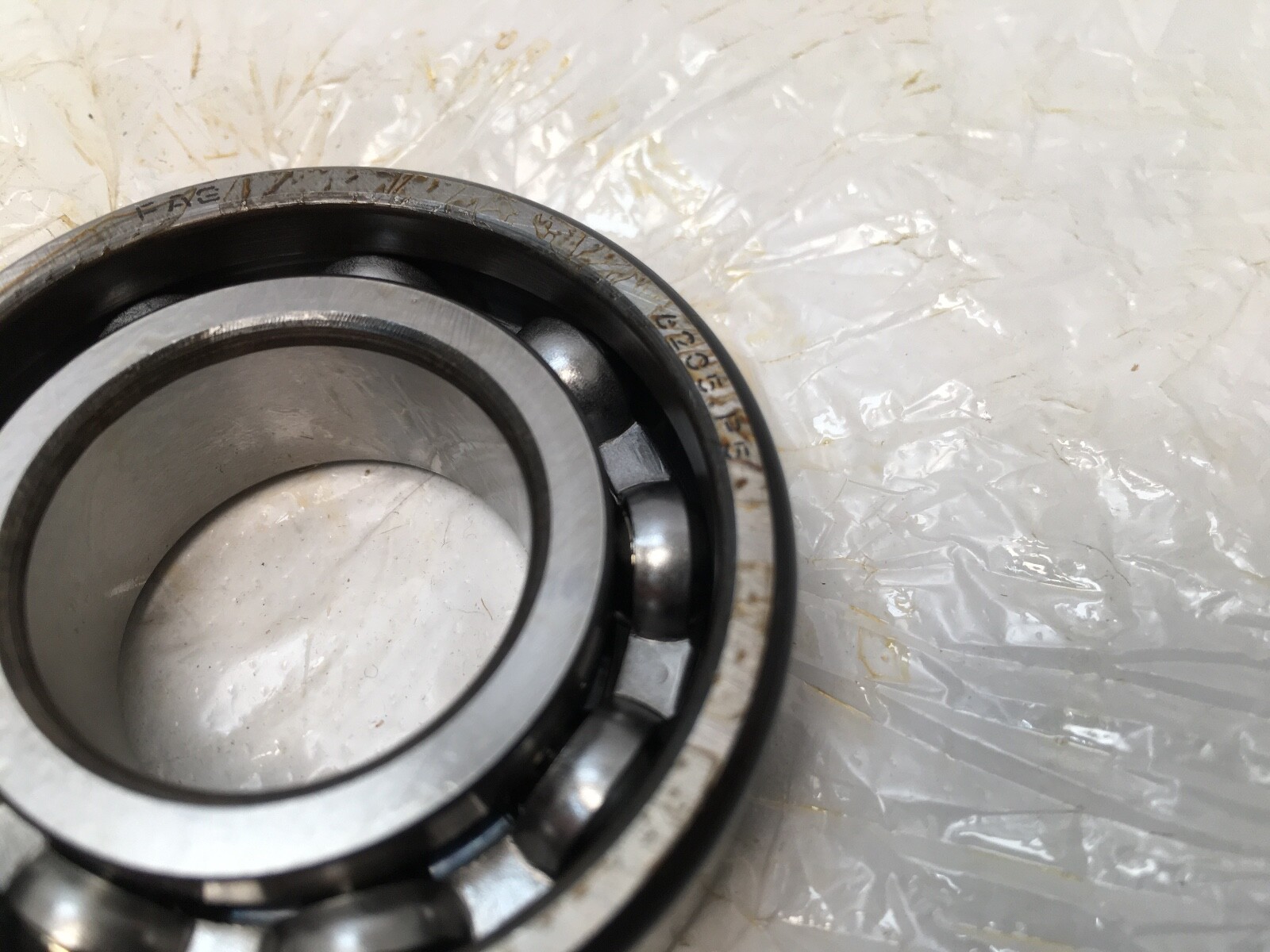

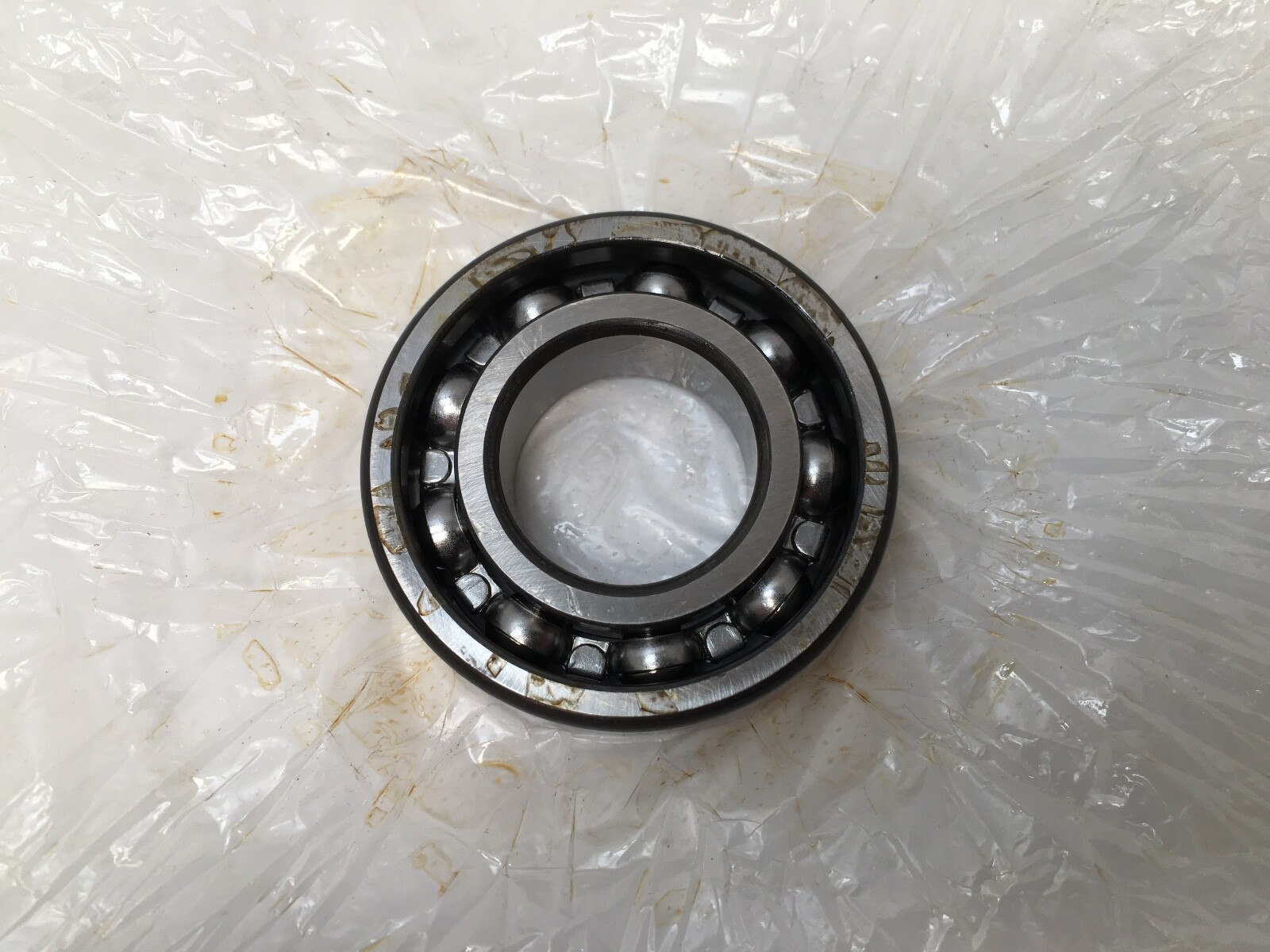

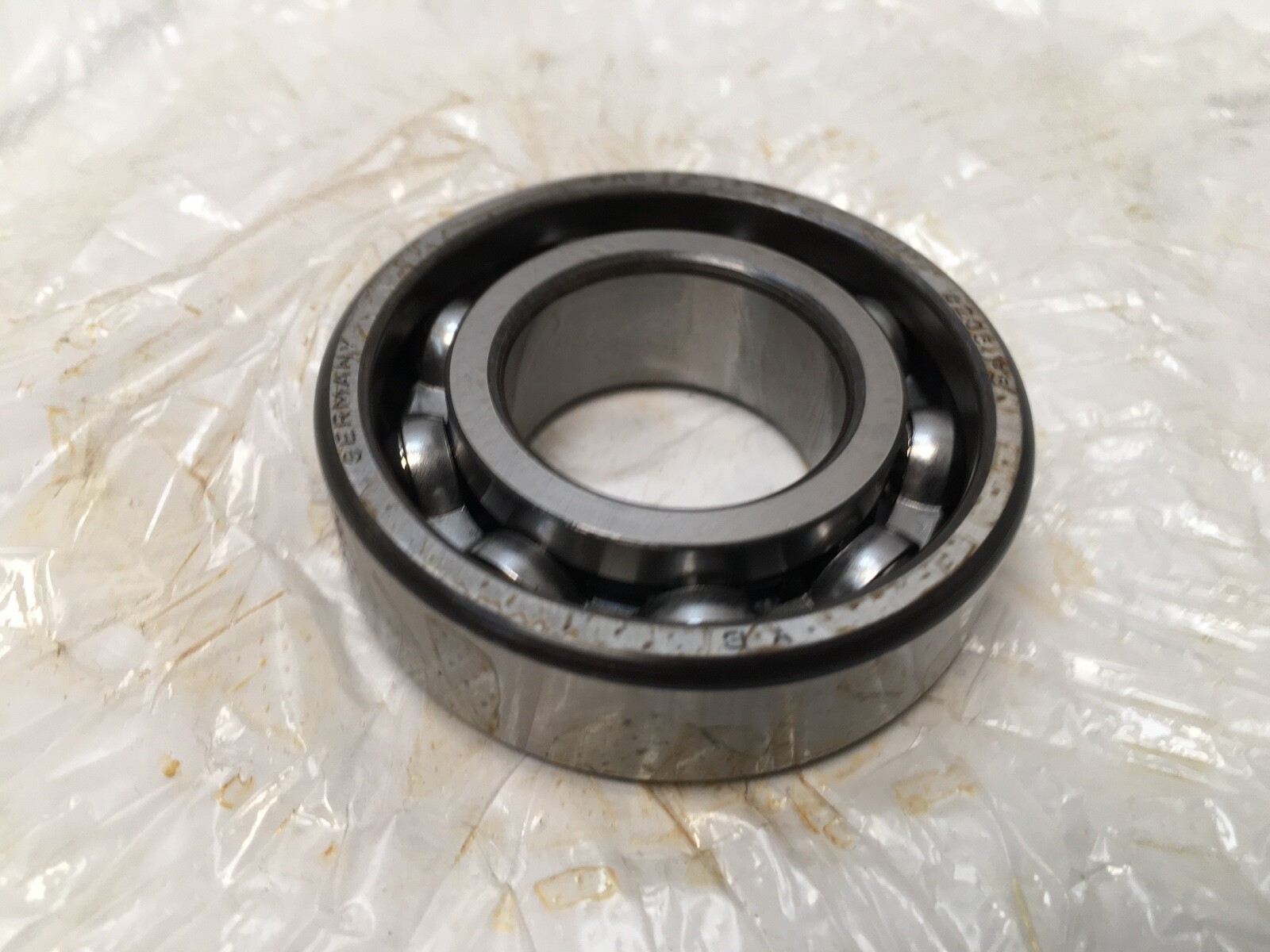

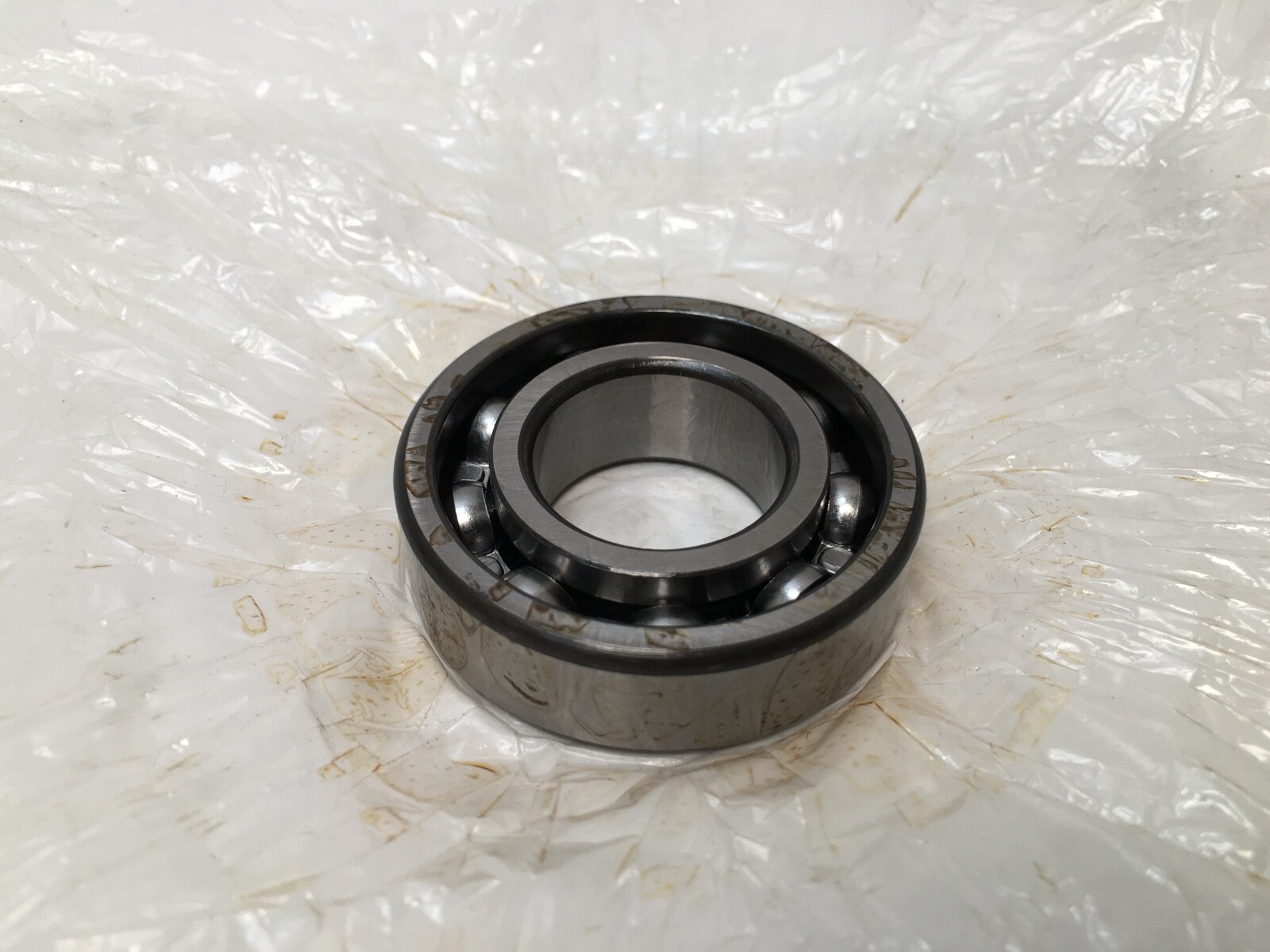

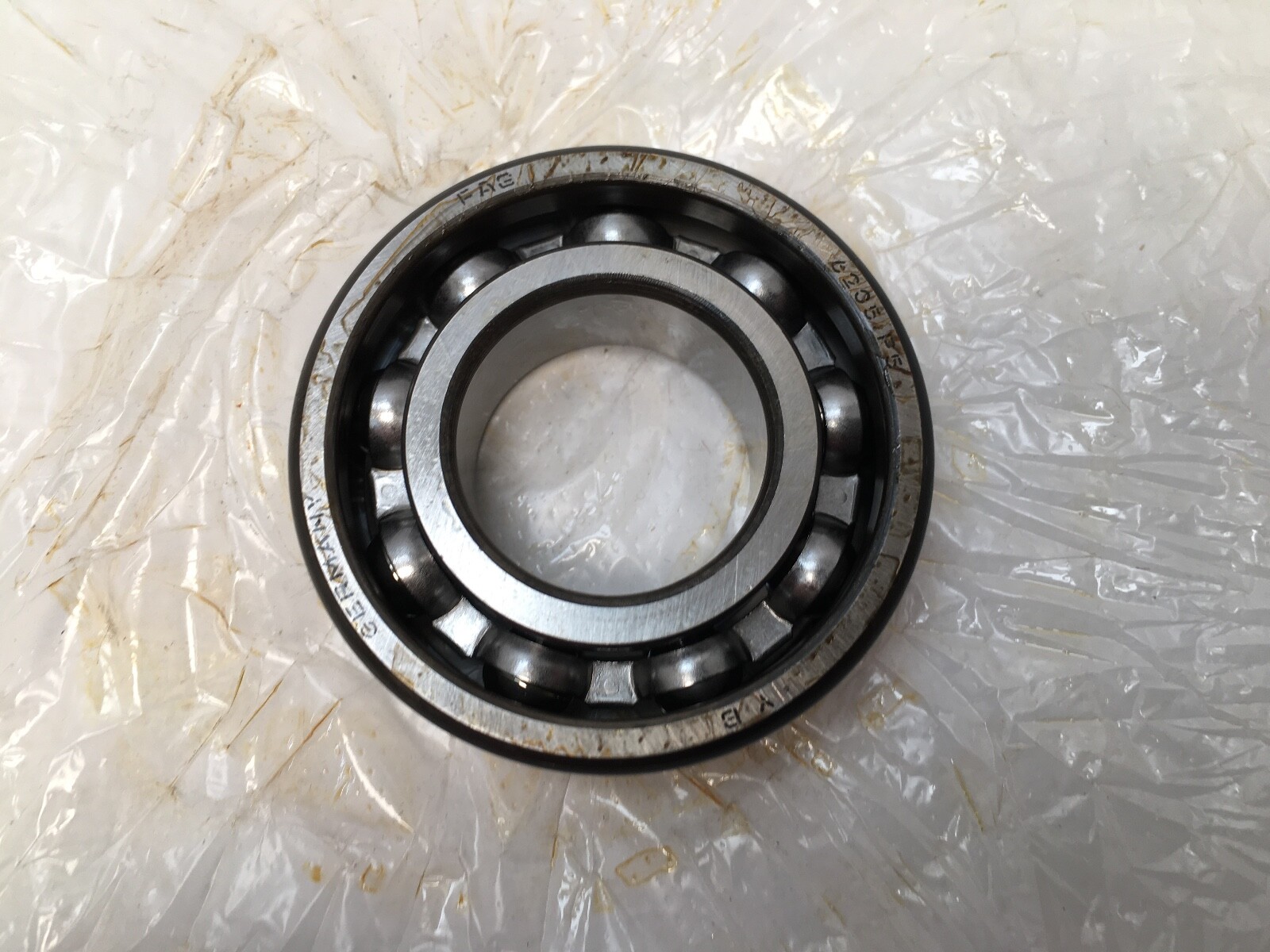

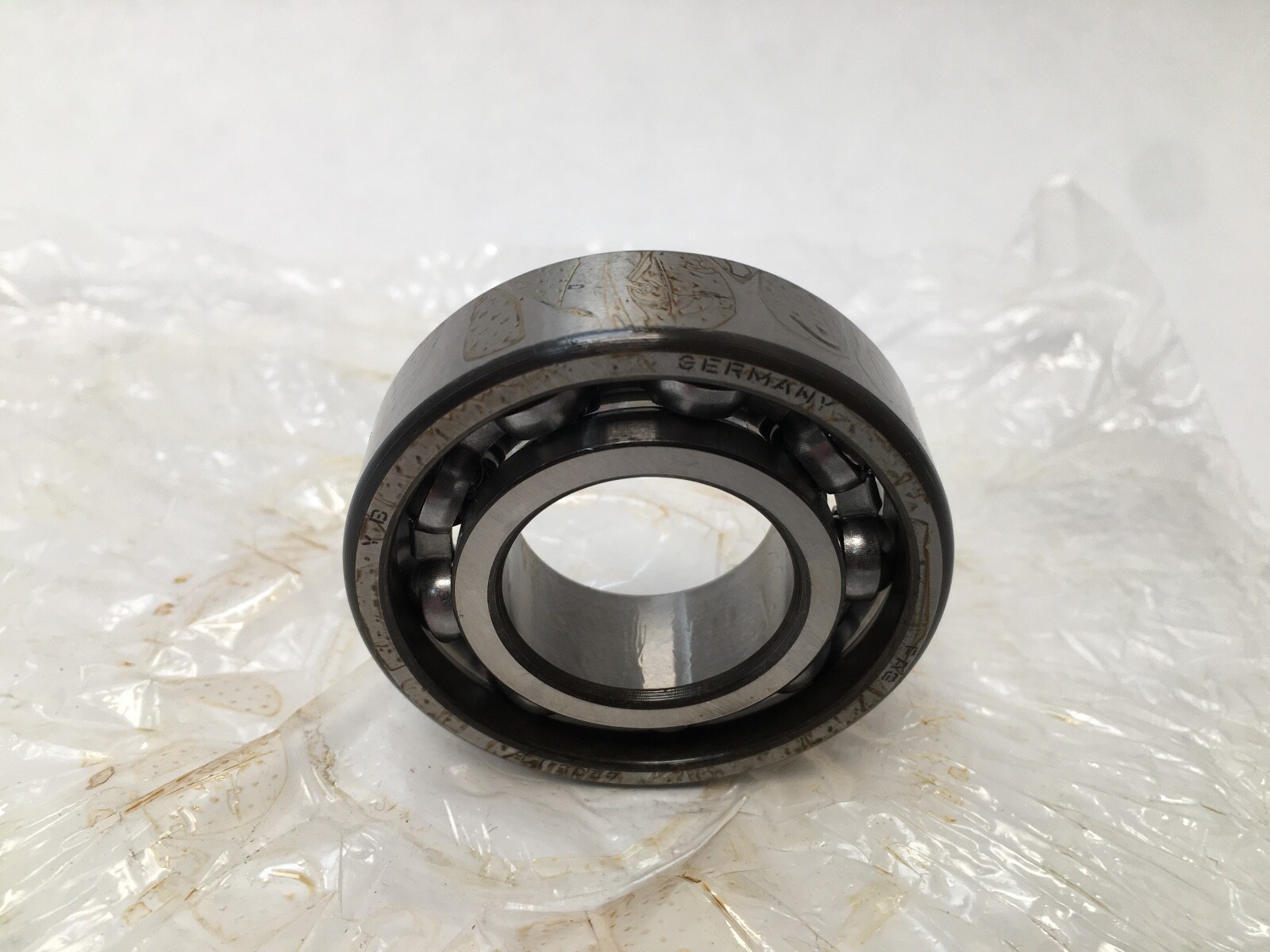

FAG 6205-P5 single-row deep groove ball bearing, open, in tolerance class P5. Unit Quantity: 1 Pc. Closure Type: Open.
62 — deep groove ball bearing, 02 light diameter series.
05 — bore code, 5 x 5 = 25 mm bore.
P5 — ISO tolerance class P5, equivalent to ABEC 5.
No clearance suffix — normal radial internal clearance, CN.
Precision Class: ABEC 5 / P5. Internal Clearance: CN. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 6200.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm.
SKF 6205/P5, NSK 6205P5, NTN 6205P5 and Koyo 6205P5 are open 25 x 52 x 15 mm bearings in class P5.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm.
P5: ISO tolerance class P5, equivalent to ABEC 5.
Internal Clearance: CN, normal radial internal clearance.
