Availability:
1 in stock

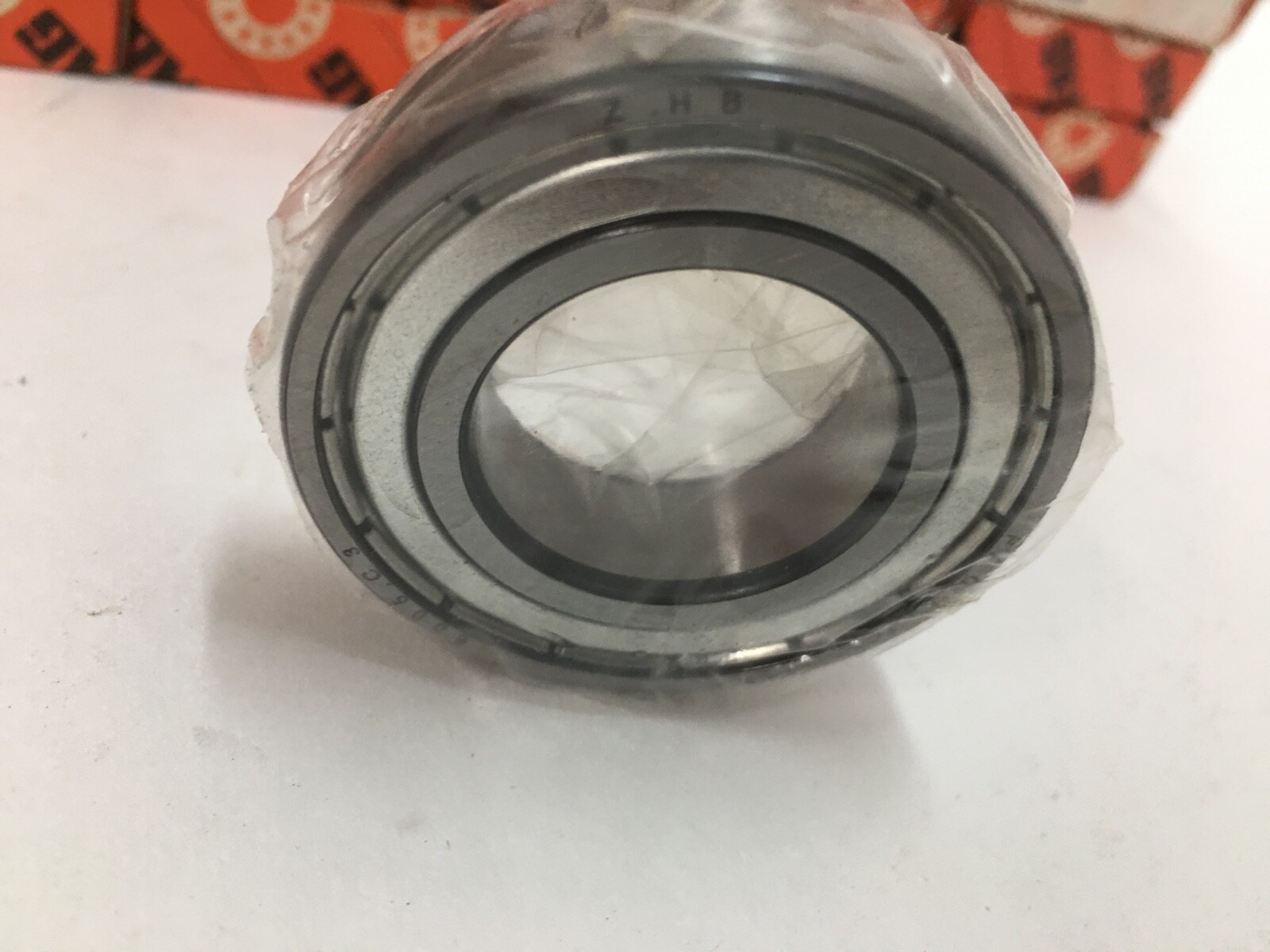

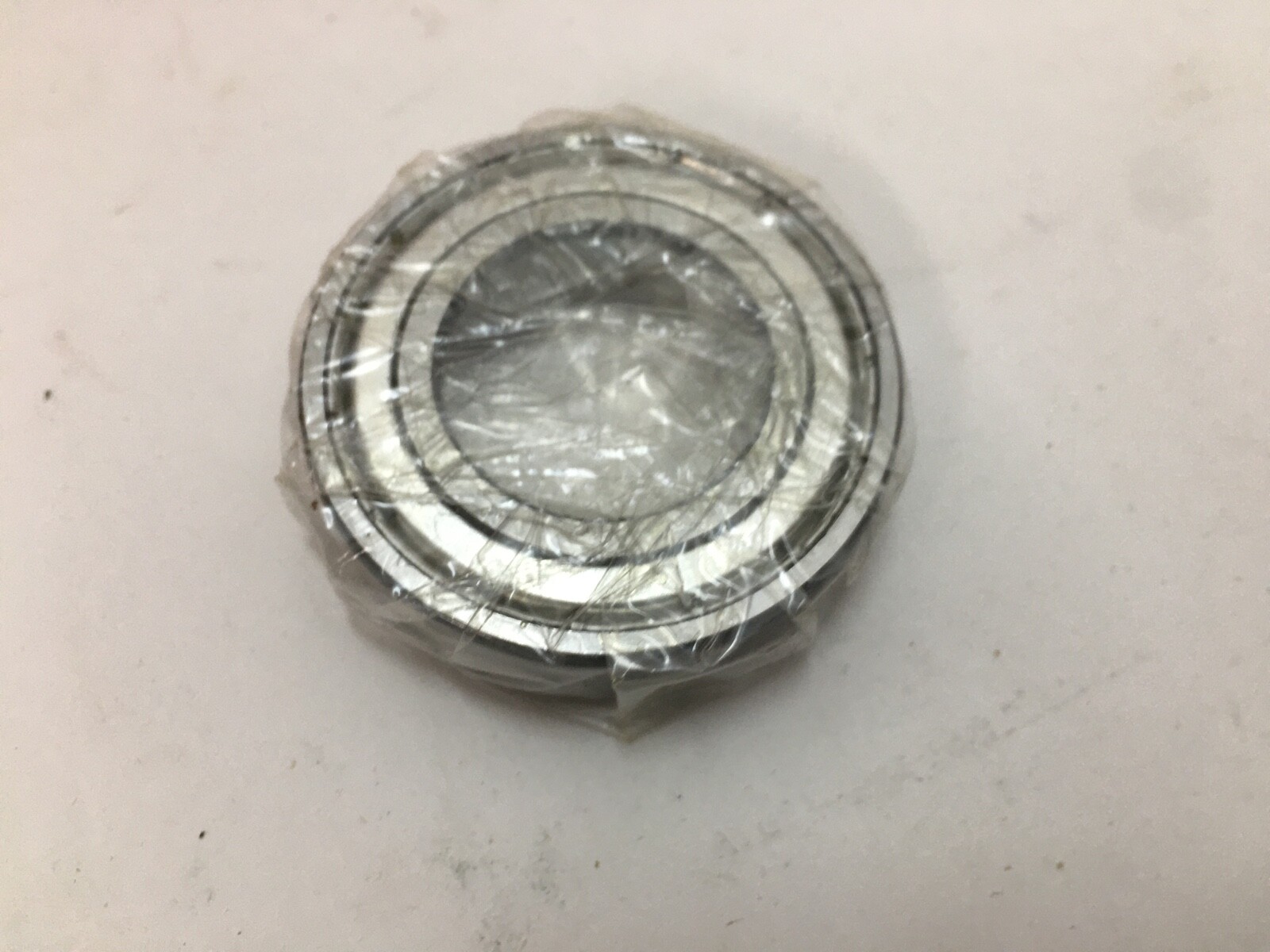

FAG 6005-2ZR-C3 deep groove ball bearing, 25 mm bore, 47 mm OD, 12 mm wide, steel shields both sides, C3 clearance. 48 pieces, grease filled.
List Price
$172.77
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6005-2ZR-C3 |
| Model | 6005-2ZR-C3 |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | 60 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Base Number | 6005 |
| Overall Width | 12 mm |
| Mpn Variants | 6005.2ZR.C3, 6005-2ZR-C3, 6005 2ZR C3, 6005ZZC3, 6005Z |
| Compatible With Replaces | Schaeffler successor 6005-C-2Z-C3 |
| Additional Attributes | Successor 6005-C-2Z-C3 data: Dynamic Load Rating 12,600 N; Static Load Rating 6,500 N; Limiting Speed 20,200 rpm grease; Reference Speed 16,400 rpm; Mass 0.075 kg each |
| Cross Reference 1 | SKF 6005-2Z/C3 |
|---|---|
| Cross Reference 2 | NSK 6005ZZC3 |
| Cross Reference 3 | NTN 6005ZZC3 |
| Cross Reference 4 | Koyo 6005ZZC3 |
FAG 6005-2ZR-C3 single-row deep groove ball bearing. Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Closure Type: Shields both sides. Internal Clearance: C3. Rolling Elements: Ball. Bore Type: Straight.
6005 — deep groove ball bearing, 60 series, bore code 05 = 25 mm.
2ZR — sheet steel shields on both sides.
C3 — radial internal clearance greater than normal.
The shields retain the factory grease fill and exclude coarse contamination with no contact friction. C3 clearance suits electric motors and applications where the inner ring runs warmer than the outer.
Successor 6005-C-2Z-C3 data: Dynamic Load Rating: 12,600 N. Static Load Rating: 6,500 N. Limiting Speed: 20,200 rpm grease. Reference Speed: 16,400 rpm. Item Weight: 0.075 kg (0.17 lb) each.
Successor 6005-C-2Z-C3 data: fillet radius r min: 0.6 mm. Abutment da min: 28.2 mm. Abutment Da max: 43.8 mm.

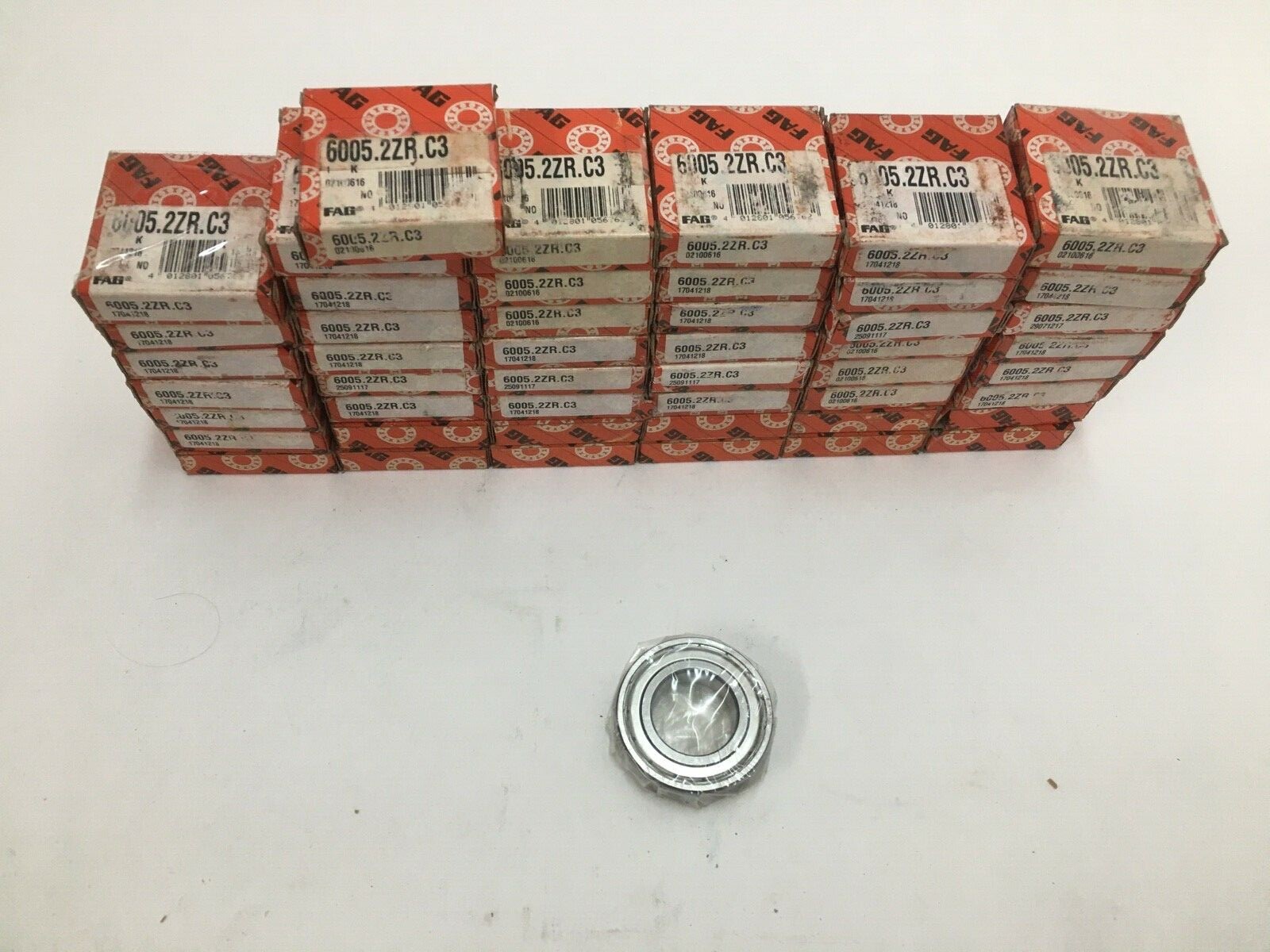

Unit Quantity: 48 Pcs.
Compatible With / Replaces: Schaeffler successor 6005-C-2Z-C3. Cross-Reference: SKF 6005-2Z/C3, NSK 6005ZZC3, NTN 6005ZZC3, Koyo 6005ZZC3. Same 25 x 47 x 12 mm envelope, shielded, C3.
