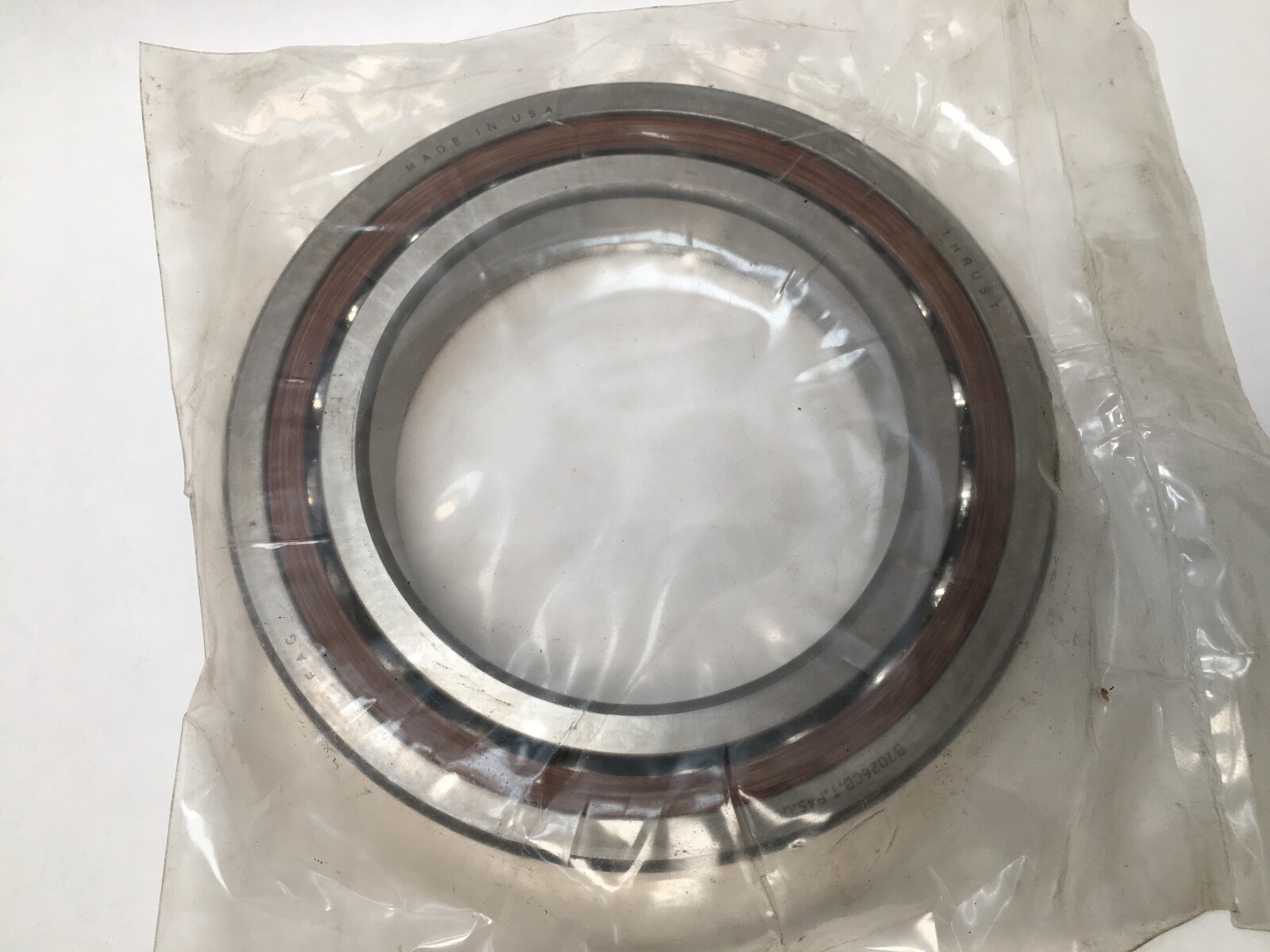

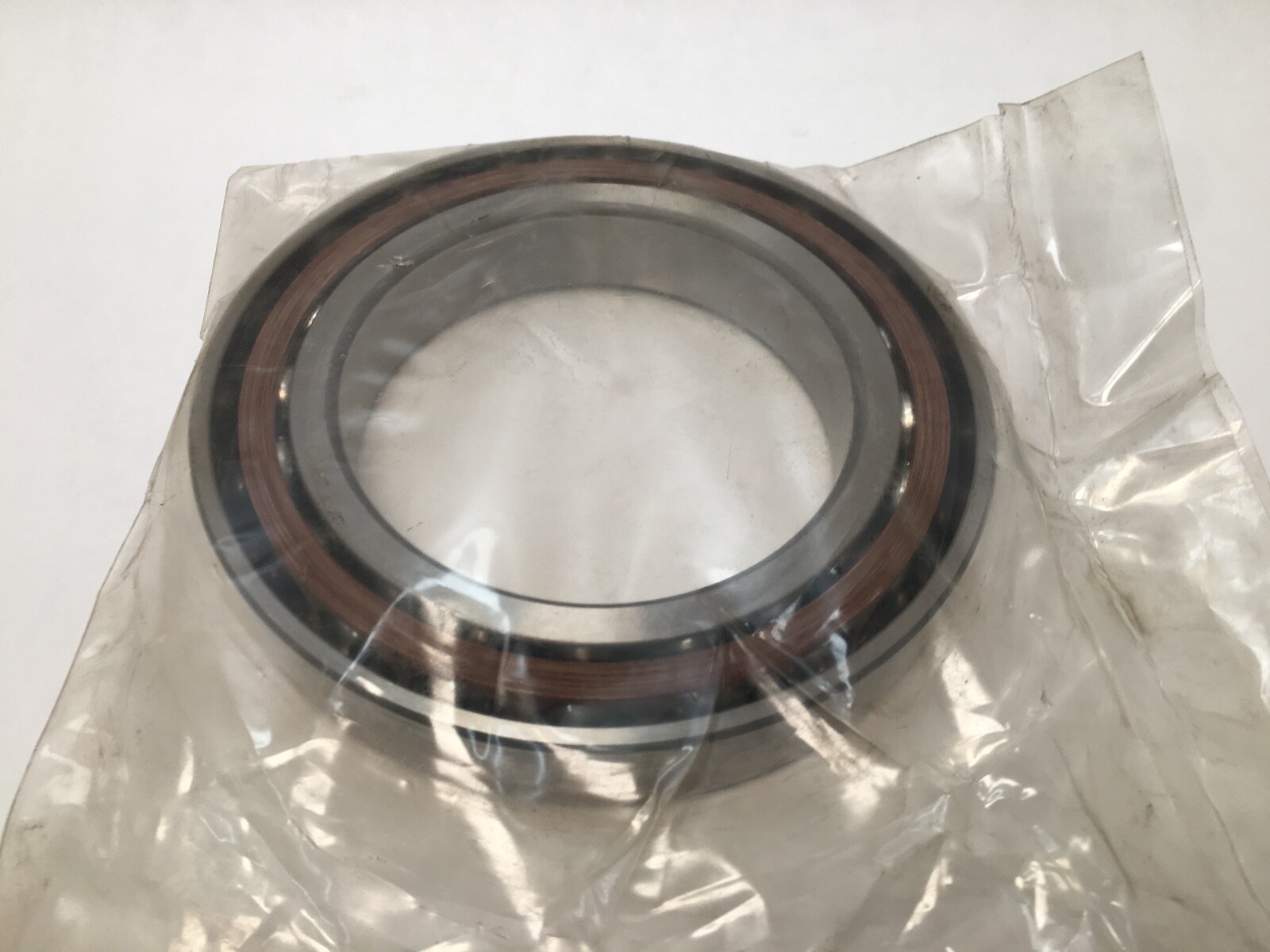

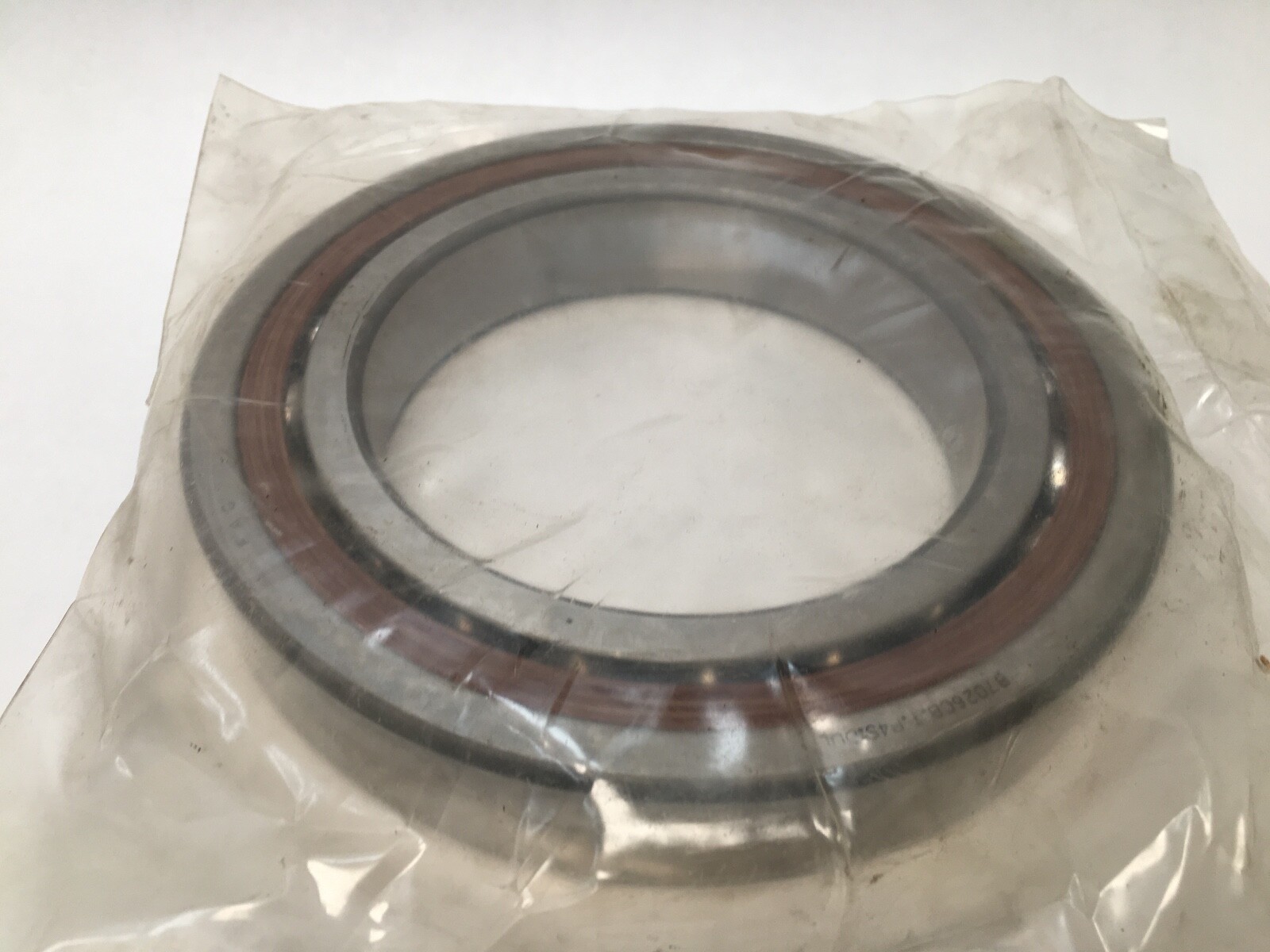

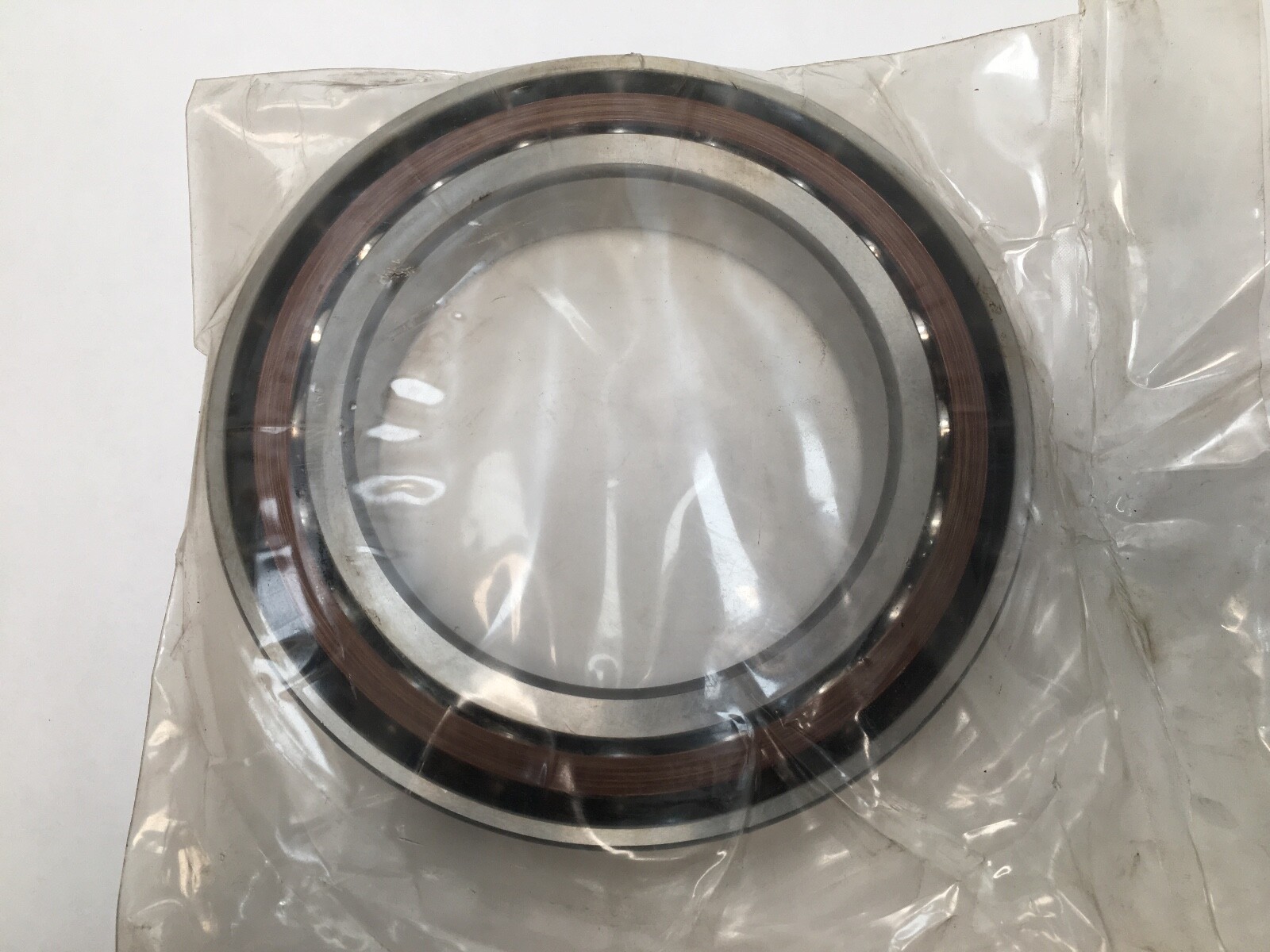

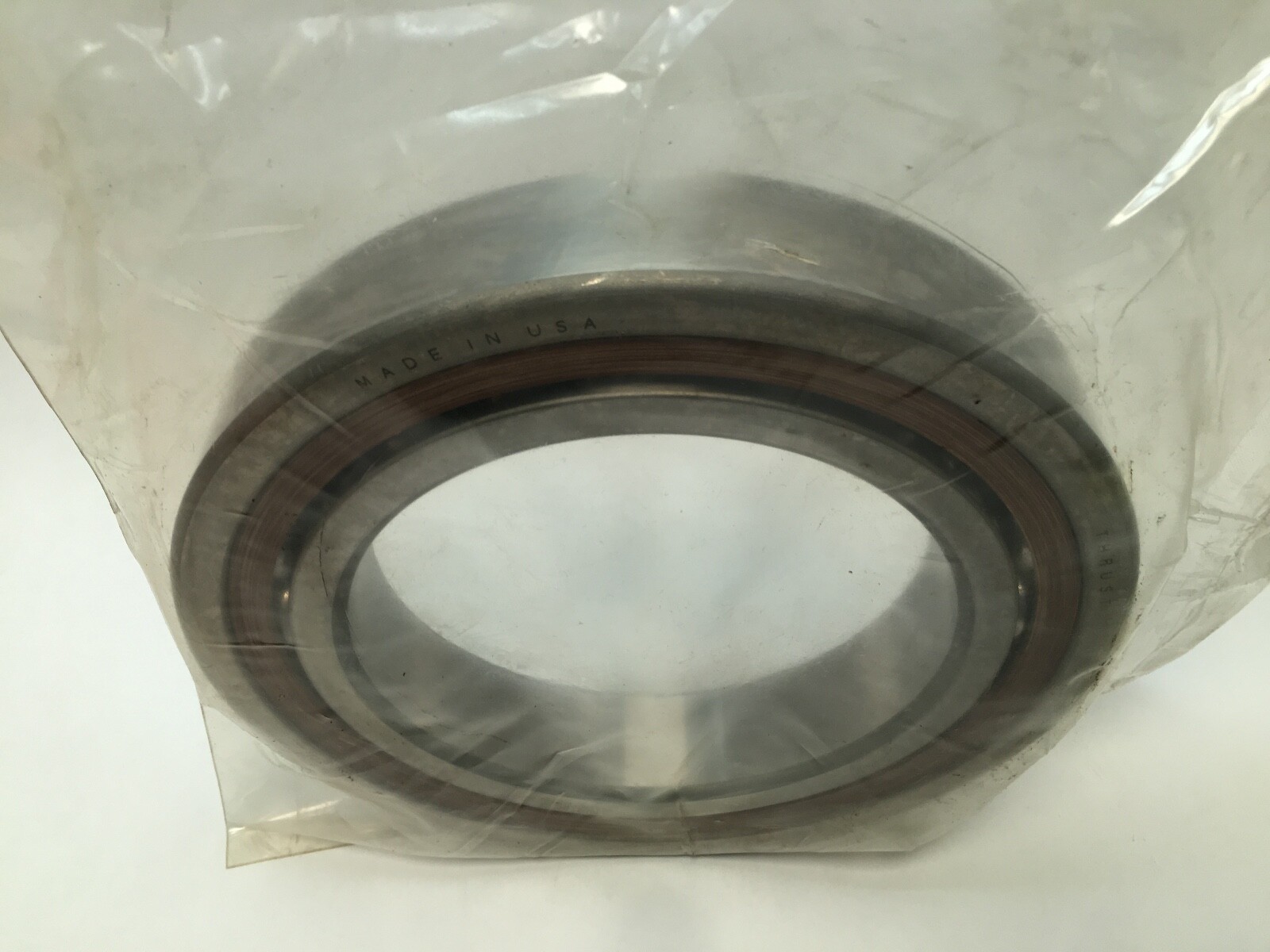

FAGB7026CB.T.P4S.ULSuper Precision Angular Contact Spindle Bearing – Straight Bore, 130 mm ID, 200 mm OD, 33 mm Width, Open, 15° Contact Angle, Light Preload, P4S

Product Description

What this part is:

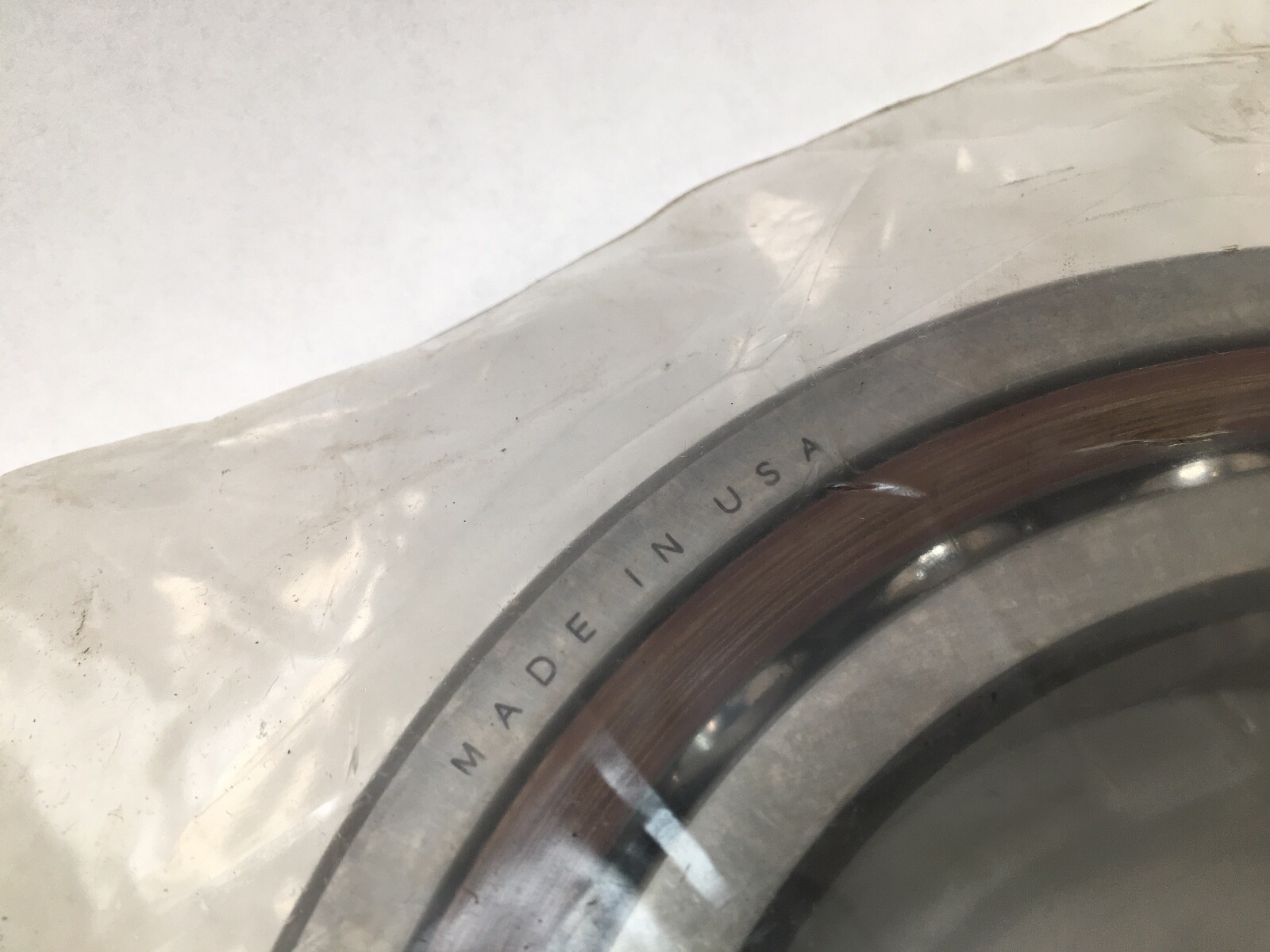

FAG B7026CB.T.P4S.UL super-precision angular contact spindle bearing. Series: B70. Bore: 130 mm. Outside Diameter: 200 mm. Width: 33 mm. Single row, open, straight bore, universally matchable for pair and set mounting. Country of origin: Germany.

Decoding the designation:

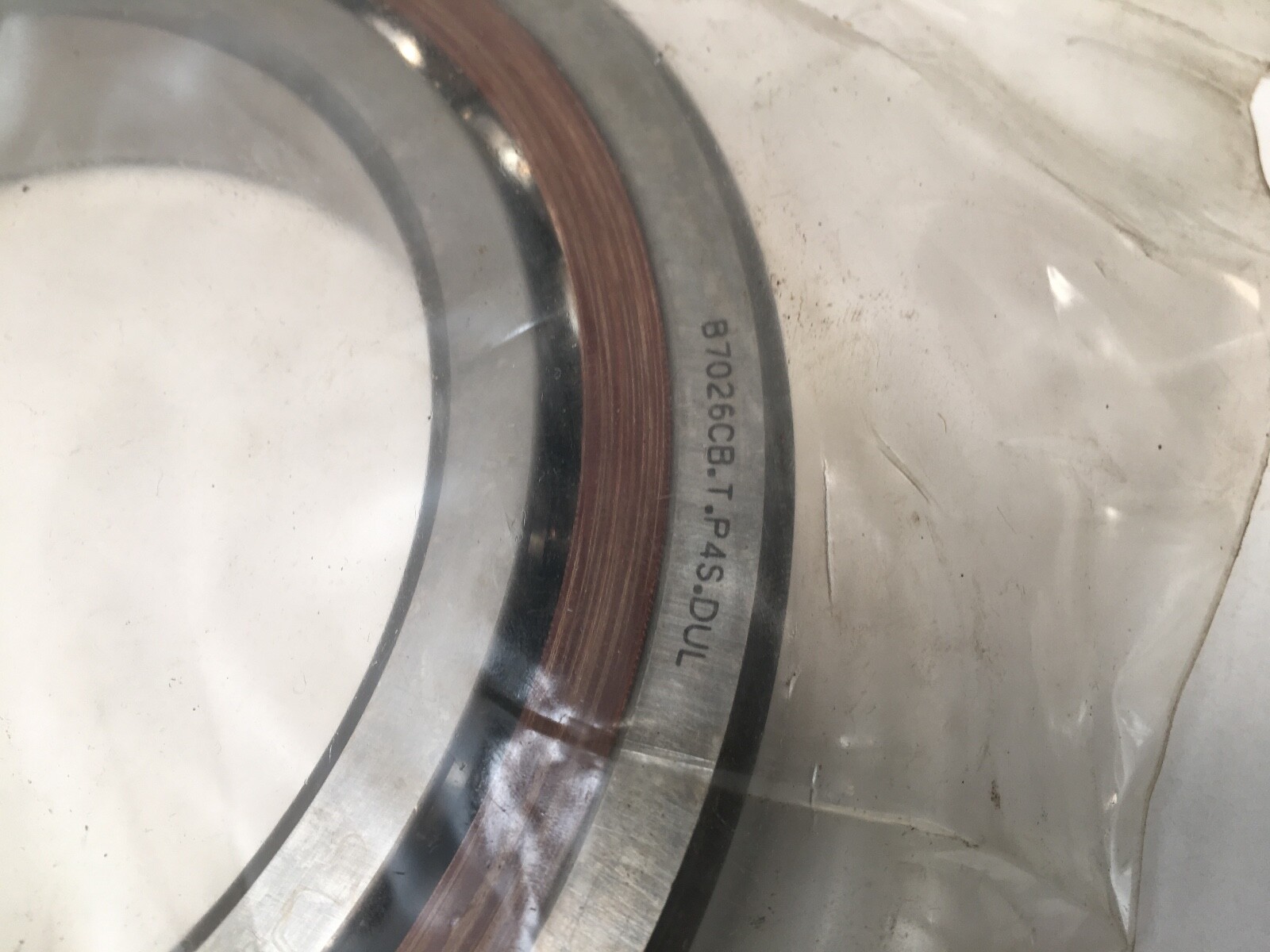

B70 is the spindle bearing series. C sets the Contact Angle at 15°. T denotes a machined fabric-base laminate phenolic cage. P4S is the tolerance class, held tighter than P4 to ISO 492. U marks a universally ground single bearing and L sets light preload at 850 N. The carton also carries the Fafnir number 2MM9126, which is the same 15° angle on the same envelope.

What these specs mean in practice:

A 15° contact angle favours speed and radial stiffness over thrust capacity. Dynamic Load Rating: 149 kN (33,497 lbf). Static Load Rating: 107 kN (24,055 lbf). Fatigue Load Limit: 8.8 kN. Limiting speed: 6,700 rpm on grease, 10,000 rpm on oil. Axial rigidity at light preload: 137 N per micrometre. The phenolic cage is light and self-lubricating, holding ball guidance steady at spindle speeds where a brass cage would add mass.

Quantity and configuration:

One bearing. The UL execution is universally ground, so it runs alone or pairs with another UL piece back-to-back, face-to-face or in tandem, with light preload set by the ground faces. Preload is ground into the rings, so this bearing carries a preload class in place of a running clearance.

Fitting notes:

Shaft shoulder diameter: 142 mm to h12. Housing shoulder diameter: 189 mm to H12. Maximum recess radius: 2 mm. Minimum chamfer dimension: 2 mm. Distance between the pressure cone apexes: 38.6 mm. Grease injection pitch diameter: 151.6 mm to 159.3 mm. Operating temperature range: -30 °C to 100 °C.

Interchange guidance:

Schaeffler’s current designation for this bearing is B7026-C-T-P4S-UL. Searchable variants of the carton marking: B7026CB.T.P4S.UL, B7026CBTP4SUL, B 7026C B T P4S UL, B-7026-CB-T-P4S-UL. Matching 15° P4S bearings: Fafnir 2MM9126WI-SUL, SKF 7026 CD/P4A, NSK 7026CTYSULP4 (polyamide cage), RHP 7026CTSULP4, GMN S6026 C TA P4 D UL. The 25° execution of the same size is B7026-E-T-P4S-UL; it carries more thrust at a lower speed and is not a drop-in.
