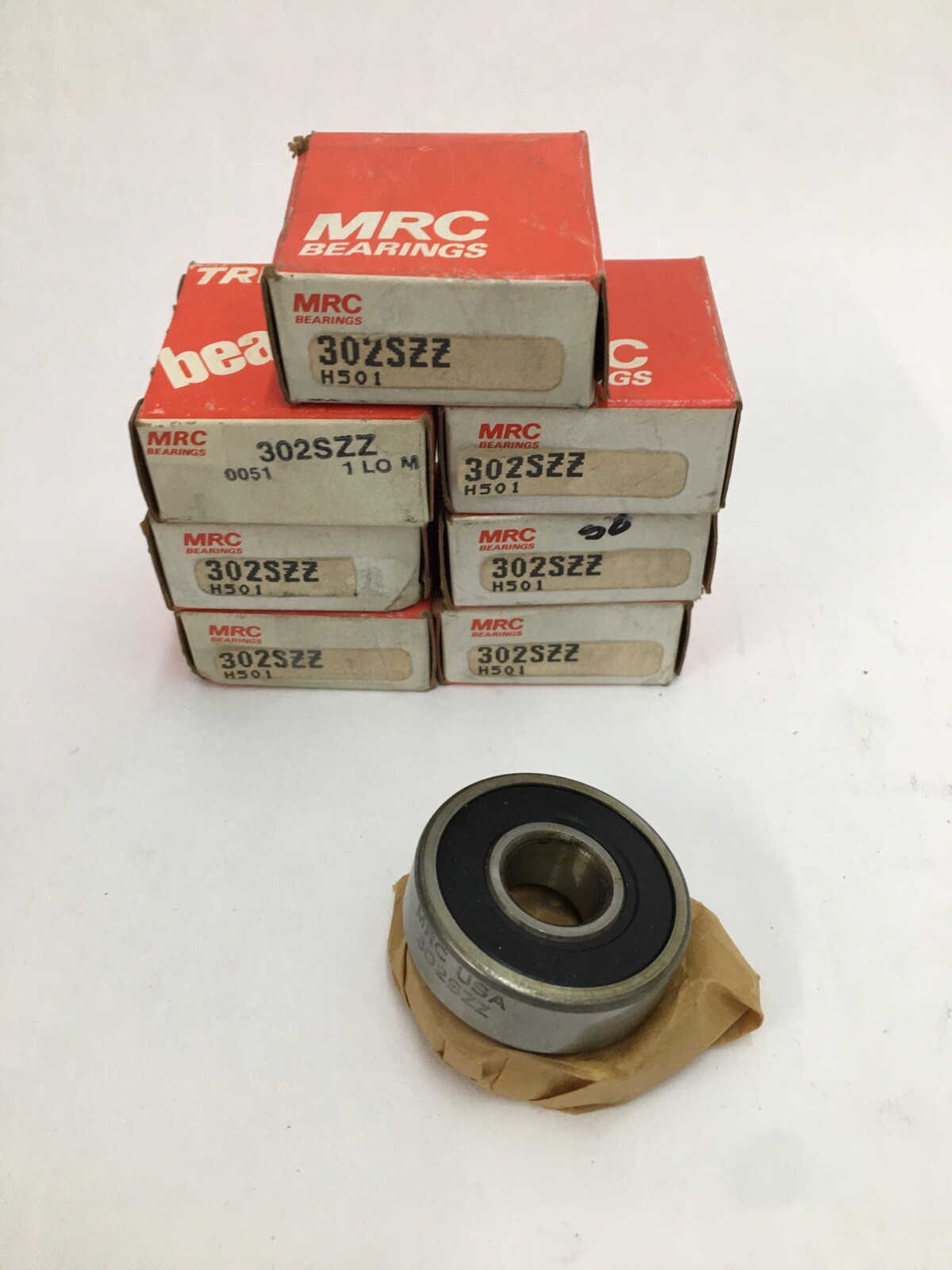

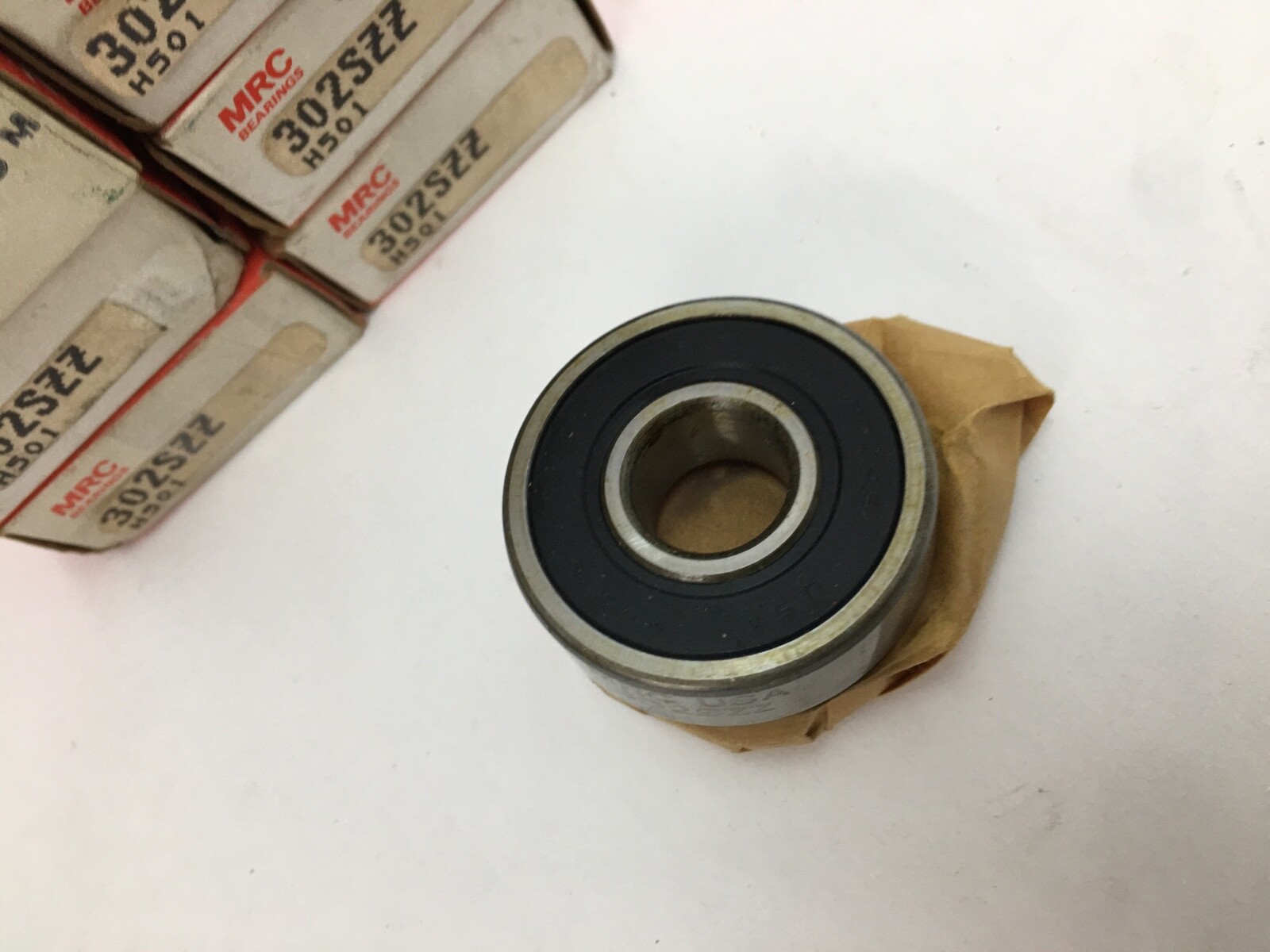

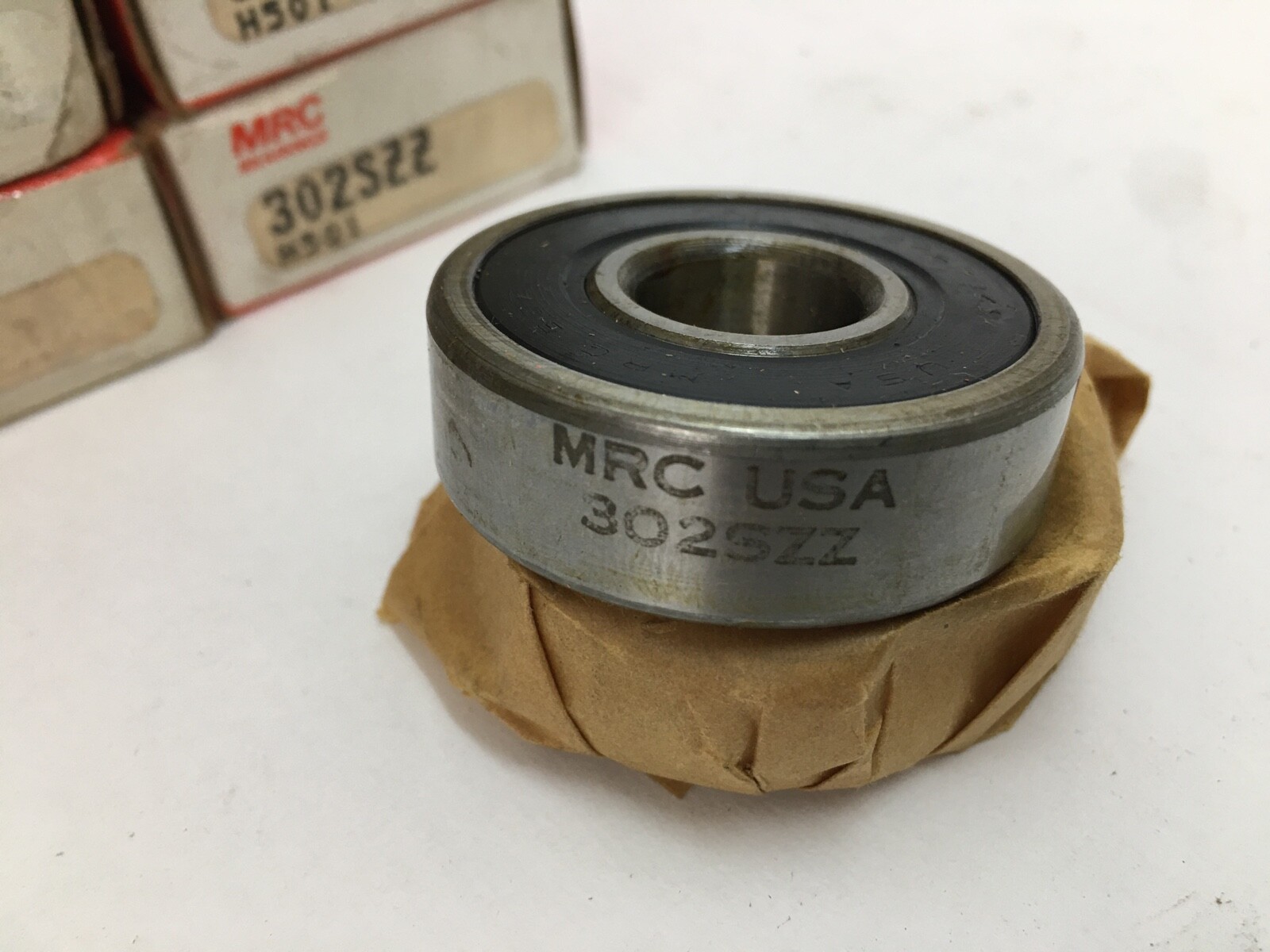

MRC 302SZZ Conrad deep groove ball bearing, 15 x 42 x 13 mm, two rubber contact seals, 11,400 N dynamic rating, 12,000 rpm limiting speed. Unit Quantity: 7 Pcs.
List Price
$47.51
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 302SZZ |
| Model | 302 SZZ |
| Bearing Type | Ball Bearing, Two rubber contact seals |
| ID | 15 mm |
| OD | 42 mm |
| Width | 13 mm |
| Series | MRC 300-S Medium Series |
|---|---|
| Dynamic Load Rating | 11,400 N |
| Static Load Rating | 5,400 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 12,000 rpm grease |
| Harmonization Code | 84821000 |
| Mpn Variants | 302SZZ, 302-SZZ, 302 SZZ, 63022RSC3, 6302-2RS-C3, 6302RS |
| Compatible With Replaces | SKF 6302-2RS1, NSK 6302DDU, NTN 6302LLU, FAG 6302-2RSR |
| Additional Attributes | Max Fillet Radius: 1.0 mm; Construction: Conrad type |
| Industry Terms | deep groove ball bearing; sealed ball bearing; Conrad bearing; 6302-2RS size bearing; 300 series ball bearing |
| Common Misspellings | MRC 302 SZZ; MRC302SZZ; 302SSZ; 3O2SZZ; MRC 302SZ |
| Application Types | Electric motors; pumps; gearboxes; general machinery |
| Cross Reference 1 | SKF 6302-2RS1 |
|---|---|
| Cross Reference 2 | NSK 6302DDU |
| Cross Reference 3 | NTN 6302LLU |
| Cross Reference 4 | FAG 6302-2RSR |
| Cross Reference 5 | Koyo 6302-2RS |
The MRC 302SZZ is a single-row Conrad-type deep groove ball bearing from the MRC 300-S Medium Series, sealed with rubber contact seals on both sides. It carries radial loads, thrust loads in either direction, or a combination of both. Unit Quantity: 7 Pcs.
302 — 300 medium series, 15 mm bore.
S — Conrad-type single-row deep groove construction.
ZZ — two rubber seals. On MRC bearings Z denotes a seal and F denotes a shield.
Bore Diameter: 15 mm. Outside Diameter: 42 mm. Overall Width: 13 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Contact seals both sides. Dynamic Load Rating: 11,400 N. Static Load Rating: 5,400 N. Limiting Speed: 12,000 rpm grease.
Max Fillet Radius: 1.0 mm (maximum shaft or housing fillet the bearing corner clears). Construction: Conrad type.
Sealed 15 x 42 x 13 mm deep groove bearings with two contact seals: SKF 6302-2RS1, NSK 6302DDU, NTN 6302LLU, FAG 6302-2RSR, Koyo 6302-2RS. MPN Variants: 302SZZ, 302-SZZ, 302 SZZ, 63022RSC3, 6302-2RS-C3, 6302RS.
Bore 15 mm, outside diameter 42 mm, width 13 mm.
Two rubber seals, one on each side. On MRC bearings Z denotes a seal and F denotes a shield.
Dynamic Load Rating 11,400 N and Static Load Rating 5,400 N, with a Limiting Speed of 12,000 rpm on grease.
