Availability:
1 in stock

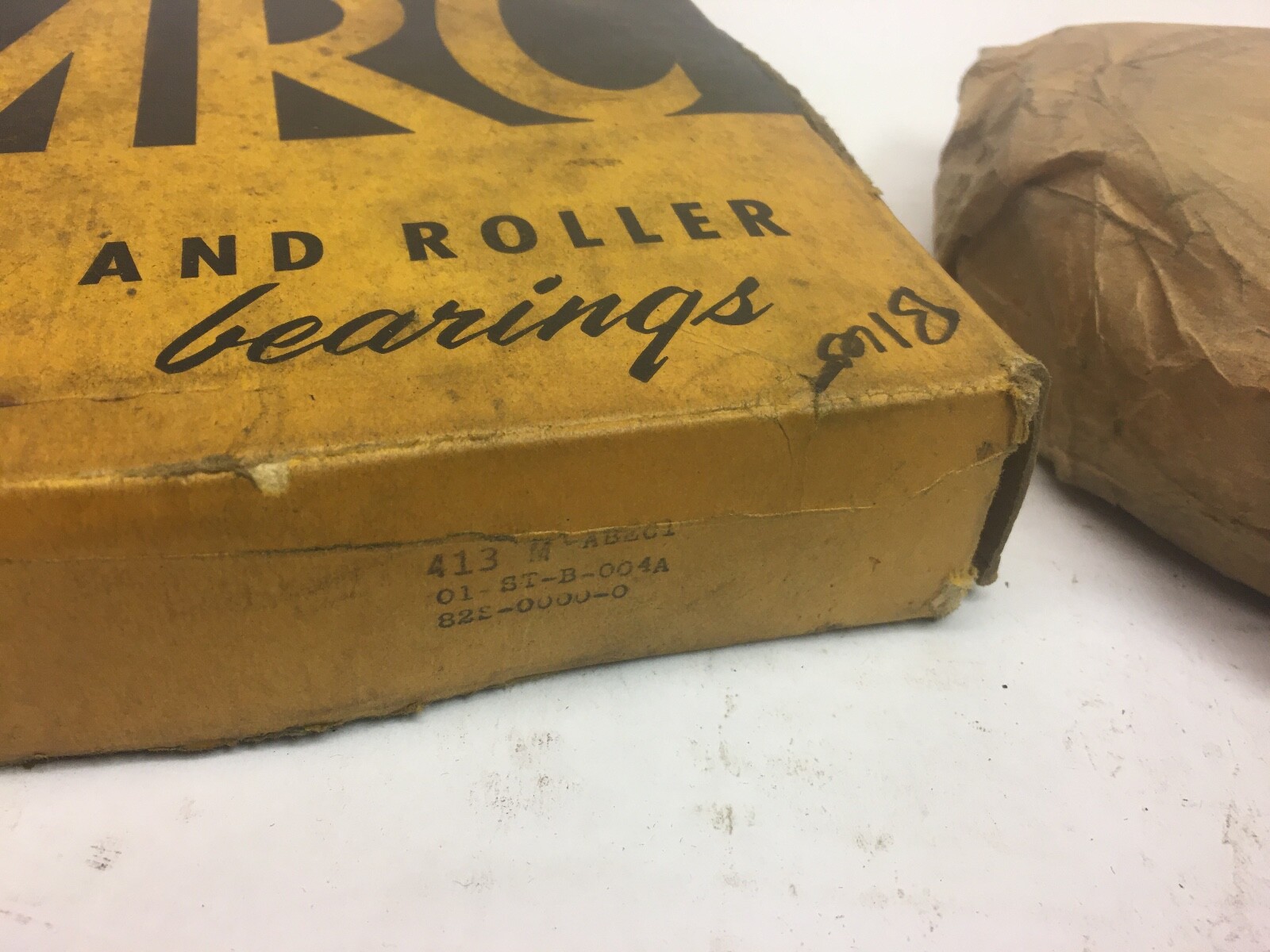

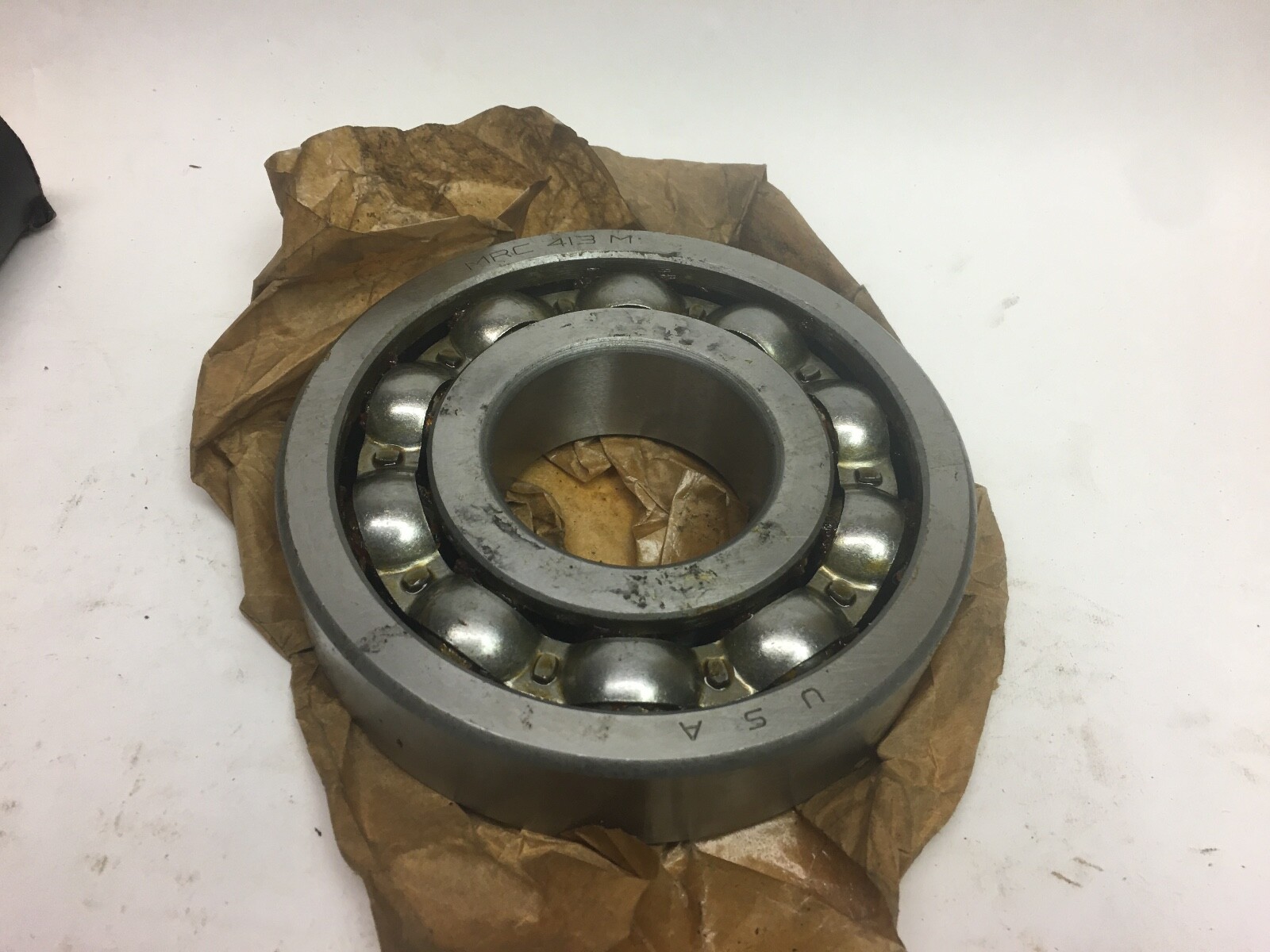

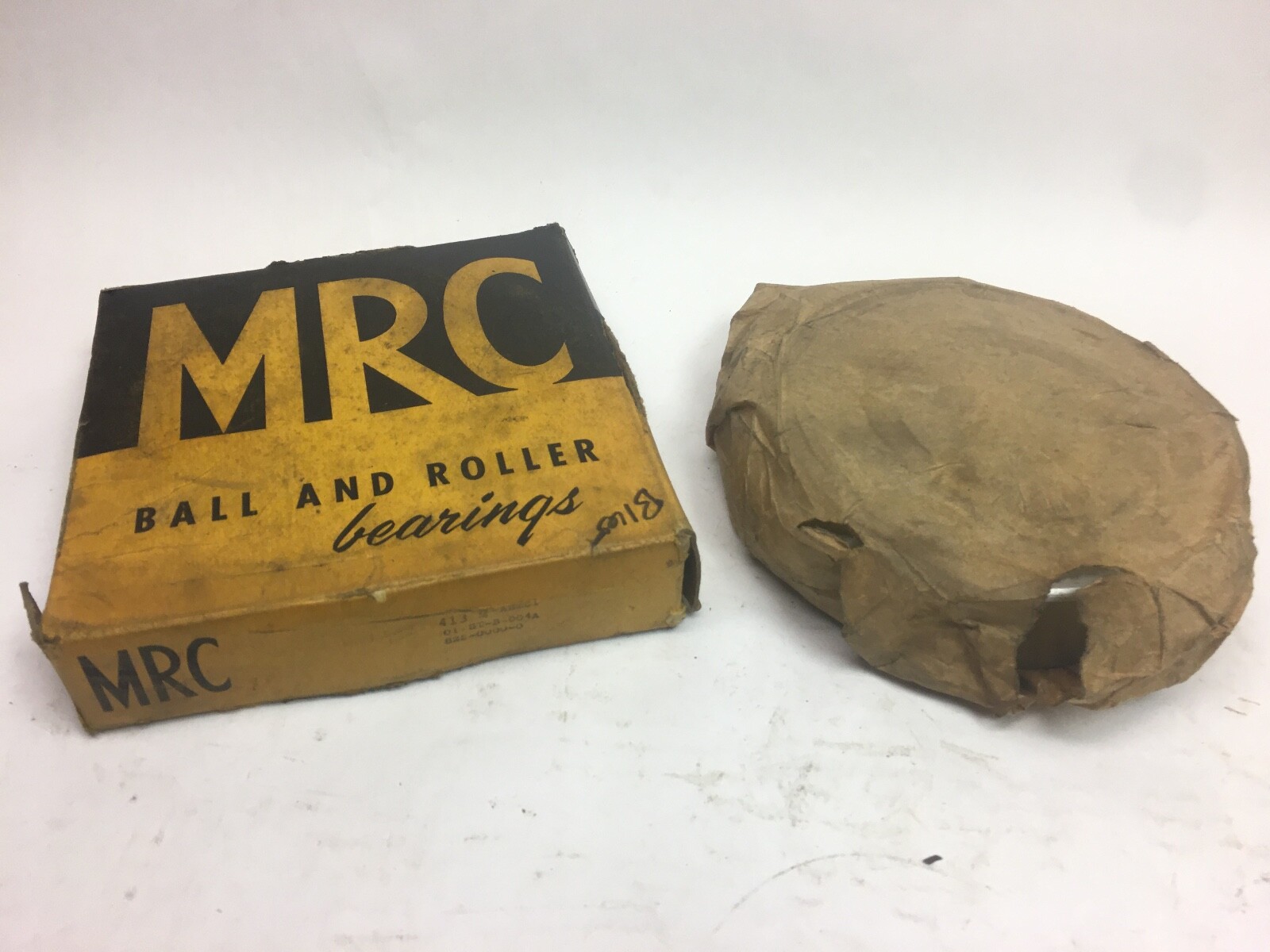

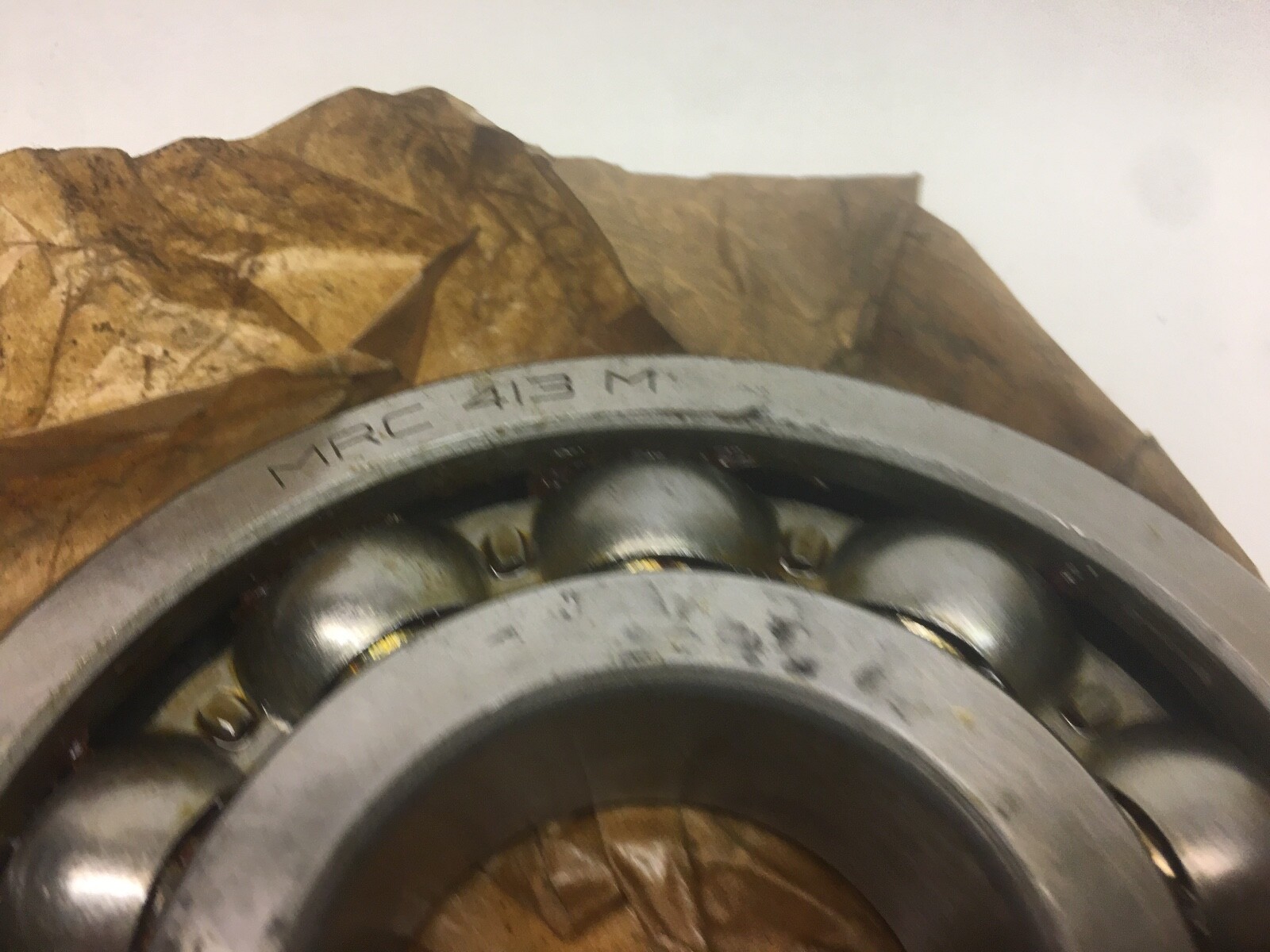

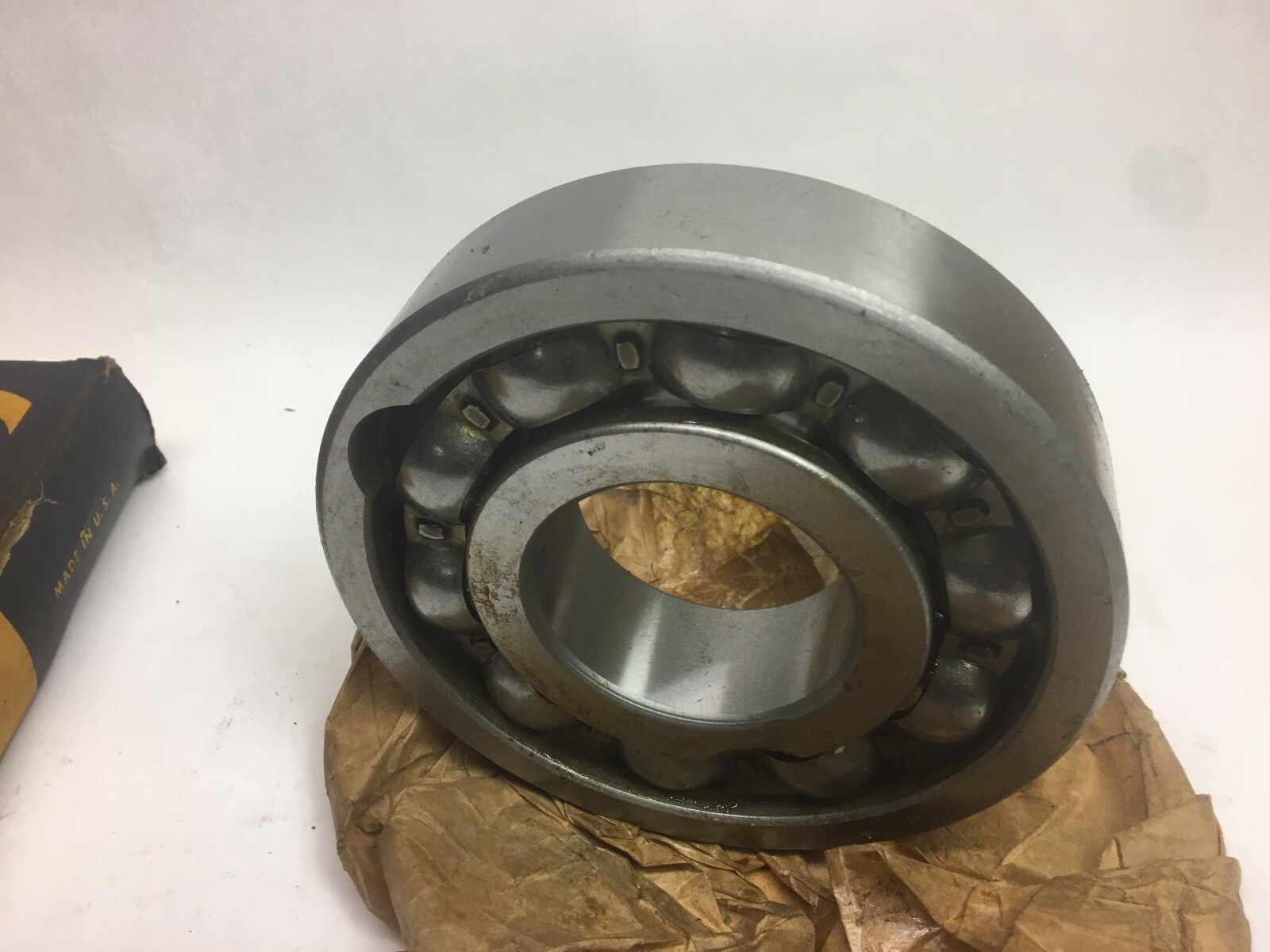

MRC 413M maximum-capacity filling-notch ball bearing, 65 x 160 x 37 mm, open both sides, straight bore, CN clearance, heavy 400 series. Equivalent to NSK BL413.
List Price
$71.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 413M |
| Model | 413 M |
| Bearing Type | Ball Bearing, Open |
| ID | 65 mm |
| OD | 160 mm |
| Width | 37 mm |
| Material | Chrome Steel |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Base Number | 413 |
| Industry Terms | Maximum capacity ball bearing, filling slot ball bearing, filling notch bearing, max type ball bearing, 65mm bore ball bearing |
| Common Misspellings | MRC 413m bearing, MCR 413M, 413-M bearing, MRC413M, 413 M bearing |
| Total Width | 37 mm |
| Overall Width | 37 mm |
| Bore Shaft Size | 65 mm |
| Mpn Variants | 413M, 413-M, 413 M |
| Series | 400 |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 413M |
| Cross Reference 1 | NSK BL413 |
|---|
MRC 413M single-row maximum-capacity (Max type) filling-notch ball bearing, open both faces, 65 mm bore, 160 mm outside diameter, 37 mm width. Unit Quantity: 1 Pc. Single bearing.
413 — MRC 400 heavy-series size, 65 x 160 x 37 mm.
M — filling-notch construction. A loading slot in each ring shoulder admits a fuller ball complement than a Conrad bearing of the same envelope, for higher radial capacity.
Bore Diameter: 65 mm. Outside Diameter: 160 mm. Overall Width: 37 mm. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Internal Clearance: CN. Bearing Material: Chrome steel. Series: 400.
The full ball complement suits predominantly radial loading; axial capacity is limited by the filling slots.
Bore Diameter: 65 mm. Outside Diameter: 160 mm. Overall Width: 37 mm. Straight bore.
Cross-Reference 1: NSK BL413, filling-notch construction. The 65 x 160 x 37 mm envelope is shared with the ISO 6413 Conrad bearing, which has a different internal design and ball complement and is a related size, not a direct interchange. MPN Variants: 413M, 413-M, 413 M.
65 mm bore, 160 mm outside diameter, 37 mm width.
Filling-notch (maximum capacity) construction.
NSK BL413.
