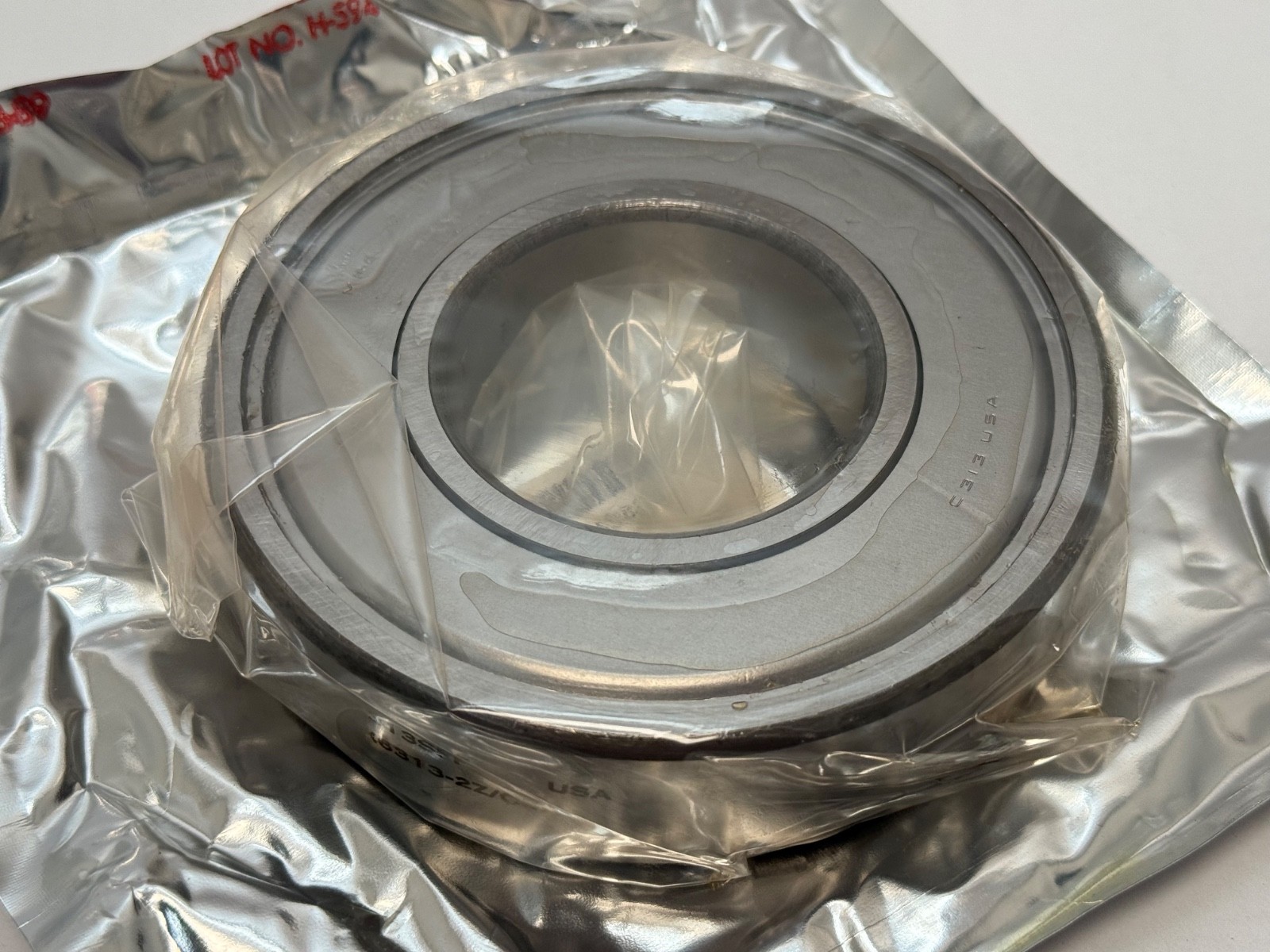

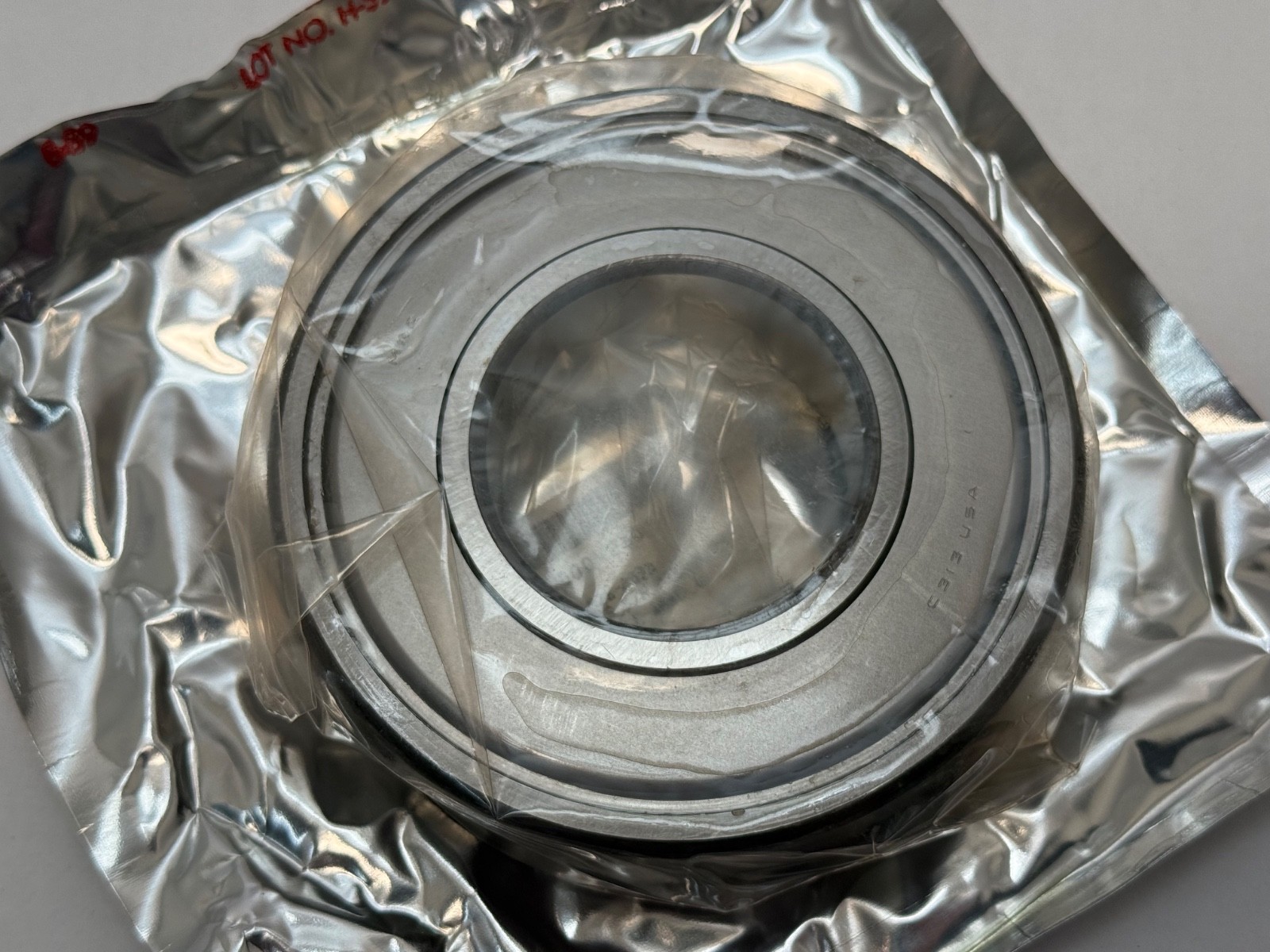

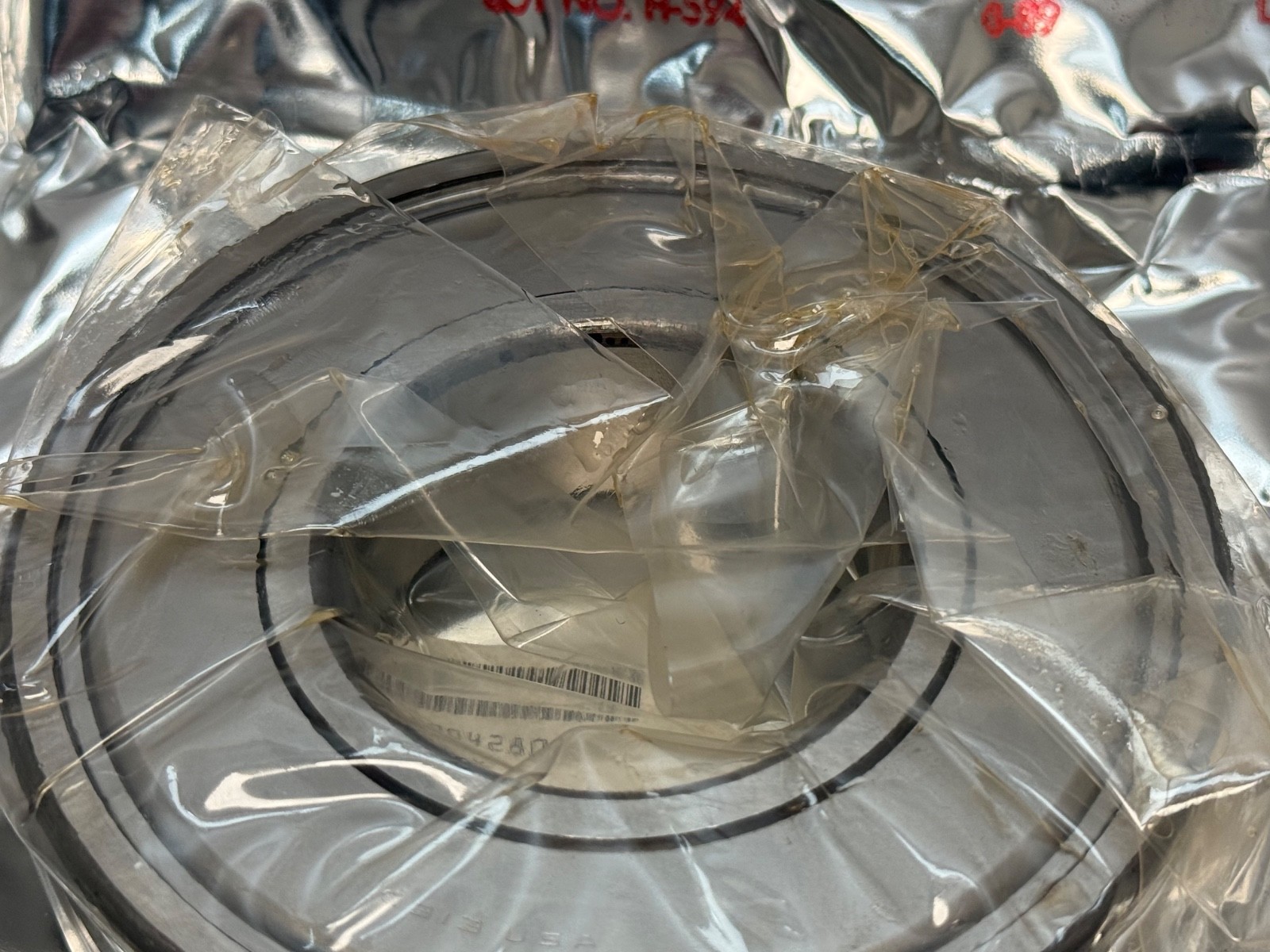

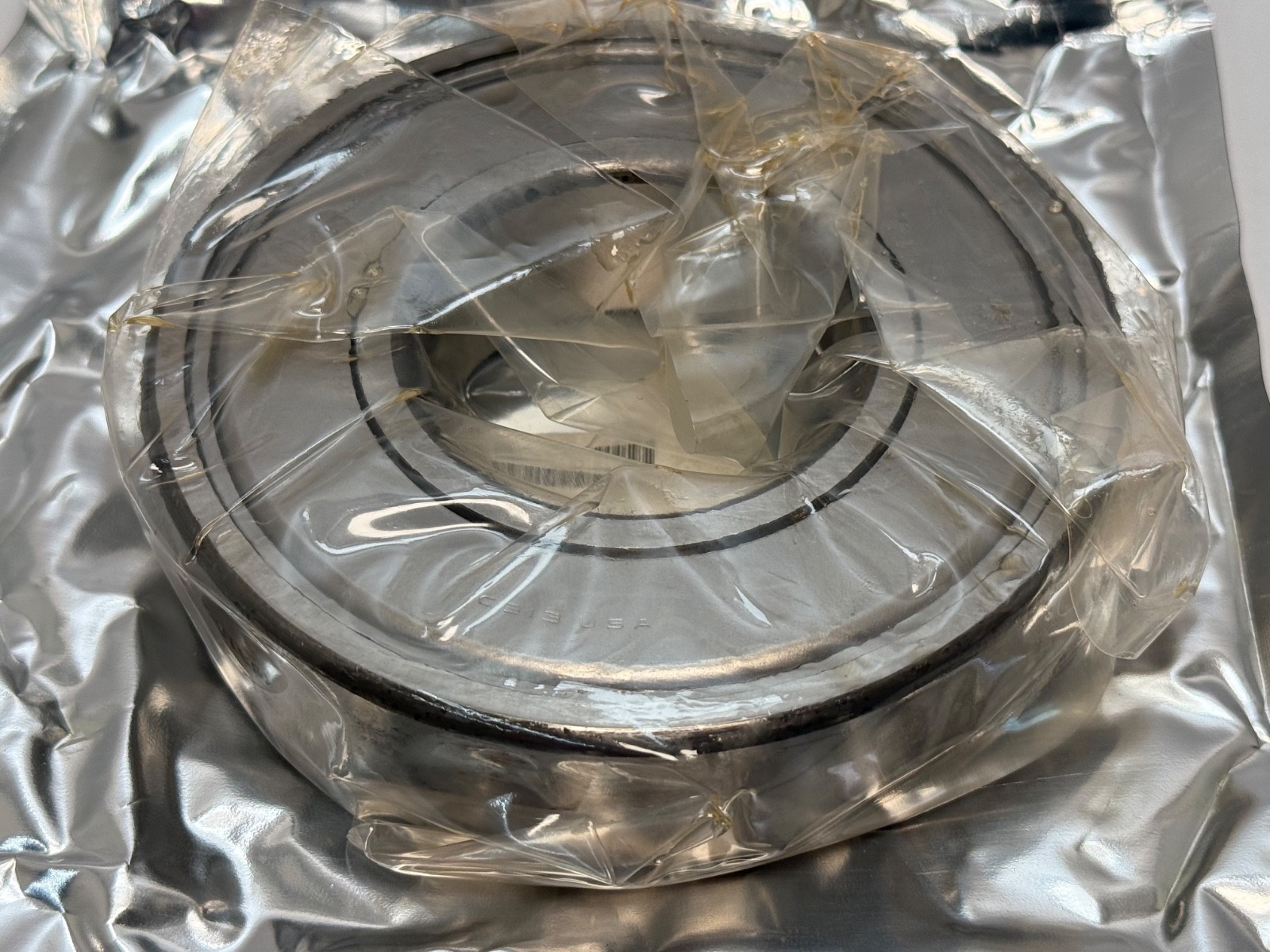

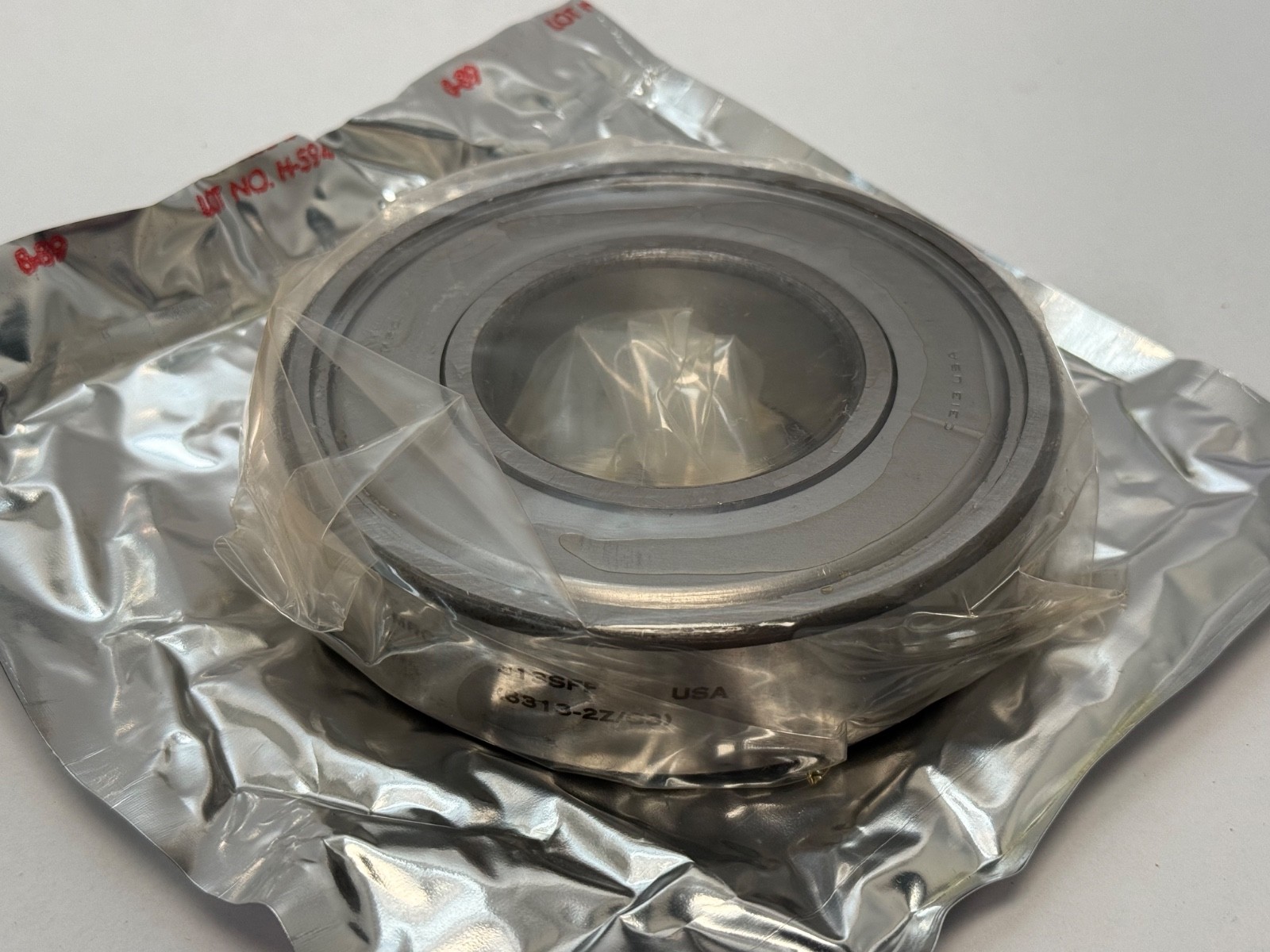

MRC313-SFFDeep Groove Ball Bearing – 65 mm ID, 140 mm OD, 33 mm Width, Two Metal Shields, C3 Clearance

Condition: New

Availability:

19 in stock

Categories: ,

Conrad deep groove ball bearing, 65 x 140 x 33 mm, two metal shields, C3 clearance, pressed steel cage. Dynamic 92,300 N, static 60,000 N, 4,800 rpm on grease.

Same day shipment

List Price

$54.99

19 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

19 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMRC
MPN313-SFF
Model6313ZZ C3 / 313SFF
Bearing TypeBall Bearing
ID65 mm (2.5591 in)
OD140 mm (5.5118 in)
Width33 mm (1.2992 in)

Technical Specifications

Base Number313
Industry TermsDeep groove ball bearing; Conrad bearing; shielded ball bearing; C3 clearance bearing; radial ball bearing; Marlin Rockwell
Common Misspellings6313 2ZC3; 6313-2Z-C3; 313-SFF; MCR 6313; MRC6313
Bore Shaft Size65 mm (2.5591 in)
Mpn Variants313-SFF; 313SFF; 313 SFF; 6313-2ZC3; 6313 2Z C3; 6313ZZ C3; 6313Z; JEM
Additional AttributesConrad deep groove, no filling notch; full shoulders on both rings; equal load-carrying capacity in either direction; maximum shaft or housing fillet radius 2.0 mm (0.08 in); load ratings quoted for one million revolutions or 500 hours at 33-1/3 rpm; speed ratings quoted for pressed steel cage at ABEC-1
Dynamic Load Rating92,300 N (20,800 lbf)
Static Load Rating60,000 N (13,500 lbf)
SeriesMRC 300-S Medium
Rolling ElementsBall
Item Weight5.0 lb (2.27 kg)
Cage MaterialPressed steel
Number Of Rows1
Bore TypeStraight
Limiting Speed4,800 rpm grease; 5,600 rpm oil
Internal ClearanceC3
Contact Angle0°
Part Number313-SFF
Application TypesElectric motors; fan shafts; industrial machinery; general industrial bearing positions
Closure TypeTwo metal shields

Cross-References

Cross Reference 1SKF 6313-2Z/C3
Cross Reference 2NSK 6313ZZC3
Cross Reference 3ISO 6313-2Z C3
Seller Part Number: BS3#PGWCLC

Product Description

What this part is:

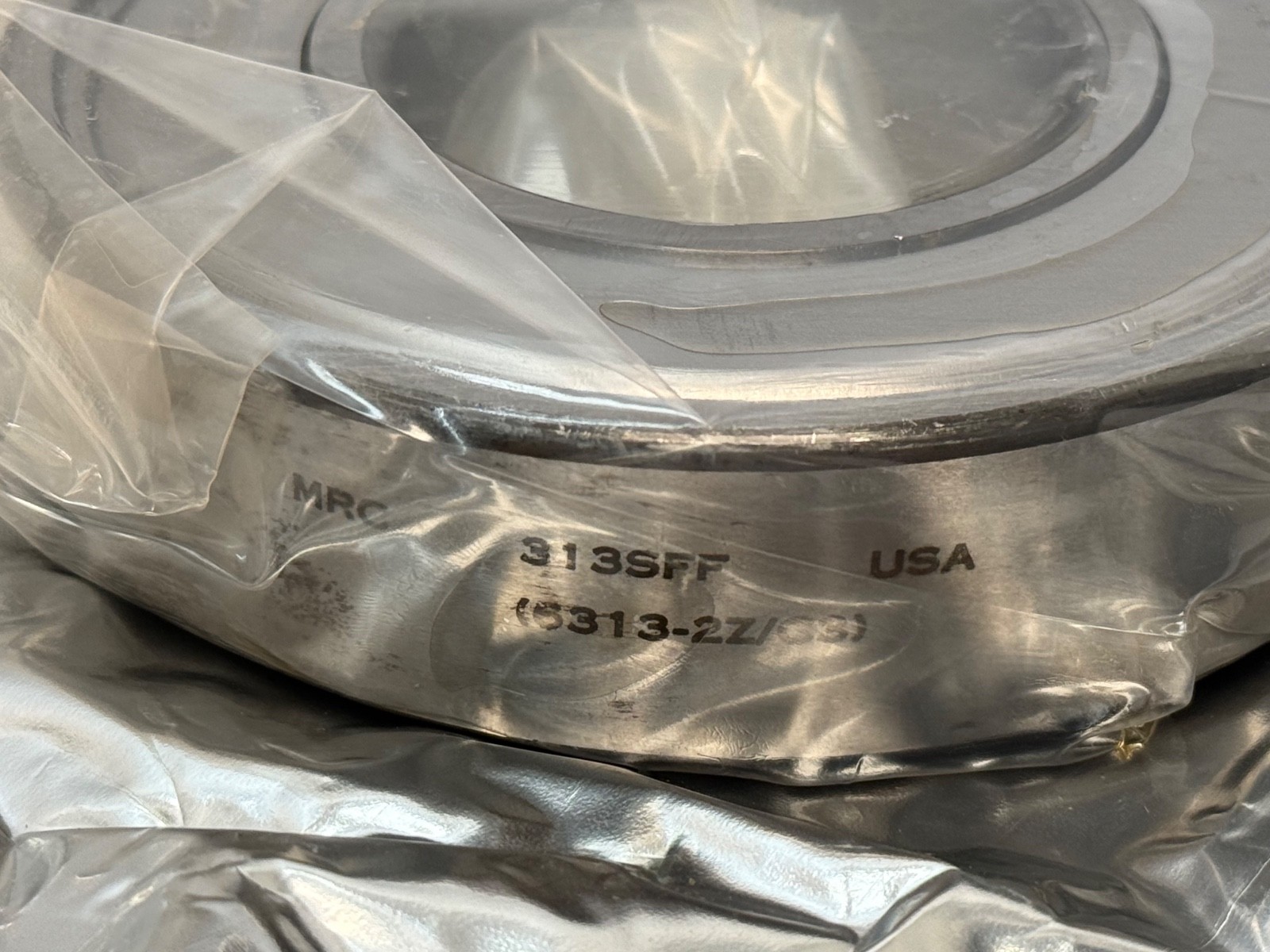

MRC 313-SFF is a Conrad single-row deep groove ball bearing with two metal shields, C3 radial internal clearance and a pressed steel cage. Unit Quantity: 1 Pc. Bore Diameter: 65 mm (2.5591 in). Outside Diameter: 140 mm (5.5118 in). Overall Width: 33 mm (1.2992 in). Country of Origin: United States.

Decoding the designation:

3 — MRC 300-S Medium Series.

13 — bore code, multiplied by five: 65 mm bore.

S — Conrad deep groove, no filling notch.

FF — two shields.

C3 — radial internal clearance greater than standard (ABMA #3, MRC-LO fit).

Specifications:

Bearing Type: Conrad single-row deep groove. Series: MRC 300-S Medium. Number Of Rows: 1. Rolling Elements: Ball. Contact Angle: 0°. Cage Material: Pressed steel. Internal Clearance: C3. Closure Type: Two metal shields. Dynamic Load Rating: 92,300 N (20,800 lbf). Static Load Rating: 60,000 N (13,500 lbf). Limiting Speed: 4,800 rpm grease; 5,600 rpm oil. Item Weight: 2.27 kg (5.0 lb).

Dimensions and mounting:

Bore Diameter: 65 mm (2.5591 in). Outside Diameter: 140 mm (5.5118 in). Overall Width: 33 mm (1.2992 in). Maximum Shaft or Housing Fillet Radius: 2.0 mm (0.08 in).

Compatibility and replacement:

Cross-references: SKF 6313-2Z/C3, NSK 6313ZZC3, ISO 6313-2Z C3. MPN variants: 313-SFF, 313SFF, 313 SFF, 6313-2ZC3, 6313 2Z C3, 6313ZZ C3, 6313Z. MRC 313-S is the open version, 313-SF has one shield and 313-SZZ has two synthetic rubber seals.

Frequently asked questions:

What size is the MRC 313-SFF?

65 mm bore, 140 mm outside diameter and 33 mm width.

What do the FF and C3 in MRC 313-SFF mean?

FF is two shields. C3 is radial internal clearance greater than standard.

What are the load ratings and speed ratings?

MRC lists a dynamic load rating of 92,300 N and a static load rating of 60,000 N. The limiting speed is 4,800 rpm on grease and 5,600 rpm on oil.
