Single-row deep groove ball bearing, 25 x 52 x 15 mm, two metal shields, snap ring and groove in the outer ring, CN clearance, pressed steel cage.
List Price
$21.89
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 6205SFFG |
| Model | 6205ZZNR |
| Bearing Type | Ball Bearing, Two metal shields |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Base Number | 6205 |
|---|---|
| Industry Terms | Shielded ball bearing, snap ring ball bearing, retaining ring bearing, NR bearing |
| Common Misspellings | 6205SFG, 6205 SFFG, 205SFG, 6205SSFG |
| Total Width | 15 mm |
| Overall Width | 15 mm |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 6205SFFG; 205SFFG; 205-S-FF-G; 6205 SFFG; 6205-ZZ-NR; 6205-2Z-NR |
| Cage Type | Pressed ribbon |
| Series | 200 |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Yes |
| Internal Clearance | CN |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 6205SFFG |
| Cross Reference 1 | SKF 6205-2Z-NR |
|---|---|
| Cross Reference 2 | FAG 6205-2Z-NR |
| Cross Reference 3 | NSK 6205ZZNR |
| Cross Reference 4 | NTN 6205ZZNR |
| Cross Reference 5 | Timken 6205-2Z-NR |
| Cross Reference 6 | RHP 6205-2ZNR |
| Cross Reference 7 | Koyo 6205ZZNR |
| Cross Reference 8 | SNR 6205ZZNR |

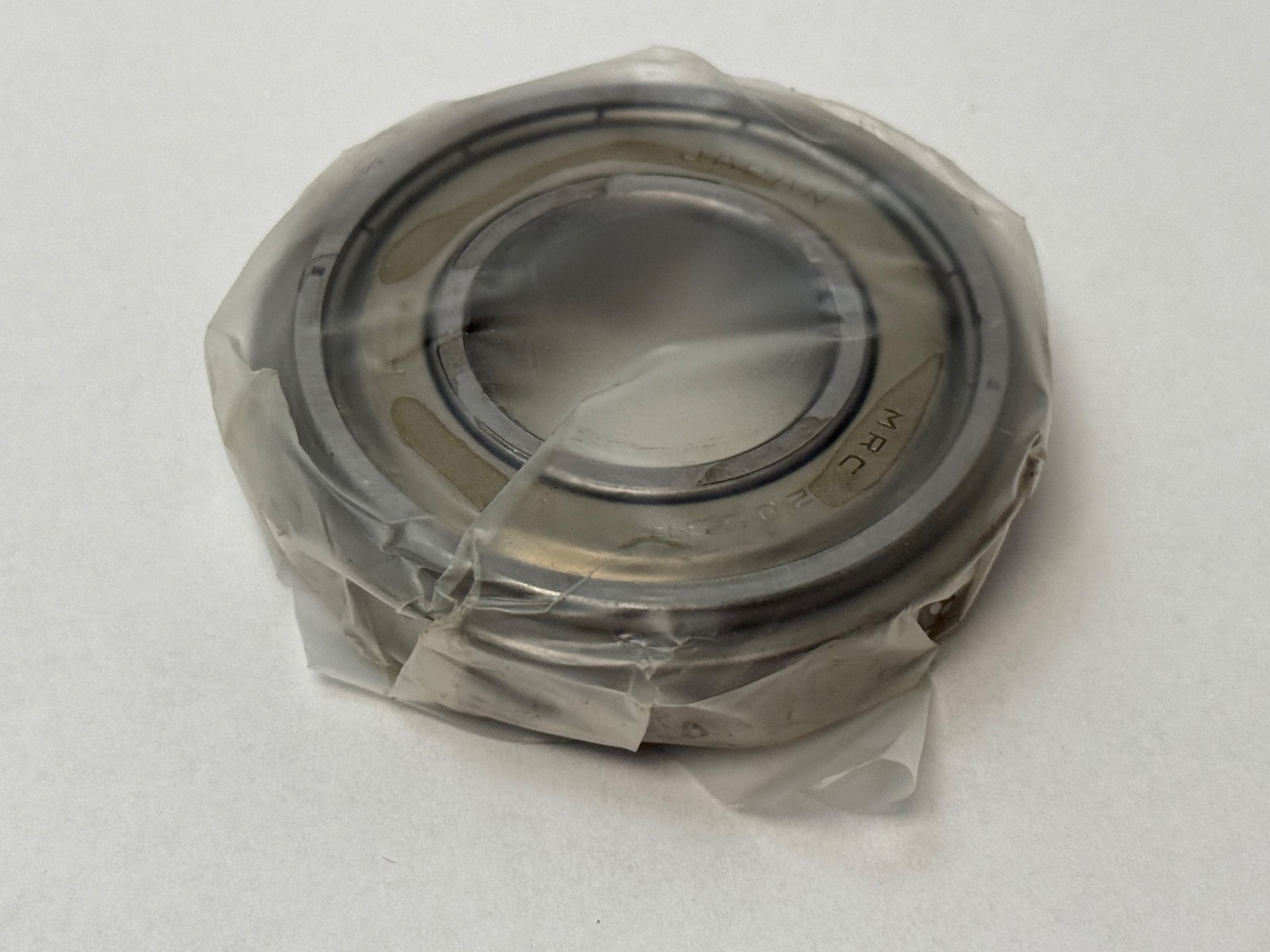

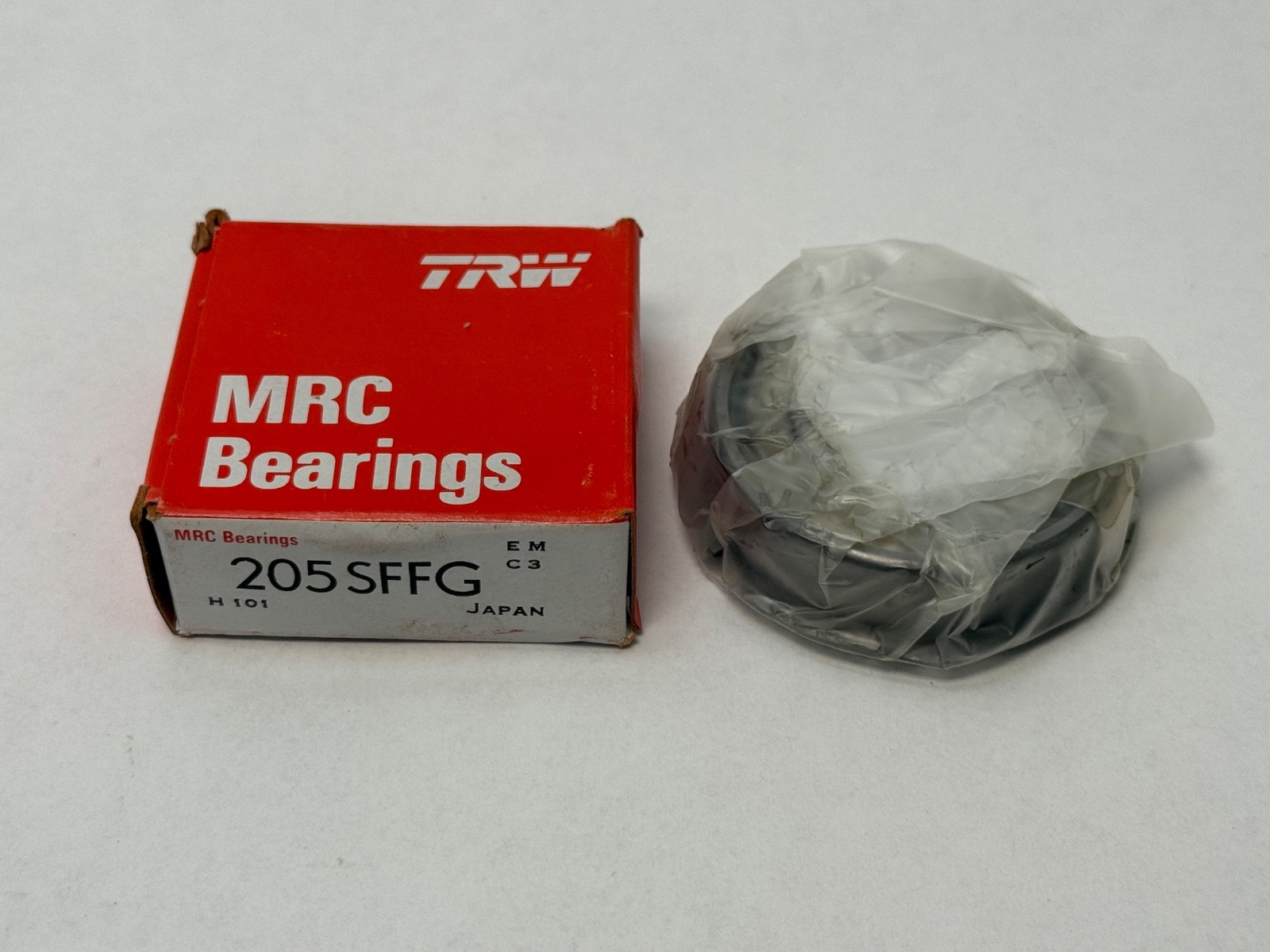

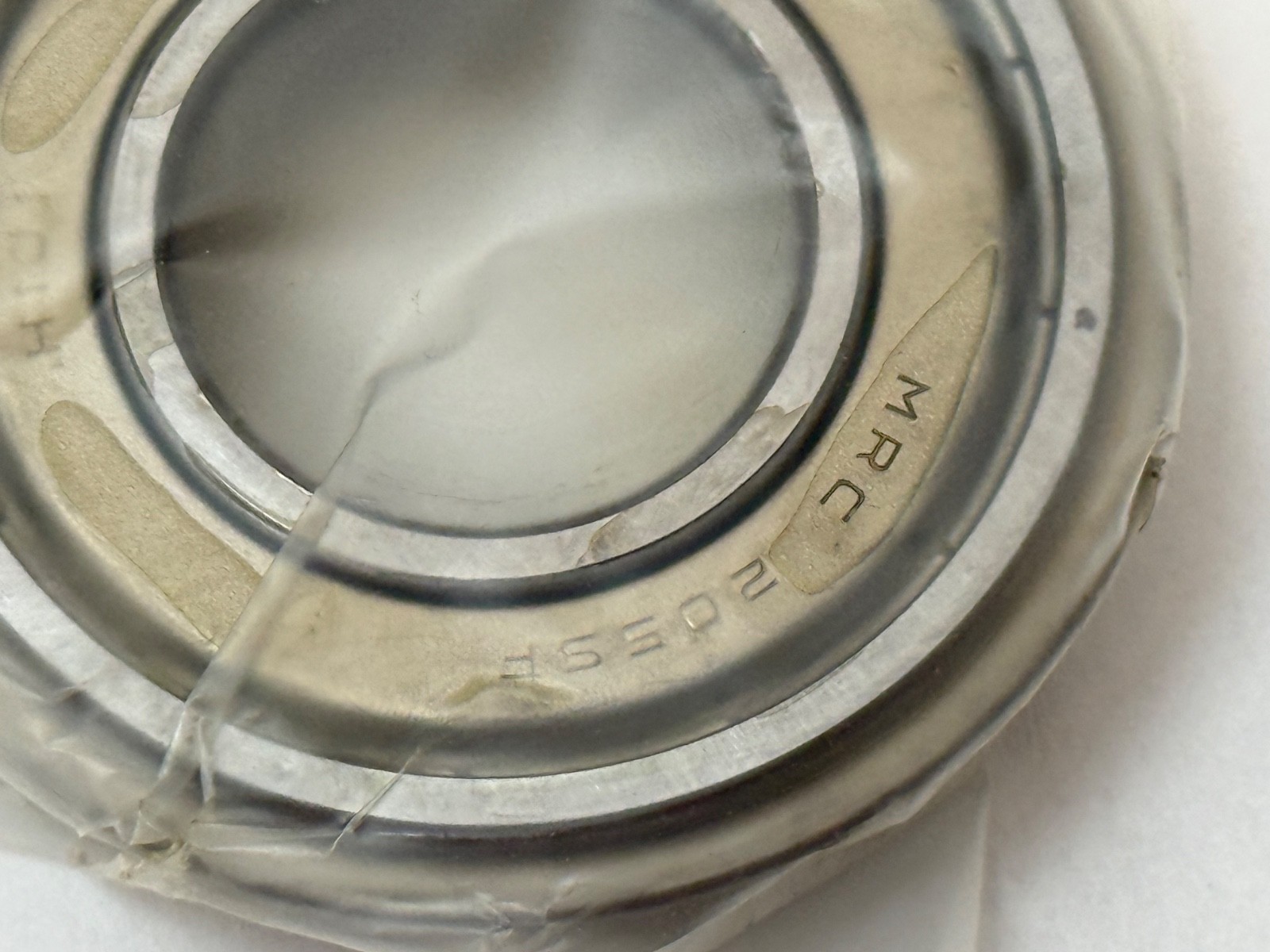

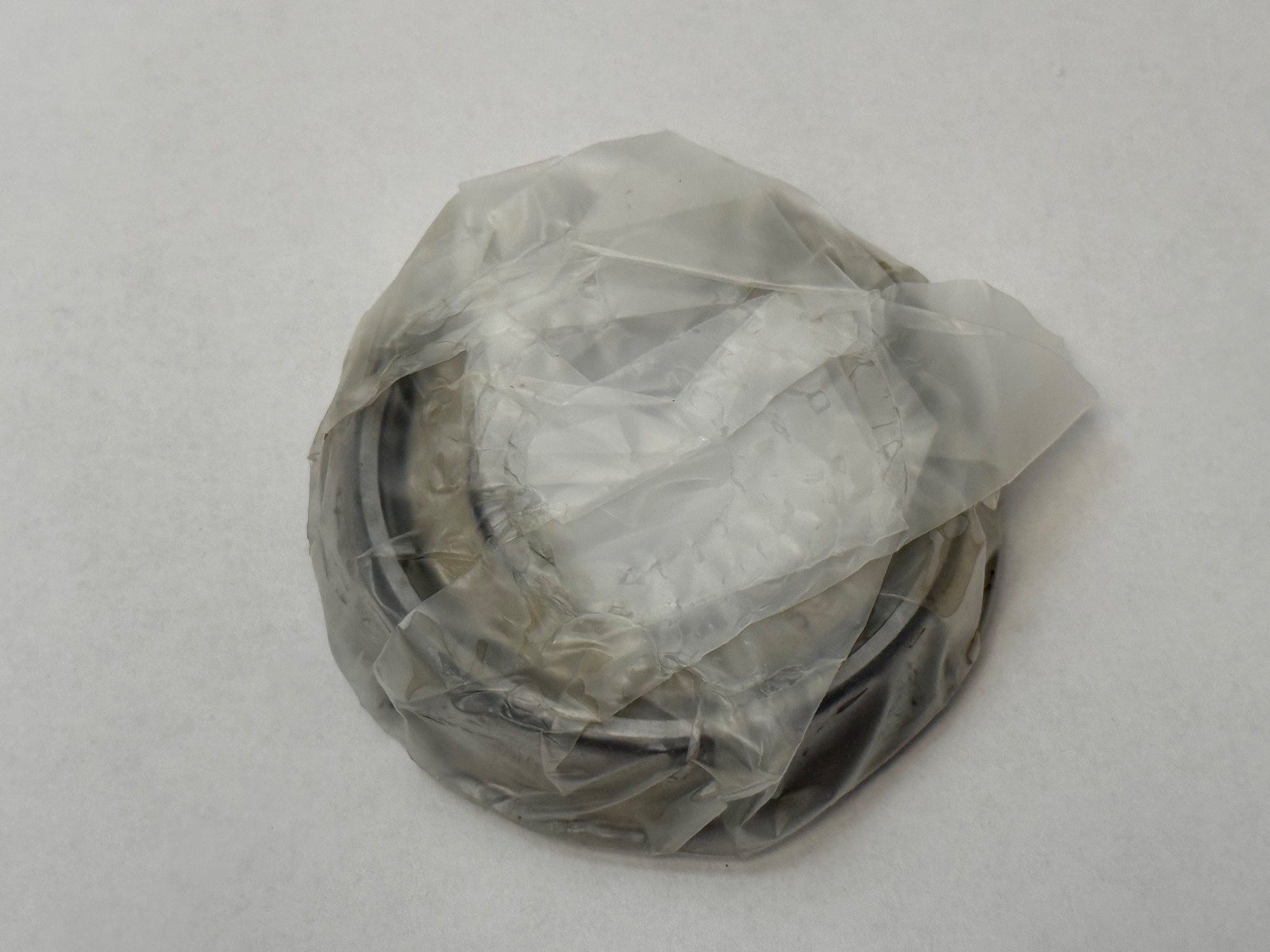

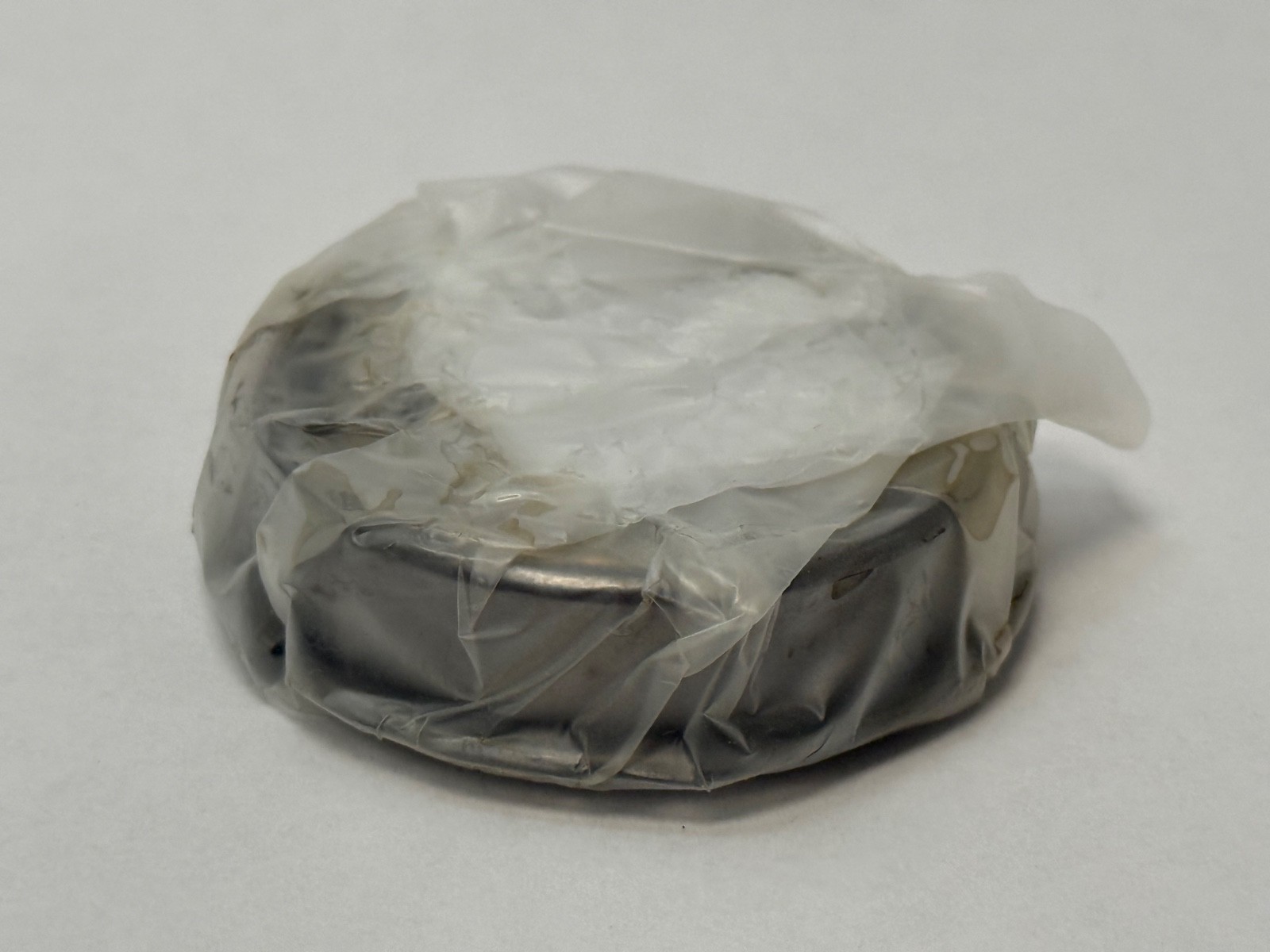

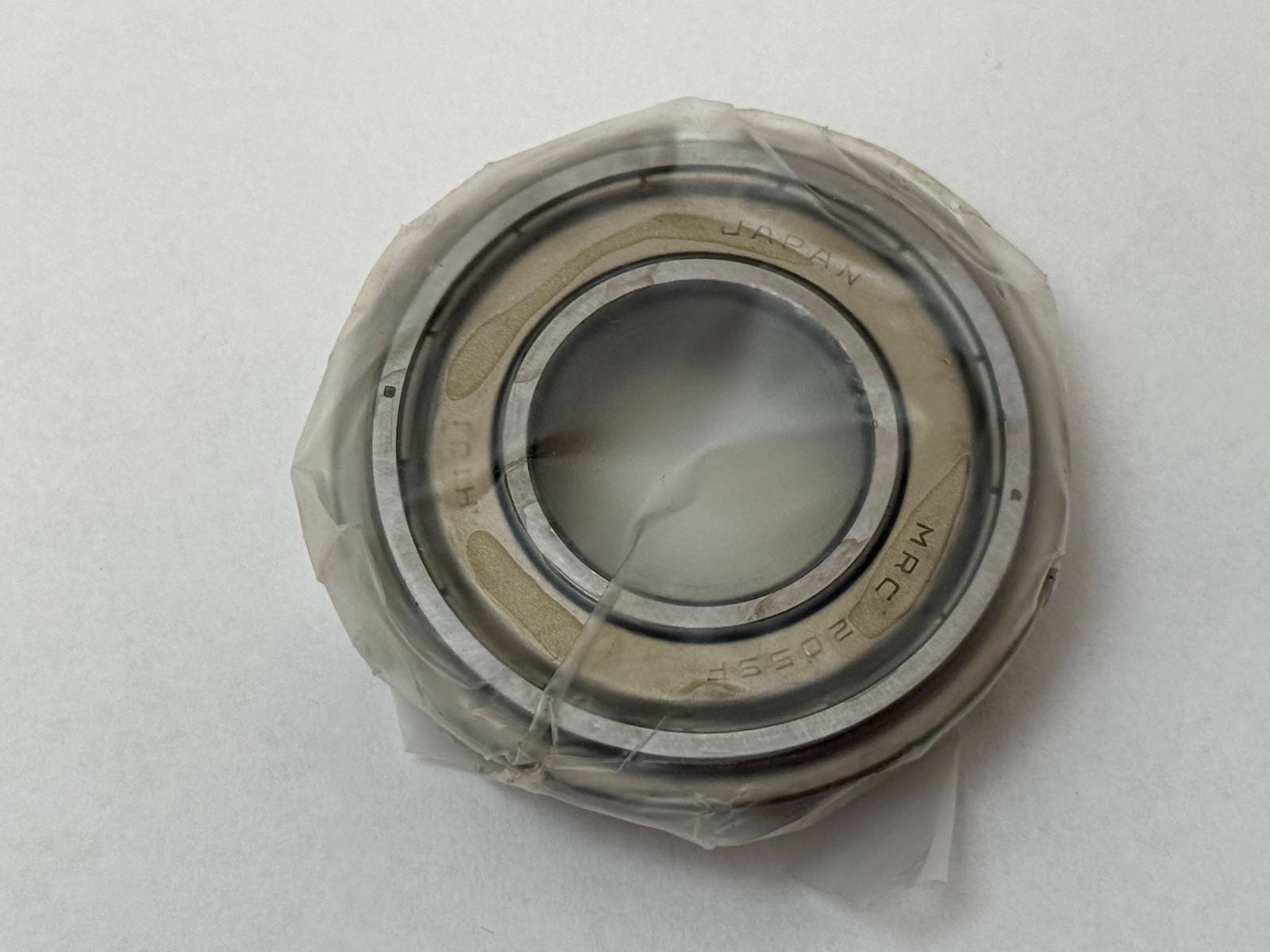

MRC 6205SFFG single-row deep groove ball bearing, ISO 62 dimension series, with two metal shields and a snap ring groove and ring in the outer ring. Bore 25 mm, outside diameter 52 mm, width 15 mm. One piece.
205 — MRC 200 series, 25 mm bore.
S — single-row deep groove ball bearing, Conrad assembly.
FF — two shields, one on each face. On MRC, F and FF are the shield codes and Z and ZZ are the rubber seal codes.
G — snap ring groove machined into the outside diameter of the outer ring, with the ring supplied.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Two metal shields. Snap Ring Included: Yes. Internal Clearance: CN. Cage Material: Pressed steel. Cage Type: Pressed ribbon. Bearing Material: Chrome steel. Design Units: Metric. Series: 200. Base Number: 6205. Unit Quantity: 1 Pc.
Shaft seat: 25 mm. Housing bore: 52 mm. Ring width: 15 mm, the standard ISO 6205 envelope. The snap ring seats in the groove in the outer ring outside diameter and locates the bearing axially in a plain through-bored housing.
SKF 6205-2Z-NR. FAG 6205-2Z-NR. NSK 6205ZZNR. NTN 6205ZZNR. Timken 6205-2Z-NR. RHP 6205-2ZNR. Koyo 6205ZZNR. SNR 6205ZZNR. All are 25 x 52 x 15 mm shielded bearings with a snap ring groove and ring in the outer ring; a plain 6205-2Z carries no groove. Searchable variants: 205SFFG, 6205SFFG, 205-S-FF-G, 6205 SFFG.
Bore 25 mm, outside diameter 52 mm, width 15 mm.
Two metal shields, one on each face. On MRC, Z and ZZ denote rubber seals.
Yes. The outer ring has a snap ring groove and the ring is supplied.
