Availability:
2 in stock
Deep groove ball bearing, 35 x 80 x 34.93 mm cartridge width, metal shields both sides. 36,400 N dynamic rating, 8,500 rpm grease limiting speed. MRC by SKF.
List Price
$28.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 307SFFC |
| GTIN | 097741007474 |
| Model | 307SFFC |
| Bearing Type | Ball Bearing |
| ID | 35 mm |
| OD | 80 mm |
| Width | 34.93 mm (1.375 in) |
| Base Number | 307 |
|---|---|
| Industry Terms | cartridge width bearing, wide inner ring ball bearing, double shielded deep groove ball bearing |
| Mpn Variants | 307SFFC, 307-SFFC, 307-S-FF-C, 307 SFFC |
| Dynamic Load Rating | 36,400 N |
| Static Load Rating | 20,000 N |
| Series | MRC 300 Series, cartridge width |
| Rolling Elements | Ball |
| Item Weight | 0.69 kg (1.53 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 8,500 rpm grease; 10,000 rpm oil |
| Common Misspellings | MRC 307 SFFC, MRC307SFFC, 307SFCC, 307SSFC, MRC 307-SFF-C |
| Application Types | Gearboxes, pumps, conveyors, shafts with wide inner ring seating, general industrial machinery |

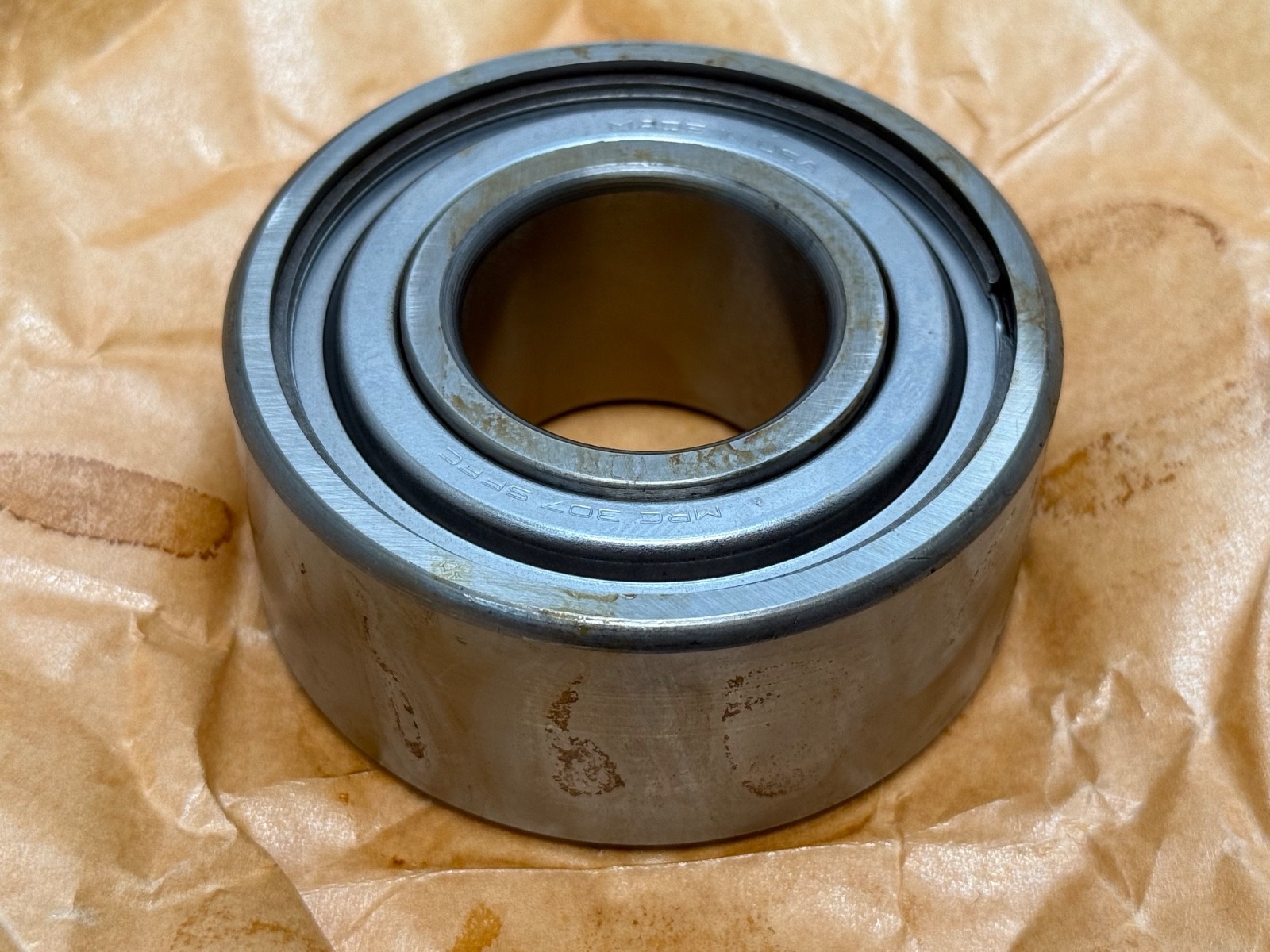

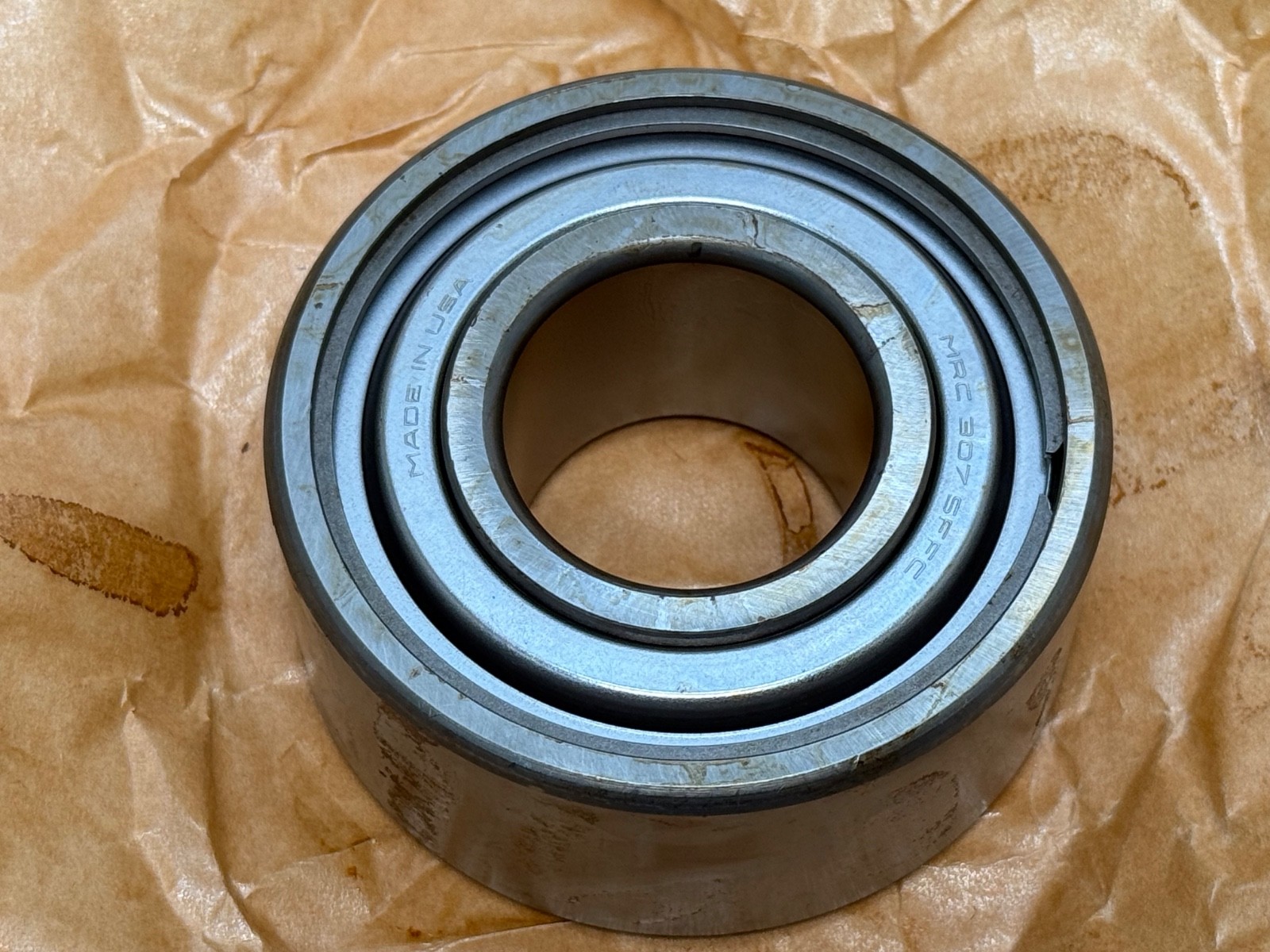

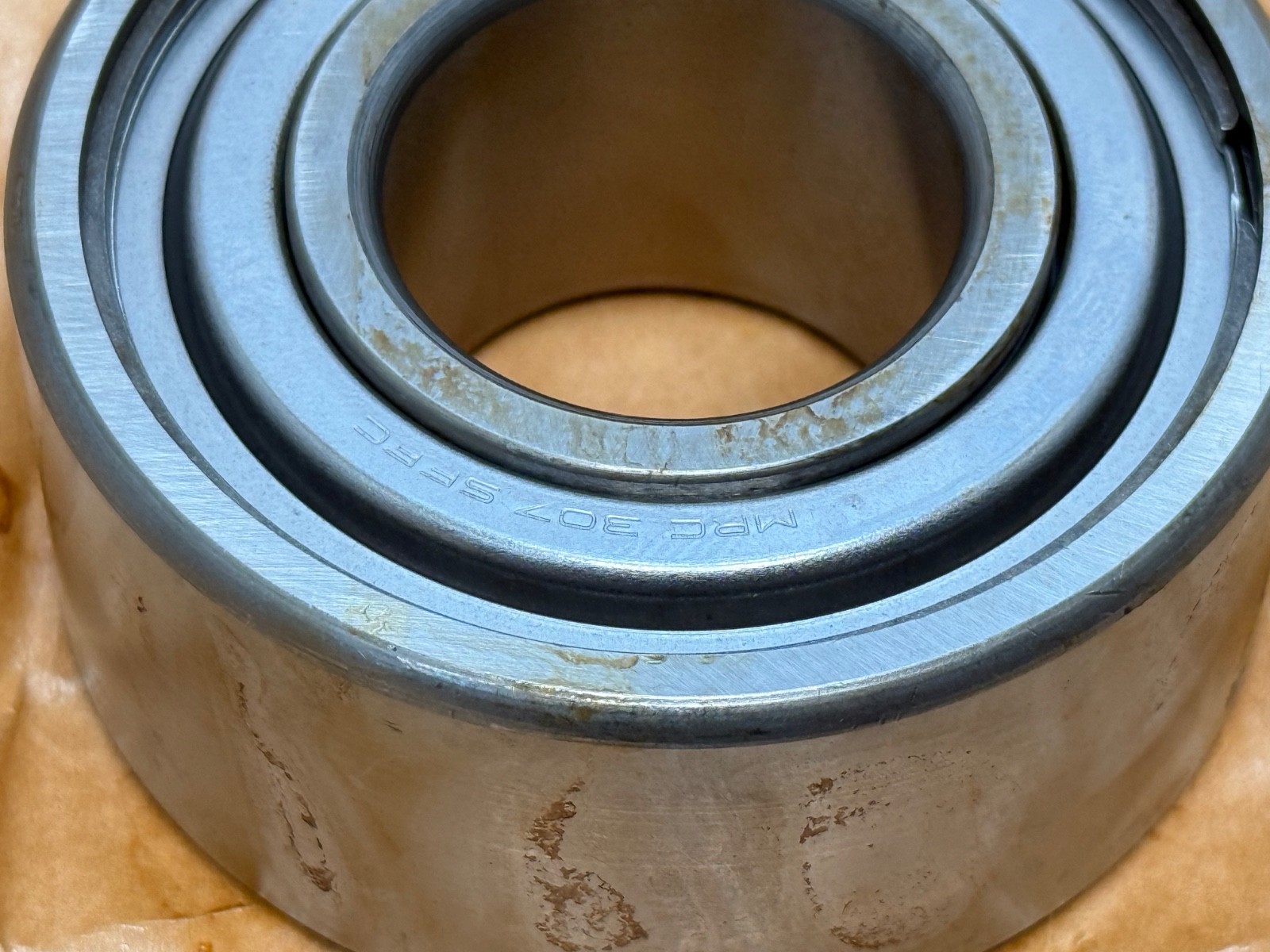

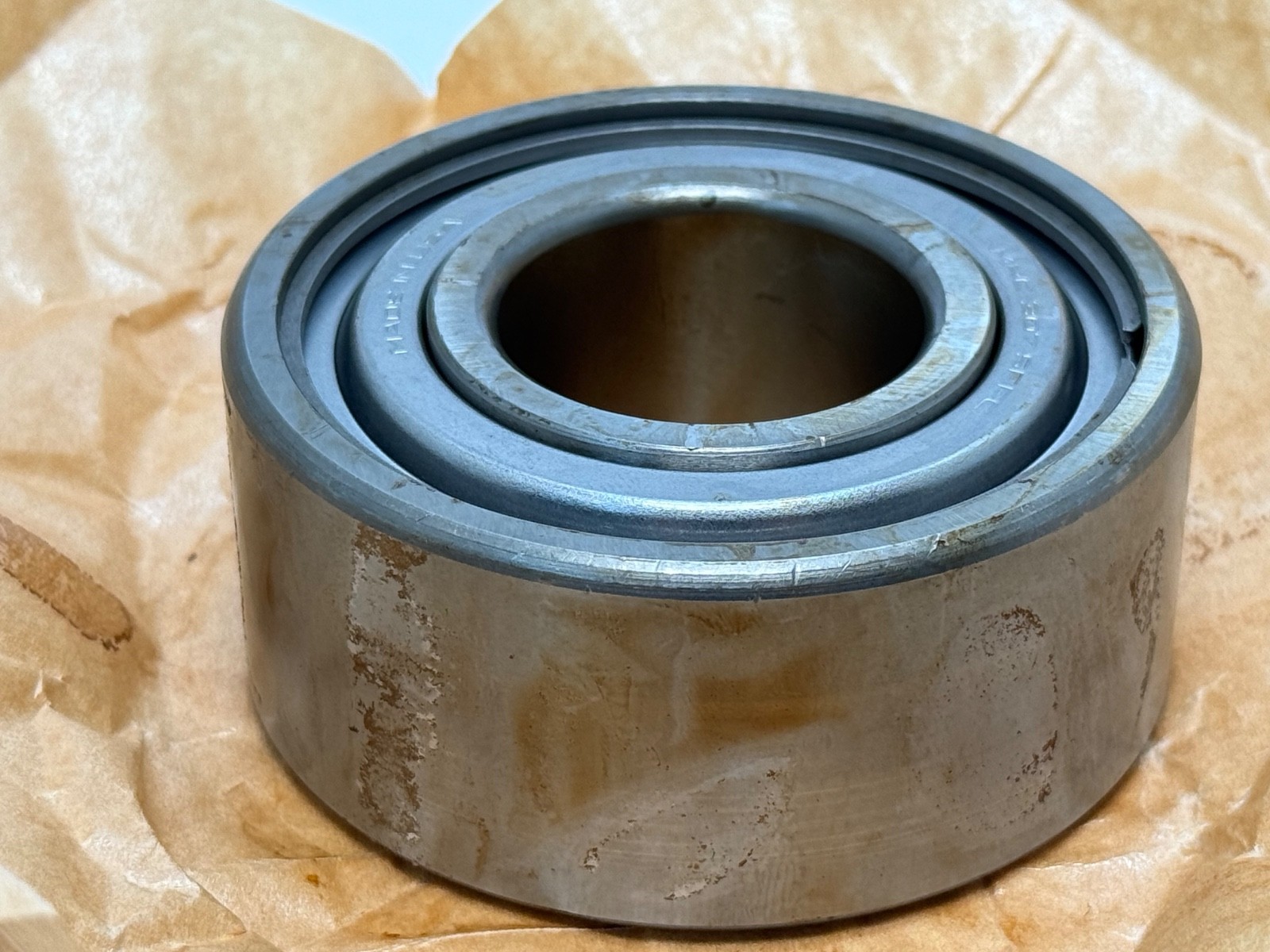

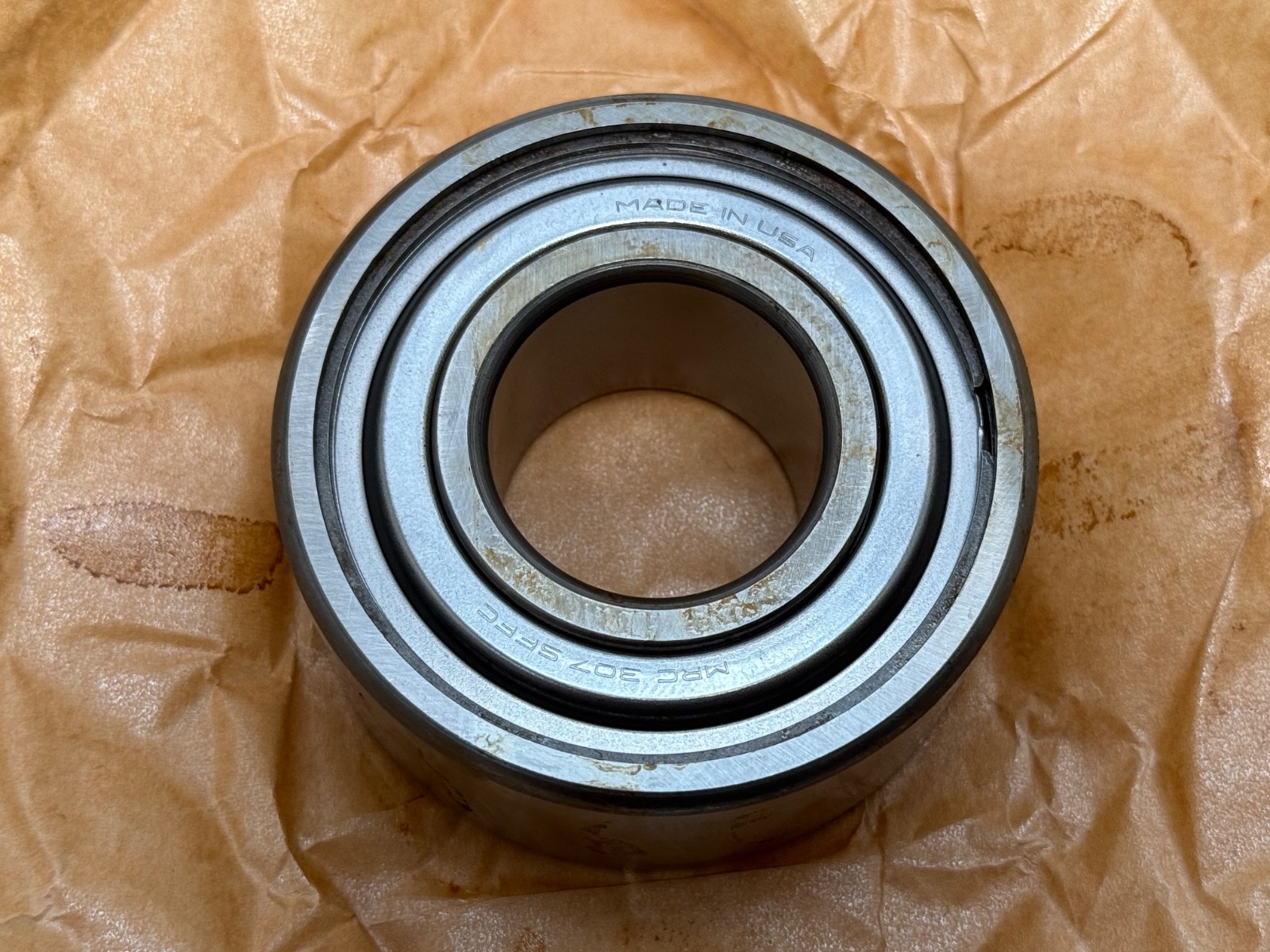

The MRC 307SFFC is a single-row deep groove ball bearing with cartridge-width rings and a metal shield on each face. MRC is an SKF brand. Bore Diameter: 35 mm. Outside Diameter: 80 mm. Width: 34.93 mm (1.375 in).
307 — MRC 300 medium series, 35 mm bore, 80 mm outside diameter.
S — single-row Conrad-type deep groove ball bearing.
FF — two metal shields, one on each face.
C — cartridge width: both rings 34.93 mm (1-3/8 in) wide.
Bore Diameter: 35 mm. Outside Diameter: 80 mm. Width: 34.93 mm (1.375 in). Dynamic Load Rating: 36,400 N. Static Load Rating: 20,000 N. Limiting Speed: 8,500 rpm grease; 10,000 rpm oil. Closure Type: Shields both sides. Rolling Elements: Ball. Number of Rows: 1. Bore Type: Straight. Item Weight: 0.69 kg (1.53 lb). Unit Quantity: 1 Pc. GTIN: 097741007474.
Fillet Radius (ra max): 1.5 mm.
MRC 307SFF is the standard-width sibling at 35 x 80 x 21 mm, a different envelope. Also written 307-SFFC, 307-S-FF-C and 307 SFFC.
35 mm bore, 80 mm outside diameter, 34.93 mm (1.375 in) width.
Metal shields on both faces.
Dynamic 36,400 N and static 20,000 N.
