Availability:
28 in stock
Deep groove ball bearing, 15 x 32 x 9 mm, steel shields both sides, C4 internal clearance. Pressed steel cage, 6.15 kN dynamic, 26,000 rpm on grease.
List Price
$7.57
28 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6002ZZC4 |
| Model | 6002-ZZ-C4 |
| Bearing Type | Ball Bearing, Double Shield |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Chrome steel |
|---|---|
| Series | 6000 |
| Lubricant | Grease |
| Base Number | 6002 |
| Total Width | 9 mm |
| Bore Shaft Size | 15 mm |
| Mpn Variants | 6002ZZC4, 6002-ZZ-C4, 6002 ZZ C4, 6002ZZC4E, 6002ZZ, 6002Z |
| Precision Class | ISO Normal (ABEC 1 / P0) |
| Additional Attributes | Chamfer r min 0.3 mm; Shaft abutment da 17 mm min, 19 mm max; Housing abutment Da 30 mm max; Fillet radius ra 0.3 mm max; Mass 0.031 kg |
| Cage Type | Pressed |
| Dynamic Load Rating | 6.15 kN (6,150 N) |
| Static Load Rating | 2.84 kN (2,840 N) |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Item Weight | 0.031 kg (0.068 lb) |
| Cage Material | Steel |
| Limiting Speed | 26,000 rpm (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C4 |
| Harmonization Code | 8482.10.50.68 |
| Part Number | 6002ZZC4 |
| Closure Type | Shields both sides |
| Industry Terms | deep groove ball bearing; shielded ball bearing; C4 clearance bearing; 6002 bearing; 15x32x9 bearing |
| Common Misspellings | NSK 6002 ZZ C4; 6002Z2C4; 6002 ZZC4; NKS 6002ZZC4; NSK6002ZZC4 |
| Application Types | Electric motors; fans and blowers; pumps; small gearboxes; conveyor rollers |
| Cross Reference 1 | SKF 6002-2Z/C4 |
|---|---|
| Cross Reference 2 | FAG 6002-2Z-C4 |

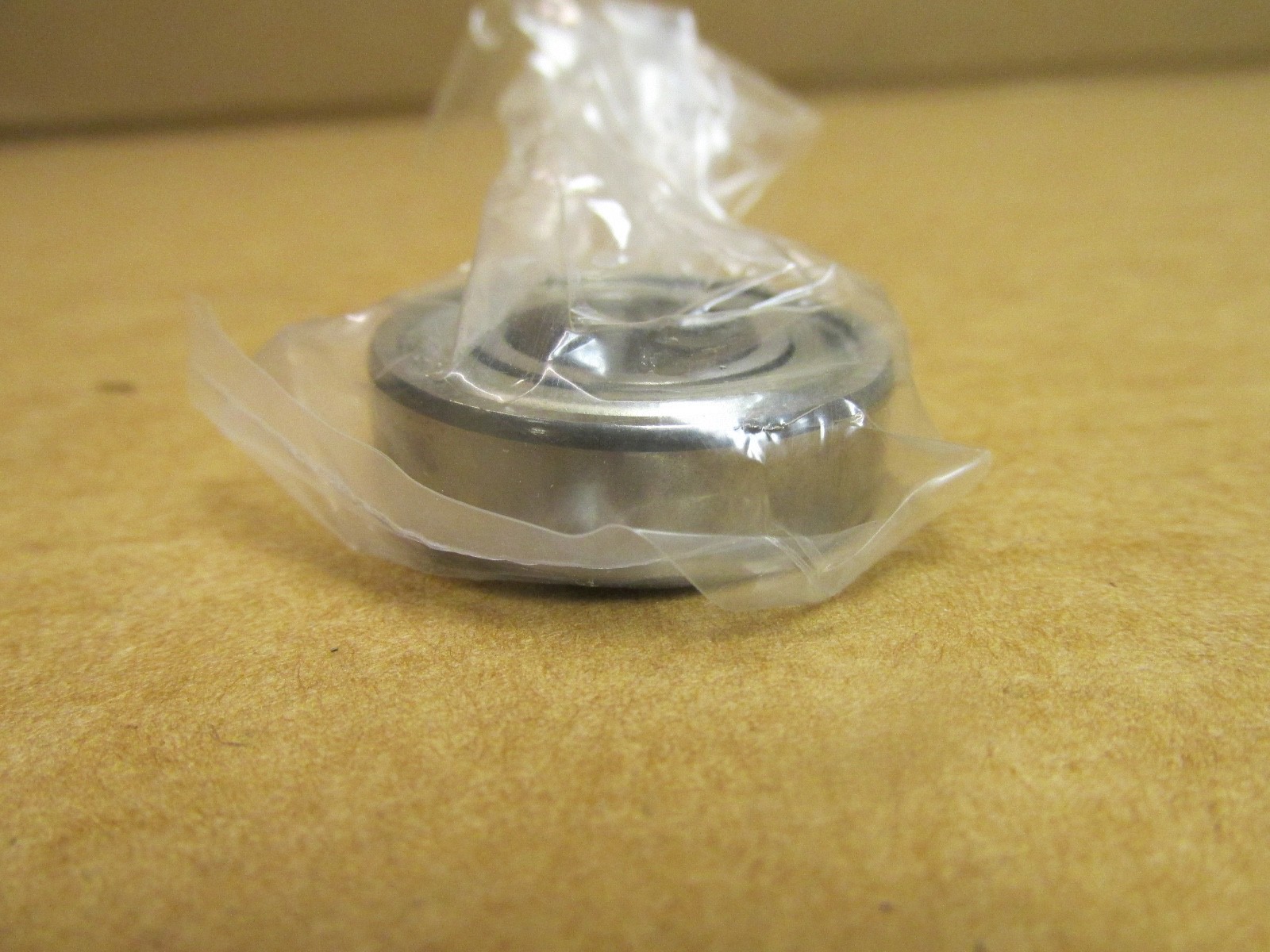

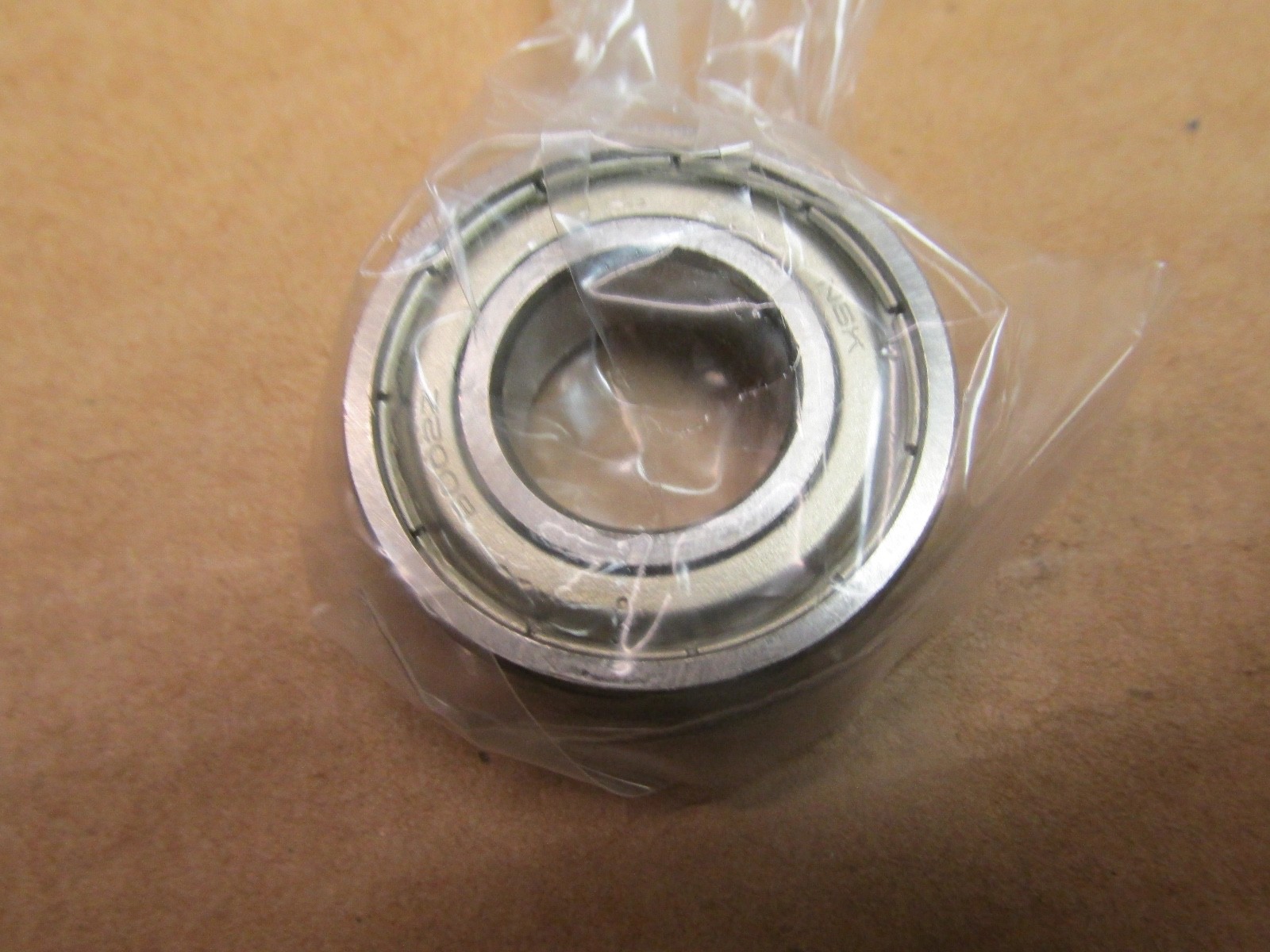

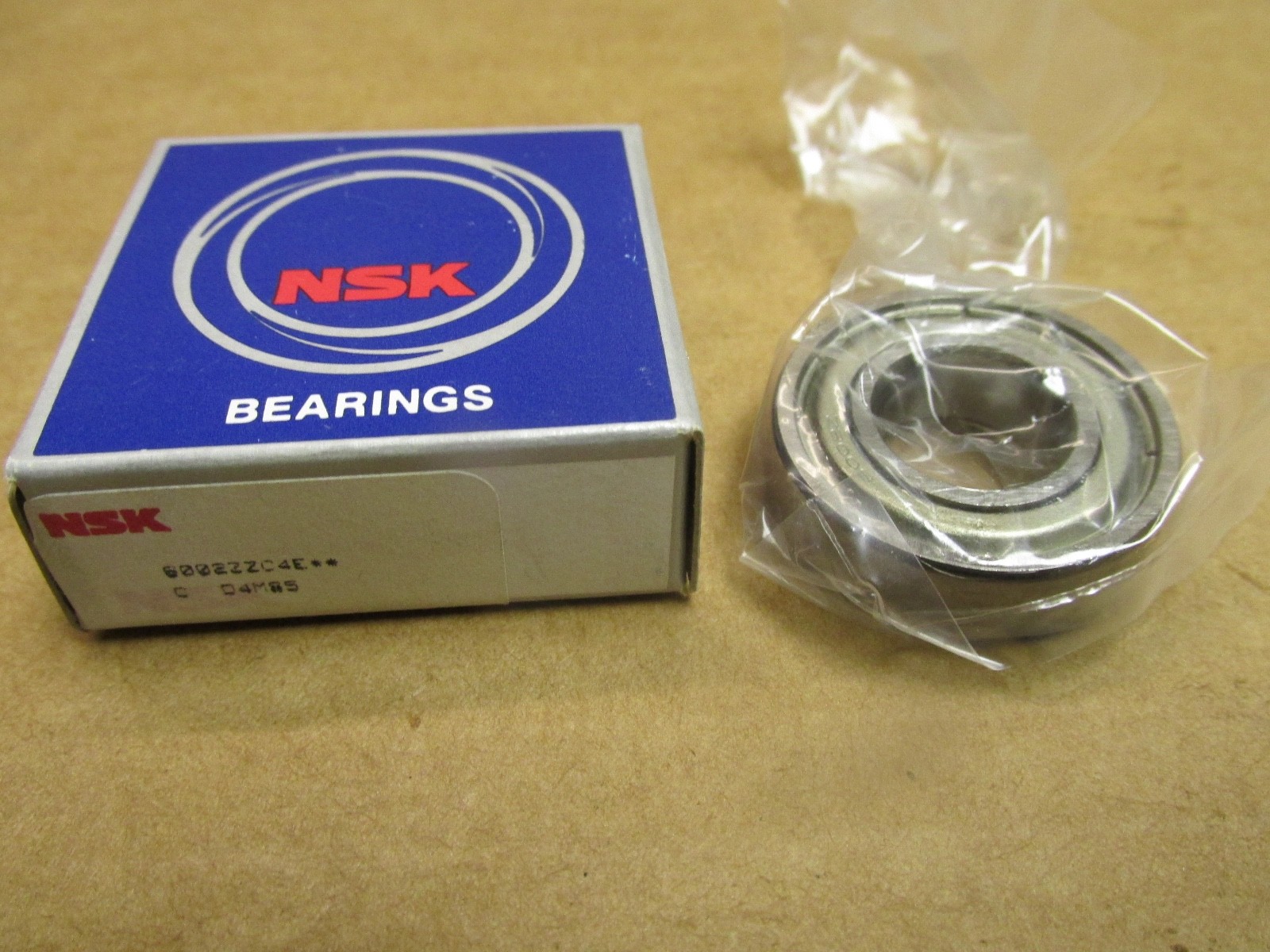

NSK 6002ZZC4 is a single-row deep groove ball bearing, shielded both sides, in C4 internal clearance. Bore 15 mm, outside diameter 32 mm, width 9 mm. One bearing.
6002 — NSK’s number for the ISO 6002 size, 15 x 32 x 9 mm.
ZZ — pressed steel shields on both faces. On NSK these are non-contact metal shields.
C4 — radial internal clearance one band wider than C3 and two wider than CN.
Series: 6000. Bore Type: Straight. Rolling Elements: Ball. Closure Type: Steel shields both sides. Dynamic Load Rating: 6,150 N (6.15 kN). Static Load Rating: 2,840 N (2.84 kN). Limiting Speed: 26,000 r/min on grease. Internal Clearance: C4. Precision Class: ISO Normal, ABEC 1. Cage Material: Steel. Cage Type: Pressed. Mass: 0.031 kg. Unit Quantity: 1 Pc.
Bore Diameter: 15 mm. Outside Diameter: 32 mm. Width: 9 mm. Chamfer r min: 0.3 mm. Shaft abutment diameter da: 17 mm minimum, 19 mm maximum. Housing abutment diameter Da: 30 mm maximum. Shaft or housing fillet radius ra: 0.3 mm maximum.
Cross-References: SKF 6002-2Z/C4, FAG 6002-2Z-C4. Searchable variants of the designation: 6002ZZC4, 6002-ZZ-C4, 6002 ZZ C4, 6002ZZ, 6002Z.
Bore 15 mm, outside diameter 32 mm, width 9 mm.
Dynamic load rating 6,150 N, static load rating 2,840 N, limiting speed 26,000 r/min on grease.
C4 is radial internal clearance one band wider than C3 and two wider than CN.
