SealMasterBall Bearing Insert – 1-3/16 in Bore, 2.835 in OD, Setscrew Locking Collar, Medium Duty

Name: SealMaster Ball Bearing Insert – 1-3/16 in Bore, 2.835 in OD, Setscrew Locking Collar, Medium Duty
Brand: SealMaster
SKU: AN2B5#GK8K5W
Price: 45.88 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA

Availability:

1 in stock

Categories: Bearings, Insert Bearing

Ball bearing insert, 1-3/16 in bore, 2.835 in outside diameter, 1.688 in overall width, setscrew locking collar, medium duty, straight bore.

List Price

$45.88

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	SealMaster
Model	313 D
Bearing Type	INSERT, Felt Labyrinth Seal
ID	1.1875 in
OD	2.8350 in

Technical Specifications

Series	3-series, medium duty
Lubricant	Grease
Material	Chrome Steel
Base Number	3-13
Industry Terms	Bearing insert, ball bearing insert, setscrew collar insert, medium duty insert bearing, pillow block replacement insert, wide inner ring insert
Common Misspellings	3 13 D, 313-D, 3-13-D, Seal Master 3-13D, Sealmaster 3l3D
Total Width	Outer ring width 0.9380 in
Overall Width	1.6880 in
Bore Shaft Size	1-3/16 in, straight bore
Locking Method	Setscrew locking collar
Mpn Variants	3-13D, 313D, 3-13 D, 3-13
Additional Attributes	Medium duty; extended inner ring carrying the setscrew locking collar; seats in SealMaster machined housings at 2.8350 in outside diameter
Rolling Elements	Balls
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Internal Clearance	Standard
Duty Type	Medium Duty
Locking Device	Set Screw
Harmonization Code	84821000
Part Number	3-13D

Cross-References

Cross Reference 1	313D
Cross Reference 2	3-13

Seller Part Number: AN2B5#GK8K5W

Product Description

What this part is

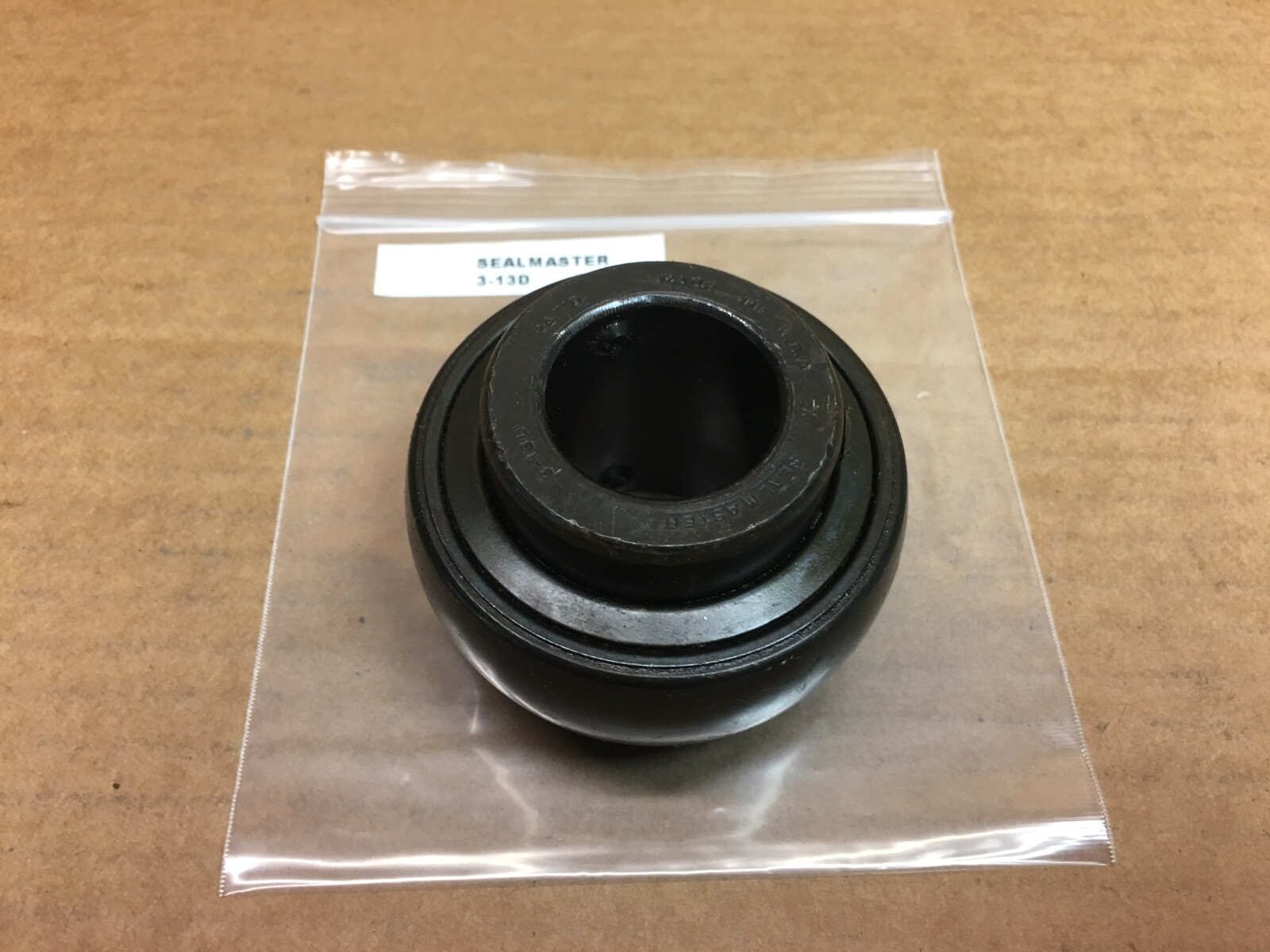

SealMaster 3-13D ball bearing insert. Bearing type: Mounted ball bearing insert. Bore / Shaft Size: 1-3/16 in, straight bore. Outside Diameter: 2.8350 in. Overall Width: 1.6880 in. Outer ring width: 0.9380 in. Locking Method: Setscrew locking collar. Internal Clearance: Standard. Rolling Elements: Balls. Number Of Rows: 1. Duty rating: medium duty.

Decoding the designation

3 — the SealMaster 3-series medium-duty insert, built to drop into SealMaster machined housings.

13 — the size within that series, giving the 1-3/16 in shaft and the 2.8350 in outside diameter.

D — the execution supplied on this insert.

What these specs mean in practice

Bore / Shaft Size: 1-3/16 in. Outside Diameter: 2.8350 in. Overall Width: 1.6880 in. Outer ring width: 0.9380 in. Internal Clearance: Standard.

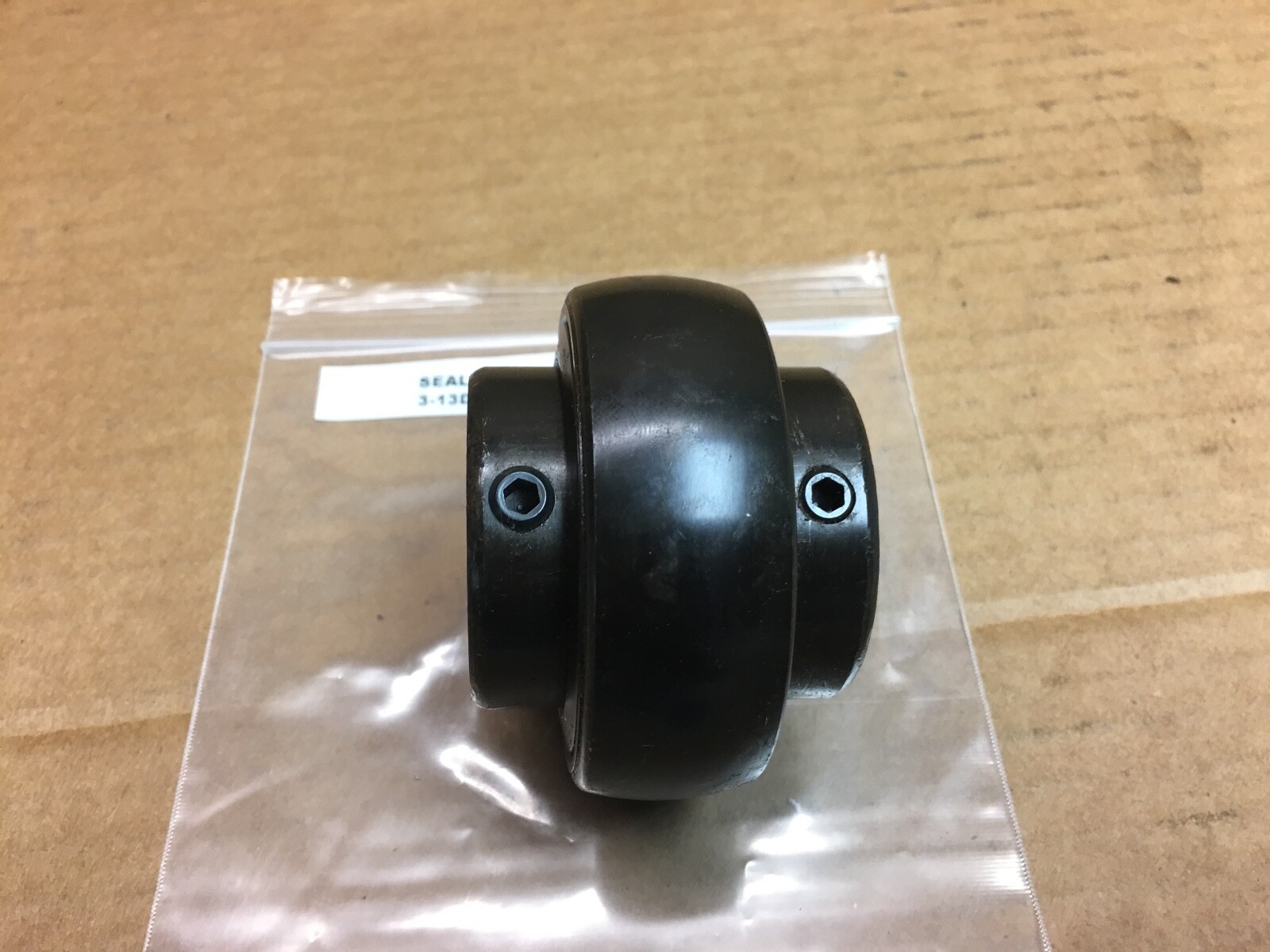

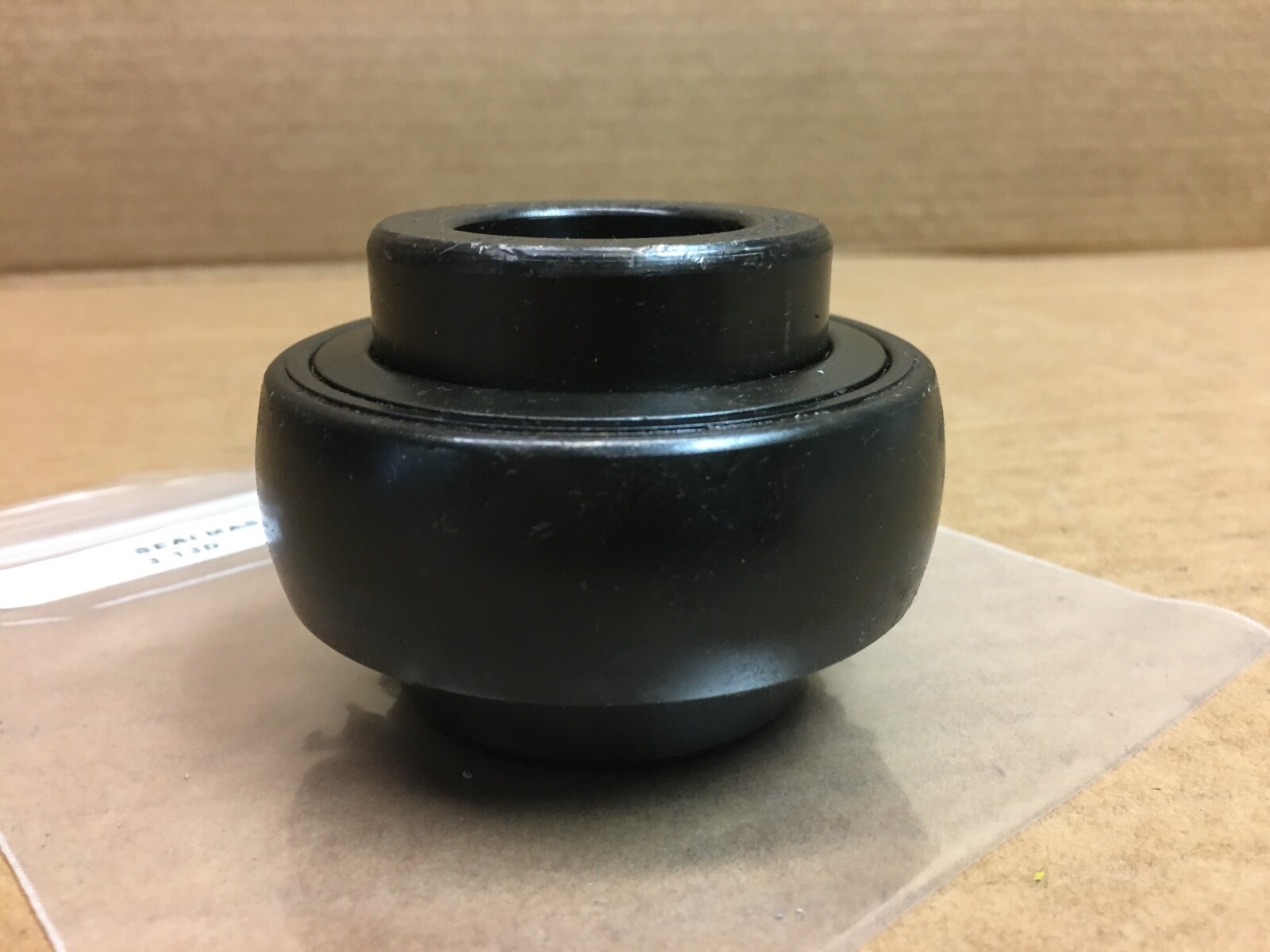

The overall width runs well past the outer ring width, so the inner ring extends on both sides of the balls. That extension is what carries the setscrew locking collar and gives it a long grip on the shaft, which steadies the insert against tipping under a belt pull. Locking Method: Setscrew locking collar — the collar sits against the extended inner ring and its screws bite into the shaft, which is the quickest form to fit and to strip and holds well where rotation runs consistently in one direction. Standard internal clearance suits general plant service at ambient shaft and housing temperatures.

Housing style and mounting form

The insert seats in a SealMaster machined housing at this outside diameter, across the pillow block, flange and take-up ranges, and is replaced independently of the housing it runs in.

Quantity and configuration

Unit Quantity: 1 Pc. One 3-13D insert with its setscrew locking collar, per unit.

Mounting data

Bore / Shaft Size: 1-3/16 in. Outside Diameter: 2.8350 in. Overall Width: 1.6880 in. Outer ring width: 0.9380 in.

Interchange guidance

MPN Variants: 3-13D, 313D, 3-13 D, 3-13. SealMaster runs the same 3-series medium-duty insert at other sizes, so the 3-1 is the 1 in shaft member of the same family. The SealMaster ER-13 is a separate insert series carrying the same 13 size code.
