Availability:
1 in stock

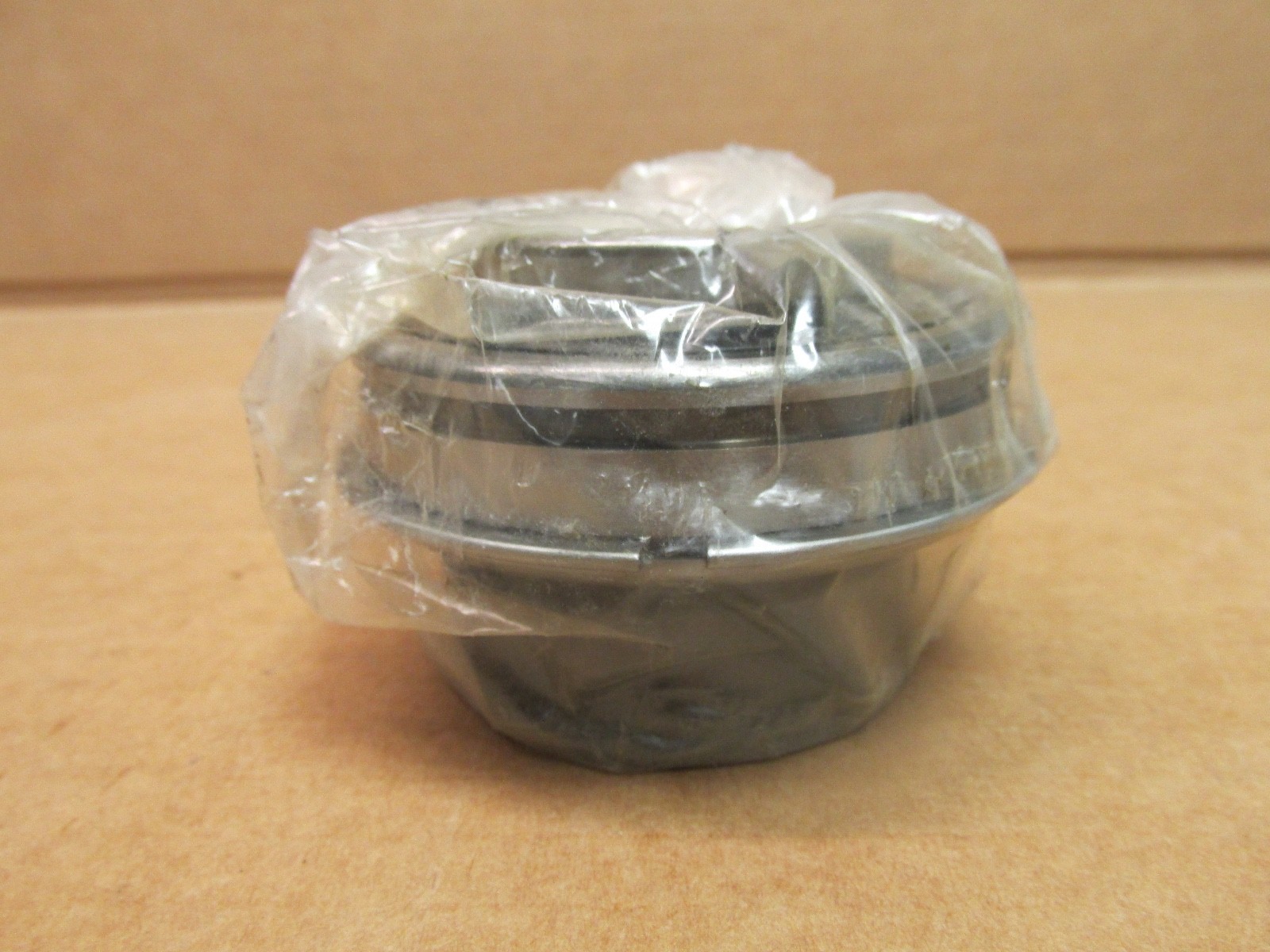

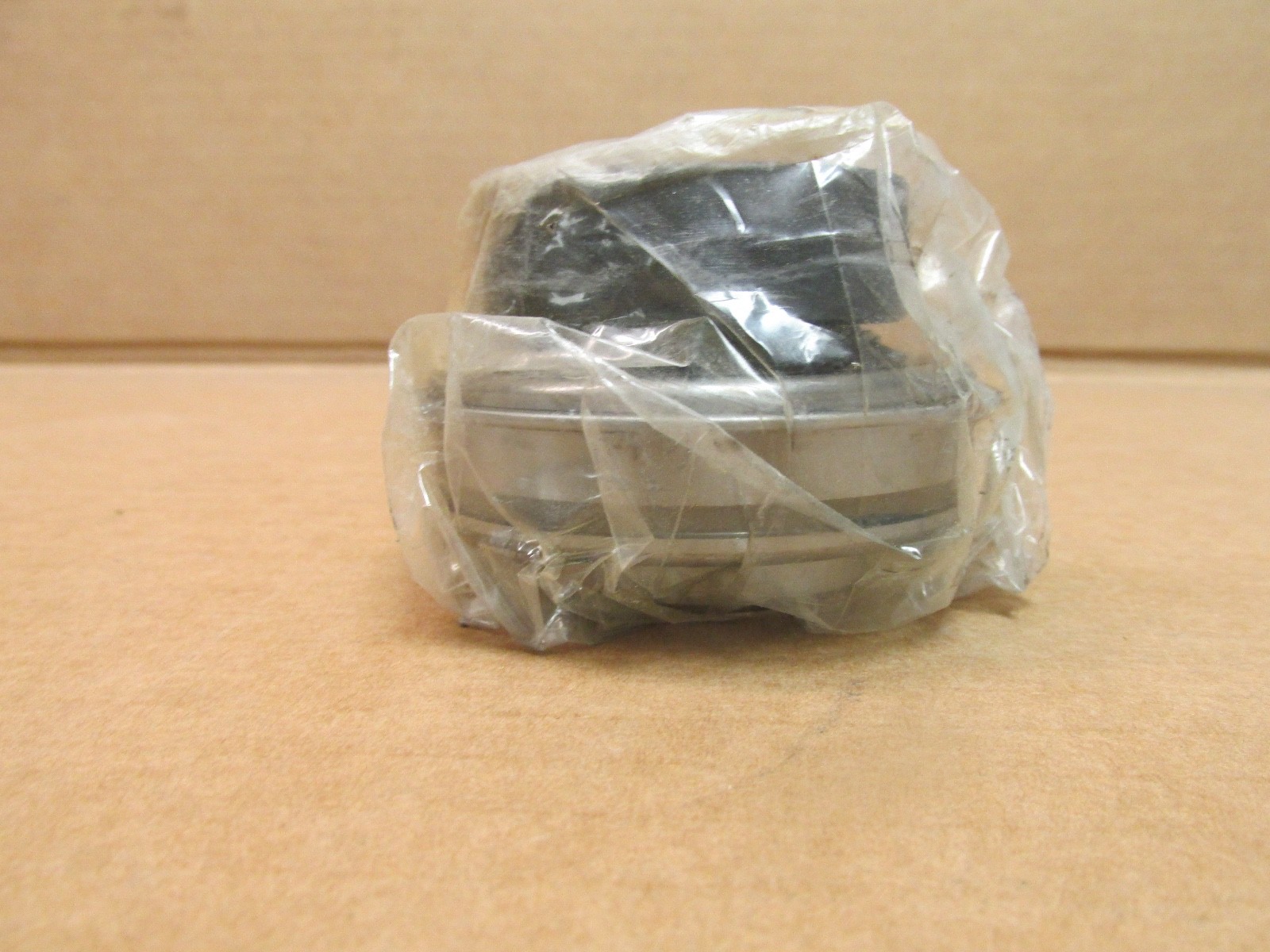

Insert ball bearing, 1-7/16 in bore x 72 mm OD, eccentric locking collar, cylindrical OD with snap ring, contact seals both sides, 25.7 kN dynamic rating.
List Price
$38.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | UELS207-107LD1NR |
| Model | UELS207-107 LD1 NR |
| ID | 1.4375 in (36.513 mm) |
| OD | 72 mm |
| Series | UELS |
|---|---|
| Type | Insert Bearing |
| Lubricant | Grease |
| Overall Width | 37.6 mm |
| Mpn Variants | UELS207-107LD1NR, UELS207-107 LD1 NR, UELS207-107, UELS207 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 25,700 N |
| Static Load Rating | 15,300 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Bearing Type | Insert Ball Bearing |
| Item Weight | 0.581 kg (1.28 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Yes |
| Internal Clearance | CN |
| Duty Type | Standard |
| Locking Device | Eccentric locking collar |
| Relubrication Feature | Yes |

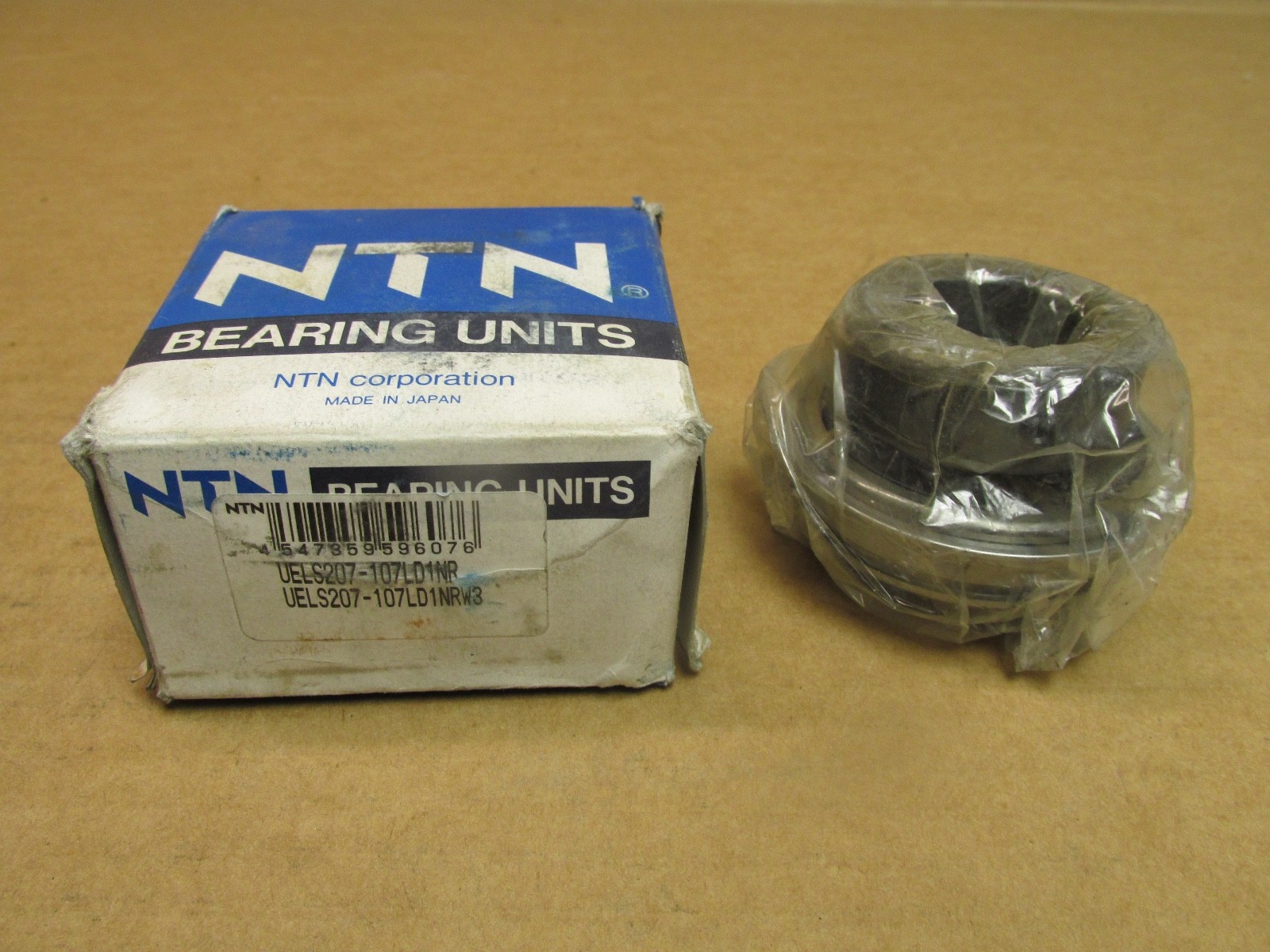

NTN UELS207-107LD1NR is a wide inner ring insert ball bearing with an eccentric locking collar, a cylindrical outside diameter and a snap ring. Bore Diameter: 1-7/16 in (36.513 mm). Outside Diameter: 72 mm. Inner Ring Width: 37.6 mm. Outer Ring Width: 20 mm.
UEL — NTN wide inner ring insert with eccentric locking collar and flinger.
S — cylindrical outside diameter.
207 — 207 light series outer ring size, 72 mm OD.
107 — inch bore, 1 in plus 7/16 in = 1-7/16 in.
D1 — relubricatable execution.
NR — snap ring groove in the outer ring with snap ring fitted.
Dynamic Load Rating: 25,700 N. Static Load Rating: 15,300 N. Seal Type: Contact seals both sides, nitrile rubber. Locking Device: Eccentric locking collar, collar number EL207. Radial Internal Clearance: CN. Operating Temperature Range: -40 to 120 °C. Item Weight: 0.581 kg (1.28 lb). The snap ring locates the insert axially in a straight-bored housing.
Collar Width (B1): 51.1 mm. Collar Outside Diameter: 55.5 mm. Set Screw Size: 3/8-24 UNF. Snap Ring Outside Diameter: 78.6 mm.
Unit Quantity: 1 Pc. One insert bearing with its locking collar.
