Availability:
1 in stock
Tapered roller bearing cone and cup set, 1.1250 in (28.575 mm) bore, 2.8593 in (72.626 mm) OD, 0.9688 in wide, 58,000 N dynamic rating. Inch series.
List Price
$42.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 41125/41286 |
| Model | 41125 41286 |
| Bearing Type | Tapered Roller Bearing |
| ID | 1.1250 in (28.575 mm) |
| OD | 2.8593 in (72.626 mm) |
| Width | 0.9688 in (24.608 mm) |
| Total Width | 0.9688 in (24.608 mm) assembled |
|---|---|
| Mpn Variants | 41125/41286, 41125-41286, 41125 41286, 4T-41125/41286, 41125, 41286 |
| Precision Class | Class 4 |
| Material | Case carburized steel |
| Dynamic Load Rating | 58,000 N |
| Static Load Rating | 55,500 N |
| Rolling Elements | Tapered Roller |
| Bearing Material | Case carburized steel |
| Cross Reference 1 | Timken 41125/41286 |
|---|

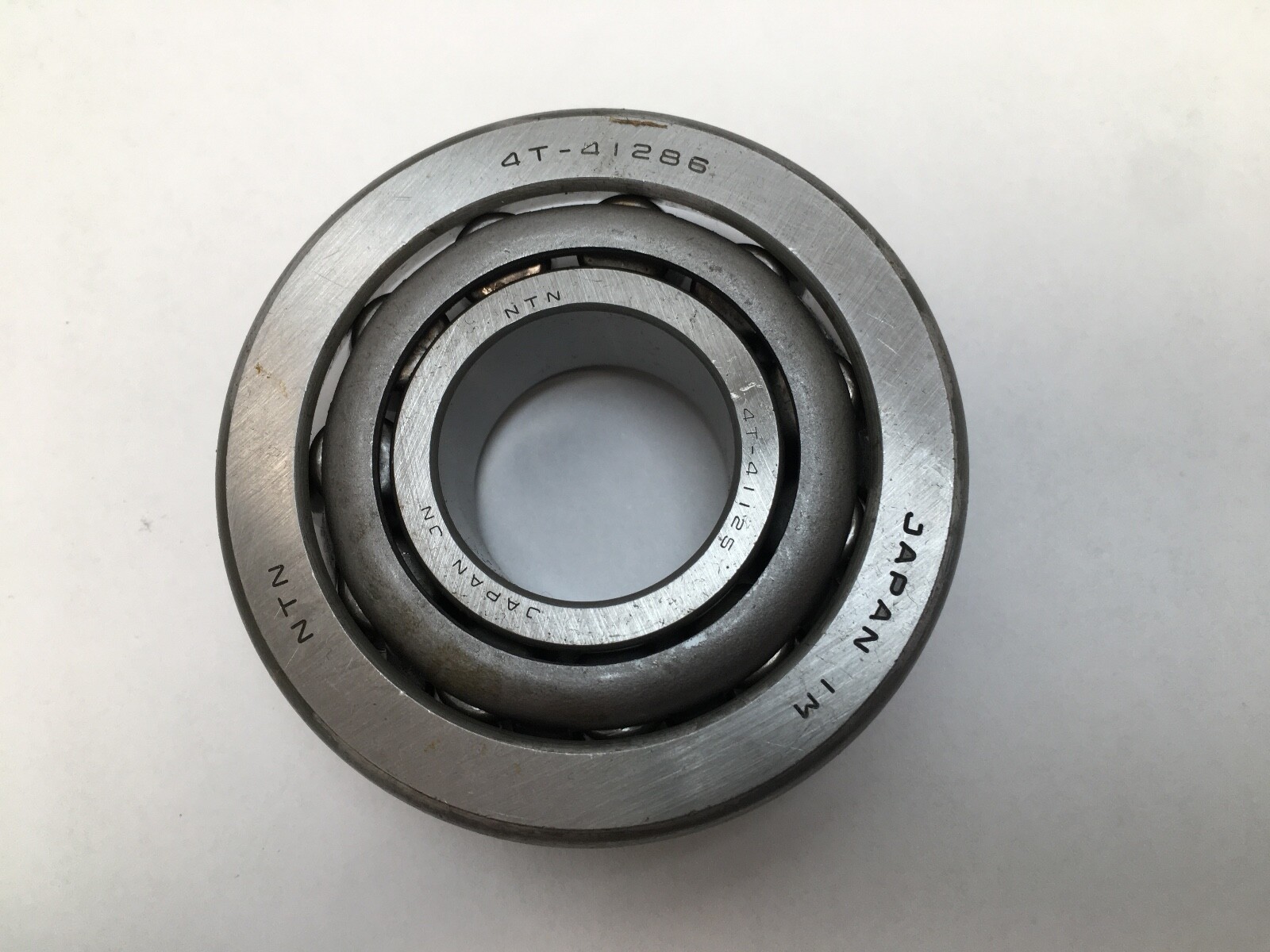

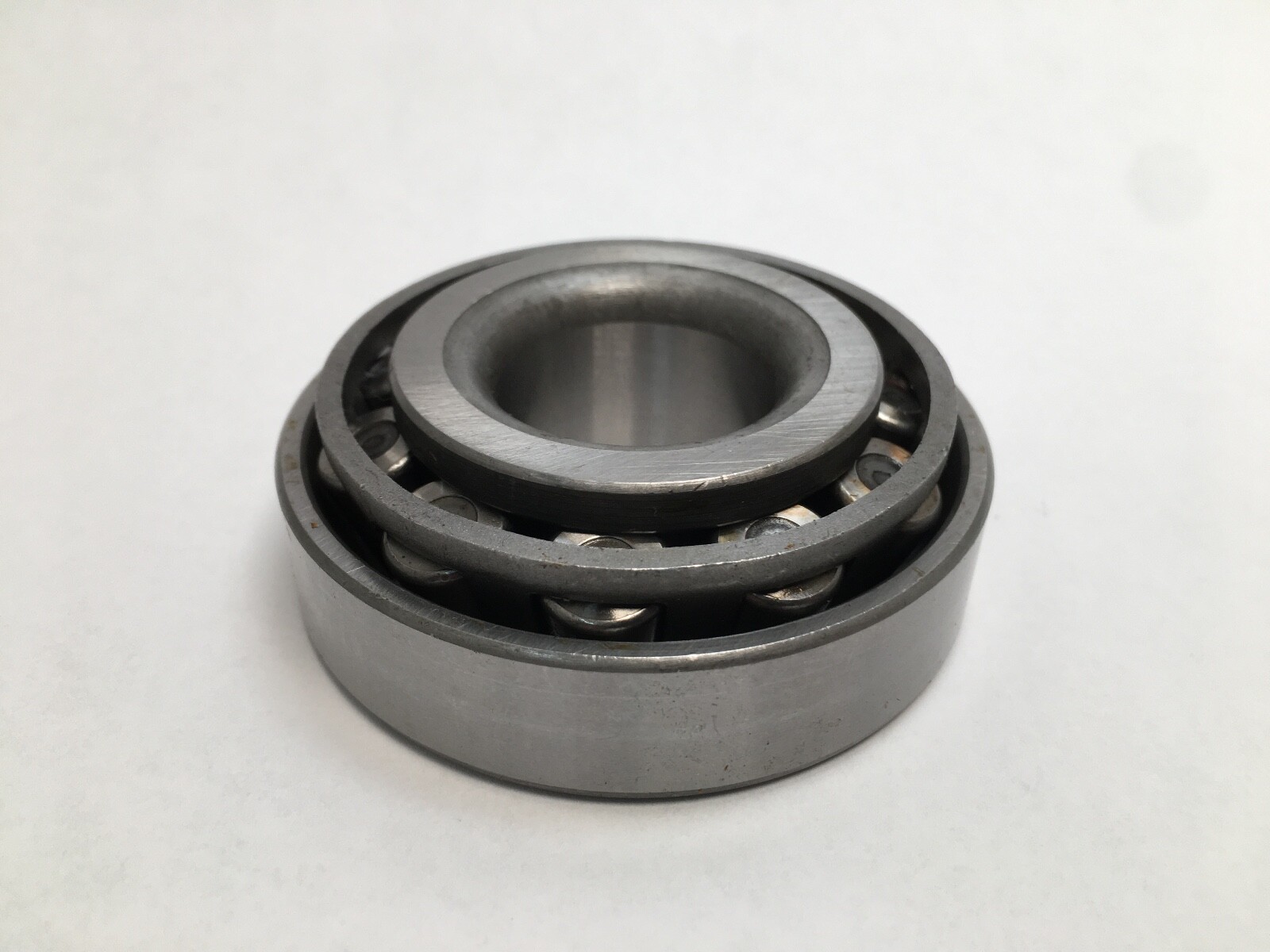

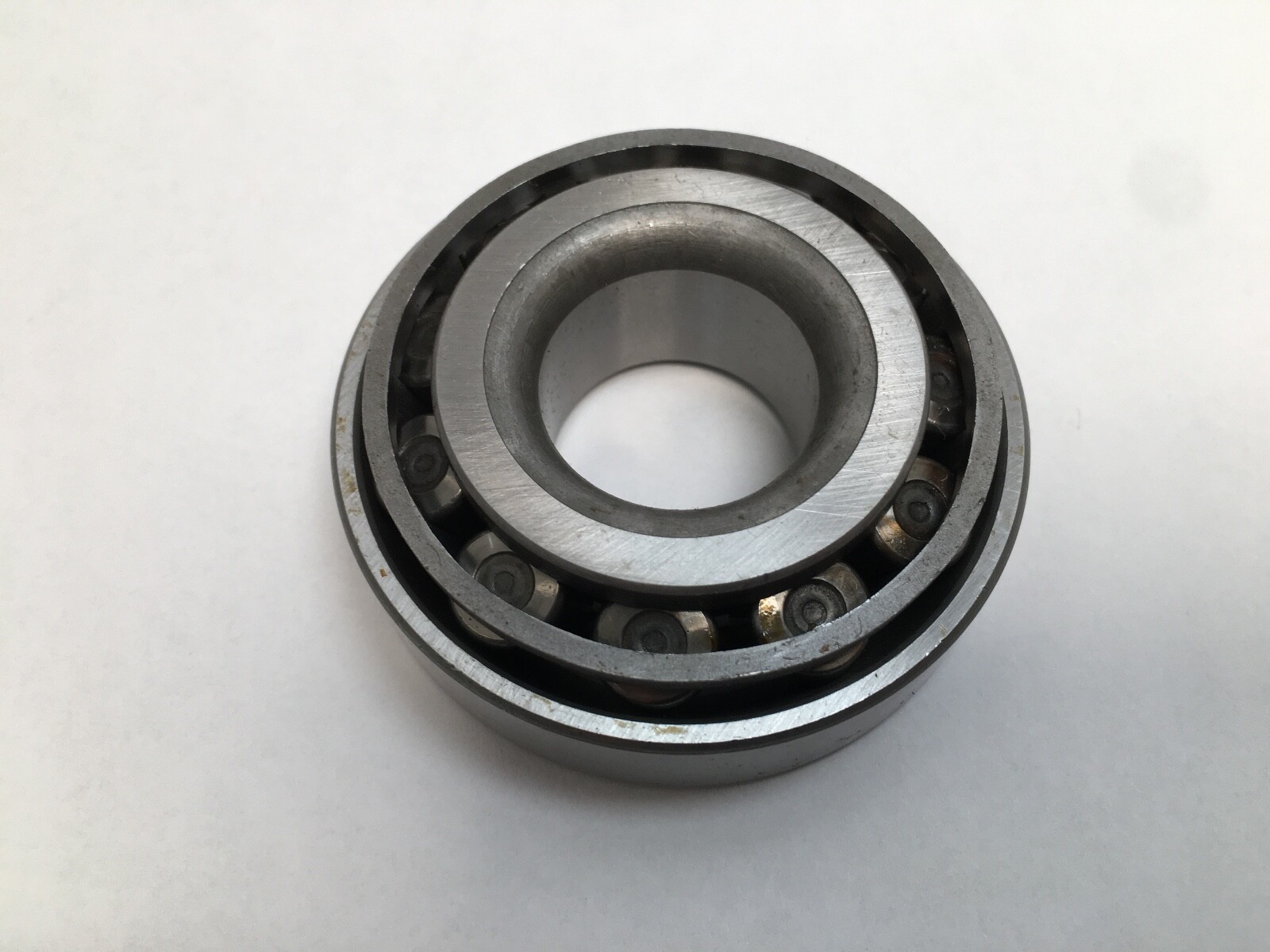

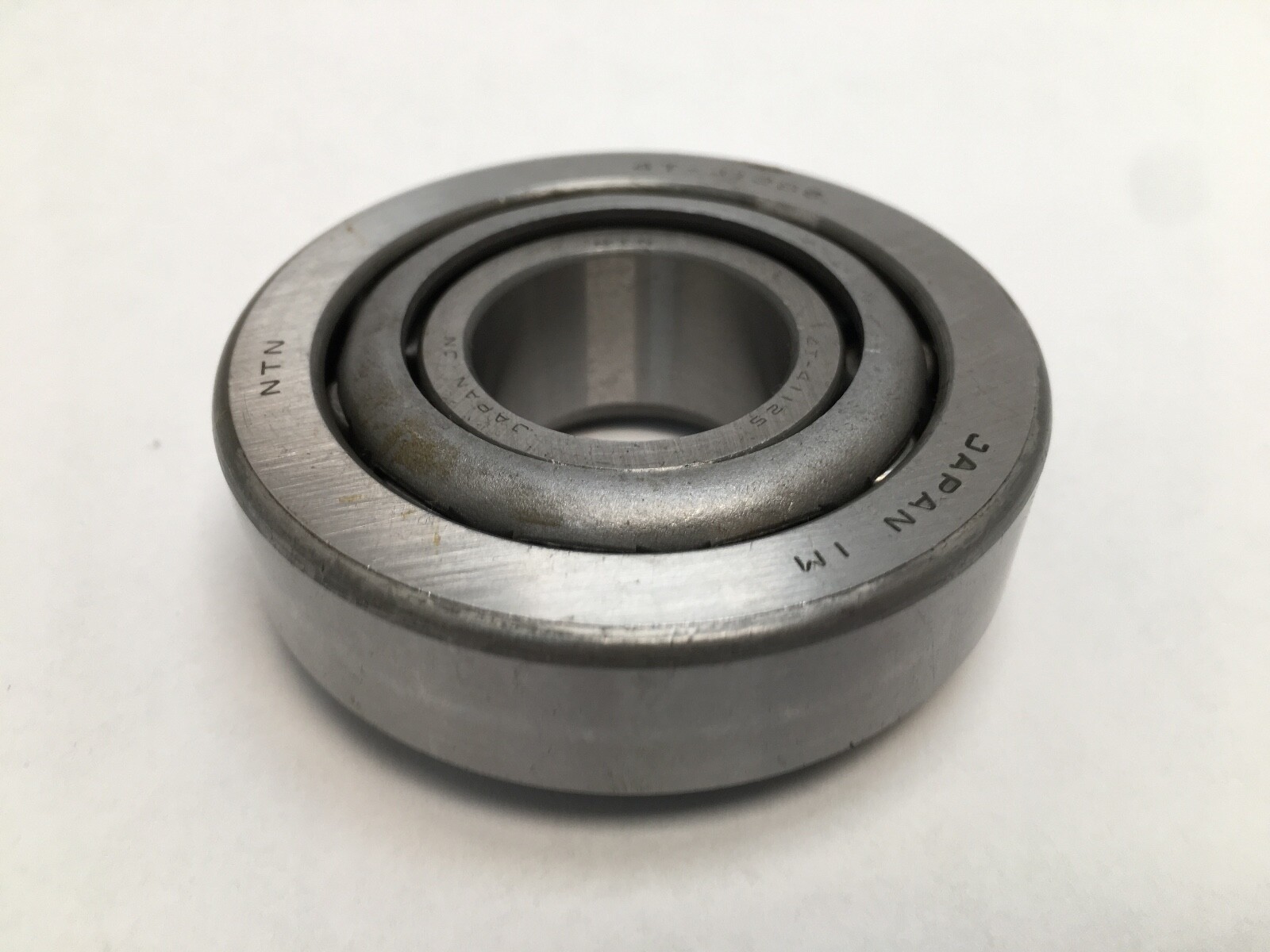

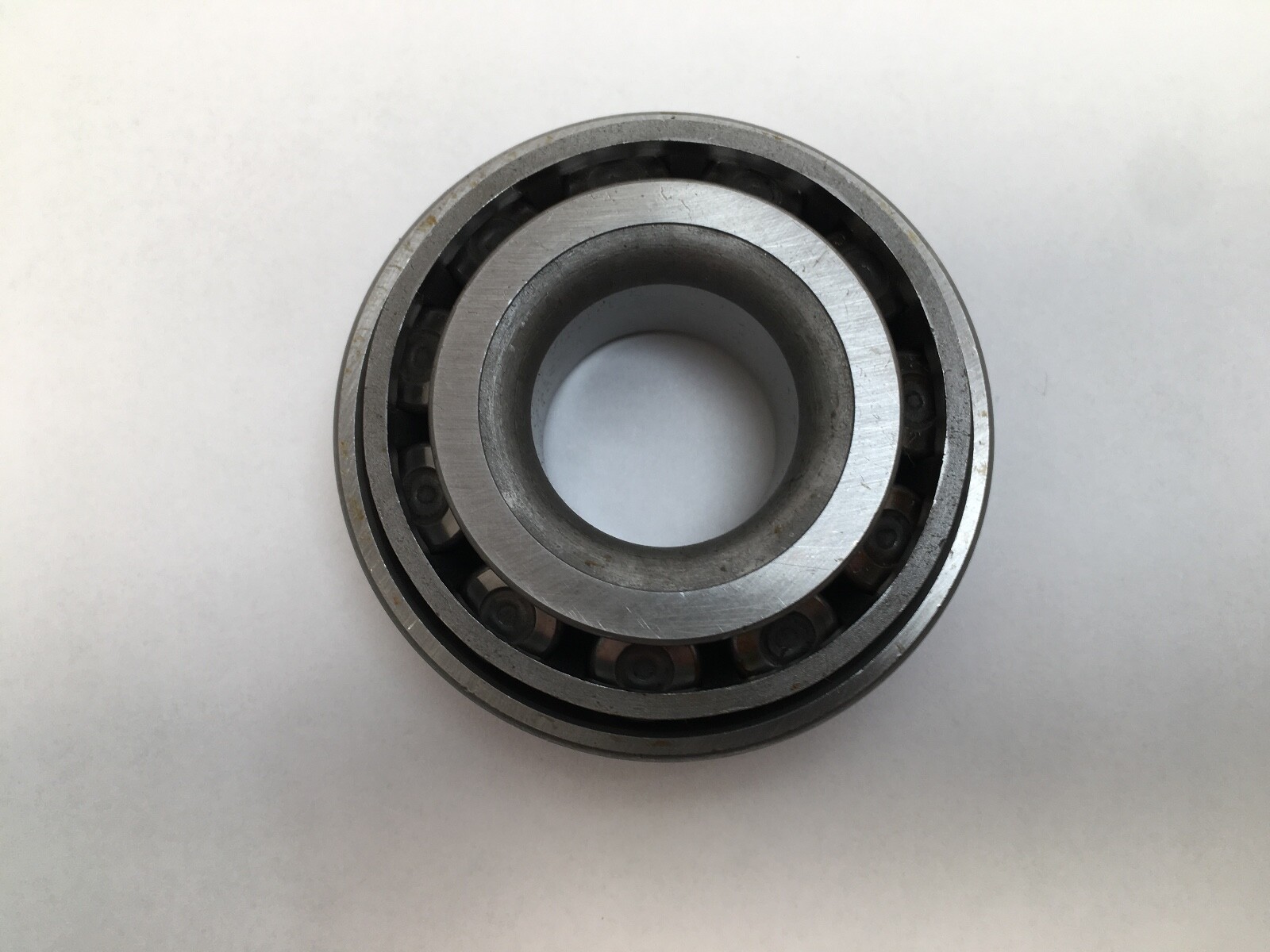

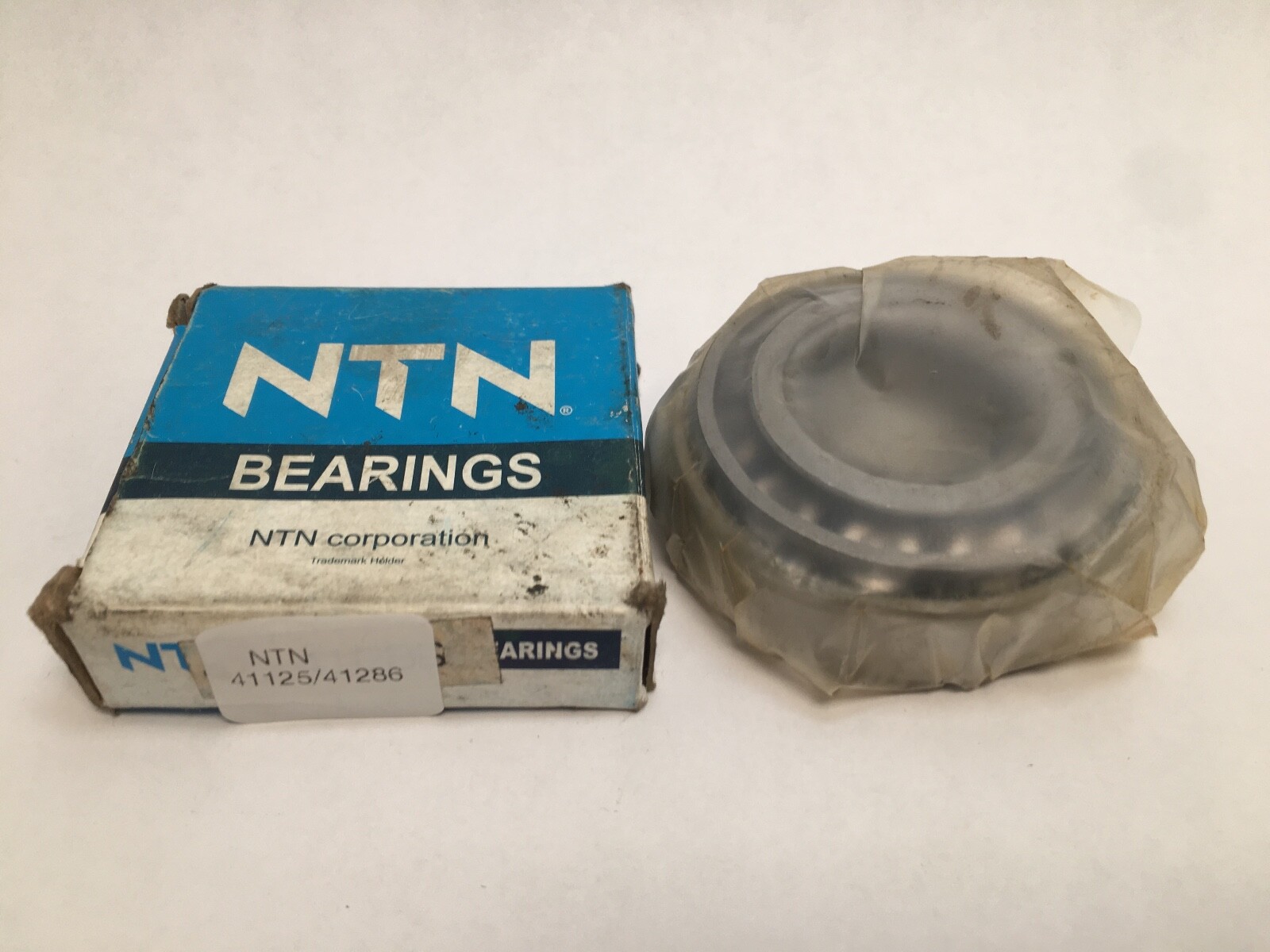

NTN 41125/41286 inch-series single-row tapered roller bearing set: 41125 cone (inner ring with rollers and cage) and 41286 cup (outer ring). Bore Diameter: 1.1250 in (28.575 mm). Outside Diameter: 2.8593 in (72.626 mm). Total Width: 0.9688 in (24.608 mm) assembled. Cone Width: 0.9550 in (24.257 mm). Cup Width: 0.6875 in (17.463 mm). Rolling Elements: Tapered Roller. Bearing Material: Case carburized steel. Precision Class: Class 4. Closure Type: Open.

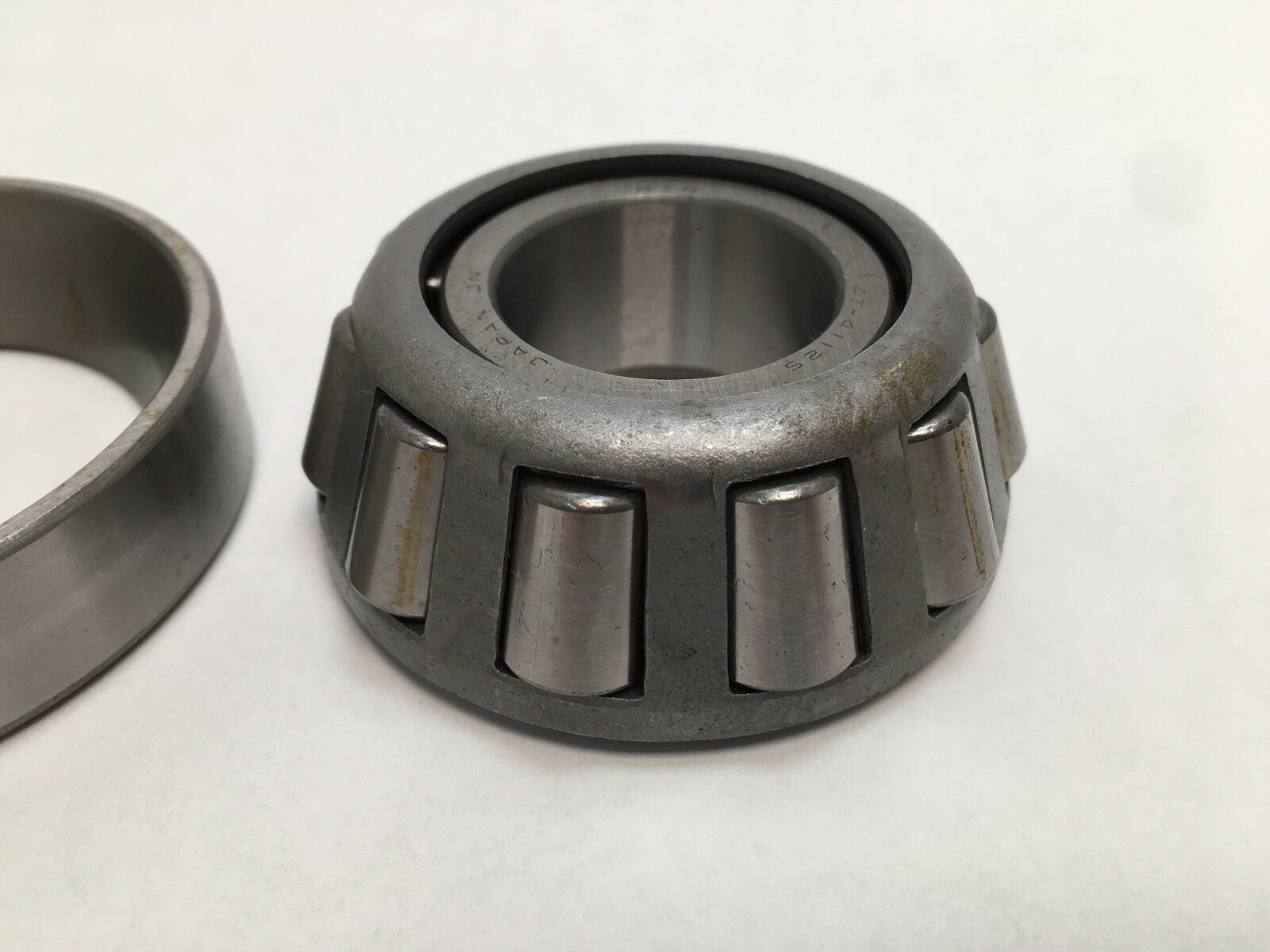

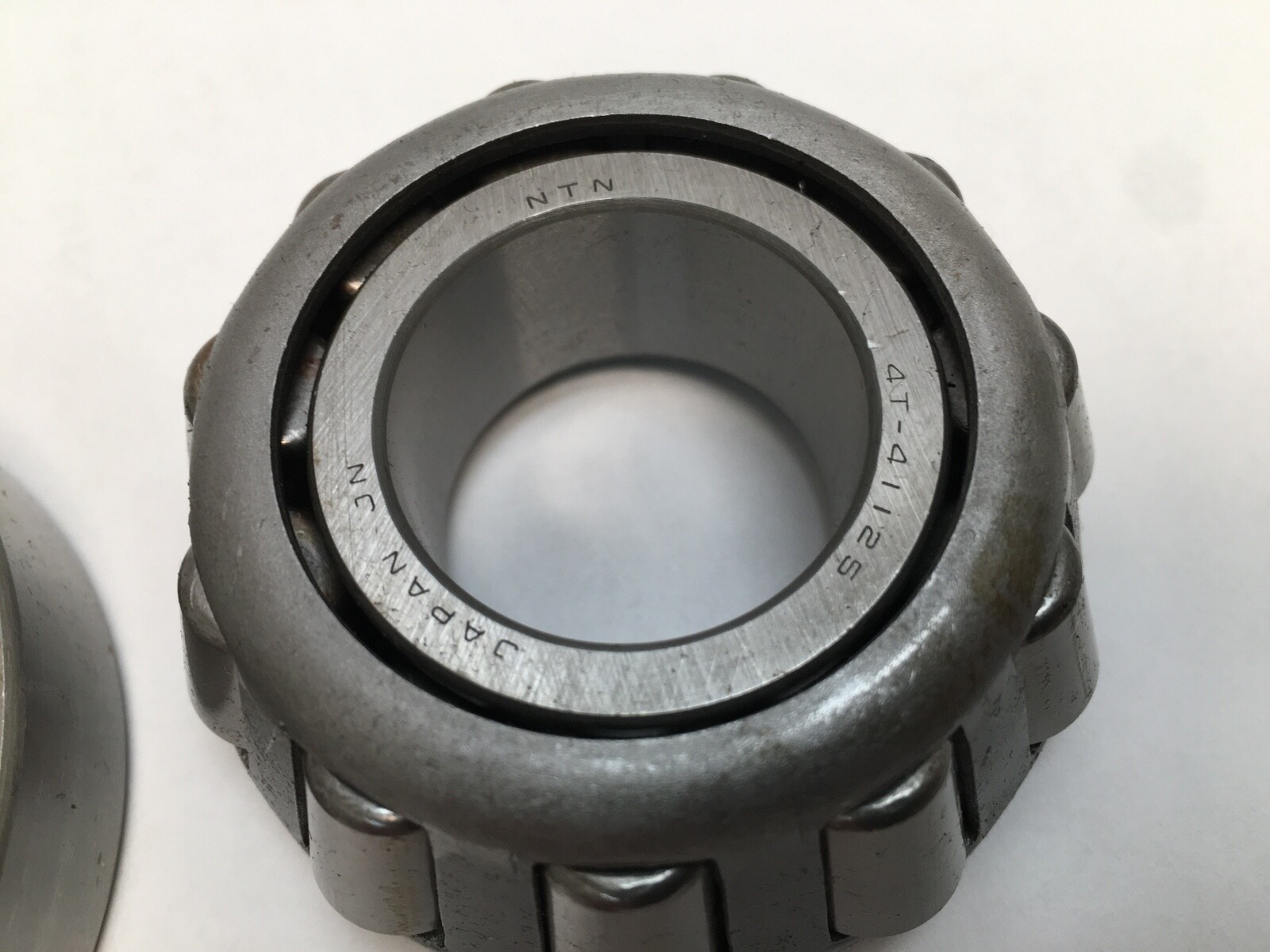

41125 — NTN cone number, 1.1250 in bore.

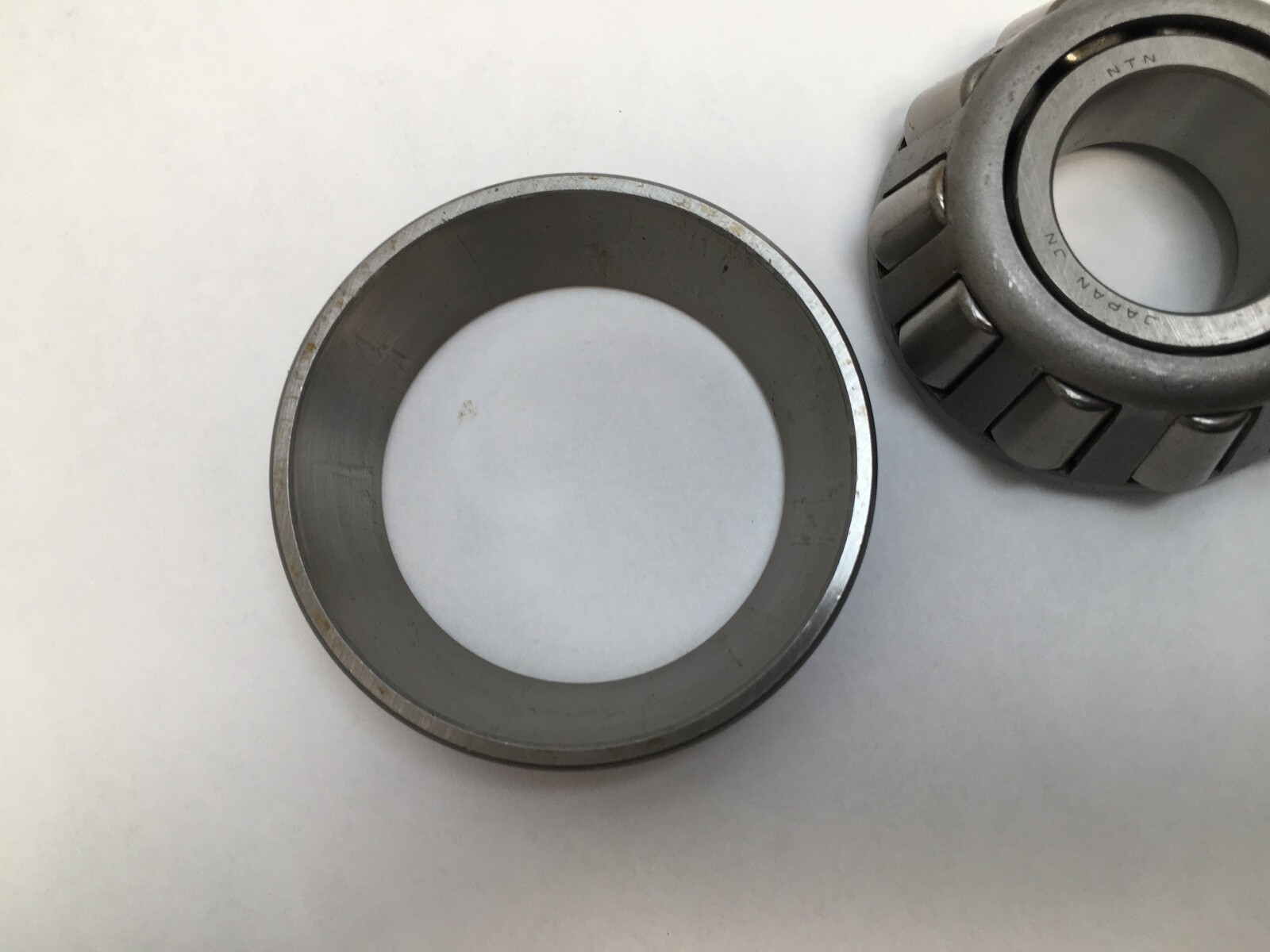

41286 — NTN cup number, 2.8593 in OD, the matching outer ring for the 41125 cone.
Dynamic Load Rating: 58,000 N. Static Load Rating: 55,500 N. Axial load factor e: 0.60. Axial load factor Y2: 1.00. The set carries combined radial and one-direction thrust load in a compact inch envelope.
Effective load centre a: −3.7 mm (−0.15 in). Cone fillet radius r: 1.5 mm. Cup fillet radius R: 4.8 mm. Shaft abutment diameters: 48.0 mm and 36.5 mm. Housing abutment diameters: 68.0 mm and 61.0 mm.

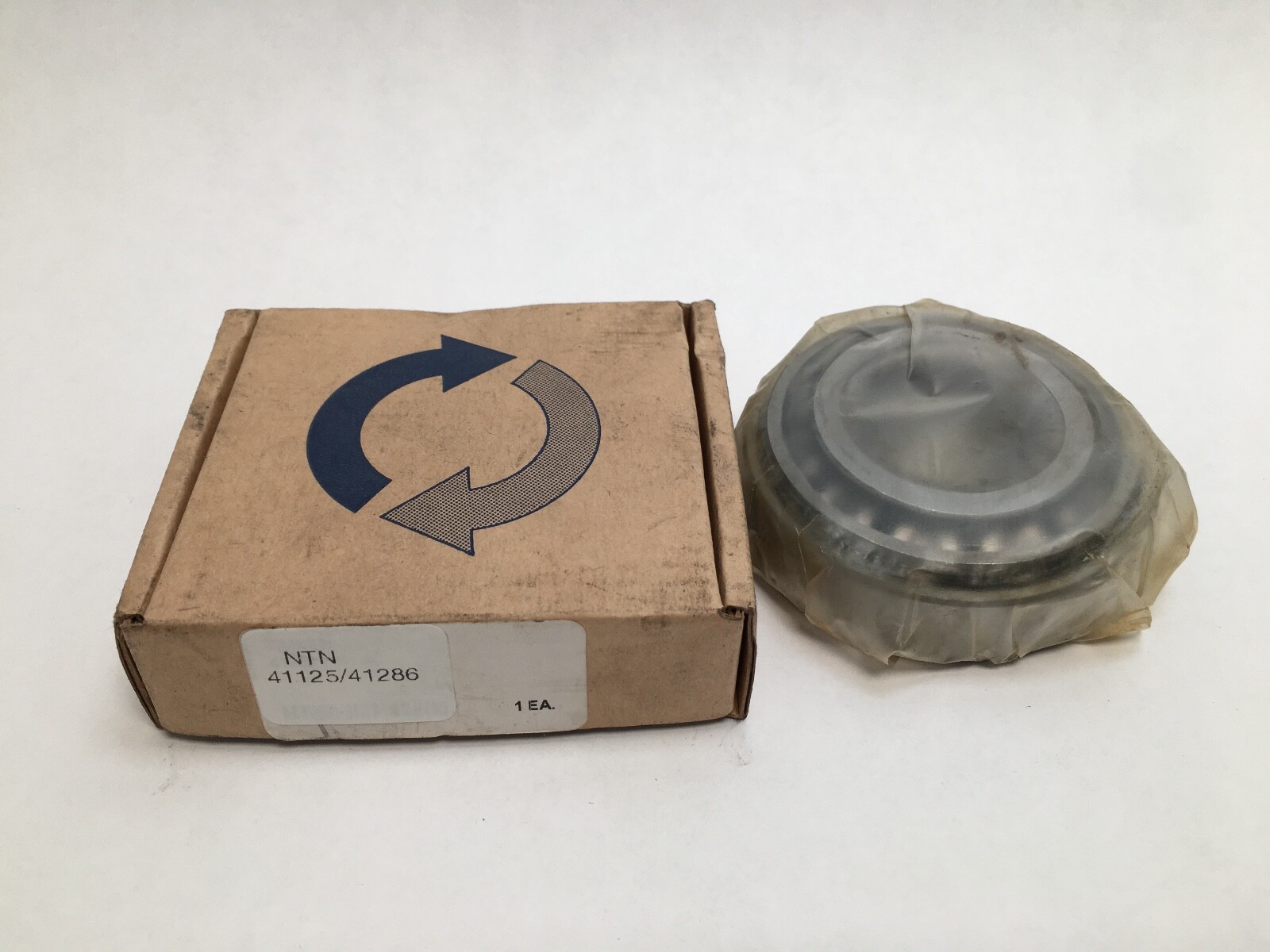

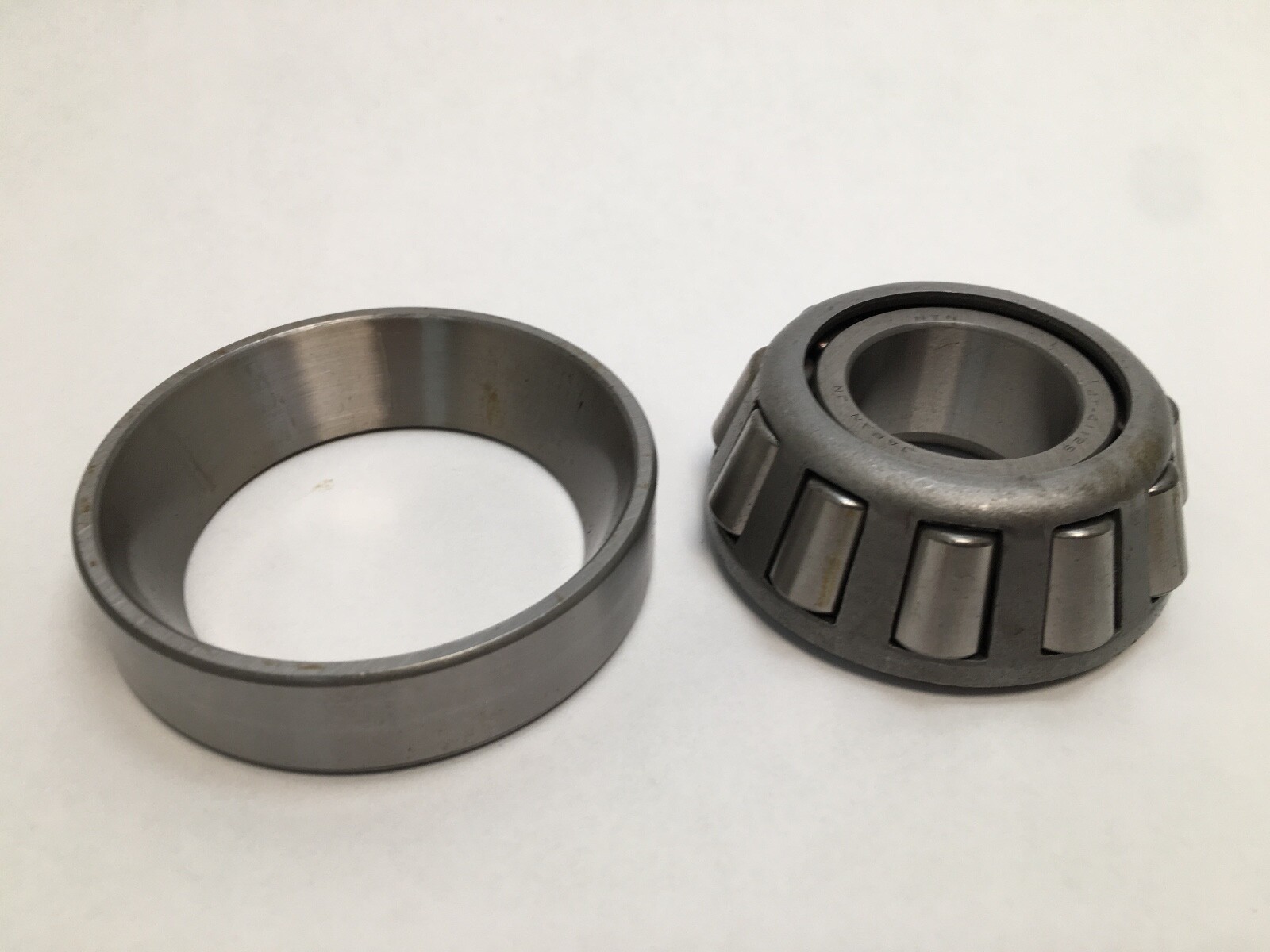

Unit Quantity: 2 Pcs. One 41125 cone and one 41286 cup forming a complete bearing.
Cross-Reference: Timken 41125/41286 carries the same ABMA inch cone and cup numbers.
What are the dimensions of the NTN 41125/41286?
Bore Diameter: 1.1250 in (28.575 mm). Outside Diameter: 2.8593 in (72.626 mm). Total Width: 0.9688 in (24.608 mm) assembled.
What is included in this listing?
Unit Quantity: 2 Pcs. One 41125 cone and one 41286 cup forming a complete bearing.
What are the load ratings?
Dynamic Load Rating: 58,000 N. Static Load Rating: 55,500 N.
What precision class is this bearing?
Precision Class: Class 4.
