A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

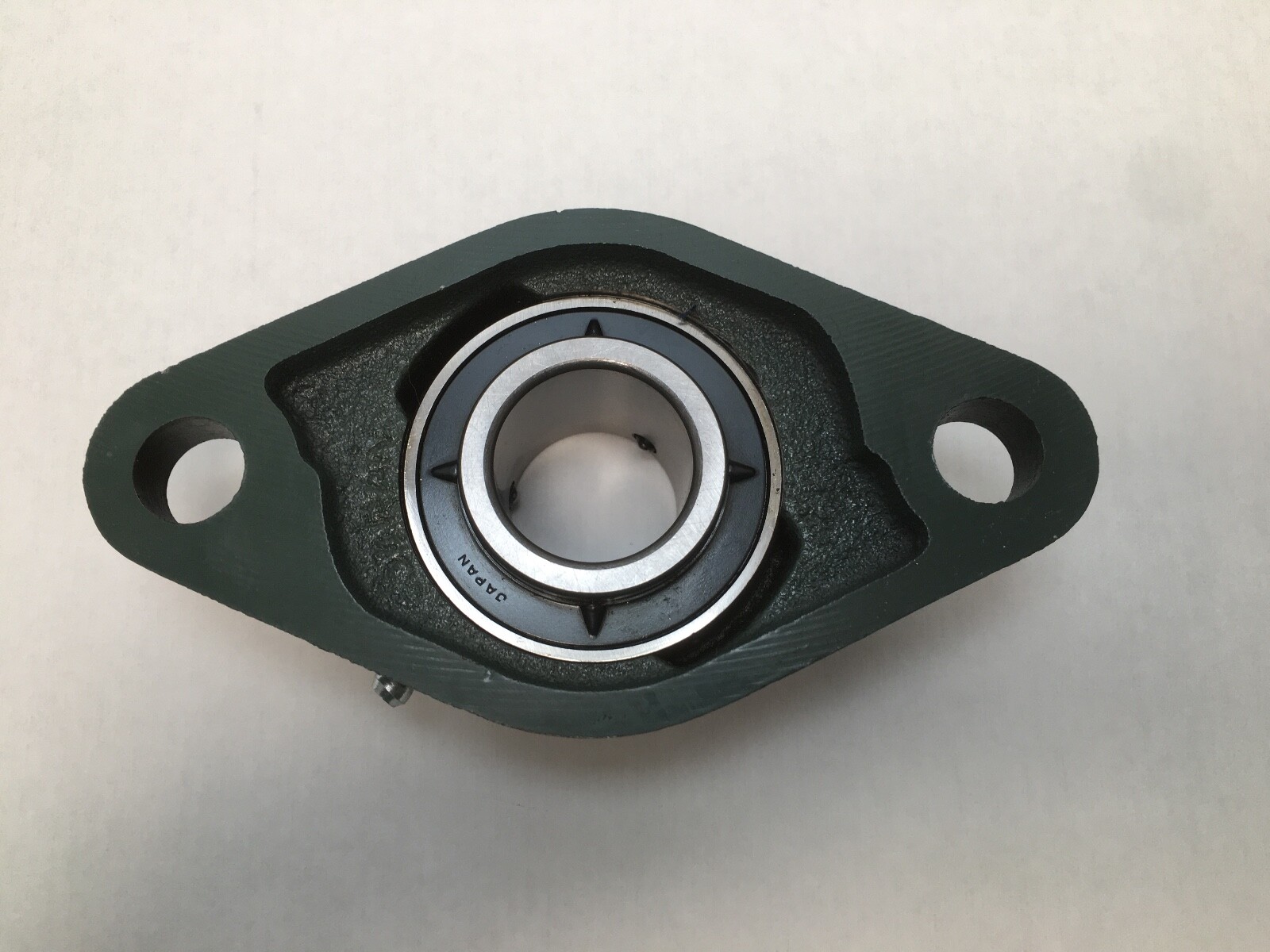

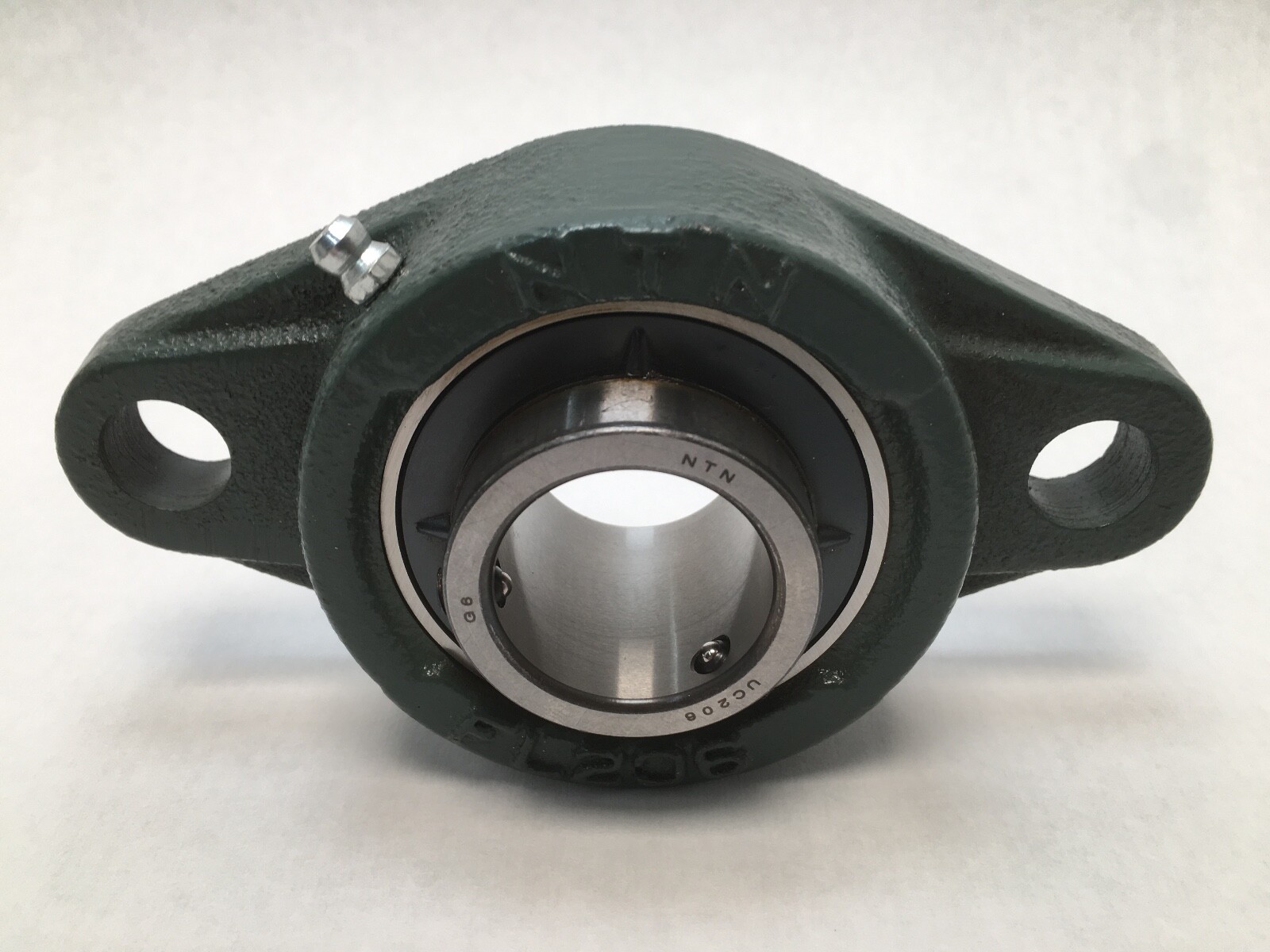

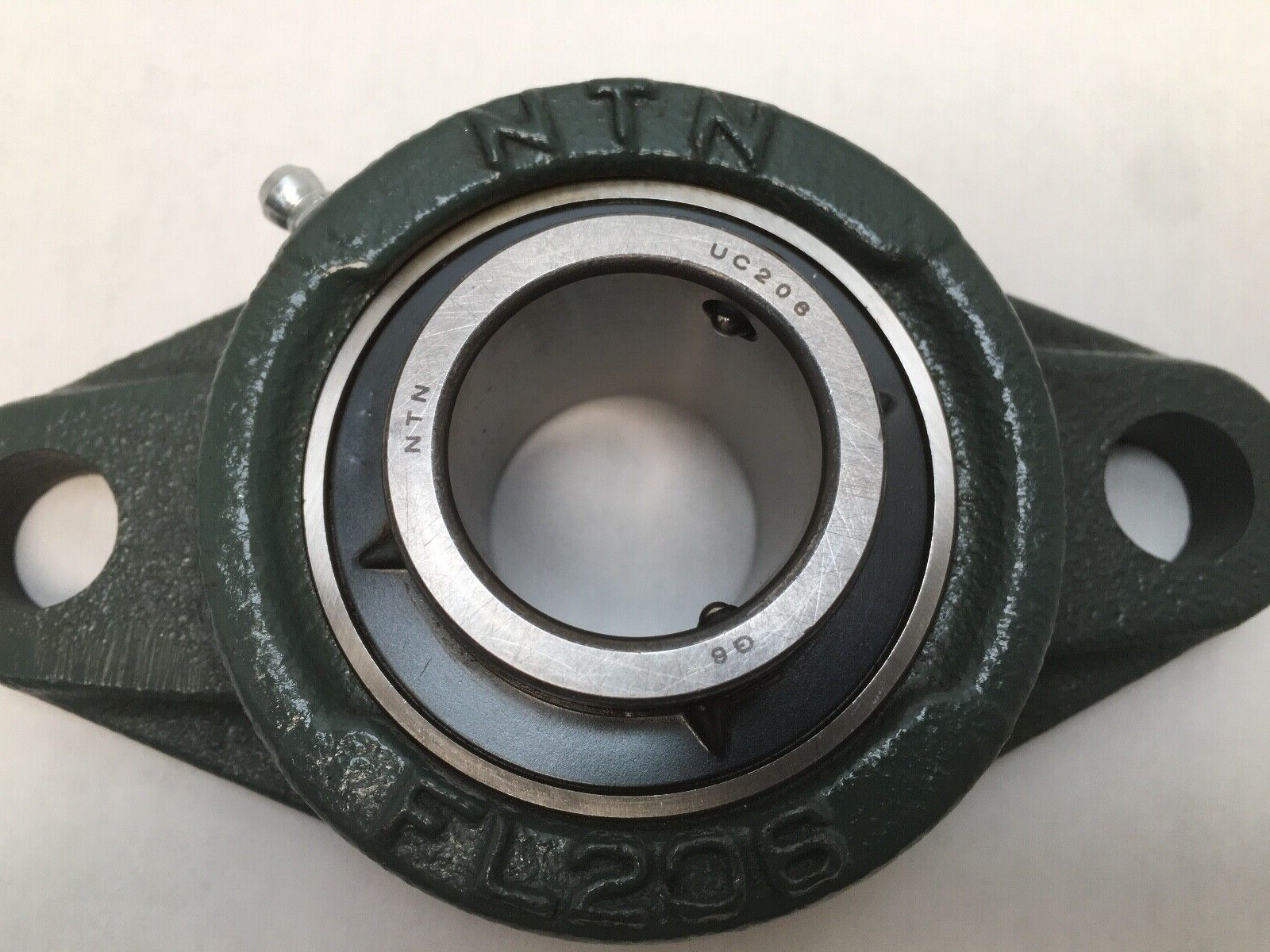

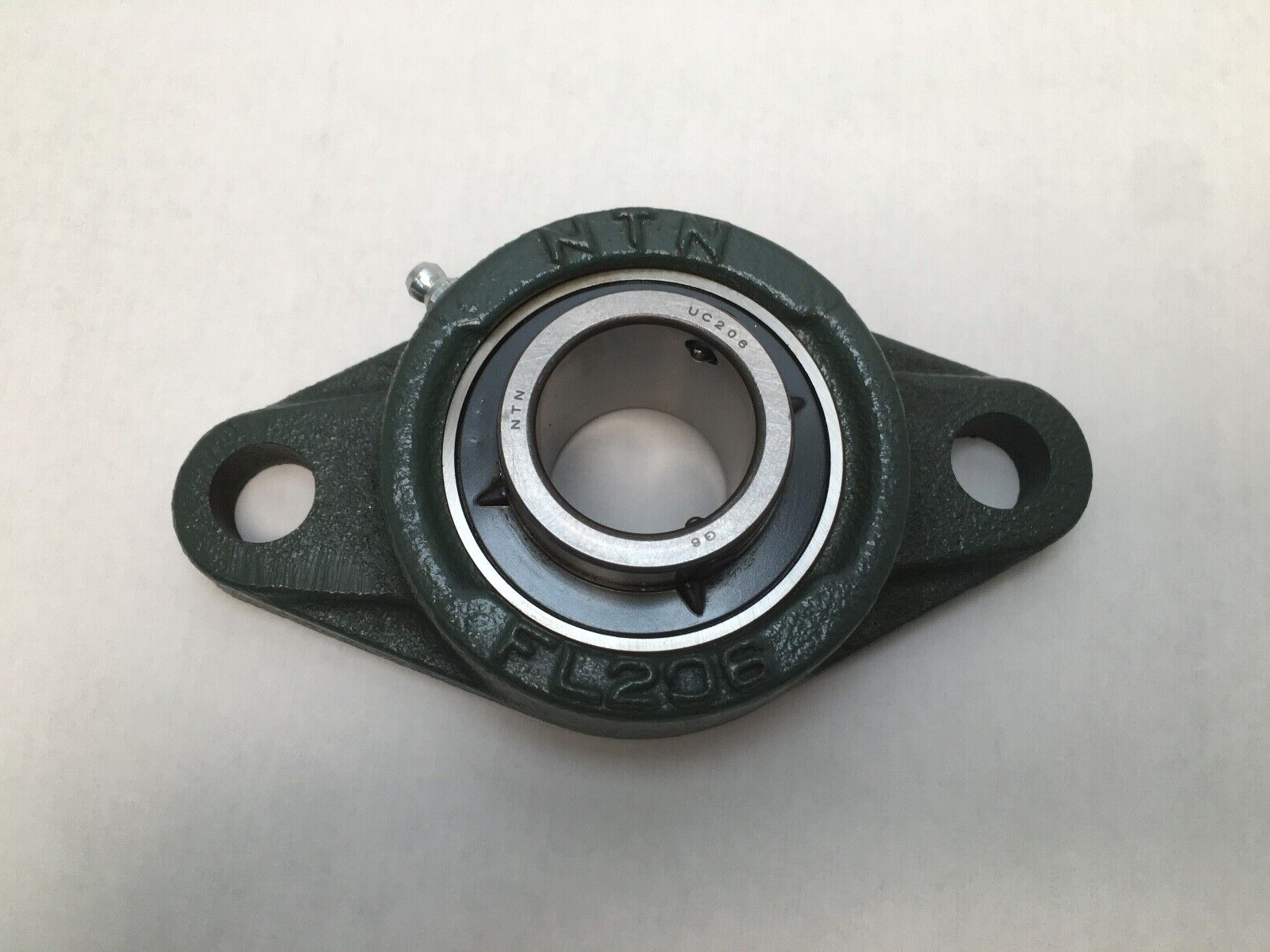

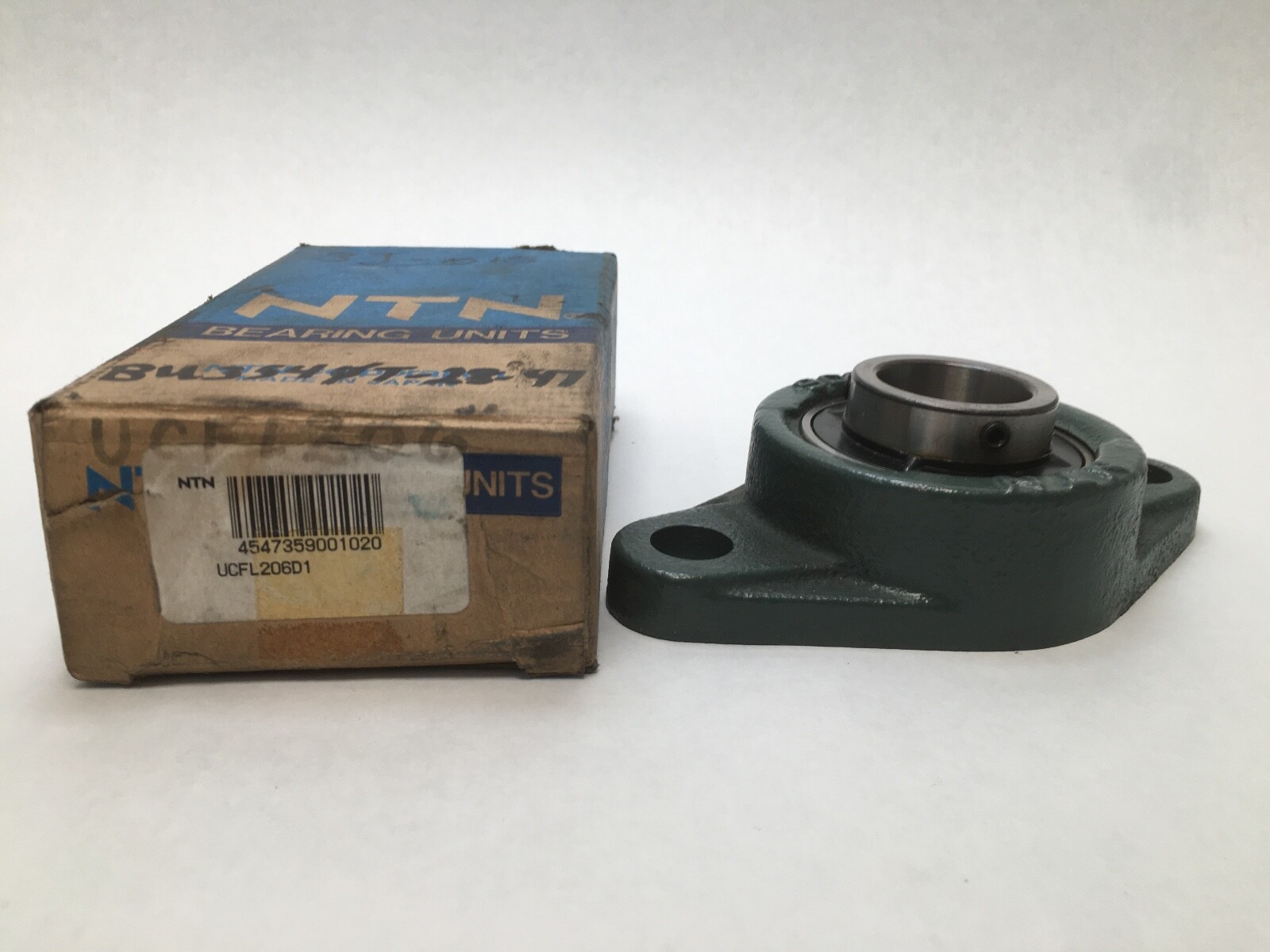

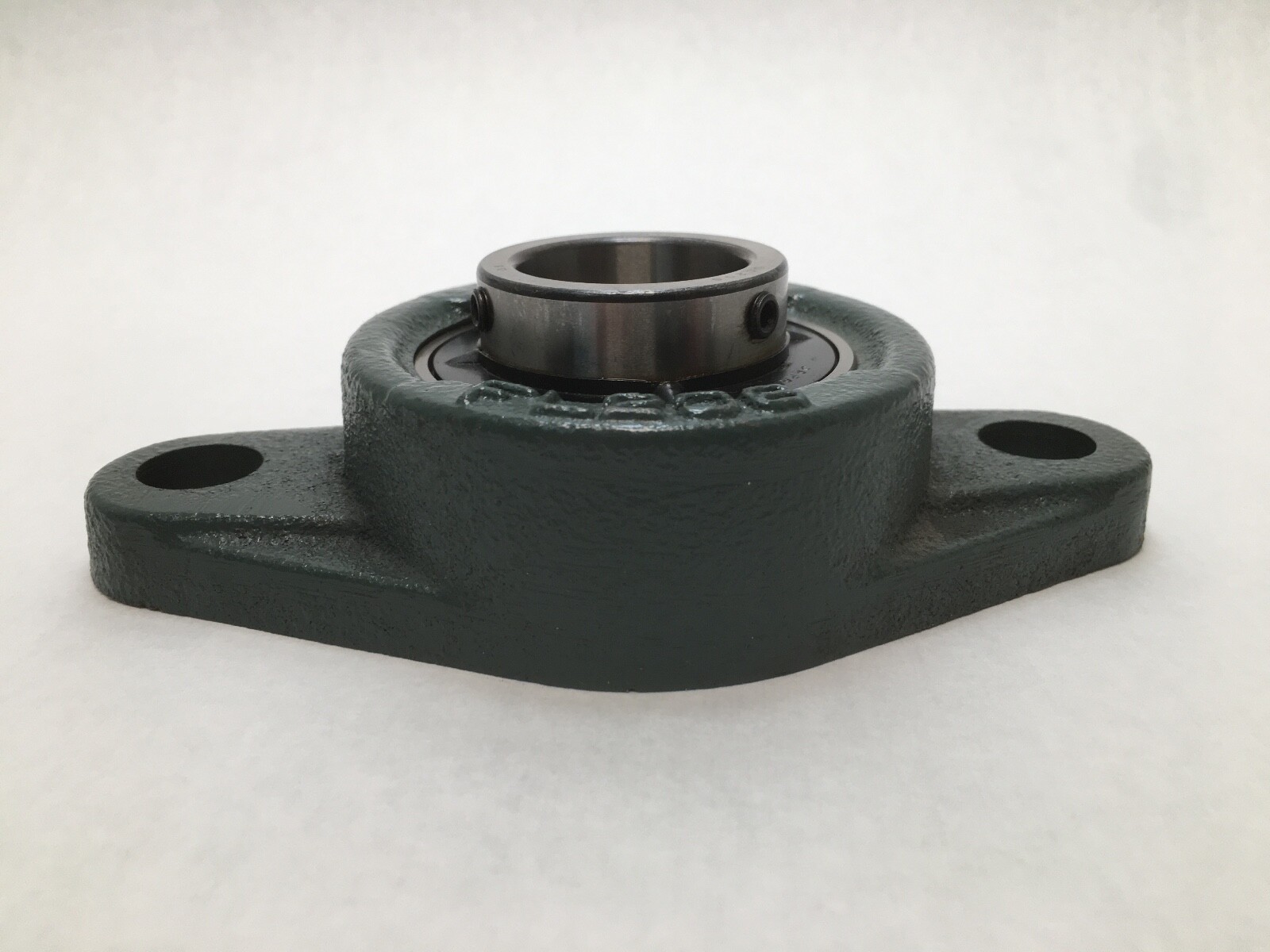

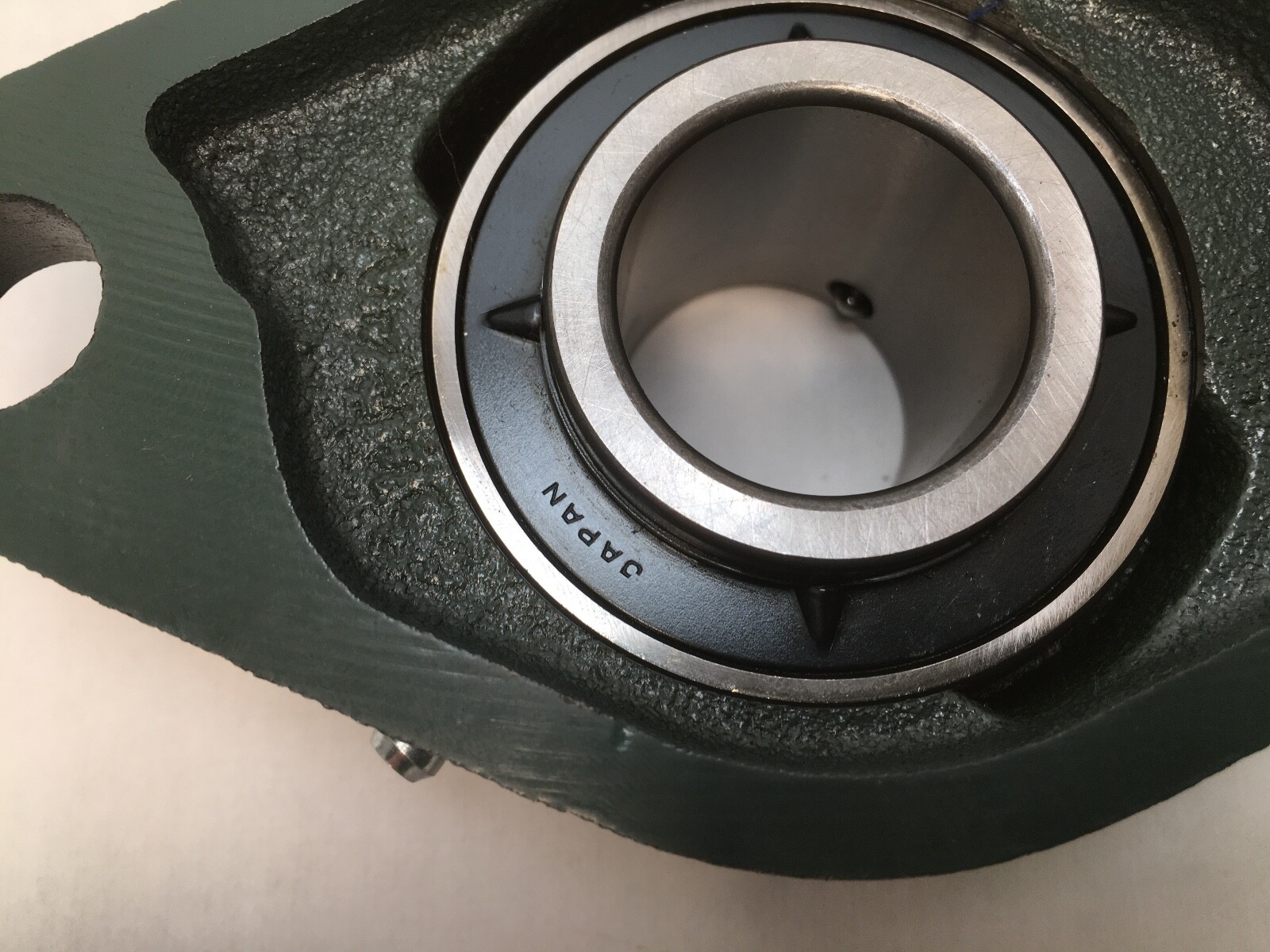

Two-bolt flange ball bearing unit, 30 mm bore, cast iron housing, set screw locking, 117 mm bolt centres. NTN UCFL206D1 with UC206D1 insert, relubricatable.
List Price
$66.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | UCFL206D1 |
| Model | UCFL206 UC-206 |
| ID | 30 mm |
| Series | UCFL |
|---|---|
| Type | Flanged Mount Bearing |
| Material | Cast Iron |
| Bolt Center To Center | 117 mm (4.6094 in) |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Mpn Variants | UCFL206D1, UCFL 206 D1, UCFL206, UC206D1, FL206D1 |
| Min Temp | -40 °C (-40 °F) |
| Dynamic Load Rating | 19,500 N |
| Static Load Rating | 11,300 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C (250 °F) |
| Bearing Type | Flange Mount Ball Bearing Unit |
| Item Weight | 0.399 kg (0.88 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 4,900 rpm |
| Lubricant | grease or oil |
| Duty Type | Light Duty |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |
| Industry Terms | 2-bolt flange unit; oval flange bearing unit; UC206 flange block; set screw flange bearing; rhombus flange bearing |
| Common Misspellings | UCLF206D1; UCFL 206D1; UCFL206 D-1; NTN UFCL206 |
| Application Types | Conveyors; agricultural machinery; light-duty power transmission shafts; packaging equipment |
| Cross Reference 1 | FYH UCFL206 |
|---|---|
| Cross Reference 2 | Asahi UCFL206 |
| Cross Reference 3 | Koyo UCFL206 |
NTN UCFL206D1 two-bolt rhombus flanged ball bearing unit with a cast iron housing and set screw locking. One complete unit: FL206D1 housing with UC206D1 insert. Unit Quantity: 1 Pc.
UC — wide inner ring insert bearing, set screw type, with flinger.
FL — flanged unit, cast housing, two-bolt rhombus (oval) flange.
2 — light series.
06 — 30 mm bore.
D1 — relubricatable type, fitted with a grease nipple.
Bore Diameter: 30 mm. Bearing Insert: UC206D1. Housing: FL206D1. Housing Material: Cast Iron. Housing Construction: 1 piece. Locking Device: Set Screw. Seal Type: Contact seals both sides, nitrile rubber. Insert Outer Ring: Spherical. Relubrication Feature: Yes. Lubricant: grease or oil. Rolling Elements: Ball. Duty Type: Light Duty. Dynamic Load Rating: 19,500 N. Static Load Rating: 11,300 N. Limiting Speed: 4,900 rpm. Item Weight: 0.399 kg (0.88 lb). Operating Temperature Range: -40 to 120 °C (-40 to 250 °F). Country of Origin: Japan.
Bolt Center To Center: 117 mm (4.6094 in). Flange Length H: 148 mm (5.8125 in). Flange Width L: 80 mm (3.1562 in). Flange Thickness A1: 13 mm. Housing Width A: 31 mm. Overall Length A0: 40.2 mm. A2: 18 mm. Bolt Hole Diameter N: 16 mm (0.625 in). Inner Ring Width B: 38.1 mm (1.500 in). S: 15.9 mm. F: 4.6 mm. Number of Bolt Holes: 2.
Cross-Reference 1: FYH UCFL206. Cross-Reference 2: Asahi UCFL206. Cross-Reference 3: Koyo UCFL206. Searchable designation forms: UCFL206D1, UCFL 206 D1, UCFL206, UC206D1 and FL206D1.
Bore Diameter: 30 mm, set screw locking.
Bolt Center To Center: 117 mm (4.6094 in) on a two-bolt flange.
Yes. Relubrication Feature: Yes, D1 type with a grease nipple.
