NTNUCFLU-5/8Two-Bolt Rhombus Flange Mount Bearing Unit – 5/8 in Bore, Cast Iron, Setscrew Lock, Light Duty, 2 Pcs

Name: NTN UCFLU-5/8 Two-Bolt Rhombus Flange Mount Bearing Unit – 5/8 in Bore, Cast Iron, Setscrew Lock, Light Duty, 2 Pcs
Brand: NTN
SKU: AL3B1#CDO1DV
Price: 66.9 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Flanged Mount Bearing

NTN UCFLU-5/8 two-bolt rhombus flange bearing unit, 5/8 in bore, 3 in bolt centres, setscrew lock, cast iron housing, contact seal, relubricatable.

Same day shipment

List Price

$66.90

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	NTN
MPN	UCFLU-5/8
GTIN	662810353310
Model	UCFLU 5/8
ID	0.625 in

Technical Specifications

Series	UCFLU
Type	Flanged Mount Bearing
Material	Cast iron housing, bearing steel insert
Base Number	UCFLU
Industry Terms	Two-bolt flange unit, rhombus flange bearing, diamond flange bearing unit, mounted ball bearing unit, flange block bearing, setscrew flange unit, Ultra-Class flange unit
Common Misspellings	UCFL U 5/8, UCFULU-5/8, UFCLU-5/8, UCFLU 58, NTM UCFLU-5/8
Application Types	Conveyor idler and pulley shafts, fan and blower shafts, packaging and food-line drives, agricultural shafts, general light-duty shaft support
Number Of Flanges	2
Bolt Center To Center	3.000 in
Number Of Bolt Holes	2
Number Of Bolt Holes For Fasteners	2
Bore Shaft Size	5/8 in (0.625 in)
Housing Style	Two-bolt rhombus (diamond) flange unit
Locking Method	Setscrew
Mpn Variants	UCFLU-5/8, UCFLU5/8, UCFLU 5/8, UCFLU-0.625, UCFLU-5/8D1
Additional Attributes	Two-bolt rhombus flange; non-expanding; Ultra-Class setscrew unit; light duty
Min Temp	-40 °F (-40 °C)
Dynamic Load Rating	12,800 N
Static Load Rating	6,650 N
Rolling Elements	Balls
Max Temp	250 °F (120 °C)
Bearing Type	Two-bolt rhombus flange mount ball bearing unit
Number Of Rows	1
Bore Type	Straight
Lubricant	Grease, pre-lubricated
Duty Type	Light duty
Locking Device	Setscrew
Insert Outer Ring	Spherical
Harmonization Code	8483.20.40
Housing Material	Cast iron, one-piece
Expansion Type	Non-expanding
Part Number	UCFLU-5/8
Finish	Black oxide inner ring

Cross-References

Cross Reference 1	Dodge F2B-SC-010 - oval flange, not rhombus
Cross Reference 2	SKF F2B 010-TF - oval flange, not rhombus

Seller Part Number: AL3B1#CDO1DV

Product Description

What this part is:

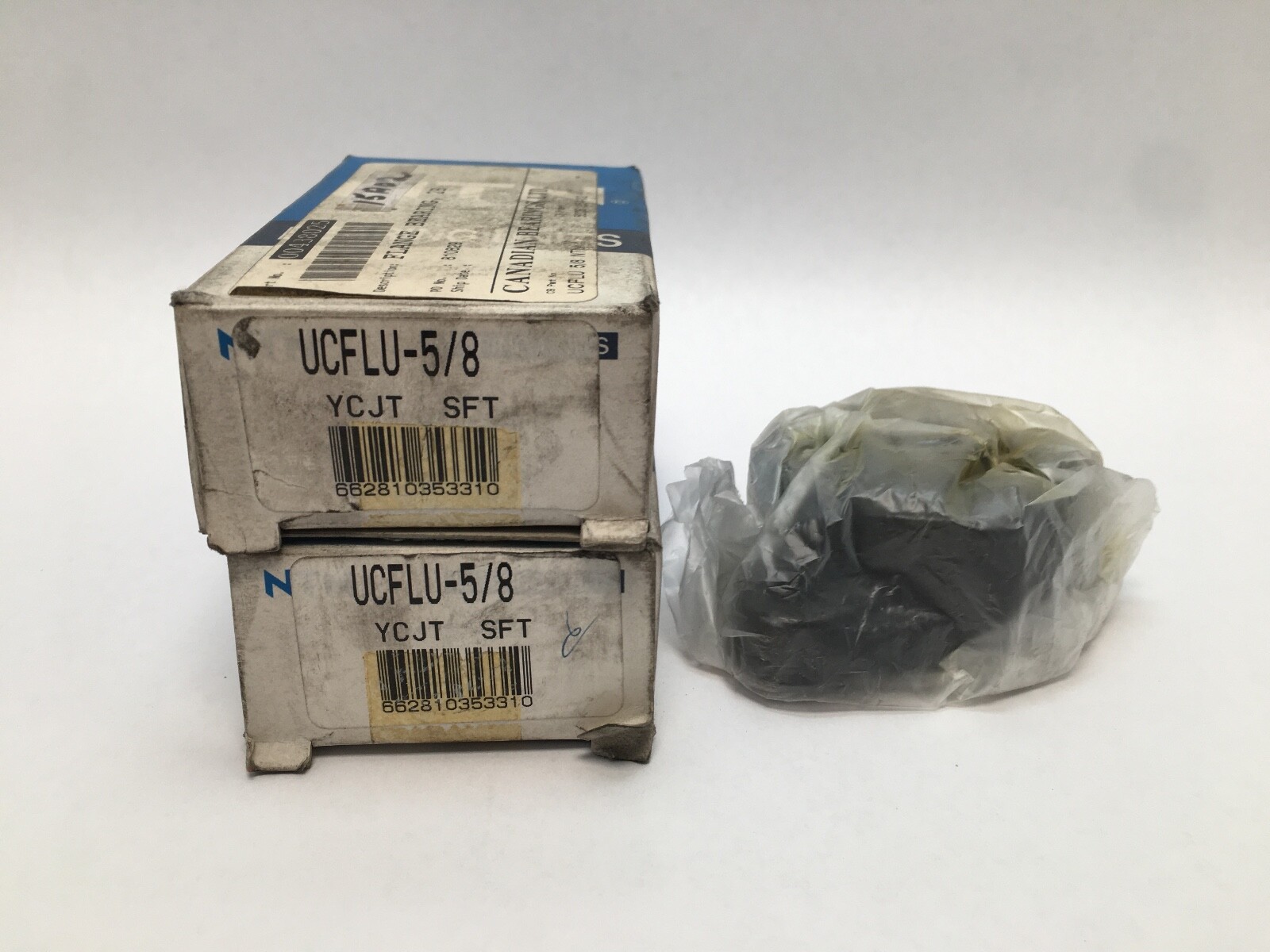

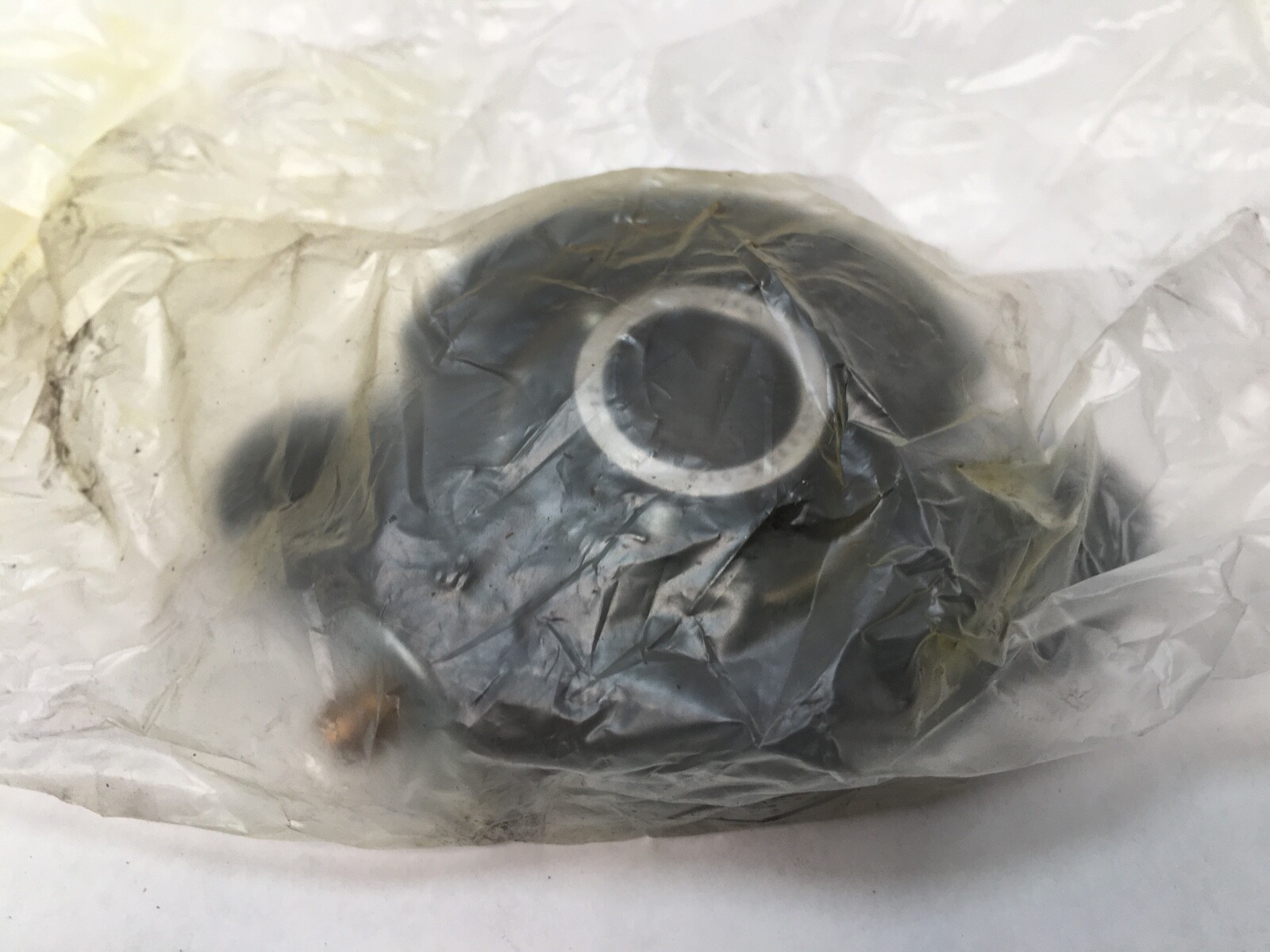

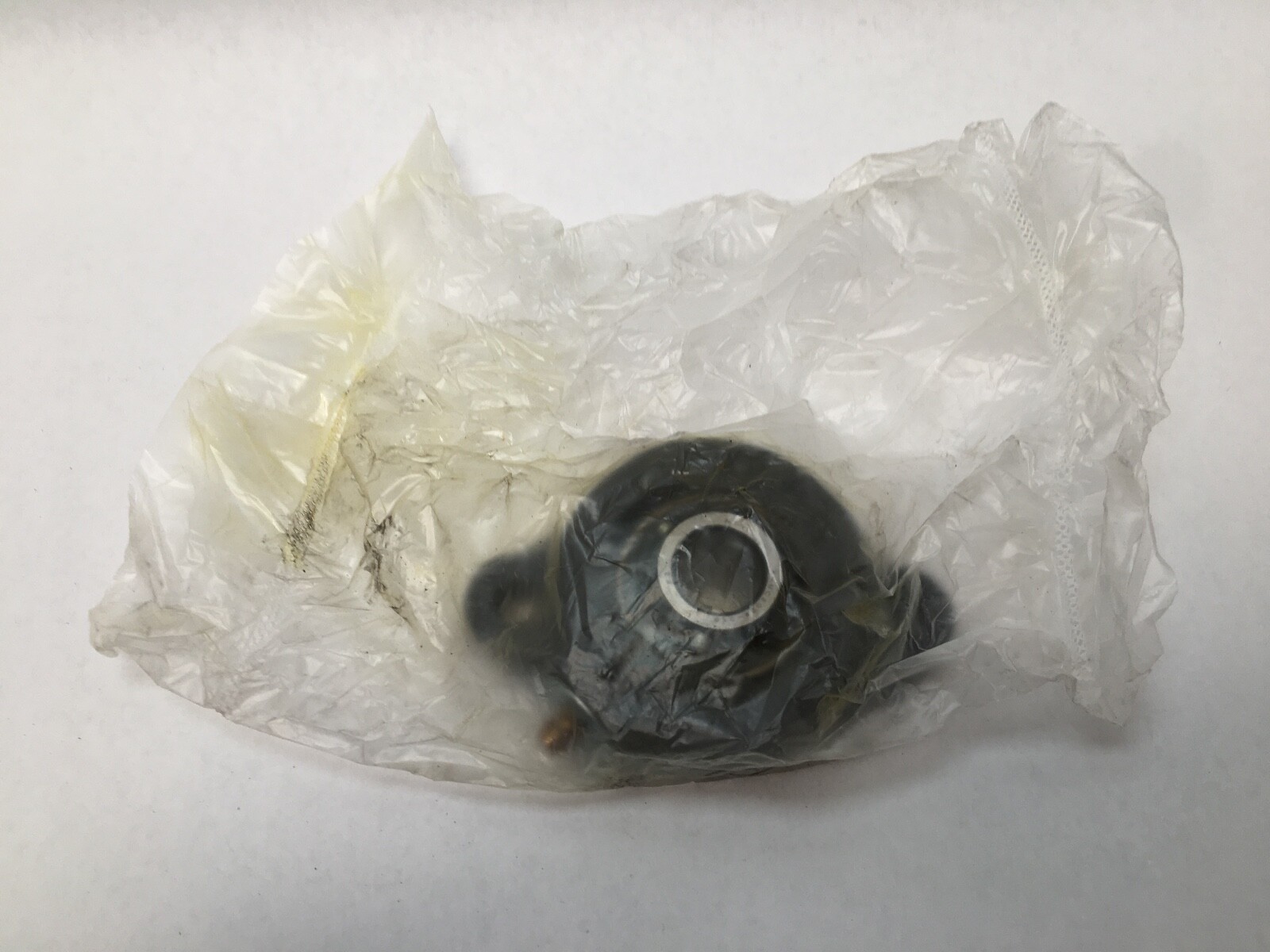

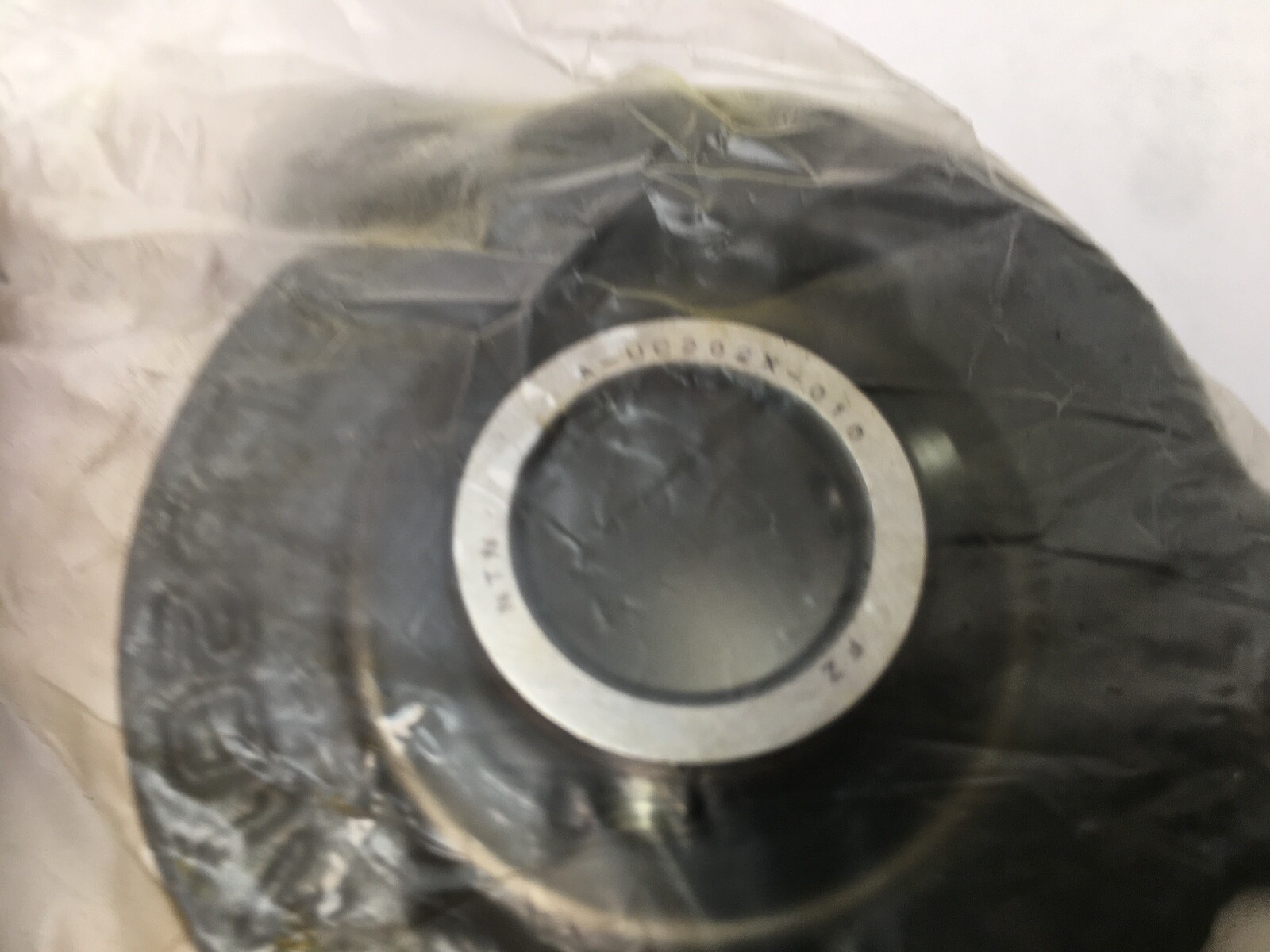

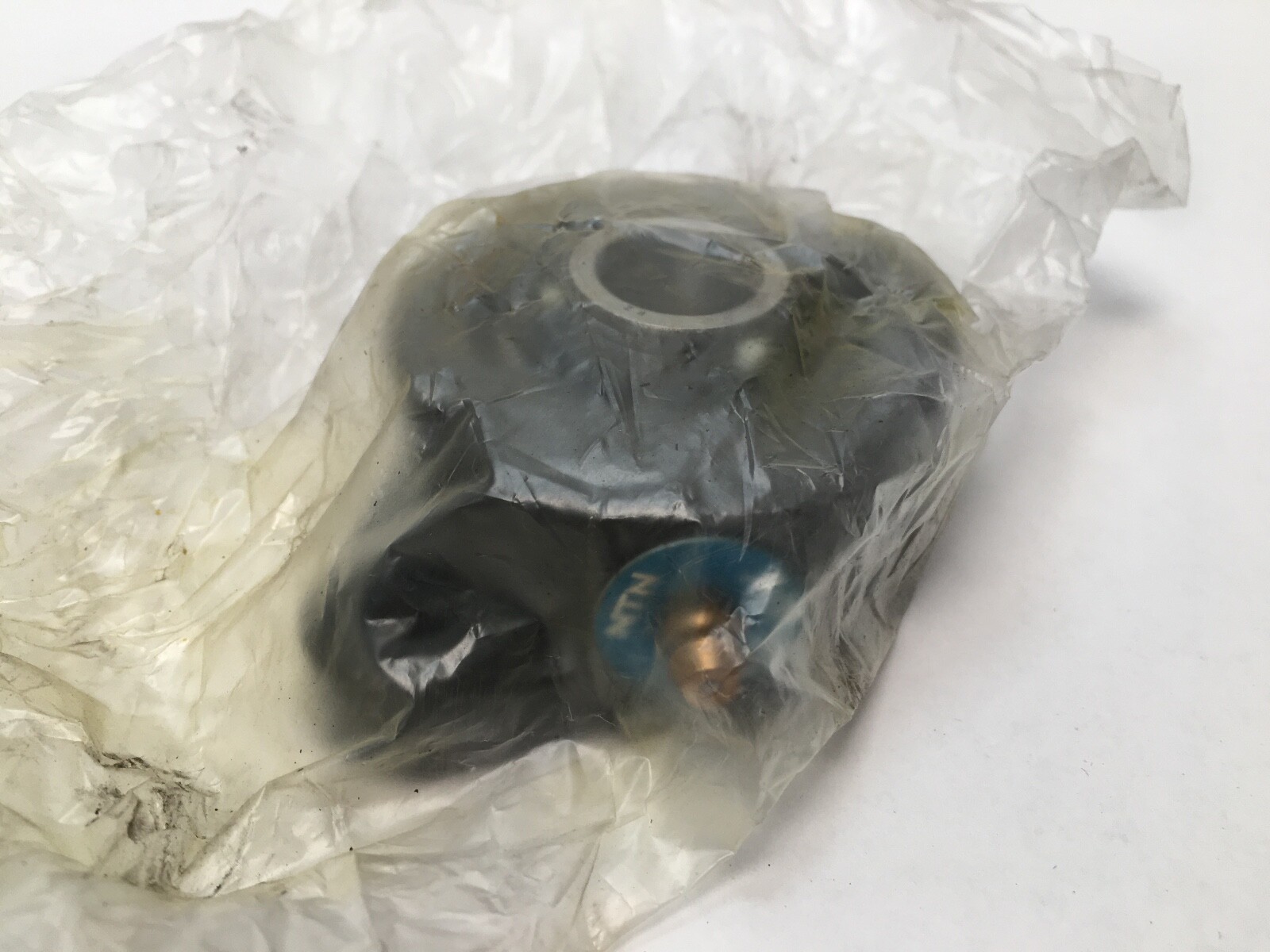

NTN UCFLU-5/8 is an Ultra-Class two-bolt rhombus flange mount ball bearing unit with a 5/8 in (0.625 in) straight bore and setscrew locking. Unit Quantity: 2 Pcs, each a complete flange unit.

Decoding the designation:

UCFLU — NTN Ultra-Class setscrew flange unit with a rhombus housing.

5/8 — bore size in inches, 0.625 in.

Specifications:

Series: UCFLU. Housing Style: Two-bolt rhombus (diamond) flange unit. Housing Material: Cast iron, one-piece. Bore / Shaft Size: 5/8 in (0.625 in). Bore Type: Straight. Locking Method: Setscrew. Bolt Center To Center Length: 3.000 in. Number Of Bolt Holes For Fasteners: 2. Insert Outer Ring: Spherical. Rolling Elements: Balls. Number Of Rows: 1. Expansion Type: Non-expanding. Seal Type: Contact seal, nitrile rubber. Finish: Black oxide inner ring. Dynamic Load Rating: 12,800 N. Static Load Rating: 6,650 N. Minimum Temperature: -40 °F (-40 °C). Maximum Temperature: 250 °F (120 °C). Duty Type: Light duty. Lubricant: Grease, pre-lubricated. Relubrication: Relubricatable. Harmonization Code: 8483.20.40. Country of Origin: Japan.

Dimensions and mounting:

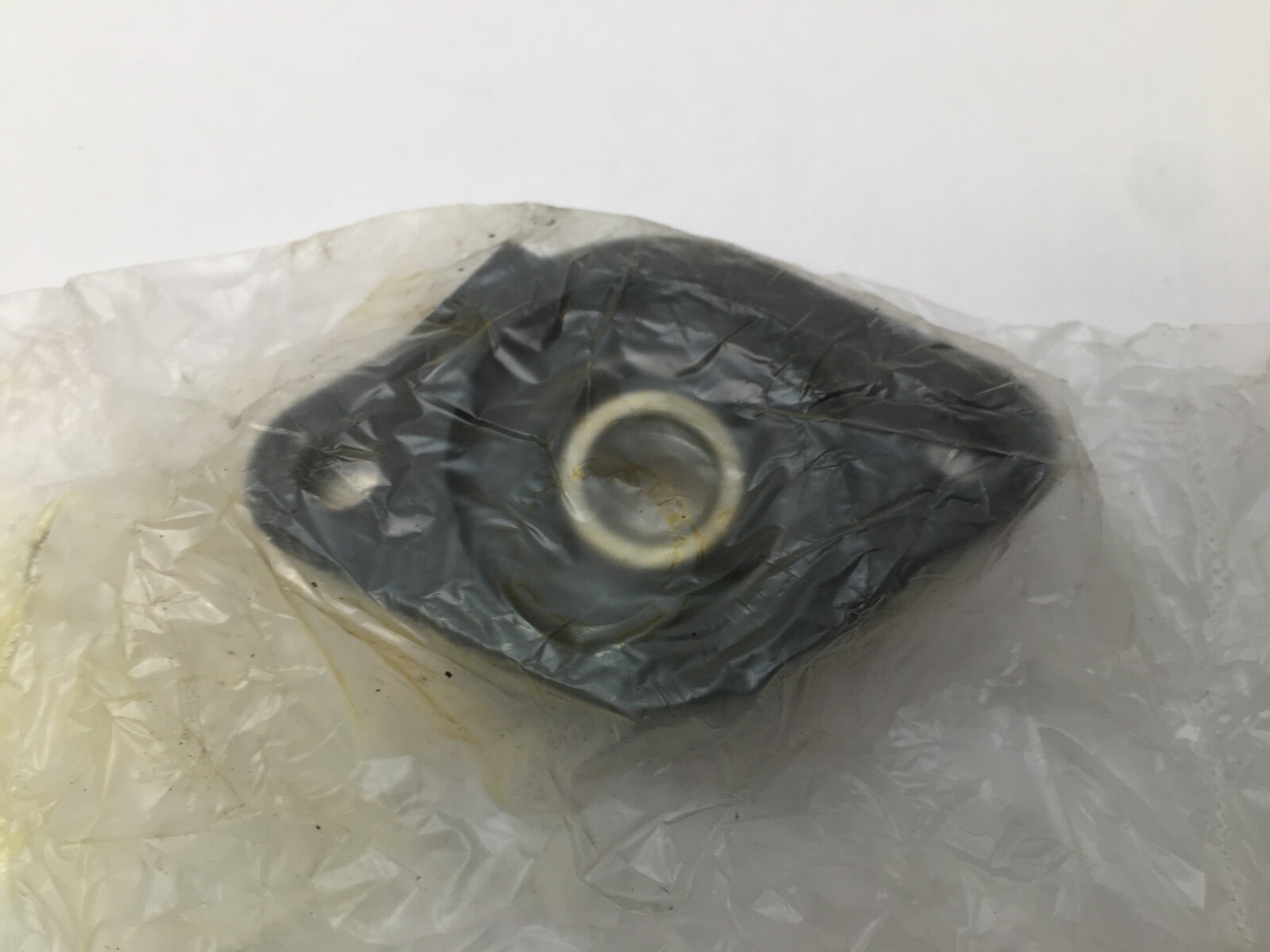

Narrow rhombus flange with two mounting bolts on a diagonal, 3.000 in bolt centres. Each unit comprises the one-piece cast iron housing, the sealed spherical-OD insert and its setscrews.

Compatibility and replacement:

Cross-Reference 1: Dodge F2B-SC-010, oval two-bolt flange, not rhombus. Cross-Reference 2: SKF F2B 010-TF, oval two-bolt flange, not rhombus. Both share the 5/8 in bore and setscrew locking; the housing footprint and bolt pattern differ from the NTN rhombus flange. Designation forms: UCFLU-5/8, UCFLU5/8, UCFLU 5/8, UCFLU 0.625.
