Two-bolt flange ball bearing unit, 5/8 in bore, 2.5 in bolt spacing, 3.188 in long. Eccentric locking collar, molded shroud seals, 10,700 N dynamic rating.
List Price
$68.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | VFTD 5/8 |
| GTIN | 087796056596 |
| Model | VFTD-5/8 |
| ID | 0.6250 in (15.875 mm) |
| Series | VFTD |
|---|---|
| Type | Flanged Mount Bearing |
| Material | Malleable Iron |
| Industry Terms | two-bolt flange unit; flanged mounted bearing; flangette |
| Overall Width | 1.25 in (31.8 mm) |
| Number Of Flanges | 2 |
| Bolt Center To Center | 2.5 in (63.5 mm) |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Mpn Variants | VFTD5/8, VFTD 5/8, VFTD-5/8, VFTD58 |
| Dynamic Load Rating | 10,700 N |
| Static Load Rating | 4,700 N |
| Rolling Elements | Ball |
| Bearing Type | Flange Mount Ball Bearing Unit |
| Item Weight | 0.256 kg (0.565 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Normal Duty |
| Locking Device | Eccentric Collar |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40 |
| Housing Material | Malleable Iron |
| Expansion Type | Non-Expanding |
| Common Misspellings | Fafnir VFTD5-8; Timkin VFTD 5/8; Fafner VFTD 5/8 |
| Application Types | Conveyors; light industrial machinery; shaft support |

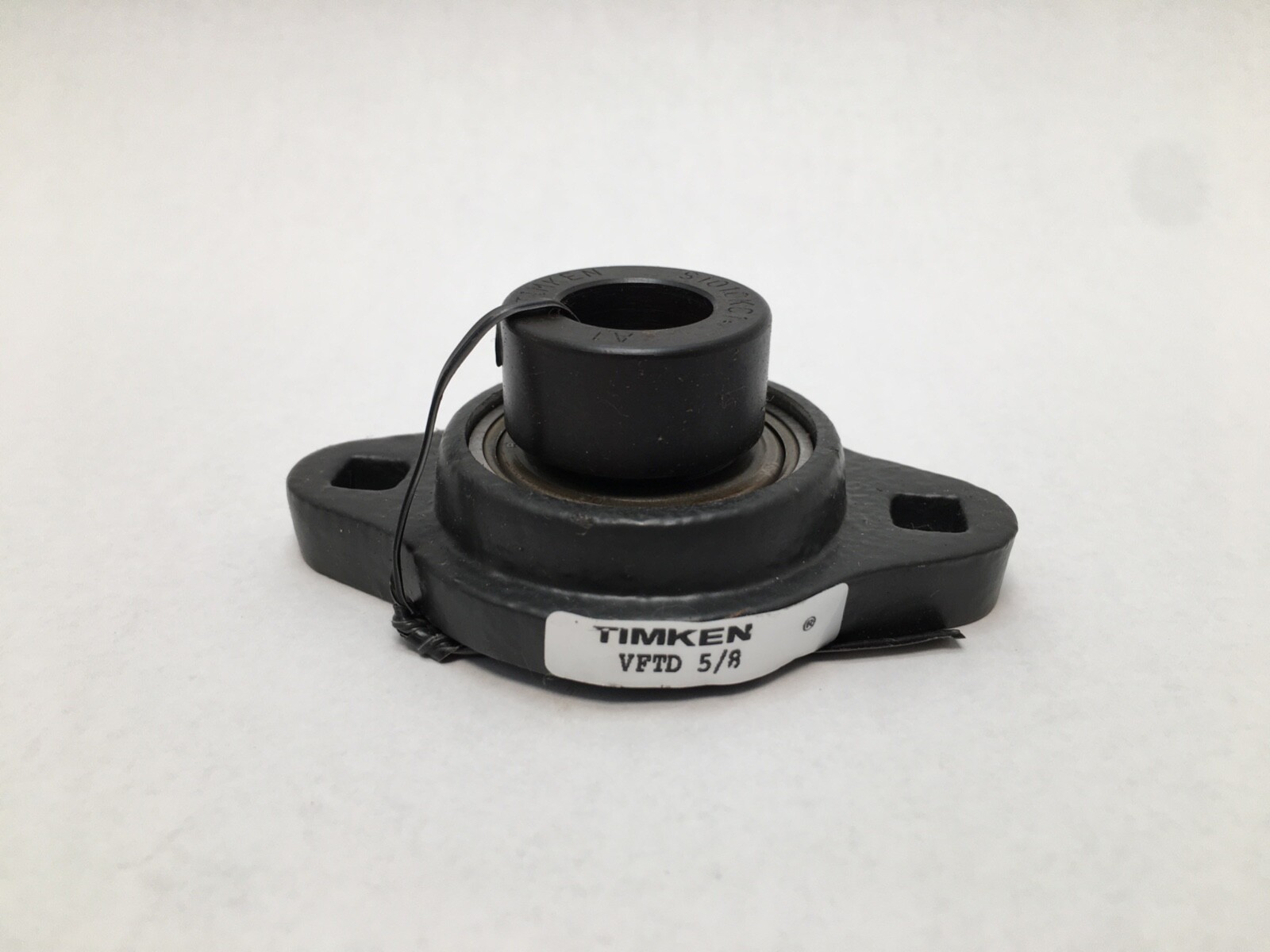

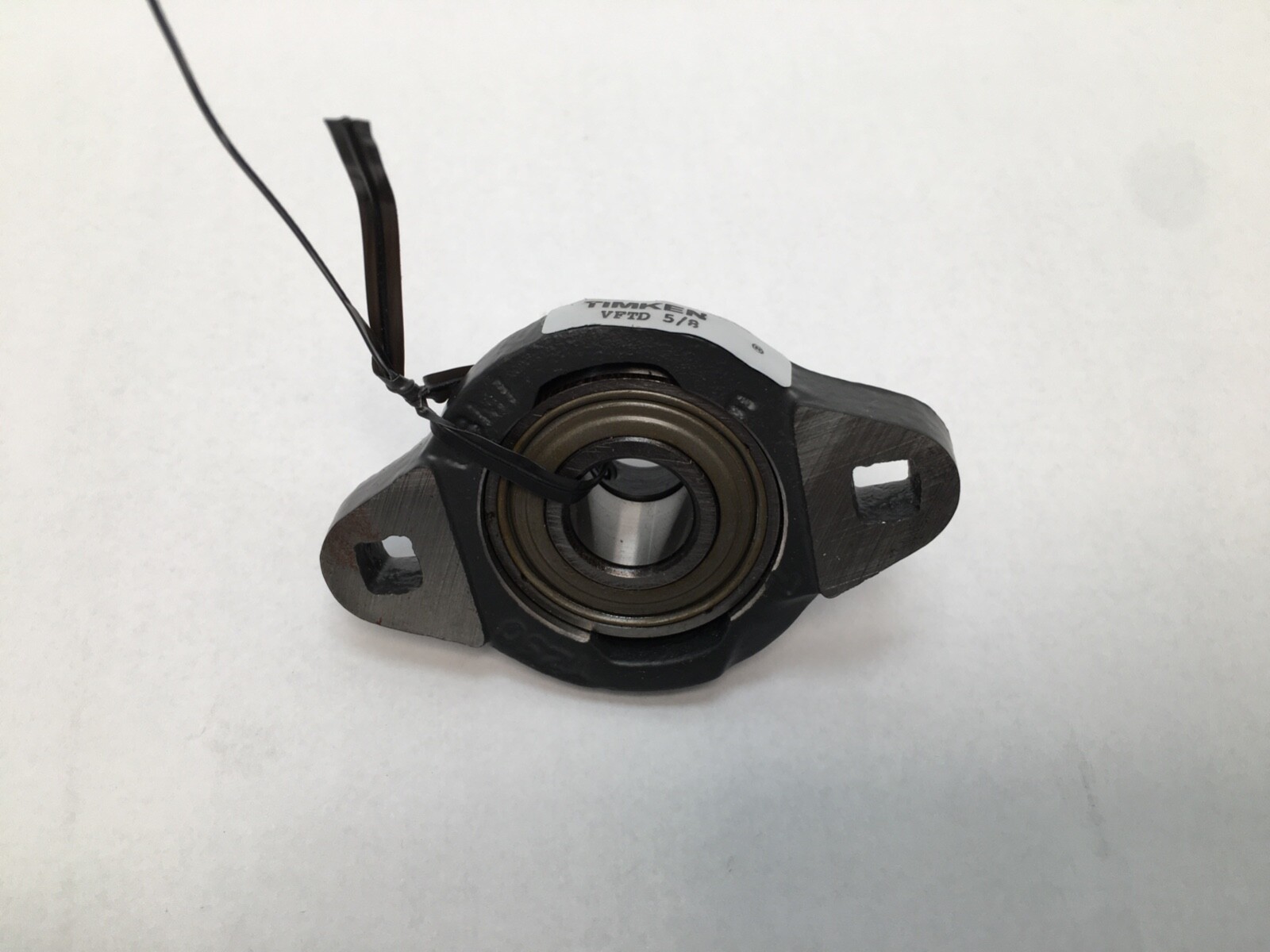

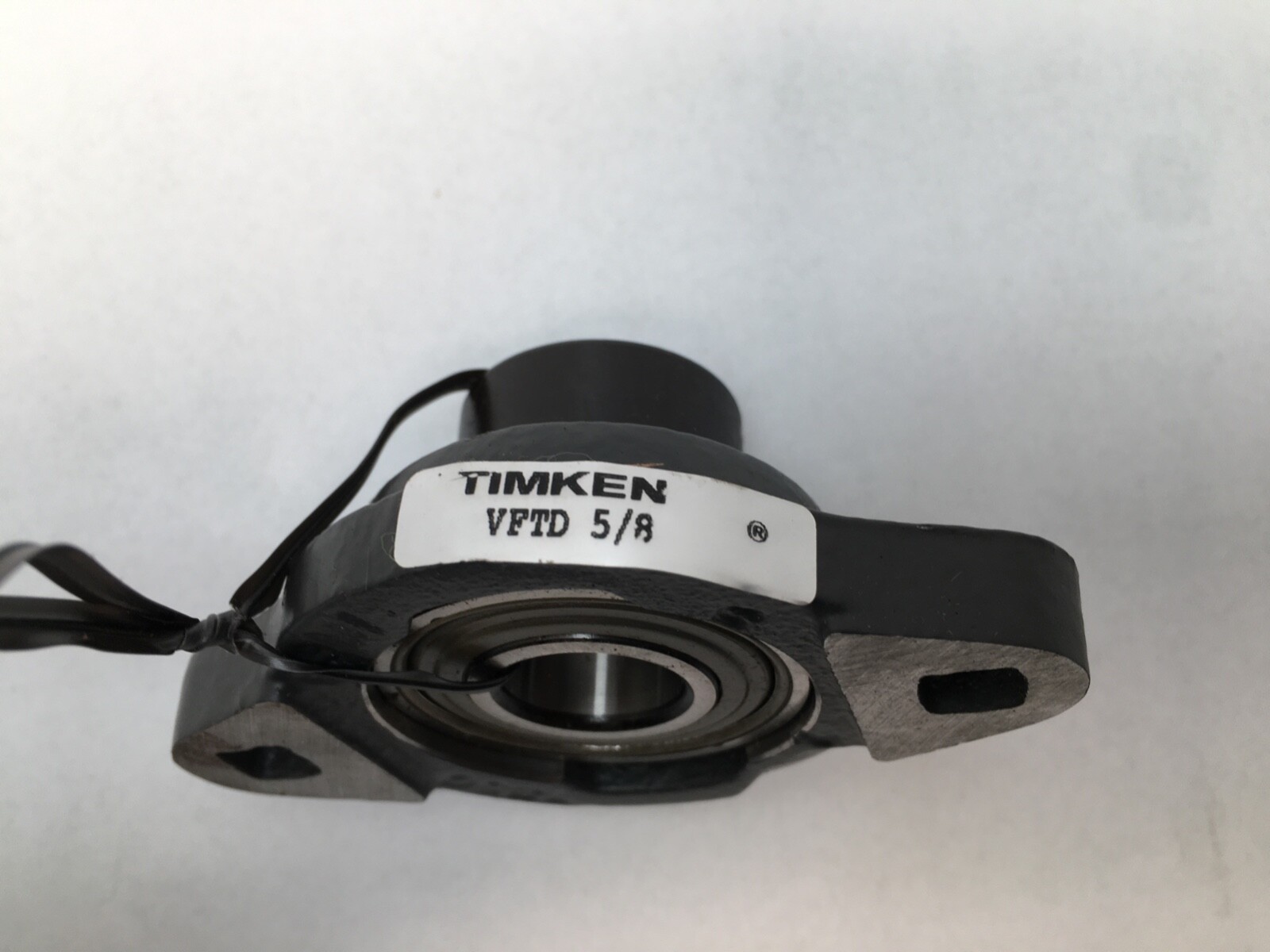

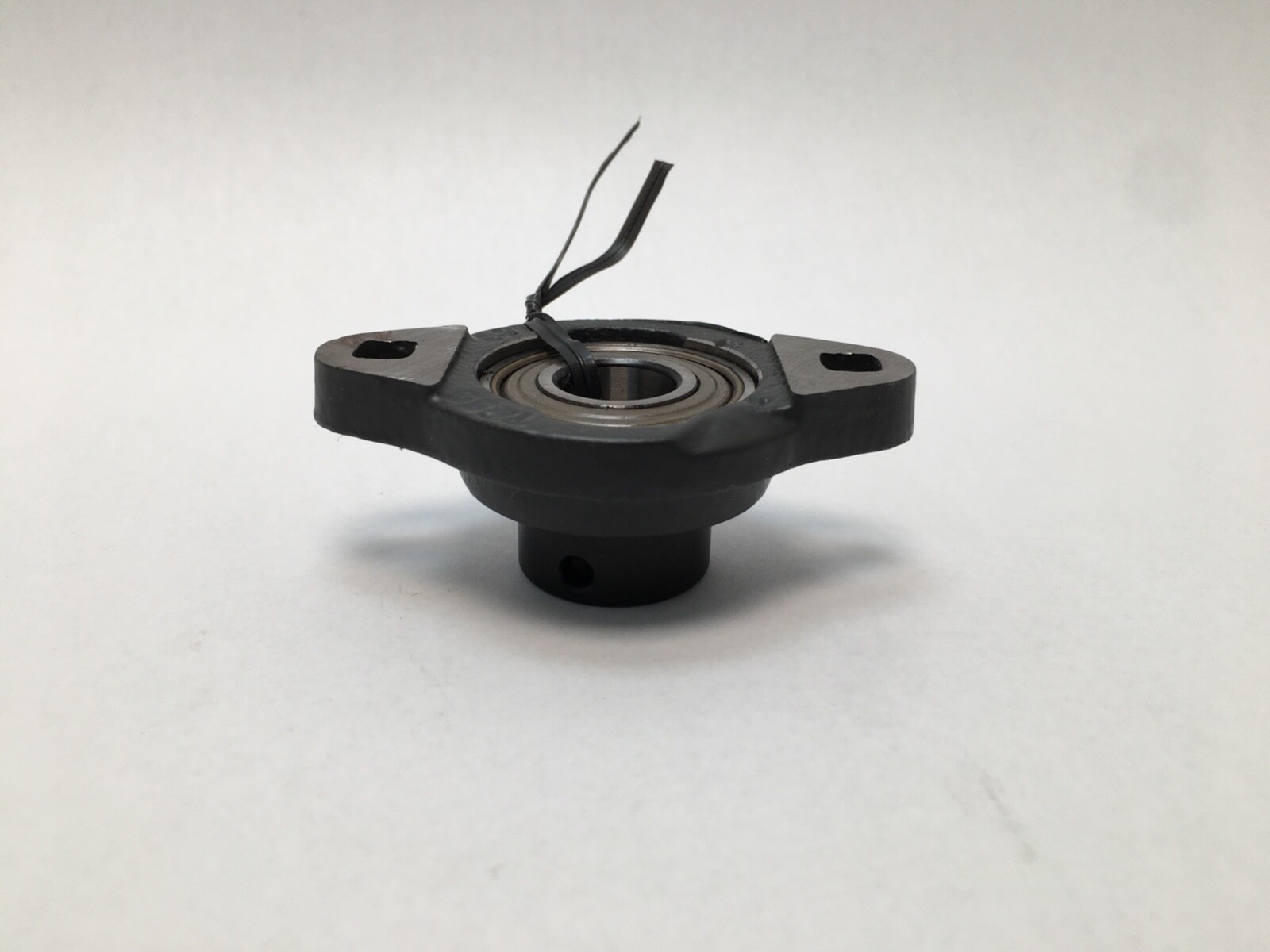

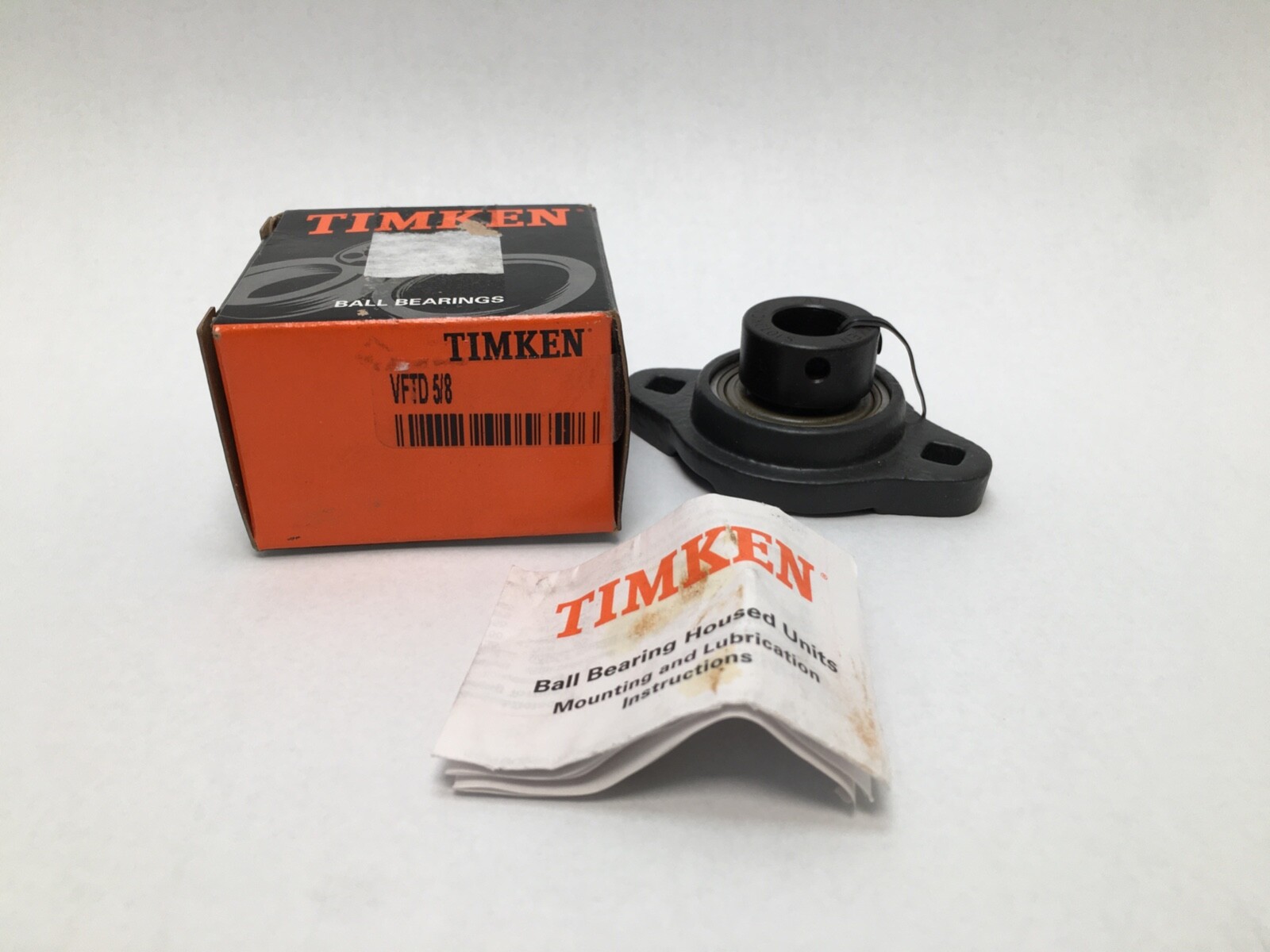

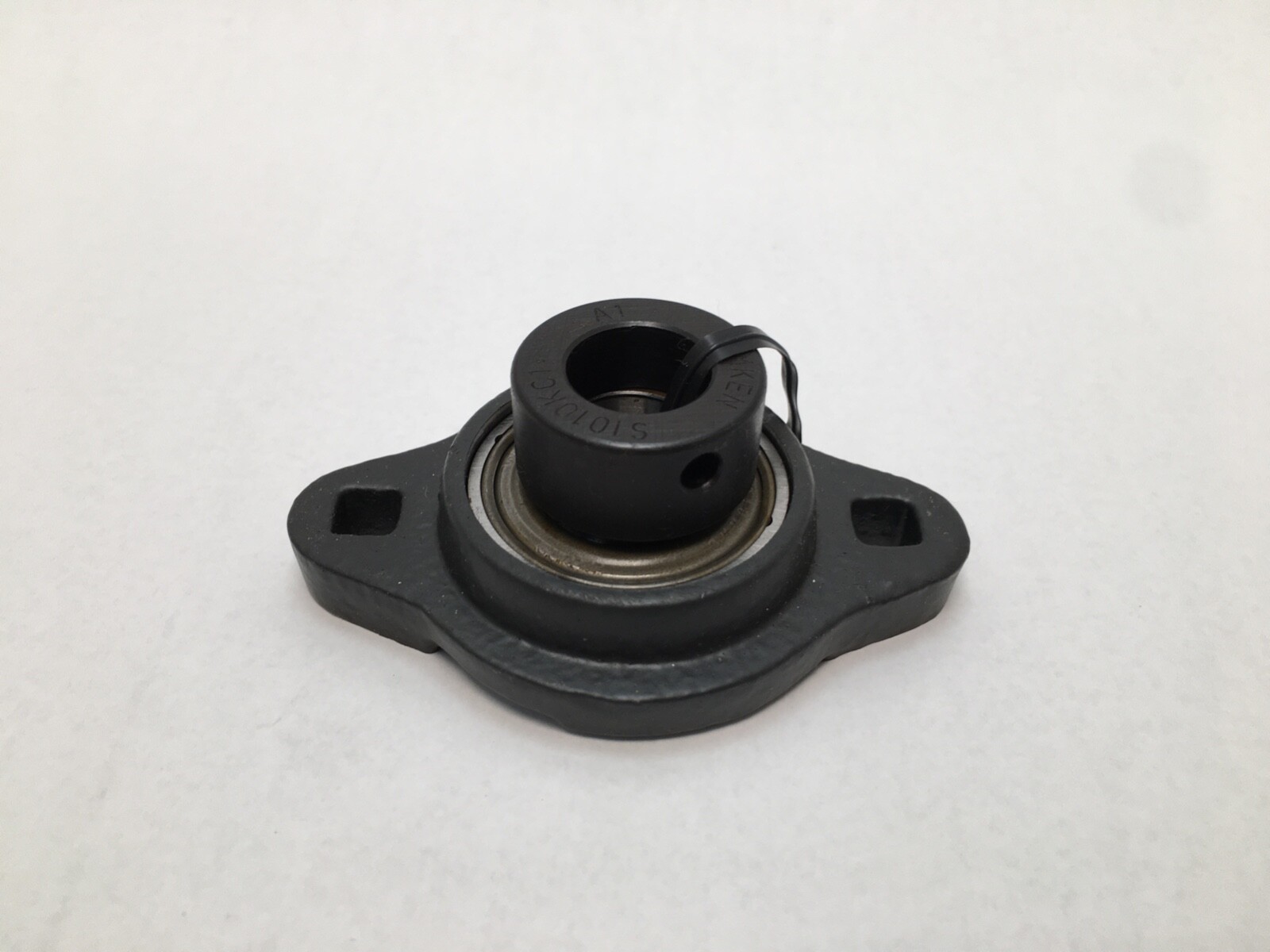

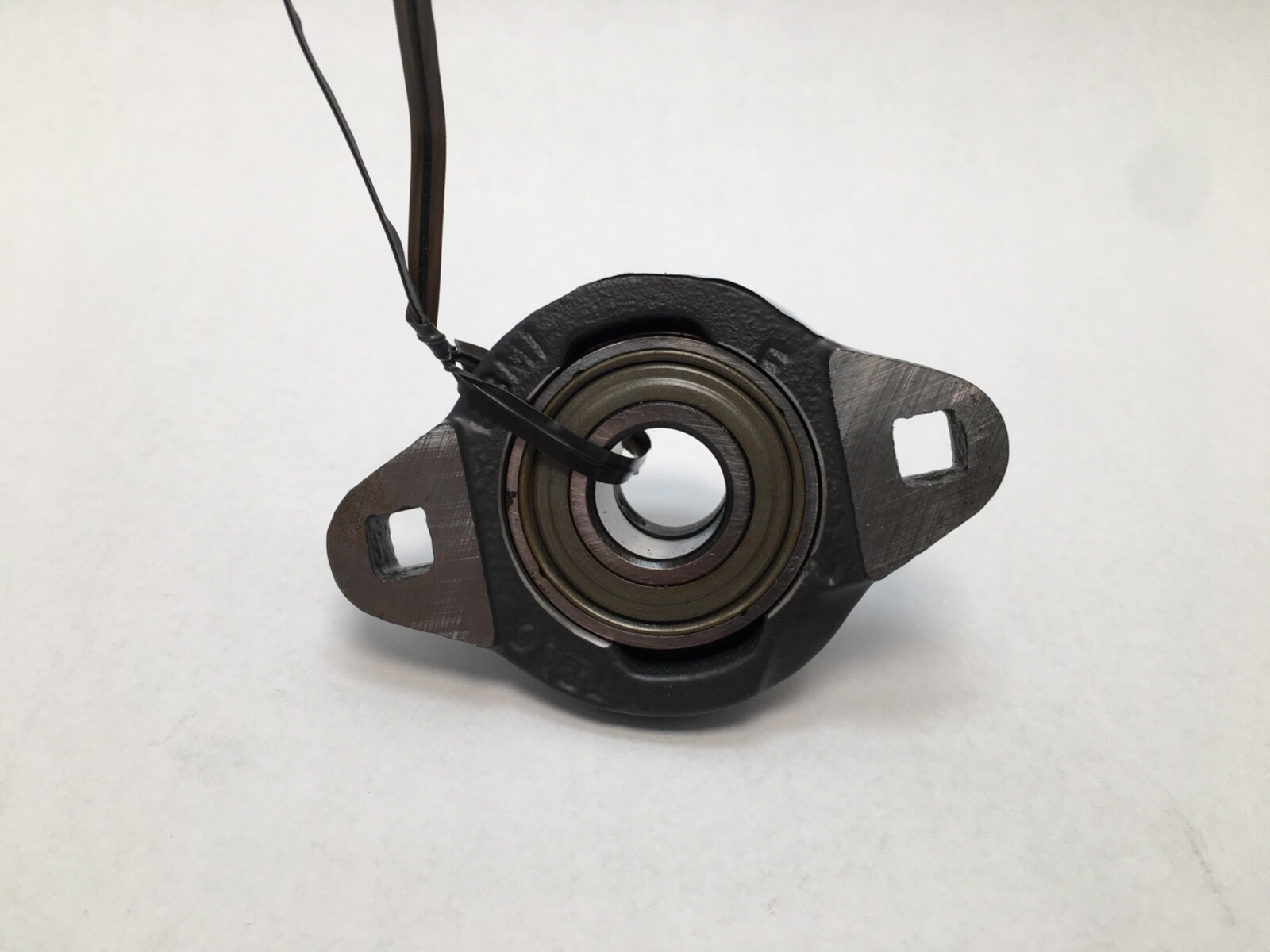

Fafnir VFTD 5/8 is a two-bolt flanged ball bearing unit in Timken’s Normal-Duty series, carrying a Fafnir GRA010RRB wide inner ring insert with an eccentric locking collar. Unit Quantity: 1 Pc. One complete flanged unit with insert and collar. GTIN: 087796056596.
VFTD — Fafnir two-bolt flanged housed unit, eccentric locking collar.
5/8 — shaft size, 5/8 in.
Bore Diameter: 5/8 in (0.625 in). Bolt Center To Center: 2.5 in (63.5 mm). Housing Material: Malleable Iron. Dynamic Load Rating: 10,700 N. Static Load Rating: 4,700 N. Bearing Insert: Fafnir GRA010RRB. Collar Number: S1010K. Locking Device: Eccentric Collar. Seal Type: Molded shroud seals. Rolling Elements: Ball. Insert Outer Ring: Spherical. Item Weight: 0.256 kg (0.565 lb).
Total Length (H): 3.188 in (81 mm). Total Height (L): 2.094 in (53.2 mm). Housing Width (A): 0.688 in (17.5 mm). Bolt Hole Spacing (J): 2.5 in (63.5 mm). Bolt Hole Size (N): 0.281 in (7.1 mm). Flange Thickness (A1): 0.375 in (9.5 mm). Overall Width (E): 1.25 in (31.8 mm). Dimension B1: 1.126 in (28.6 mm). Dimension S1: 0.87 in (22.1 mm). Dimension d1: 1.126 in (28.6 mm). Dimension A3: 0.313 in (7.9 mm). Dimension H2: 1.875 in (47.6 mm). Number Of Bolt Holes: 2.
Replacement insert: Fafnir GRA010RRB with collar S1010K. MPN Variants: VFTD 5/8, VFTD5/8, VFTD-5/8, VFTD58. CAD model and data sheet: available from Timken (cad.timken.com).
Bore Diameter: 5/8 in (0.625 in).
Bolt Center To Center: 2.5 in (63.5 mm), with 2 bolt holes of 0.281 in (7.1 mm).

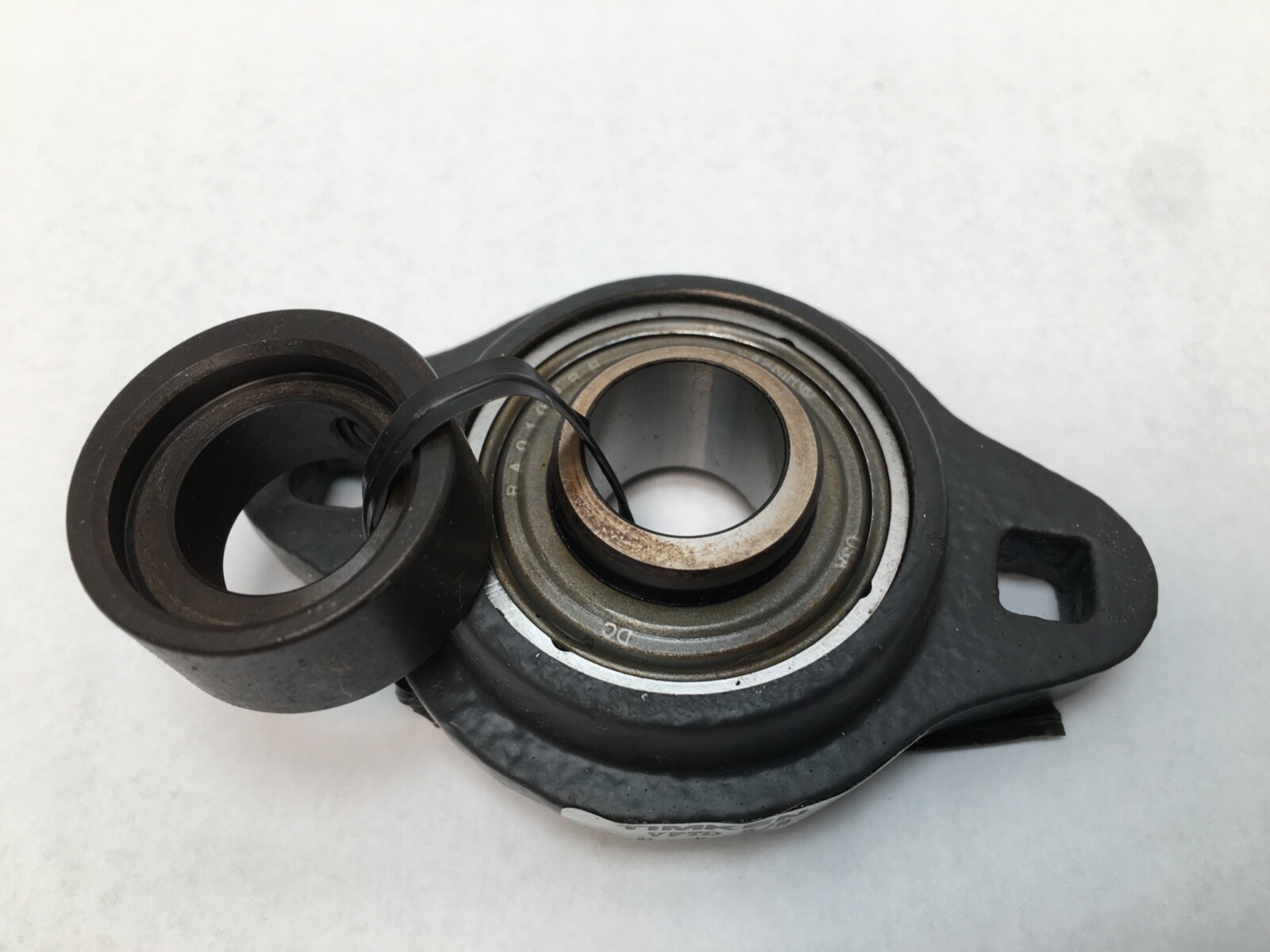

Fafnir GRA010RRB insert with S1010K eccentric locking collar.
