TimkenGVFTD 5/8Two-Bolt Flange Ball Bearing Unit – 5/8 in Shaft, Eccentric Locking Collar, 2.5 in Bolt Spacing, Normal-Duty

Name: Timken GVFTD 5/8 Two-Bolt Flange Ball Bearing Unit – 5/8 in Shaft, Eccentric Locking Collar, 2.5 in Bolt Spacing, Normal-Duty
Brand: Timken
SKU: AR4B3#TTEQVC
Price: 60.43 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Flanged Mount Bearing

Timken Fafnir GVFTD 5/8 two-bolt flange ball bearing unit, 5/8 in shaft, eccentric locking collar, 2.5 in bolt spacing. 10,700 N dynamic rating. Set of 4 units.

Same day shipment

List Price

$60.43

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Timken
MPN	GVFTD 5/8
GTIN	087796056404
Model	GVFTD5/8
ID	5/8 in (0.625 in)

Technical Specifications

Type	Flanged Mount Bearing
Base Number	GVFTD
Industry Terms	2-bolt flange bearing; flanged mounted bearing unit; eccentric collar flange bearing; flangette
Common Misspellings	GVFTD58; GVFT 5/8; Fafnar GVFTD
Number Of Flanges	2
Bolt Center To Center	2.5 in
Number Of Bolt Holes	2
Number Of Bolt Holes For Fasteners	2
Mpn Variants	GVFTD 5/8; GVFTD5/8; GVFTD-5/8; GVFTD 5/8 in; Fafnir GVFTD 5/8
Compatible With Replaces	Insert GRA010RRB; collar S1010K
Additional Attributes	Bolt hole spacing 2.5 in; length 3.188 in; height 2.094 in
Dynamic Load Rating	10,700 N
Static Load Rating	4,700 N
Rolling Elements	Balls
Bearing Type	Flange Mount Ball Bearing Unit
Number Of Rows	1
Bore Type	Straight
Locking Device	Eccentric Collar
Insert Outer Ring	Spherical
Harmonization Code	8483.20.40
Expansion Type	Non-Expanding
Design Units	Imperial
Bearing Class	Normal-Duty
Application Types	Conveyors; light industrial machinery; shaft support at a flat machine face

Cross-References

Cross Reference 1	Dodge F2B-SC-010 (related, set screw locking)

Seller Part Number: AR4B3#TTEQVC

Product Description

What this part is:

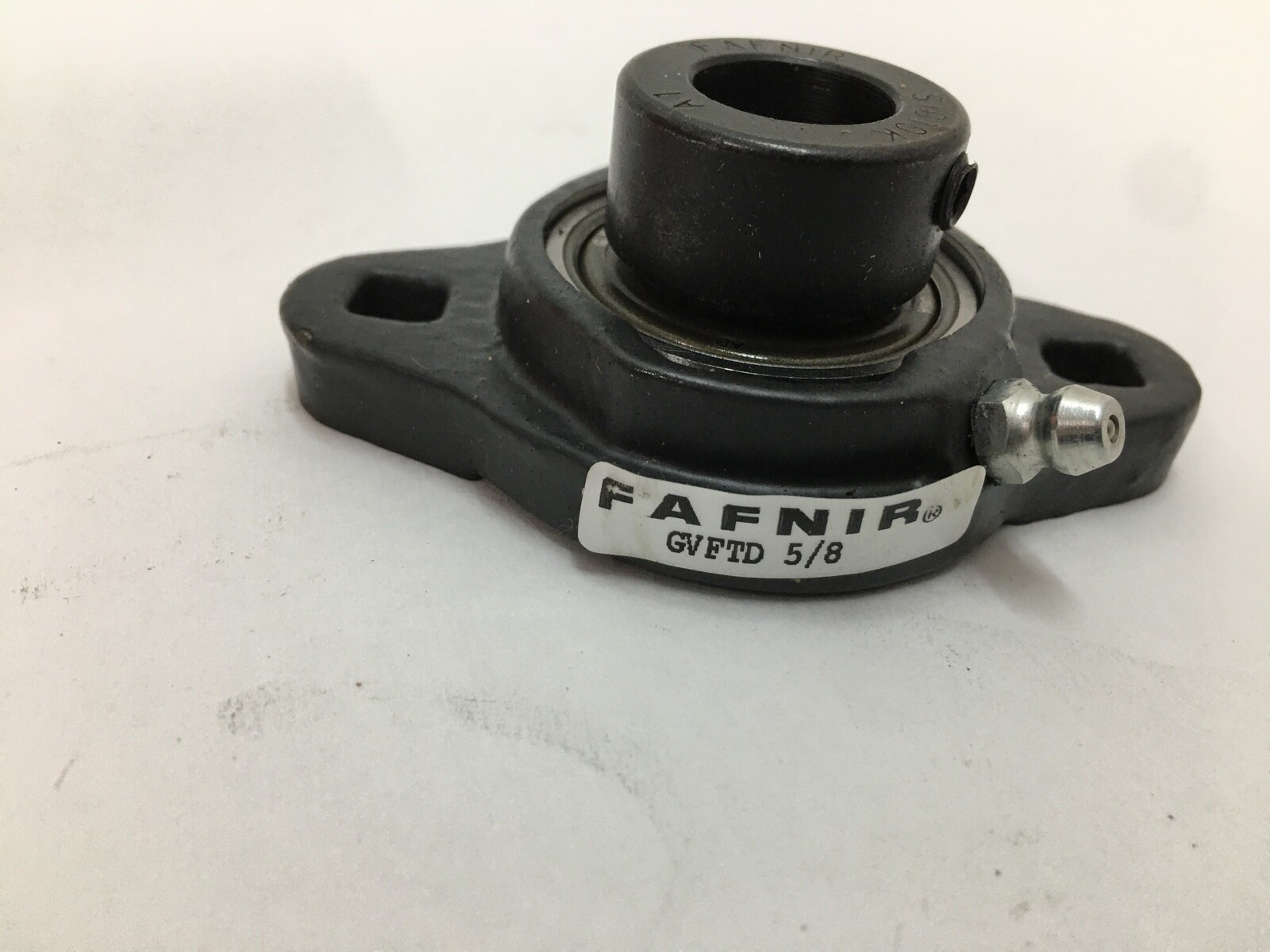

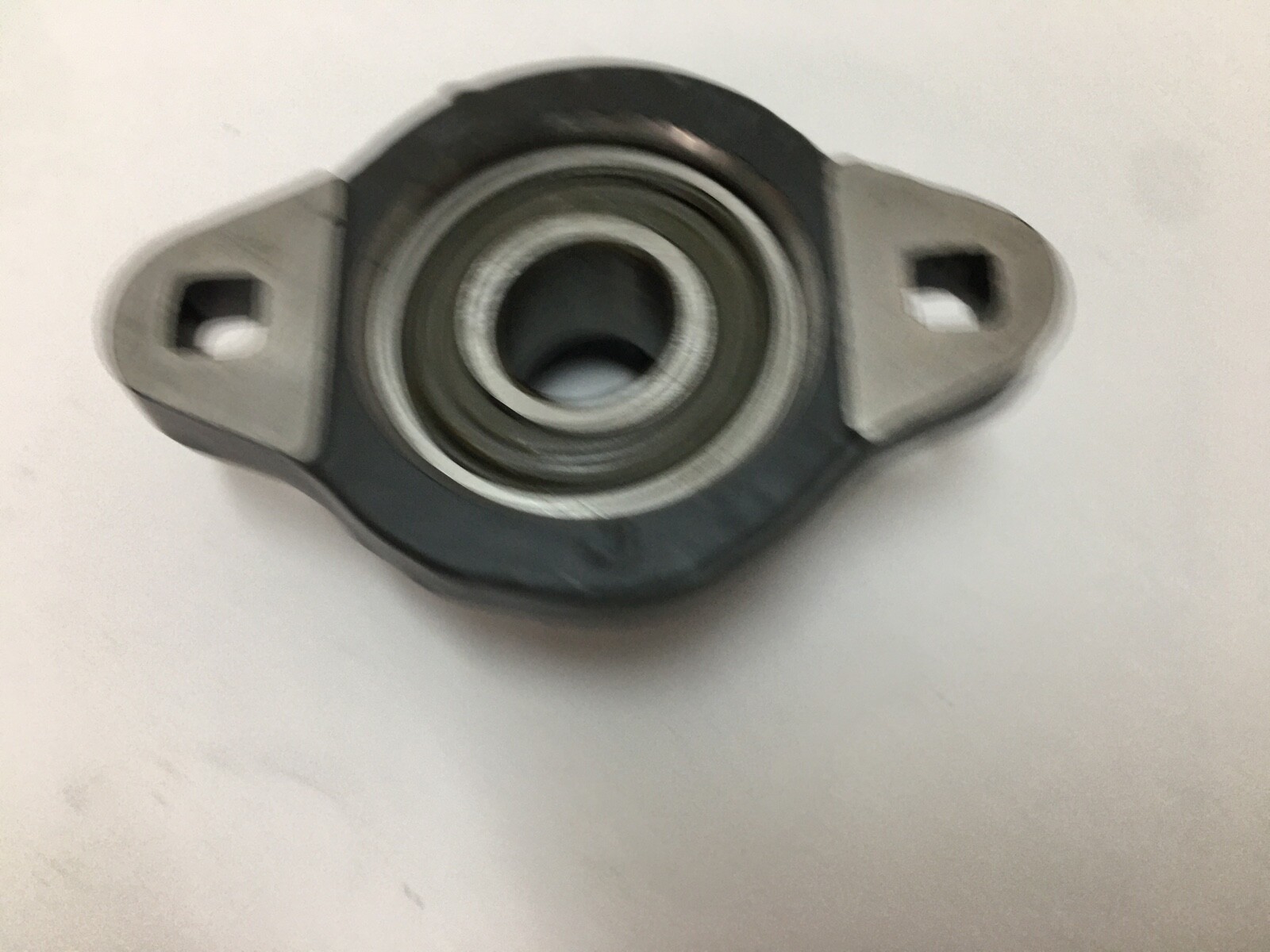

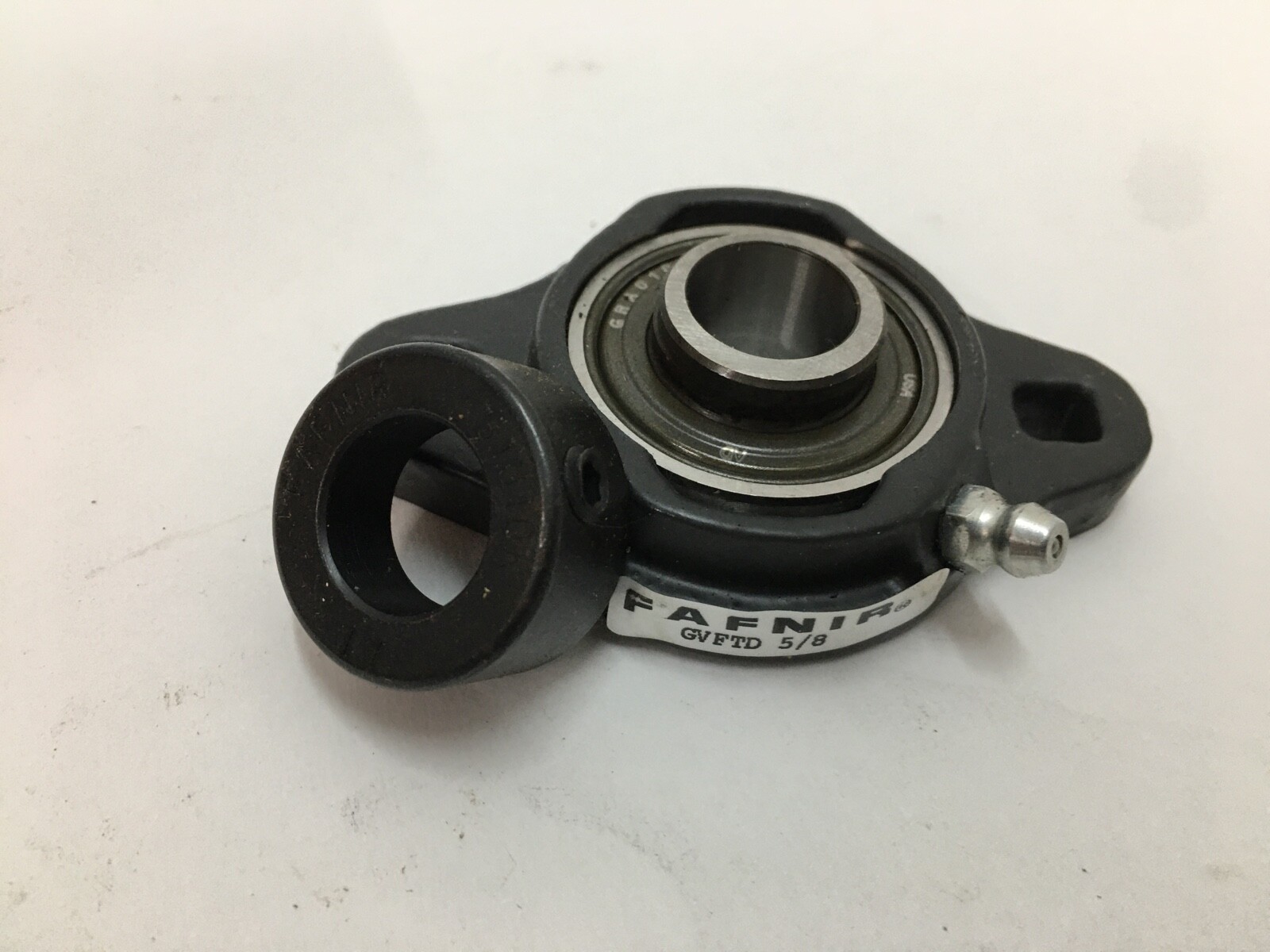

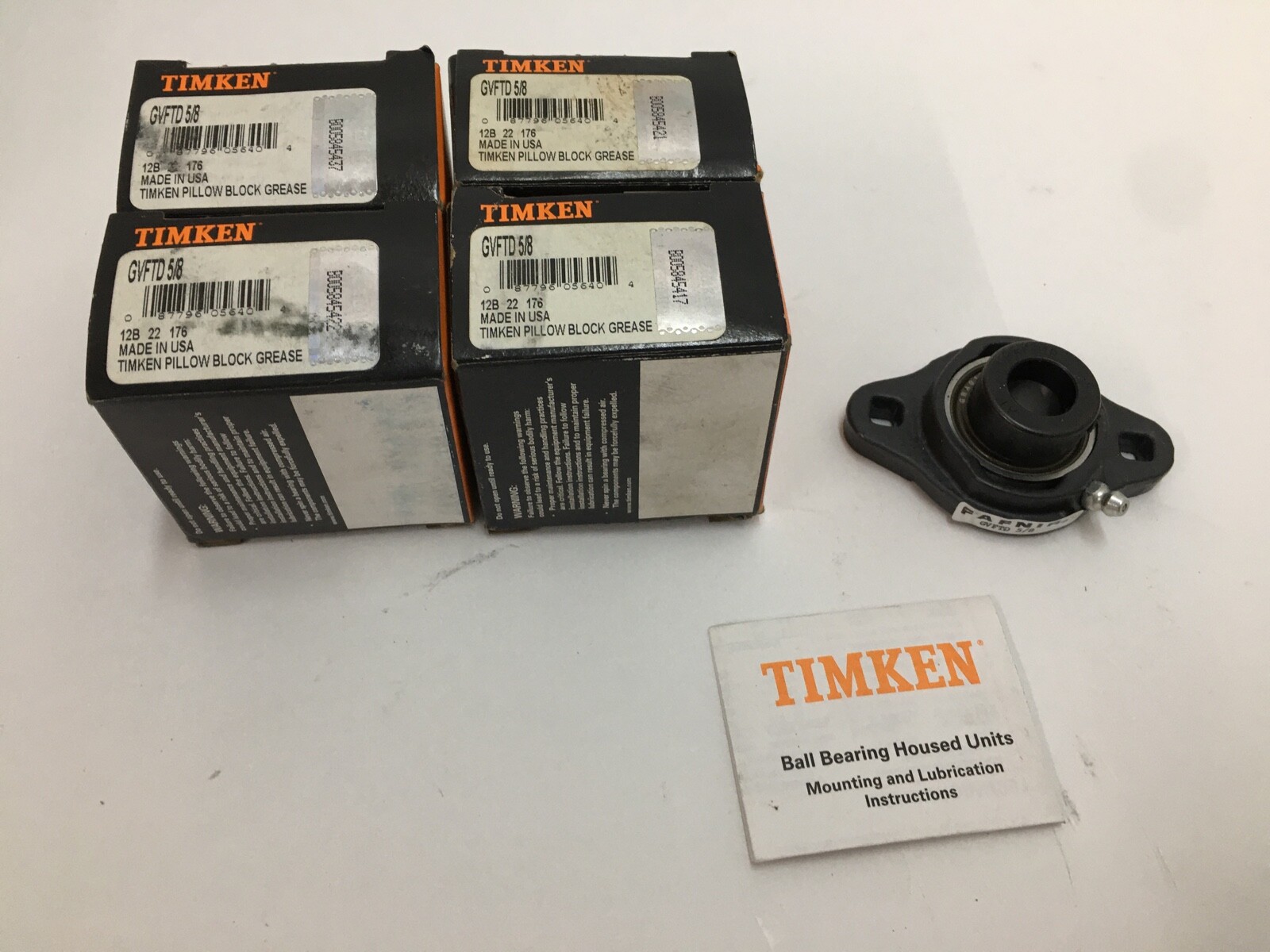

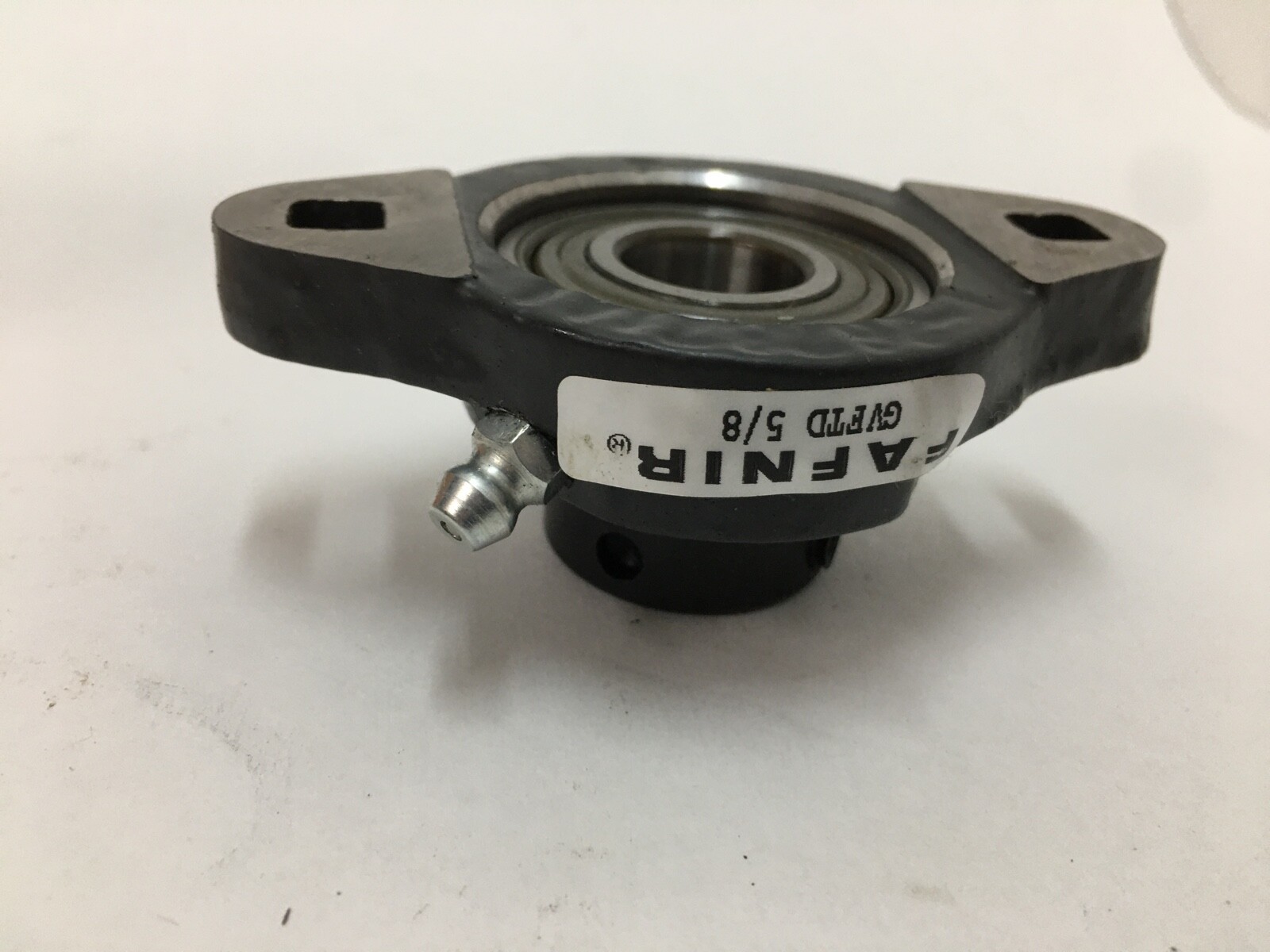

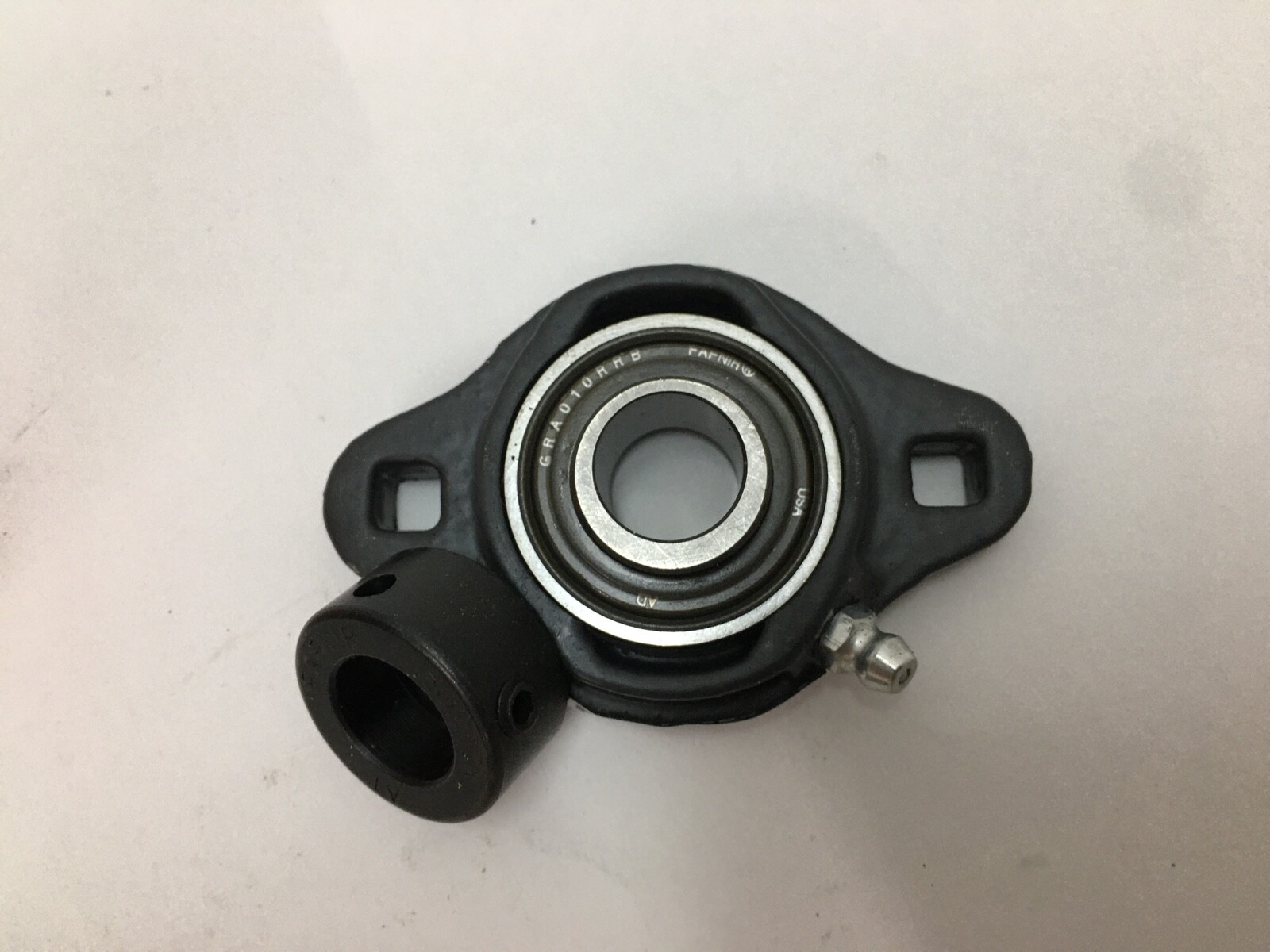

Timken Fafnir GVFTD 5/8 two-bolt flanged mounted ball bearing unit with eccentric locking collar, Normal-Duty series. Set of four units, each with housing, GRA010RRB insert and S1010K collar.

Decoding the designation:

GVFTD — Fafnir two-bolt flanged housing with eccentric locking collar, carrying the GRA-series insert.

5/8 — shaft size, 5/8 in.

Specifications:

Bore Diameter: 5/8 in (0.625 in). Bearing Type: Ball bearing. Insert Bearing Number: GRA010RRB. Collar Number: S1010K. Locking Device: Eccentric collar. Seal Type: Molded shroud. Housing Construction: Two-bolt flange. Bearing Class: Normal-Duty. Dynamic Load Rating: 10,700 N (2,380 lbf). Static Load Rating: 4,700 N (1,070 lbf). Unit Quantity: 4 Pcs.

Dimensions and mounting:

Bolt Hole Spacing J: 2.5 in (63.5 mm). Bolt Hole Size N: 0.281 in (7.1 mm). Total Length H: 3.188 in (81 mm). Total Height L: 2.094 in (53.2 mm). Housing Width A: 0.688 in (17.5 mm). Flange Thickness A1: 0.375 in (9.5 mm). Dimension B1: 1.126 in (28.6 mm). Dimension S1: 0.87 in (22.1 mm). Dimension E: 1.25 in (31.8 mm). Dimension d1: 1.126 in (28.6 mm). Dimension A3: 0.313 in (7.9 mm). Dimension H2: 1.875 in (47.6 mm).
