Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

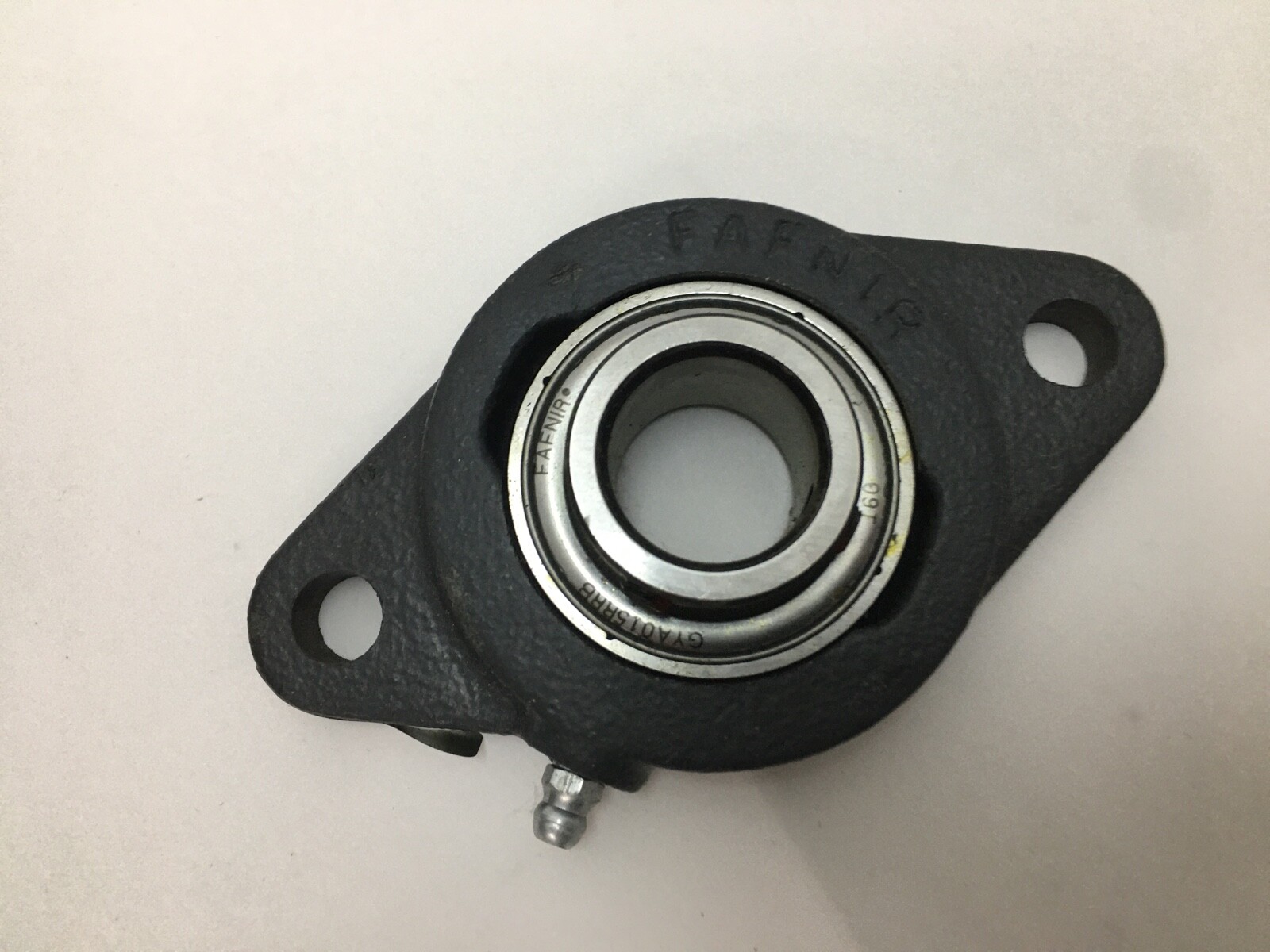

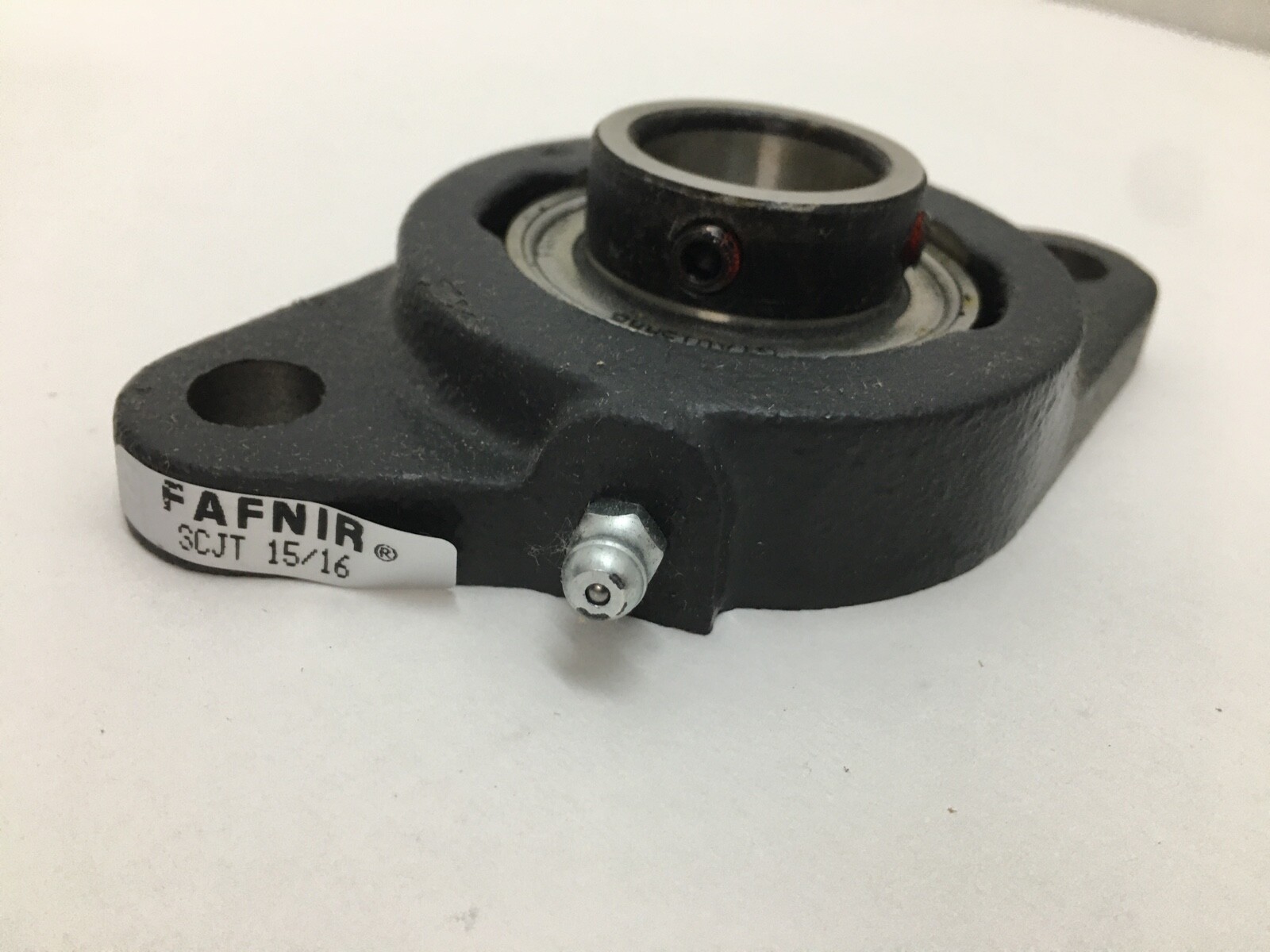

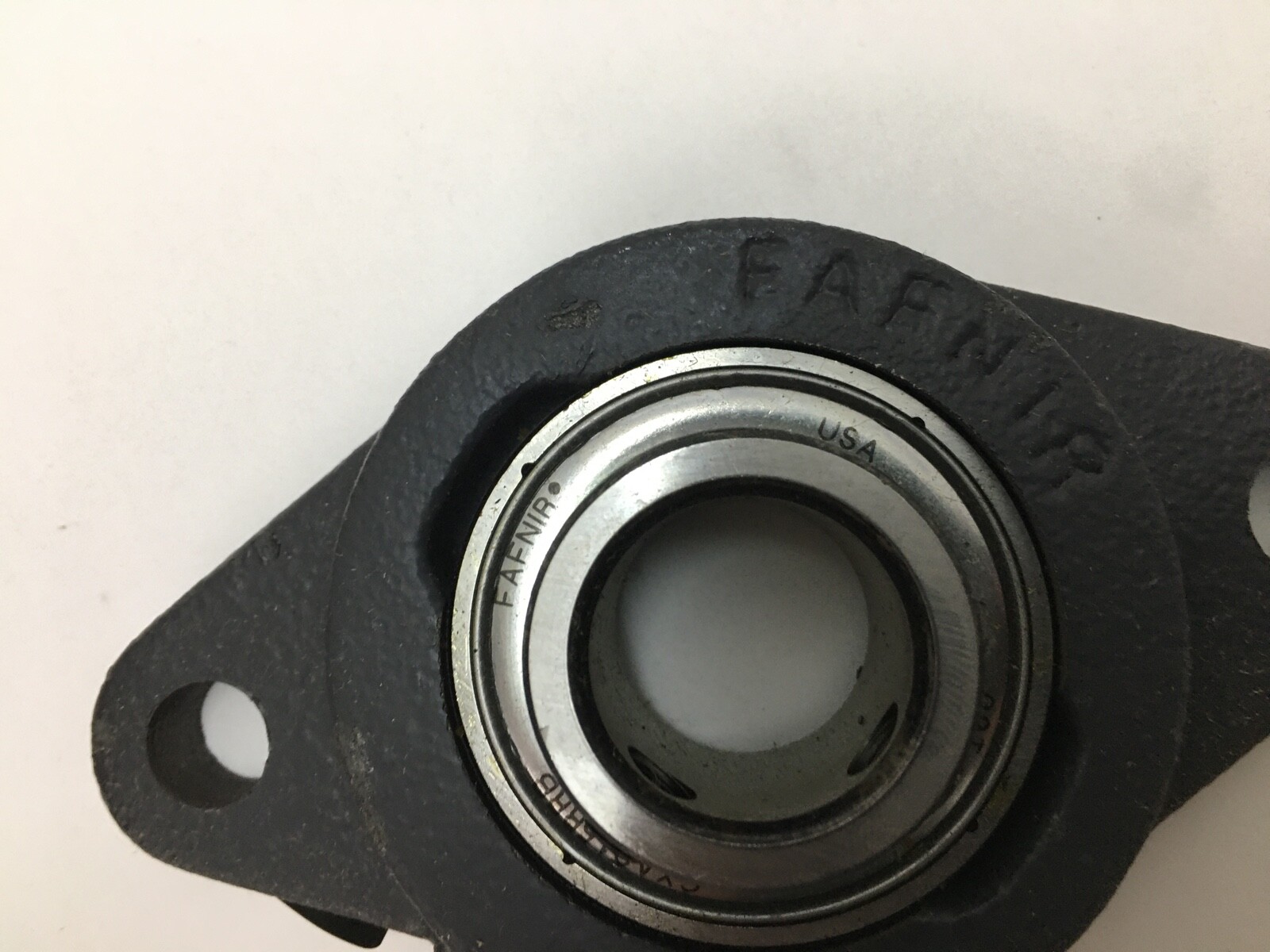

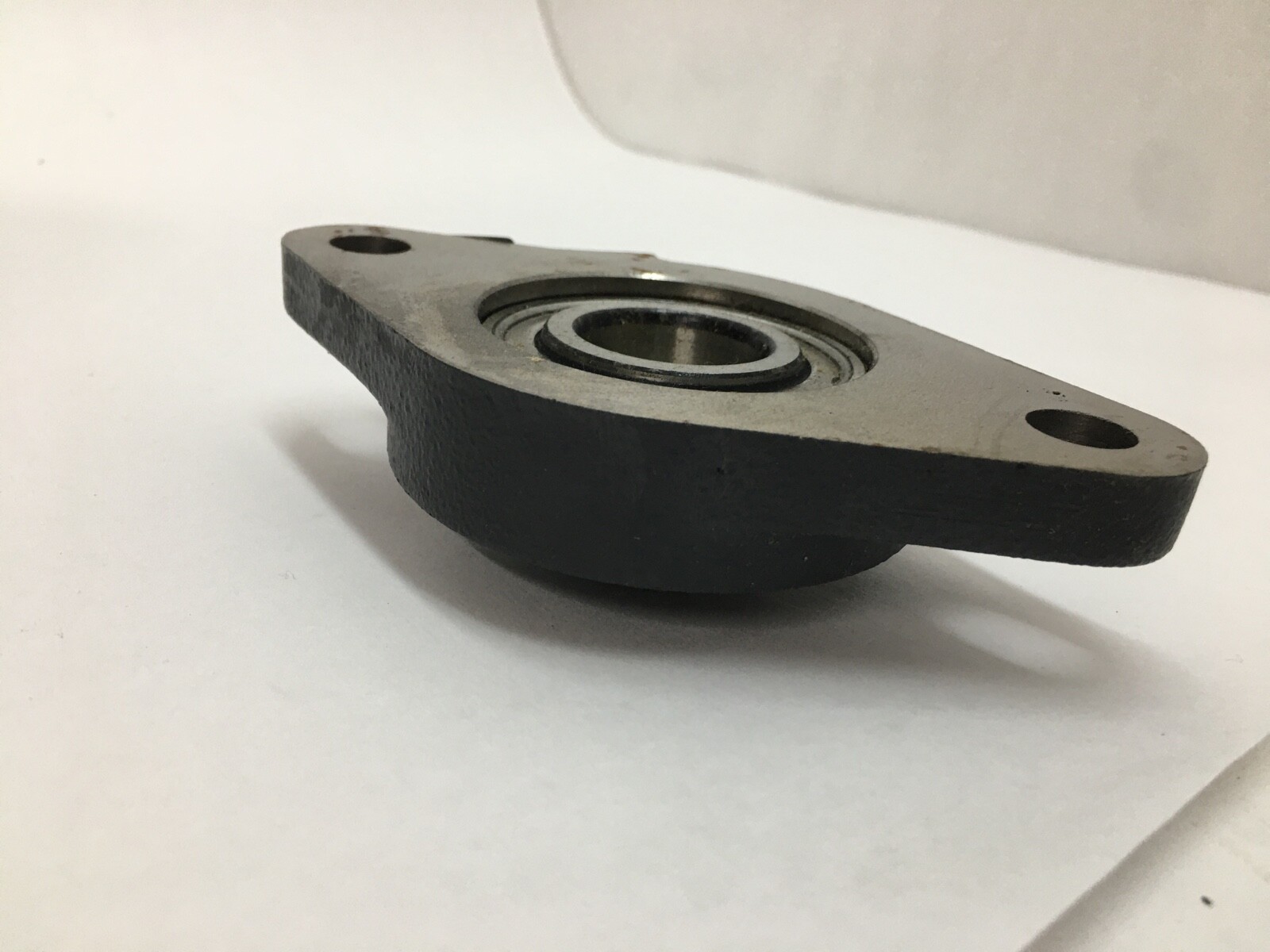

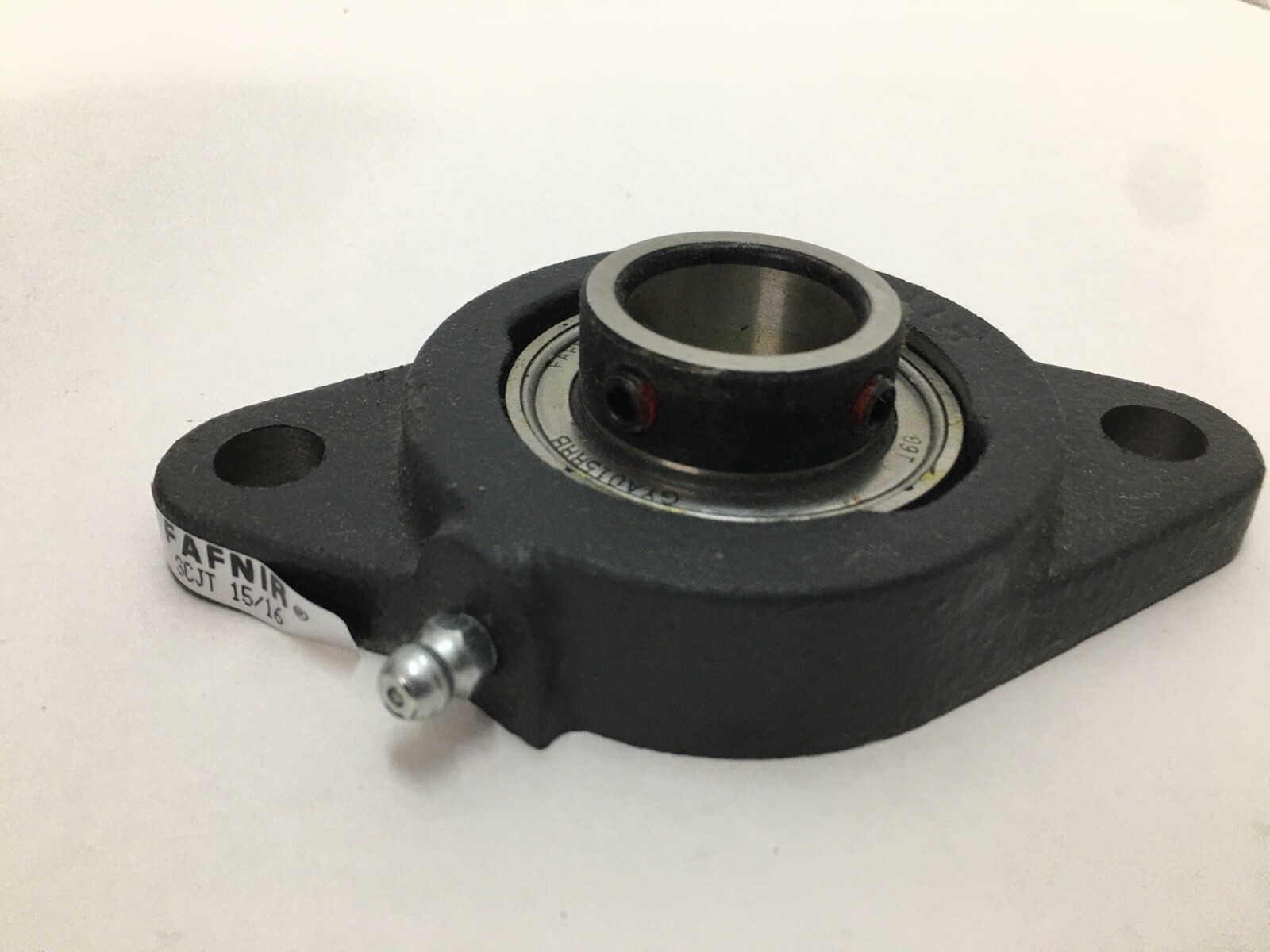

Timken Fafnir SCJT 15/16 two-bolt flange ball bearing unit, 15/16 in bore, setscrew locking, GYA015RRB sealed insert, 15,500 N dynamic rating. Two units.
List Price
$46.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| GTIN | 087796108455 |
| Model | SCJT 15/16 |
| ID | 0.9375 in (23.81 mm) |
| Type | Flanged Mount Bearing |
|---|---|
| Base Number | SCJT |
| Industry Terms | flange bearing, 2-bolt flange unit, flangette, mounted ball bearing, housed unit |
| Application Types | Conveyors, fans, light-duty power transmission |
| Mpn Variants | SCJT 15/16, SCJT15/16, SCJT-15/16, GYA015RRB insert |
| Compatible With Replaces | Insert bearing: Timken GYA015RRB |
| Arrangement Configuration | Two-bolt flange housed unit |
| Additional Attributes | Series: Standard; Insert Bearing Number: GYA015RRB; Housing Construction: Two-Bolt Flange; Total Length H: 123.8 mm; Total Height L: 69.9 mm; Housing Width A: 19.8 mm; Bolt Hole Spacing J: 98.82 mm; Bolt Hole Size N: 11.9 mm; Flange Thickness A1: 11.1 mm; Inner Ring Width B: 28.2 mm; Dimension S1: 19.36 mm; Dimension E: 29.8 mm; Dimension F: 33.7 mm; Unit Quantity: 2 Pcs |
| Dynamic Load Rating | 15,500 N |
| Static Load Rating | 7,800 N |
| Bearing Type | Two-Bolt Flange Ball Bearing Unit |
| Bore Type | Round bore, setscrew locking |
| Design Units | Imperial |
Timken Fafnir SCJT 15/16 is a two-bolt flanged ball bearing housed unit with setscrew locking, Standard series. Bore Diameter: 15/16 in (0.9375 in, 23.81 mm). Insert bearing: Timken GYA015RRB.
SCJT — Fafnir Standard series two-bolt flange unit with setscrew locking collar.
15/16 — shaft size, 15/16 in.
GYA015RRB — the insert: wide inner ring ball bearing with setscrew locking and RR contact seals.
Dynamic Load Rating: 15,500 N (3,490 lbf). Static Load Rating: 7,800 N (1,750 lbf). Seal Type: narrow shroud seal. Closure Type: contact seals both sides. The sealed, pre-lubricated insert suits conveyors, fans and light-duty power transmission shafts.
Total Length H: 4.874 in (123.8 mm). Total Height L: 2.752 in (69.9 mm). Housing Width A: 0.78 in (19.8 mm). Bolt Hole Spacing J: 3.891 in (98.82 mm). Bolt Hole Size N: 0.469 in (11.9 mm). Flange Thickness A1: 0.437 in (11.1 mm). Inner Ring Width B: 1.11 in (28.2 mm). Dimension S1: 0.762 in (19.36 mm). Dimension E: 1.173 in (29.8 mm). Dimension F: 1.327 in (33.7 mm).

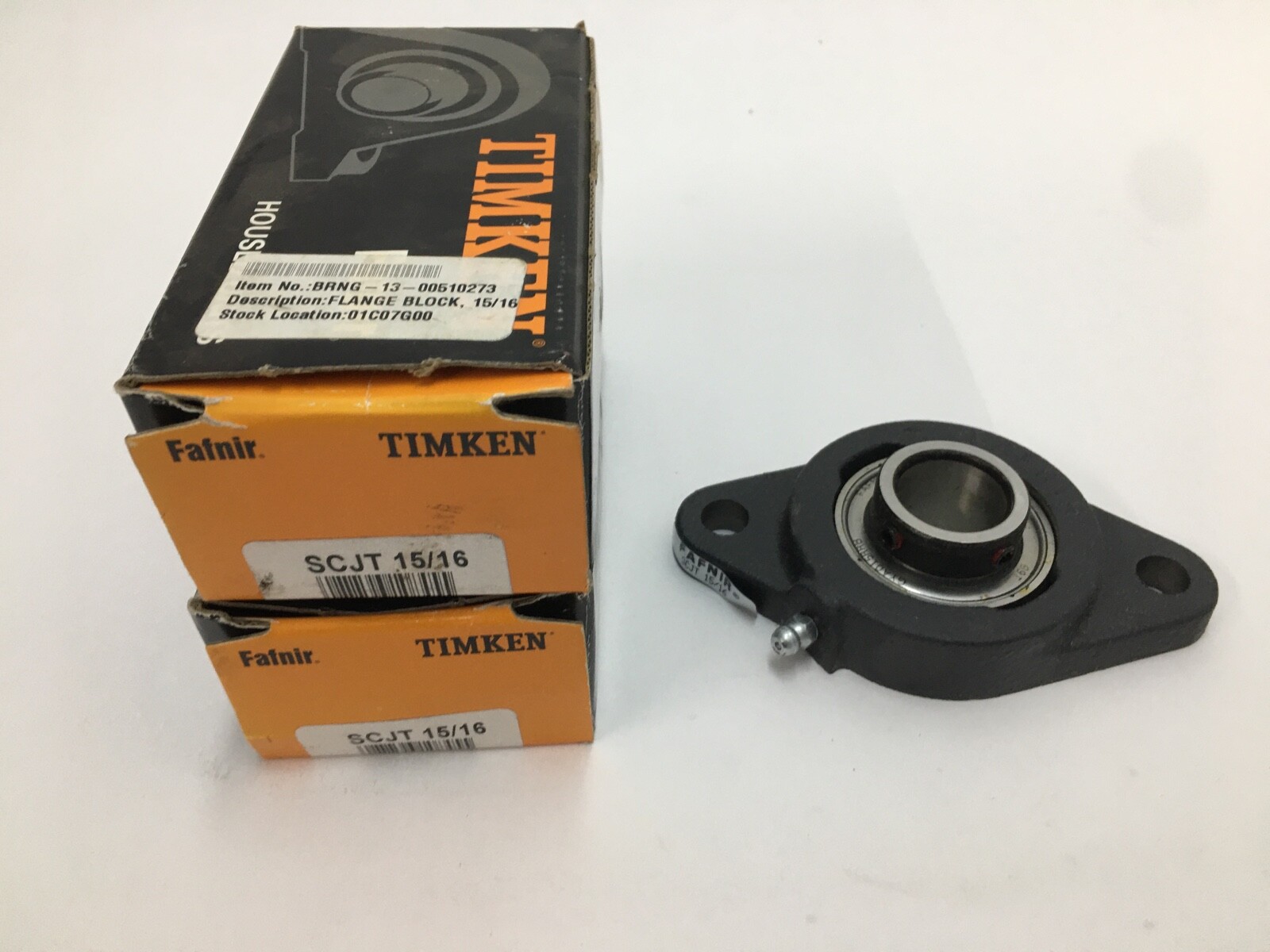

Two units per listing. Each unit is a complete two-bolt flange housing with insert bearing and setscrew collar.
Also designated SCJT15/16 and SCJT-15/16. Replacement insert: GYA015RRB.
$61.18
97 in stock
