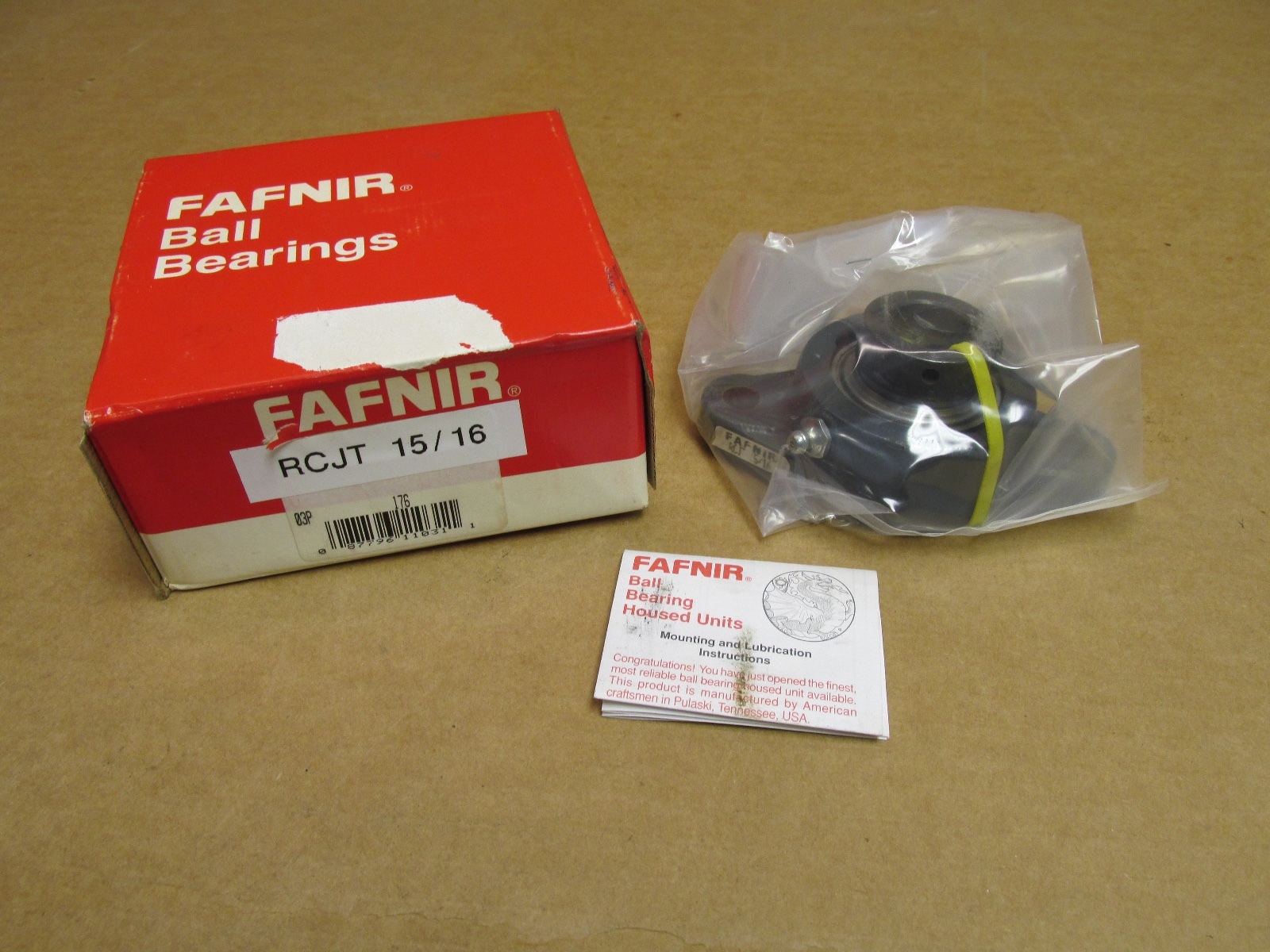

Flange mount ball bearing unit, 15/16 in (0.9375 in) bore, cast iron housing, eccentric locking collar, self-aligning insert. New old stock, 1 Pc.
List Price
$31.59
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | RCJT15/16 |
| GTIN | 087796110311 |
| Model | RCJT 15/16 |
| ID | 0.9375 in |
| Series | RCJT |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Standard Grease |
| Material | Cast iron |
| Rolling Elements | Ball |
| Bearing Type | Flange Mount Ball Bearing Unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Heavy Duty |
| Locking Device | Eccentric Collar |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Base Number | RCJT |
| Industry Terms | flange bearing unit; flange mounted ball bearing; eccentric collar flange unit; 15/16 flange bearing; mounted bearing unit; flange block bearing |
| Common Misspellings | Fafnier RCJT15/16; Fafner RCJT 15/16; Fanir RCJT15/16; Fafnir RCT15/16; RCJ T 15/16 |
| Application Types | conveyors; bulk material handling; agricultural machinery; light industrial machinery; shaft support on machine frames |
| Bore Shaft Size | 0.9375 in |
| Housing Style | Flange mount |
| Locking Method | Eccentric locking collar |
| Mpn Variants | RCJT15/16; RCJT-15/16; RCJT 15/16; RCJ15/16; RCJT1516 |
| Design Units | Imperial |
Fafnir RCJT 15/16, a flange mount ball bearing unit supplied with its eccentric locking collar. Unit Quantity: 1 Pc. One complete flange unit with its insert and locking collar. Condition: new old stock, open box.
RCJ — Fafnir flange mount unit with a self-aligning spherical-seat insert.
15/16 — the shaft size in inches, which is how this range is numbered.
Bore / Shaft Size: 0.9375 in (15/16 in). Housing Style: Flange mount. Housing Material: Cast iron. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Locking Method: Eccentric locking collar. Unit Quantity: 1 Pc.
Mounting: flange housing bolted flat to the machine frame. Shaft fit: 0.9375 in straight bore. Locking: eccentric collar turned against the inner ring and set with its grub screw, which holds the unit on a plain drawn shaft with no shoulder, threaded nut or keyway. Insert: self-aligning on a spherical seat inside the housing.
Fafnir RCJ flange units are numbered by shaft size in inches within Fafnir’s own housing and insert system. Part number variants: RCJT15/16, RCJT-15/16, RCJT 15/16, RCJ15/16, RCJT1516.
It fits a 15/16 in (0.9375 in) shaft through a straight bore.
An eccentric locking collar grips the shaft by cam action and is set with a grub screw.
A cast iron flange mount housing with a self-aligning insert on a spherical seat.
