Availability:
77 in stock
Deep groove ball bearing, 35 x 62 x 14 mm, steel shields both sides, snap ring and outer-ring groove. CN clearance, pressed steel cage, 17.6 kN dynamic.
List Price
$11.48
77 in stock
77 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 6007ZZNR |
| Model | 6007-Z |
| Bearing Type | Ball Bearing, Double Shield |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Ultra Clean Steel |
|---|---|
| Series | 6000 |
| Condition | New |
| Lubricant | Grease |
| Base Number | 6007 |
| Total Width | 14 mm |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 6007ZZNR, 6007-ZZ-NR, 6007 ZZ NR, 6007NR, 6007Z |
| Precision Class | ISO Normal (ABEC 1 / P0) |
| Closure Type | Double Shield |
| Cage Type | Pressed |
| Dynamic Load Rating | 17.6 kN (17,600 N) |
| Static Load Rating | 10.3 kN (10,300 N) |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Cage Material | Steel |
| Limiting Speed | 13,000 rpm (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | With Snap Ring |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Part Number | 6007ZZNR |
| Cross Reference 1 | SKF 6007-2ZNR |
|---|---|
| Cross Reference 2 | FAG 6007-2Z-NR |
| Cross Reference 3 | NSK 6007ZZNRCM |

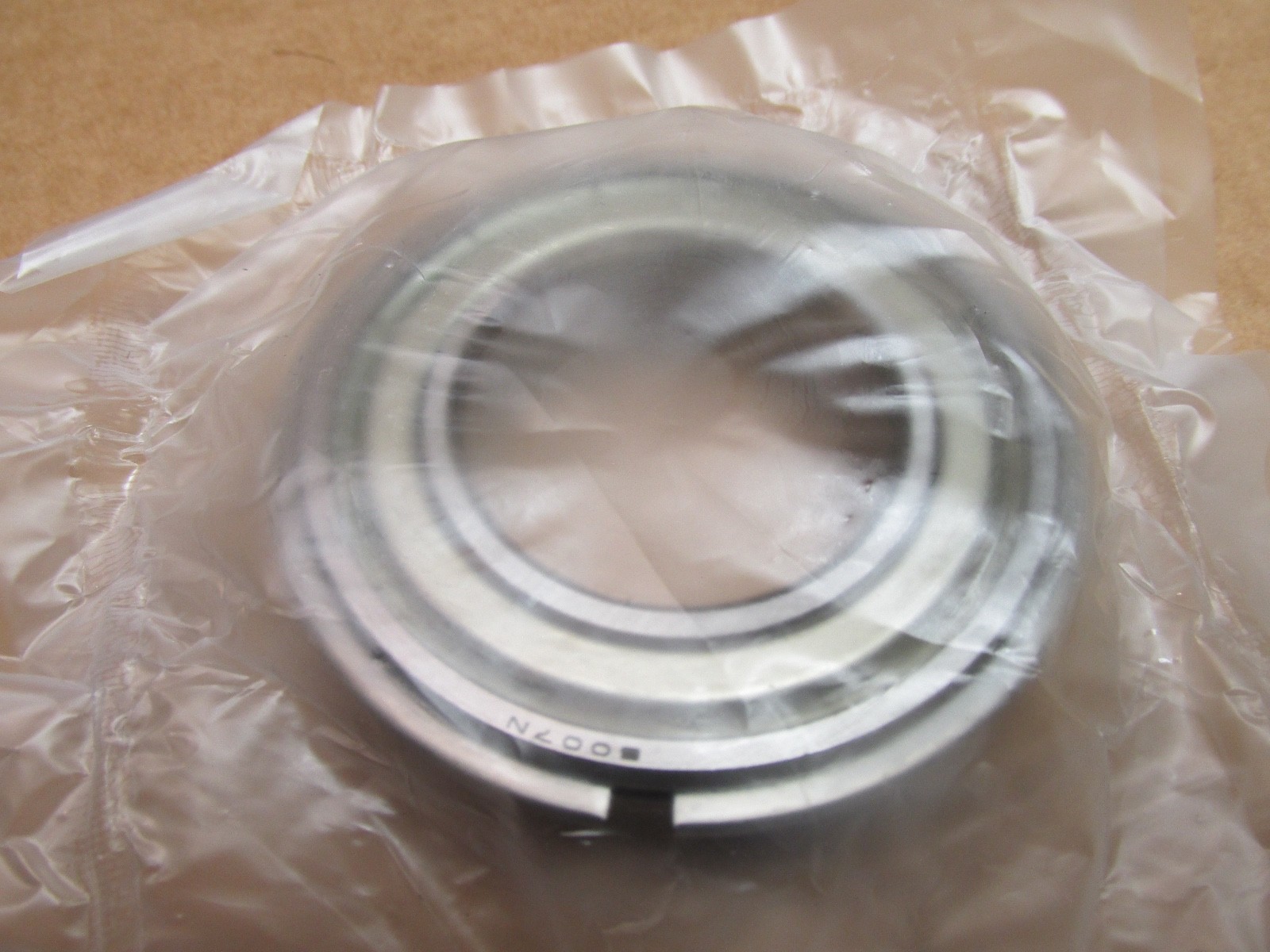

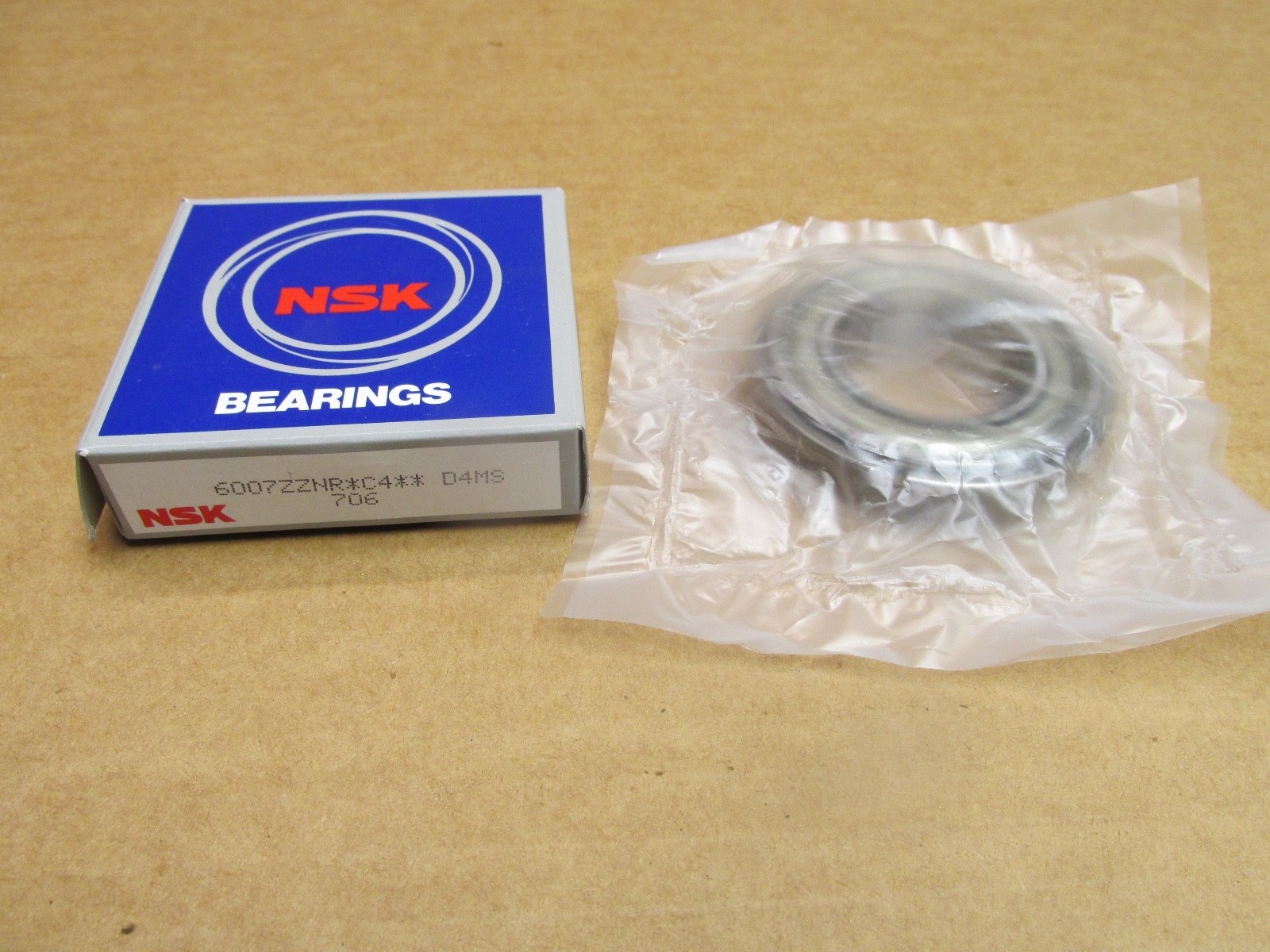

NSK 6007ZZNR single-row deep groove ball bearing, shielded both sides, with a snap ring groove and snap ring in the outer ring. Series: 6000. Bore: 35 mm. Outside Diameter: 62 mm. Width: 14 mm. Bore Type: Straight. Rolling Elements: Ball. Closure Type: Steel shields both sides. Snap Ring: With snap ring.
6007 — NSK’s number for the ISO 6007 size, 35 x 62 x 14 mm.
ZZ — pressed steel shields on both faces. On NSK these are non-contact metal shields.
NR — snap ring groove machined into the outer ring, with the snap ring supplied.
Dynamic Load Rating: 17,600 N (17.6 kN). Static Load Rating: 10,300 N (10.3 kN). Limiting Speed: 13,000 r/min on grease. Internal Clearance: CN. Precision Class: ISO Normal, ABEC 1. Cage Material: Steel. Cage Type: Pressed. Chamfer r min: 1 mm. Number of balls: 14. Ball diameter: 6.747 mm.
Steel shields hold factory grease in and coarse contamination out with no rubbing contact, so the shielded bearing keeps almost the full open-bearing speed capability. CN is the standard clearance band and suits an ordinary interference fit on the shaft with a normal running temperature difference across the rings.
Shaft abutment diameter da: 40 mm minimum, 41.5 mm maximum. Housing abutment diameter Da: 57 mm maximum. Shaft or housing fillet radius ra: 1 mm maximum. The snap ring seats in the outer ring groove and locates the bearing axially against a housing counterbore, which lets a through-bored housing carry axial load with no separate end cap.
Unit Quantity: 1 Pc. One bearing, supplied with its snap ring.
Cross-references: SKF 6007-2ZNR, FAG 6007-2Z-NR. Searchable variants of the designation: 6007ZZNR, 6007-ZZ-NR, 6007 ZZ NR, 6007NR, 6007Z. A 6007ZZ is the same bearing in a plain outer ring, so it is a substitution only where the housing provides its own axial location.
