DodgeF4B-SC-101Four-Bolt Square Flange Ball Bearing Unit – 1-1/16 in Bore, 206 Series, Setscrew Lock, Non-Expansion, 3-1/4 in Bolt Centres

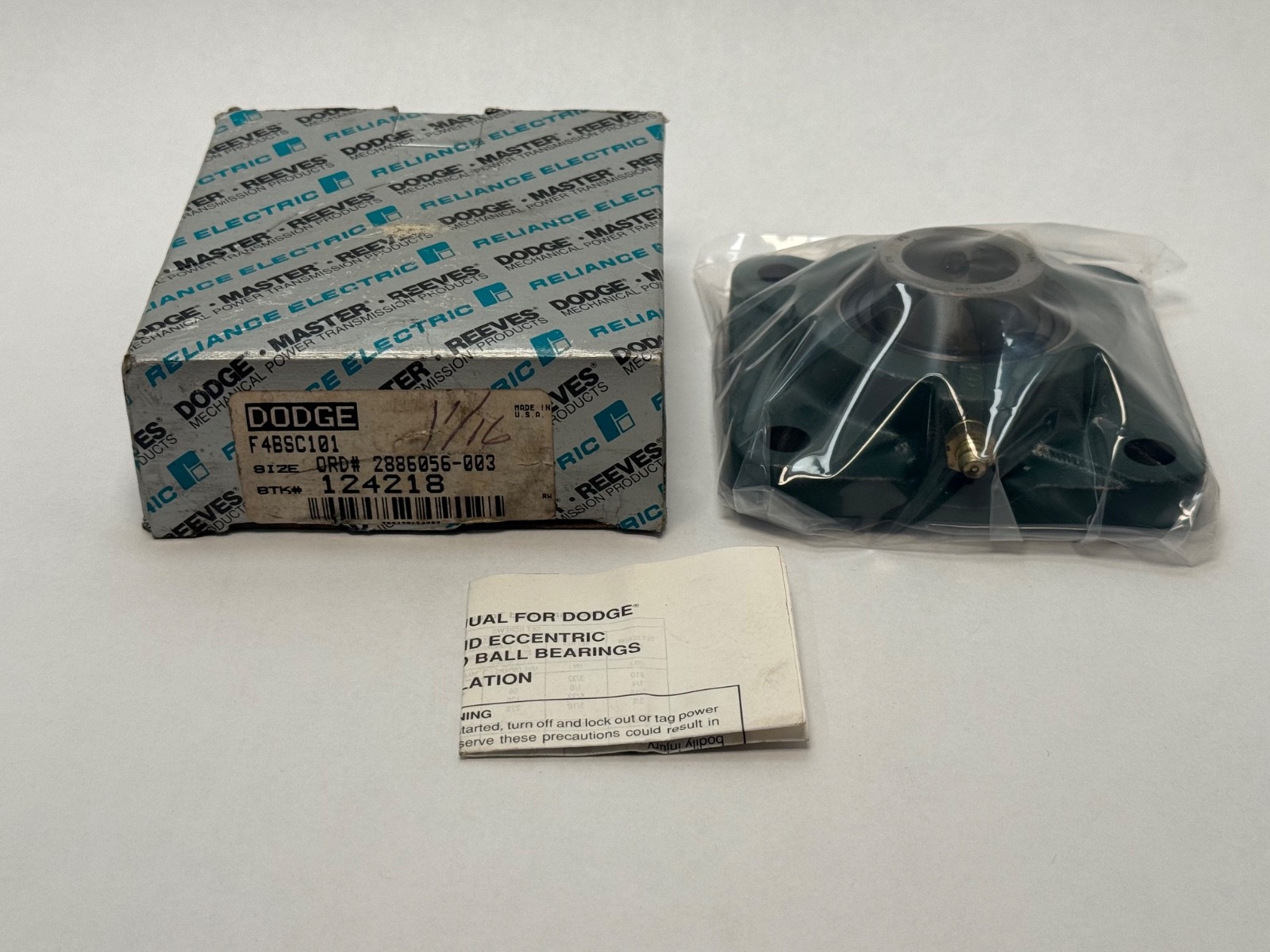

Condition: New – Open box
Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

Four-bolt square flange mounted ball bearing unit, 1-1/16 in bore, 206-series insert, setscrew lock, non-expansion, cast iron, 3-1/4 in bolt centres.

Same day shipment

List Price

$33.96

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPNF4B-SC-101
Model124218 / F4B SC 101
ID1-1/16 in

Technical Specifications

MaterialCast Iron
TypeFlanged Mount Bearing
Category Id35565
CurrencyUSD
Base NumberF4B-SC-101
Industry Termsfour bolt flange bearing; square flange bearing unit; flange mount bearing; 4-bolt flangette unit; mounted flange ball bearing; bolt-on flange block
Common MisspellingsF4BSC 101; F4B-CS-101; F4B SC101; Dodge F4BSC-1O1
Application TypesFans and blowers; belt and roller conveyors; agricultural machinery; general light to normal duty line shafts; material handling
Bolt Center To Center Length3-1/4 in (82.55 mm)
Bearing Insert TypeBall
Bore Shaft Size1-1/16 in (26.99 mm)
Housing StyleFour-bolt square flange (F4B)
Locking Method65° setscrews in the extended inner ring
Mpn VariantsF4B-SC-101; F4BSC101; F4B SC 101; 124218; F4B-SC101; F4BSC-101
Manufacturer StatusDodge mounted bearings now trade as Dodge Industrial (RBC Bearings); previously Baldor Dodge. Sister brands SealMaster and Link-Belt are Regal Rexnord.
Compatible With ReplacesF2B-SC-101 (two-bolt flange), P2B-SC-101 (pillow block): same bore
Bearing TypeMounted ball bearing unit, wide inner ring insert with self-aligning spherical outer
Number Of Rows1
Part NumberF4B-SC-101
Relubrication FeatureYes
Seller Part Number: AO6B3#BB0OZT

Product Description

What this part is:

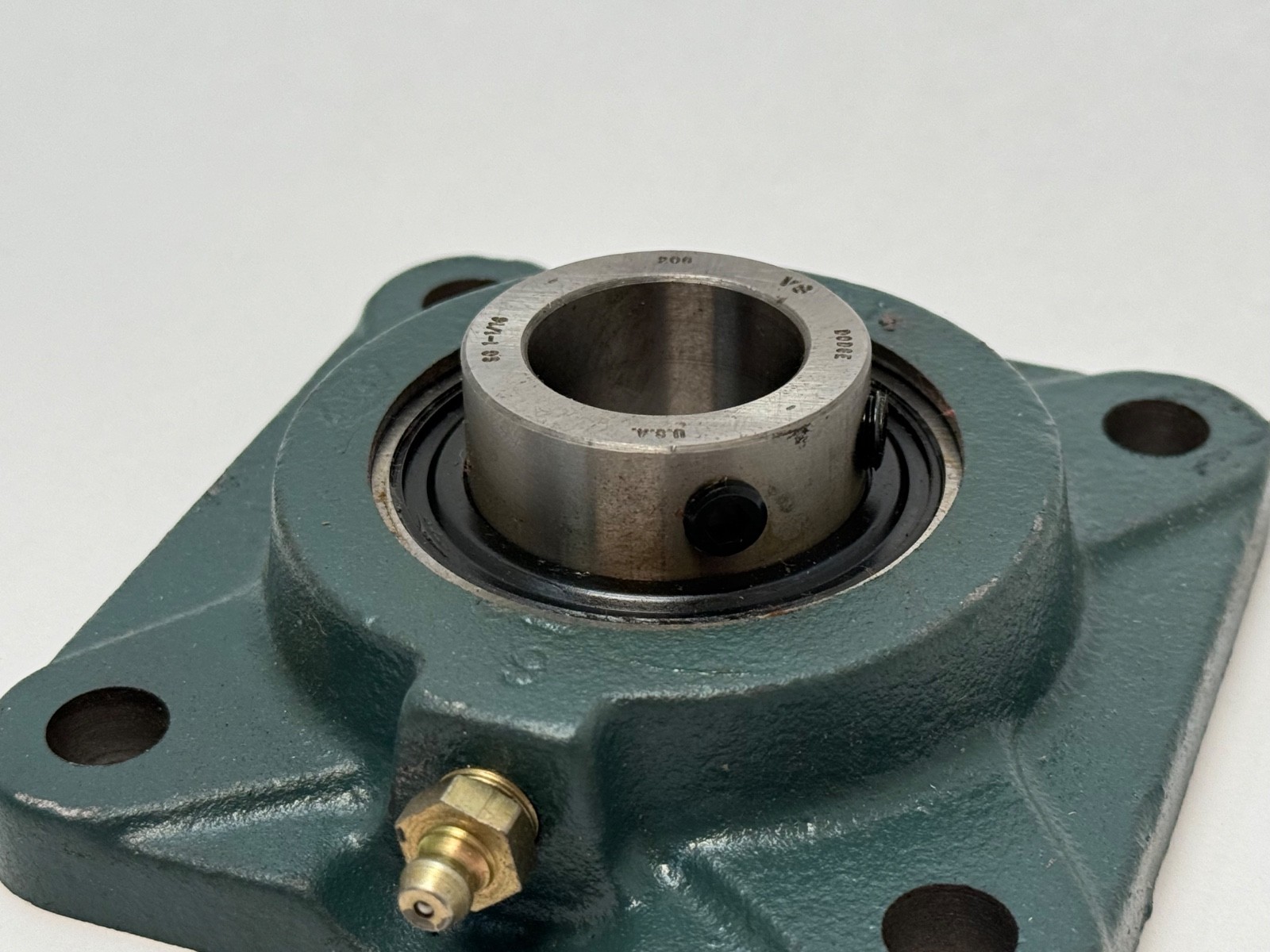

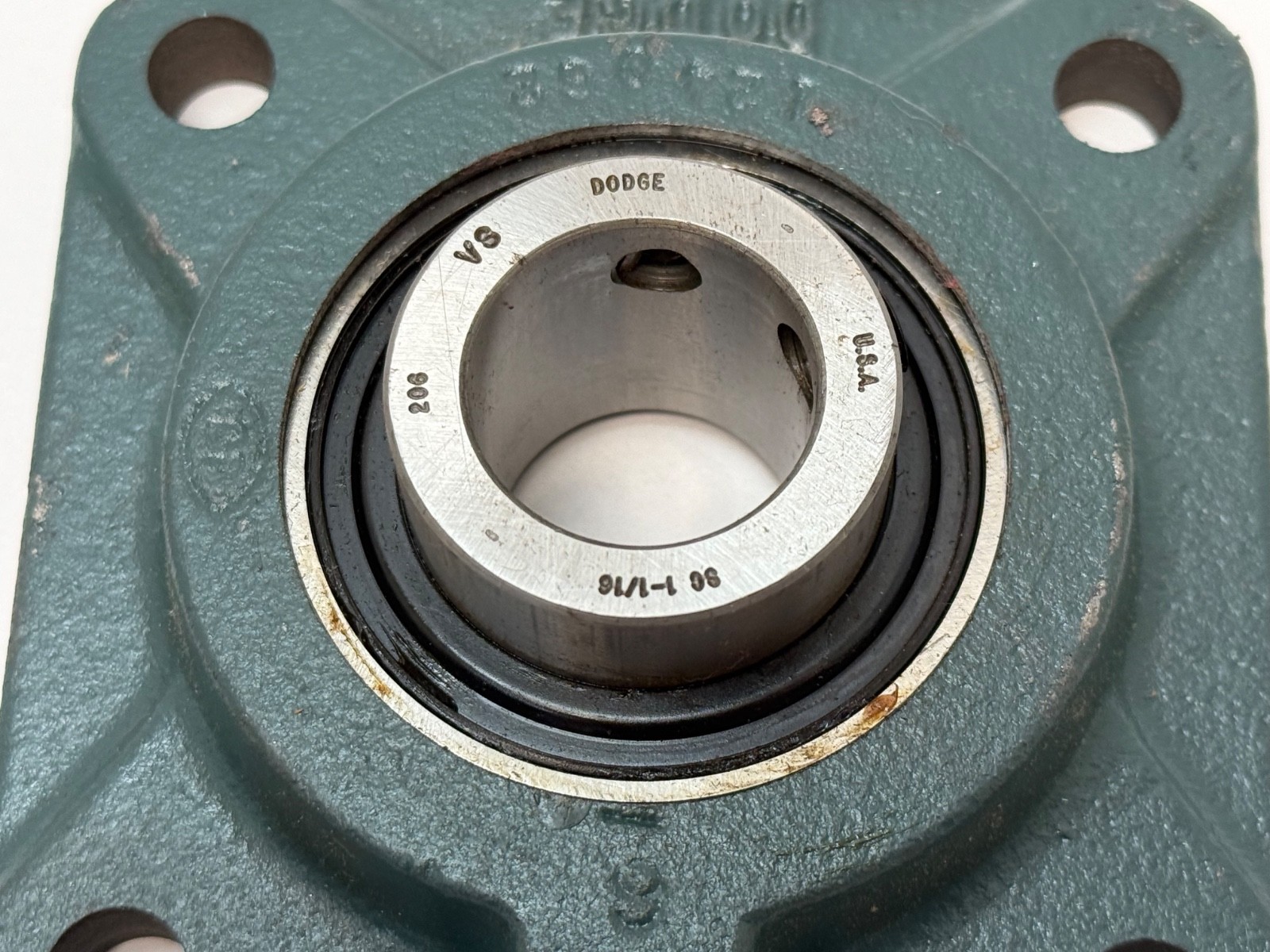

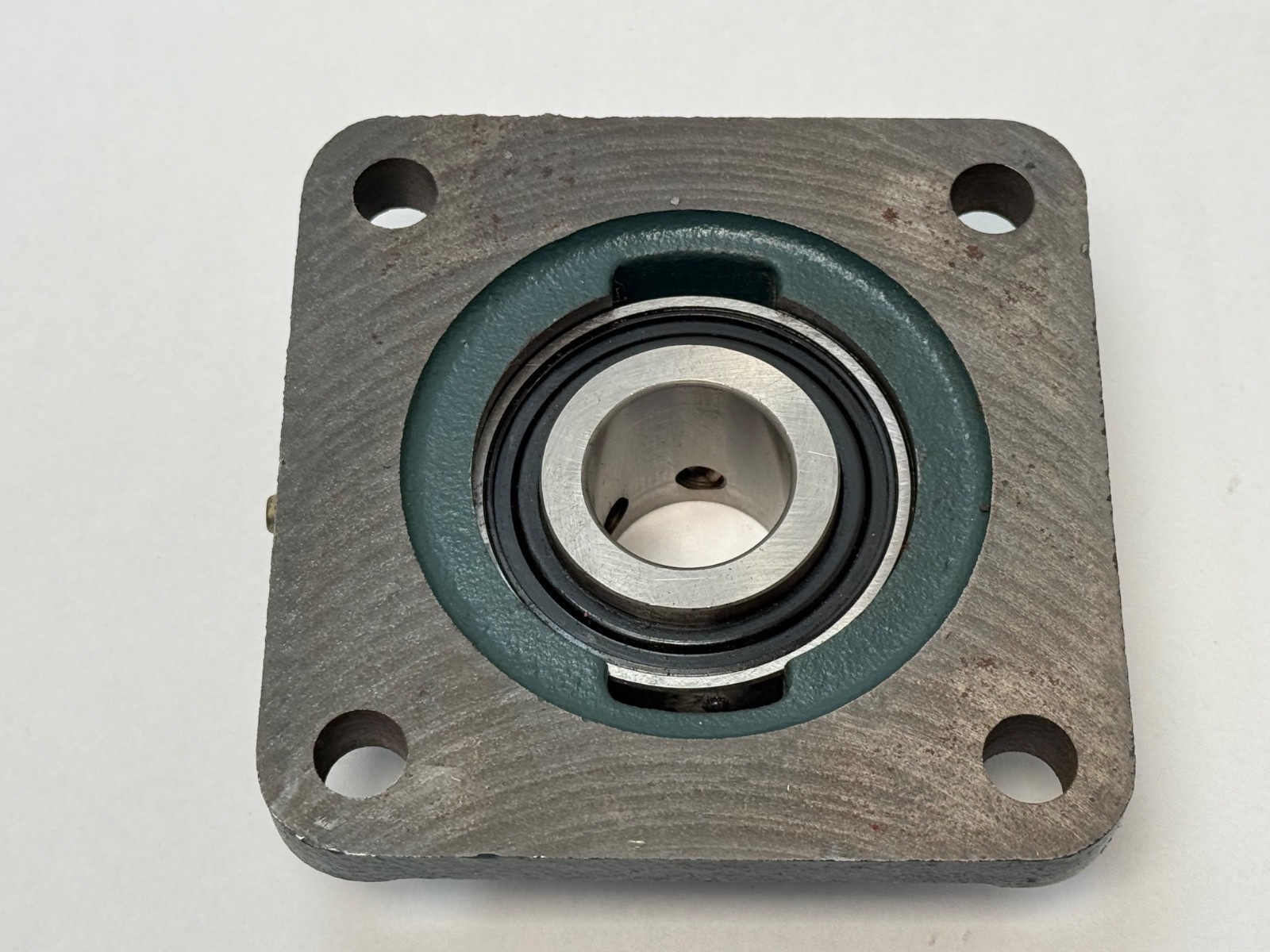

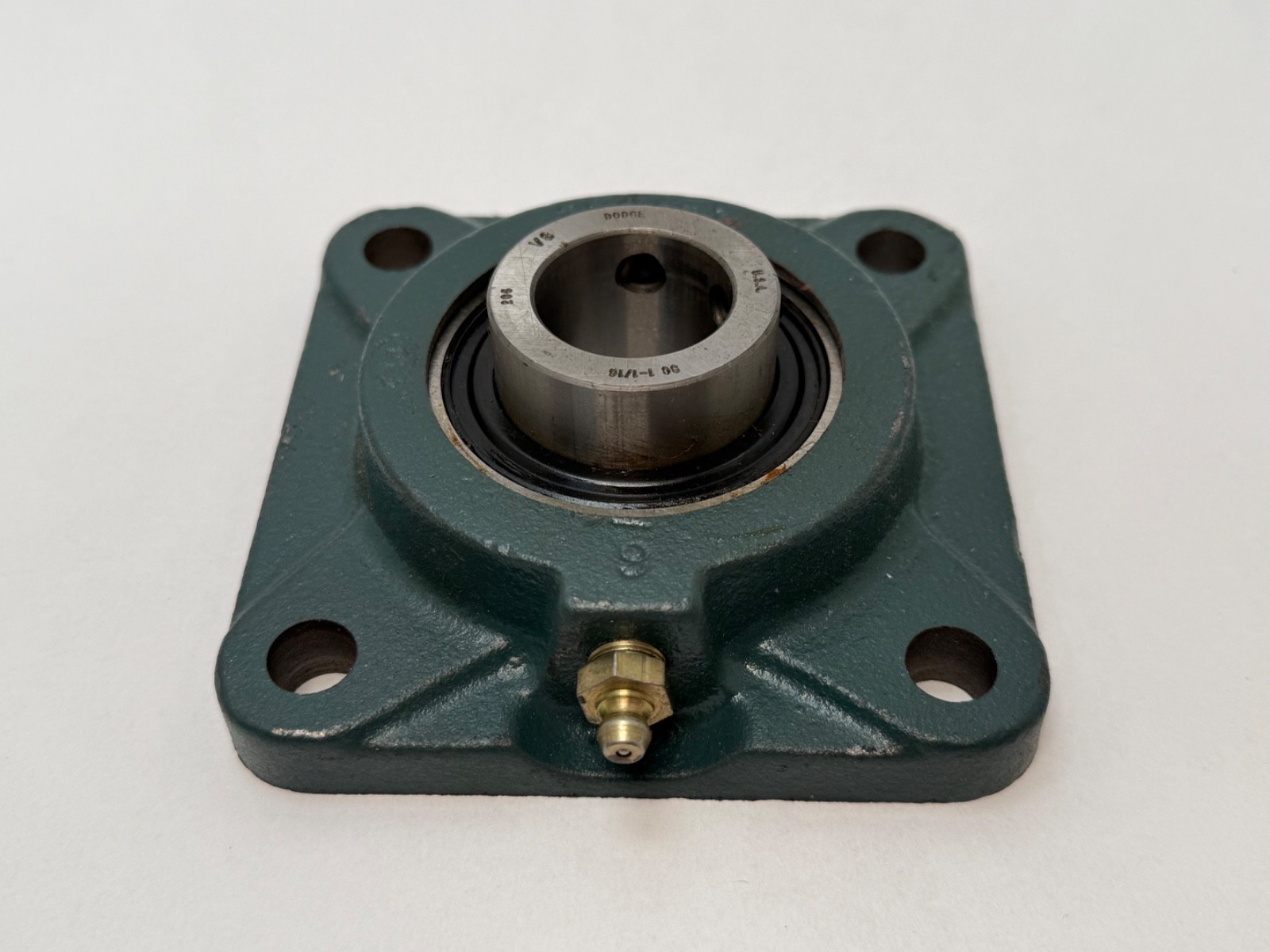

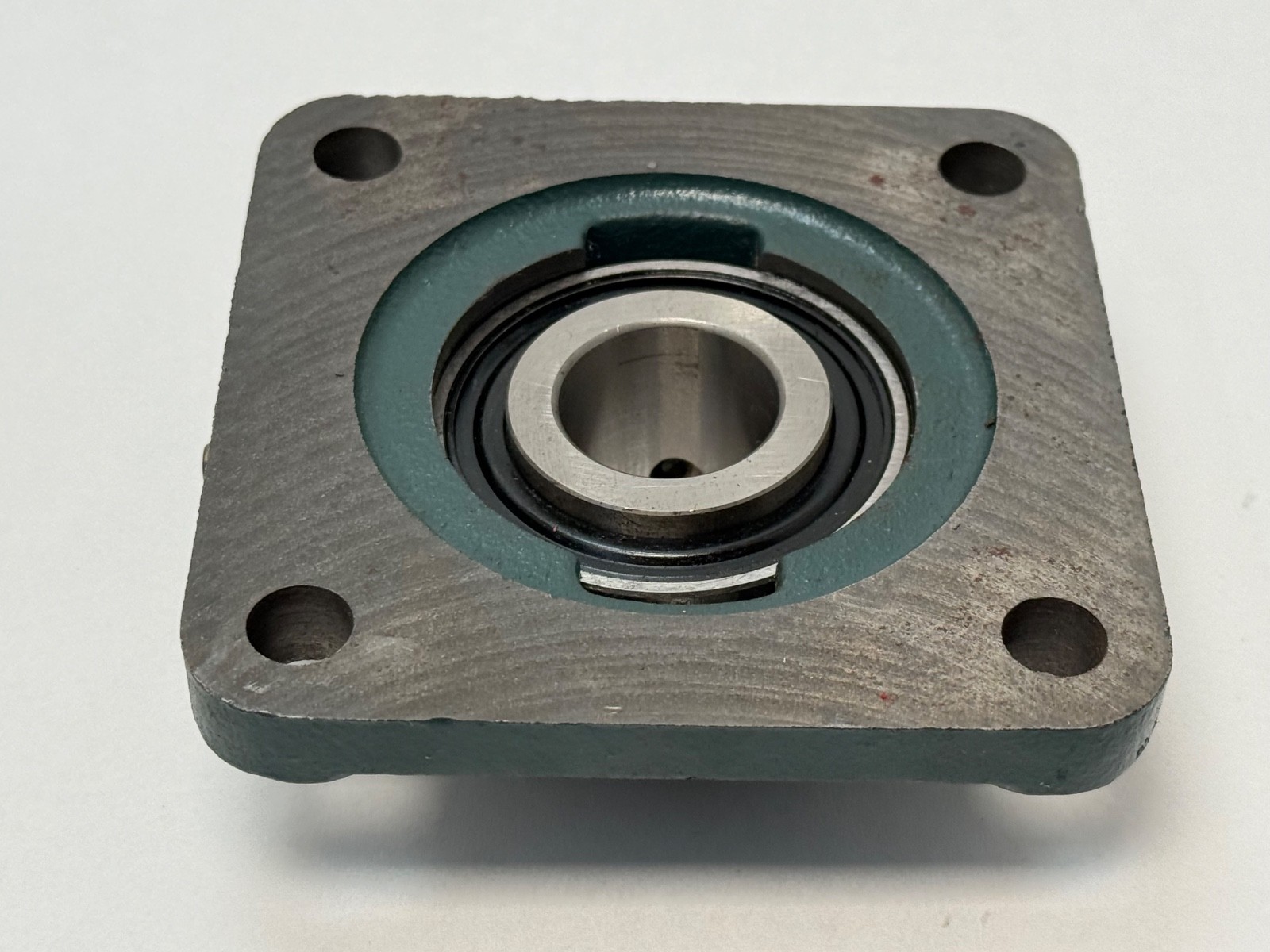

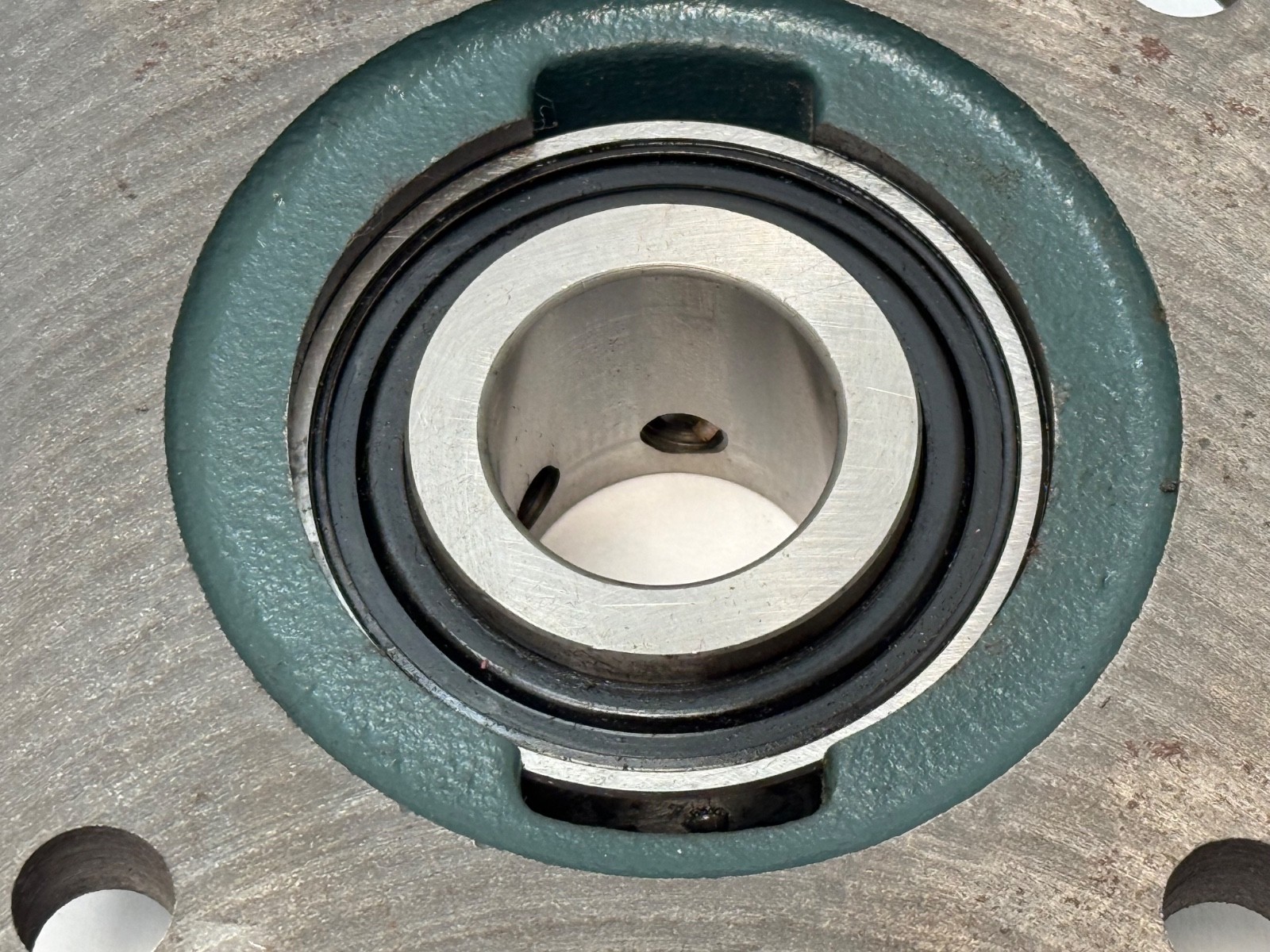

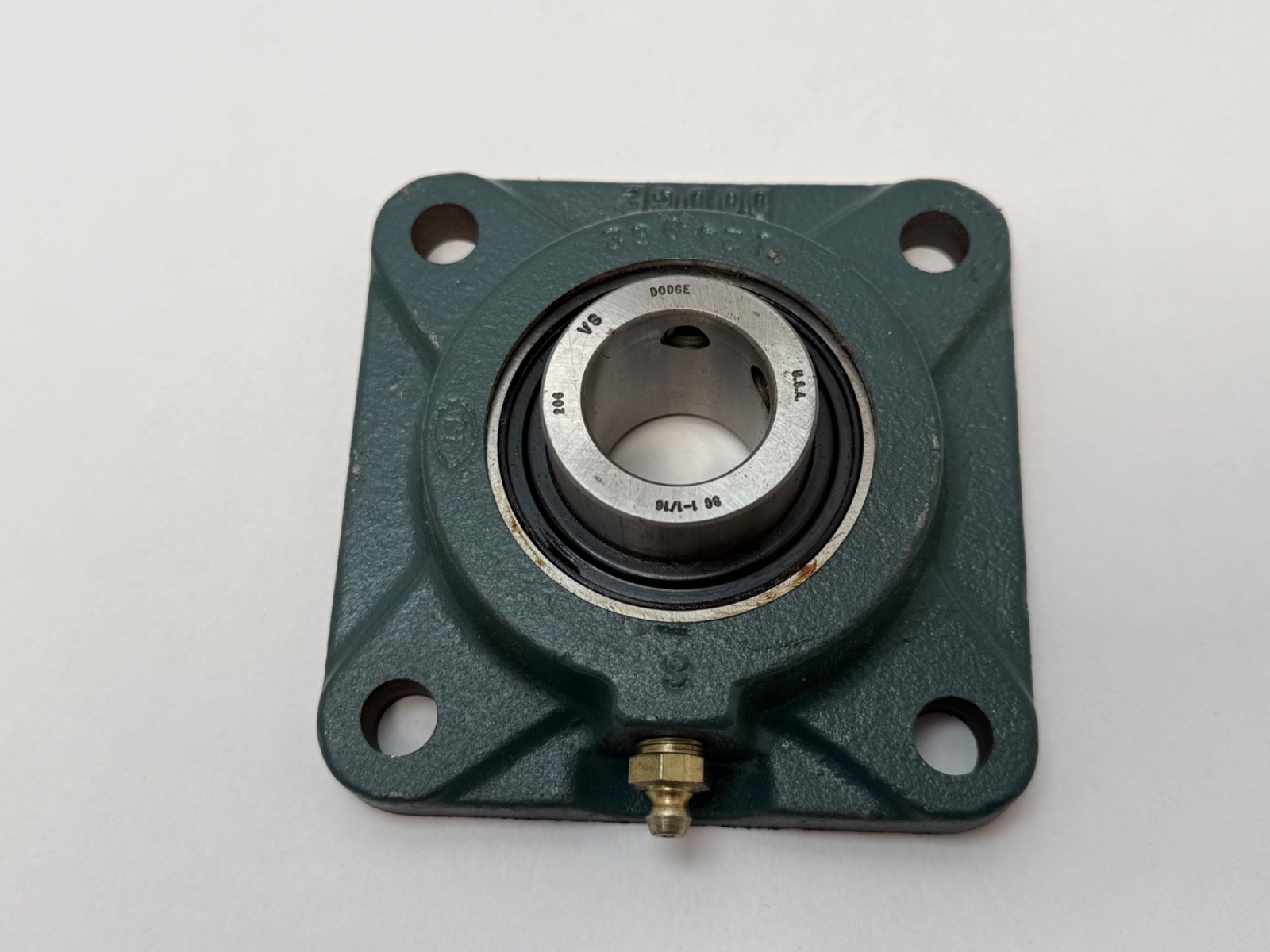

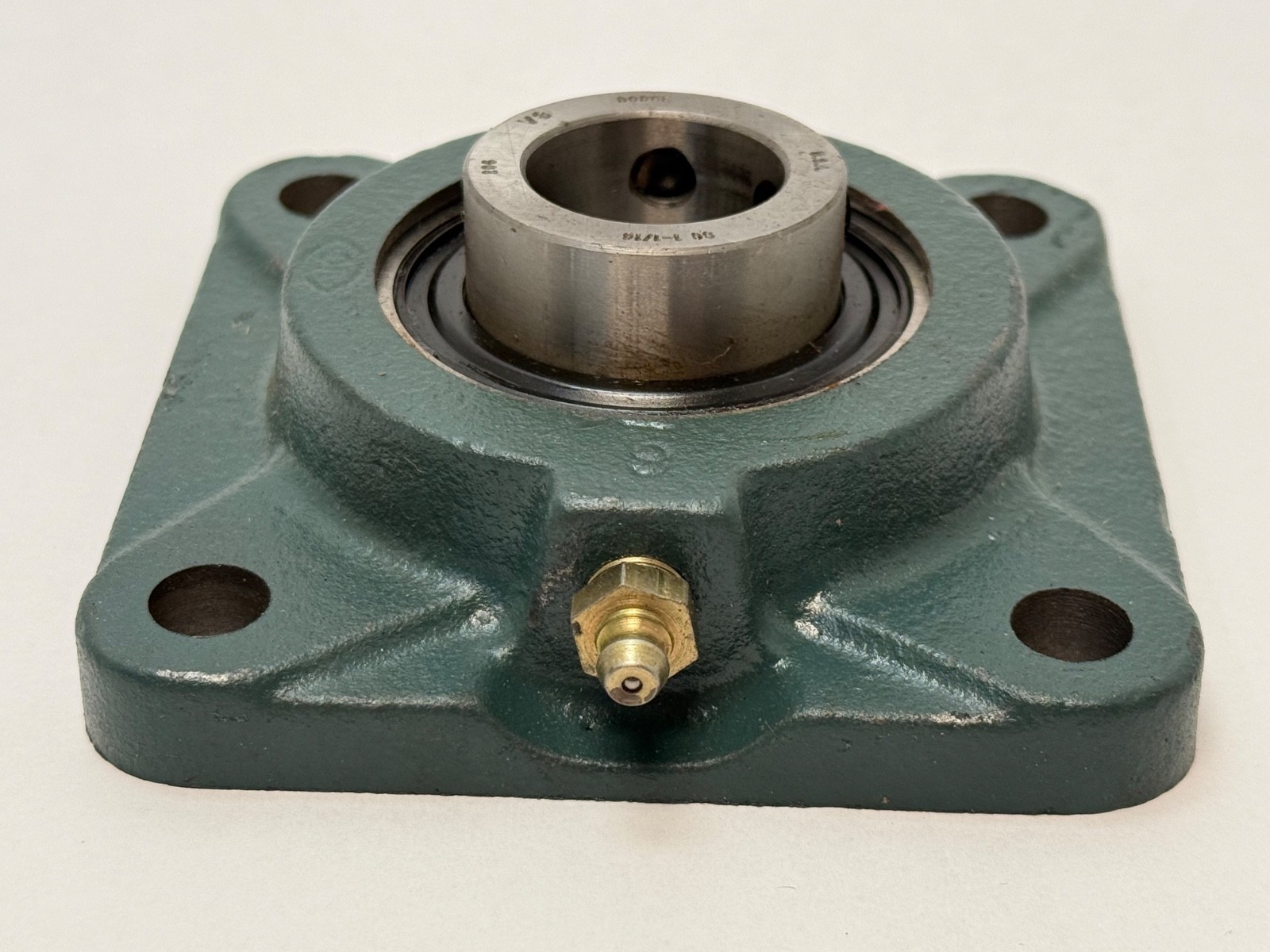

Dodge F4B-SC-101 mounted ball bearing unit: a four-bolt square flange cast iron housing with a 206-series wide-inner-ring ball bearing insert, 1-1/16 in bore, setscrew locking, non-expansion. The insert’s outer ring is spherical and seats in a spherical housing bore, so the unit self-aligns. Complete unit with insert, setscrews and seals. Unit Quantity: 1 Pc.

Decoding the designation:

F4B — Dodge housing style: F for flange, 4B for four-bolt.

SC — setscrew locking on a standard-duty ball insert.

101 — bore code, 1-1/16 in.

124218 — Dodge item number for this build.

Specifications:

Housing Style: Four-bolt square flange. Shaft Size: 1-1/16 in (26.99 mm). Insert Series: 206 wide inner ring ball. Locking Method: 65° setscrews in the extended inner ring. Expansion Type: Non-expansion (fixed). Housing Material: Cast iron. Seal: DualGuard nitrile seal, both sides. Relubrication: Greasable. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bolt Center To Center: 3-1/4 in (82.55 mm). Overall Flange Size: 4-1/4 in (107.95 mm). Overall Depth: 1.56 in (39.6 mm). The fixed unit locates the shaft axially.

Compatibility and replacement:

Dodge item number 124218; also written F4BSC101 and F4B SC 101. Same bore in other Dodge housing styles: F2B-SC-101 two-bolt flange and P2B-SC-101 pillow block. Dodge mounted bearings trade as Dodge Industrial (RBC Bearings), previously Baldor Dodge.

Frequently asked questions:

What housing style is the Dodge F4B-SC-101?

Four-bolt square flange, cast iron, with a 206-series ball insert.

What shaft size does it take?

1-1/16 in (26.99 mm), locked with setscrews.

What is the bolt spacing?

3-1/4 in (82.55 mm) bolt centers on a 4-1/4 in (107.95 mm) flange.
