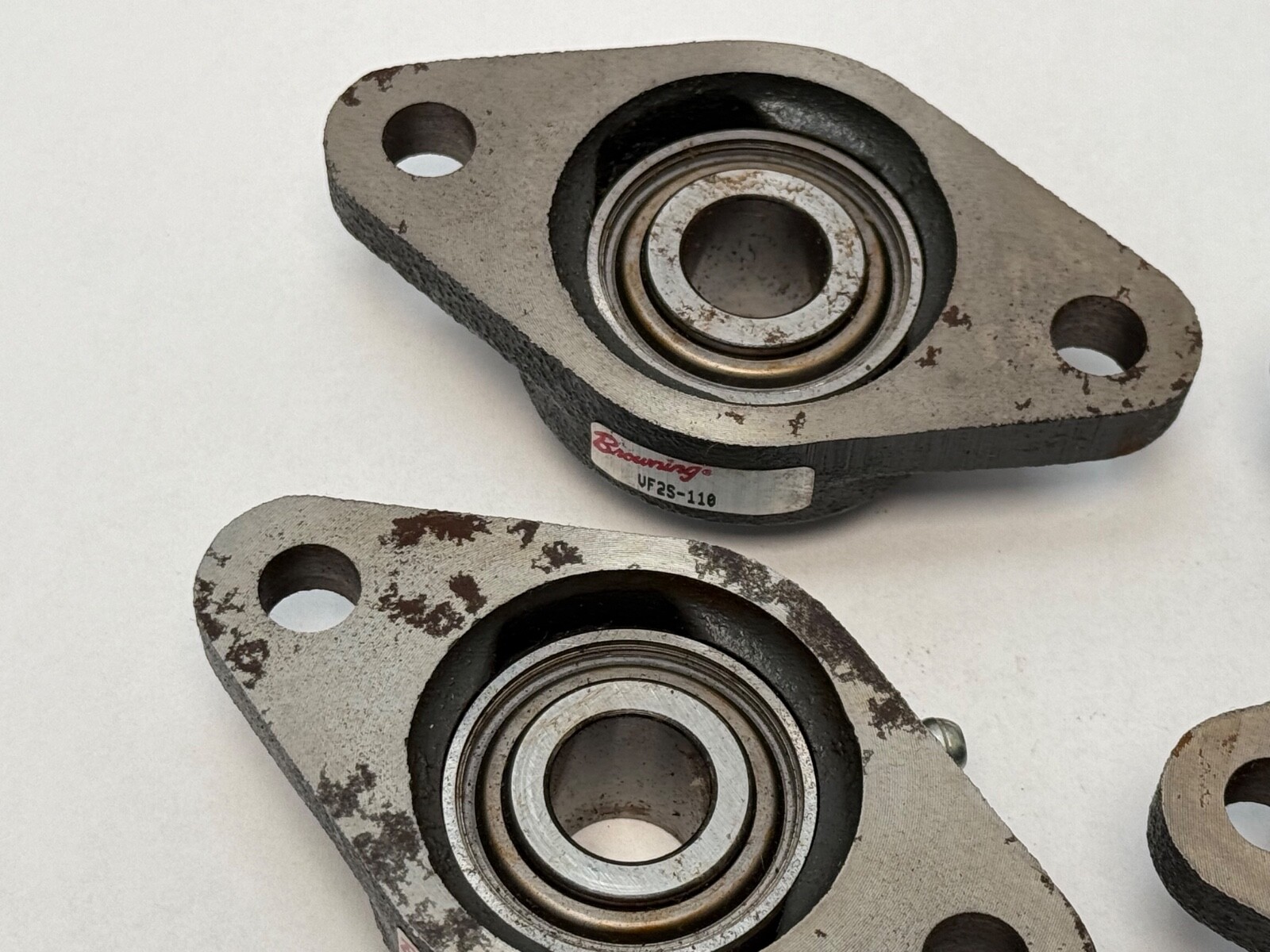

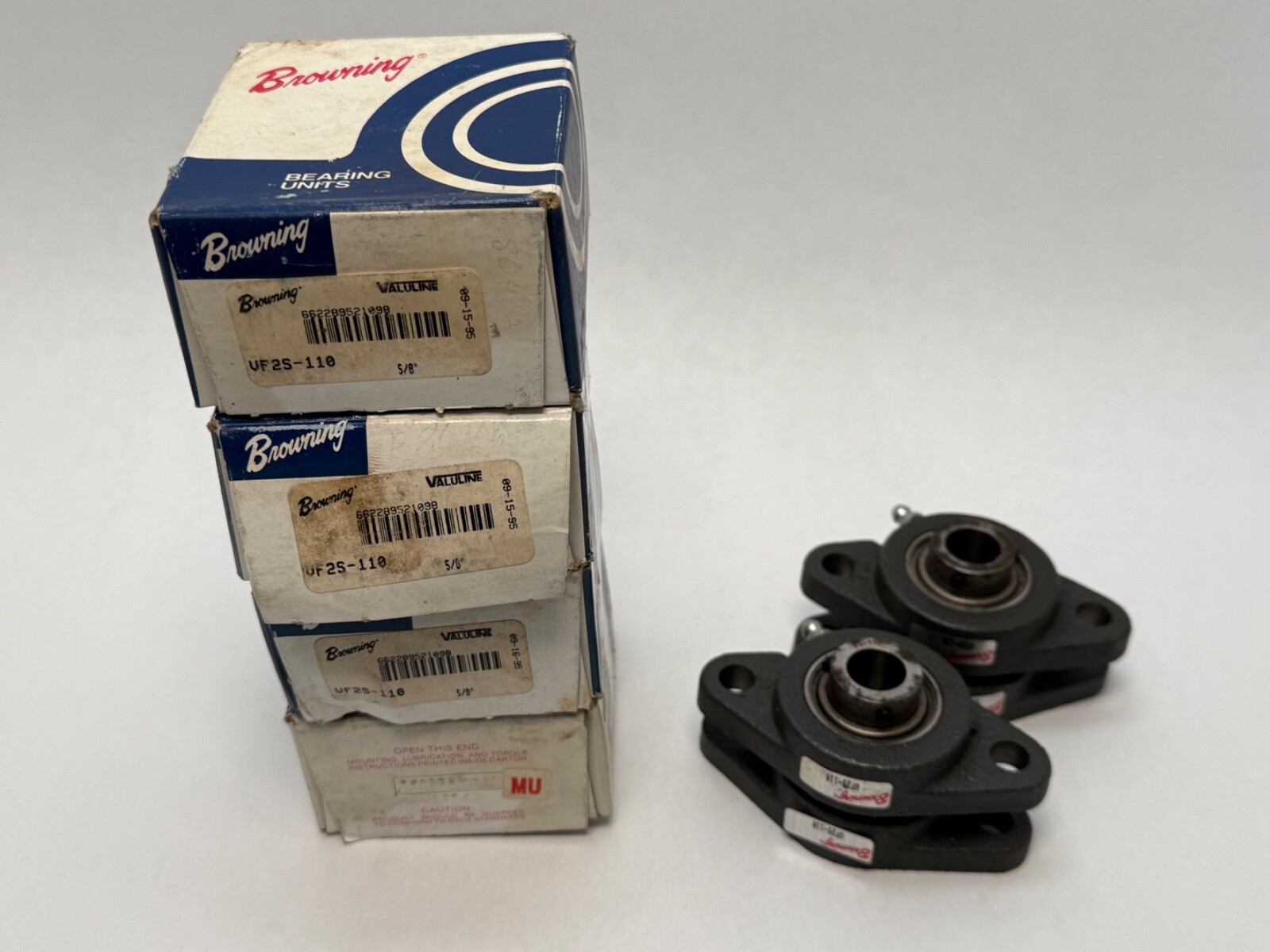

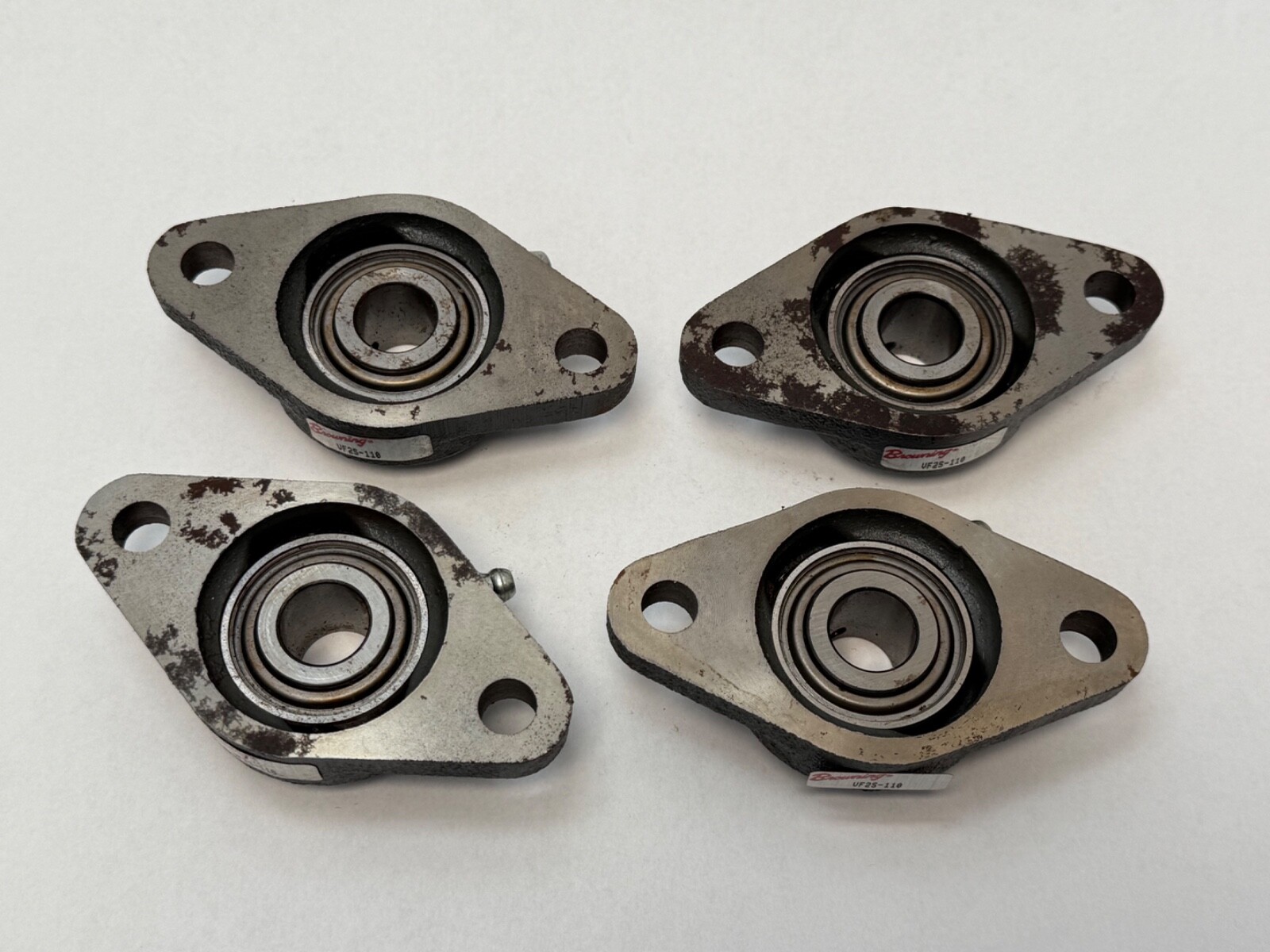

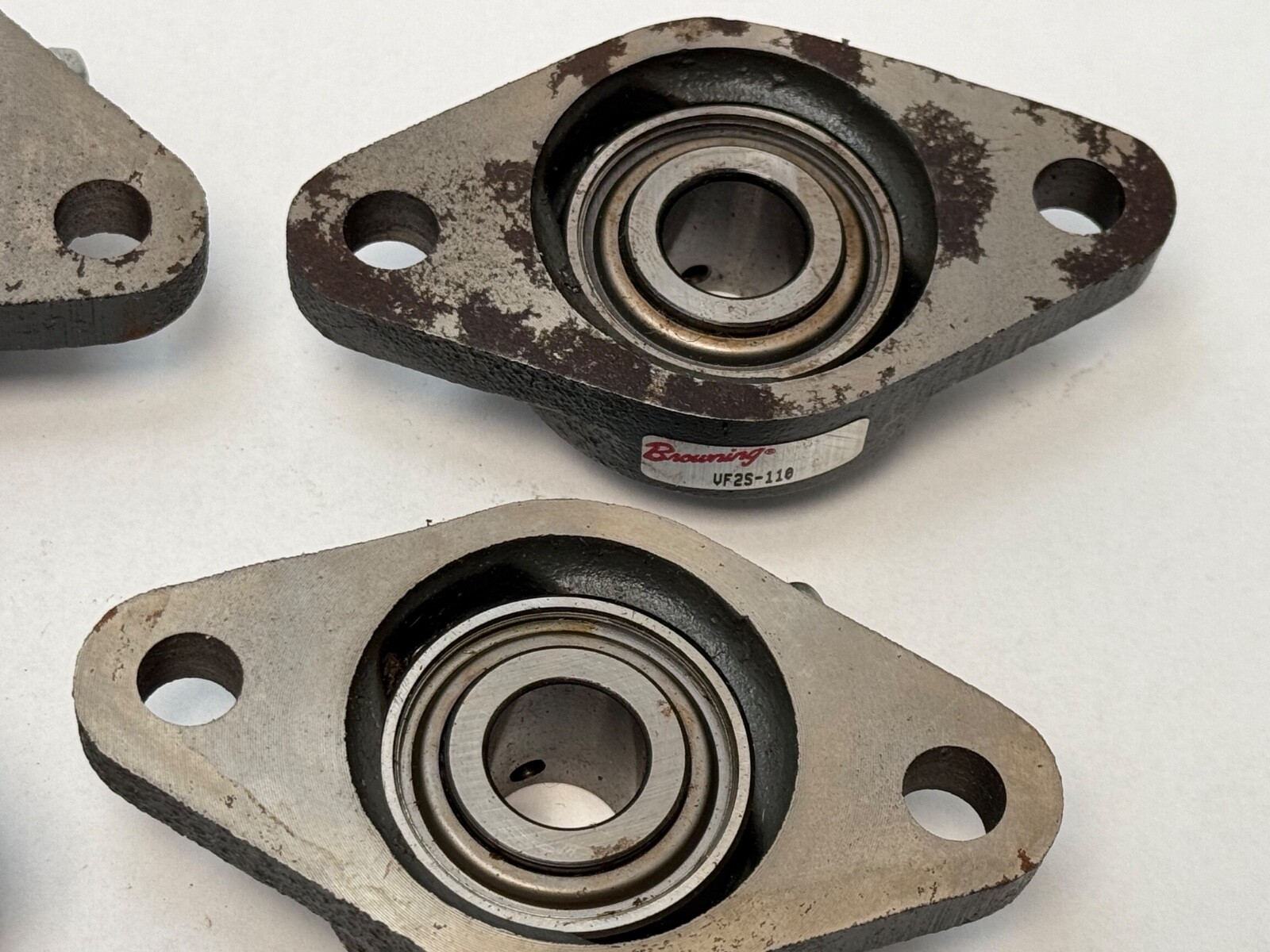

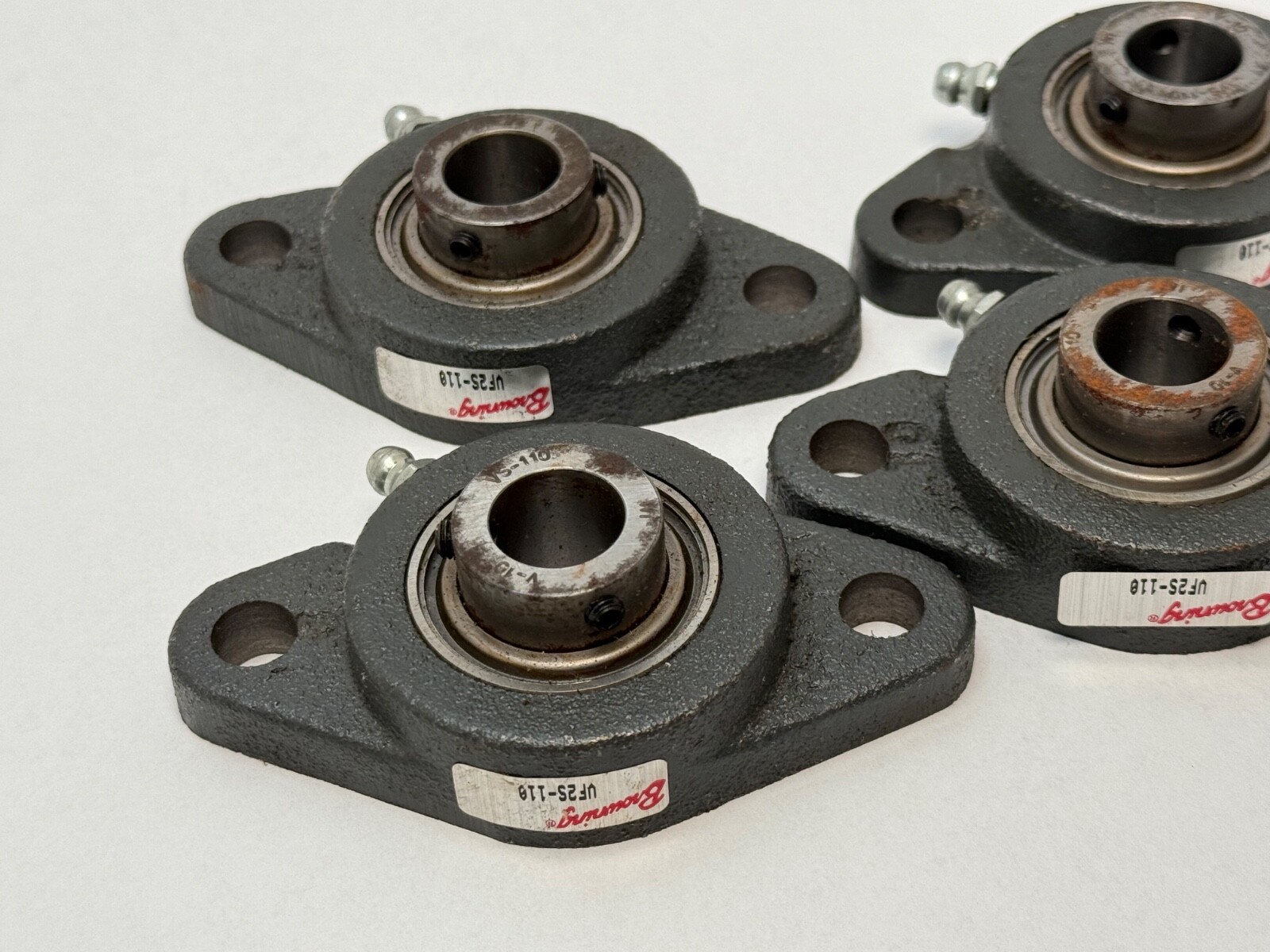

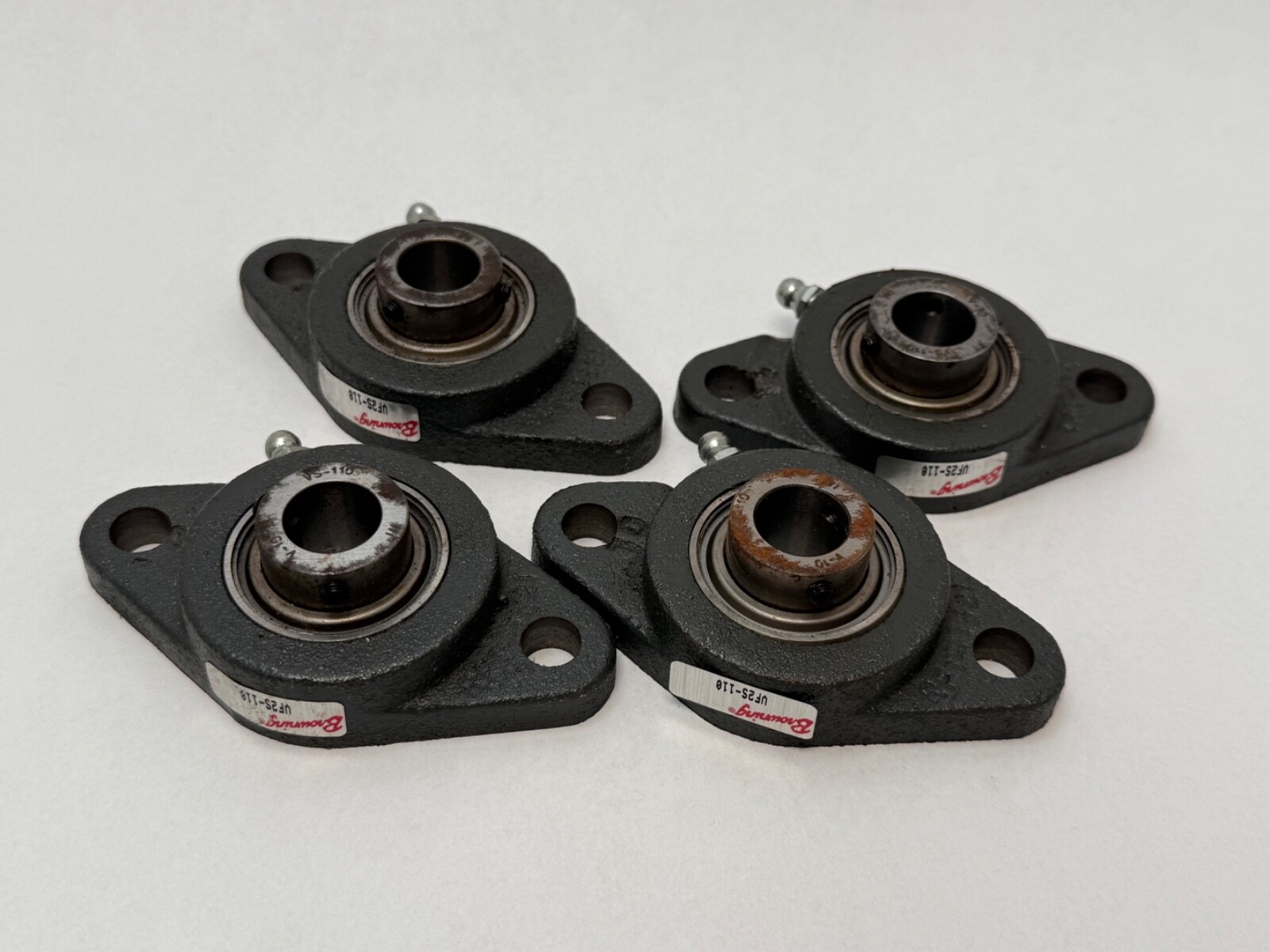

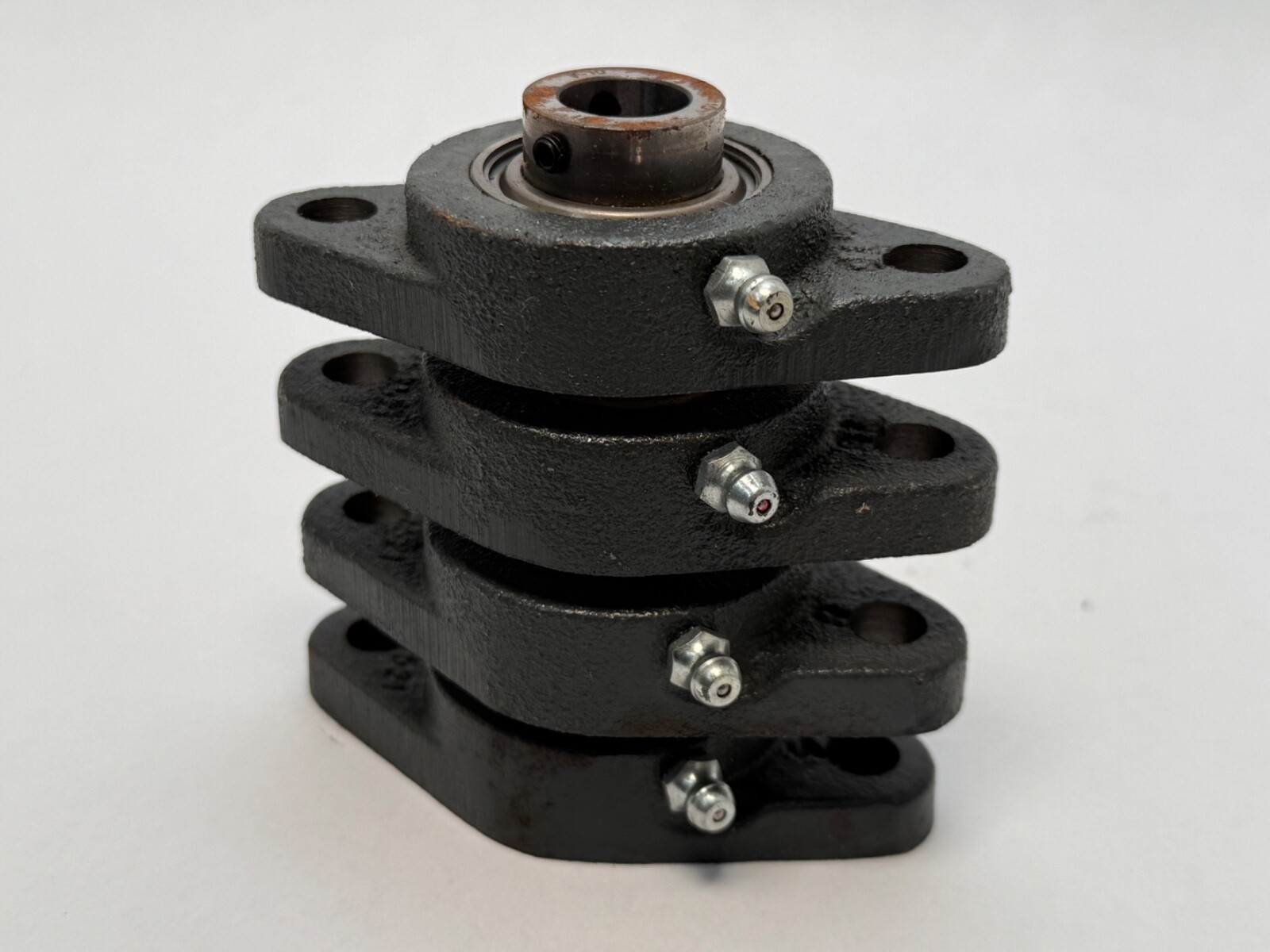

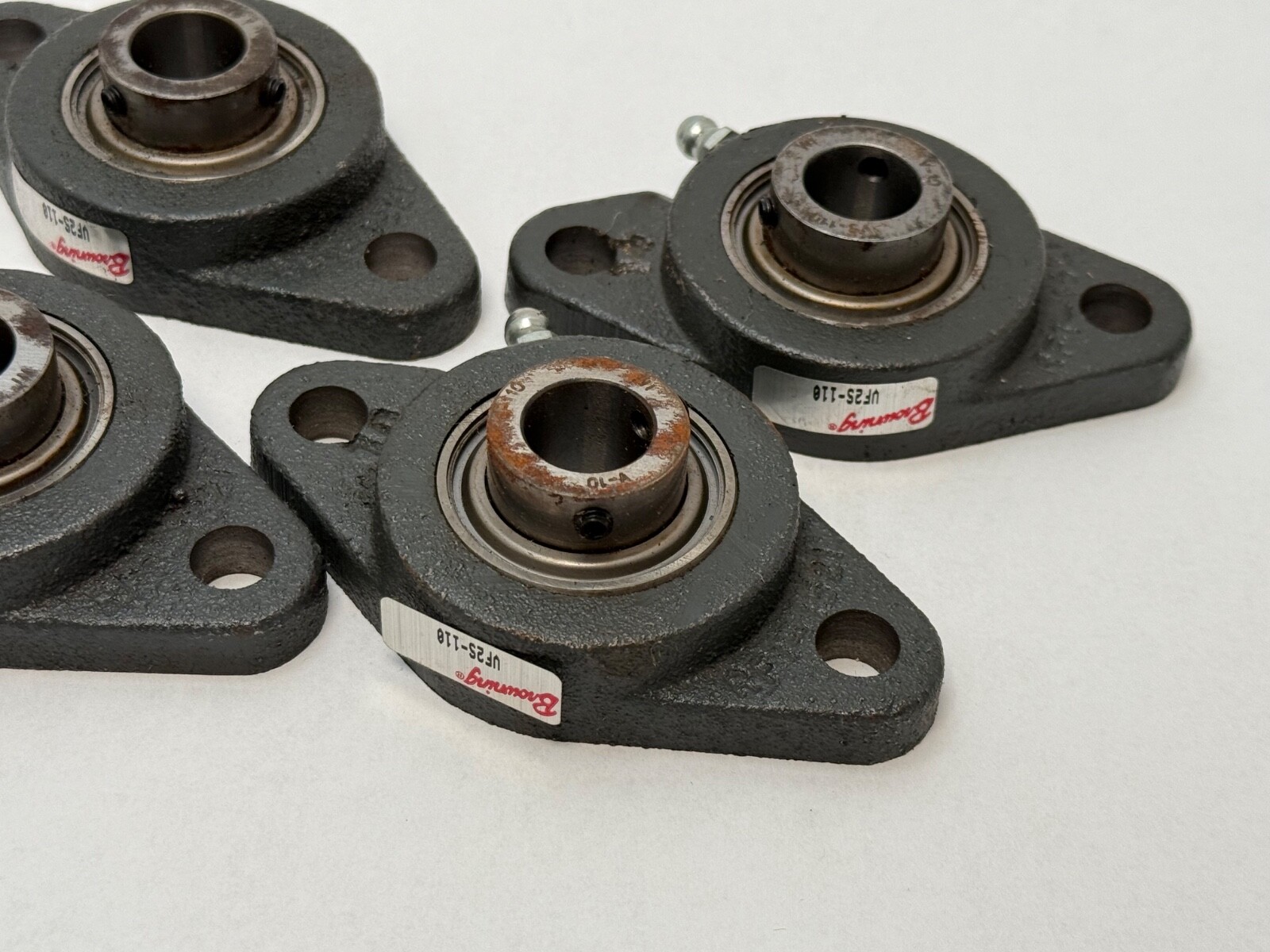

Browning VF2S-110 two-bolt cast iron flange bearing unit, 5/8 in bore, 3 in bolt centres, setscrew lock, contact seals, regreasable. Set of 4 pieces.
List Price
$74.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Browning |
|---|---|
| MPN | VF2S-110 |
| GTIN | 662289521098 |
| Model | VF2S 110 |
| ID | 0.625 in |
| Type | Flanged Mount Bearing |
|---|---|
| Lubricant | Lithium complex NLGI 2 grease |
| Material | Cast iron housing, 52100 chrome steel insert |
| Base Number | VF2S |
| Industry Terms | Two-bolt flange unit, flange block bearing, mounted ball bearing unit, flange bearing, setscrew flange unit, 2-bolt flange bearing |
| Common Misspellings | VF2S 110, VF2S1-10, VFS2110, Brownning, Browing |
| Application Types | Conveyor idler and pulley shafts, fan and blower shafts, agricultural drive shafts, general shaft support on moderate-speed line shafts |
| Number Of Flanges | 2 |
| Bolt Center To Center | 3.00 in |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 5/8 in (0.625 in) |
| Housing Style | Two-bolt flange unit |
| Locking Method | Setscrew |
| Mpn Variants | VF2S110, VF2S-110, VF2S 110, 767837 |
| Overall Length | 2-1/8 in |
| Min Temp | -20 °F (-29 °C) |
| Dynamic Load Rating | 9.55 kN (2,147 lbf) |
| Static Load Rating | 4.9 kN (1,102 lbf) |
| Rolling Elements | Balls |
| Max Temp | 200 °F (93 °C) |
| Bearing Type | Two-bolt flange mount ball bearing unit |
| Item Weight | 1.50 lbs |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,000 rpm |
| Duty Type | Intermediate duty |
| Locking Device | Setscrew |
| Insert Outer Ring | Cylindrical |
| Housing Material | Cast iron |
| Expansion Type | Non-expanding |
| Part Number | VF2S-110 |
| Cross Reference 1 | Dodge F2B-SC-010 (two-bolt flange unit, same bore and setscrew) |
|---|
Browning VF2S-110, an intermediate-duty two-bolt cast iron flange mount ball bearing unit. Unit Quantity: 4 Pcs. Four complete flange units, each comprising the cast iron two-bolt housing, the sealed insert and its setscrews. Country of Origin: Mexico. GTIN: 662289521098.
Housing Style: Two-bolt flange unit. Housing Material: Cast iron. Bore / Shaft Size: 5/8 in (0.625 in). Bore Type: Straight. Locking Method: Setscrew. Expansion Type: Non-expanding. Duty Type: Intermediate duty. Rolling Elements: Balls. Number Of Rows: 1. Insert Outer Ring: Cylindrical. Bearing Material: 52100 chrome bearing steel insert. Closure Type: Contact seal with black-oxide flinger, both sides. Lubricant: Lithium complex NLGI 2 grease. Relubrication: Regreasable. Dynamic Load Rating: 9.55 kN (2,147 lbf). Static Load Rating: 4.9 kN (1,102 lbf). Limiting Speed: 5,000 rpm. Minimum Temperature: -20 °F (-29 °C). Maximum Temperature: 200 °F (93 °C). Item Weight: 1.50 lbs.
Number Of Bolt Holes For Fasteners: 2. Bolt Center To Center Length: 3.00 in. Overall Height: 3-7/8 in. Overall Length: 2-1/8 in. Overall Depth: 1-5/64 in. The two mounting holes sit on a single 3 in centre line either side of the shaft.
Cross-Reference 1: Dodge F2B-SC-010, a two-bolt flange unit at the same 5/8 in bore with setscrew locking. Other forms of the designation: VF2S110, VF2S-110, VF2S 110.
Bore / Shaft Size: 5/8 in (0.625 in). Locking Method: Setscrew.
Bolt Center To Center Length: 3.00 in, with 2 bolt holes.
Dynamic Load Rating: 9.55 kN (2,147 lbf). Static Load Rating: 4.9 kN (1,102 lbf).
