NTNUELFLU205-100W3TTwo-Bolt Rhombus Flange Mount Bearing Unit, 1 in Bore, Eccentric Collar Locking, Cast Iron

Product Description

What this part is

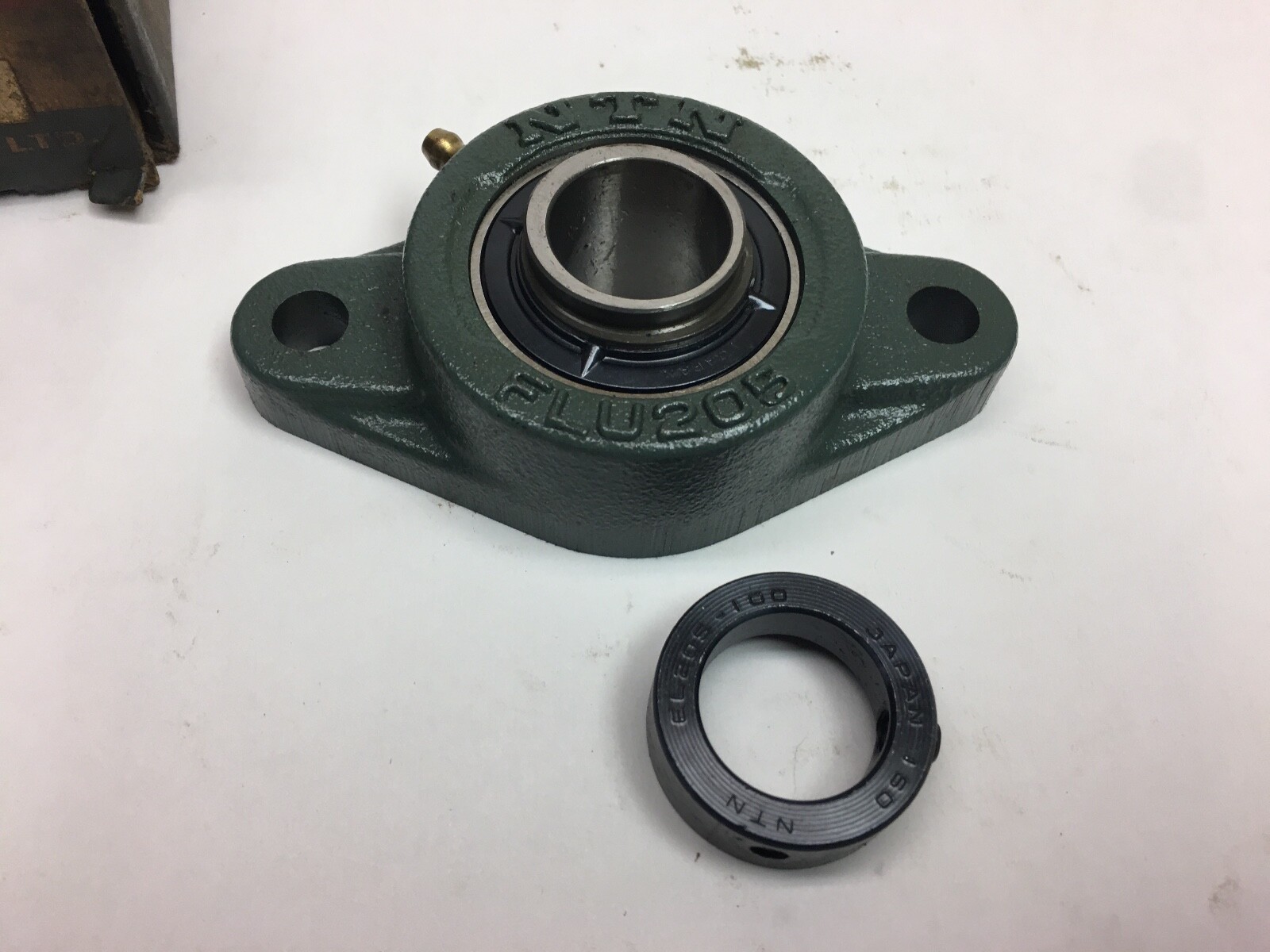

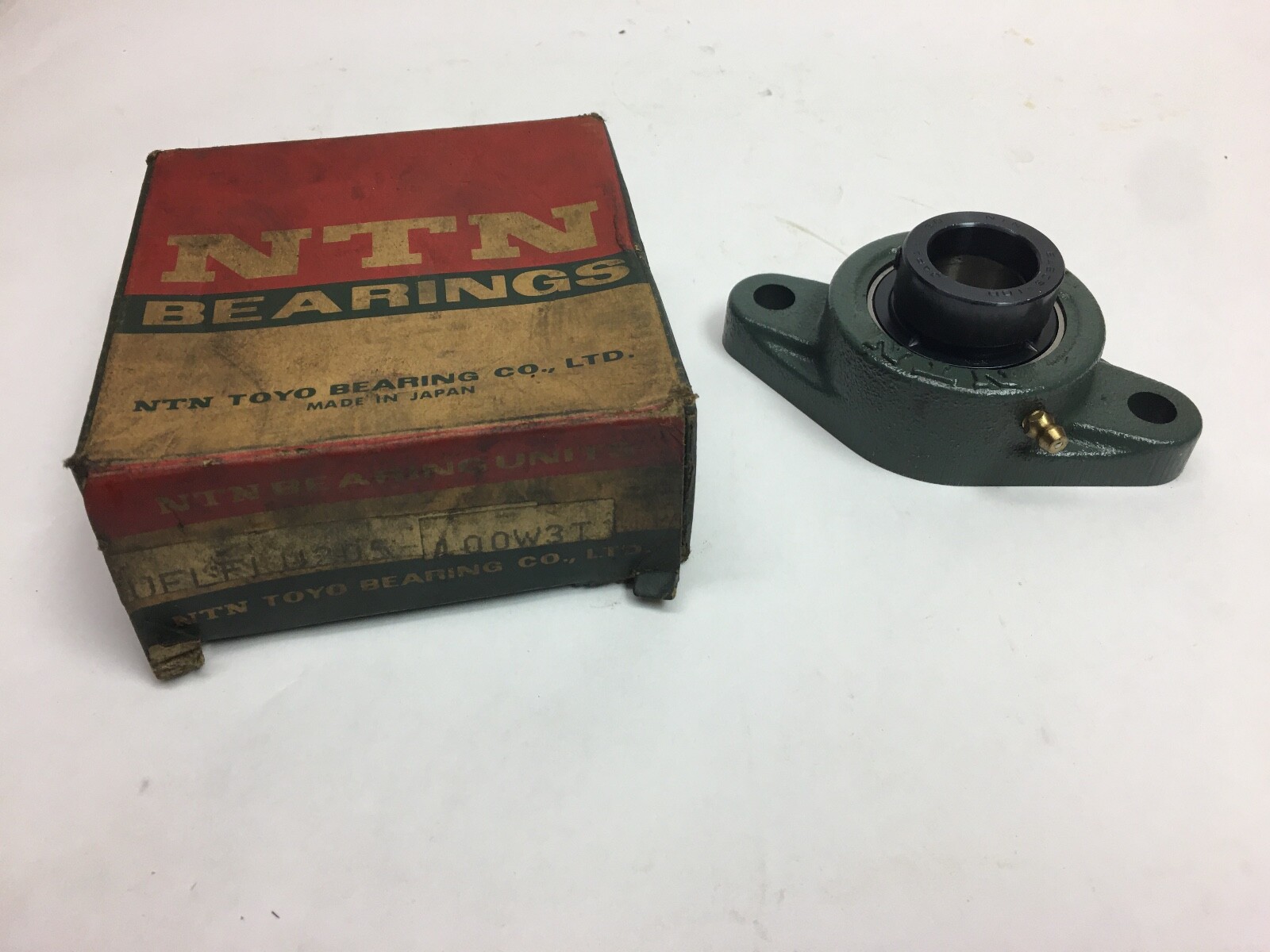

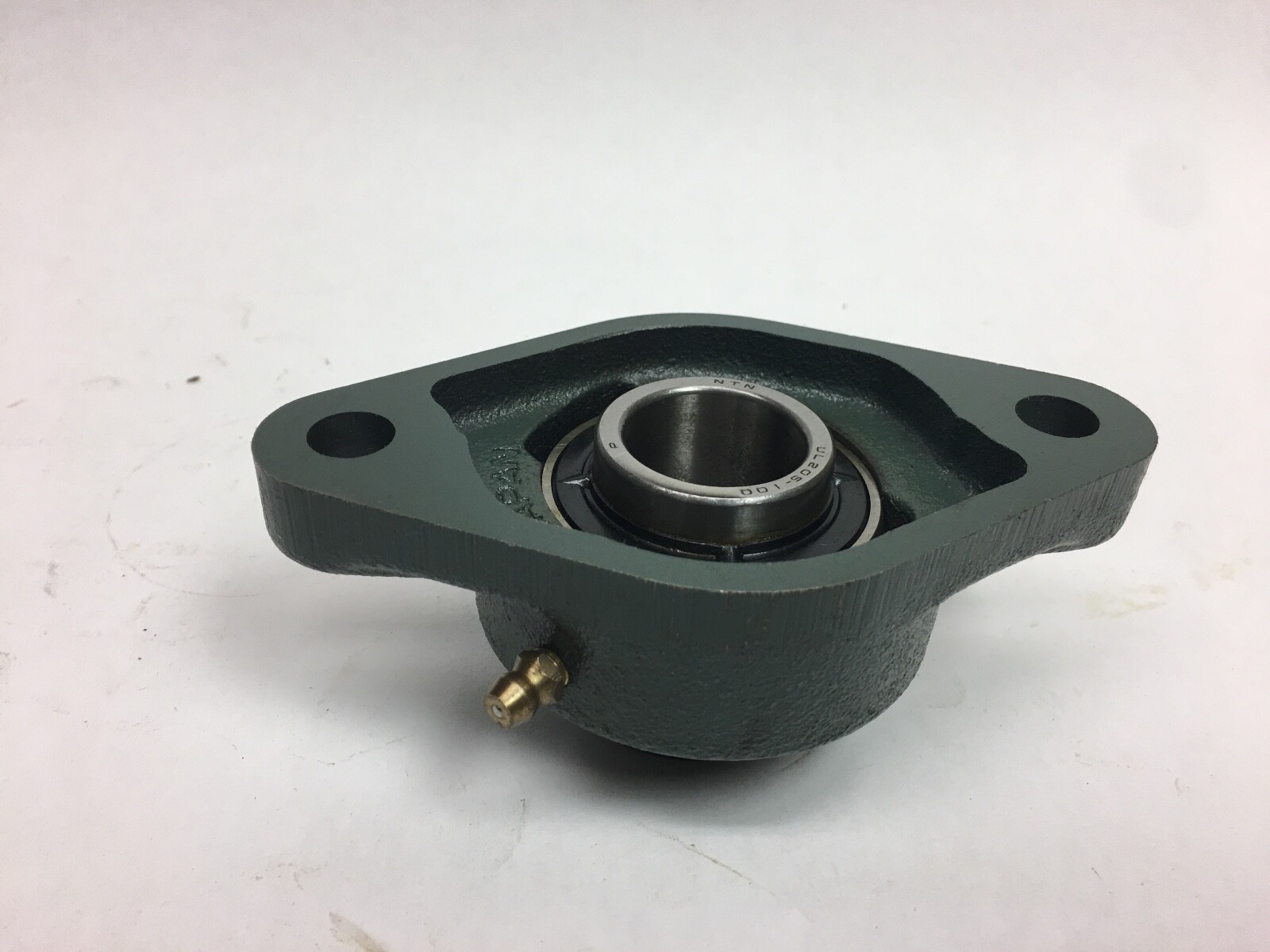

A complete housed ball bearing unit in the two-bolt rhombus flange style. The one-piece cast iron housing takes two mounting bolts on a diagonal axis through the diamond-shaped flange. Bore is 1 in (25.400 mm). Locking is by an eccentric collar that seats on the extended inner ring, not by setscrews against the shaft.

Decoding the designation

UEL — wide inner ring insert bearing with eccentric locking collar and a spherical outer surface for self-alignment
FLU — two-bolt rhombus flange housing, cast iron, one piece
205 — 200-series size code
-100 — inch bore, 100 hundredths, so 1.000 in
Insert bearing number UEL205-100; housing number FLU205

Locking method

The eccentric collar has an off-centre bore. Slipping it onto the extended inner ring and rotating it in the direction of shaft rotation wedges collar against ring, and its own setscrew then holds that position. Drive torque tightens the grip rather than loosening it, which is why eccentric collars suit unidirectional drives and hold better on soft or worn shafting than a setscrew that must bite into the surface. A UC insert of the same size code uses two setscrews instead and is therefore a different locking style in the same envelope.

Housing style and bolt pattern

Two bolts, centre-to-centre 99.0 mm (3.8906 in), bolt hole diameter 11.5 mm (0.4531 in). Overall flange height across the diagonal 125.0 mm (4.9062 in); flange width 70.0 mm (2.7500 in).

Published ratings and mounting data

Bore (d): 1.0000 in / 25.400 mm
Overall height across flange (H): 125.0 mm / 4.9062 in
Flange width (L): 70.0 mm / 2.7500 in
Bolt centre-to-centre (J): 99.0 mm / 3.8906 in
Bolt hole diameter (N): 11.5 mm / 0.4531 in
Total housing width (A): 30.0 mm / 1.1875 in
Insert width including collar (B1): 44.400 mm / 1.7480 in
Inner ring extension (S): 17.500 mm / 0.6890 in
Flange thickness (F): 4.500 mm / 0.1772 in
Dynamic load rating: 14.00 kN / 14000 N / 3147 lbf
Static load rating: 7.85 kN / 7850 N / 1765 lbf
Maximum rotational speed: 5900 RPM
Weight: 0.820 kg / 1.799 lb
Operating temperature range: −40 to 120 °C / −40 to 250 °F

Quantity and configuration

1 Pc. Complete housed unit: cast iron two-bolt rhombus flange housing, insert bearing and eccentric locking collar, relubricatable through the housing grease fitting. Contact nitrile seals both faces. Open end type, light duty performance class.

Fitting notes

The unit mounts against a flat rigid face, shimmed where uneven. The flange bolts are drawn down first so the spherical insert settles into its aligned seat, then the collar is rotated in the direction of shaft rotation and its setscrew tightened. Shaft seat is a commercial ground 1.000 in diameter.

Interchange guidance

Same-style two-bolt rhombus flange units with eccentric collar locking in 1 in bore: NTN UELFL205-100, NTN AELFL205-100 in the pressed-steel-housing line, Asahi UELFL205-100, FYH UELFL205-100. The setscrew-locking NTN UCFL205-100 and the four-bolt square NTN UCF205-100 share the 200-series envelope but use a different insert locking style or bolt pattern, so they are related sizes rather than interchanges.
