Availability:
1 in stock

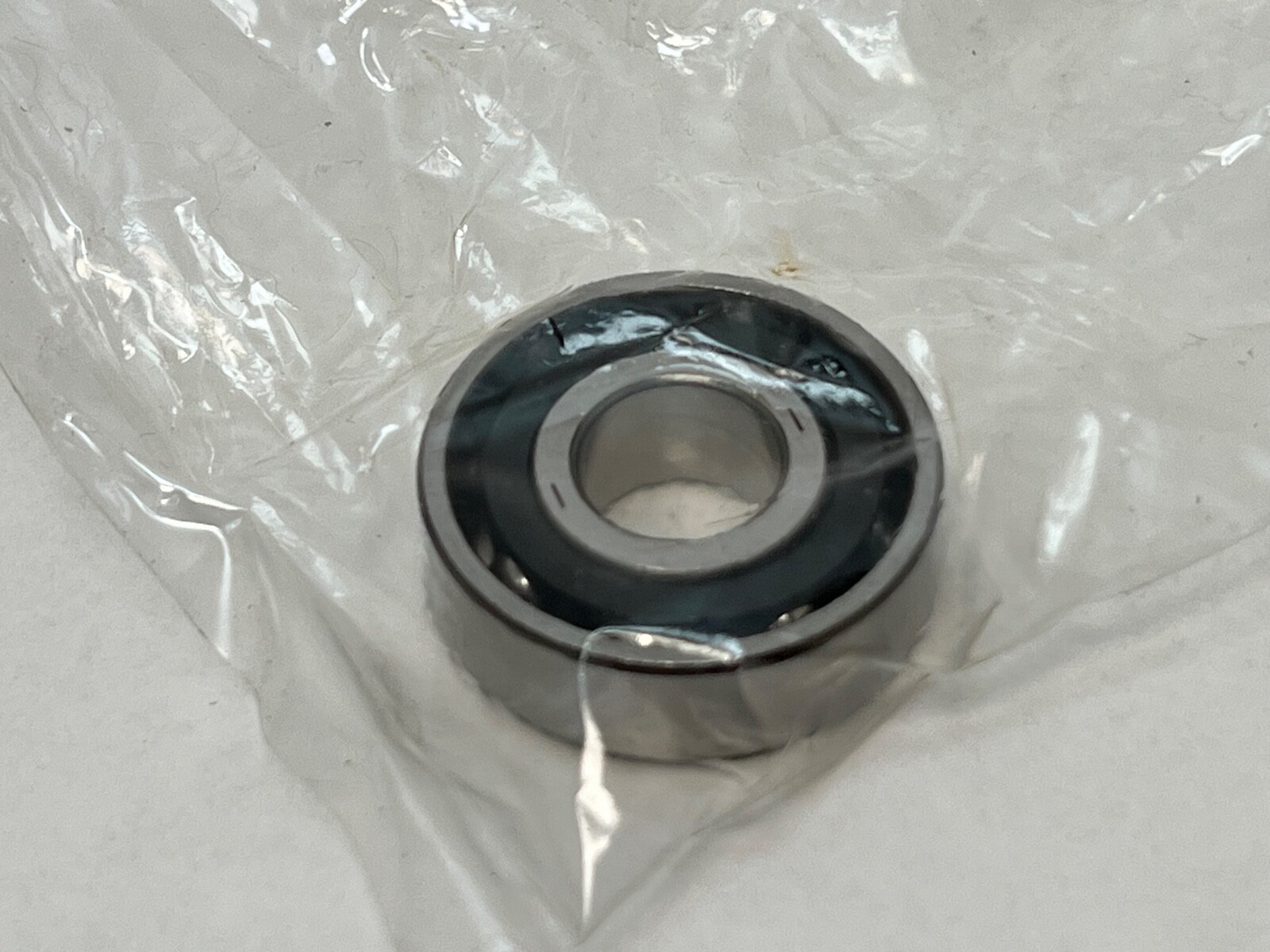

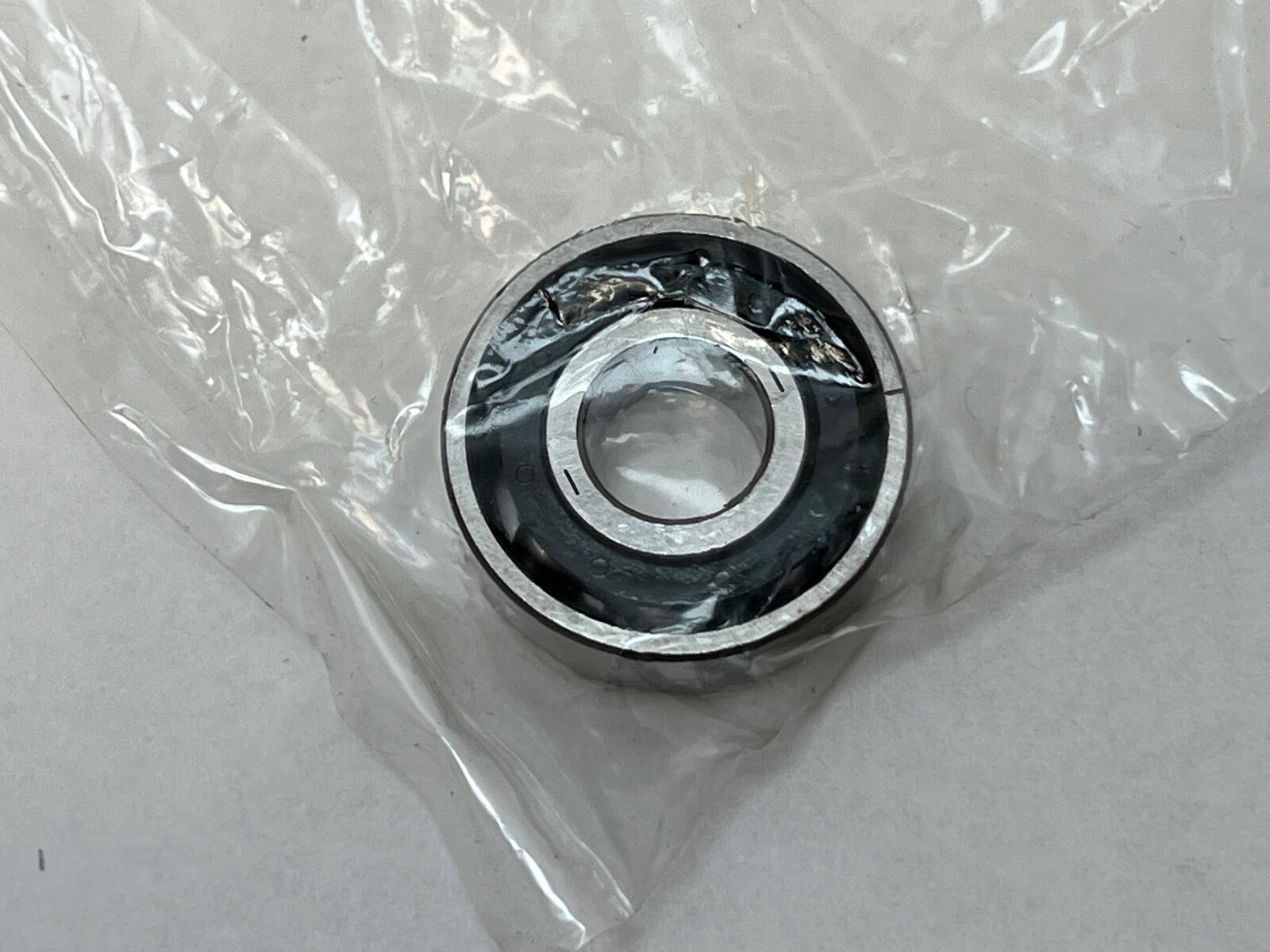

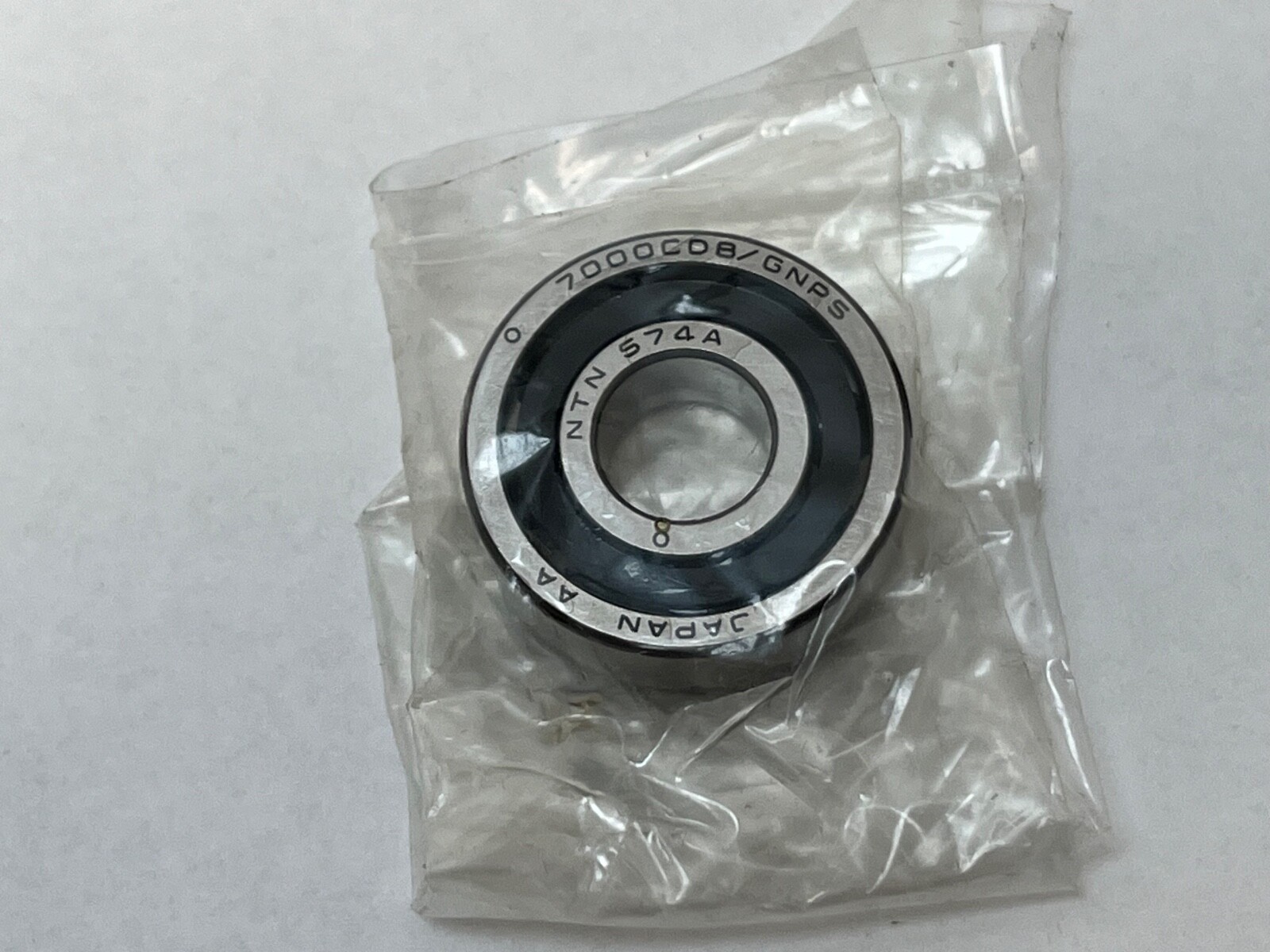

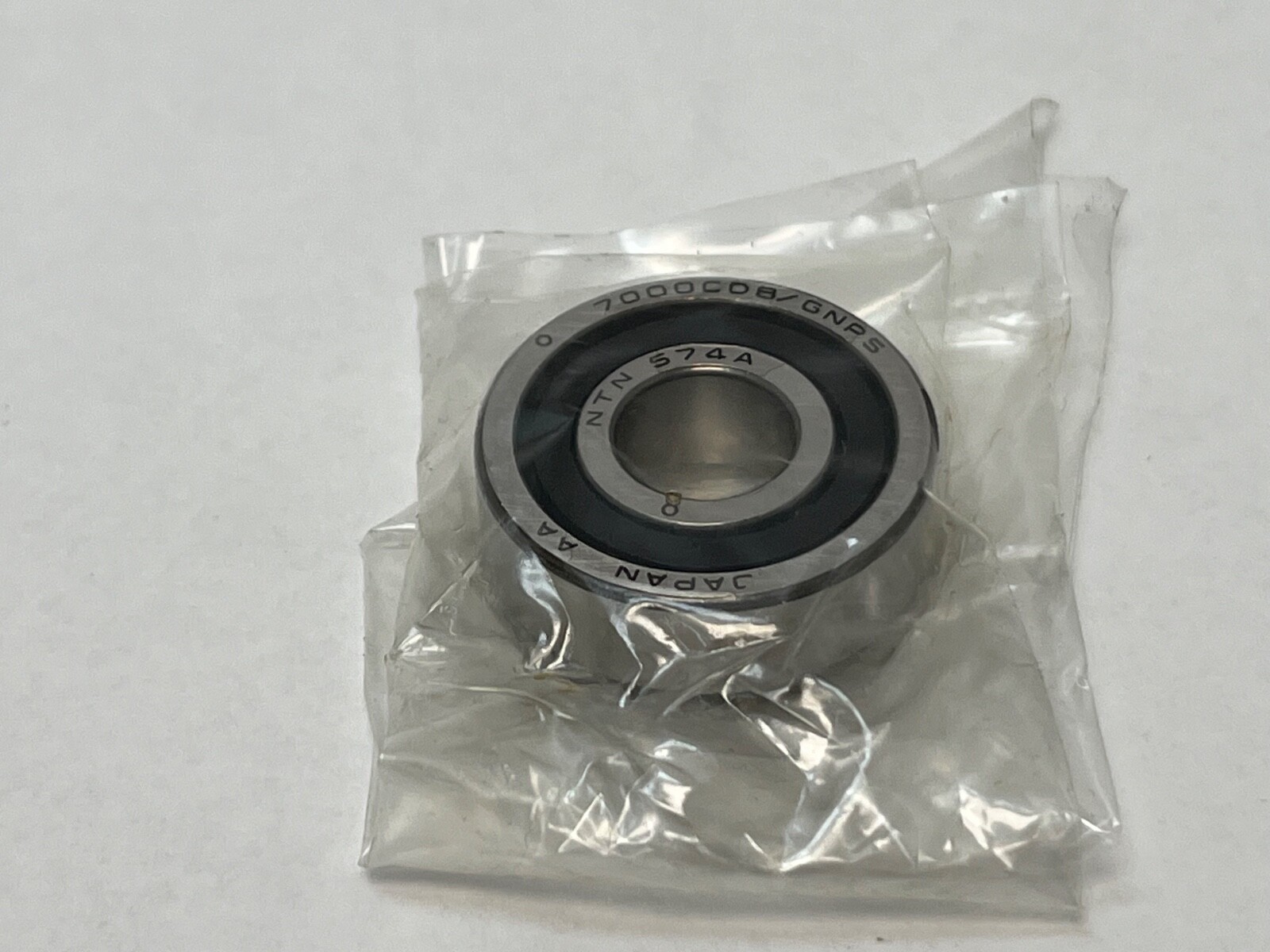

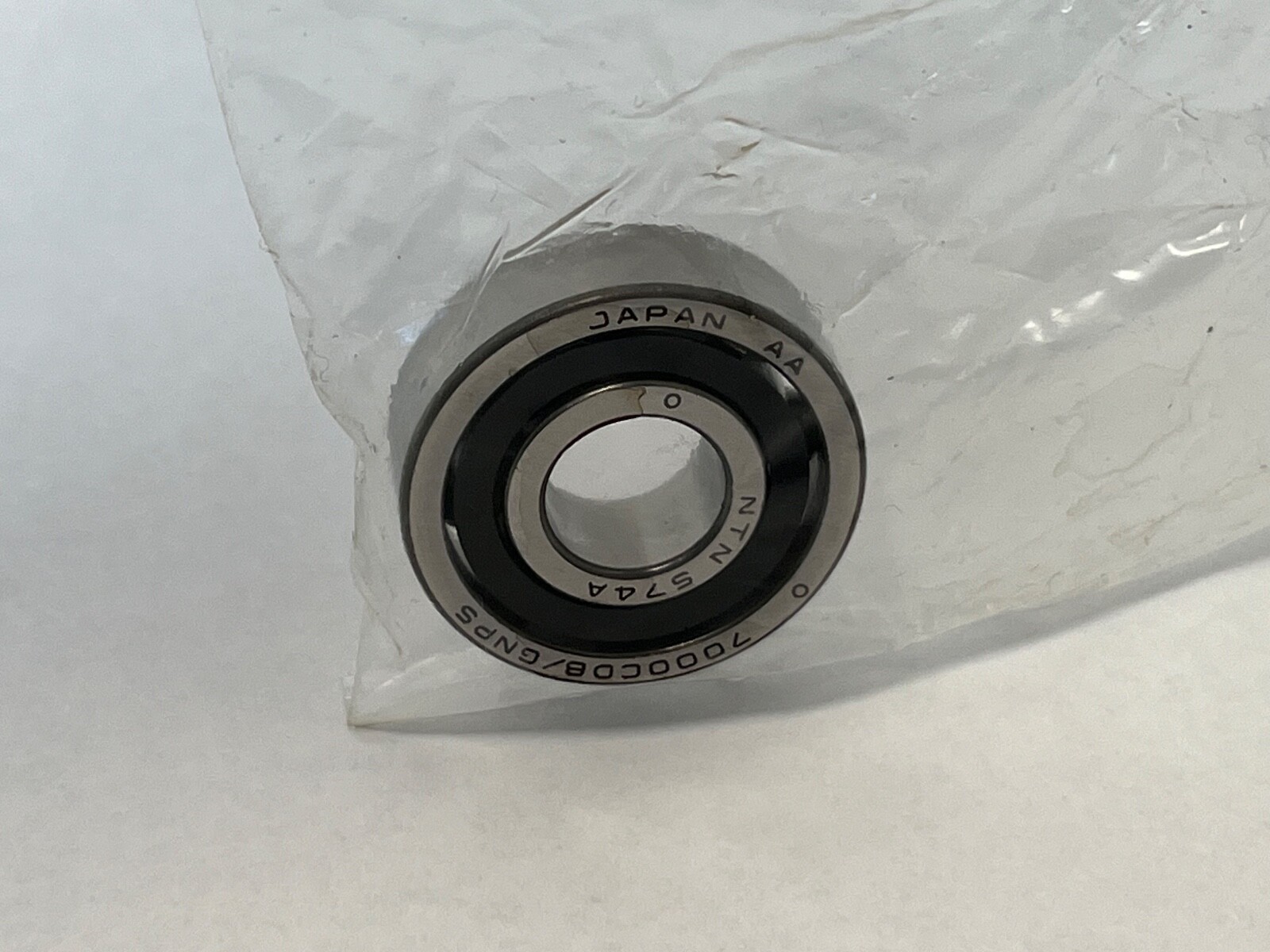

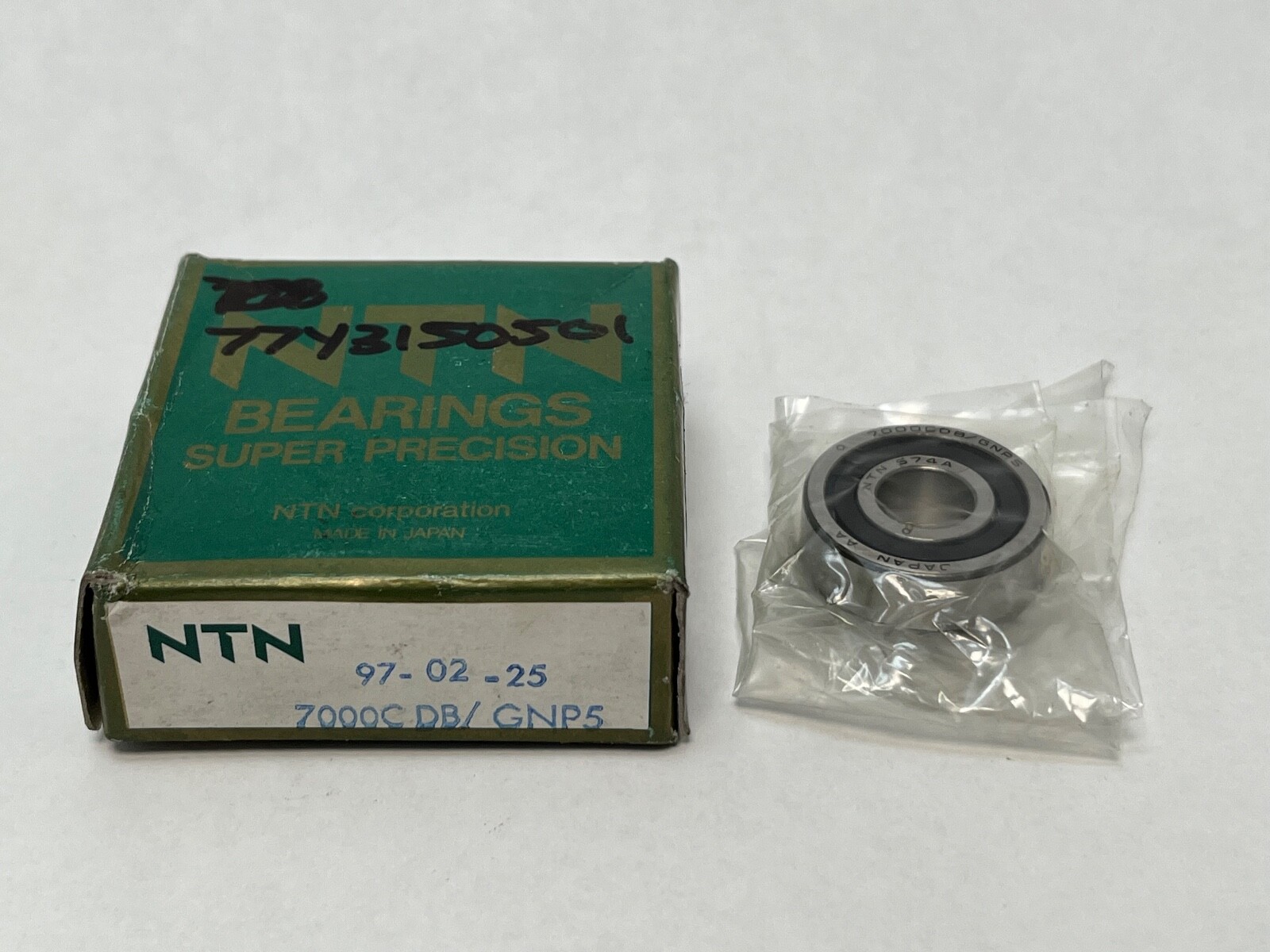

Angular contact ball bearing, 10 x 26 x 8 mm, 15° contact angle, ABEC 5 / P5 precision. NTN 7000CDBGNP5, one bearing from a factory back-to-back (DB) pair.
List Price
$48.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7000CDBGNP5 |
| Model | 7000 C DB GN P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 10 mm |
| OD | 26 mm |
| Width | 8 mm |
| Series | 7000 |
|---|---|
| Material | Bearing Steel |
| Mpn Variants | 7000CDBGNP5, 7000CDBGNP5-1/2PR, 7000 C DB GN P5, 7000-C-DB-GN-P5, 7000C |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | One bearing from a factory DB matched set; GN normal preload code; ground faces |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | DB (back-to-back) matched set member |
| Industry Terms | angular contact ball bearing, duplex bearing, matched pair bearing, spindle bearing, 15 degree angular contact |
| Common Misspellings | NTN 7000 CDB GNP5; NTN 7000CDBGN P5; 7000CDBGNP-5; NTN 7000C DB; NNT 7000CDBGNP5 |
| Application Types | machine-tool spindles; precision gearboxes; instrument drives; high-speed small spindles |
| Cross Reference 1 | NSK 7000CTYNSULP5 - universal ground, light preload |
|---|---|
| Cross Reference 2 | GMN S6000 C TA P5 |
NTN 7000CDBGNP5 is a single-row angular contact ball bearing in the 70-series extra-light section, made to P5 precision. It is one bearing from a factory two-bearing back-to-back (DB) matched set. Bore Diameter: 10 mm. Outside Diameter: 26 mm. Width: 8 mm. Contact Angle: 15°. Precision Class: ABEC 5 / P5. Unit Quantity: 1 Pc.
70 — angular contact ball bearing, ISO extra-light 10 dimension series.
00 — bore code, 10 mm.
C — 15° contact angle, for higher speed and radial stiffness with moderate axial load.
DB — duplex back-to-back arrangement. Two single-row bearings ground as a matched set with the load lines diverging, carrying axial load in both directions and resisting tilting moment. Not a double-row bearing.
GN — NTN normal preload code for the matched set.
P5 — ISO tolerance class 5, equivalent to ABEC 5.
Bore Diameter: 10 mm. Outside Diameter: 26 mm. Overall Width: 8 mm. Contact Angle: 15°. Precision Class: ABEC 5 / P5. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Mounting Arrangement: DB (back-to-back) matched set member. Series: 7000. Unit Quantity: 1 Pc.
The 10 mm bore seats on a 10 mm shaft and the 26 mm outer ring fits a 26 mm housing bore. Matched-set faces are ground so that the pair seats with its set preload when the bearings are mounted together. The 15° angle and P5 tolerances suit machine-tool spindles, precision gearboxes and instrument drives.
NSK 7000CTYNSULP5 and GMN S6000 C TA P5 are single bearings in the same 10 x 26 x 8 mm, 15°, P5 size. The NSK carries a universal-ground face with light preload. Also marked 7000CDBGNP5-1/2PR, 7000 C DB GN P5 and 7000-C-DB-GN-P5.
10 mm bore, 26 mm outside diameter and 8 mm width.
15 degrees, set by the C in the designation.
DB is a back-to-back duplex arrangement: two single-row bearings ground as a matched set. This listing is one bearing from that set.
