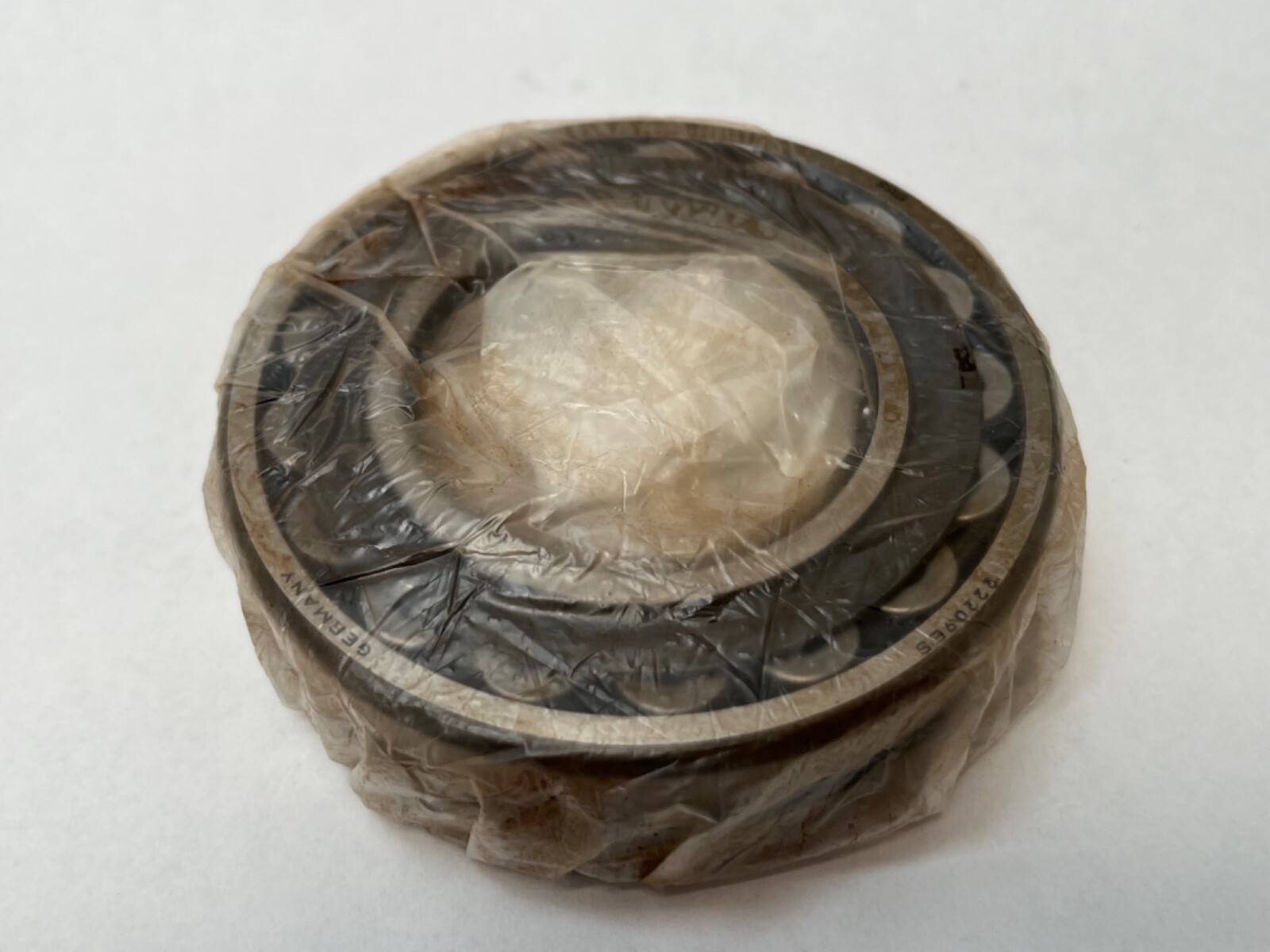

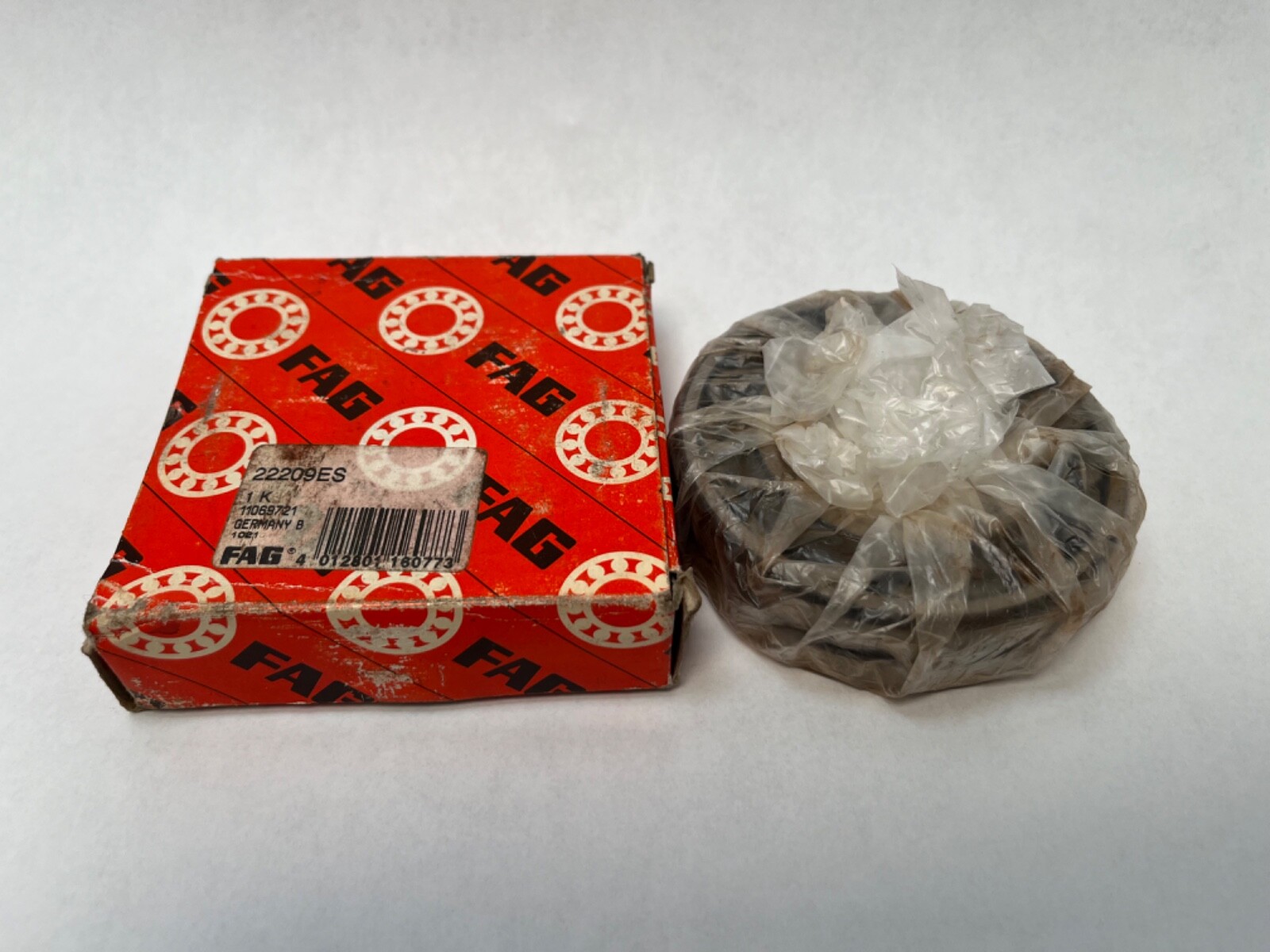

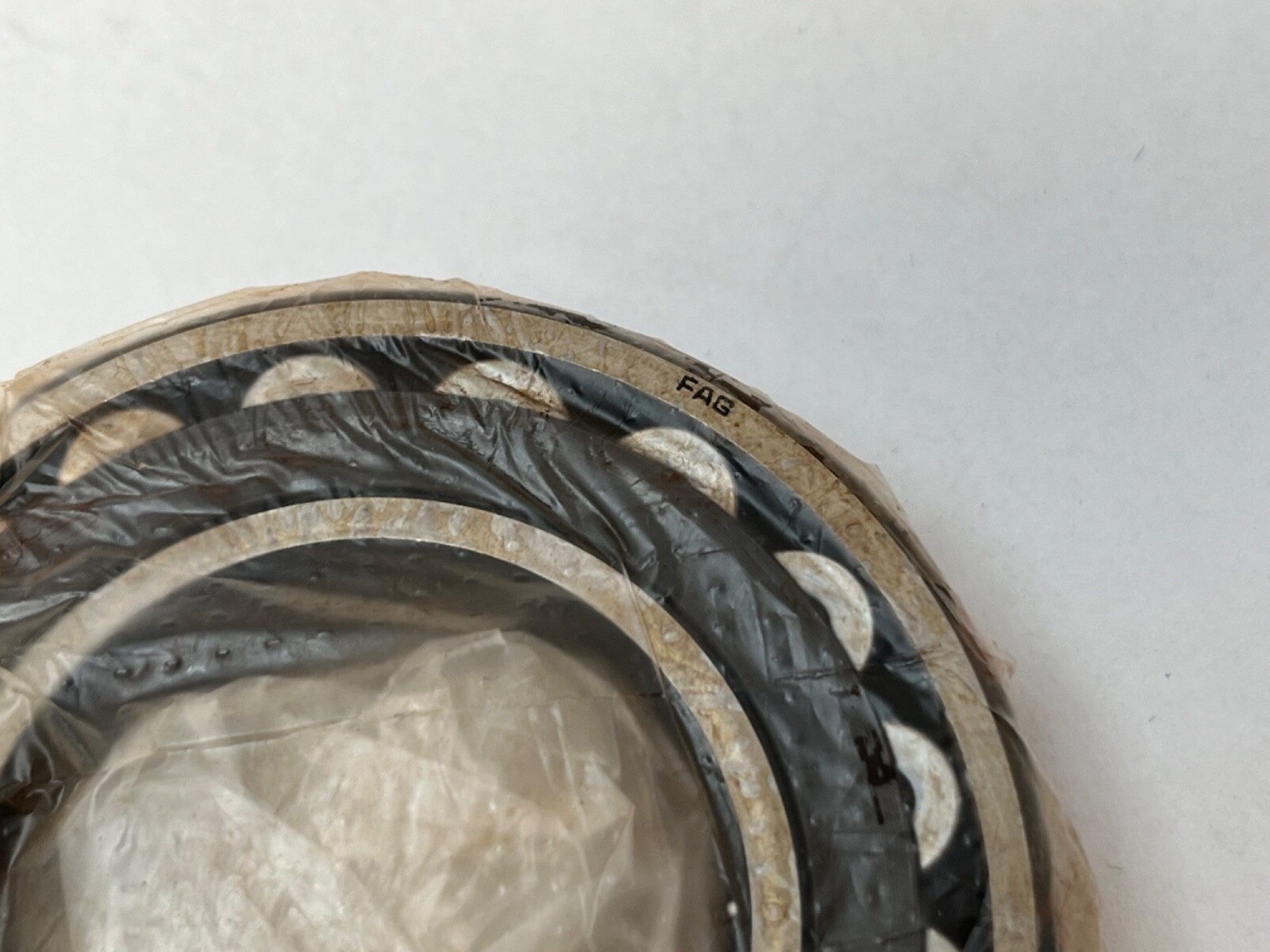

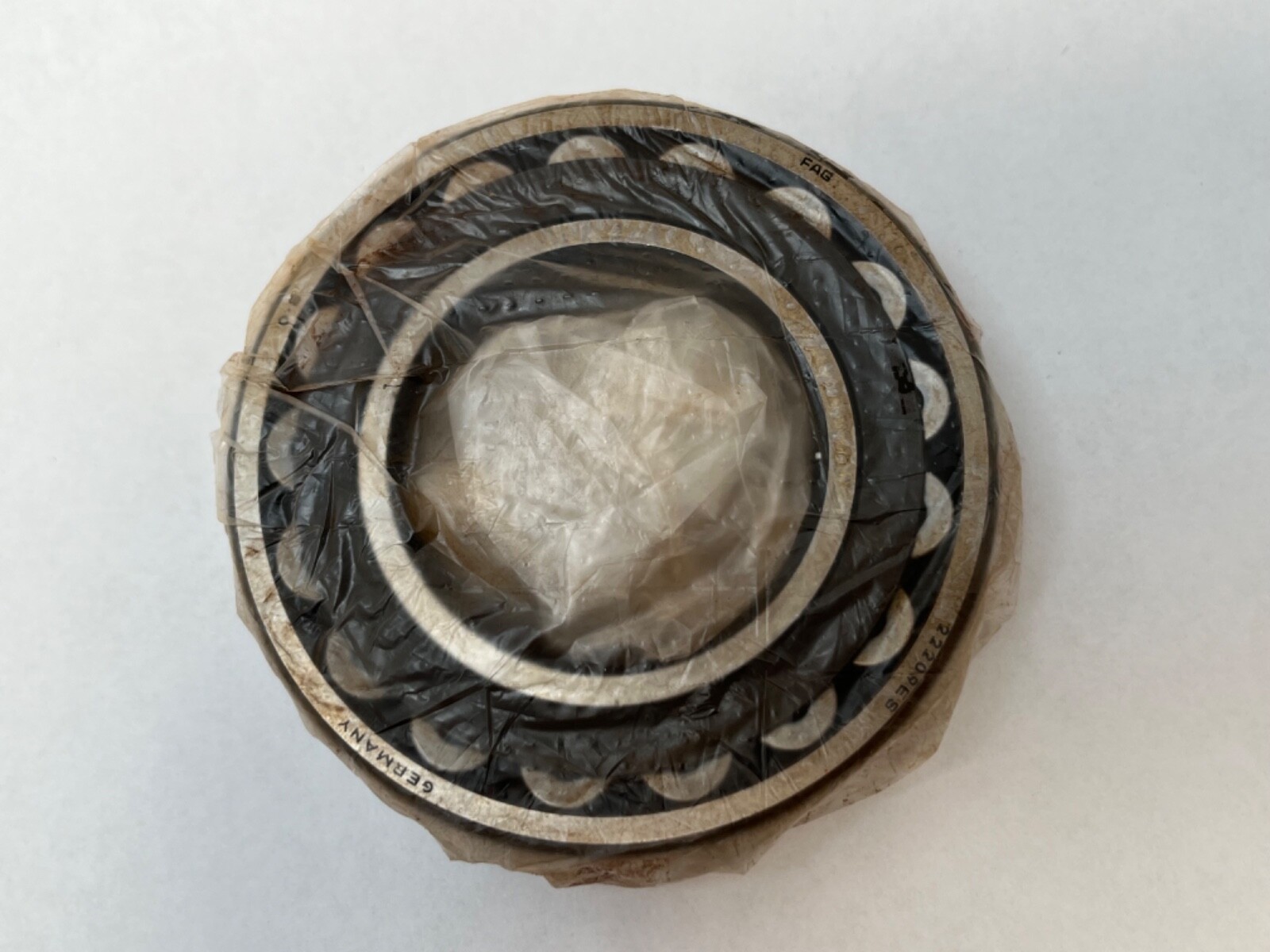

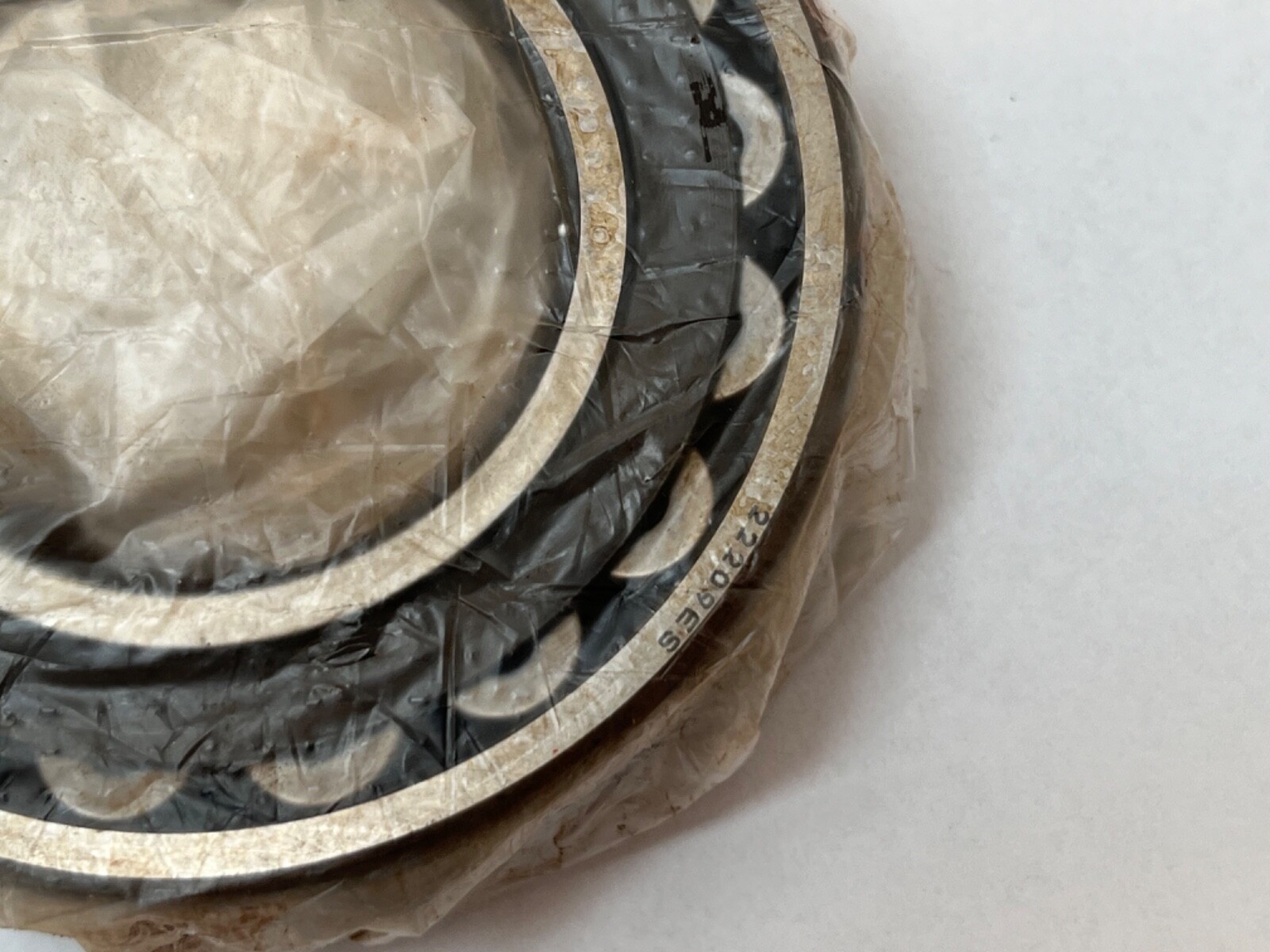

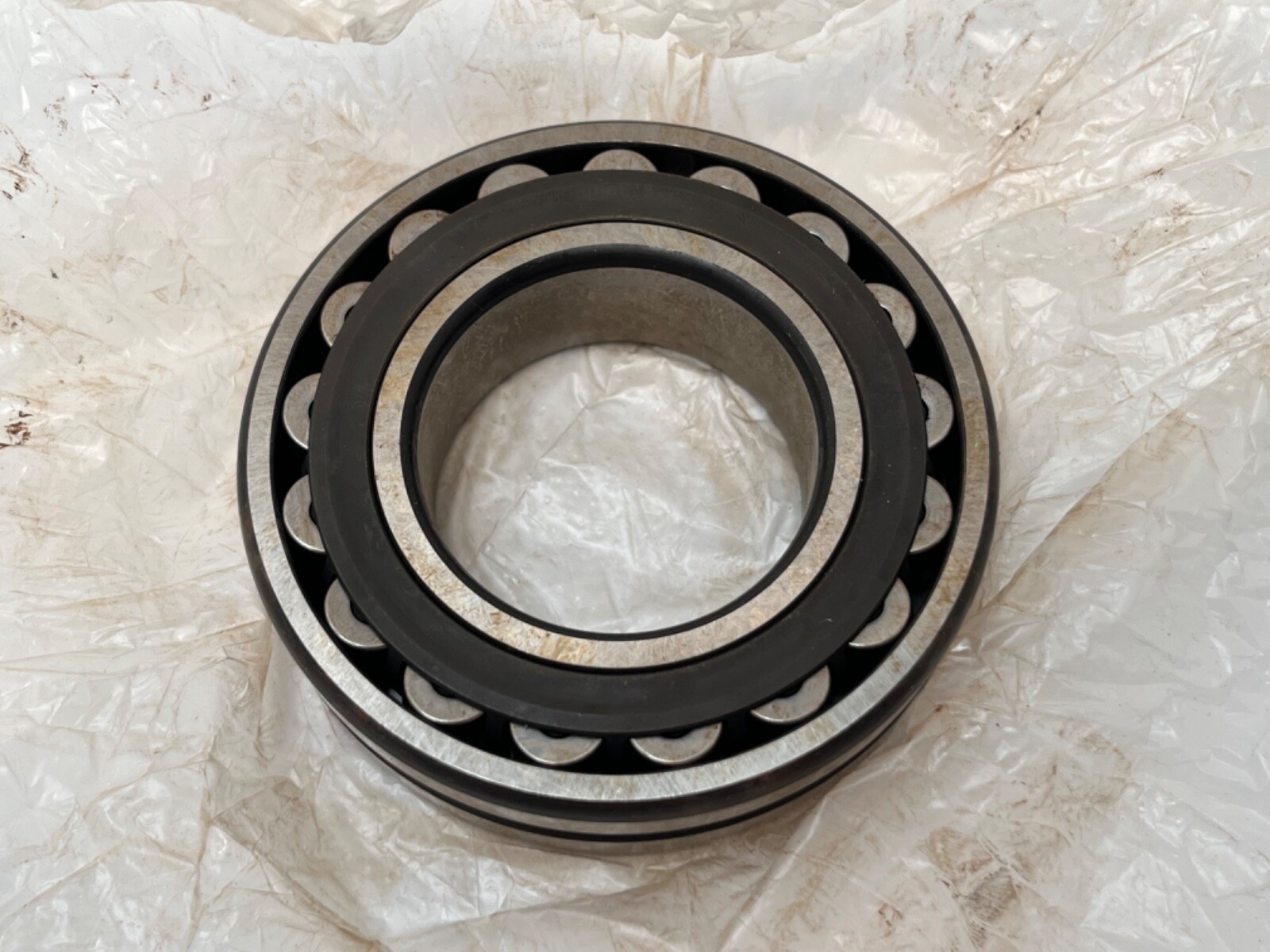

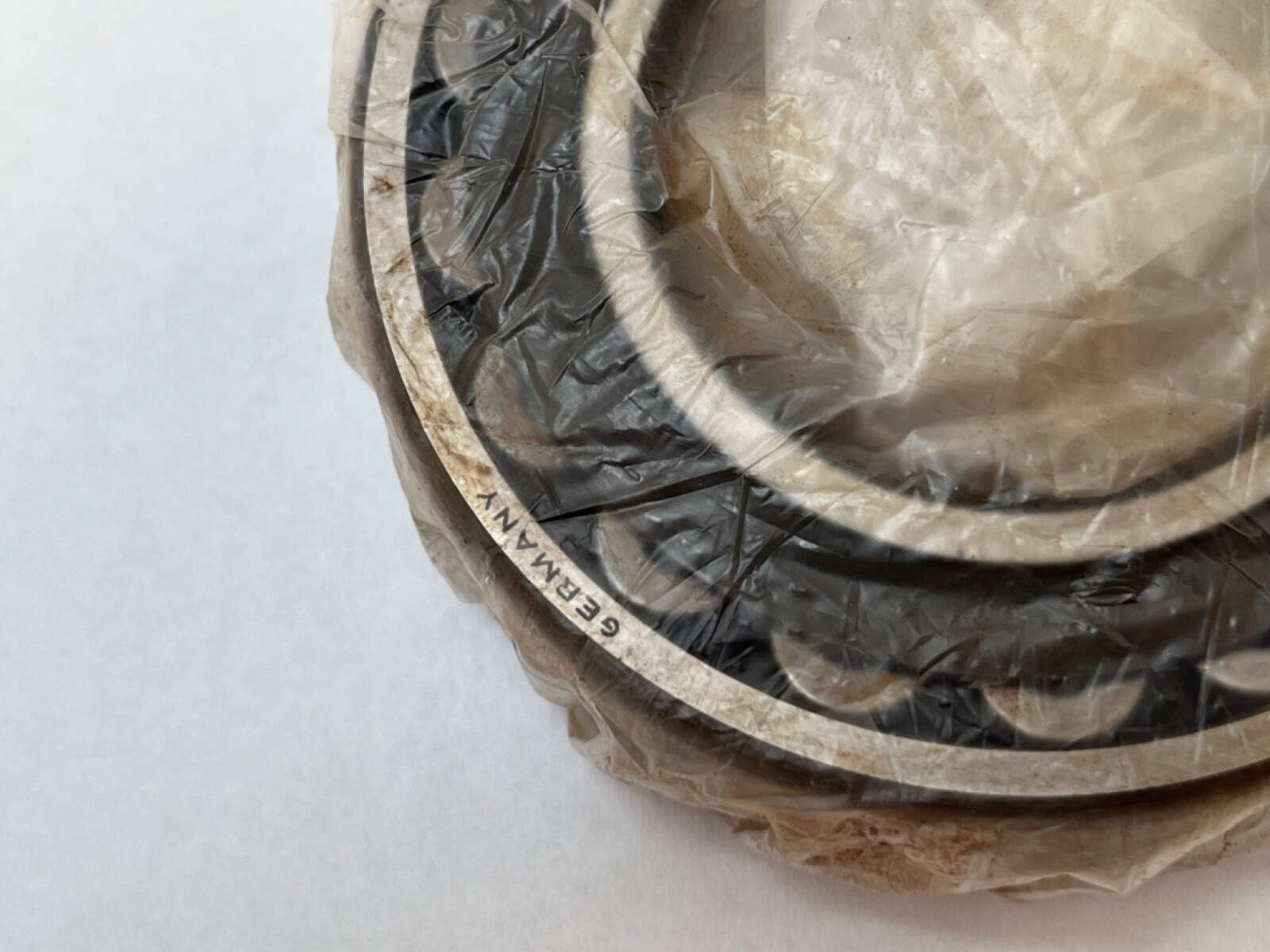

FAG22209ESSpherical Roller Bearing — 45 mm Bore, 85 mm OD, 23 mm Width, Cylindrical Bore, W33 Lube Groove, Normal Clearance

Product Description

What this part is:

FAG 22209ES (22209-ES) is a double-row spherical roller bearing with a cylindrical bore and a lubrication groove with holes in the outer ring. It carries heavy radial load plus axial load in both directions and self-aligns against shaft misalignment.

Decoding the designation:

22209 — spherical roller bearing, dimension series 222, bore code 09 = 45 mm.

E — FAG reinforced internal design with increased load rating.

S — lubrication groove and lubrication holes in the outer ring (W33 type).

No clearance suffix — normal radial internal clearance (CN).

Specifications:

Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Series: 222. Rolling Elements: Spherical roller. Number of Rows: 2. Bore Type: Straight (cylindrical). Closure Type: Open. Internal Clearance: CN. Lubricant: Grease or oil, fed through the outer-ring groove. Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope 45 x 85 x 23 mm, cylindrical bore. Lubrication groove and holes in the outer ring (S / W33).

Compatibility and replacement:

Current Schaeffler successor: FAG 22209-E1-XL. Cross-references: Timken 22209EJW33, EJ design with W33 groove; Koyo 22209RHRW33, W33 groove; NSK 22209EAE4, EA design with E4 groove and holes; NTN 22209EAD1, EA design with D1 groove and holes; SKF 22209 E, E design without lube groove; SKF 22209 CC, earlier SKF execution. Search forms: 22209-ES, 22209ES, 22209ESW33, 22209-ES-W33, 22209E.

Frequently asked questions:

What size is the FAG 22209ES?

45 mm bore, 85 mm outside diameter, 23 mm width.

What does the S in 22209ES mean?

S denotes a lubrication groove and lubrication holes in the outer ring (W33 type).

Which FAG bearing succeeds it?

FAG 22209-E1-XL.
