Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

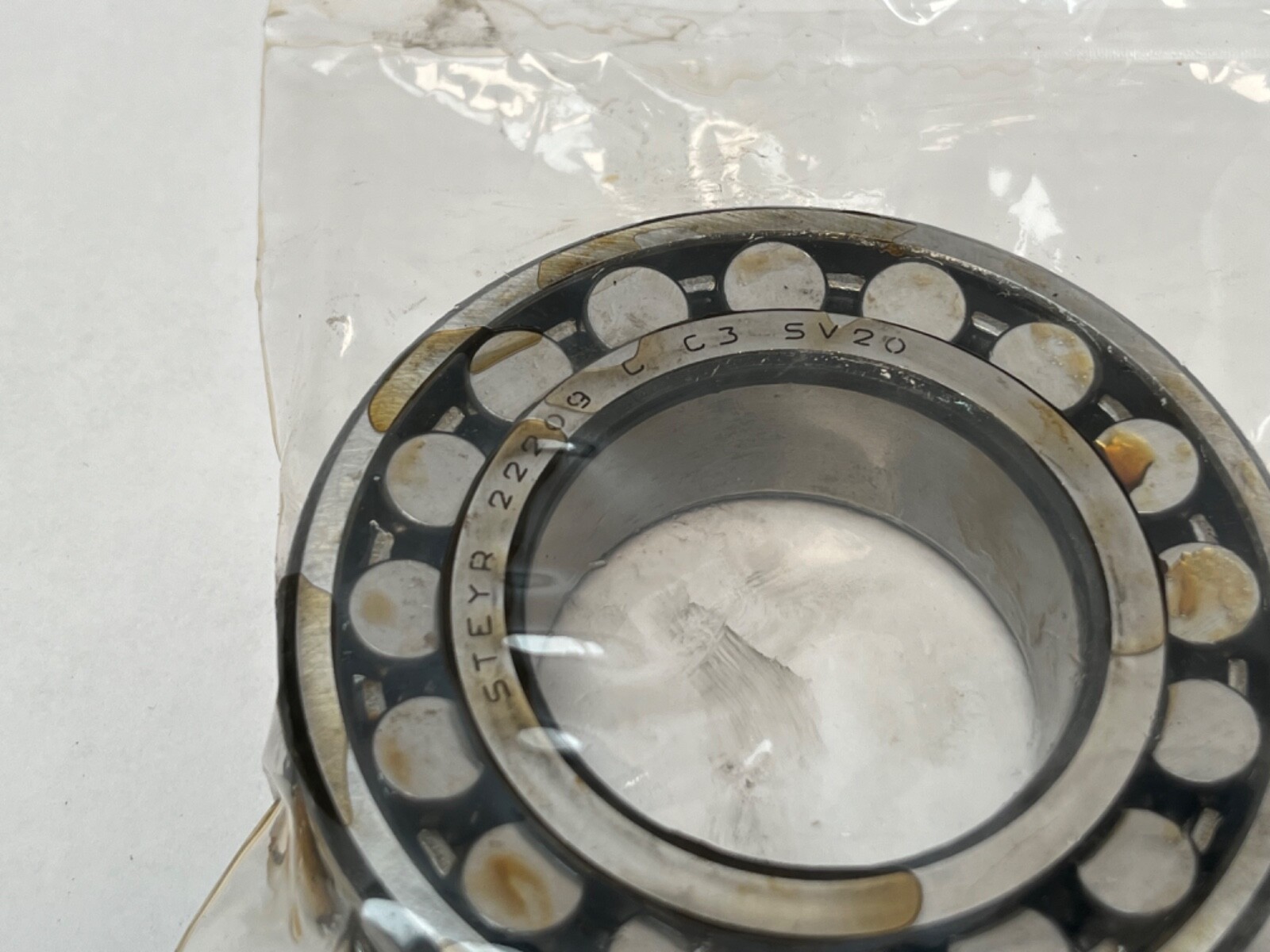

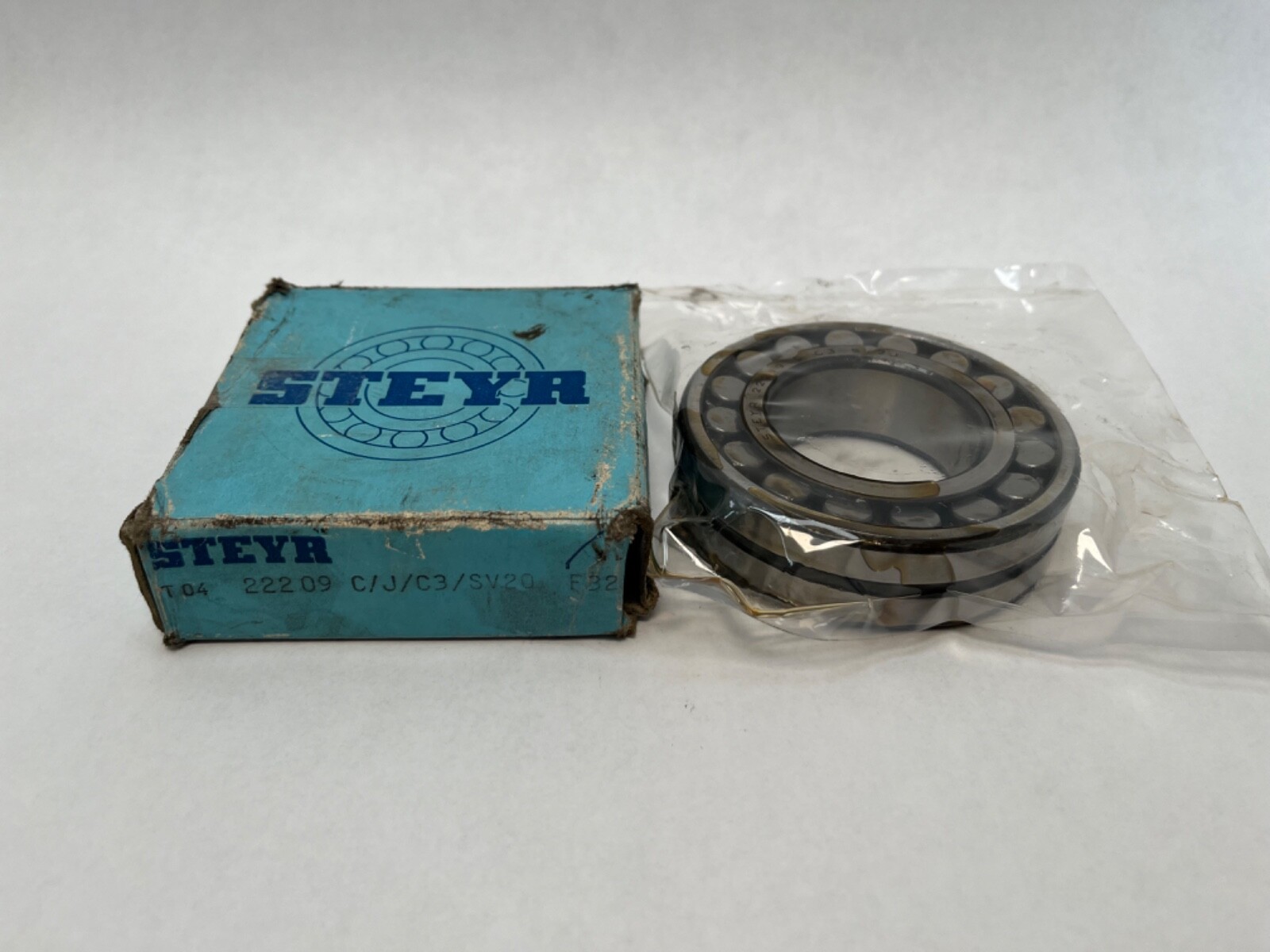

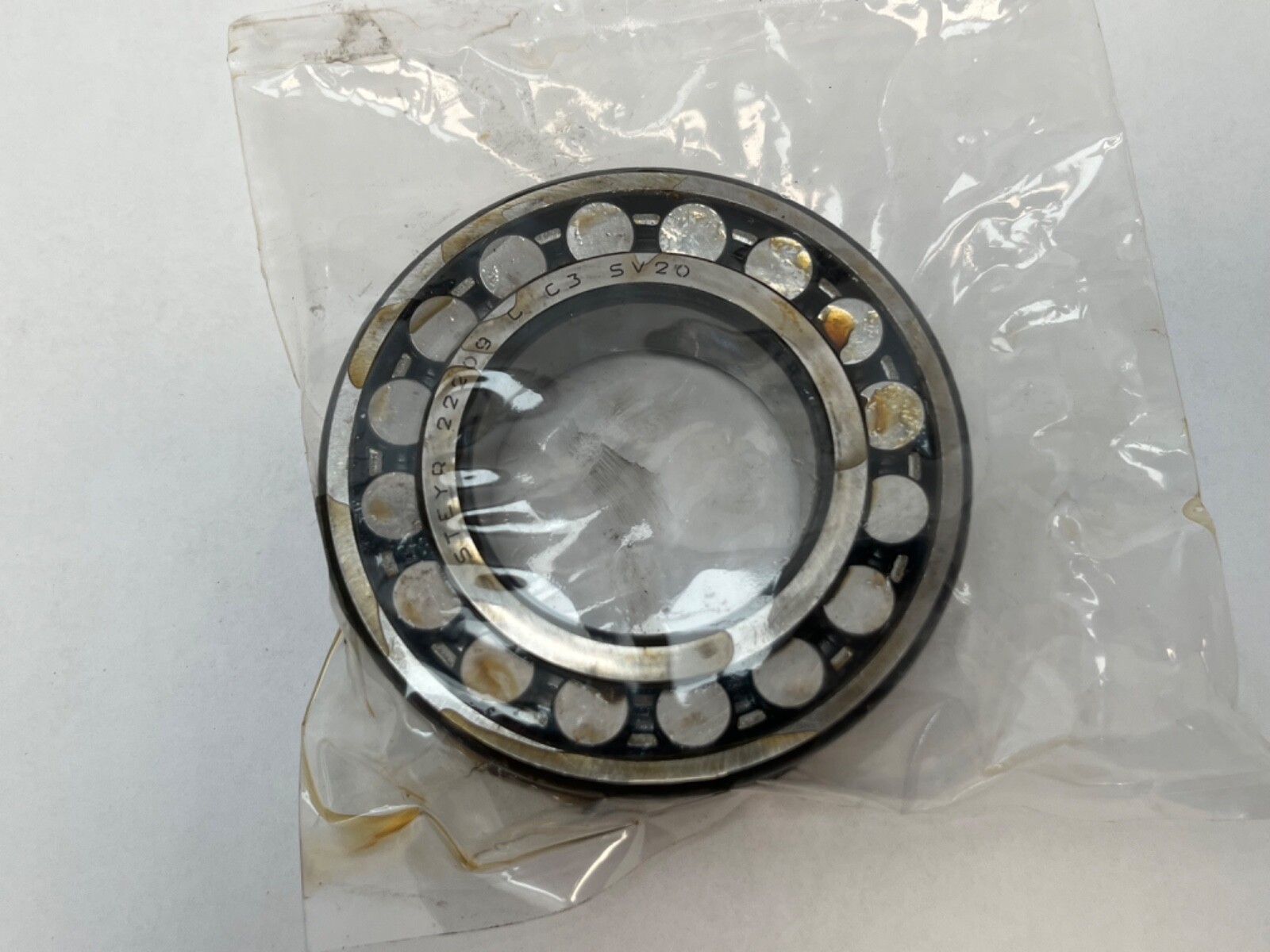

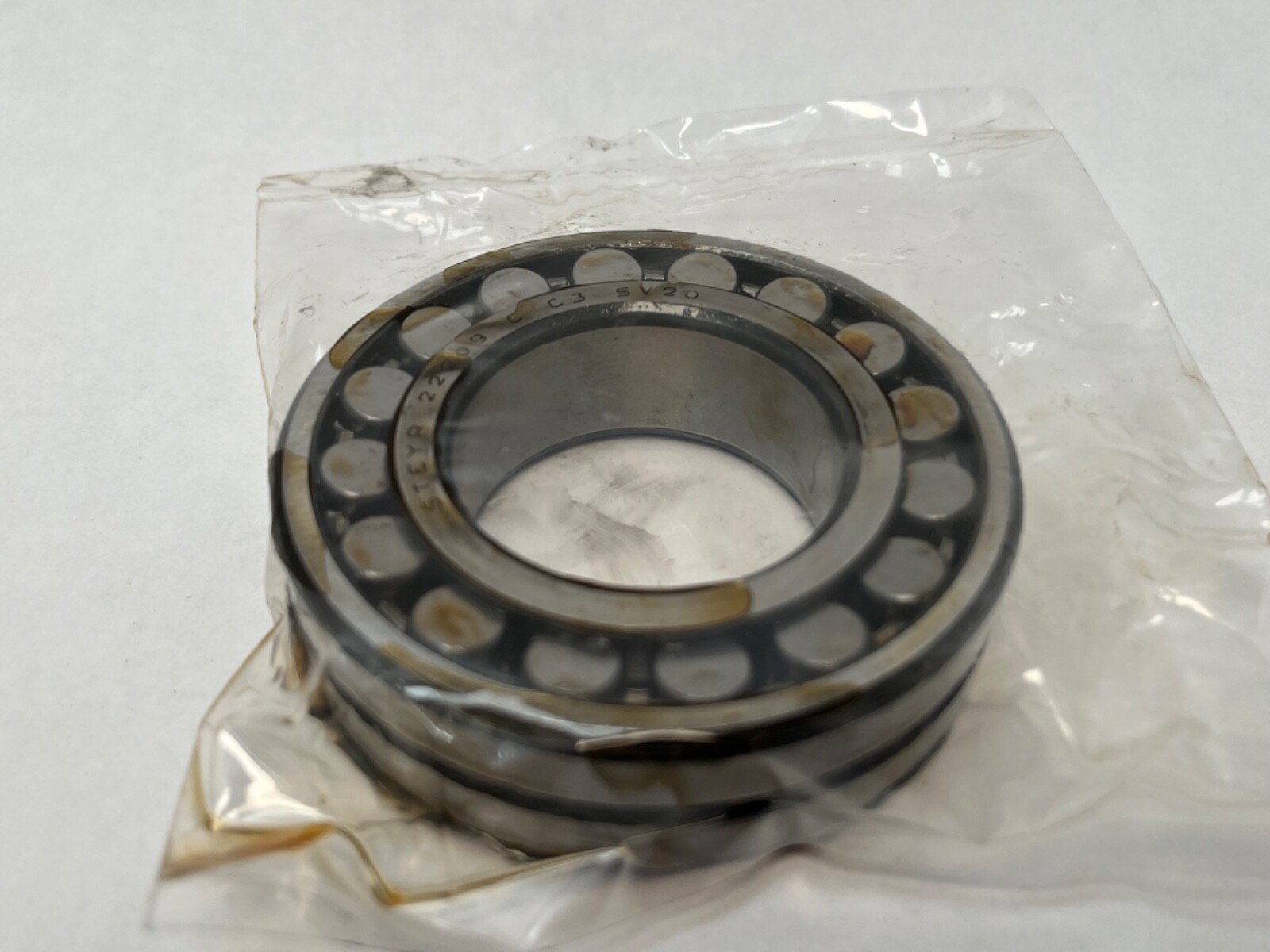

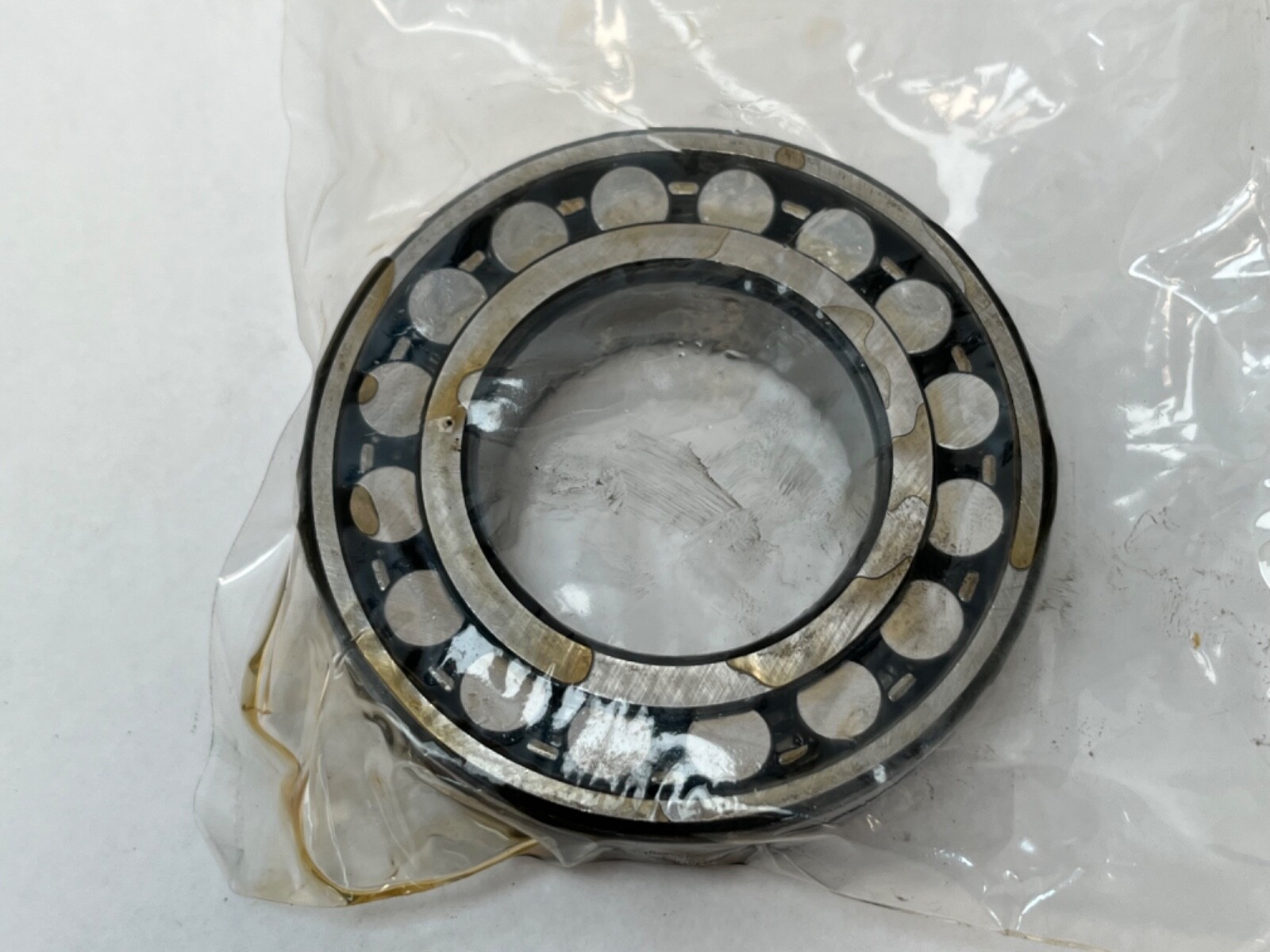

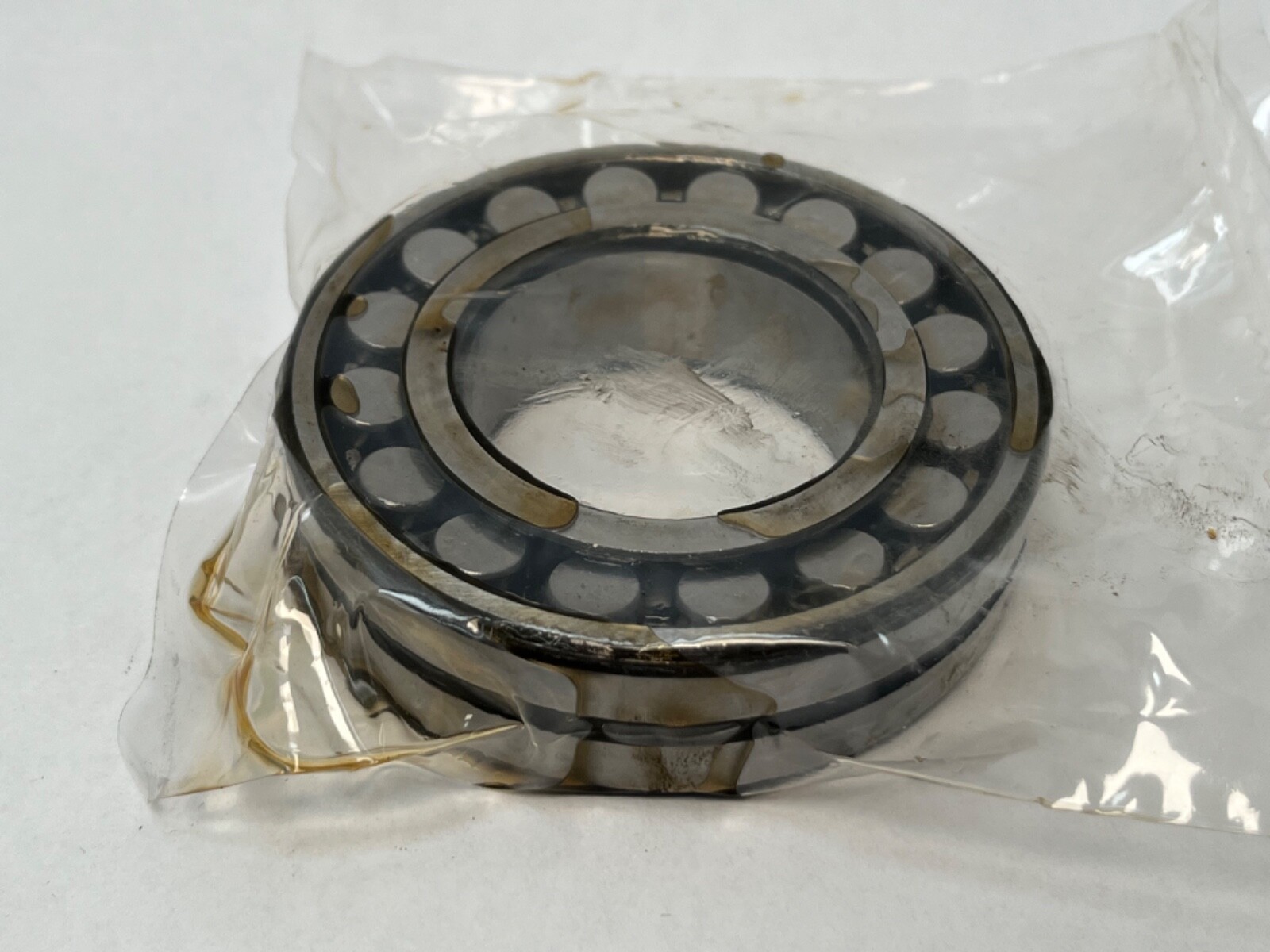

Spherical roller bearing, 45 mm straight bore, 85 mm OD, 23 mm wide, C3 clearance, W33 lubrication groove. Steyr 22209 CJ C3 W33, new surplus bearing.
List Price
$43.38
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Steyr |
|---|---|
| MPN | 22209 CJ C3 W33 |
| Model | 22209CJ/C3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Lubricant | grease or oil |
| Material | Bearing Steel |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Base Number | 22209 |
| Overall Width | 23 mm |
| Mpn Variants | 22209CJC3W33, 22209 C J C3 W33, 22209C/J/C3/SV20/F3, 22209CJ/C3W33, 22209CCJ, 22209 |
| Relubrication Feature | W33 groove with three lubrication holes |
| Cross Reference 1 | SKF 22209 E/C3 |
|---|---|
| Cross Reference 2 | FAG 22209-E1-C3 |
| Cross Reference 3 | NTN 22209C3 |
| Cross Reference 4 | NSK 22209CE4C3 |
| Cross Reference 5 | Timken 22209EJW33C3 |
The Steyr 22209 CJ C3 W33 is a double-row spherical roller bearing from the 222 series with a straight bore, C3 internal clearance and a W33 relubrication groove in the outer ring. The sphered outer raceway lets the bearing self-align under shaft deflection or misalignment.
22209 — spherical roller bearing, 222 dimension series, bore code 09 = 45 mm.
C3 — radial internal clearance greater than normal.
W33 — annular groove with three lubrication holes in the outer ring.
Bearing Type: Spherical Roller Bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Internal Clearance: C3. Closure Type: Open. Snap Ring: No. Lubricant: grease or oil. Series: 222.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. ISO boundary dimensions for the 22209 size.
Same envelope and clearance as SKF 22209 E/C3, FAG 22209-E1-C3, NSK 22209CE4C3, NTN 22209C3 and Timken 22209EJW33C3. Load ratings vary by maker execution.
What size is the Steyr 22209 CJ C3 W33?
45 mm bore, 85 mm outside diameter and 23 mm width.
What does W33 mean?
A lubrication groove with three holes in the outer ring, for grease or oil.
What clearance does it have?
C3, greater than normal radial internal clearance.
