Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Double-row spherical roller bearing, 70 x 125 x 31 mm, straight bore, open, C4 internal clearance wider than C3, 2° permissible misalignment.
List Price
$67.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22214 CC/C4 |
| Model | 22214 CC C4 / 22214CC 22214C 22214CJ 22214CCJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Unspsc | 31171504 |
| Base Number | 22214 |
| Industry Terms | Spherical roller bearing; SRB; self-aligning roller bearing |
| Common Misspellings | 22214 cc c4, 22214CC4, 2221 4CC C4, 22214 CCC 4, 22214-CC/C4 |
| Application Types | Kiln and dryer rolls, hot fans, crushers, vibrating screens |
| Bore Shaft Size | 70 mm, cylindrical (straight) bore |
| Mpn Variants | 22214CC/C4, 22214 CC C4, 22214CCC4, 22214-CC-C4, 22214CJC4 |
| Manufacturer Status | CC cage code superseded by E design in current SKF range |
| Compatible With Replaces | 22214 straight-bore positions specified for C4 clearance |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.0000 |
| Internal Clearance | C4 |
| Part Number | 22214 CC/C4 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | Timken / Torrington 22214EJW33C4 (E design, W33 groove) |
|---|---|
| Cross Reference 2 | Steyr 22214-C-MB-C4-W33 (W33 groove) |
| Cross Reference 3 | Koyo 22214RHRW33C4 (W33 groove) |

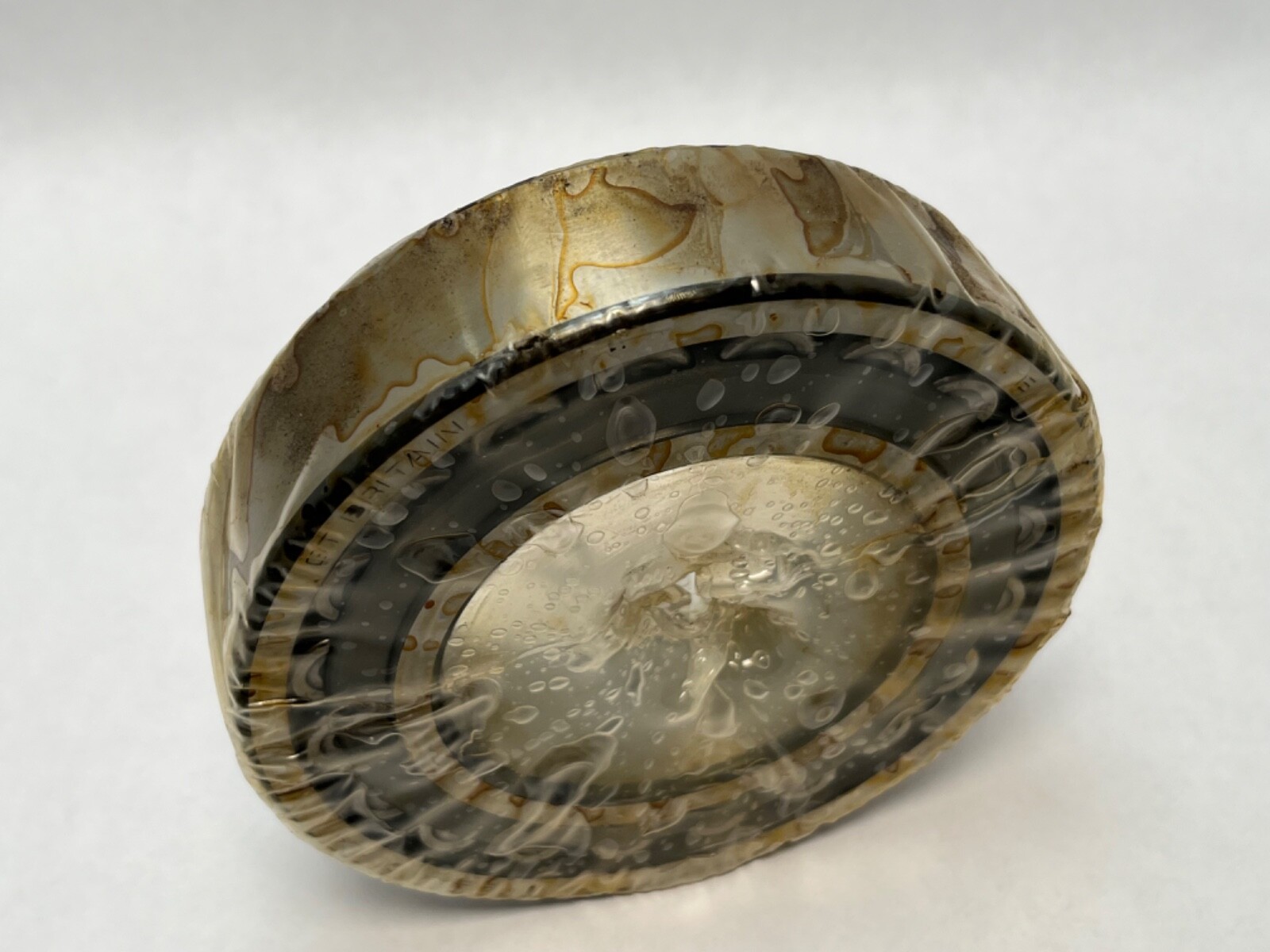

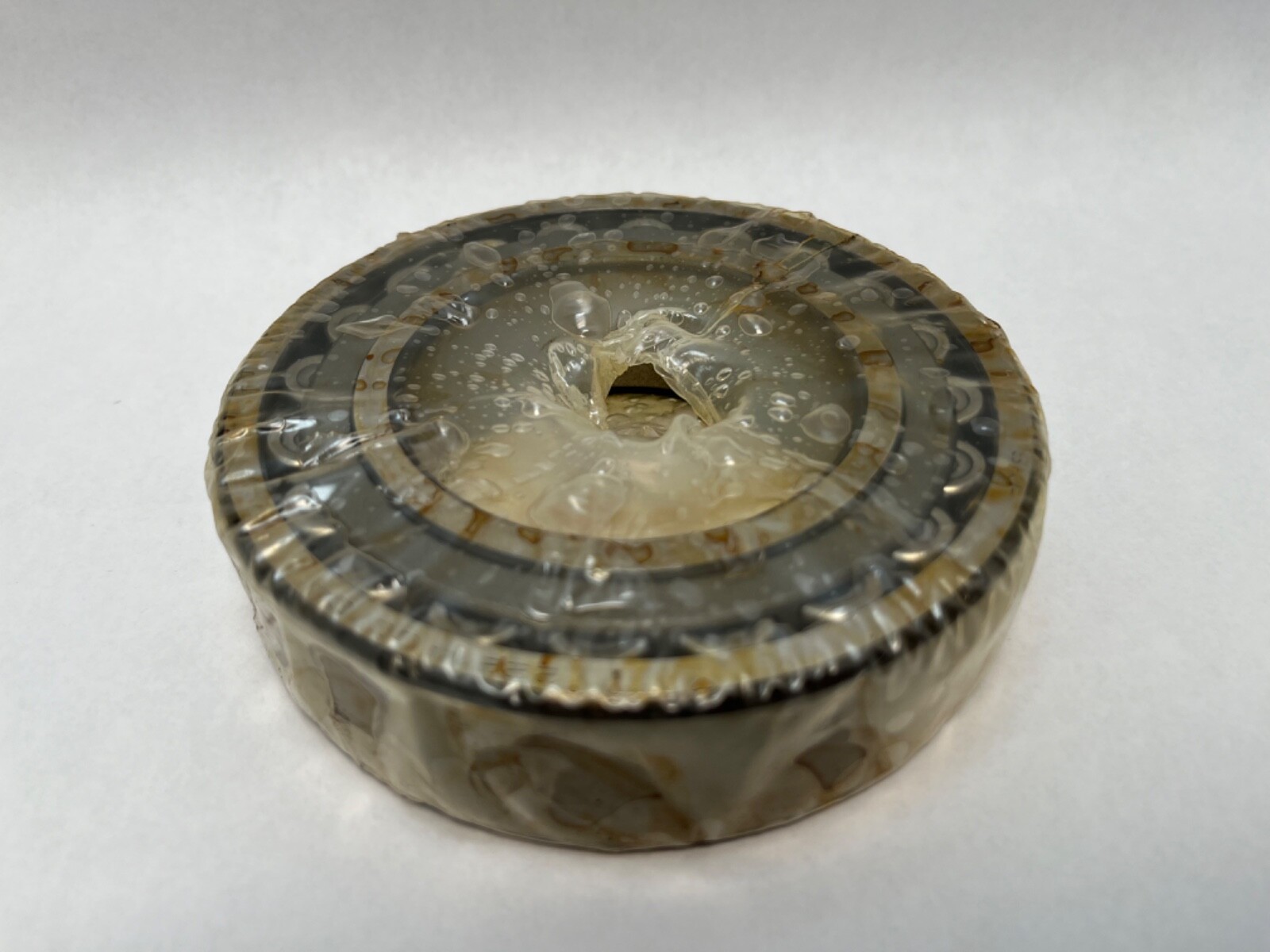

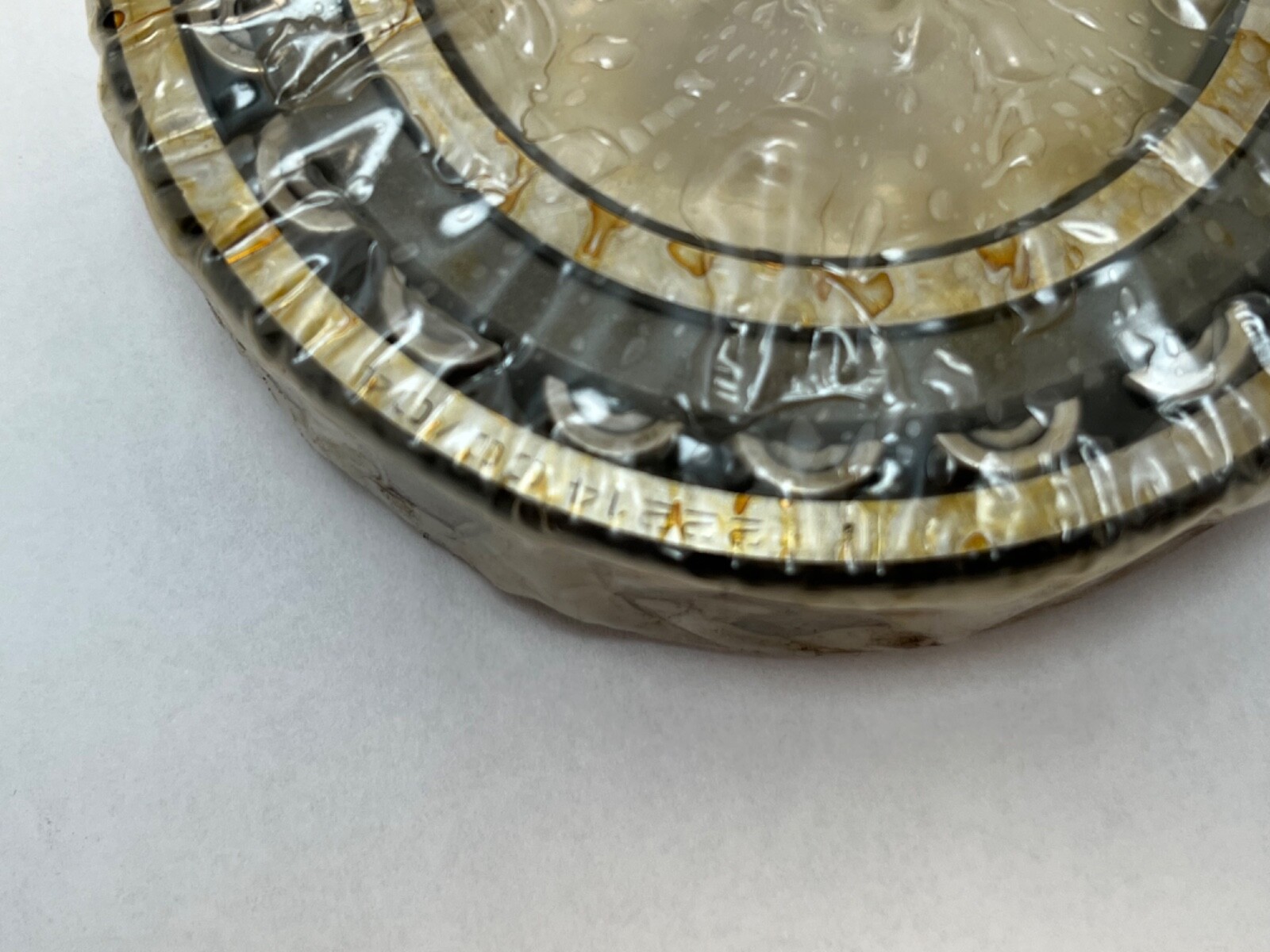

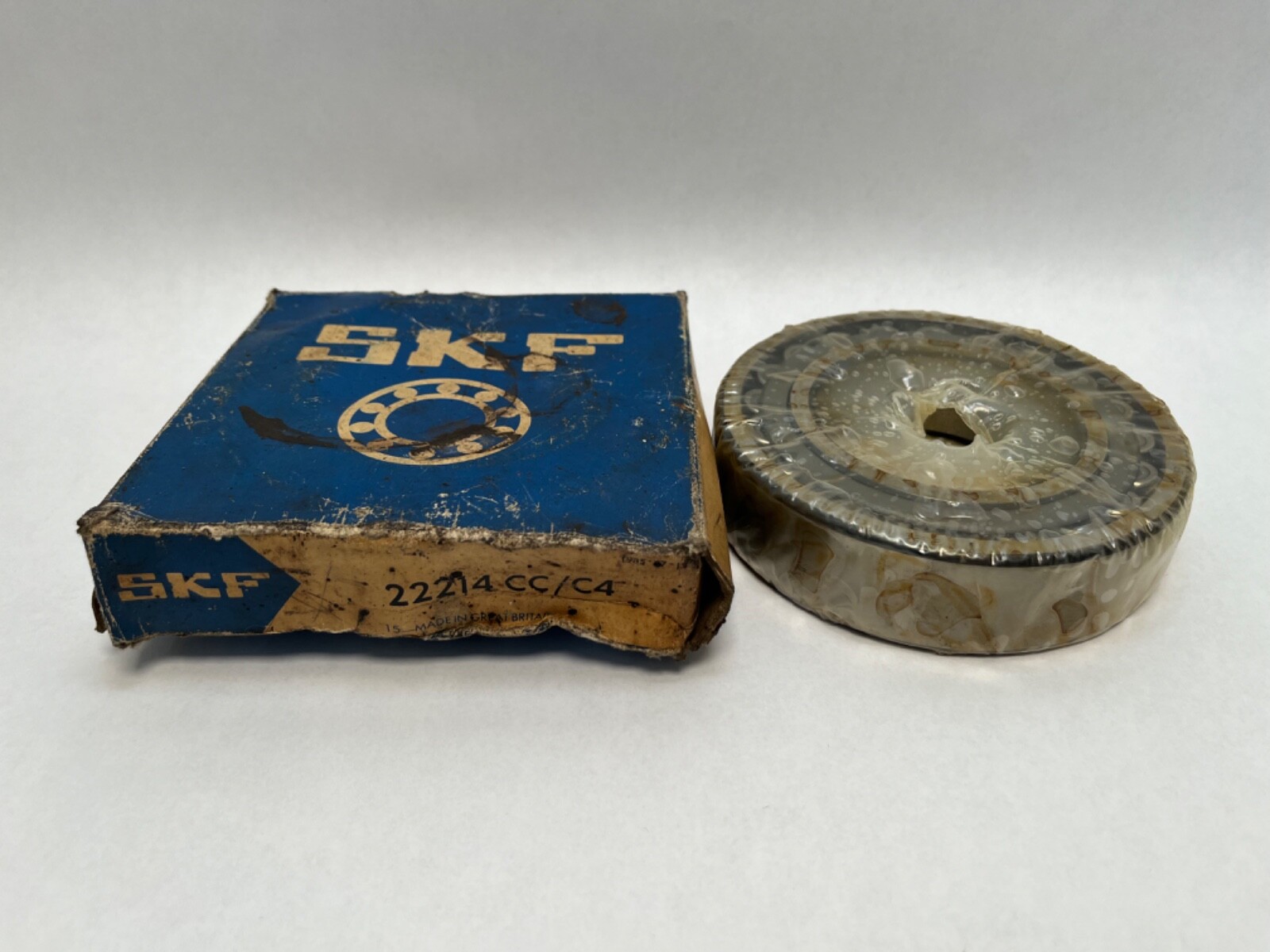

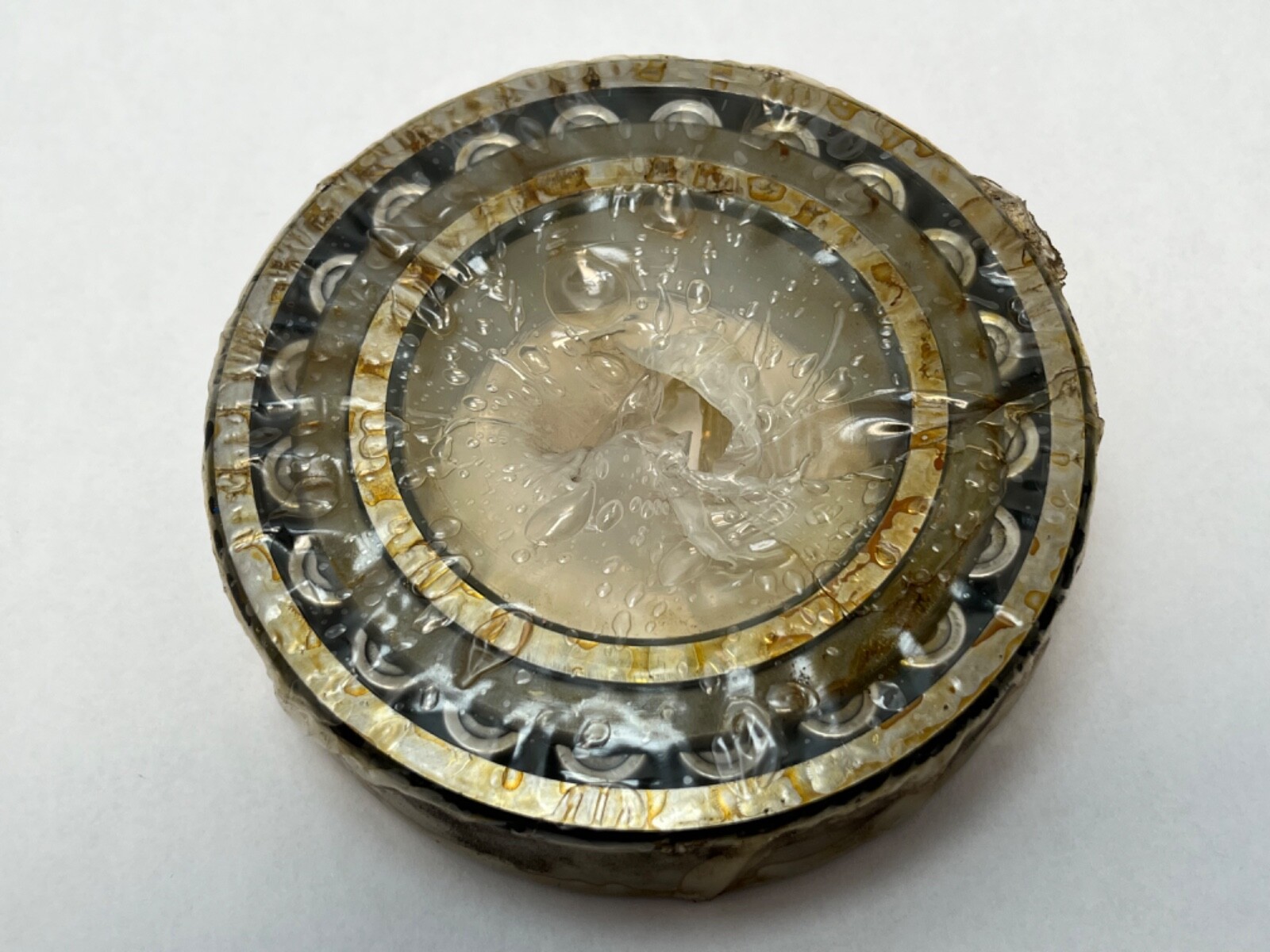

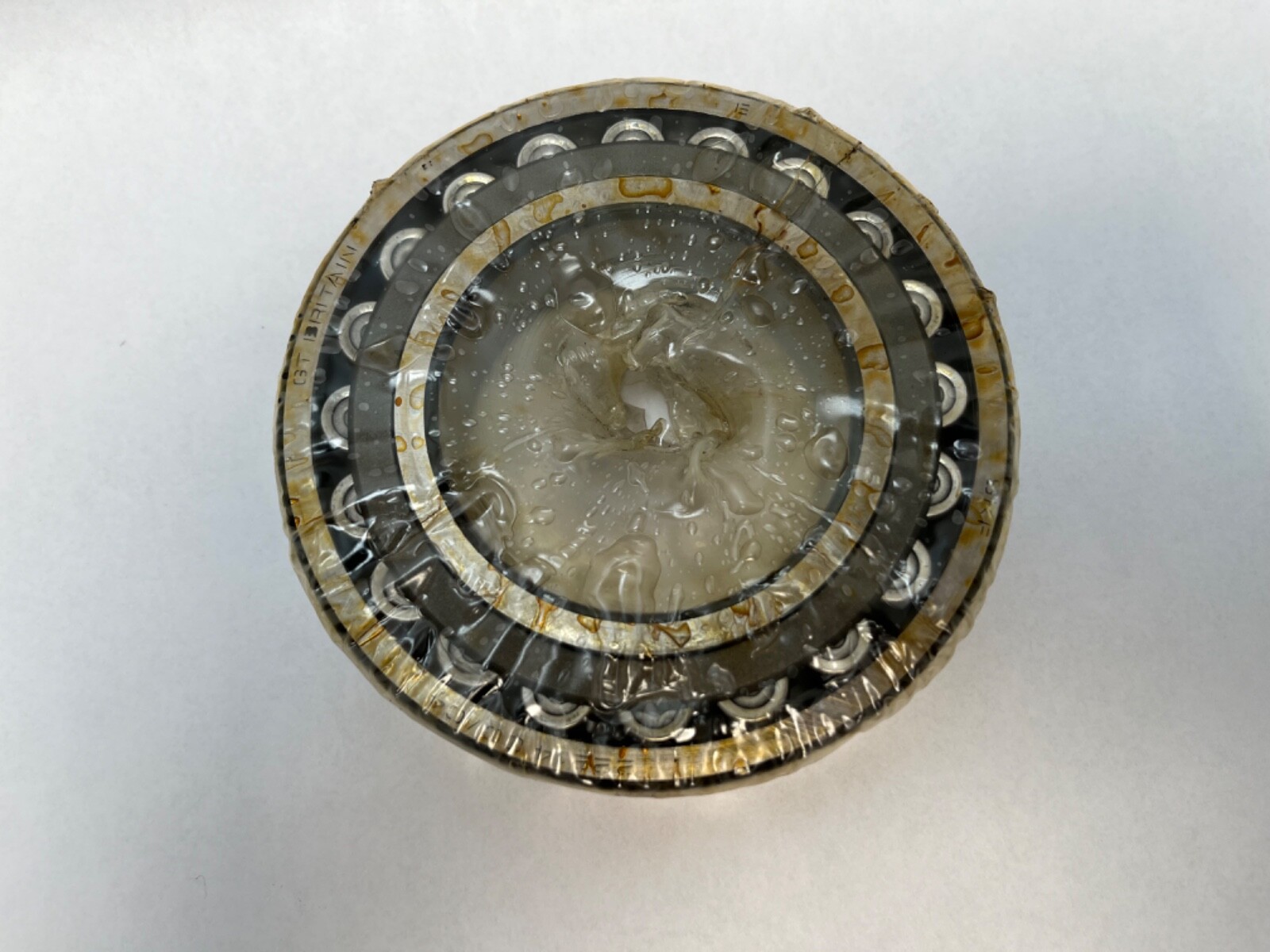

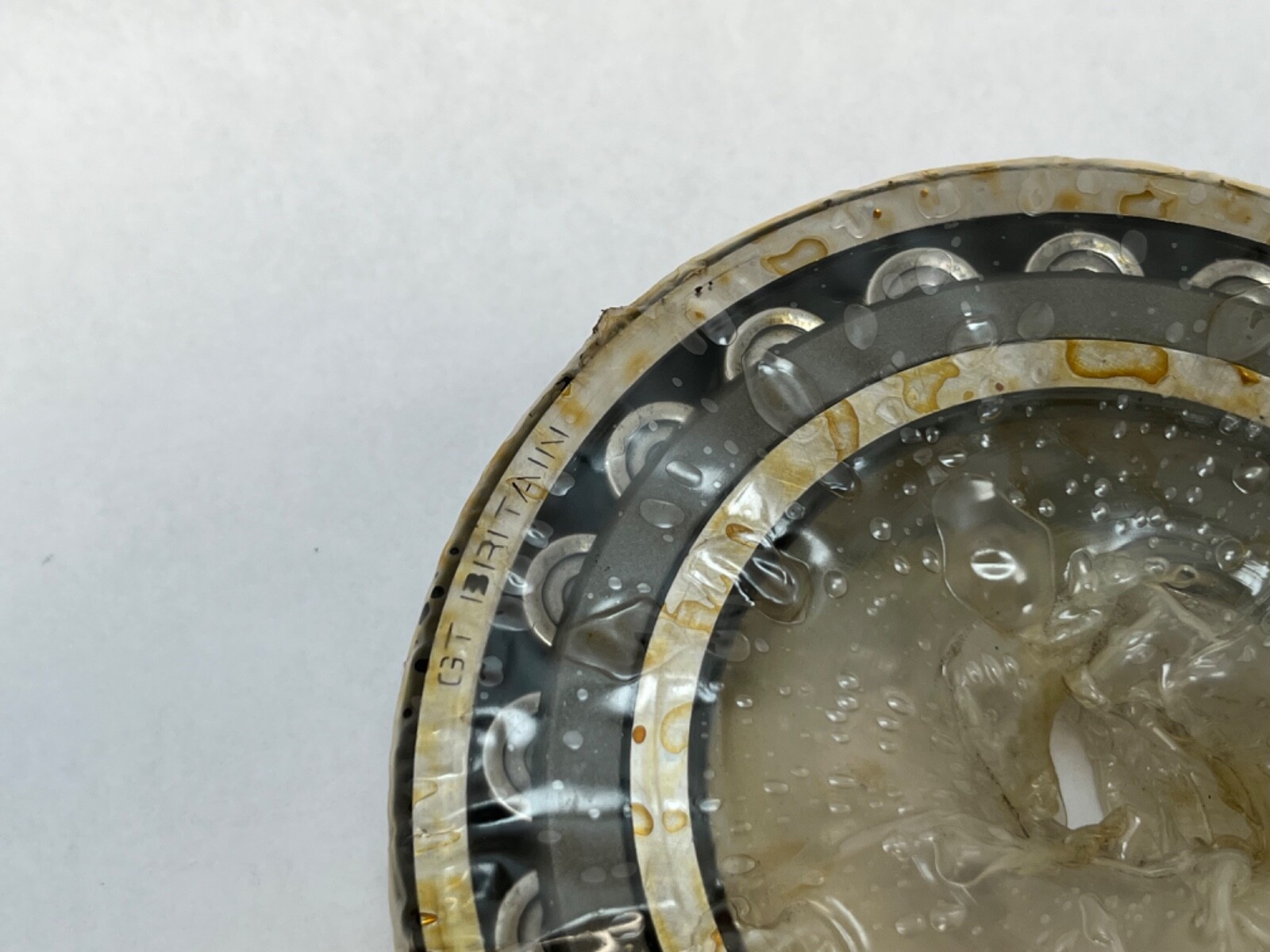

SKF 22214 CC/C4 double-row spherical roller bearing, 70 mm bore, 125 mm outside diameter, 31 mm width, built with C4 internal clearance. Both rows of barrel rollers run against a single spherical raceway ground into the outer ring, so the inner ring and roller assembly swivels inside the outer ring. There is no K in the designation, so the bore is cylindrical and seats directly on a plain 70 mm shaft journal. Unit Quantity: 1 Pc. One complete bearing.
222 — ISO dimension series for spherical roller bearings.
14 — bore reference number; 14 × 5 = 70 mm bore.
CC — cage execution code.
C4 — radial internal clearance one group wider than C3, which is itself wider than normal.
Part Number: 22214 CC/C4. Base Number: 22214. Bearing Type: Spherical Roller Bearing. Number of Rows: 2. Rolling Elements: Spherical Rollers. Seal Type: Open. Material: Bearing Steel. Internal Clearance: C4. Maximum Permissible Misalignment: 2°.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 31 mm. Bore Type: Straight.
Cross-references: Timken / Torrington 22214EJW33C4 (E design, W33 groove); Steyr 22214-C-MB-C4-W33 (W33 groove); Koyo 22214RHRW33C4 (W33 groove). The 22214 CCK/C4W33 and 22214 K variants share the 70 x 125 x 31 mm envelope with a 1:12 tapered bore. The C3 and normal-clearance versions share the same seats; the difference is internal clearance. The CC cage code is superseded by the E design in the current SKF range.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 31 mm.
C4 is radial internal clearance one group wider than C3, which is itself wider than normal.
The bore is straight (cylindrical). There is no K in the designation.
