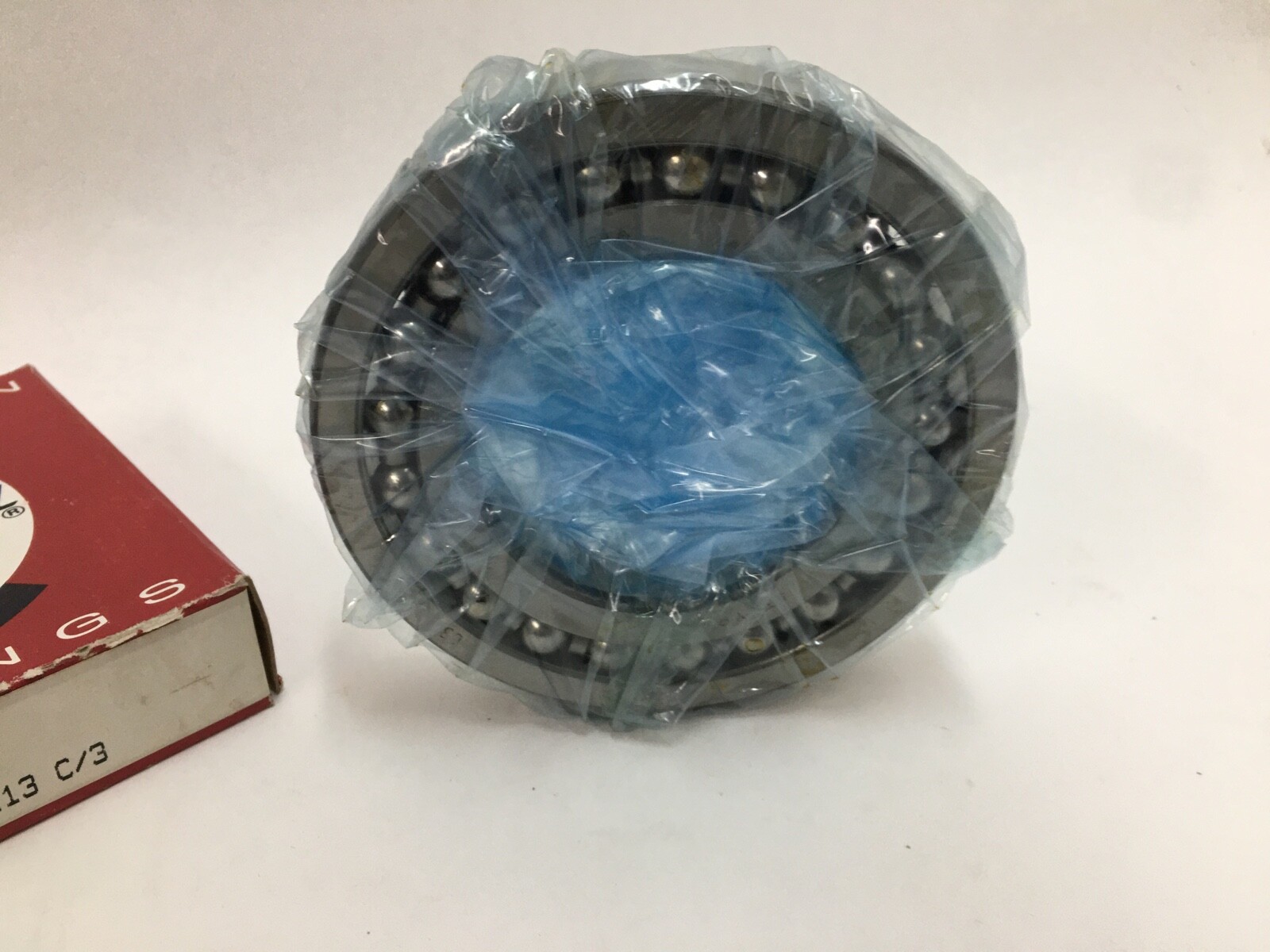

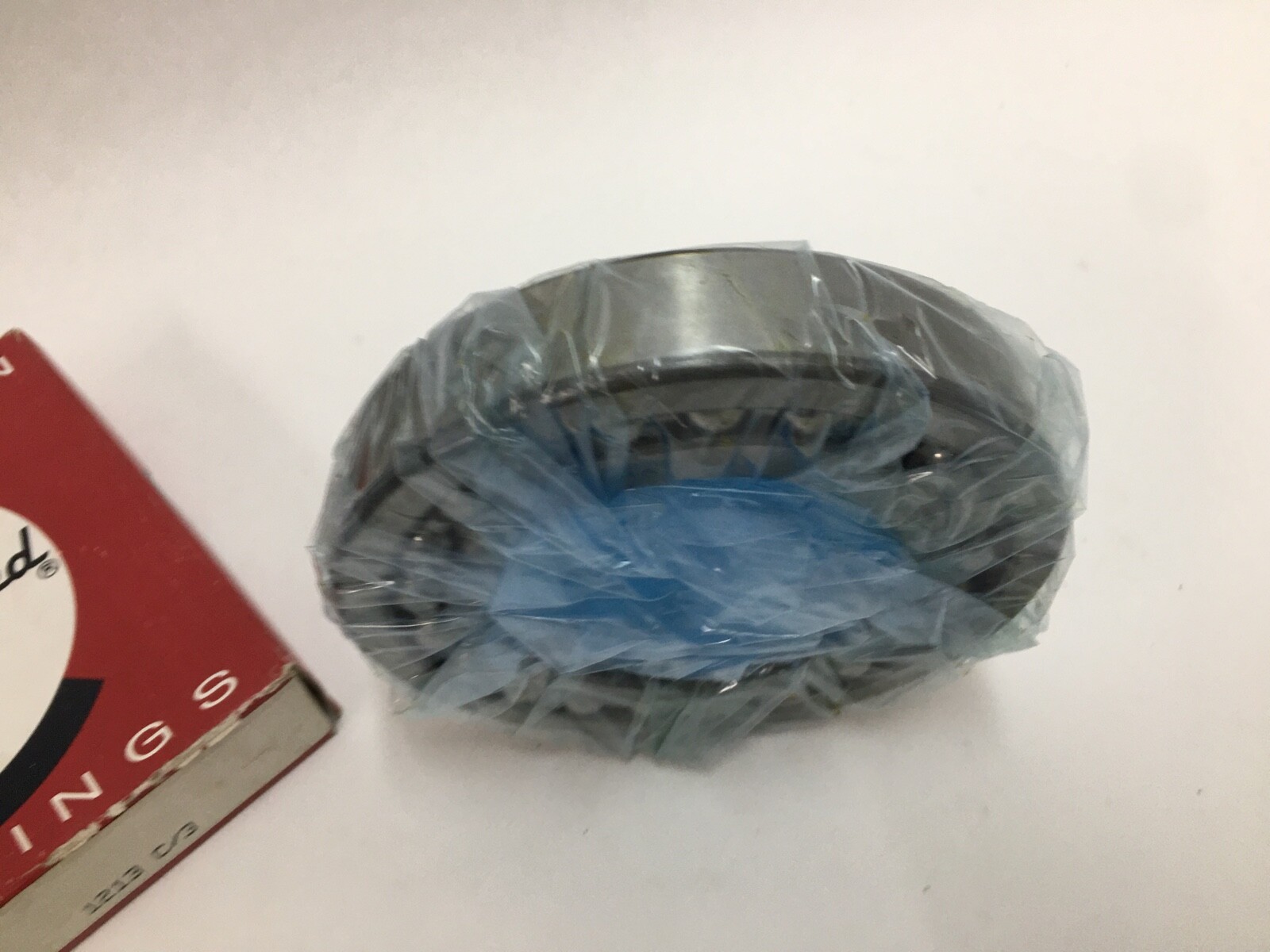

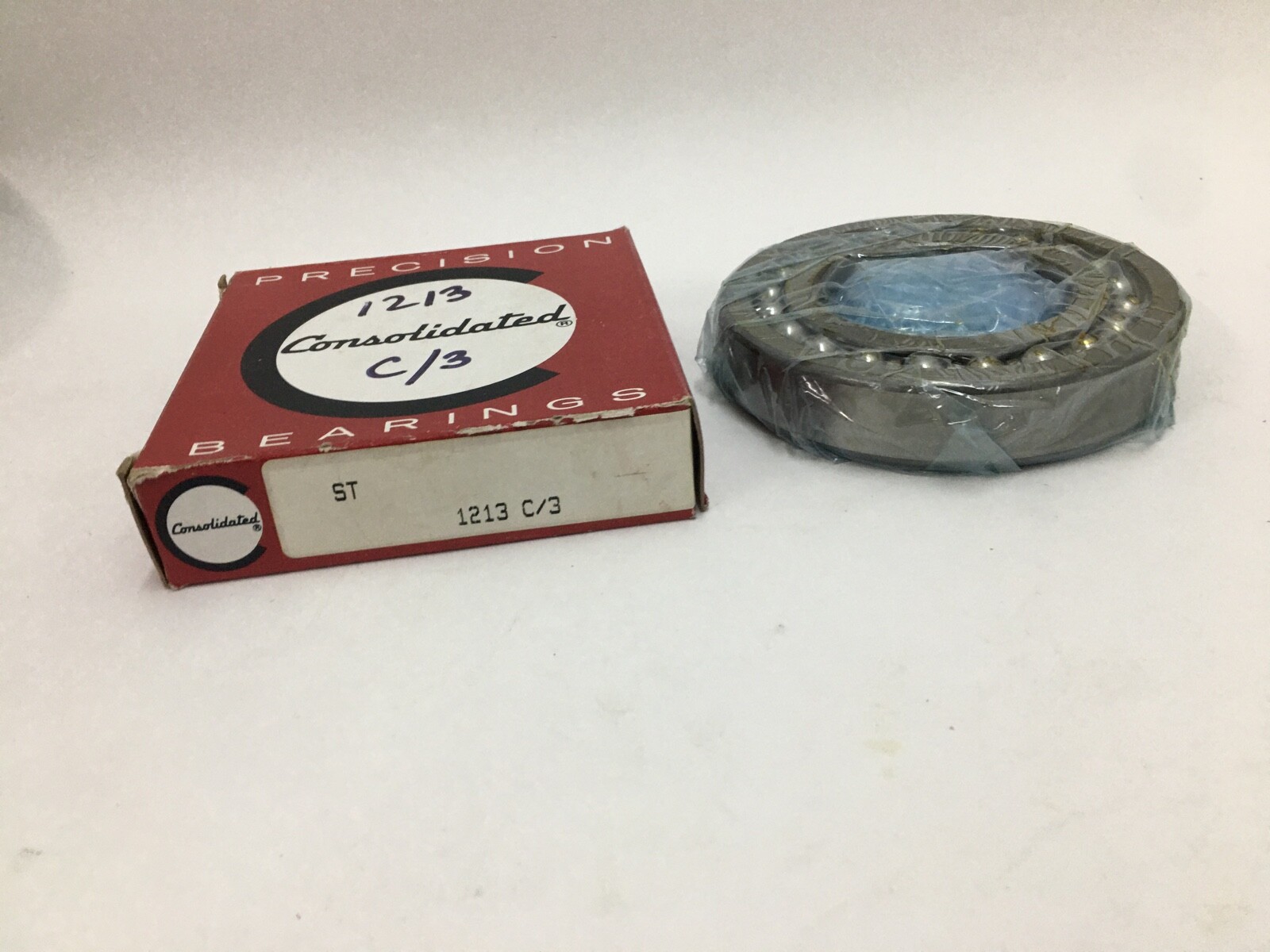

Steyr 1213 C3 self-aligning ball bearing, 65 mm bore, 120 mm OD, 23 mm wide, cylindrical bore, C3 clearance. Two rows of balls in a spherical outer raceway.
List Price
$55.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Steyr |
|---|---|
| MPN | 1213 C3 |
| Model | 1213-C3 |
| Bearing Type | Self Aligning Ball Bearing |
| ID | 65 mm |
| OD | 120 mm |
| Overall Width | 23 mm |
|---|---|
| Mpn Variants | 1213C3, 1213-C3, 1213 C3, CONS 1213-C3 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 1213 ETN9/C3 |
|---|---|
| Cross Reference 2 | FAG 1213-TVH-C3 |
Steyr 1213 C3 is a double-row self-aligning ball bearing with a cylindrical bore. Two rows of balls run on a common spherical outer raceway, so the inner ring, balls and cage swivel relative to the outer ring and accept static and dynamic shaft misalignment.
12 — ISO dimension series 02 self-aligning ball bearing.
13 — bore code, 13 x 5 = 65 mm bore.
C3 — internal radial clearance greater than normal, for shafts running warm or with interference fits.
Bearing Type: Self-aligning ball bearing. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Cylindrical. Internal Clearance: C3. Closure Type: Open.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. ISO 15 boundary dimensions for the 1213 size.
The 1213 envelope is standardised, so the part interchanges dimensionally with the 1213 C3 from other makers, including SKF 1213 ETN9/C3 and FAG 1213-TVH-C3. The tapered-bore variant is a different part, the 1213 K.
What size is a 1213 self-aligning bearing?
65 mm bore, 120 mm outside diameter, 23 mm wide.
What does C3 mean on this bearing?
C3 is internal radial clearance greater than normal (CN).
Does the 1213 have a tapered bore?
No. The 1213 has a cylindrical bore; the tapered-bore version is designated 1213 K.
