Availability:
4 in stock

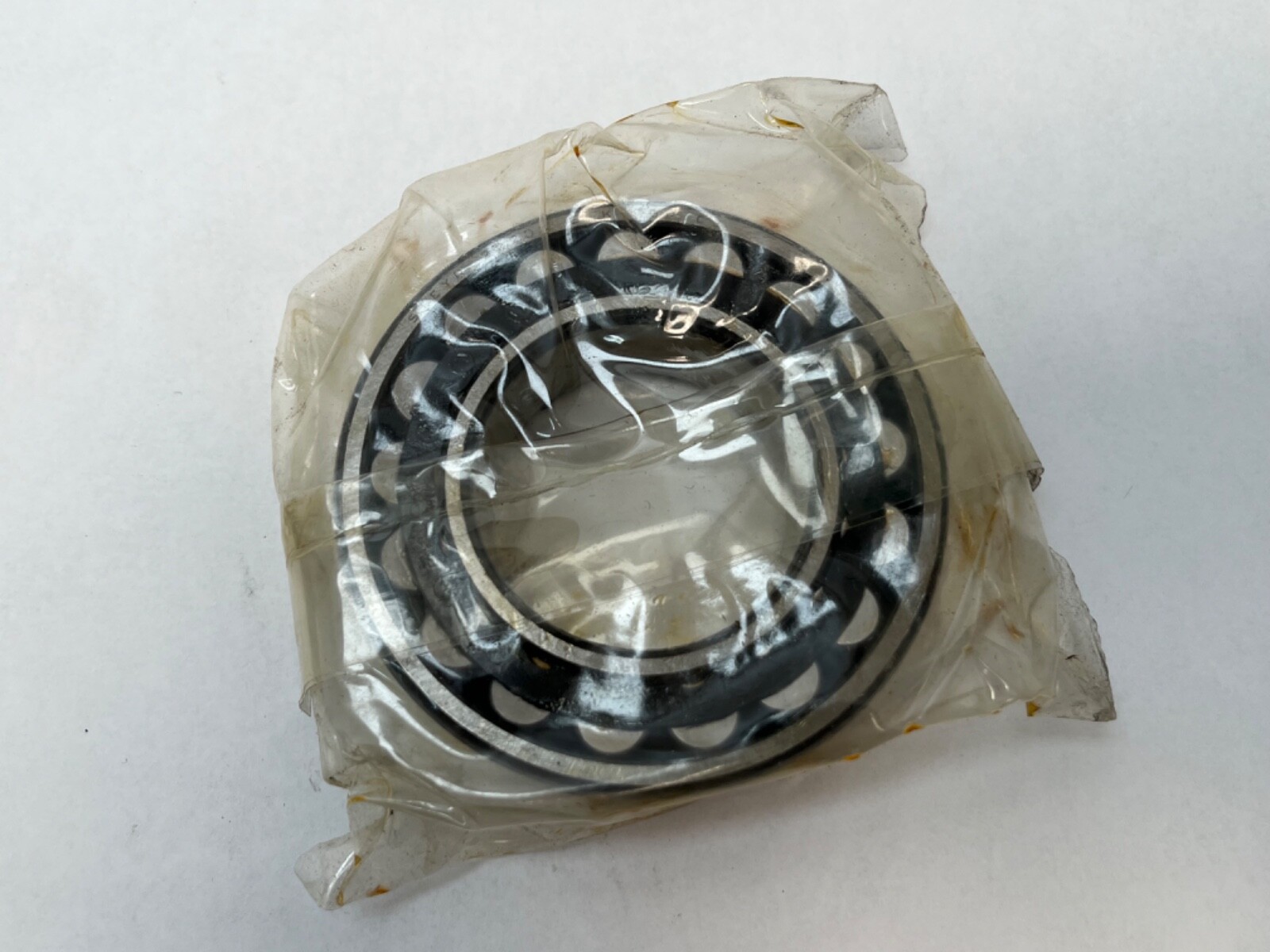

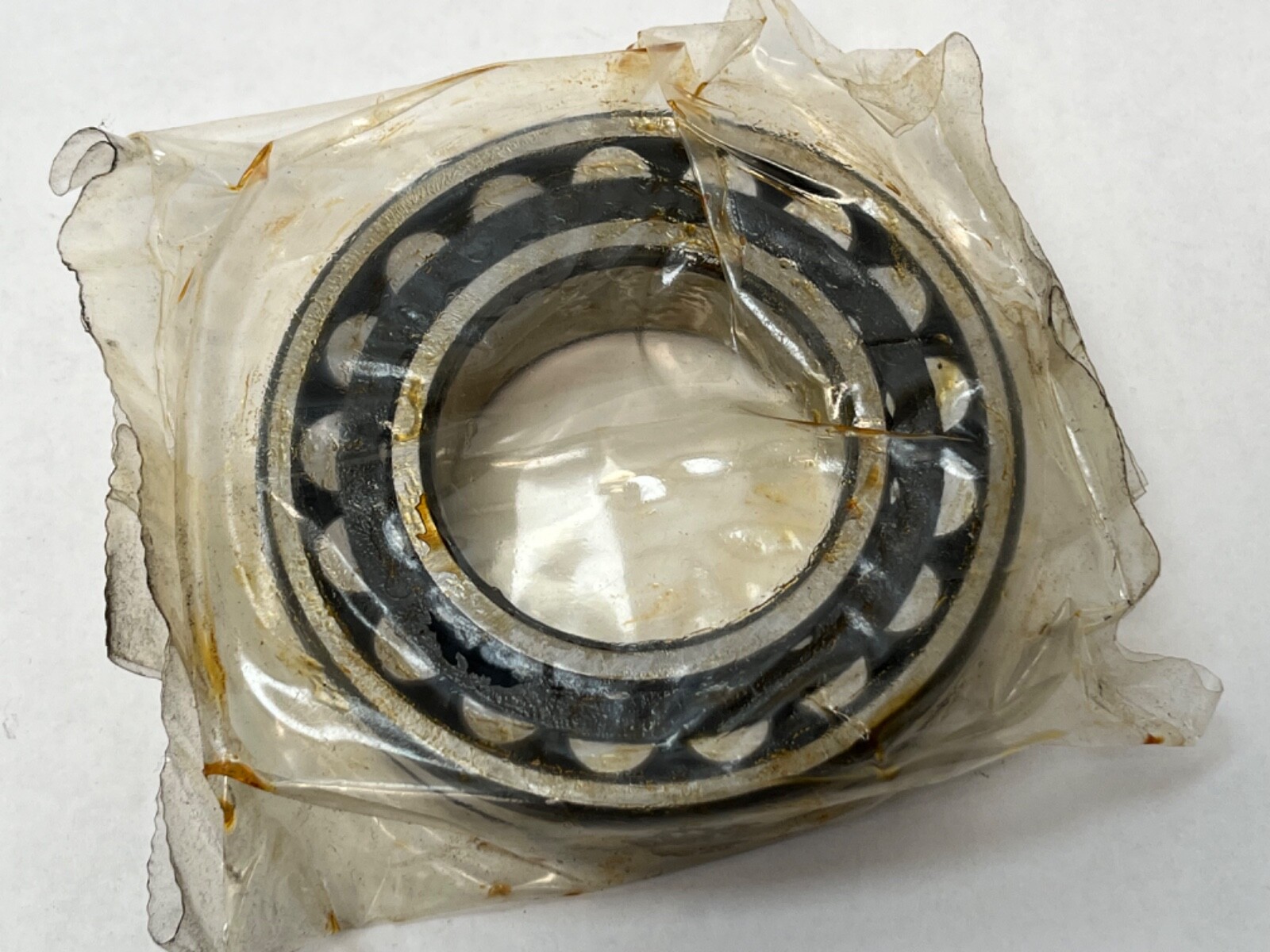

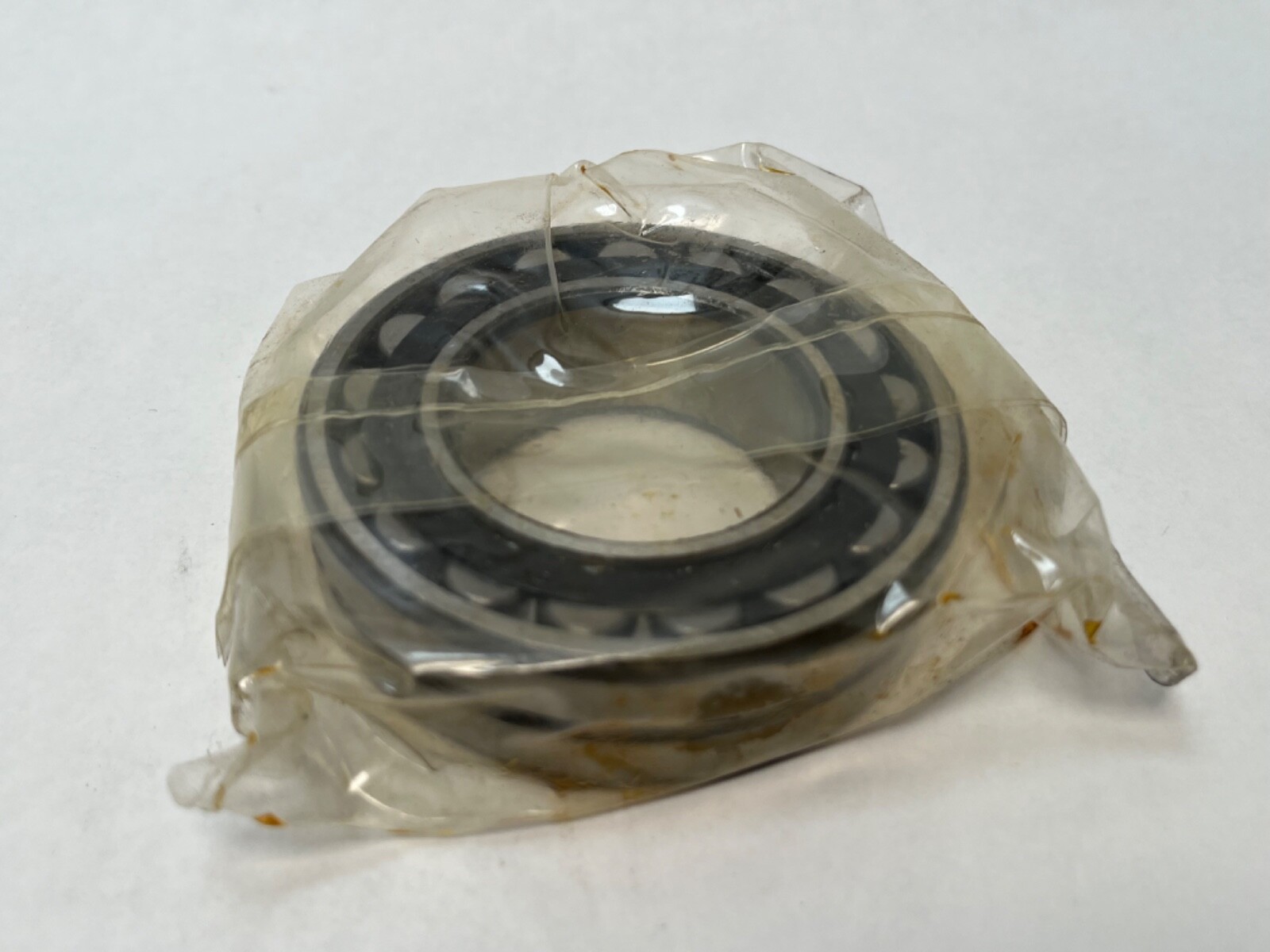

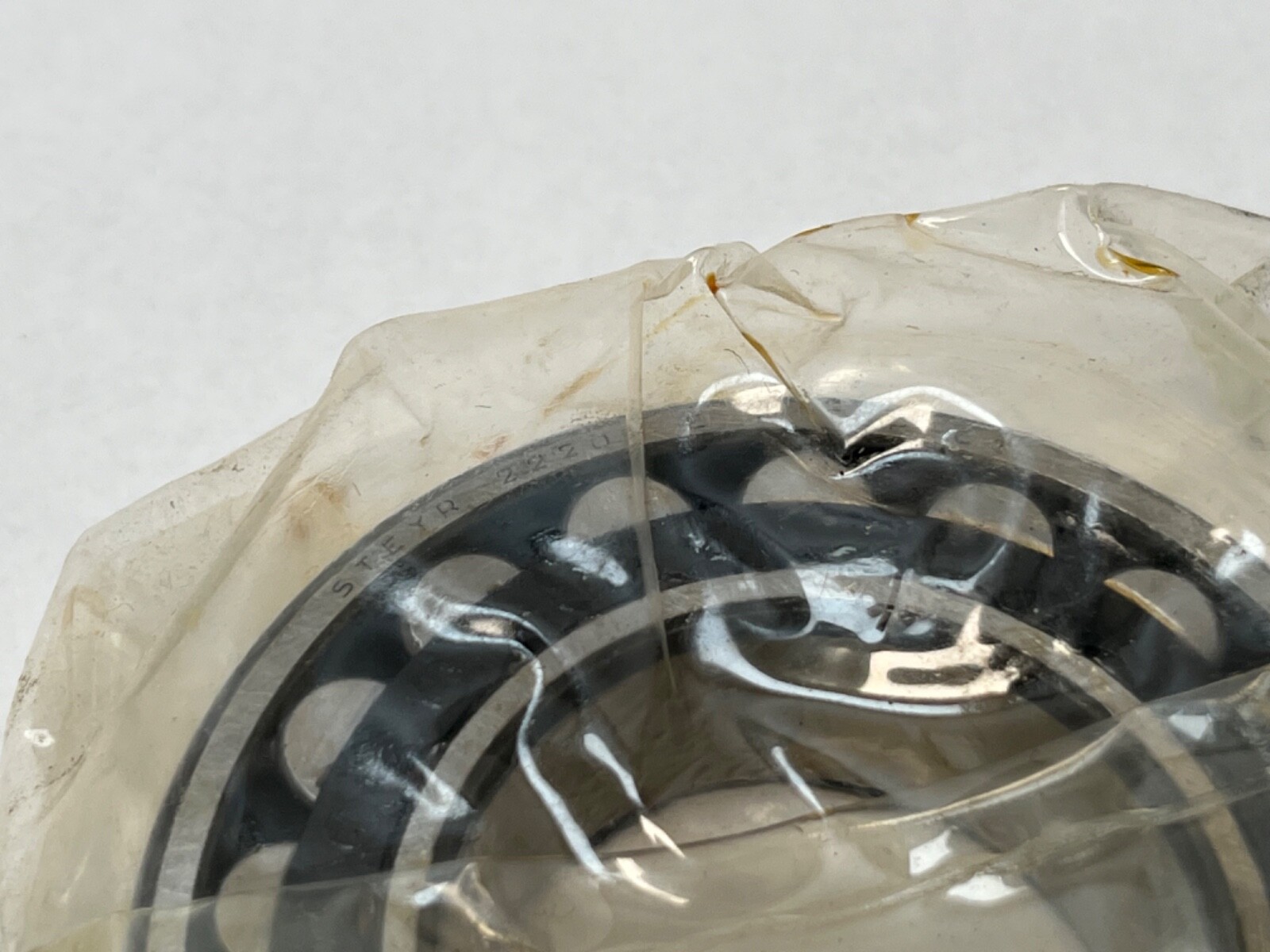

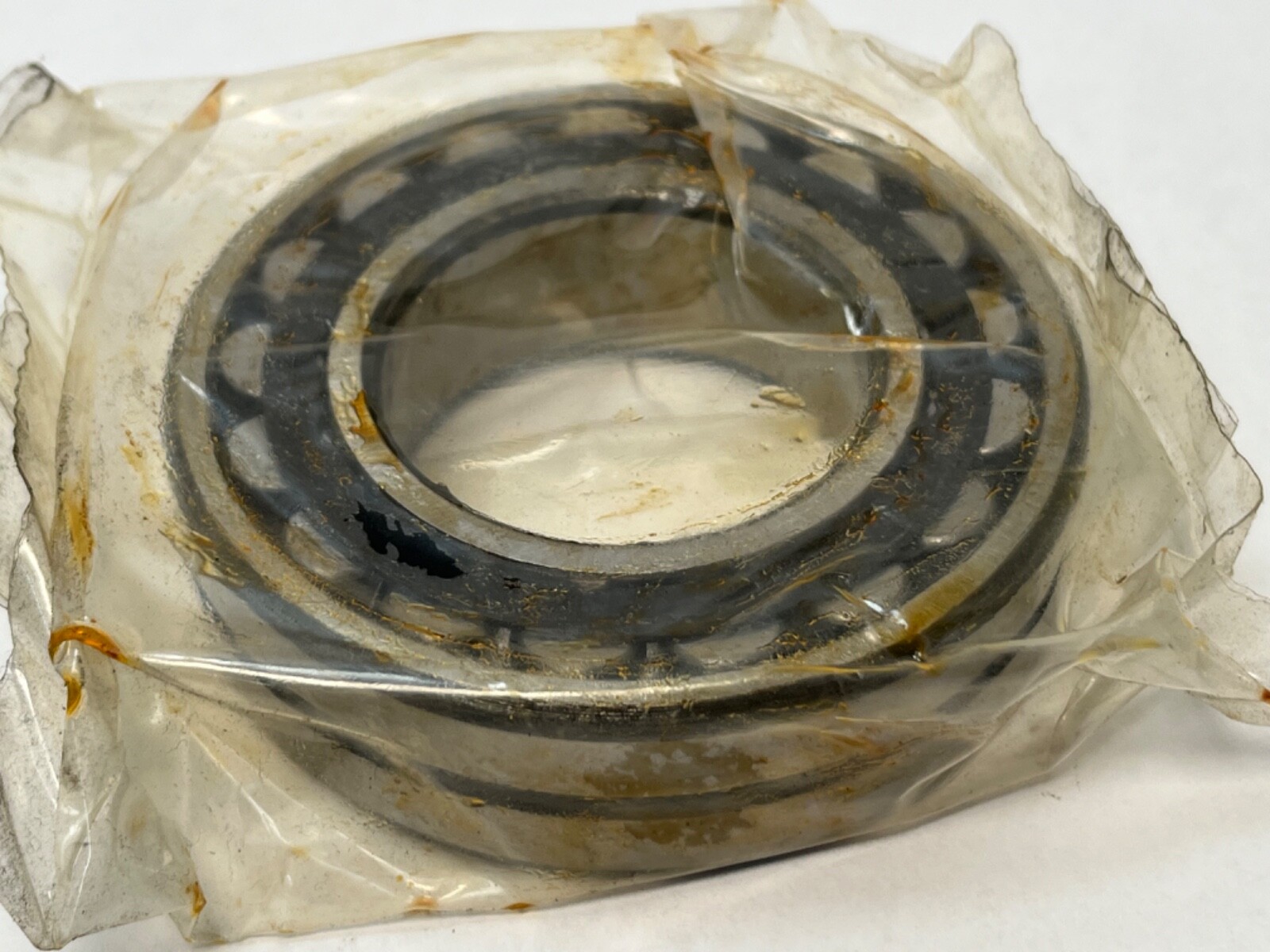

Steyr spherical roller bearing, 45 mm tapered bore (1:12), 85 mm OD, 23 mm wide, C3 clearance, W33 lubrication groove and holes in the outer ring.
List Price
$43.38
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Steyr |
|---|---|
| Model | 22209EKTGPC3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 |
| Lubricant | grease or oil |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Relubrication Feature | W33 groove and holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22209 E K TGP C3 W33, 22209EKTGPC3W33, 22209 E K TGP C3 SV20/W33 F32, 22209EKC3W33 |
| Compatible With Replaces | Adapter sleeve H309 |
| Cross Reference 1 | SKF 22209 EK/C3 W33 |
|---|---|
| Cross Reference 2 | FAG 22209-E1-K-C3 |
| Cross Reference 3 | NTN 22209EAKW33C3 |
| Cross Reference 4 | Timken 22209KEJW33C3 |
Steyr 22209 E K TGP C3 W33 is a double-row spherical roller bearing from the 222 series with a tapered bore, C3 clearance and a lubrication groove in the outer ring. The bearing is self-aligning and carries heavy radial load with moderate axial load in both directions.
22209 — 222 series spherical roller bearing, bore code 09, 45 x 85 x 23 mm.
K — tapered bore, 1:12 taper.
C3 — internal clearance greater than normal.
W33 — lubrication groove and holes in the outer ring.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Closure Type: Open. Rolling Elements: Spherical Roller. Number Of Rows: 2. Series: 222. Lubricant: grease or oil.
The tapered bore mounts on an H309 adapter sleeve on a 40 mm shaft, with a KM9 locknut and MB9 lock washer, or directly on a tapered journal. The W33 groove feeds grease or oil to the roller path from the outer ring.

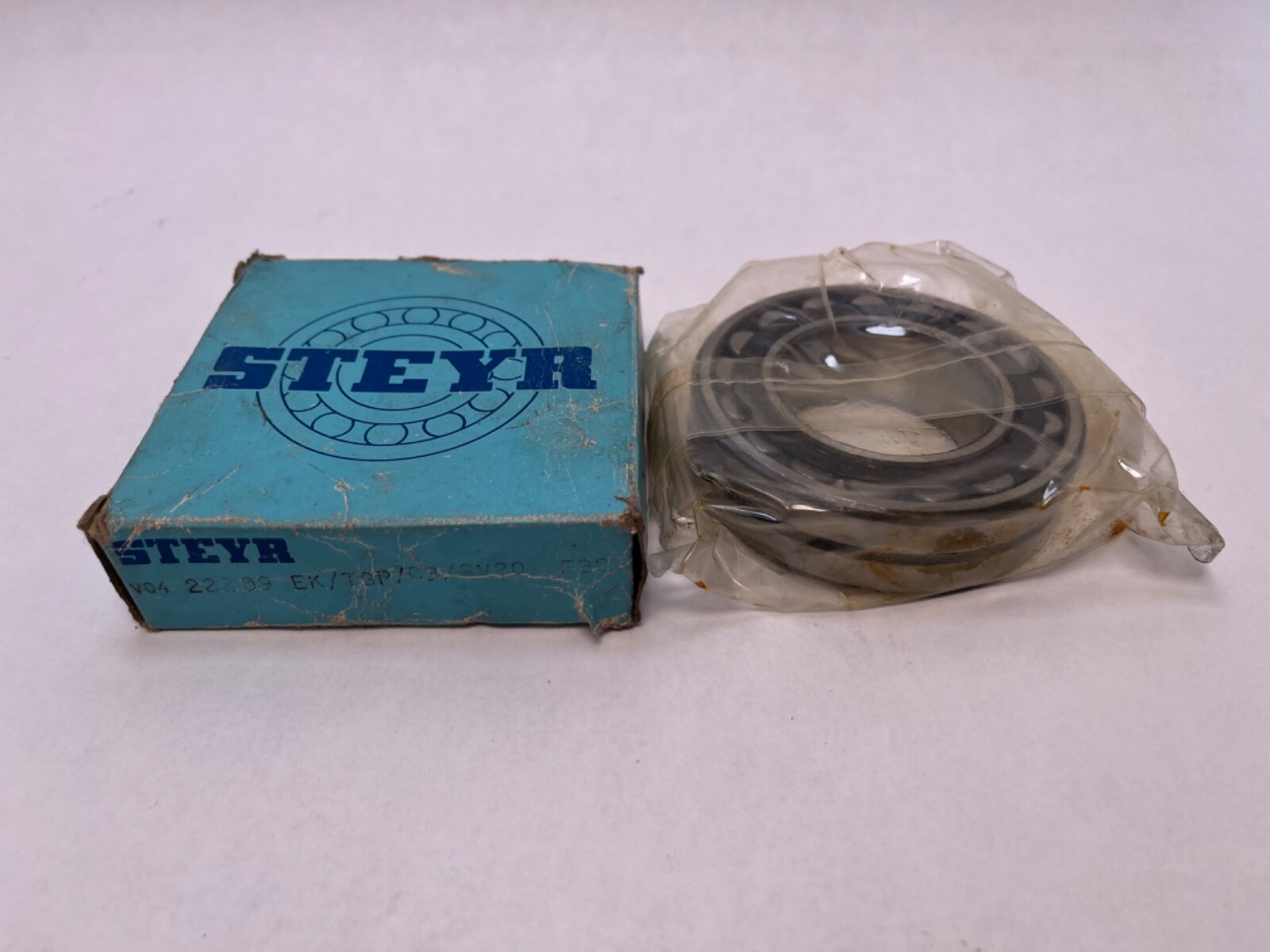

Cross-Reference: SKF 22209 EK/C3 W33, FAG 22209-E1-K-C3, NTN 22209EAKW33C3, Timken 22209KEJW33C3. Carton marking: 22209 E K TGP C3 SV20/W33 F32. Common listing form: 22209EKTGPC3W33.
What adapter sleeve fits the Steyr 22209 E K TGP C3 W33?
The H309 adapter sleeve, which seats the 45 mm tapered bore on a 40 mm shaft.
What does C3 mean on this bearing?
C3 is internal clearance greater than normal, used where shaft and ring temperatures run higher or fits are tighter.
Does this bearing have a lubrication groove?
Yes. W33 is a circumferential groove with holes in the outer ring for grease or oil feed.
