Availability:
2 in stock
RHP 22209EKW33 spherical roller bearing, 45 mm bore, 85 mm OD, 23 mm width, tapered bore, W33 lubrication groove, CN clearance, made in Italy.
List Price
$44.18
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 22209EKW33 |
| Model | 22209-E-K-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or Oil |
| Dynamic Load Rating C1 | 118,000 N |
| Dynamic Load Rating | 118,000 N |
| Static Load Rating | 111,000 N |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Snap Ring Included | No |
| Limiting Speed | 6,000 rpm grease; 7,500 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.80 |
| Maximum Permissible Misalignment | 1.5° |
| Closure Type | Open |
| Mpn Variants | 22209EKW33, 22209-E-K-W33, 22209 EK W33 |
| Cross Reference 1 | SKF 22209 EK |
|---|---|
| Cross Reference 2 | NSK 22209EAKE4 |
| Cross Reference 3 | SKF 22209 E (cylindrical bore, not tapered) |
| Cross Reference 4 | NSK 22209EAE4 (cylindrical bore, not tapered) |

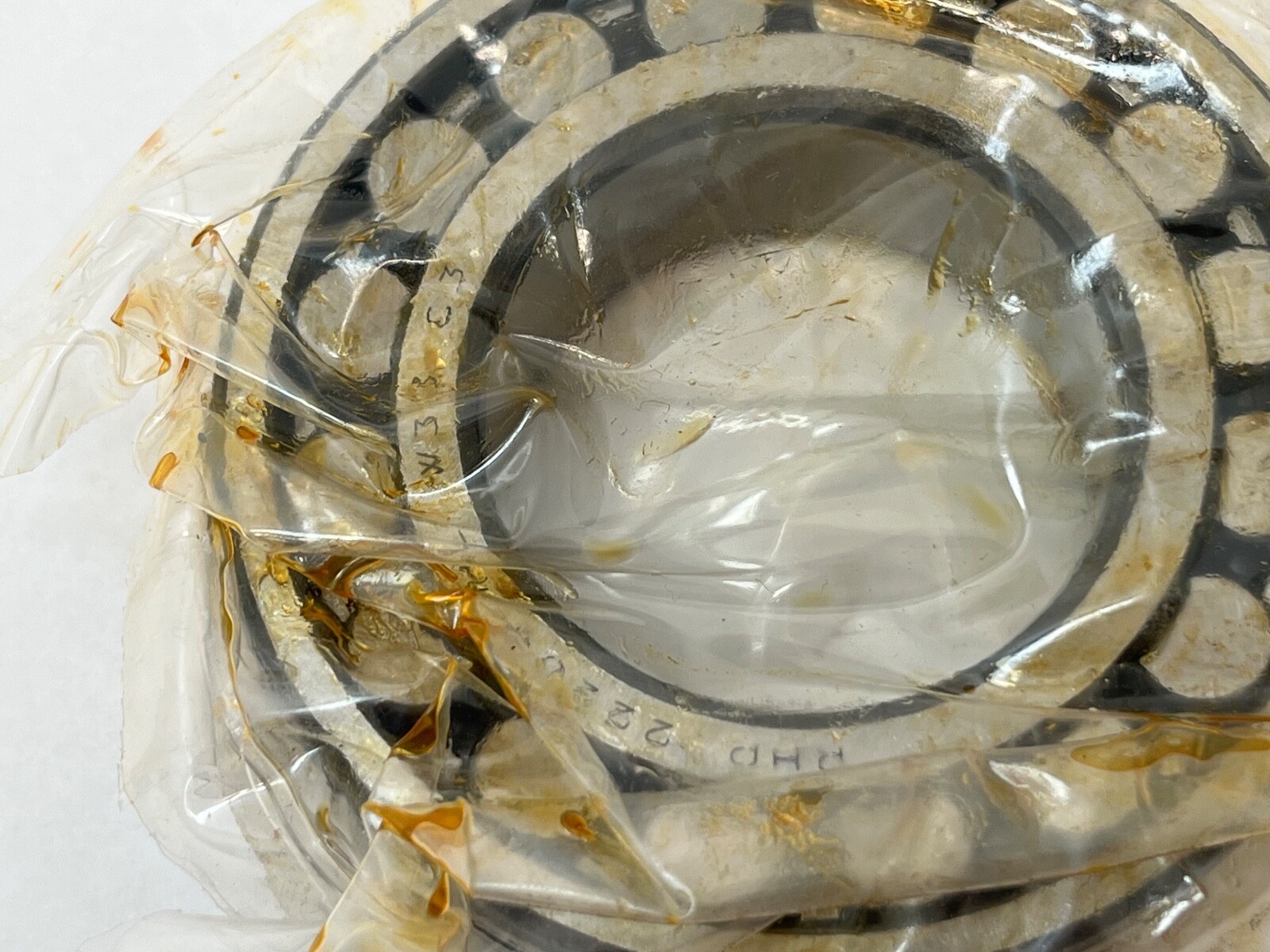

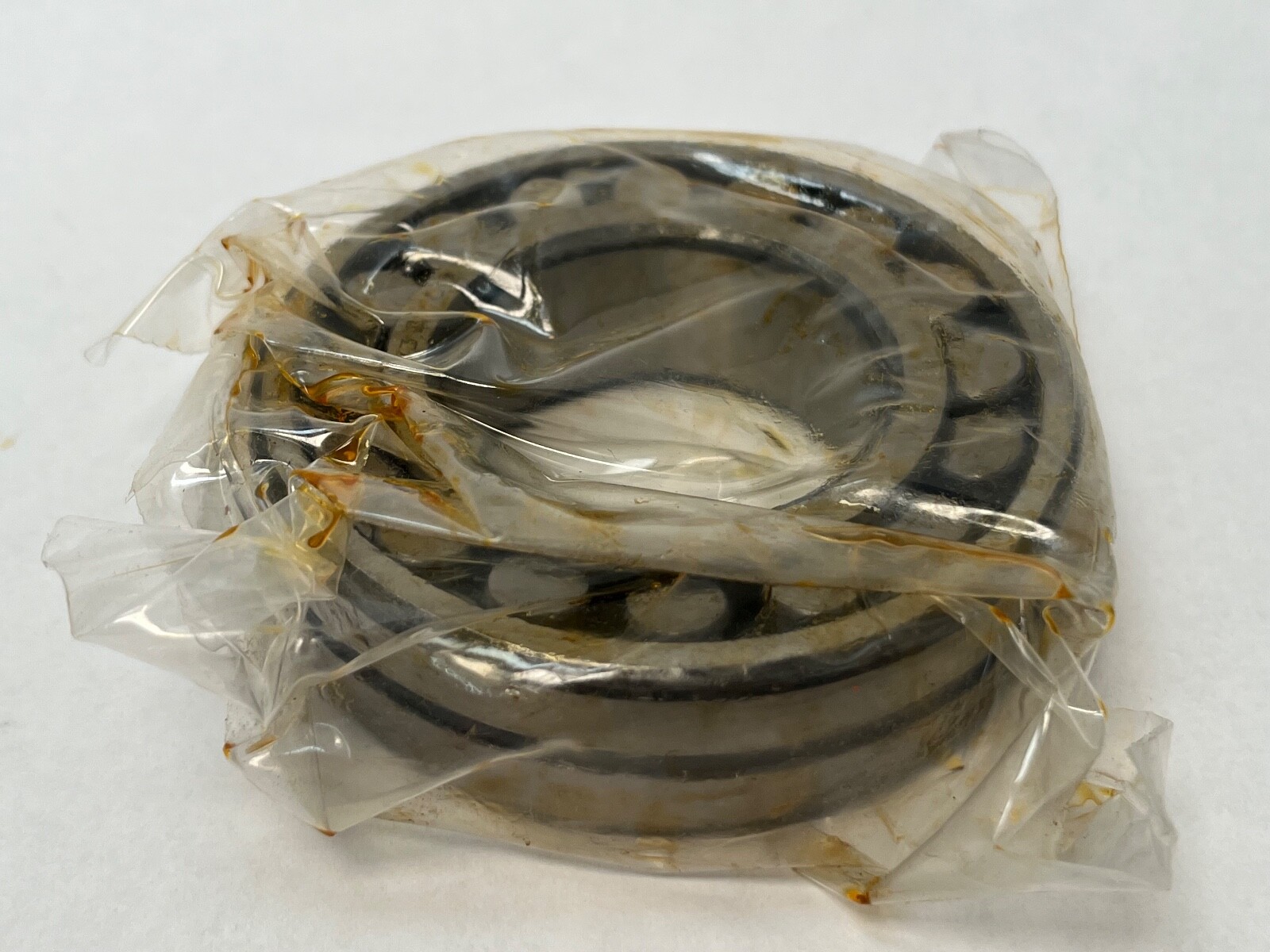

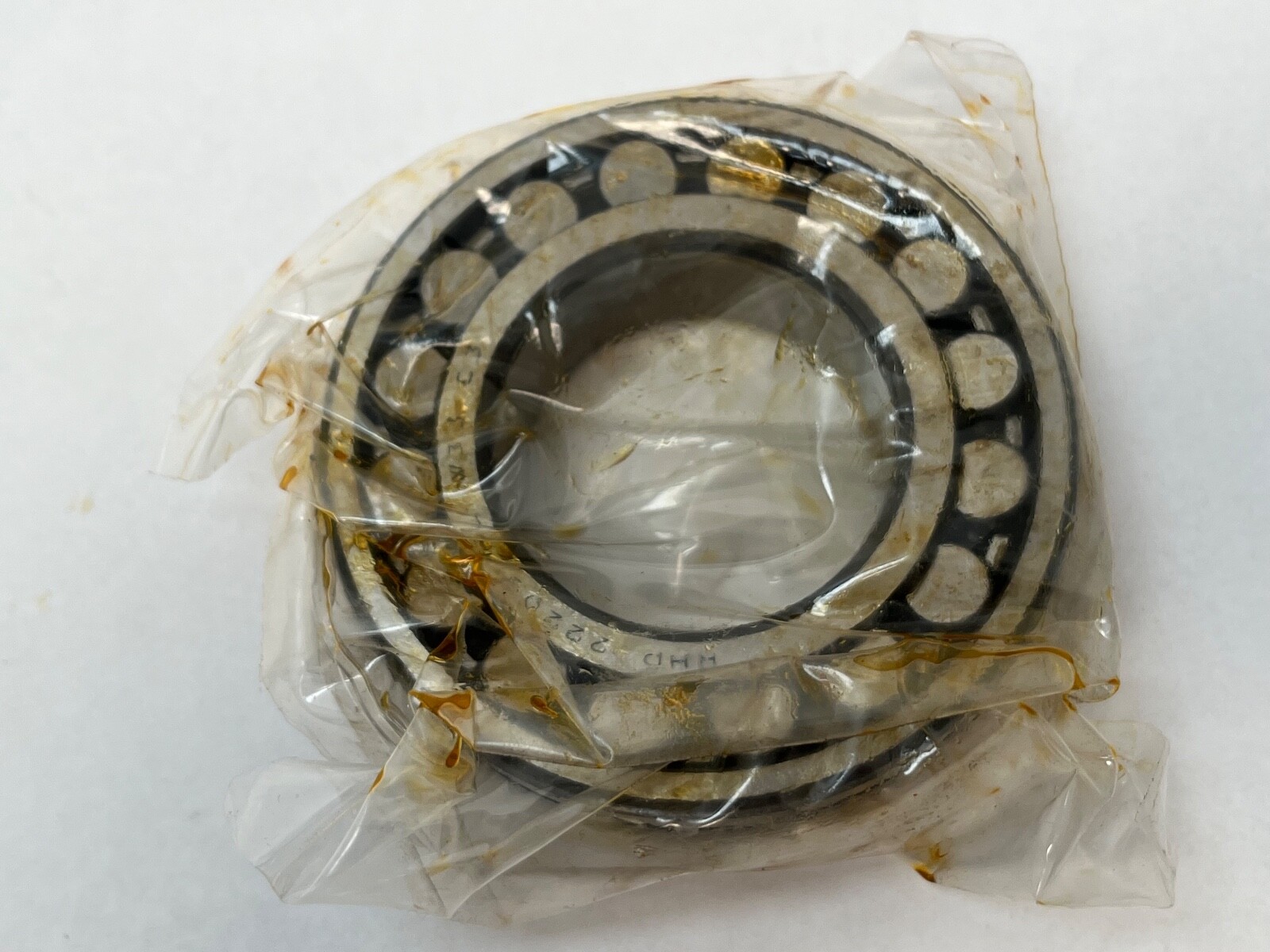

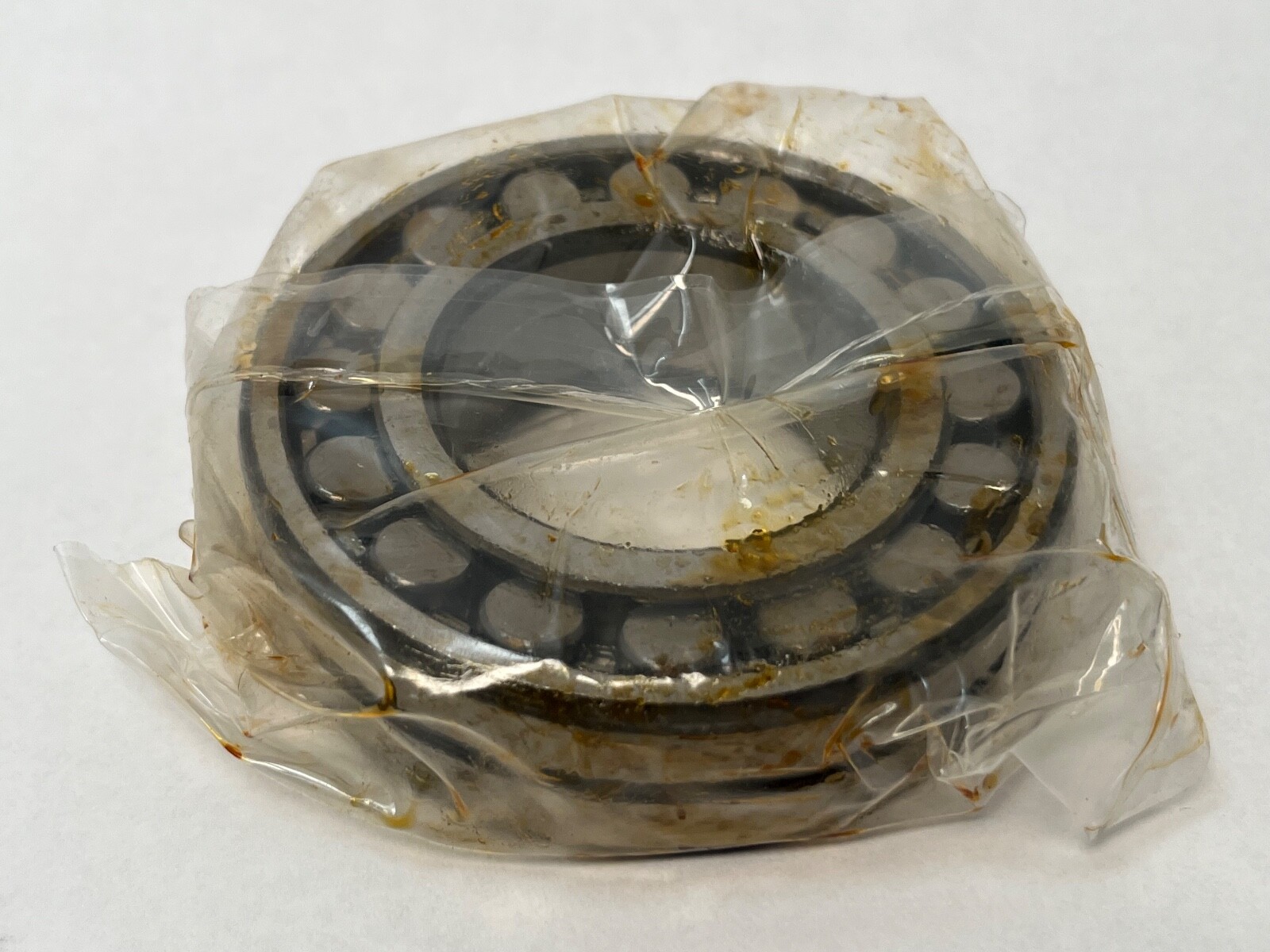

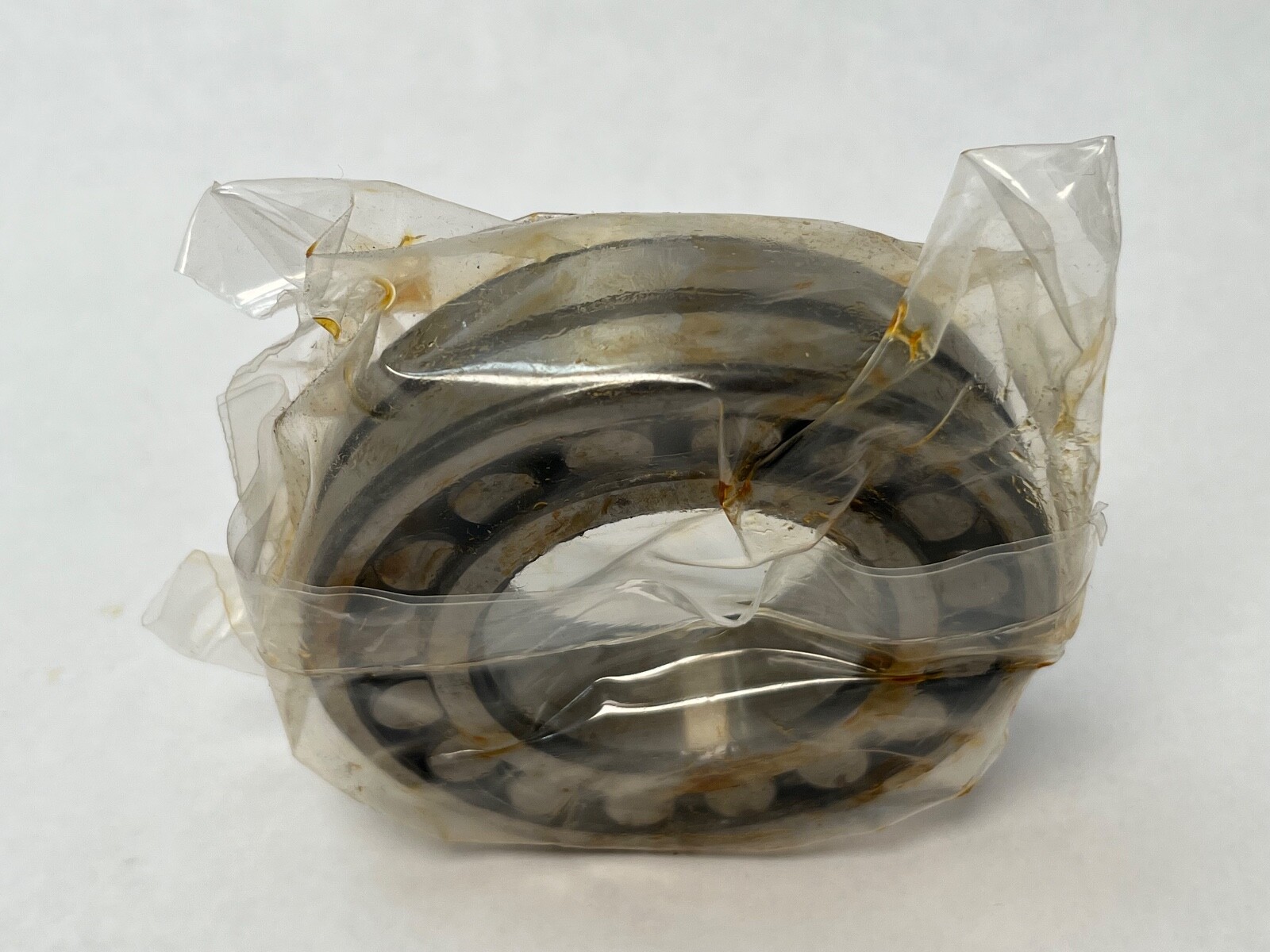

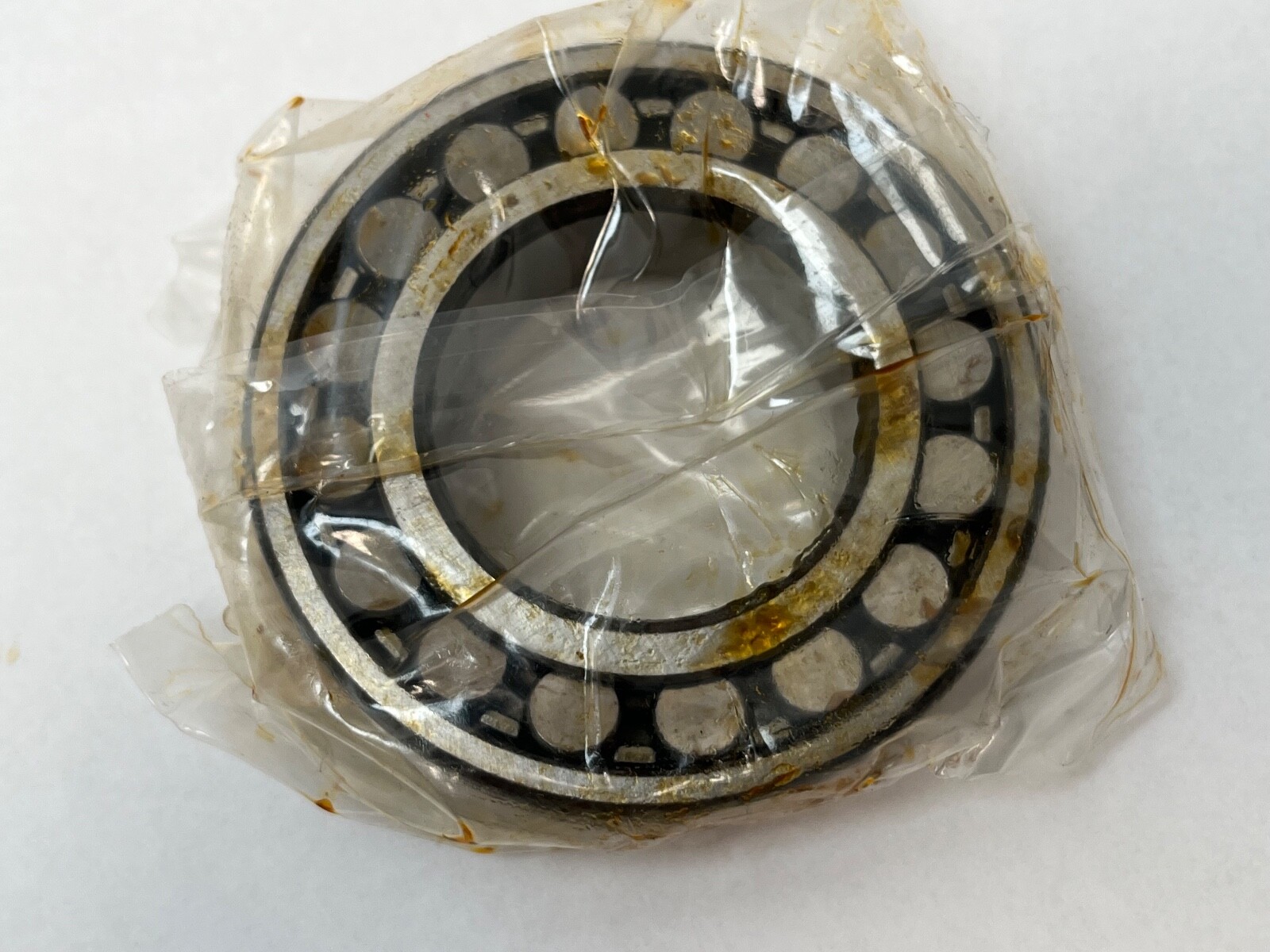

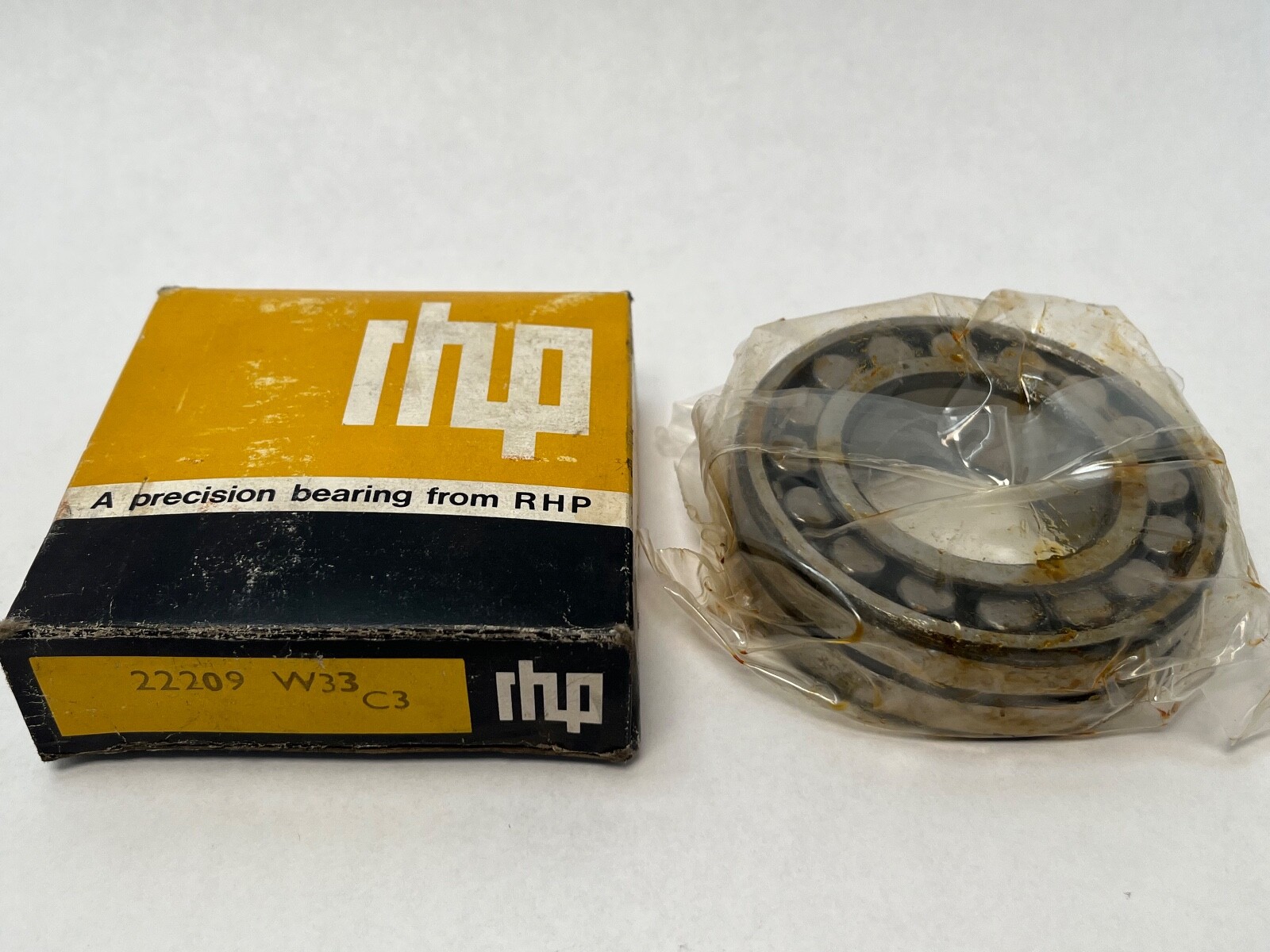

RHP 22209EKW33 double-row spherical roller bearing with a tapered bore and a W33 lubrication groove in the outer ring. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Unit Quantity: 1 Pc. Manufactured in Italy.
22209 — ISO size 45 x 85 x 23 mm spherical roller bearing.
E — reinforced, high-capacity design.
K — 1:12 tapered bore.
W33 — lubrication groove and three radial holes in the outer ring, for grease or oil feed.
Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered Bore. Internal Clearance: CN. Seal Type: Open. Cage Material: Pressed Steel. Lubricant: Grease or Oil. Series: 22200. Harmonization Code: 8482.30.00.80.
Dynamic Load Rating: 118,000 N. Static Load Rating: 111,000 N. Limiting Speed: 6,000 rpm grease; 7,500 rpm oil. Maximum Permissible Misalignment: 1.5°.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Taper: 1:12.
Tapered bore equivalents: SKF 22209 EK, NSK 22209EAKE4. Cylindrical bore versions: SKF 22209 E, NSK 22209EAE4.
MPN Variants: 22209EKW33, 22209-E-K-W33, 22209 EK W33.
K is a 1:12 tapered bore; W33 is a lubrication groove and three radial holes in the outer ring.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
Dynamic Load Rating: 118,000 N. Static Load Rating: 111,000 N.
