FAG23222-E1A-XL-MSpherical Roller Bearing – 110 mm ID, 200 mm OD, 69.8 mm Width, Straight Bore, W33, Machined Brass Cage

Product Description

What this part is:

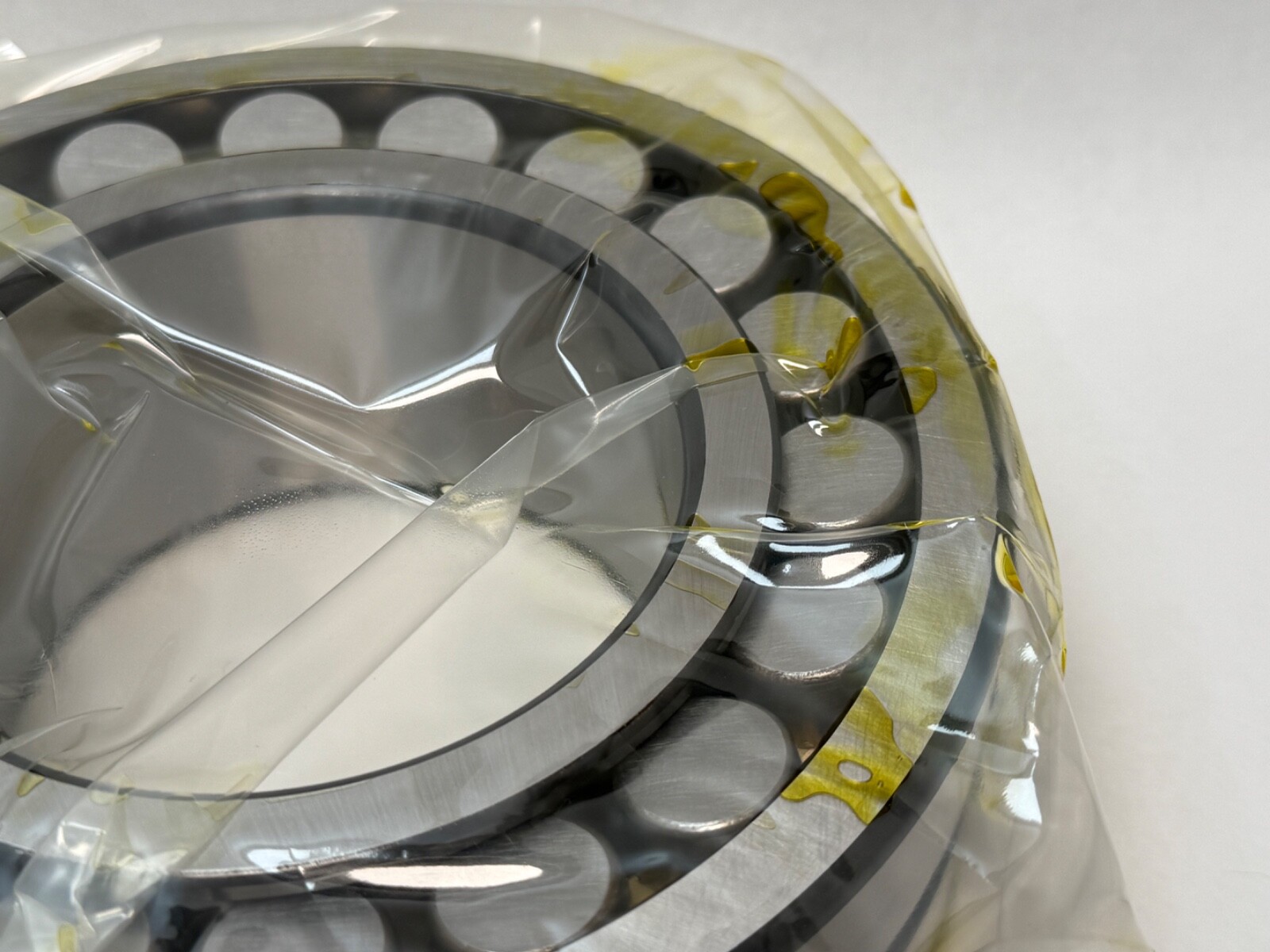

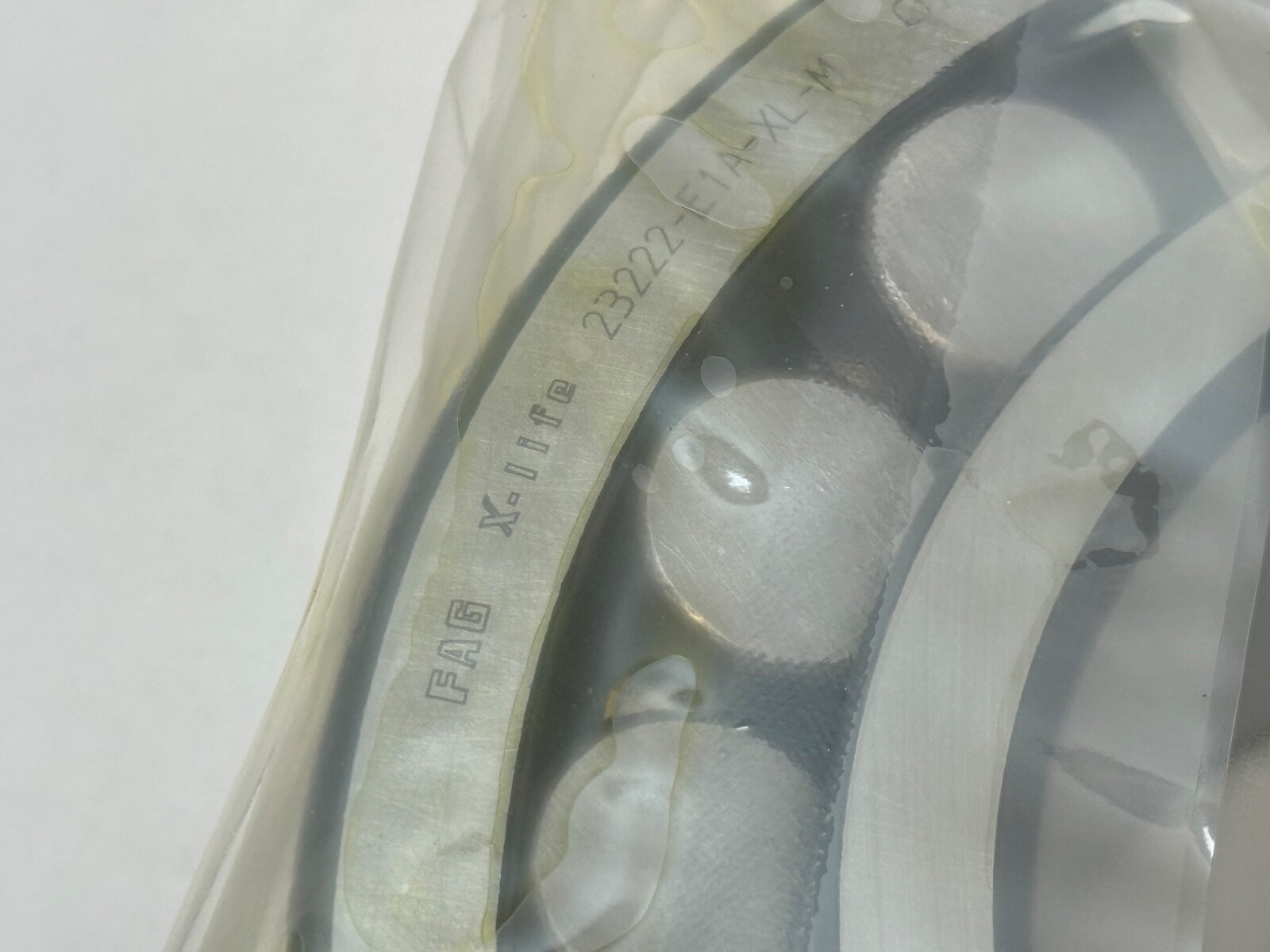

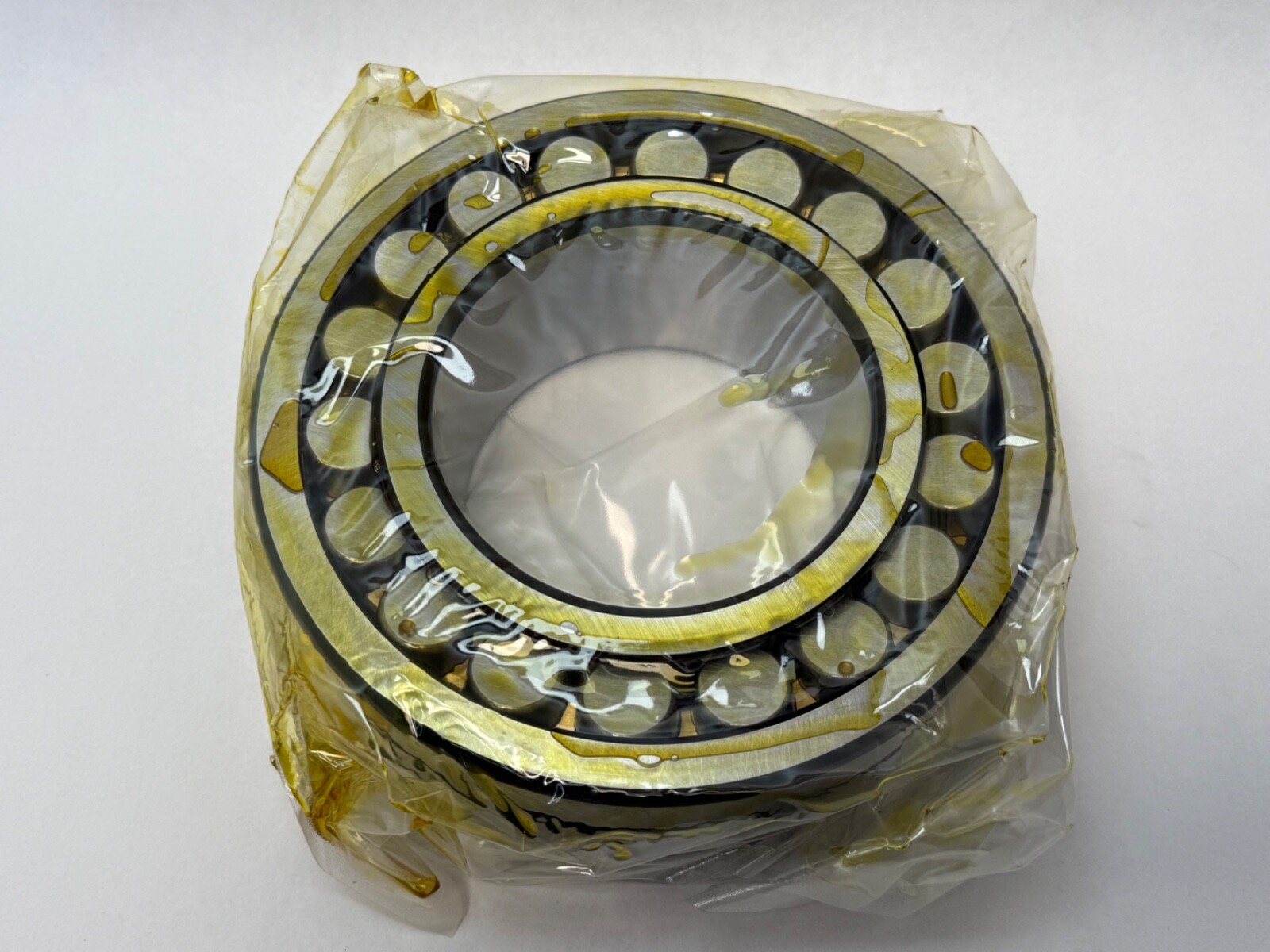

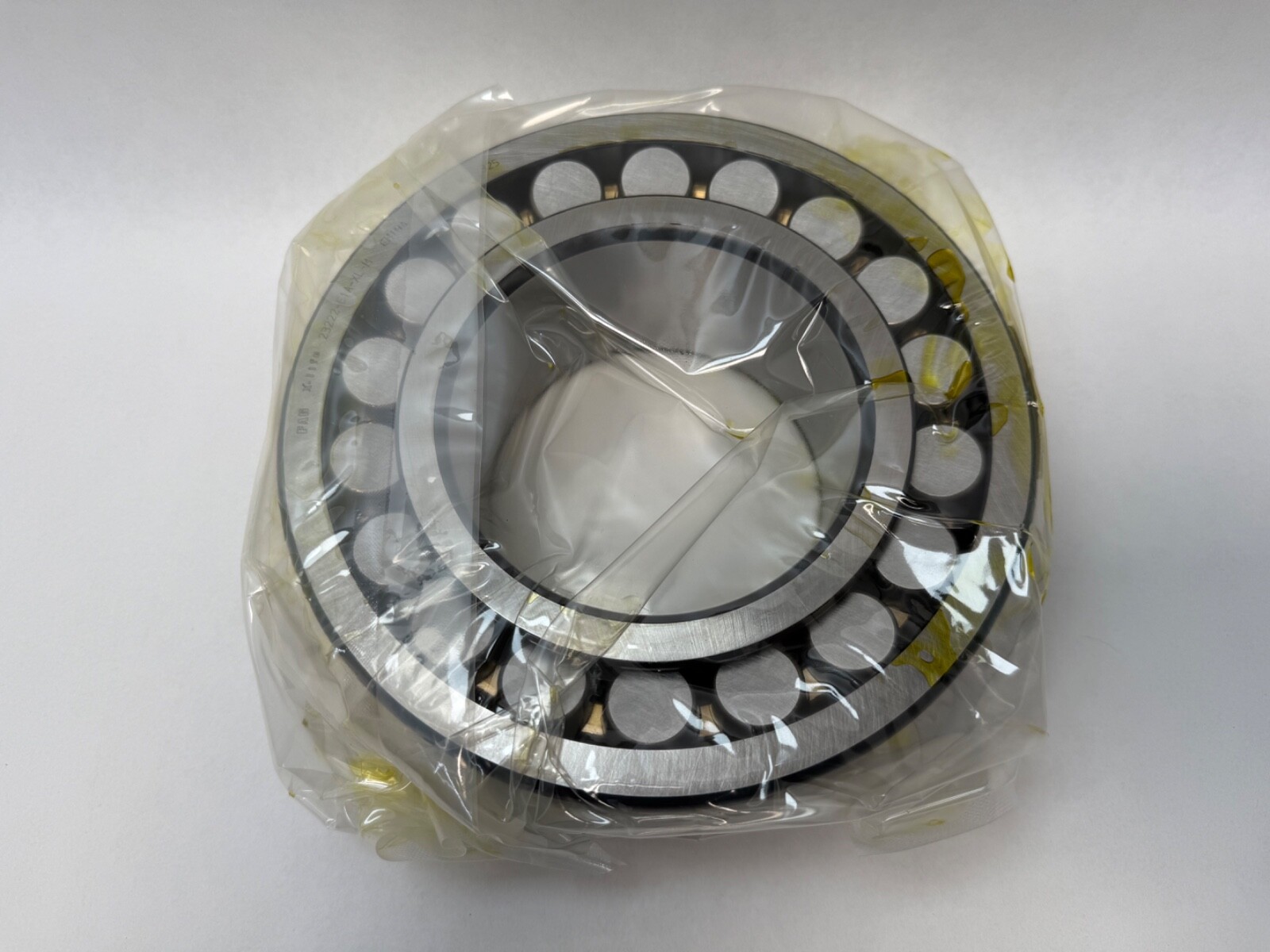

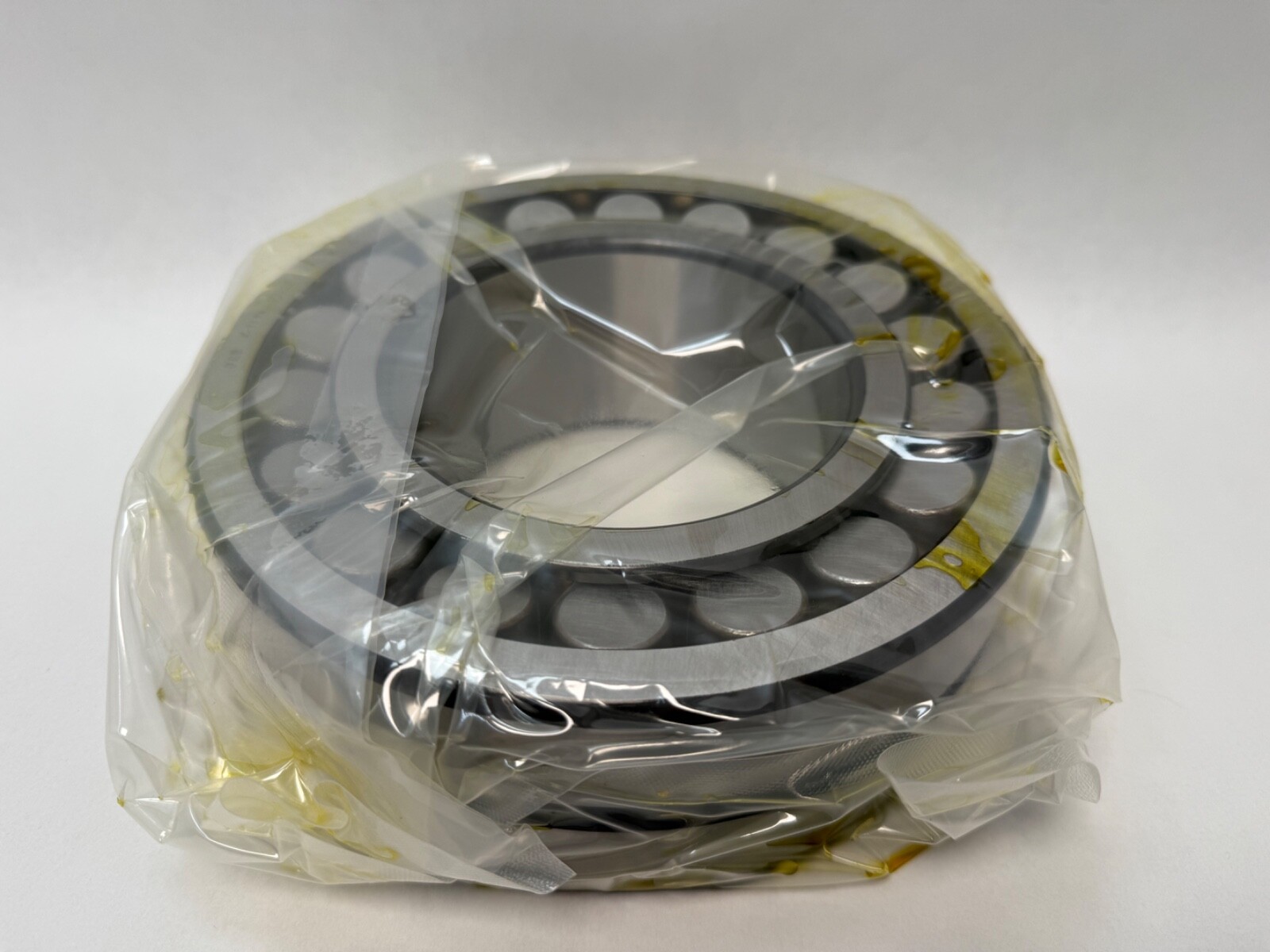

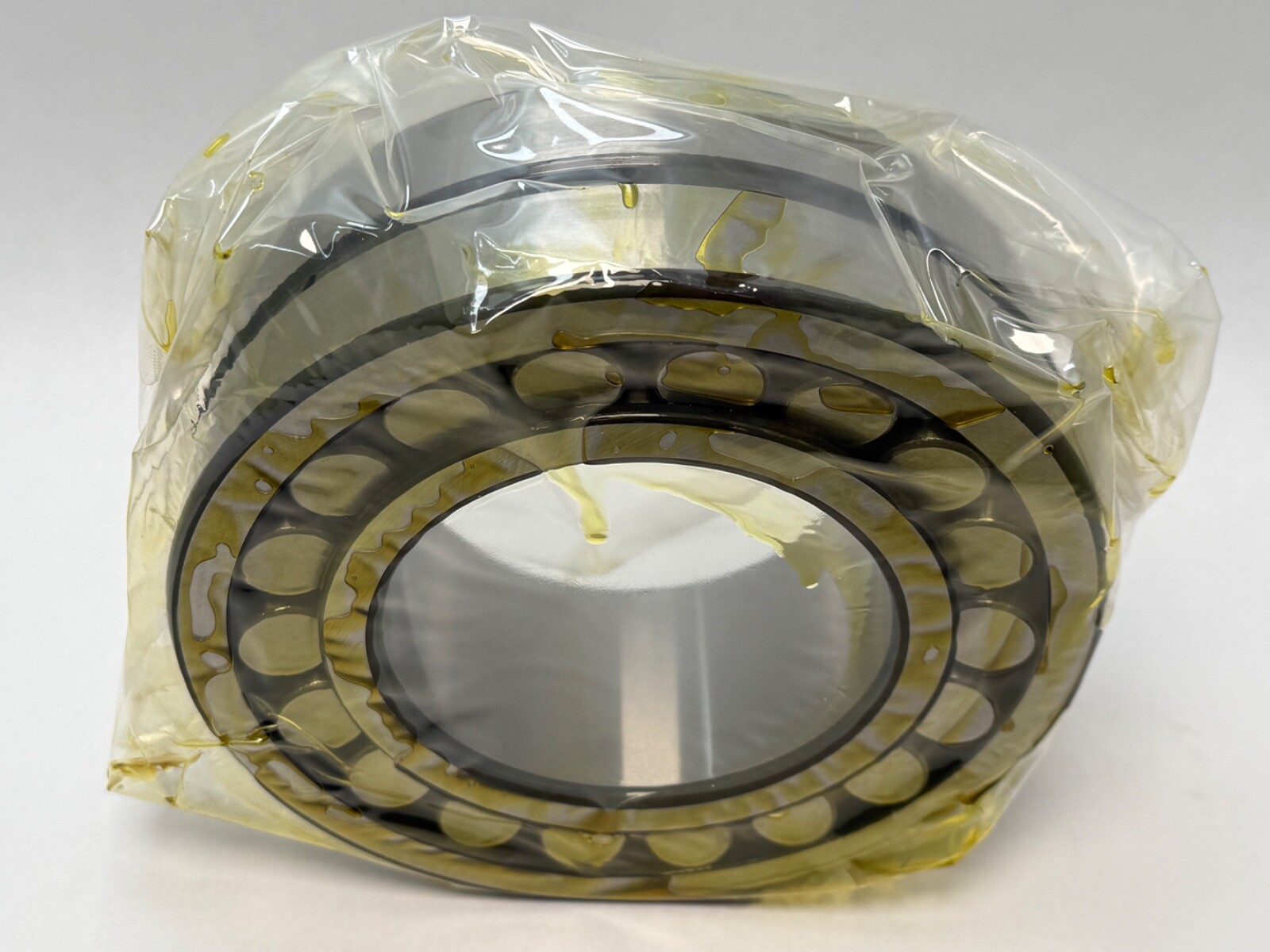

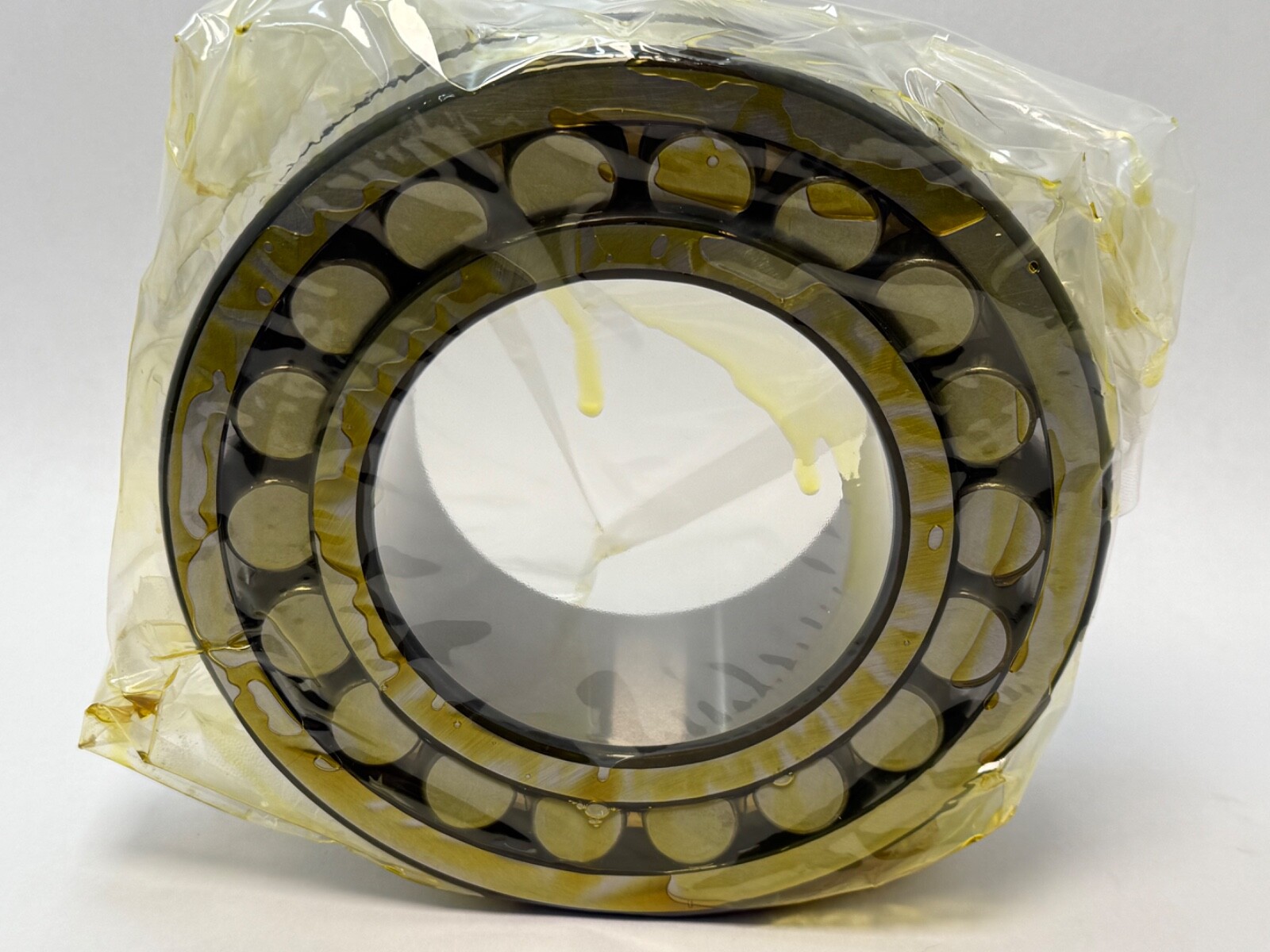

FAG 23222-E1A-XL-M double-row spherical roller bearing, 110 mm bore, 200 mm outside diameter, 69.8 mm width, straight bore, open, machined brass cage, W33 lubrication groove and holes in the outer ring. Unit Quantity: 1 Pc.

Decoding the designation:

232 — double-row spherical roller series to DIN 635-2 in the wide section.

22 — bore code. Multiply by five: 110 mm.

E1A — reinforced design with an enlarged roller complement.

XL — Schaeffler’s current generation of the design.

M — machined brass cage.

W33 — annular groove in the outer ring outside diameter with three radial holes through to the rolling elements. Groove width 9.5 mm, hole diameter 4.8 mm. The passage takes grease or oil from the housing lubrication port and distributes it around the full circumference.

Specifications:

Bore Diameter: 110 mm. Outside Diameter: 200 mm. Overall Width: 69.8 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Straight. Closure Type: Open. Series: 232. Base Number: 23222. Cage Material: Machined brass. Cage Type: Machined. Internal Clearance: CN. Precision Class: RBEC 1 / P0. Dynamic Load Rating: 710,000 N. Static Load Rating: 870,000 N. Fatigue Load Limit, radial: 73,000 N. Limiting Speed: 3,250 rpm. Reference Speed: 2,100 rpm. Lubricant: grease or oil. Operating temperature range: -30 °C to +200 °C. Dynamic axial load factor: 3.06. Static axial load factor: 2.01. Factor change at an Fa/Fr ratio of 0.33. Bearing Material: Chrome steel. Item Weight: 9.56 kg (21.07 lb). Unit Quantity: 1 Pc. GTIN: 4026677829009.

Dimensions and mounting:

Minimum shaft shoulder diameter 122 mm. Maximum housing shoulder diameter 188 mm. Outer ring bore diameter 172.7 mm. Minimum chamfer dimension 2.1 mm; maximum housing recess radius 2.1 mm. Bore Type: Straight, so the bearing mounts directly on a cylindrical shaft seat. Imperial equivalents of the envelope: 4.331 in bore, 7.874 in outside diameter, 2.748 in width.

Compatibility and replacement:

SKF 23222 CC/W33 has pressed steel cages. NSK 23222CAME4, NTN 23222B and Timken 23222EMW33 share the 110 x 200 x 69.8 mm envelope and straight bore, with the cage and groove differences listed in the cross-references. MPN Variants: 23222-E1A-XL-M, 23222E1AXLM, 23222-E1A-M, 23222E1A.M, 23222 E1A XL M, 23222E.

Frequently asked questions:

What cage does the FAG 23222-E1A-XL-M have?

A machined brass cage, coded M.

What does W33 mean on this bearing?

An annular groove in the outer ring with three radial holes for grease or oil feed.

What are the dynamic and static load ratings of the 23222-E1A-XL-M?

710,000 N dynamic and 870,000 N static.
