Availability:
1 in stock
Inch tapered roller bearing cone, 2.7500 in bore, 1.1420 in inner ring width, K factor 1.52, Class 3 precision, mates with 472 and 472A cups.
List Price
$68.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 482 SW #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.7500 in |
| Width | 1.1420 in |
| Material | Steel |
|---|---|
| Base Number | 482 |
| Overall Width | 1.1420 in |
| Mpn Variants | 482, 482SW, 482-SW, 482SW-3, 482 SW #3, 482SW*3 |
| Compatible With Replaces | Mating cups Timken 472, Timken 472A |
| Precision Class | Class 3 |
| Dynamic Load Rating | 143,000 N |
| Static Load Rating | 186,000 N |
| Series | 480 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Bearing Material | Steel |
| Cross Reference 1 | SKF 482 |
|---|---|
| Cross Reference 2 | FAG K-482 |
| Cross Reference 3 | NSK 482 |
| Cross Reference 4 | NTN 4T-482 |
| Cross Reference 5 | Koyo 482 |
| Cross Reference 6 | Fersa 482 |
| Cross Reference 7 | BCA/Bower 482 |
| Cross Reference 8 | PEER 482 |

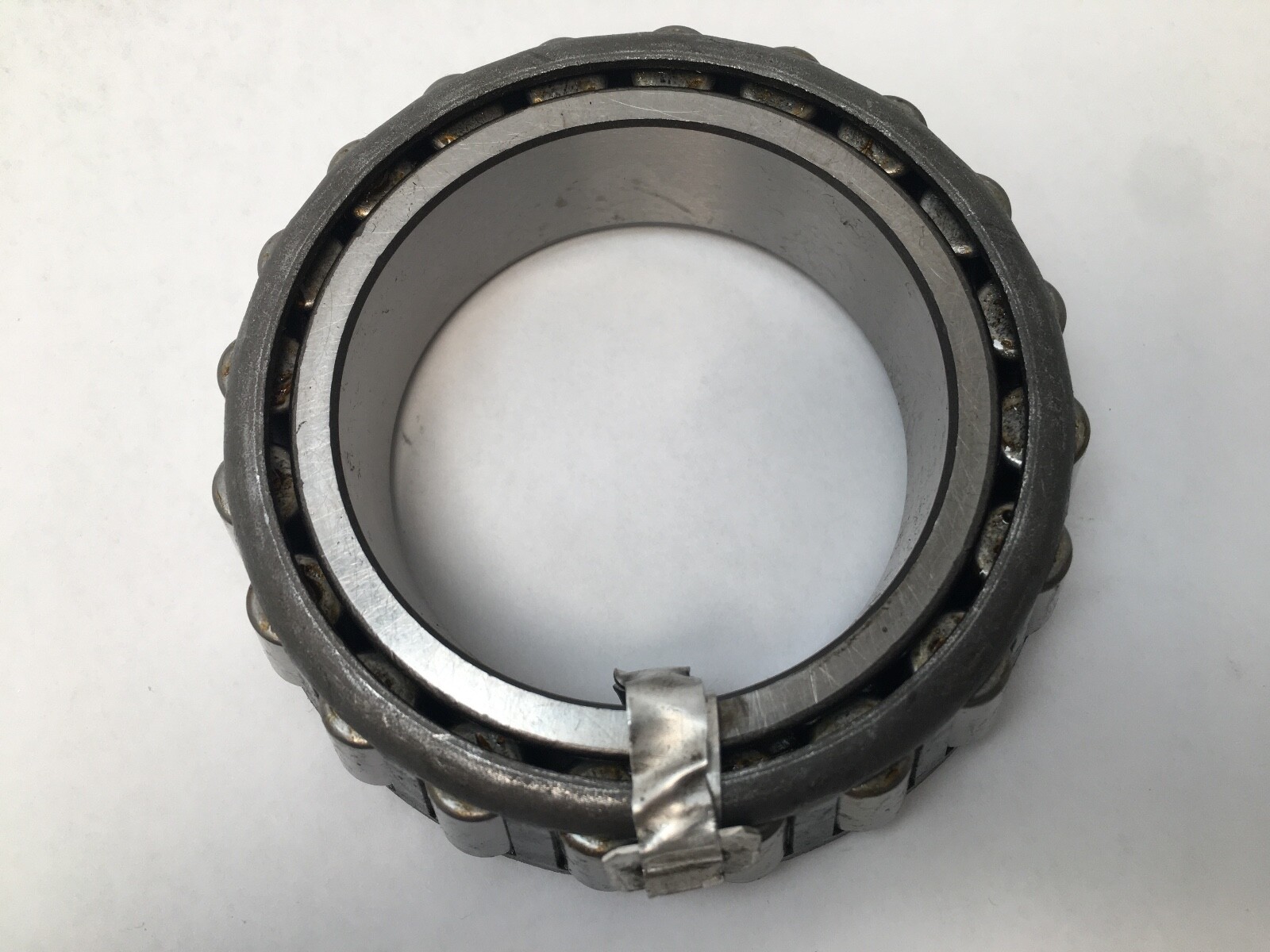

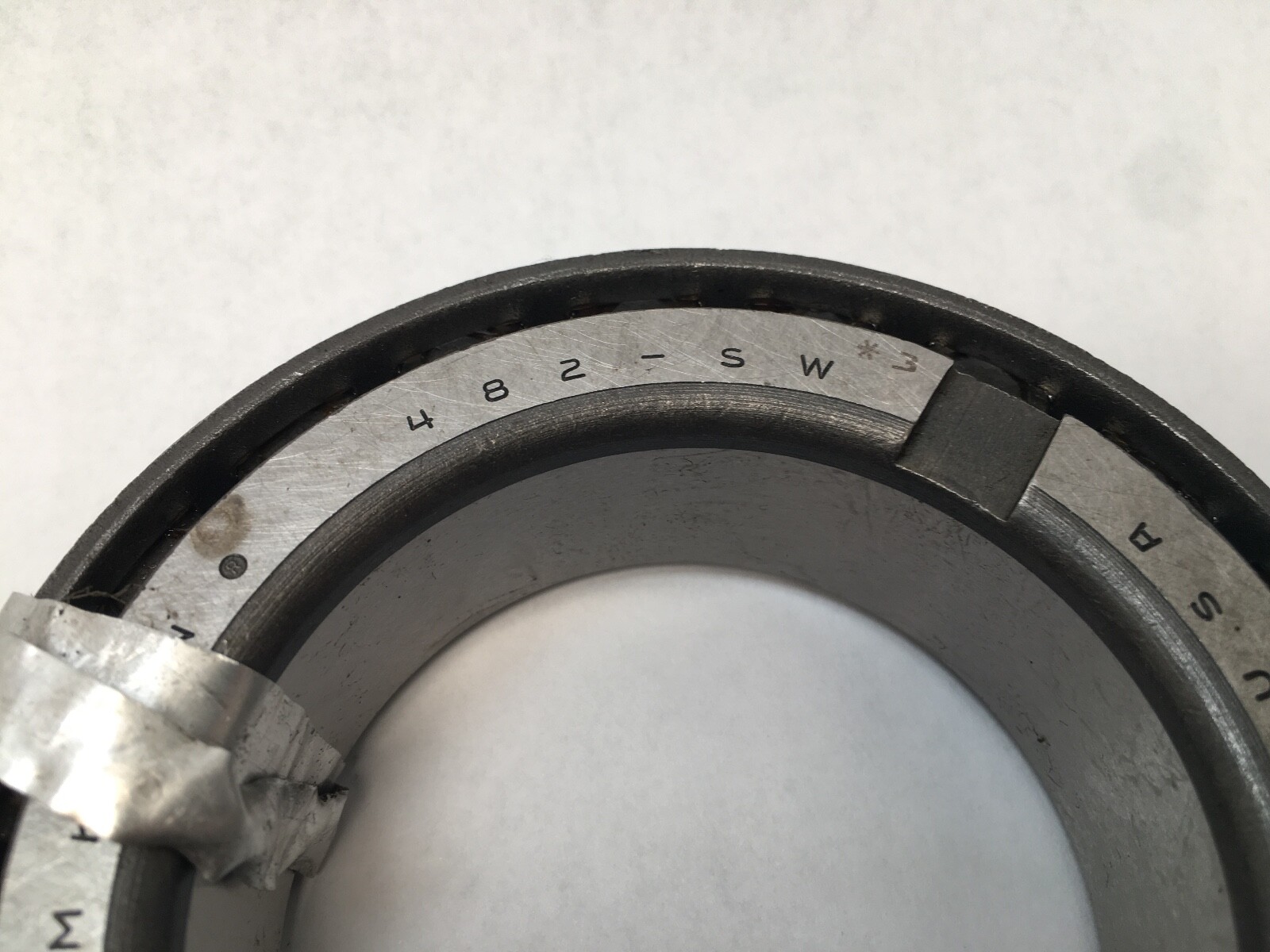

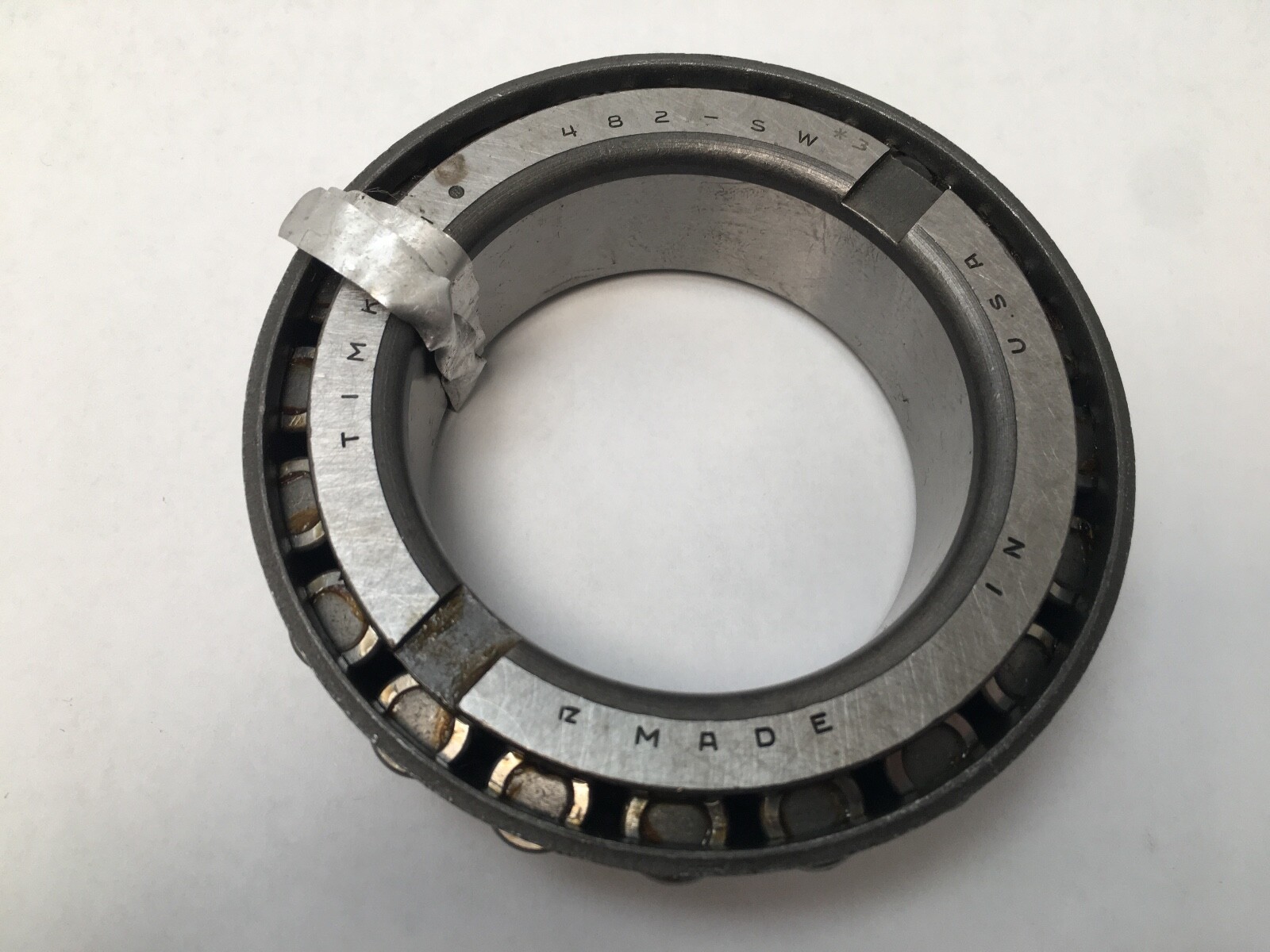

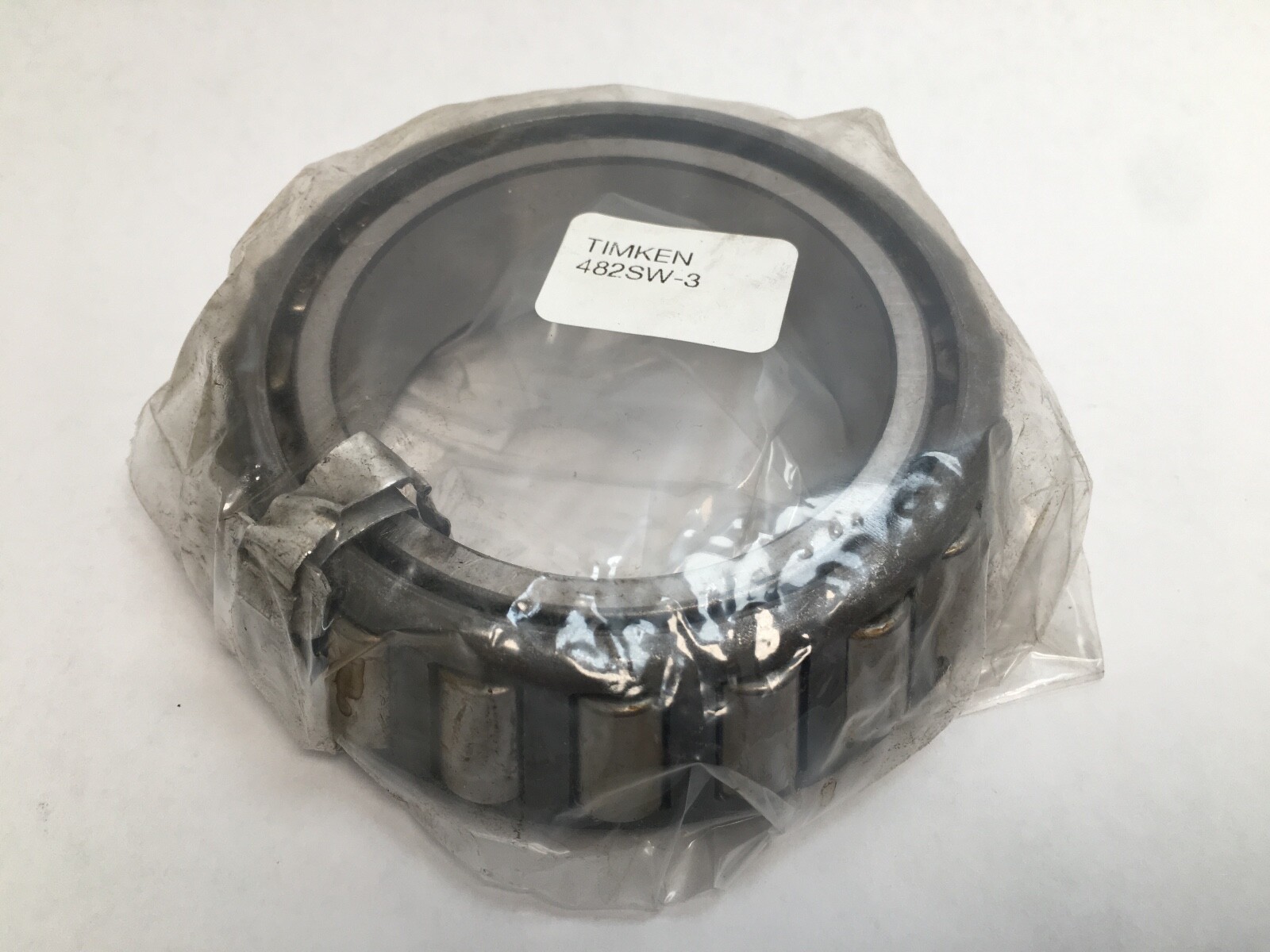

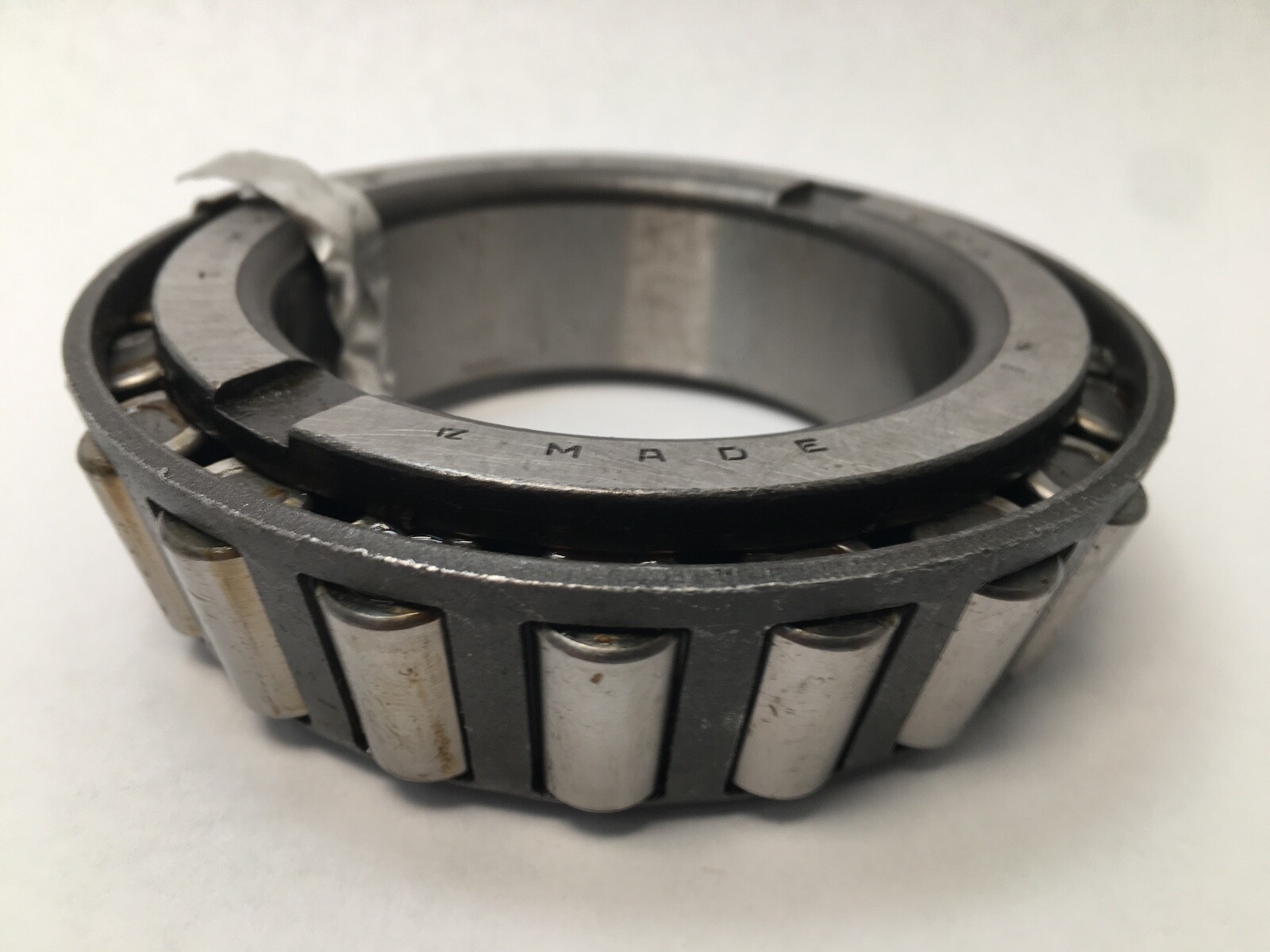

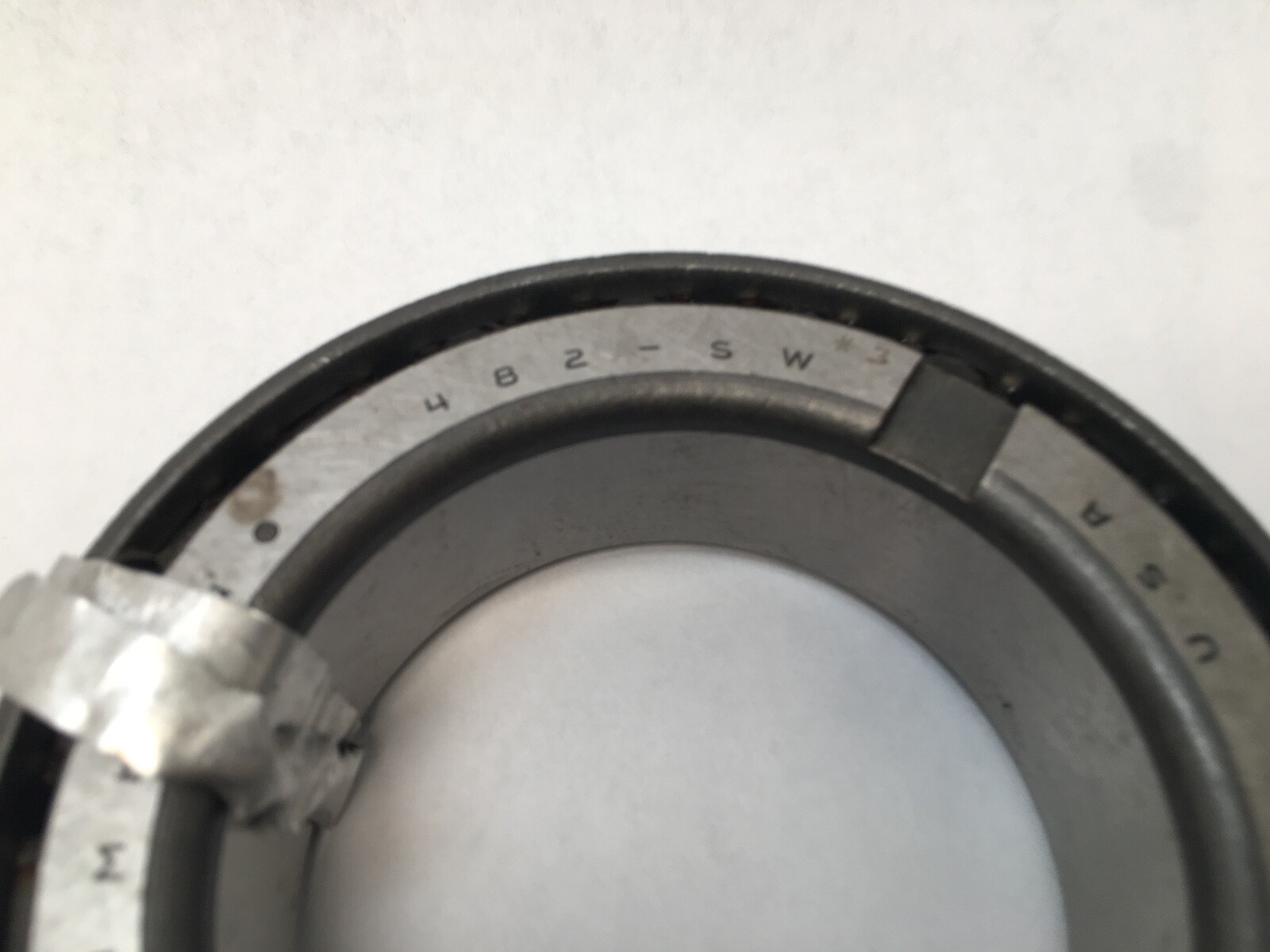

Timken 482SW-3 inch tapered roller bearing cone. The cone is the inner ring carrying its tapered rollers and cage. Bore Diameter: 2.7500 in (69.850 mm). Overall Width: 1.1420 in (29.007 mm). Series: 480. Base Number: 482. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bore Type: Straight. Bearing Material: Steel. Precision Class: Class 3.
482 — the cone base number in the Timken 480 inch tapered series, fixing the bore, the roller path and the cup pairing.
-3 — precision Class 3, written interchangeably as -3, *3 or #3. Class 3 holds tighter bore and running tolerances than standard, giving lower running vibration and closer shaft location.
SW — an order-code variant recorded on the carton and carried as a searchable MPN variant.
Dynamic Load Rating: 143,000 N (32,200 lbf) at 1 million revolutions. Static Load Rating: 186,000 N (41,900 lbf). Dynamic Radial Load Rating C90: 37,200 N (8,360 lbf). Dynamic Axial Rating Ca90: 24,500 N (5,500 lbf). K Factor: 1.52. Geometry Factor Cg: 0.108. G1 Factor: 77.2. G2 Factor: 23. The static rating above the dynamic rating shows the raceway tolerates a very high stationary or shock load relative to its rotating duty, which suits intermittent and heavily shocked drives.
Effective Center Location: -0.16 in (-4.1 mm), inside the cone backface. Max Shaft Fillet Radius: 0.14 in (3.600 mm) on the mating shaft. Shaft Backing Shoulder Diameter Frontface da: 3.03 in (77 mm). Shaft Backing Shoulder Diameter Backface db: 3.27 in (83 mm). Cage Location Relative To Backface Aa: 0.04 in (1 mm). Cage Location Relative To Frontface Ab: 0.12 in (3 mm).
Unit Quantity: 1 Pc. Cone only. The matching cups are the Timken 472 and 472A.
The 482 cone number is carried across the inch tapered roller programme by SKF, FAG, NSK, NTN, Koyo, Fersa, BCA/Bower and PEER on the same envelope. MPN Variants: 482, 482SW, 482-SW, 482SW-3, 482 SW #3, 482SW*3.
