Availability:
1 in stock
Super precision angular contact ball bearing, 30 x 62 x 16 mm, 15° contact angle, ABEC 7 / P4, light preload. Phenolic cage, universally ground, open.
List Price
$76.08
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7206CTSULP4 |
| Model | 7206-C-T-SUL-P4 / 2MM206WI CR SUL / B7206X2-TA-UL-EP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Preload | Light (L) |
|---|---|
| Material | Bearing Steel |
| Base Number | 7206 |
| Industry Terms | Super precision spindle bearing; Machine tool spindle bearing; Universally ground angular contact bearing; Precision spindle bearing |
| Common Misspellings | 7206 CT SUL P4; 7206CTSULP-4; 7206CSULP4; 7206CTSUL P4; 2MM206WI CR SUL |
| Application Types | Machine tool spindles; Grinding spindles; Milling and turning spindles; High-speed pumps |
| Mpn Variants | 7206CTSULP4; 7206-C-T-SUL-P4; B7206X2TAULEP7; B7206X2-TA-UL-EP7; 2MM206WICRSUL |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Effective load centre a: 14.2 mm; shaft abutment d1 min 36 mm; abutment D1 max 56 mm; abutment D2 max 57 mm; chamfer r min 1.0 mm; chamfer r1 min 0.6 mm; internal free volume 8.8 cm3; lubrication-jet PCD 42.4 mm; paired axial preload (light) 120 N; paired axial stiffness (light) 43 N/um |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 23,000 N |
| Static Load Rating | 14,700 N |
| Series | 7200 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.194 kg (0.43 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 24,200 rpm grease; 39,200 rpm oil |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Single, universally ground for paired mounting |
| Bearing Material | Bearing steel (SAE 52100 equivalent) |
| Running Accuracy | Inner ring radial runout Kia 2.5 µm max; outer ring radial runout Kea 5 µm max |
| Cross Reference 1 | SKF 7206 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7206-C-T-P4S |
| Cross Reference 3 | NSK 7206CTRSULP4 |
| Cross Reference 4 | NTN 7206C/GNP4 |
| Cross Reference 5 | Koyo 7206C/GNP4 |
| Cross Reference 6 | Timken/Fafnir 2MM206WICRSUL |
| Cross Reference 7 | SNR 7206CVUJ74 |

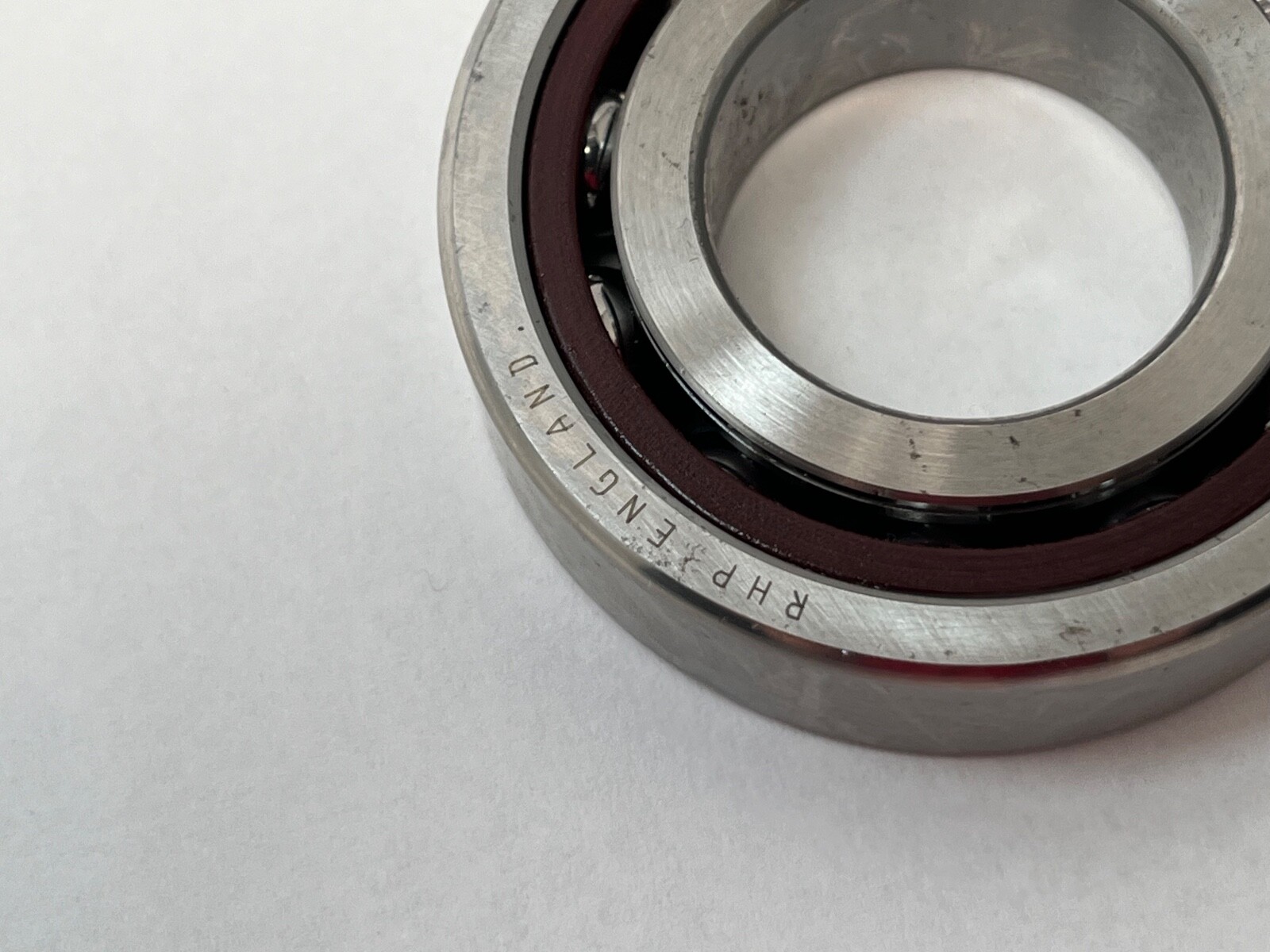

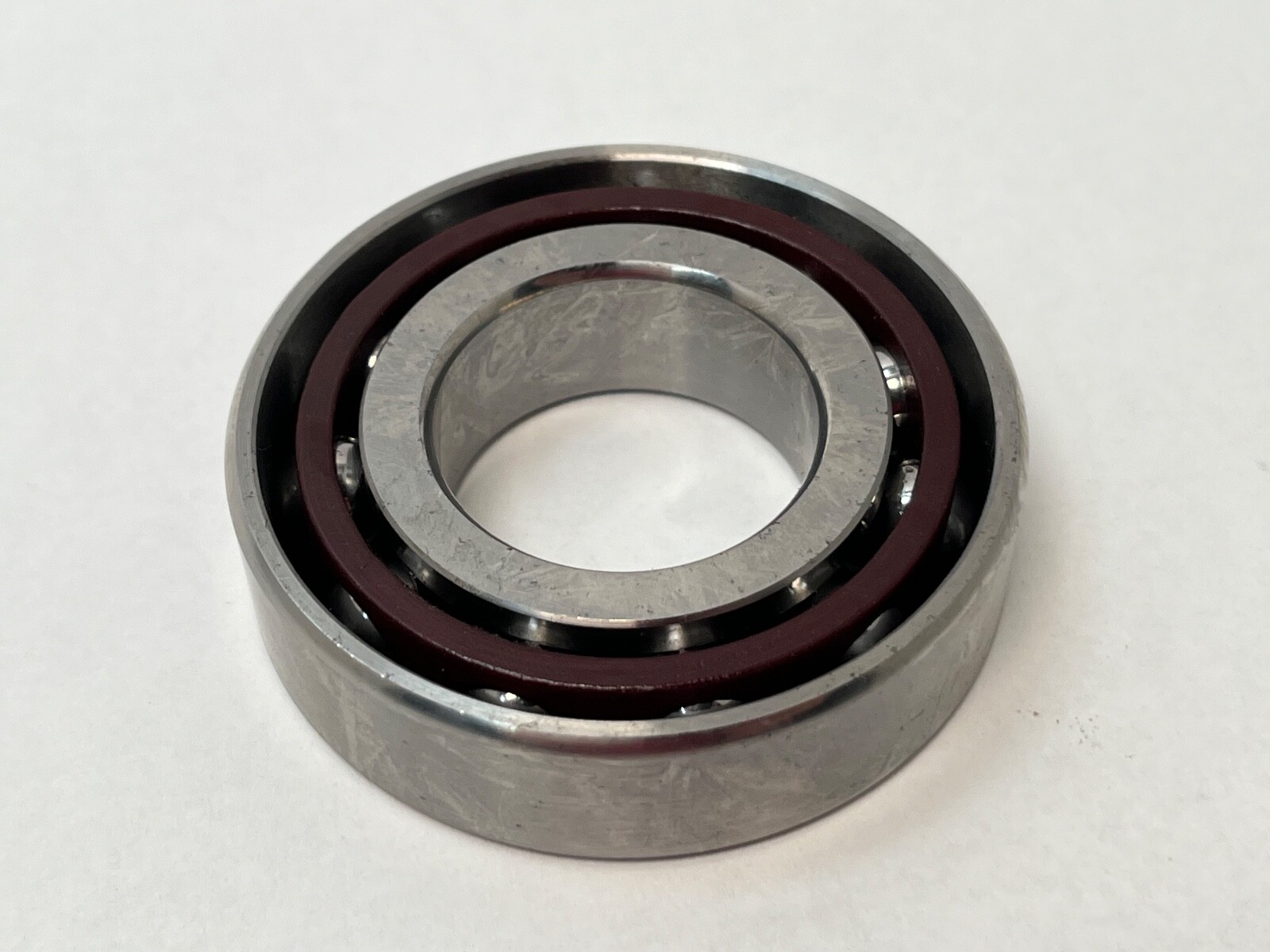

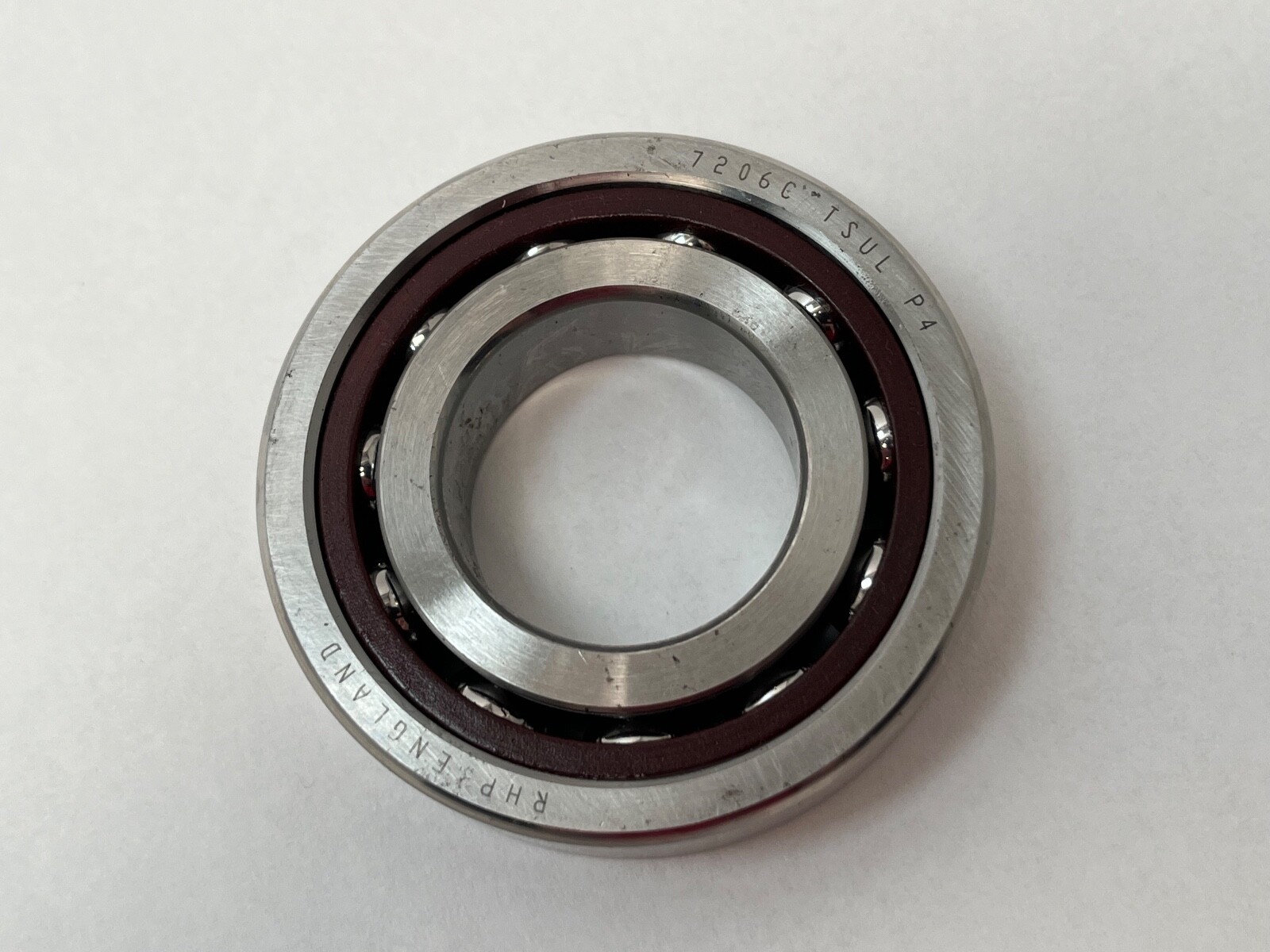

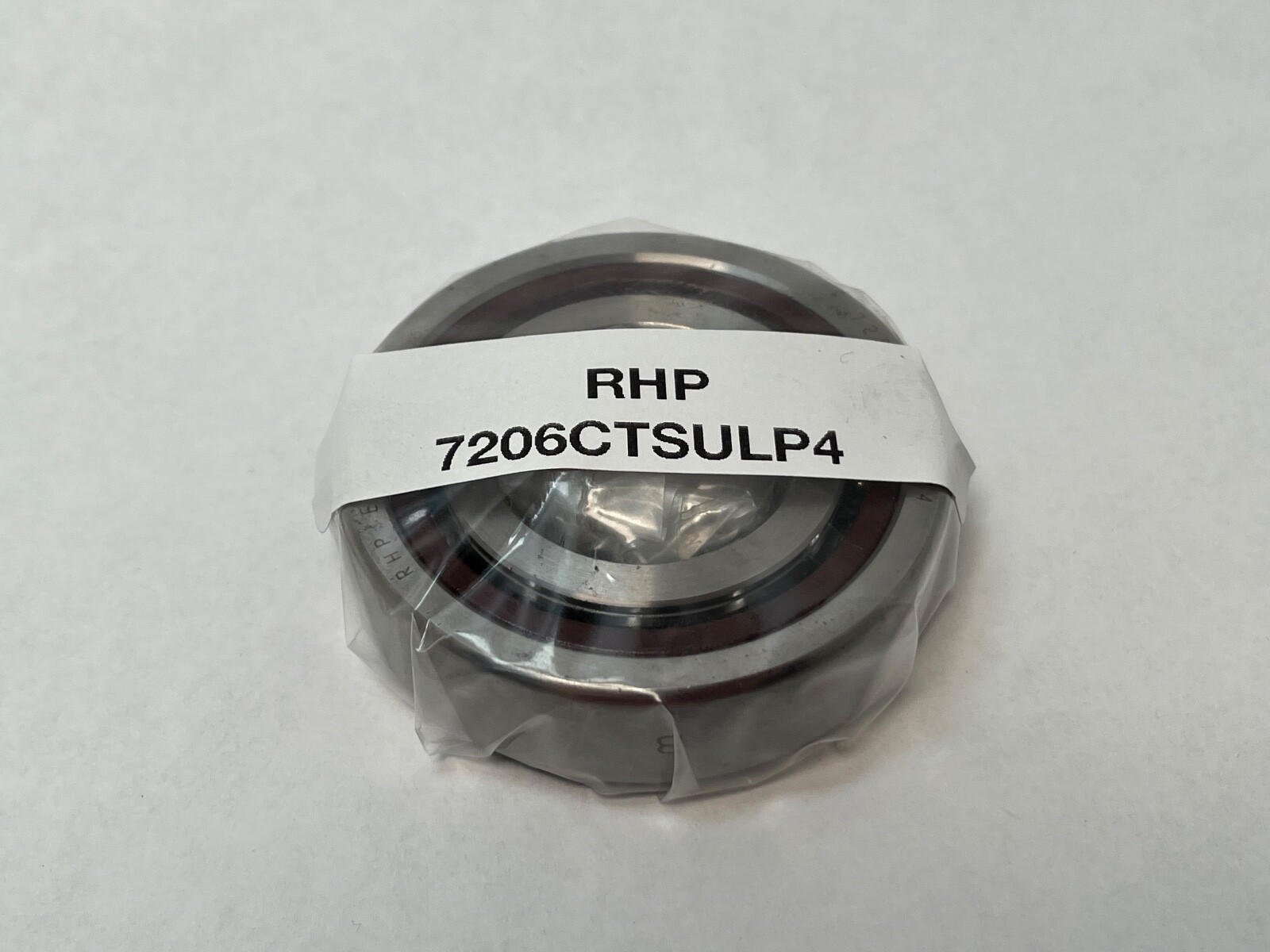

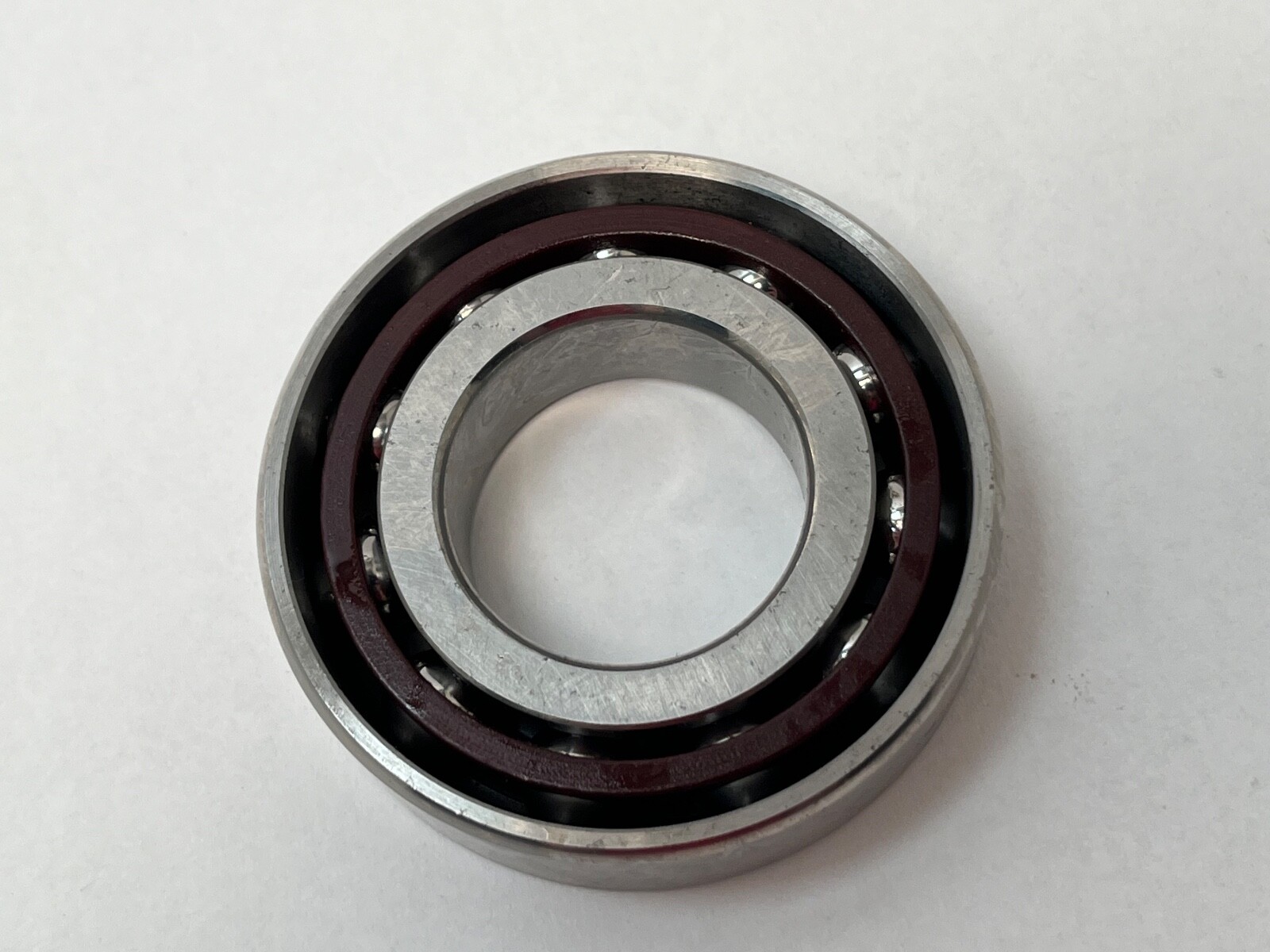

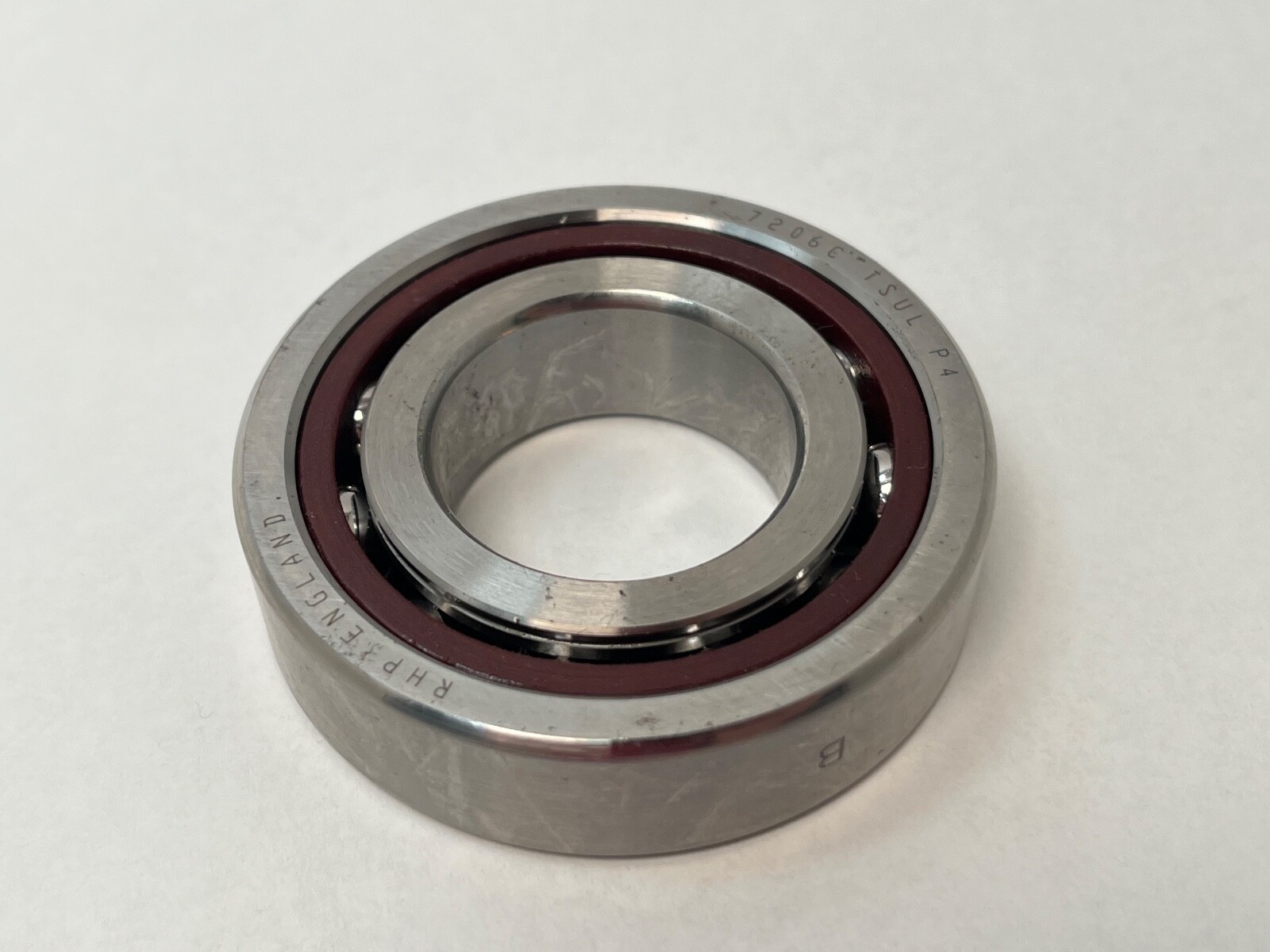

RHP 7206CTSULP4 super precision single-row angular contact ball bearing, 30 x 62 x 16 mm, 15° contact angle, ABEC 7 / P4, light preload, universally face-ground. Unit Quantity: 1 Pc. New old stock.

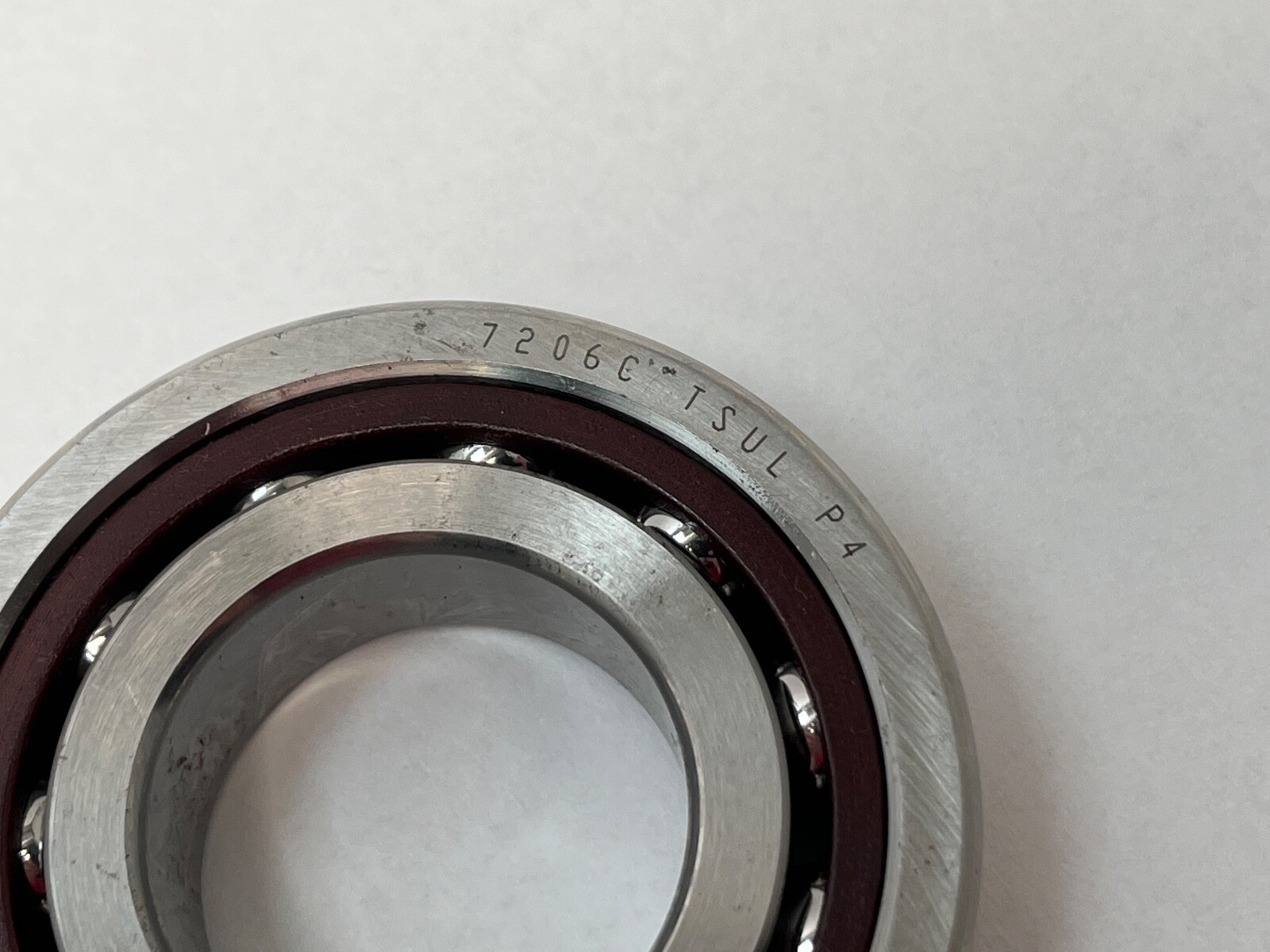

7 — single-row angular contact ball bearing.
2 — RHP dimension series 2, ISO series 02.
06 — bore code 06, a 30 mm bore.
C — 15° contact angle. The carton’s B-series code X2 and the leading 2 of the Fafnir number 2MM206WI both state the same 15°.
T — machined cage in laminated phenolic resin, outer-ring guided. The Fafnir-scheme cage code CR on the same carton is the same laminated phenolic.
SU — single universal face control. Inner and outer rings are ground to equal width, so two bearings mount back-to-back, face-to-face or in tandem without custom-ground spacers.
L — light preload.
P4 — RHP precision grade P4, ABEC 7. The carton’s EP7 marking is the British Standards form of the same grade.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7200. Base Number: 7206. Precision Class: ABEC 7 / P4. Preload: Light (L). Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent. Lubricant: Grease or oil. Dynamic Load Rating: 23,000 N. Static Load Rating: 14,700 N. Limiting Speed: 24,200 rpm grease; 39,200 rpm oil. Max temp: 120 °C. Item Weight: 0.194 kg (0.43 lb). Running Accuracy: inner ring radial runout Kia 2.5 µm max; outer ring radial runout Kea 5 µm max.
Shaft abutment diameter d1: 36 mm minimum. Abutment diameter D1: 56 mm maximum. Abutment diameter D2: 57 mm maximum. Chamfer dimension r: 1.0 mm minimum. Chamfer dimension r1: 0.6 mm minimum. Effective load centre a: 14.2 mm. Internal free volume: 8.8 cm³. Pitch circle diameter for lubrication jets: 42.4 mm. Mounting Arrangement: single bearing, universally face-ground for paired or multiple-set mounting. Paired axial preload at light setting: 120 N. Paired axial stiffness at light setting: 43 N/µm.
Cross-references: SKF 7206 CD/P4A, FAG B7206-C-T-P4S, NSK 7206CTRSULP4, NTN 7206C/GNP4, Koyo 7206C/GNP4, Timken/Fafnir 2MM206WICRSUL, SNR 7206CVUJ74. The carton also carries the RHP B-series marking B7206X2TAULEP7.
Bore 30 mm, outside diameter 62 mm, width 16 mm, contact angle 15°.
Dynamic Load Rating 23,000 N, Static Load Rating 14,700 N, Limiting Speed 24,200 rpm grease and 39,200 rpm oil.
ABEC 7 / P4 with a machined, outer-ring guided phenolic cage.
