Super precision angular contact ball bearing, 30 x 62 x 16 mm, 15-degree contact angle, P4S precision, phenolic cage, universal light preload.
List Price
$76.49
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7206C.TPA.P4S.UL |
| Model | B-7206-C-TPA-P4-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Preload | Light |
| Base Number | B7206C |
| Industry Terms | spindle bearing; machine tool bearing; super precision angular contact; P4S spindle bearing; phenolic cage bearing |
| Common Misspellings | B7206C TPA P4S UL; B7206CTPA-P4S; FAG B7206-C-TPA; B7206CTVPP4S |
| Application Types | Grinding and milling spindles; high-speed motorised spindles; precision rotary tables; instrument drives |
| Bore Shaft Size | 30 mm |
| Mpn Variants | B7206C.TPA.P4S.UL; B7206CTPAP4SUL; B-7206-C-TPA-P4-UL; B7206C TPA P4 UL; 7206C; 7206 |
| Precision Class | ABEC 7 / P4S |
| Precision Rating | ABEC 7 / P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | B7206C.TPA.P4S.UL |
| Closure Type | Open |
| Cross Reference 1 | Fafnir 2MM206WI CR SUL |
|---|---|
| Cross Reference 2 | SKF 7206 CDGA/P4A - extra light preload |
| Cross Reference 3 | FAG B7206E.TPA.P4S.UL - 25 deg vs 15 deg |

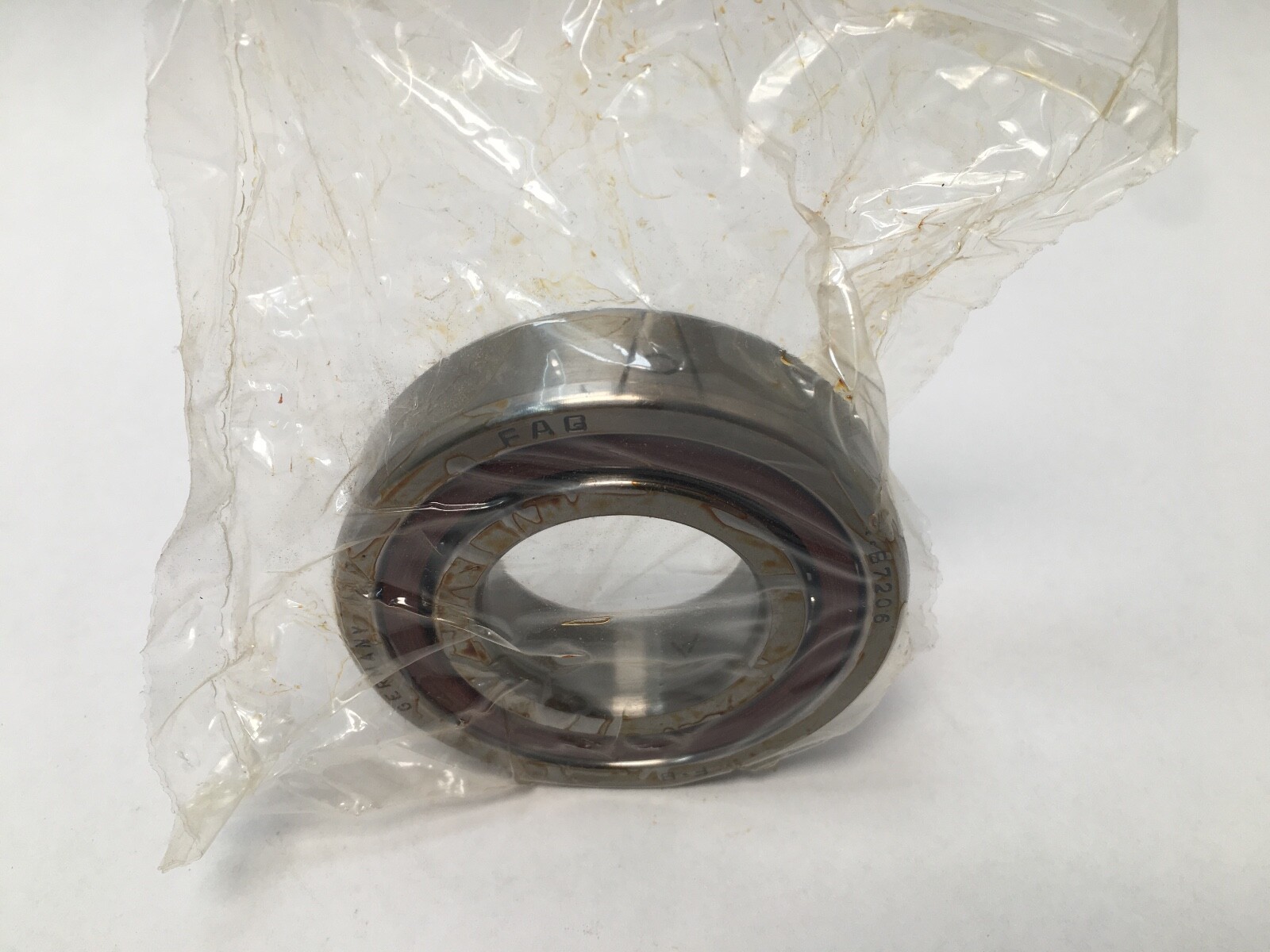

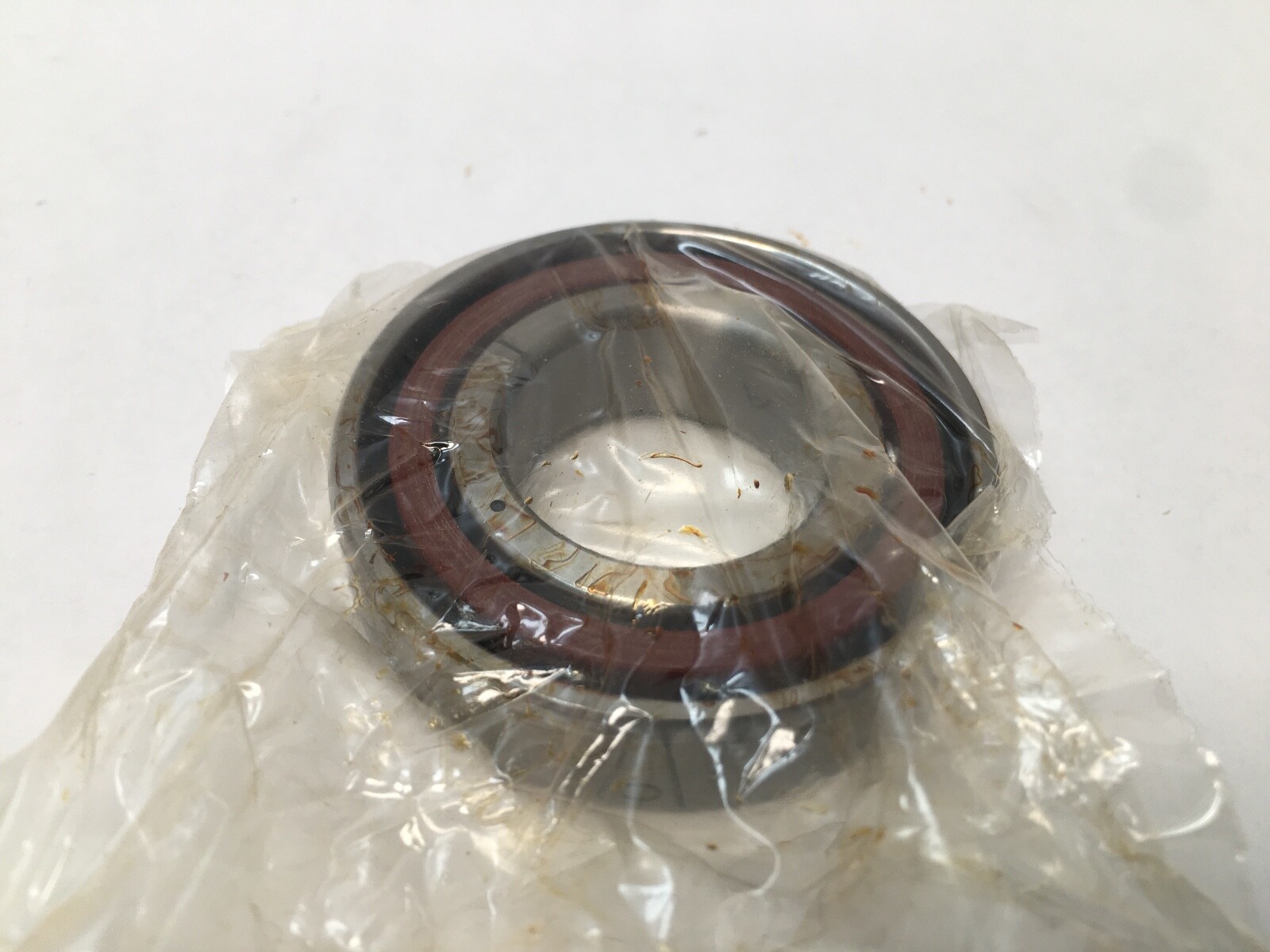

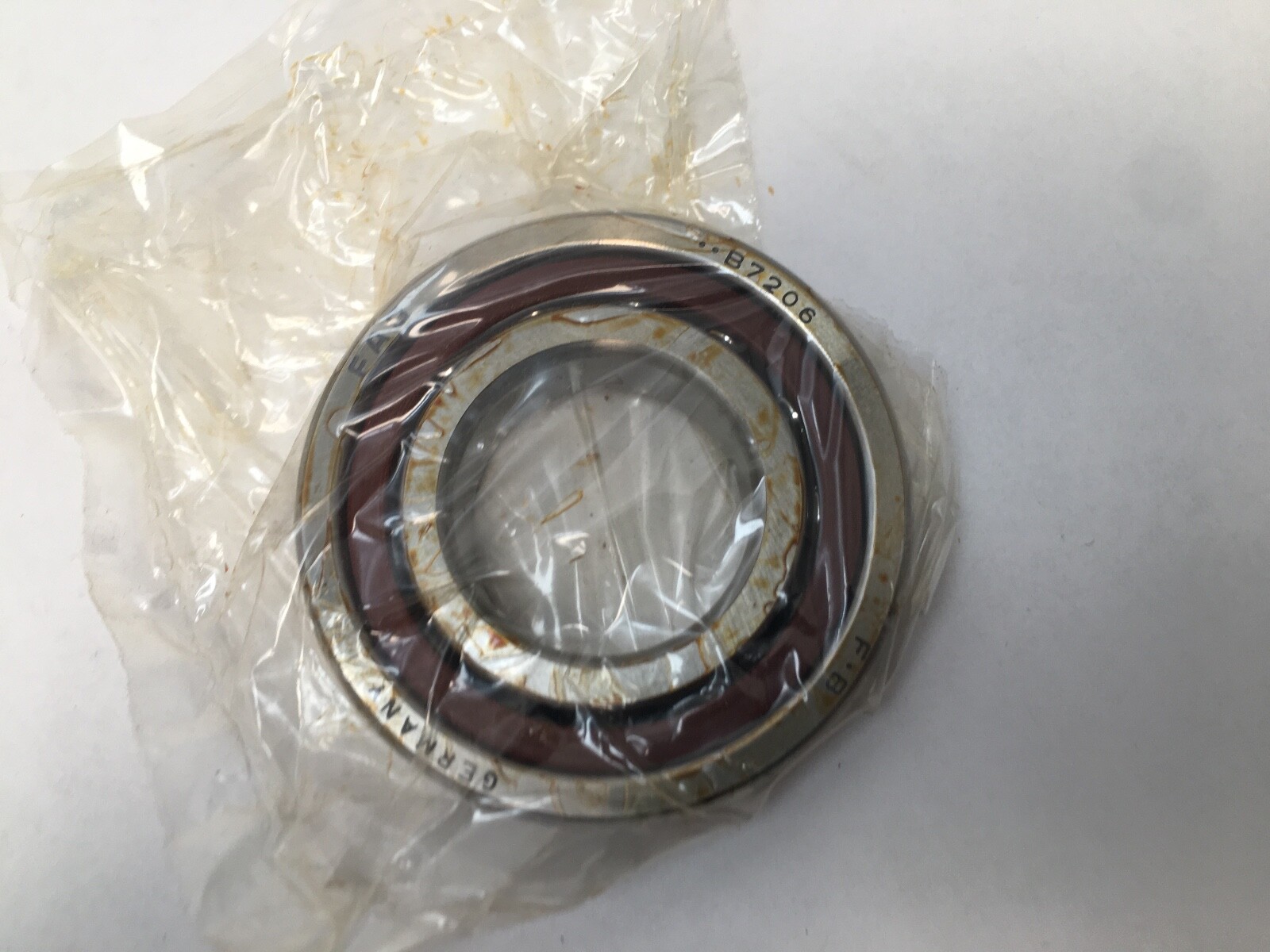

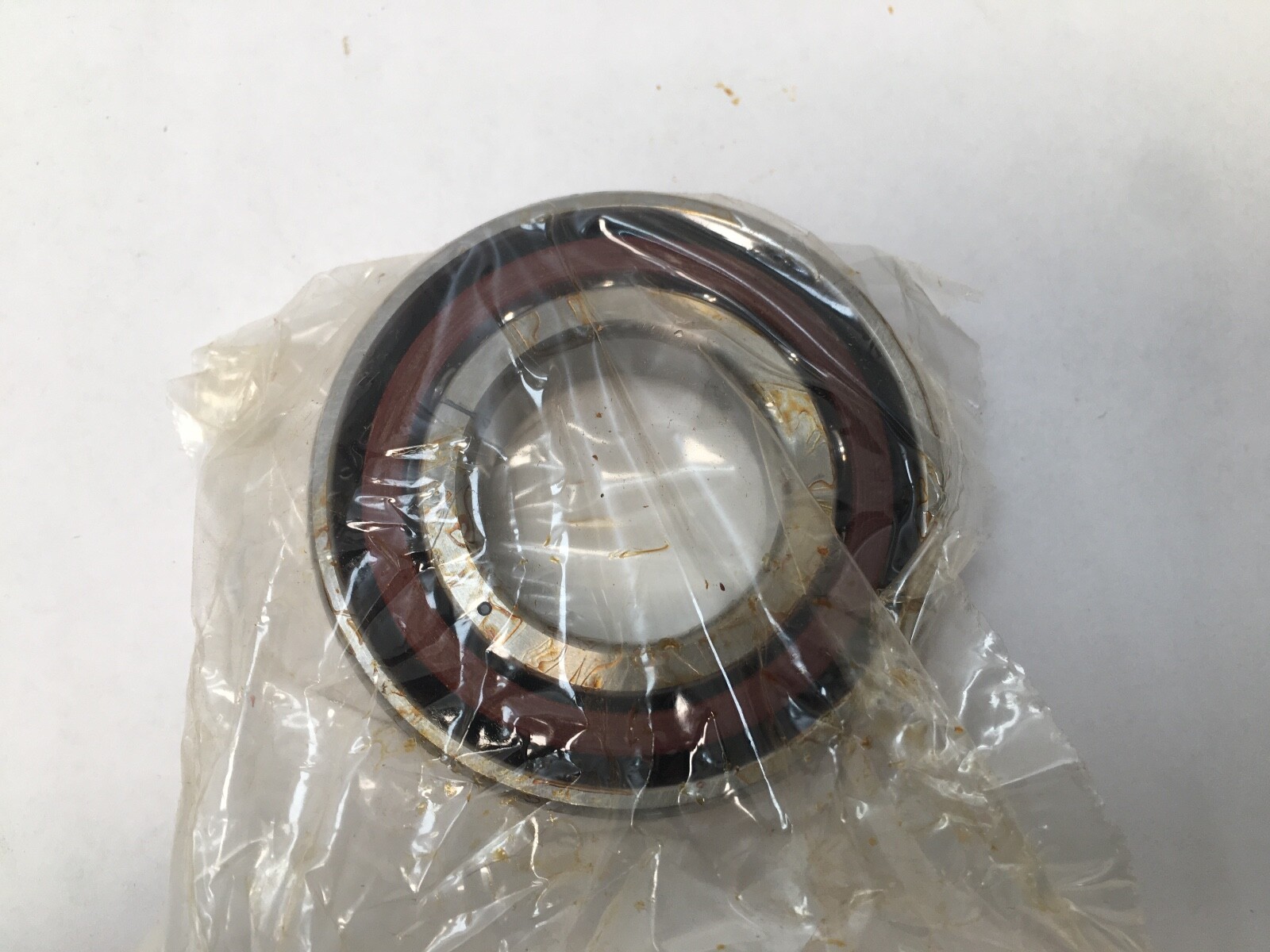

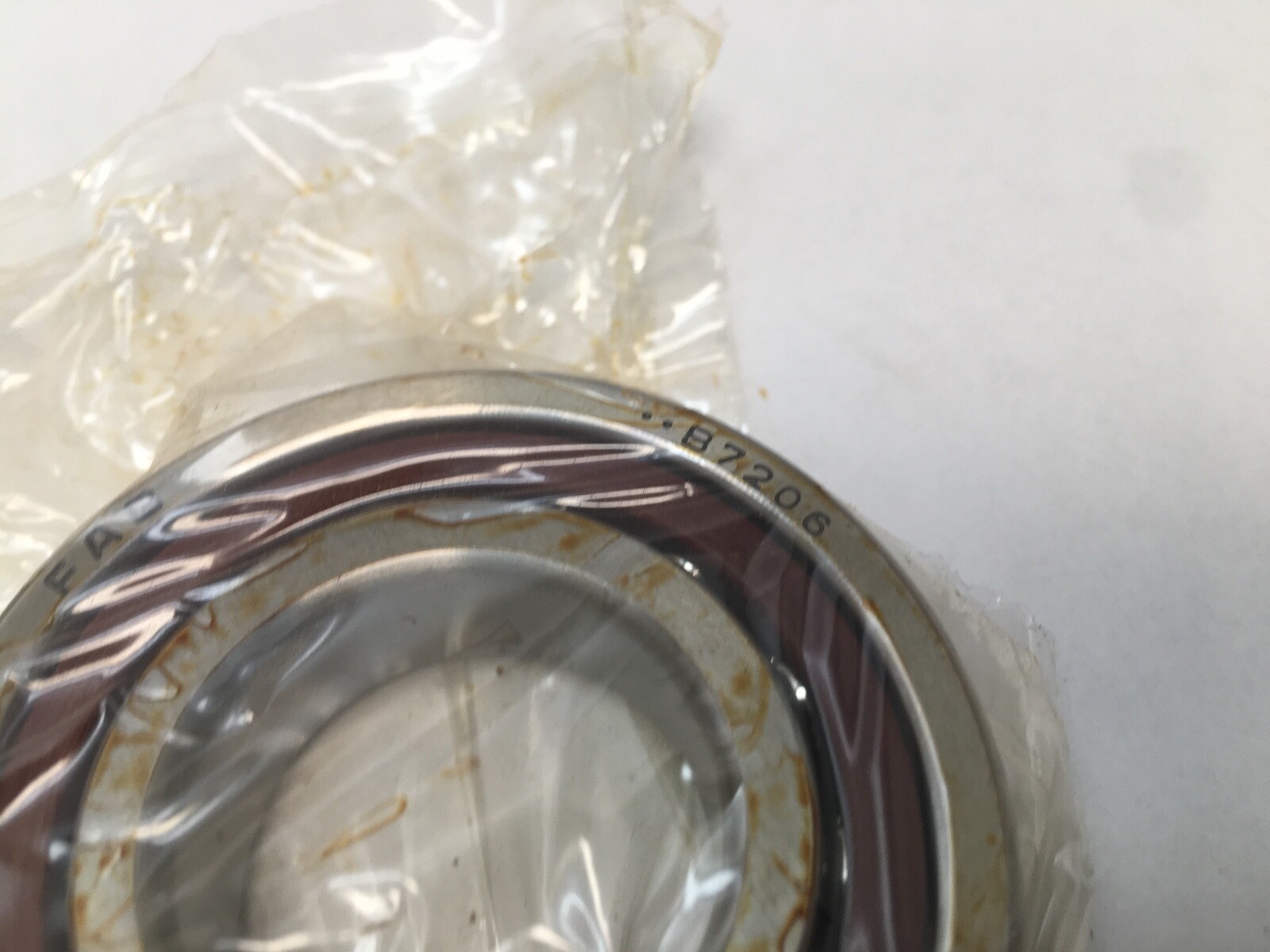

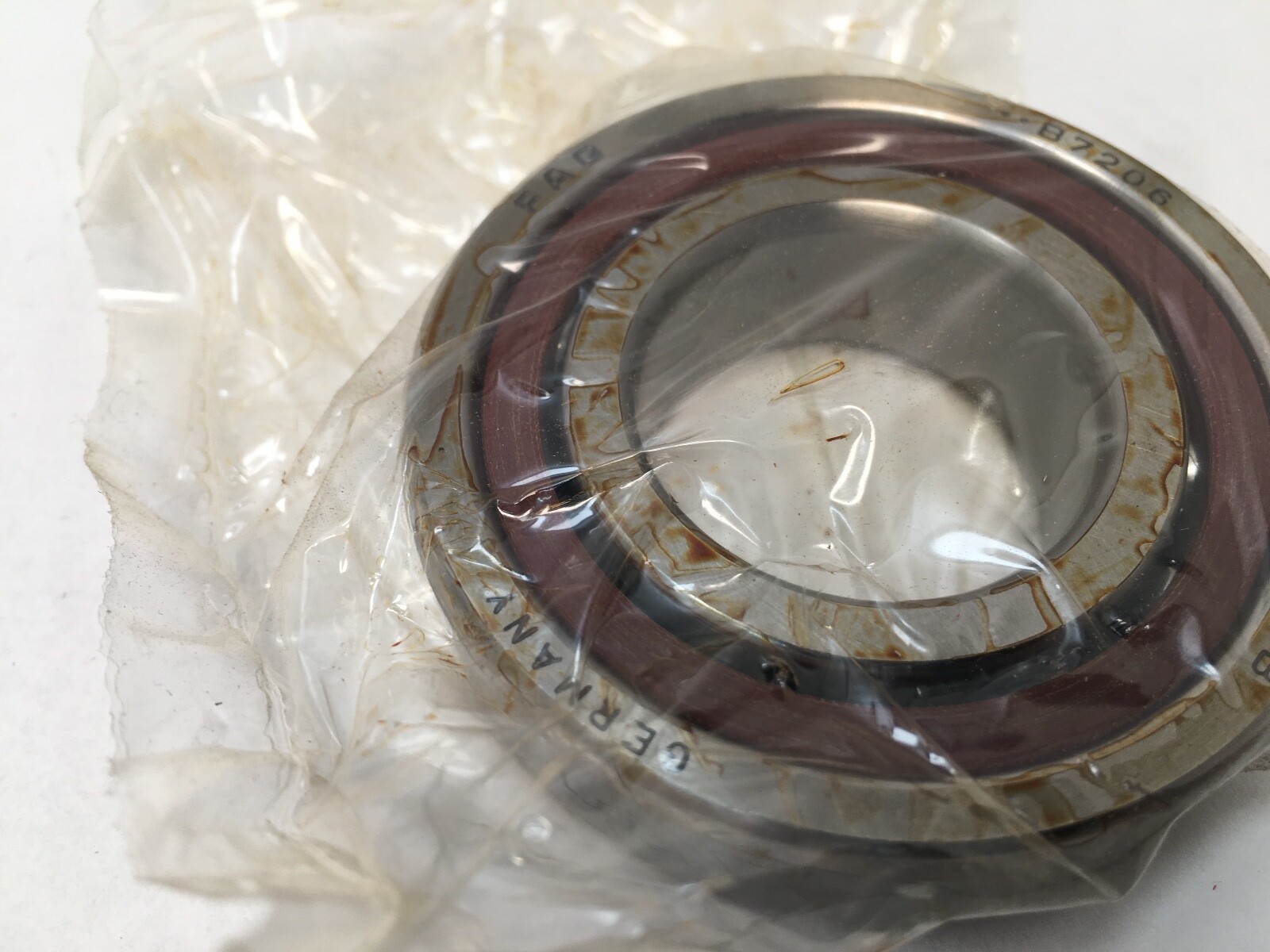

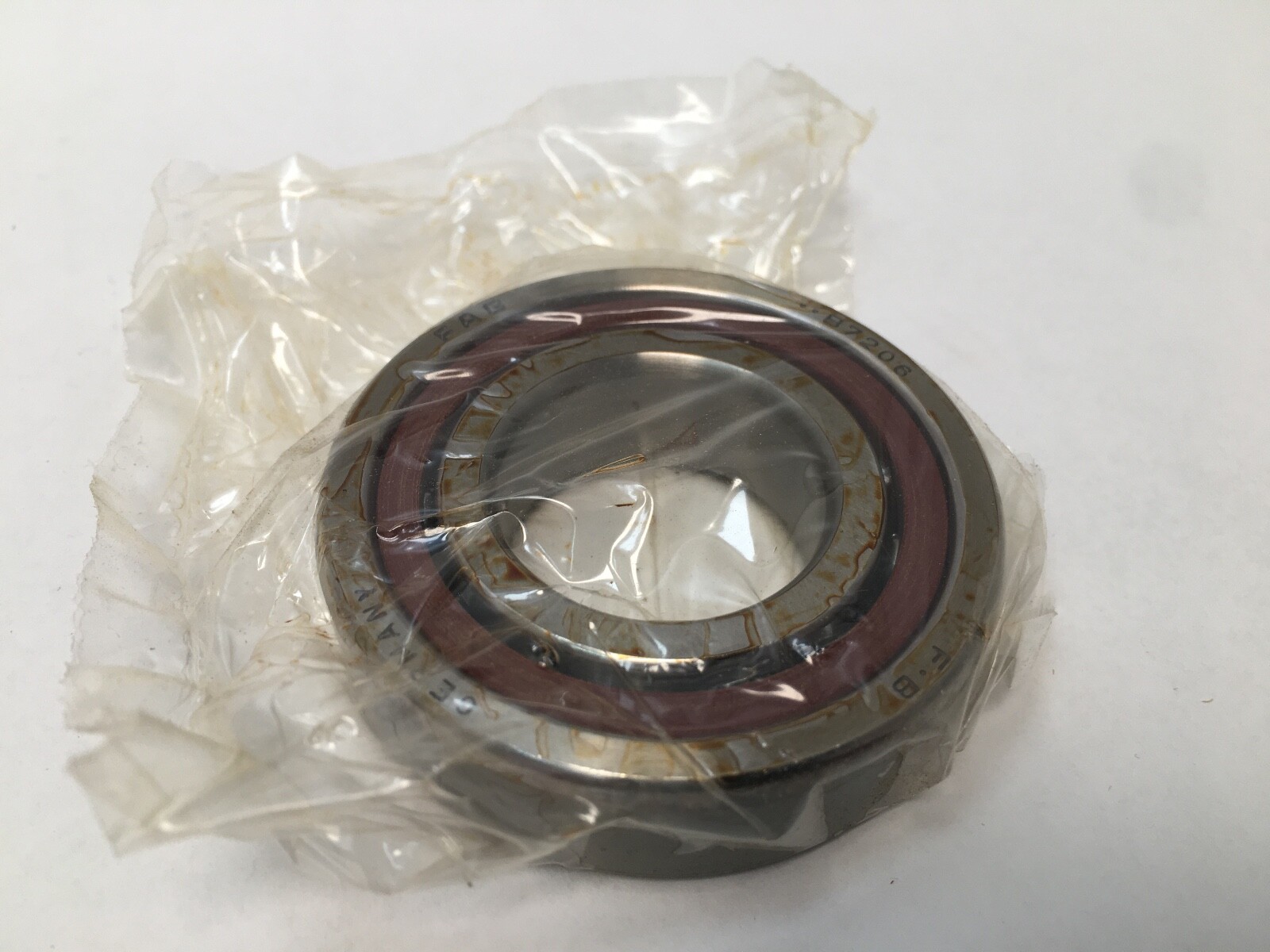

FAG B7206C.TPA.P4S.UL super precision angular contact ball bearing, 30 mm bore, 62 mm outside diameter, 16 mm width. Single row, open on both faces, 15° contact angle, fabric-base laminate phenolic cage, P4S precision, universally ground for matching at light preload. Unit Quantity: 1 Pc.
B7 — Schaeffler FAG spindle bearing series.
206 — 30 mm bore in the 02 dimension series.
C — 15° contact angle.
TPA — fabric-base laminate phenolic cage.
P4S — precision class with ISO class 4 dimensional tolerance and ISO class 2 running accuracy.
UL — universally ground, light preload.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Contact Angle: 15°. Number of Rows: 1. Rolling Elements: ball. Closure Type: open. Cage Material: phenolic. Precision Class: ABEC 7 / P4S. Preload: light. Material: chrome steel rings and balls. Series: FAG B7200 spindle bearing series, 02 dimension series.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 16 mm. Universal grinding builds the ring offset into the bearing, so units of the same designation form matched sets in back-to-back, face-to-face or tandem arrangements.
Cross-references: Fafnir 2MM206WI CR SUL; SKF 7206 CDGA/P4A (extra light preload); FAG B7206E.TPA.P4S.UL (25° instead of 15° contact angle). Also written B7206CTPAP4SUL, B-7206-C-TPA-P4-UL and B7206C TPA P4 UL.
30 mm bore, 62 mm outside diameter and 16 mm width, single row, open on both faces.
15° contact angle (letter C) and a fabric-base laminate phenolic cage (TPA).
P4S is ISO class 4 dimensional tolerance with ISO class 2 running accuracy. UL is a universally ground bearing at light preload.
