RHP7202CTDULP4VAngular Contact Ball Bearing – 15 mm ID, 35 mm OD, 11 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.

Product Description

What this part is:

RHP 7202CTDULP4V super-precision single-row angular contact ball bearing, ISO dimension series 02, one half of a factory duplex pair. Unit Quantity: 1 Pc.

Decoding the designation:

7 — single-row angular contact ball bearing.

2 — RHP dimension series 2, ISO series 02.

02 — bore code 02, 15 mm bore.

C — 15° contact angle.

T — laminated phenolic resin cage, outer-ring guided.

DU — paired unit. Universally faced for back-to-back, face-to-face or tandem mounting.

L — light preload. As a back-to-back pair this gives an axial preload of 29 N and an axial stiffness of 23 N/µm.

P4 — ISO Class 4, ABEC 7, British Standard EP7.

1/2PR — one half of the factory pair.

Specifications:

Bore Diameter: 15 mm. Outside Diameter: 35 mm. Overall Width: 11 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Carbon chrome bearing steel, through hardened. Dynamic Load Rating: 8,650 N. Static Load Rating: 4,550 N. Limiting Speed: 41,600 rpm grease; 67,200 rpm oil. Lubricant: grease or oil. Item Weight: 0.045 kg (0.10 lb). Mounting Arrangement: Universally faced, one half of a duplex pair.

Dimensions and mounting:

Inner ring abutment diameter d1 min: 20 mm. Outer ring abutment diameter D1 max: 30 mm. Outer ring seating diameter D2 max: 32.5 mm. Chamfer dimension r min: 0.6 mm. Chamfer dimension r1 min: 0.3 mm. Effective load centre a: 8.8 mm. Internal free volume: 2.2 cm³. PCD of lubrication jets: 22.6 mm. The deviation from nominal bore and outside diameter in microns is marked on the face of each ring. Mounted as a back-to-back pair at light preload the catalogue recommends 80 percent of the tabulated speeds.

Compatibility and replacement:

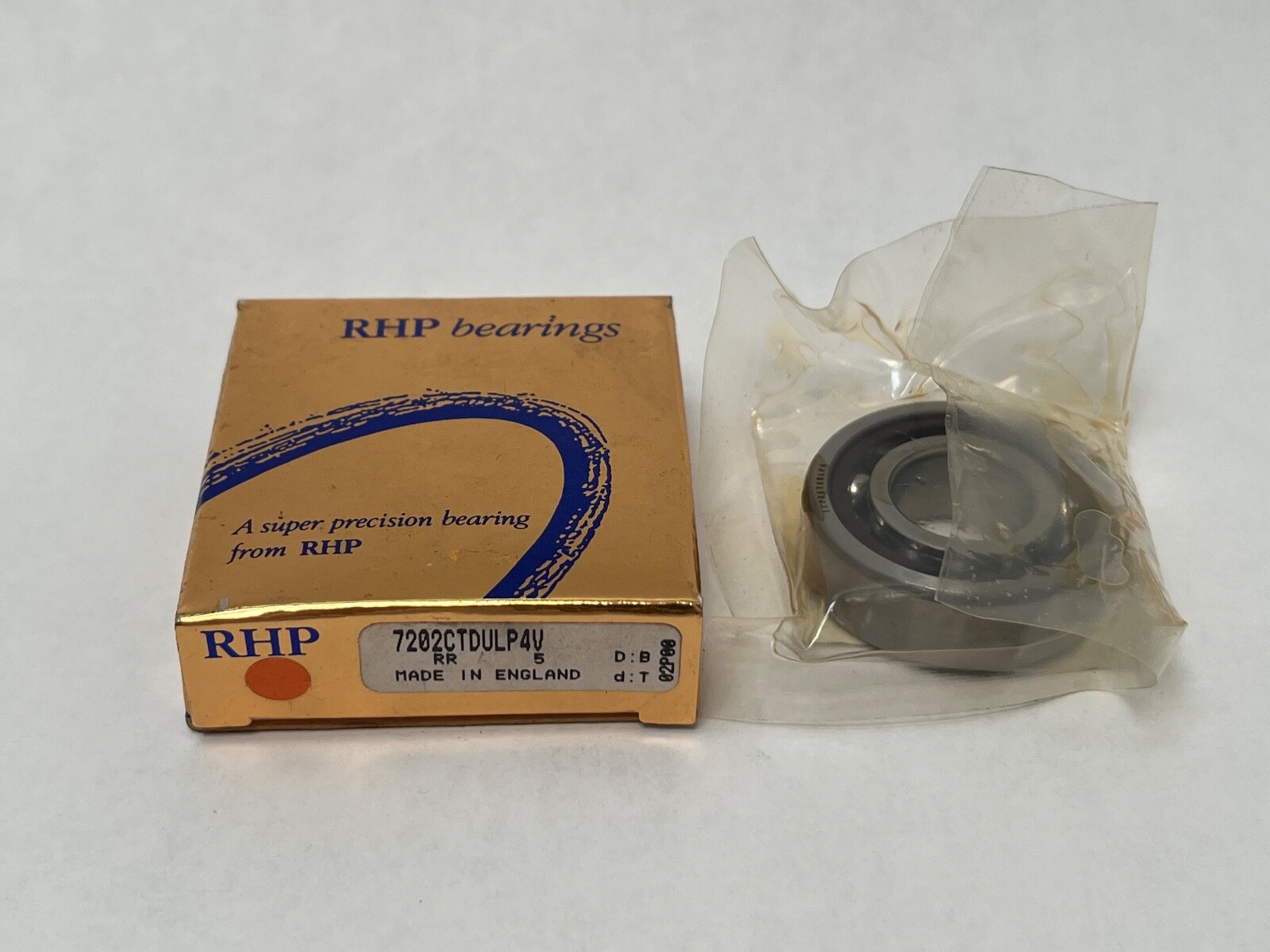

Same 15 x 35 x 11 mm envelope, same 15° angle, same light preload at super-precision class: SKF 7202 CD/P4ADGA, FAG B7202-C-T-P4S-UL, NSK 7202CTRDULP4, NTN 7202CG/GNP4, Timken Fafnir 2MM202WI DUL, Koyo 7202C, IBC 7202-C-T-P4S-UL, GMN S6202-C-TA-P4. Carton markings: 7202CTDULP4V, 7202-C-T-DUL-P4V, 7202CTDULP4V-1/2PR, B7202 C T P4S, 2MM202WI DUL.

Frequently asked questions:

What contact angle does the RHP 7202CTDULP4V have?

15 degrees, from the C in the designation.

What preload does the RHP 7202CTDULP4V carry?

Light preload (L). As a back-to-back pair it gives an axial preload of 29 N and an axial stiffness of 23 N/µm.

How many pieces are in this listing?

One piece, one half of the factory duplex pair. Universal face control lets it pair with any other 7202-C-T-DUL at the designed light preload.
