SNRAngular Contact Ball Bearing – 15 mm ID, 35 mm OD, 11 mm Width, Open, 15° Contact Angle, Light Preload, Phenolic Cage, ABEC 7.

Product Description

What this part is

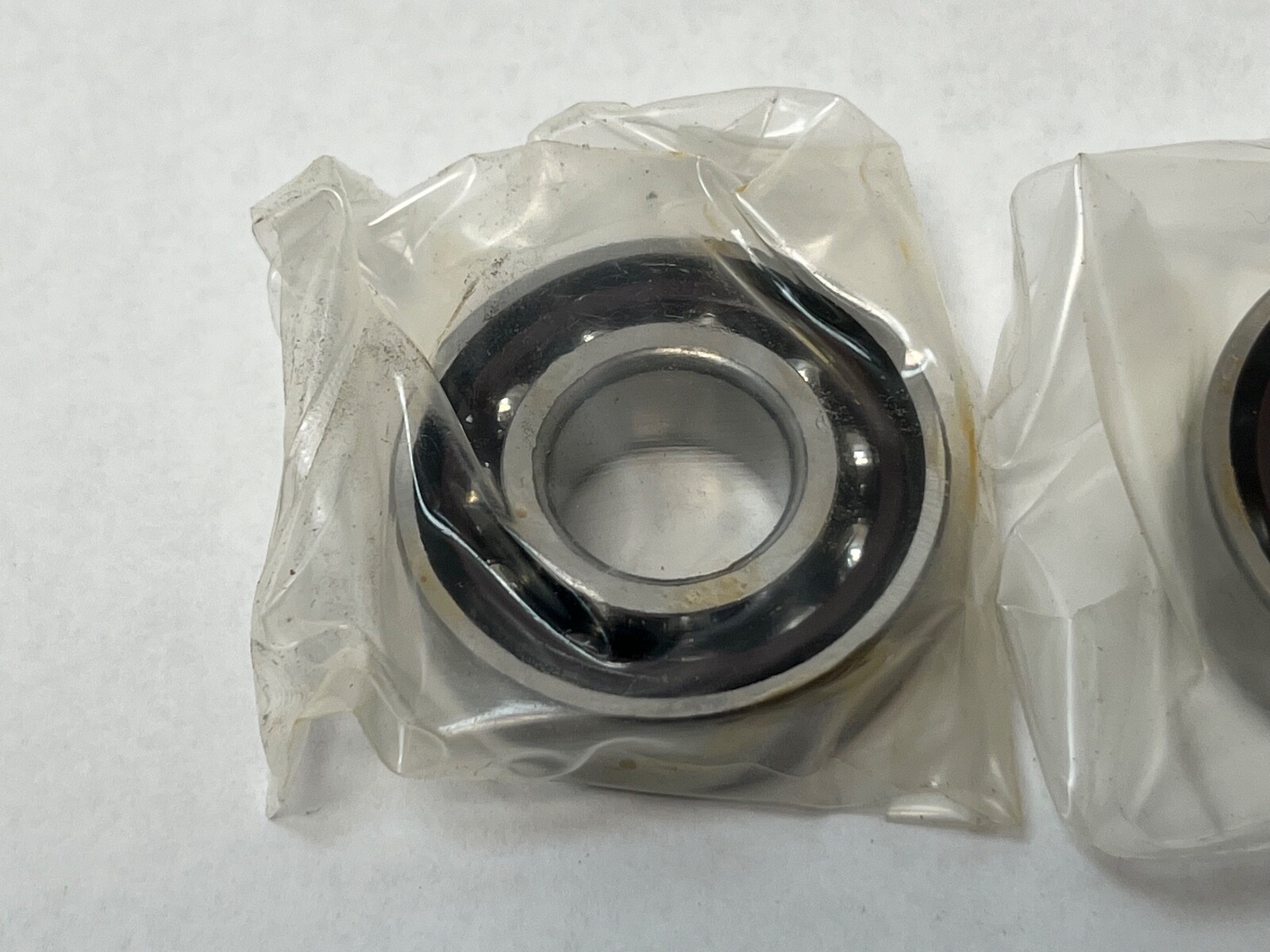

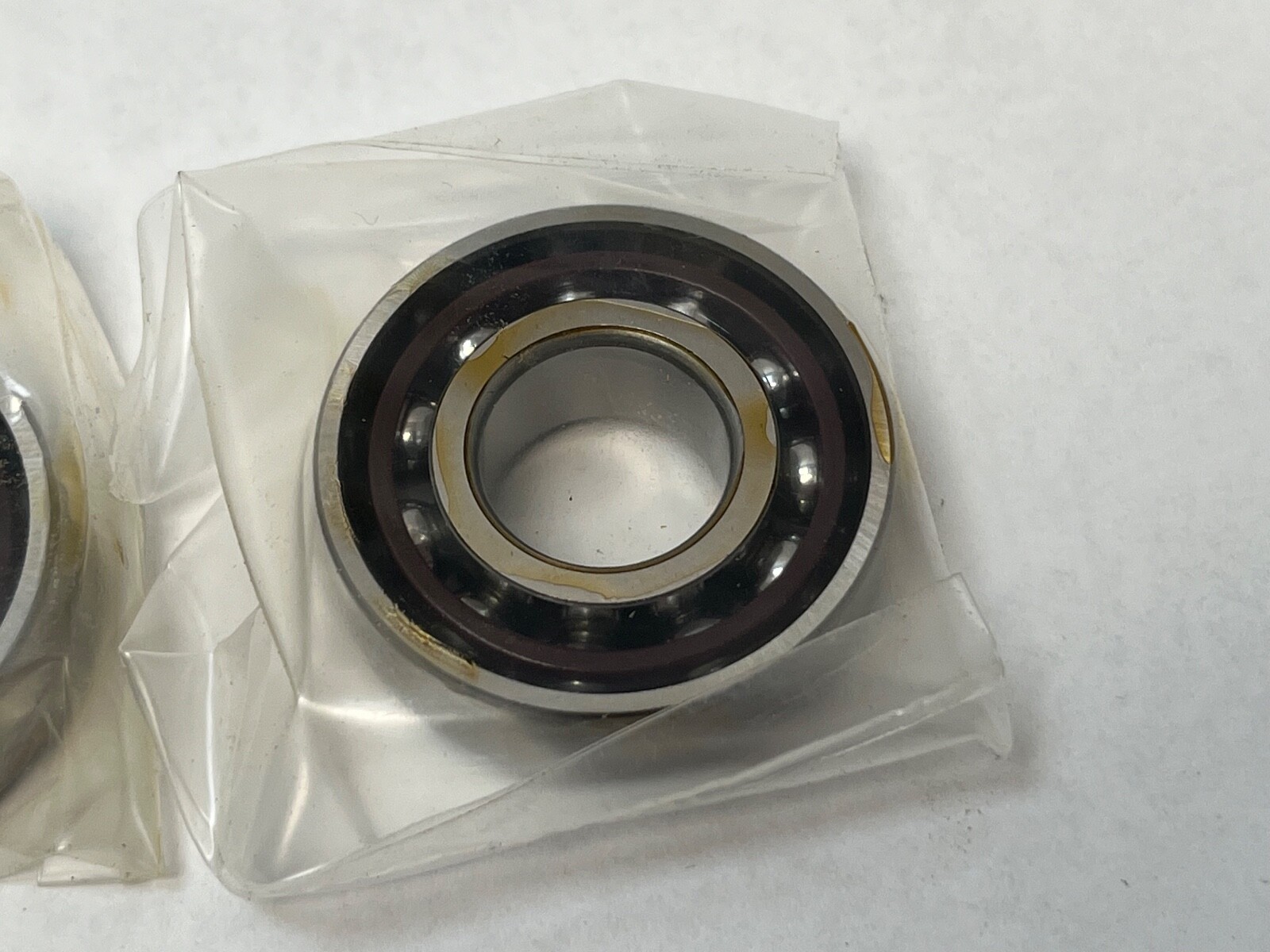

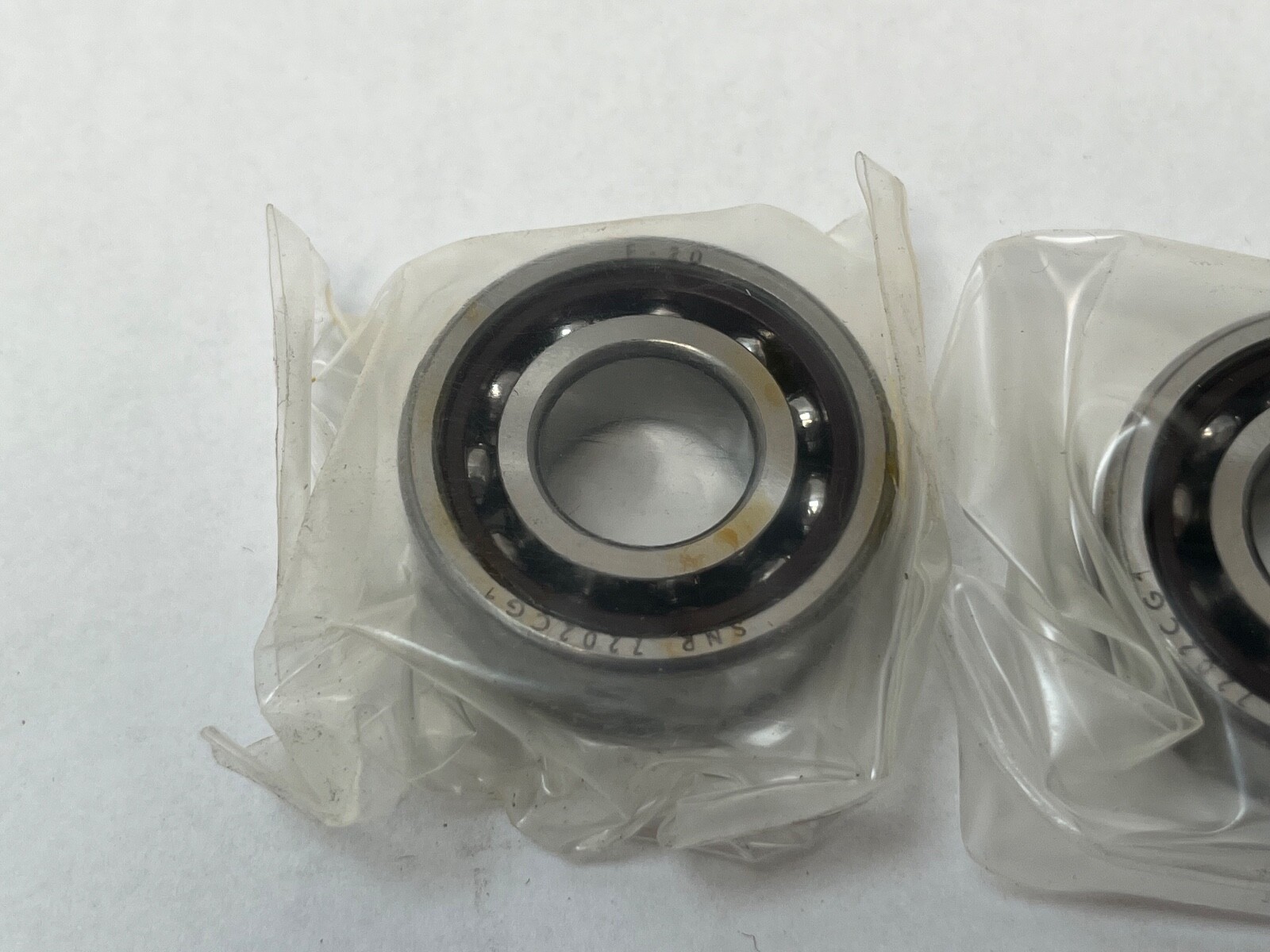

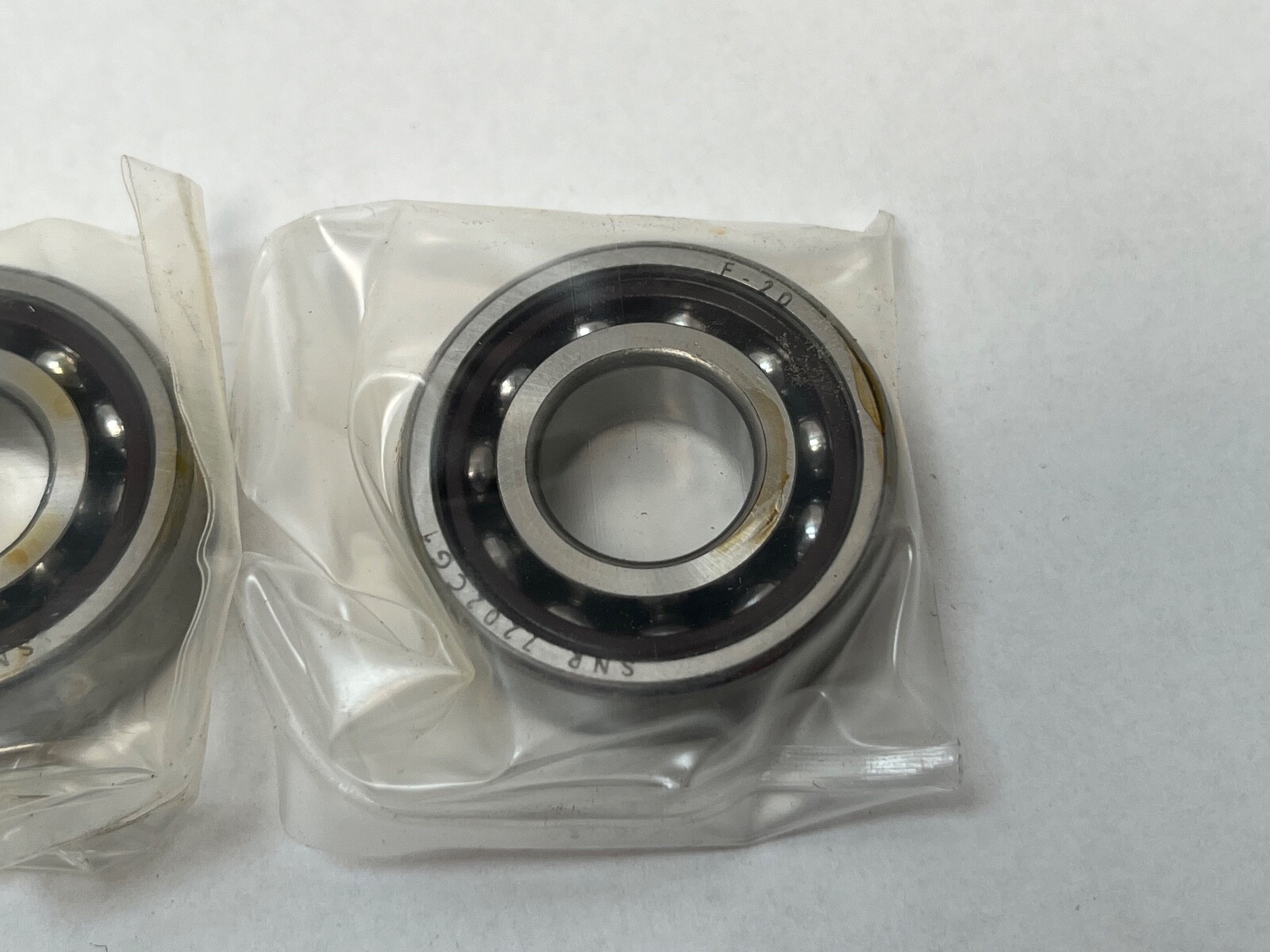

SNR 7202CG1DUJ74 angular contact ball bearing, ISO 72 series, 15 x 35 x 11 mm. Bore: 15 mm. Outside Diameter: 35 mm. Overall Width: 11 mm. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing Steel. Bore Type: Straight. Closure Type: Open. Series: 7200 (ISO 72). Base Number: 7202. Country of Origin: France.

Decoding the designation

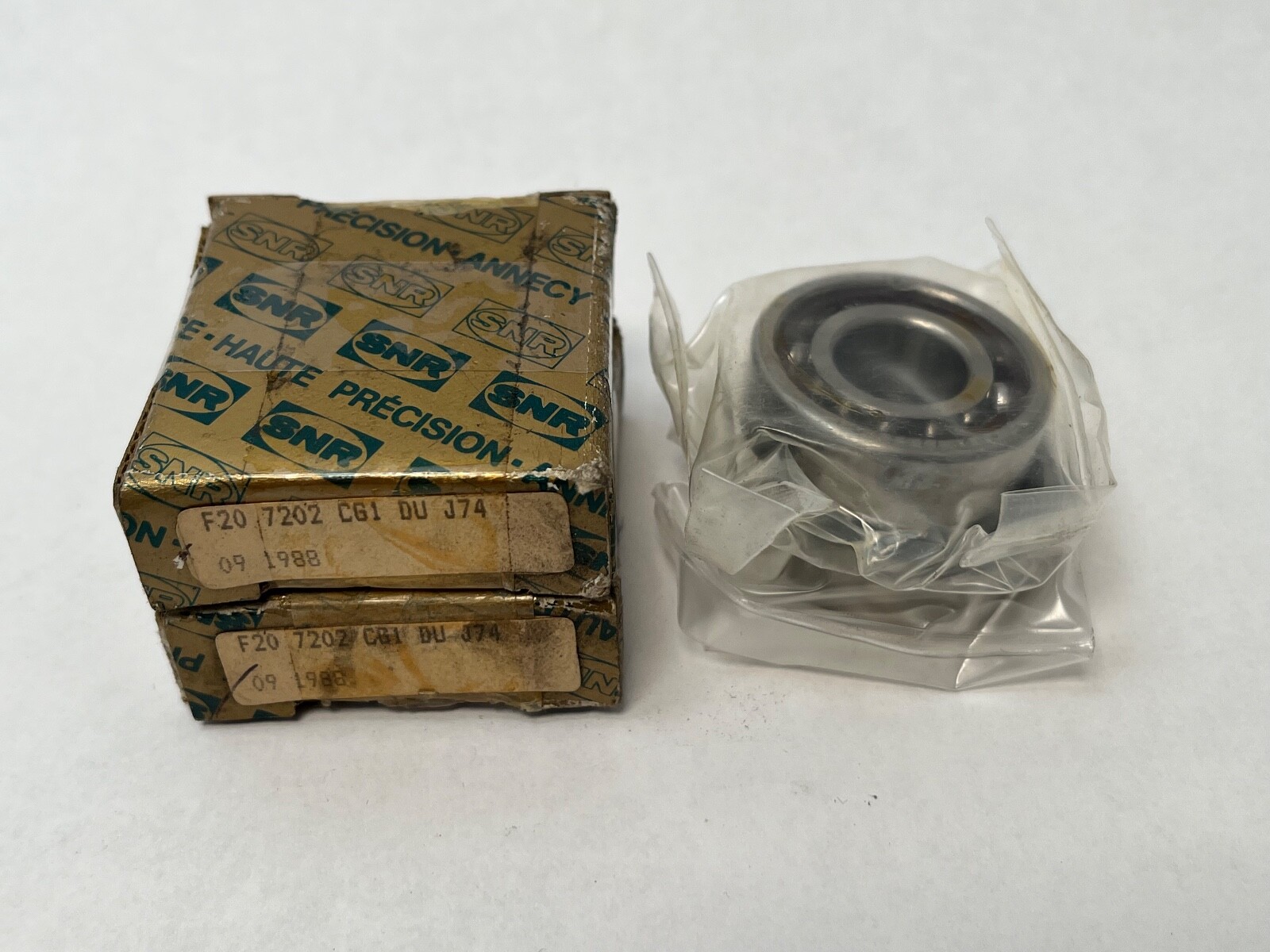

Contact Angle: 15°, from the C position. Cage Material: Phenolic (laminated resin), from G1. Cage Type: Machined, outer-ring centred. Preload: Light, from J74. Precision Class: ISO Class 4 (ABEC 7 / P4). Internal Clearance: N/A. Lubricant: Oil. Searchable forms of the number: 7202CG1DUJ74, 7202 C G1 DU J74, 7202-C-G1-DU-J74, 7202CDUJ74.

What these specs mean in practice

A 15° contact angle favours speed and radial stiffness, and it carries less thrust than a 25° execution on the same envelope. The laminated resin cage is light and quiet, and it is centred on the outer ring for stable guidance. Light preload holds the balls in defined contact for repeatable shaft location while keeping heat generation low. ISO Class 4 tolerances give closer running accuracy and lower runout than Class 5. Item weight: 0.10 lbs.

Quantity and configuration

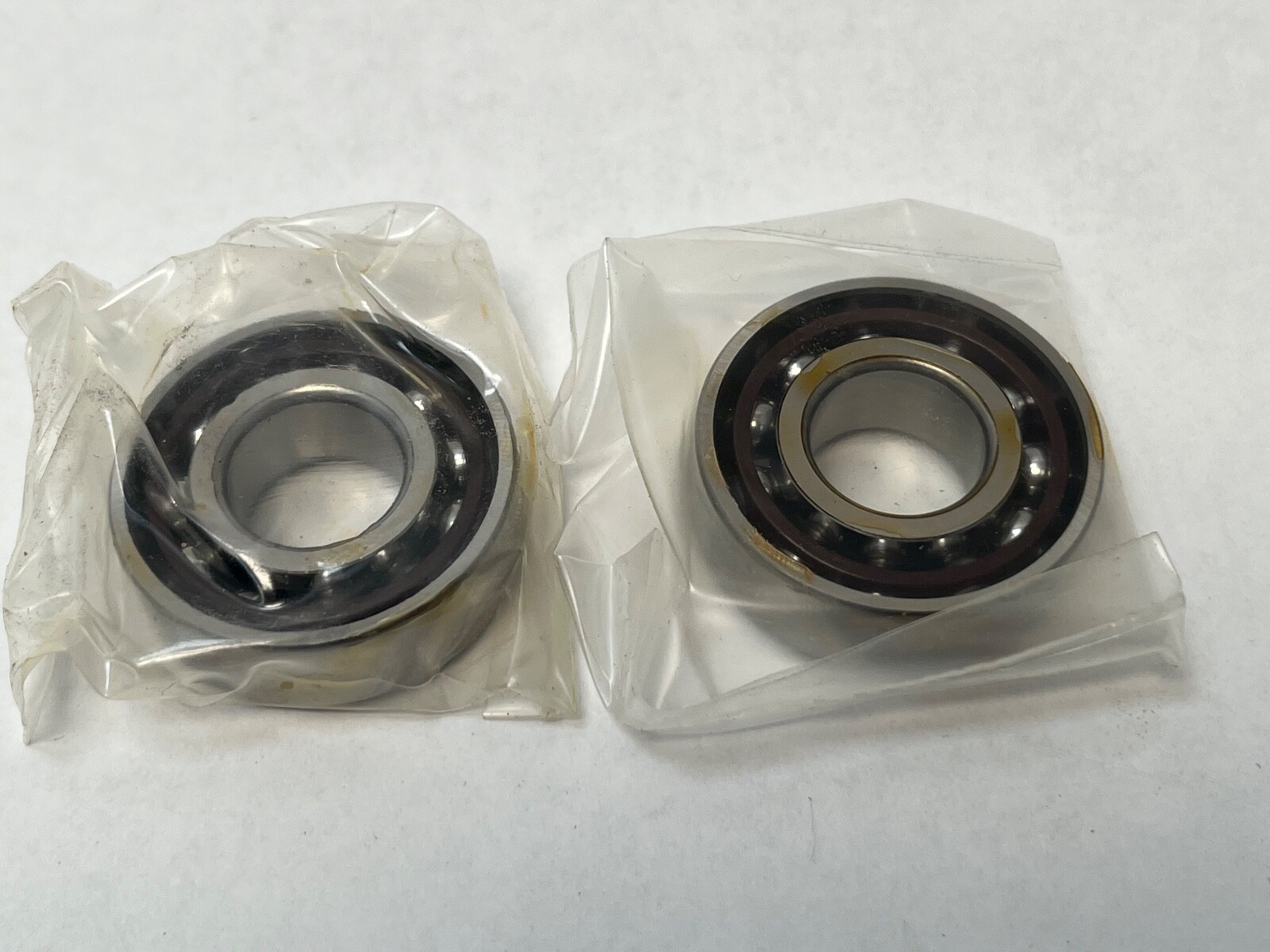

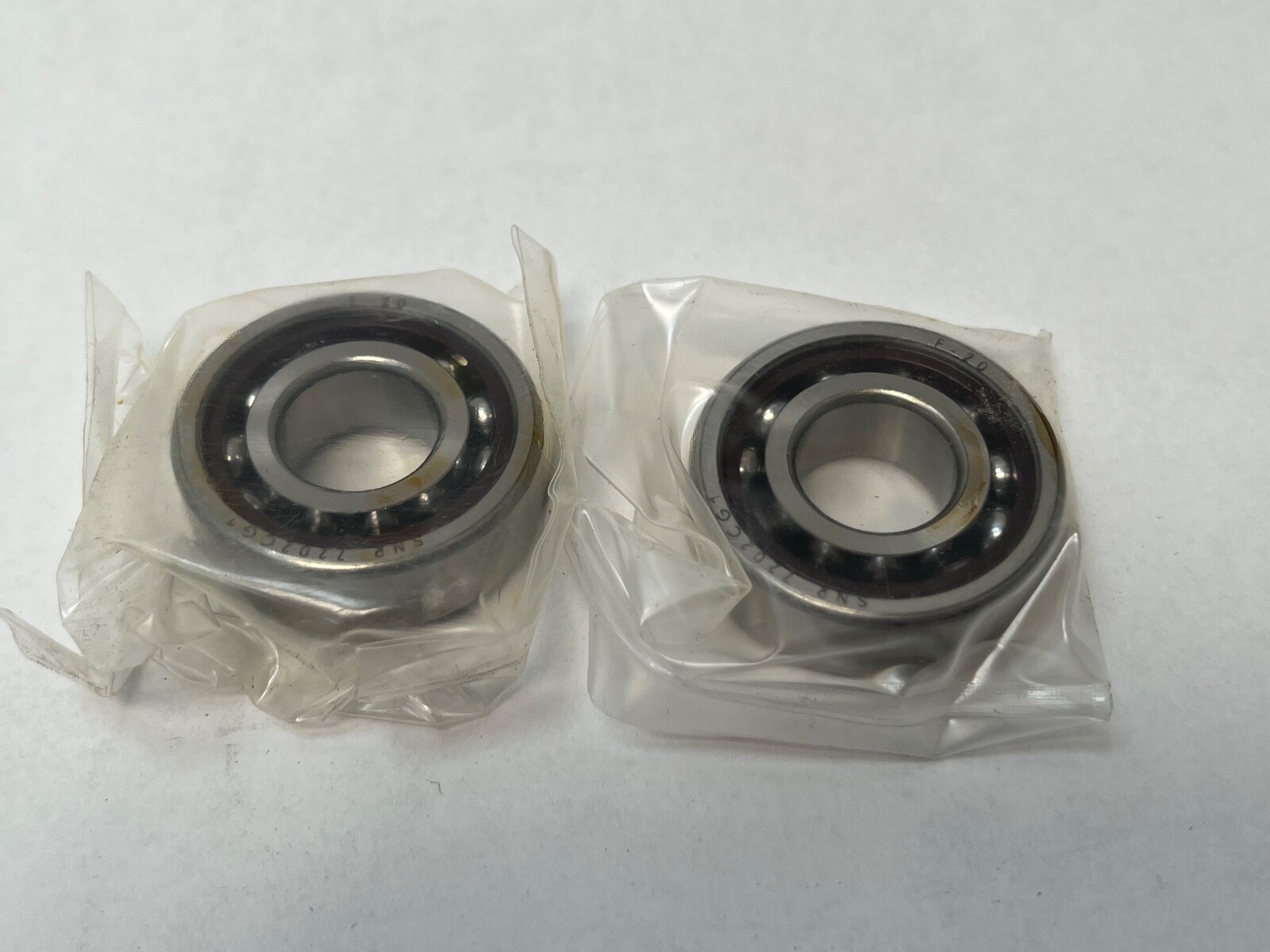

Unit Quantity: 2 Pcs. Mounting Arrangement: Universal (DB, DF or DT). The ring faces are flush-ground, so the pair sets back-to-back, face-to-face or in tandem, and the J74 light preload is established when the pair is clamped together.

Interchange guidance

Cross-Reference 1: SKF 7202 CD/P4A DGB. Cross-Reference 2: FAG B7202-C-T-P4S-DUL. Cross-Reference 3: Fafnir 2MM202WICRDUL. Each shares the 15 x 35 x 11 mm envelope, a 15° contact angle, ABEC 7 precision and light preload on a universally matchable set. Harmonization Code: 8482.10.50.
