FAGB7202-C-TPA-P4-ULAngular Contact Spindle Bearing – 15 mm ID, 35 mm OD, 11 mm Width, 15° Contact Angle, ABEC 7 / P4, Phenolic Cage, Light Preload

Product Description

What this part is:

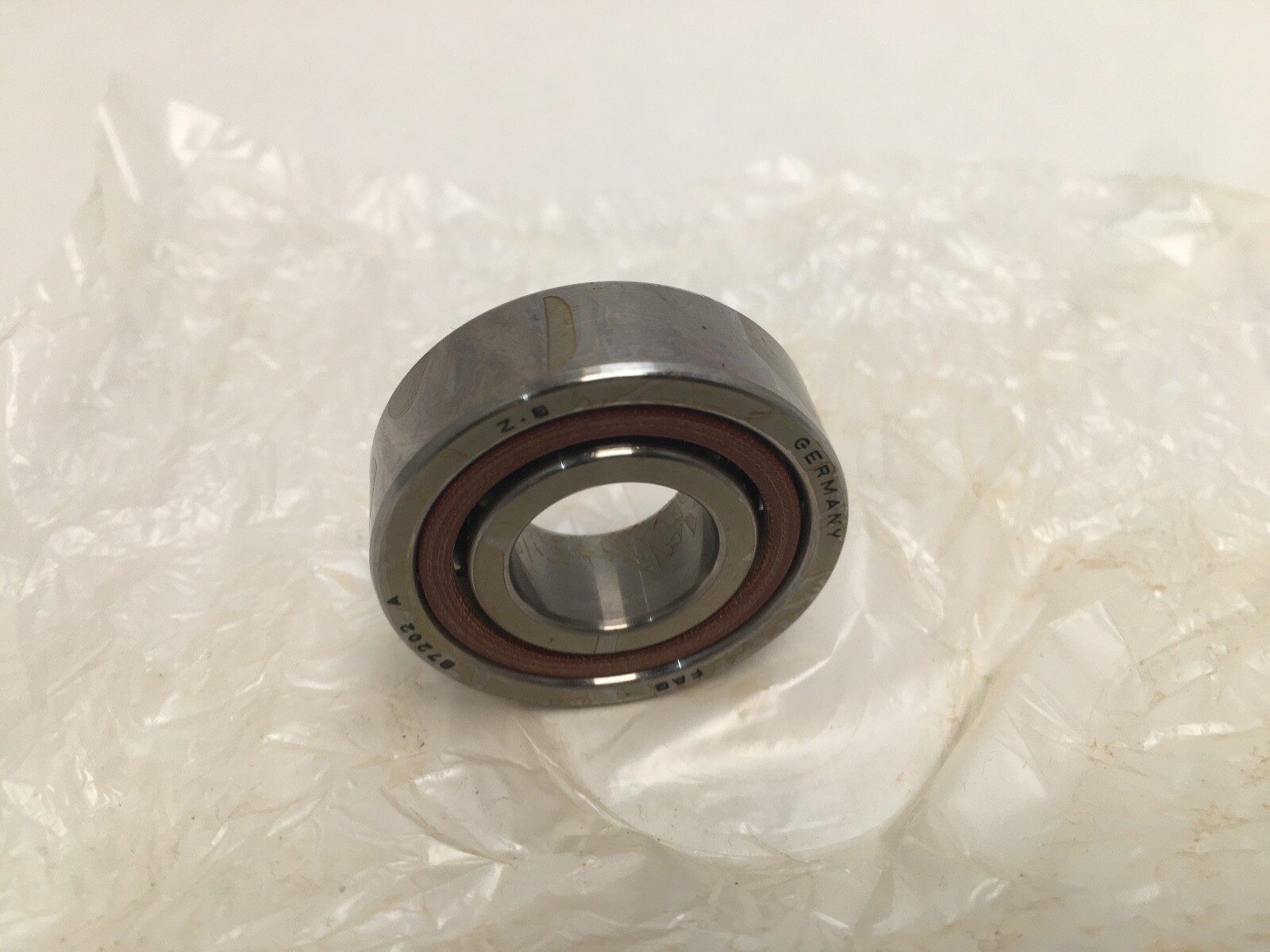

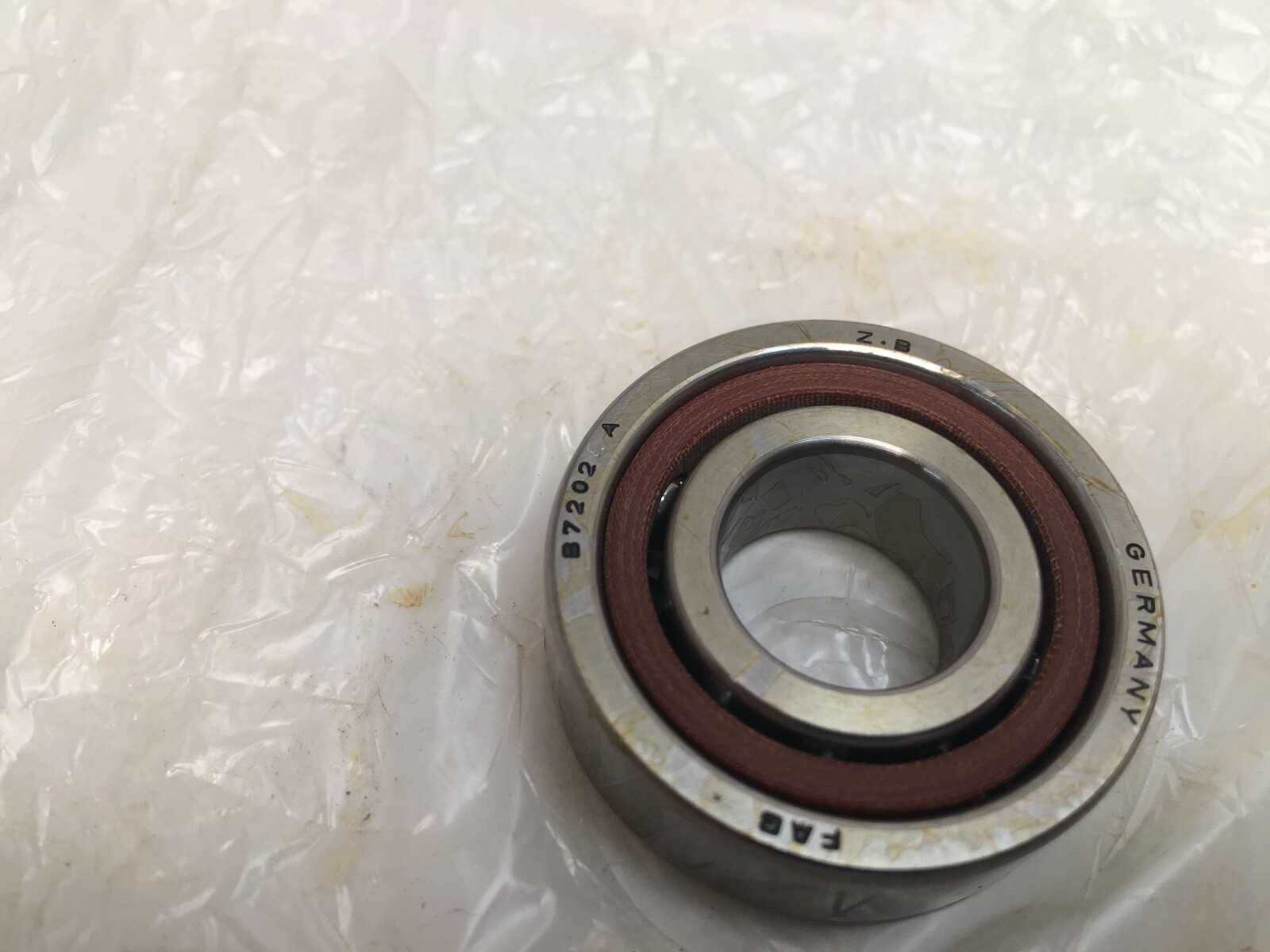

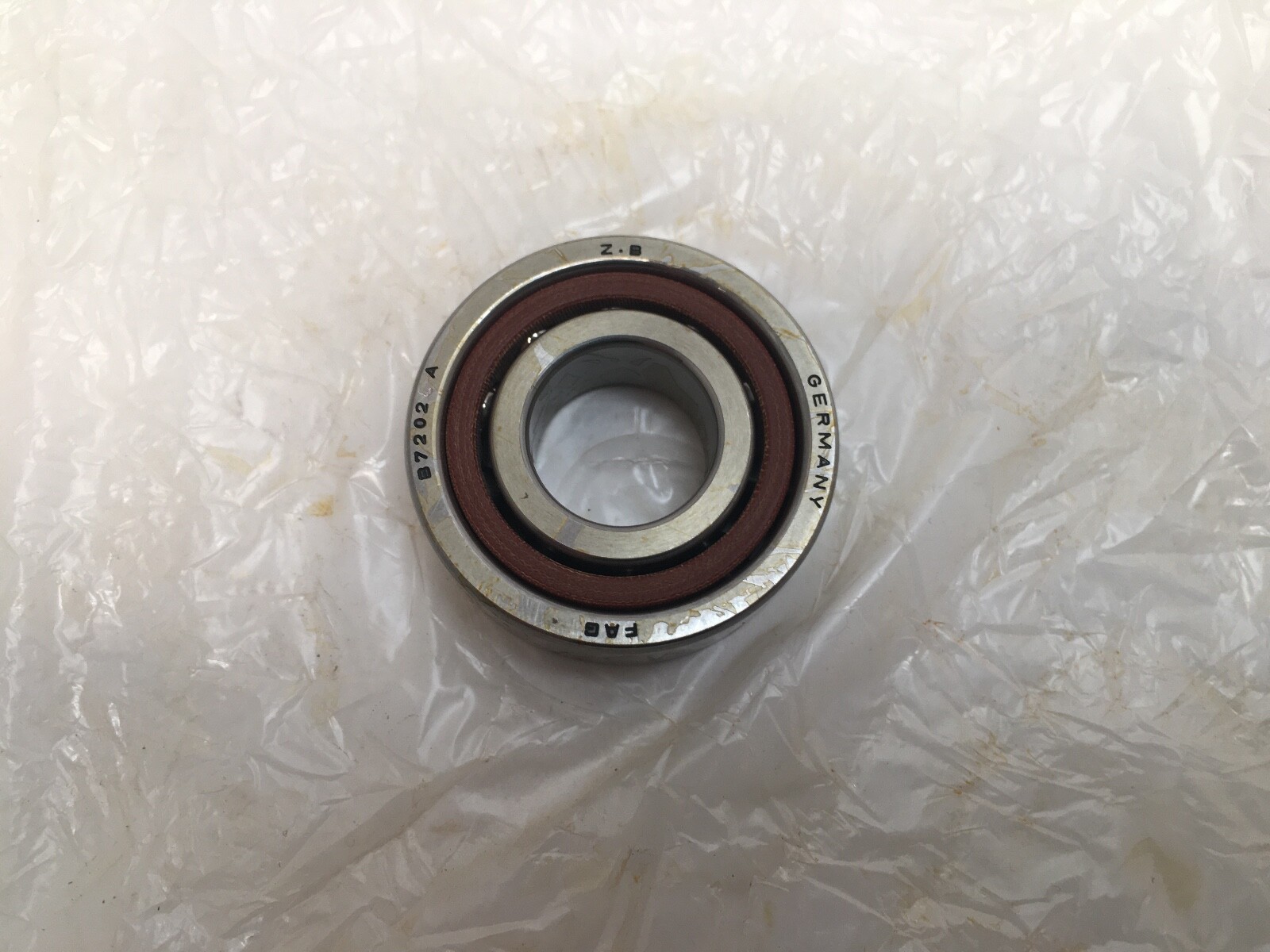

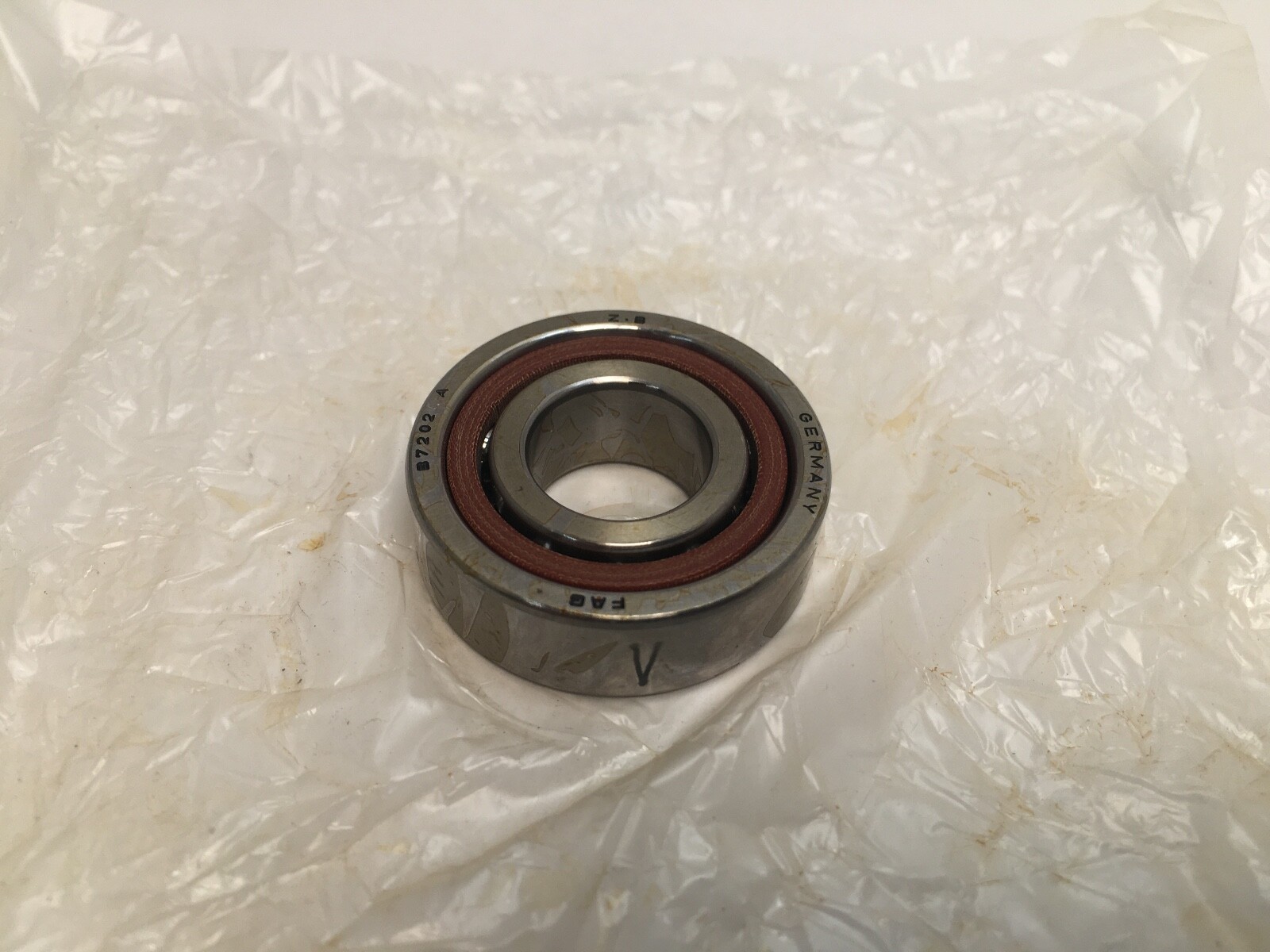

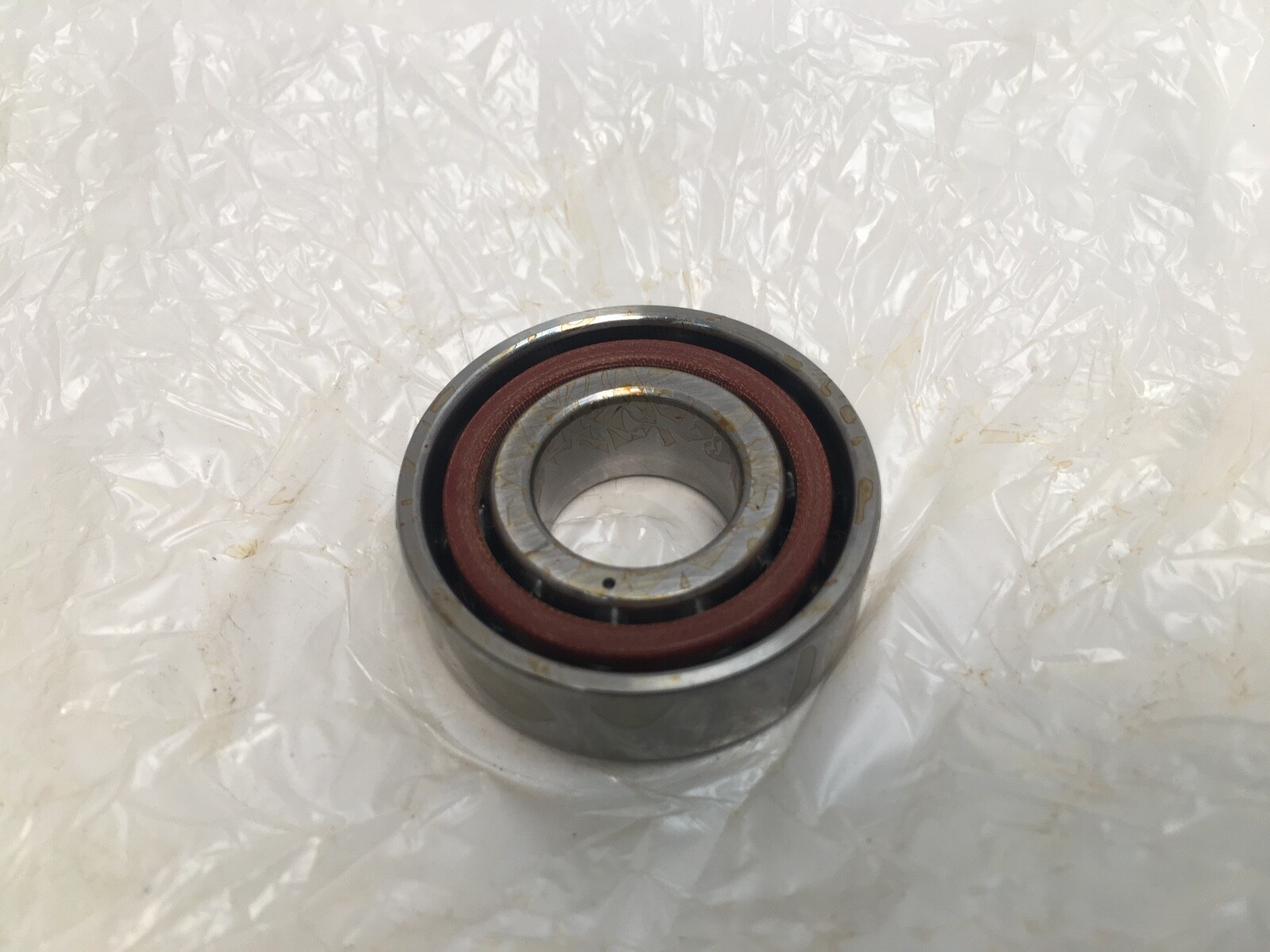

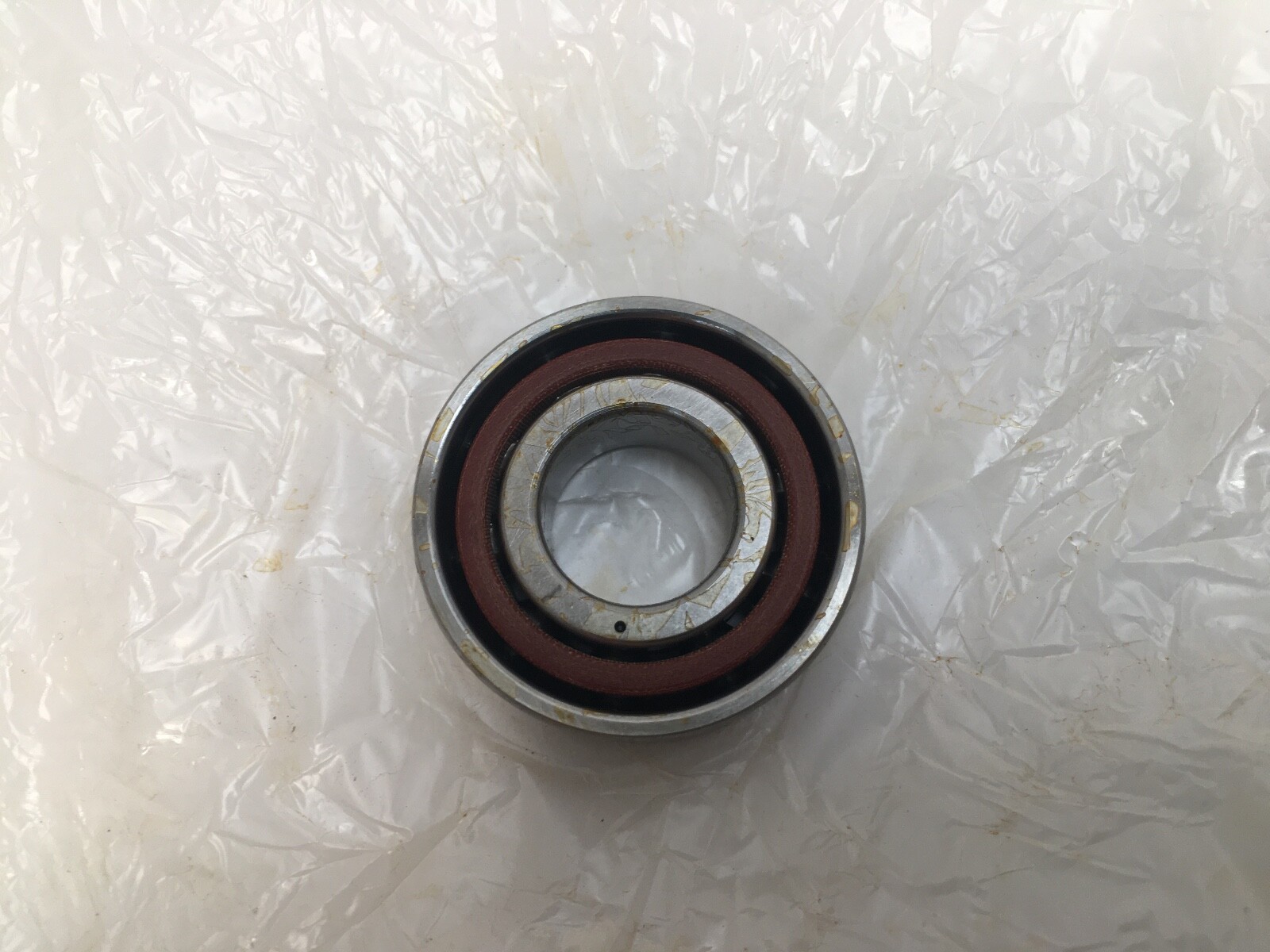

FAG B7202-C-TPA-P4-UL is a single super-precision angular contact spindle bearing from the Schaeffler B72 series. Unit Quantity: 1 Pc. Universal single bearing for duplex or multi-bearing sets. Bore Diameter: 15 mm. Outside Diameter: 35 mm. Width: 11 mm.

Decoding the designation:

B7202 — FAG spindle bearing, ISO 7202 envelope, 15 x 35 x 11 mm.

C — 15° contact angle.

TPA — machined fabric-base laminated phenolic cage.

P4 — ISO tolerance class P4, equivalent to ABEC 7.

UL — universally ground single bearing, light preload when paired in any arrangement.

Specifications:

Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light, 46 N (Schaeffler FV L).

Dynamic Load Rating: 11,600 N. Static Load Rating: 5,000 N. Limiting Speed: 45,000 rpm grease; 67,000 rpm oil. Operating Temperature: -30 to 100 °C. Item Weight: 0.040 kg (0.09 lb).

Dimensions and mounting:

Bore Diameter: 15 mm. Outside Diameter: 35 mm. Width: 11 mm. Shaft Shoulder Diameter: 19.5 mm. Housing Shoulder Diameter: 30.5 mm.

Compatibility and replacement:

With 15° angle and P4 class: SKF 7202 CD/P4A, NSK 7202CTYNSULP4, Fafnir 2MM202WI CR SUL. Current Schaeffler designation: B7202-C-T-P4S-UL.

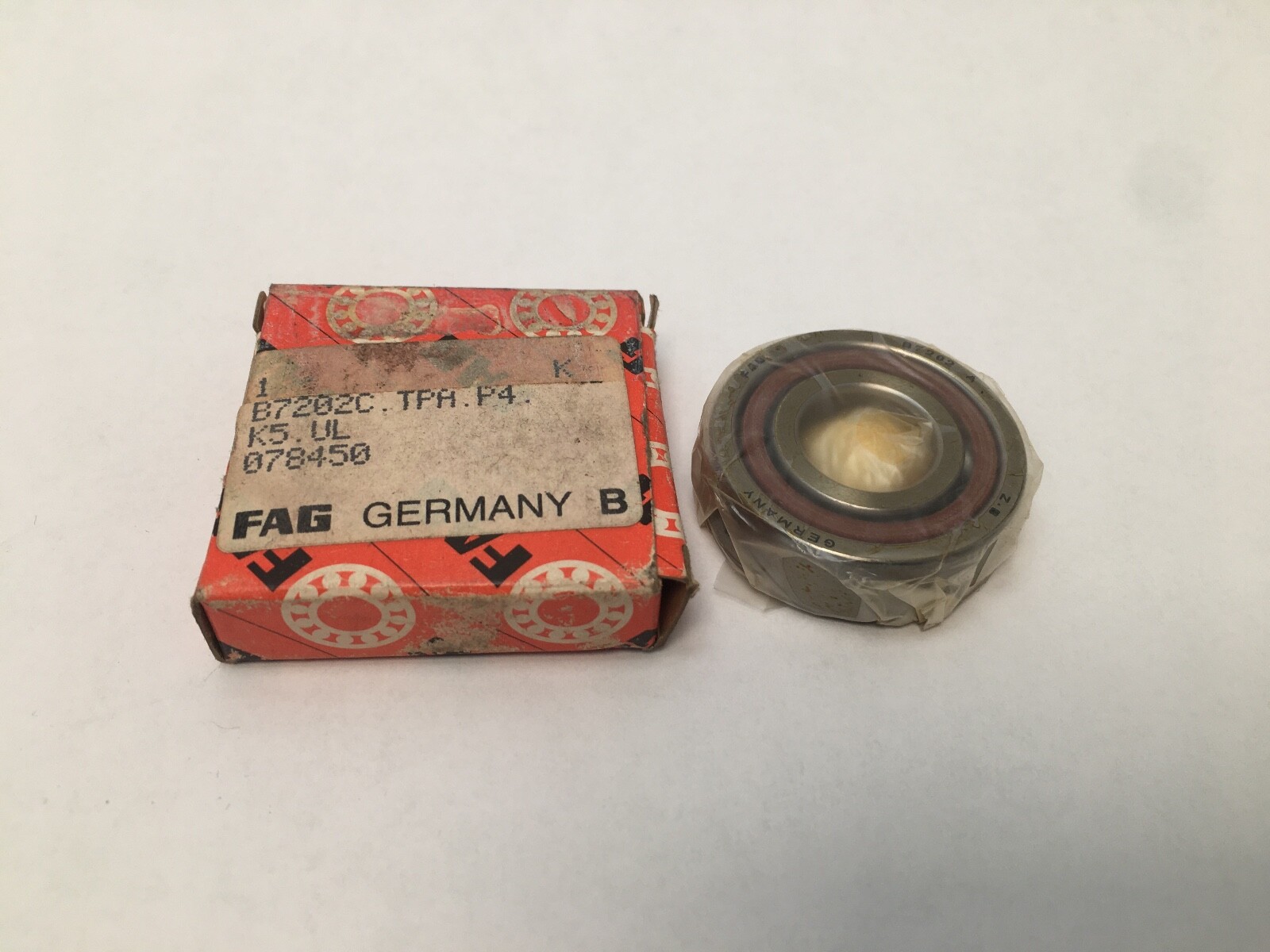

Searchable designation forms: B7202CTPAP4K5UL, B7202C.TPA.P4S.UL, B-7202-C-TPA-P4-K5-UL, B7202C, 7202C.

Frequently asked questions:

What is the contact angle of the FAG B7202-C-TPA-P4-UL?

15 degrees. The C in the designation is the 15 degree angle.

What size is it?

Bore 15 mm, outside diameter 35 mm, width 11 mm.

What are the load ratings and speed?

Dynamic load rating 11,600 N, static load rating 5,000 N, limiting speed 45,000 rpm with grease and 67,000 rpm with oil.
