Availability:
2 in stock

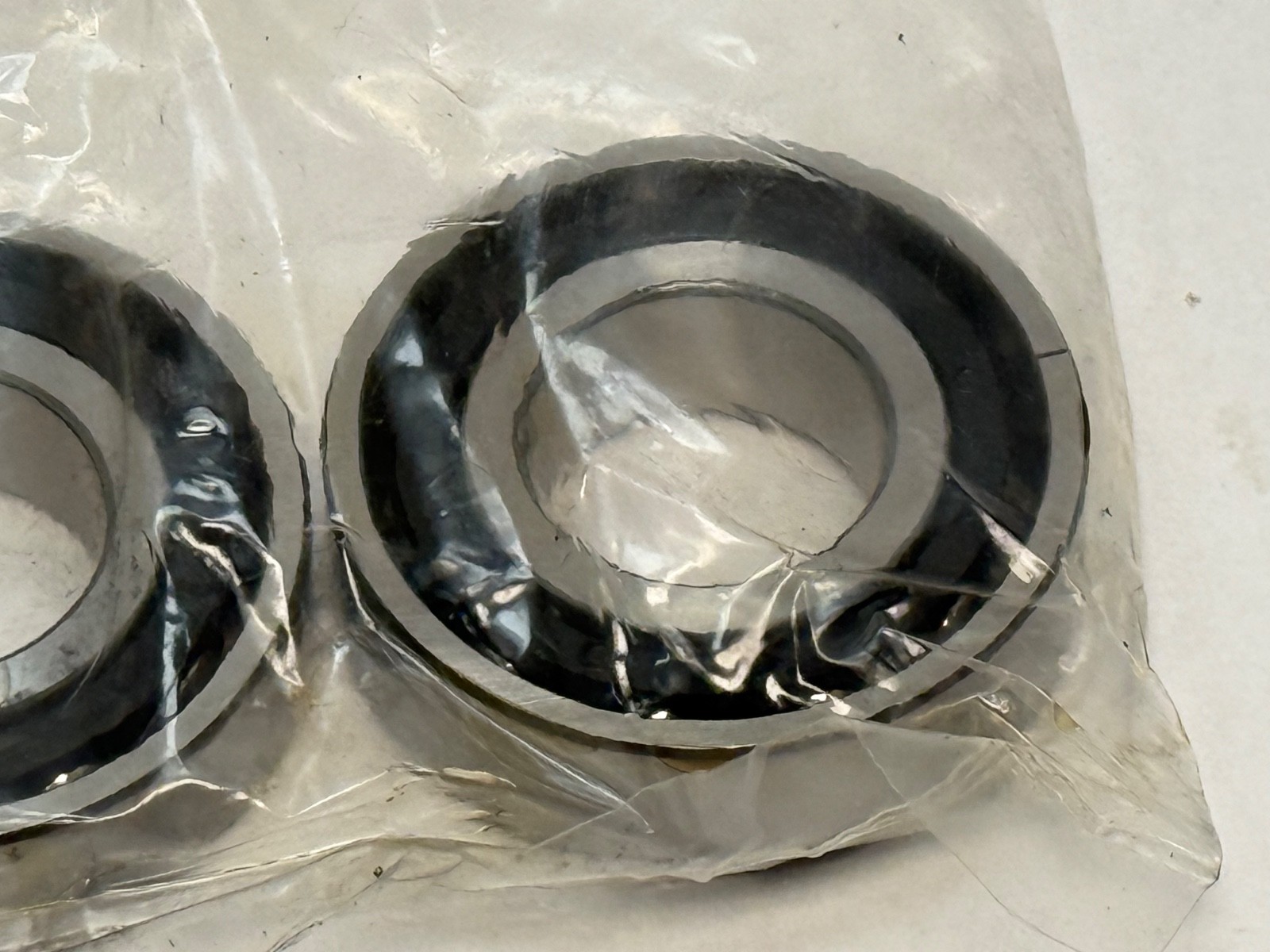

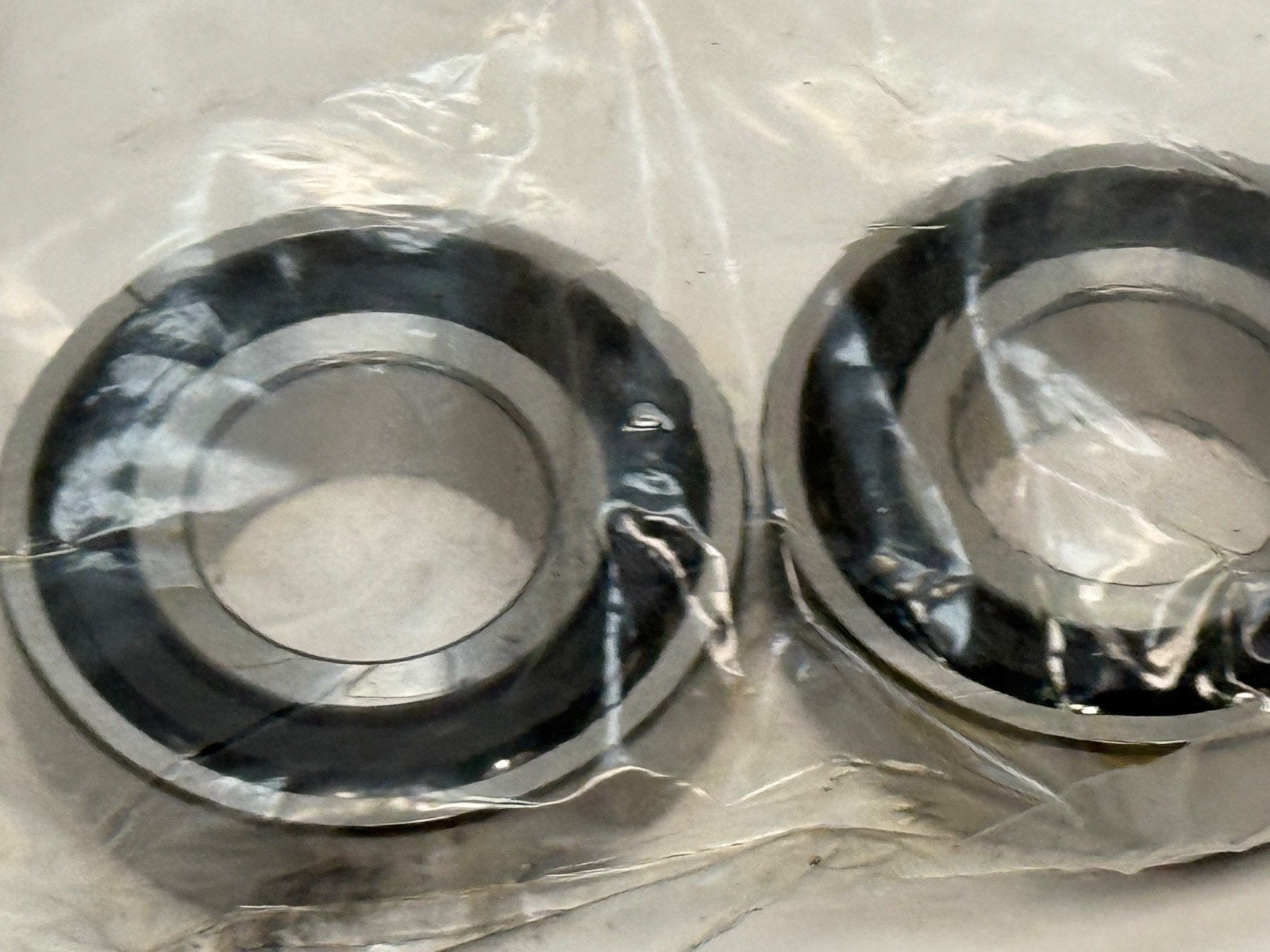

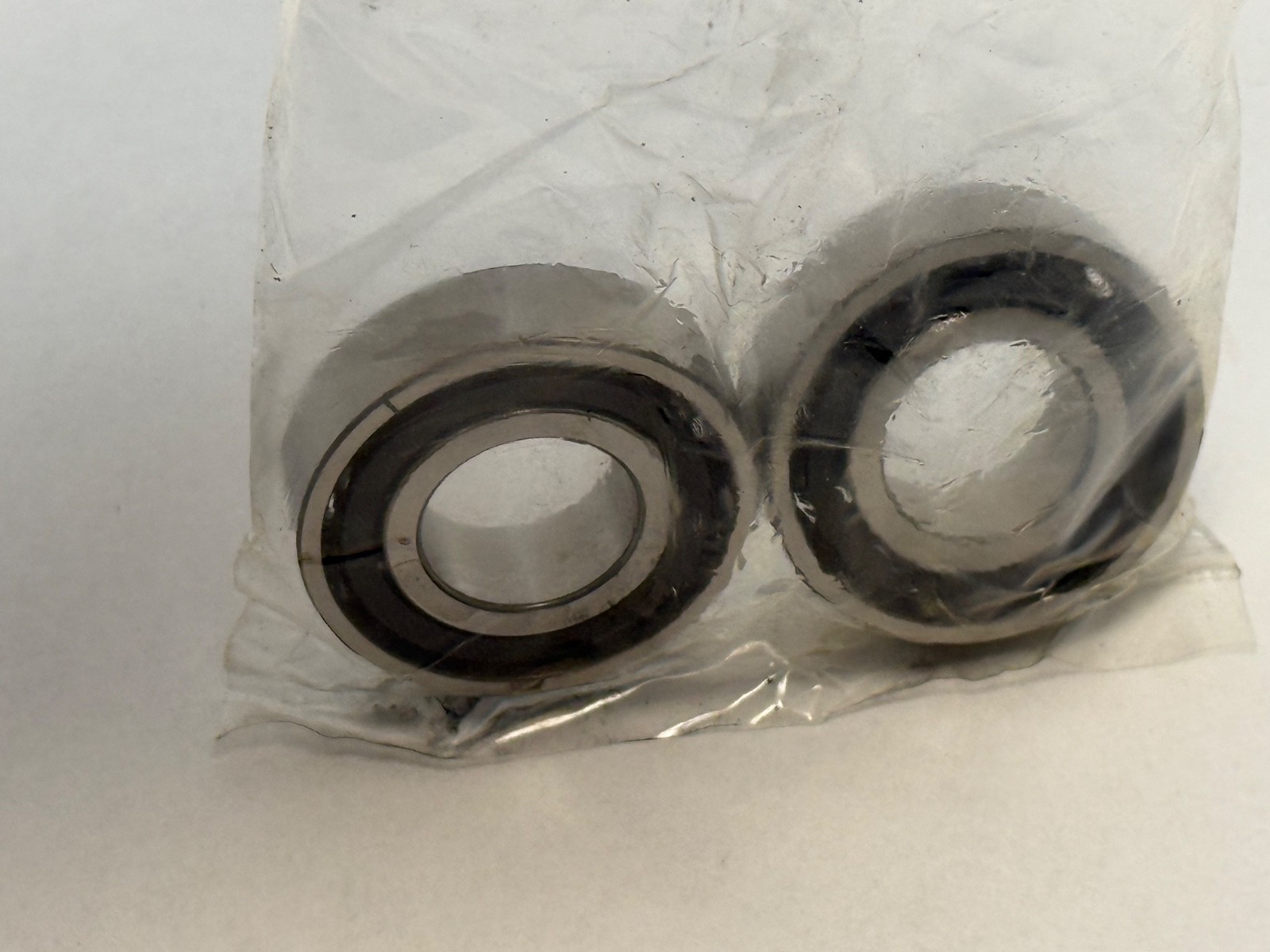

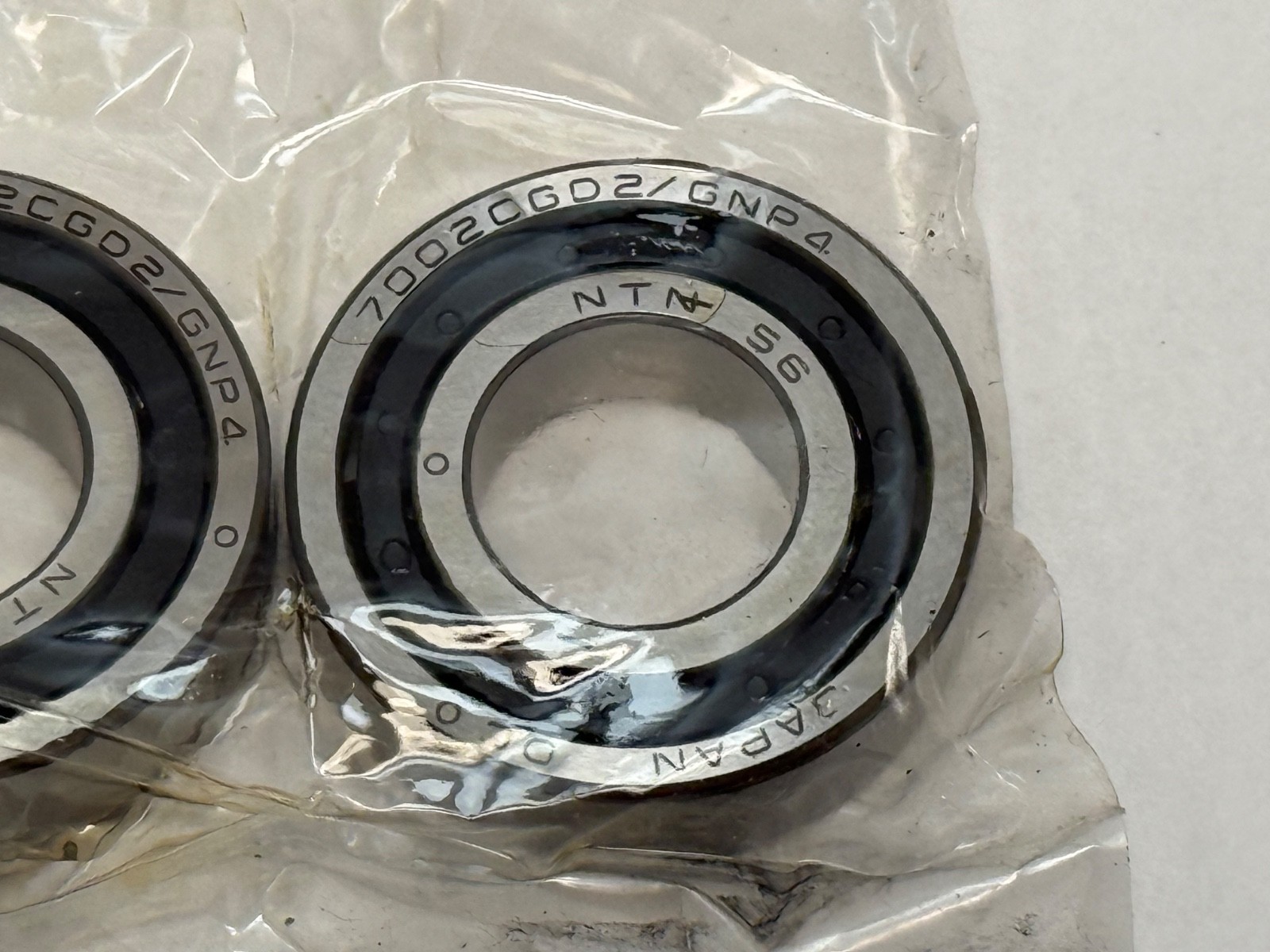

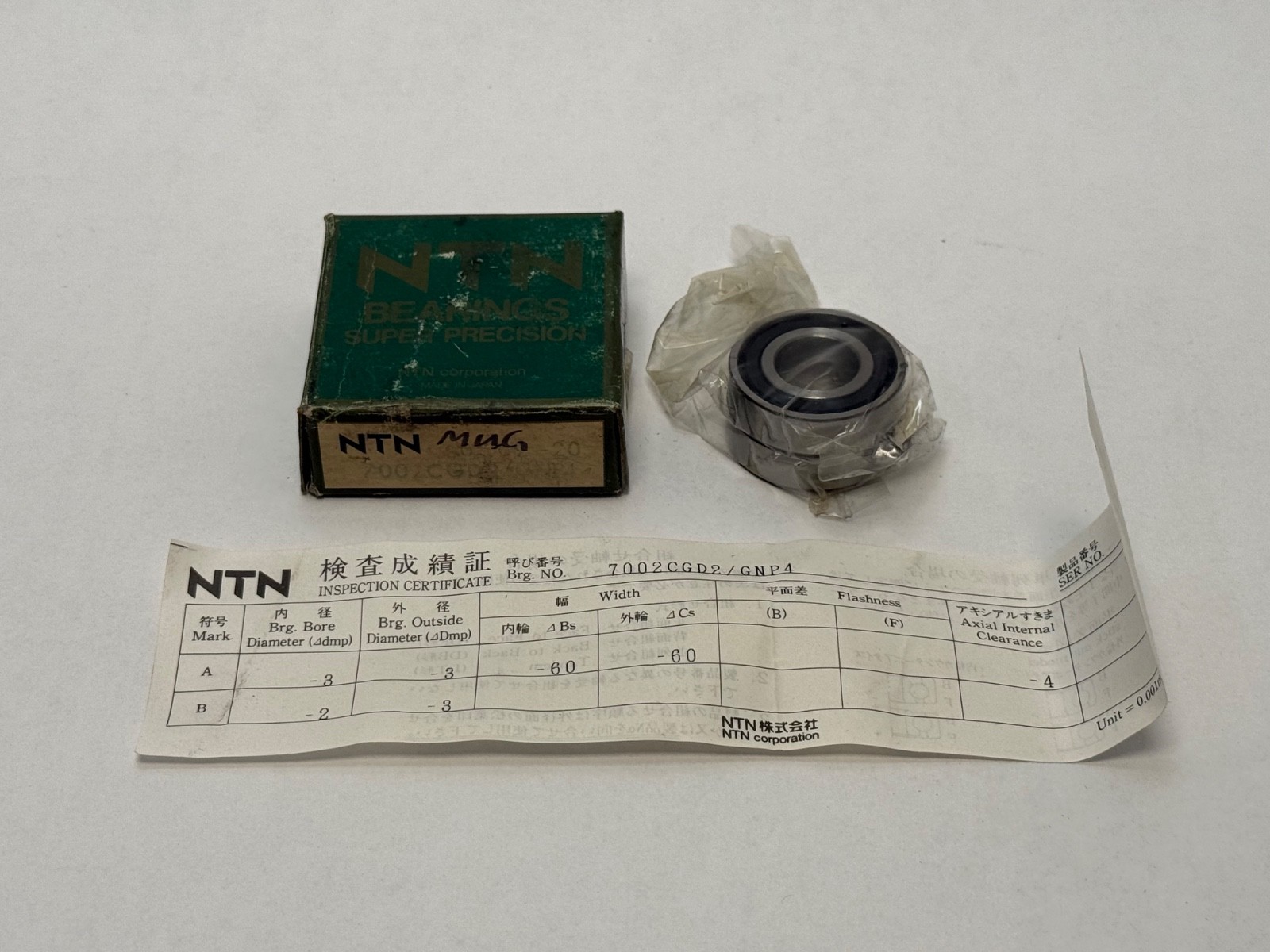

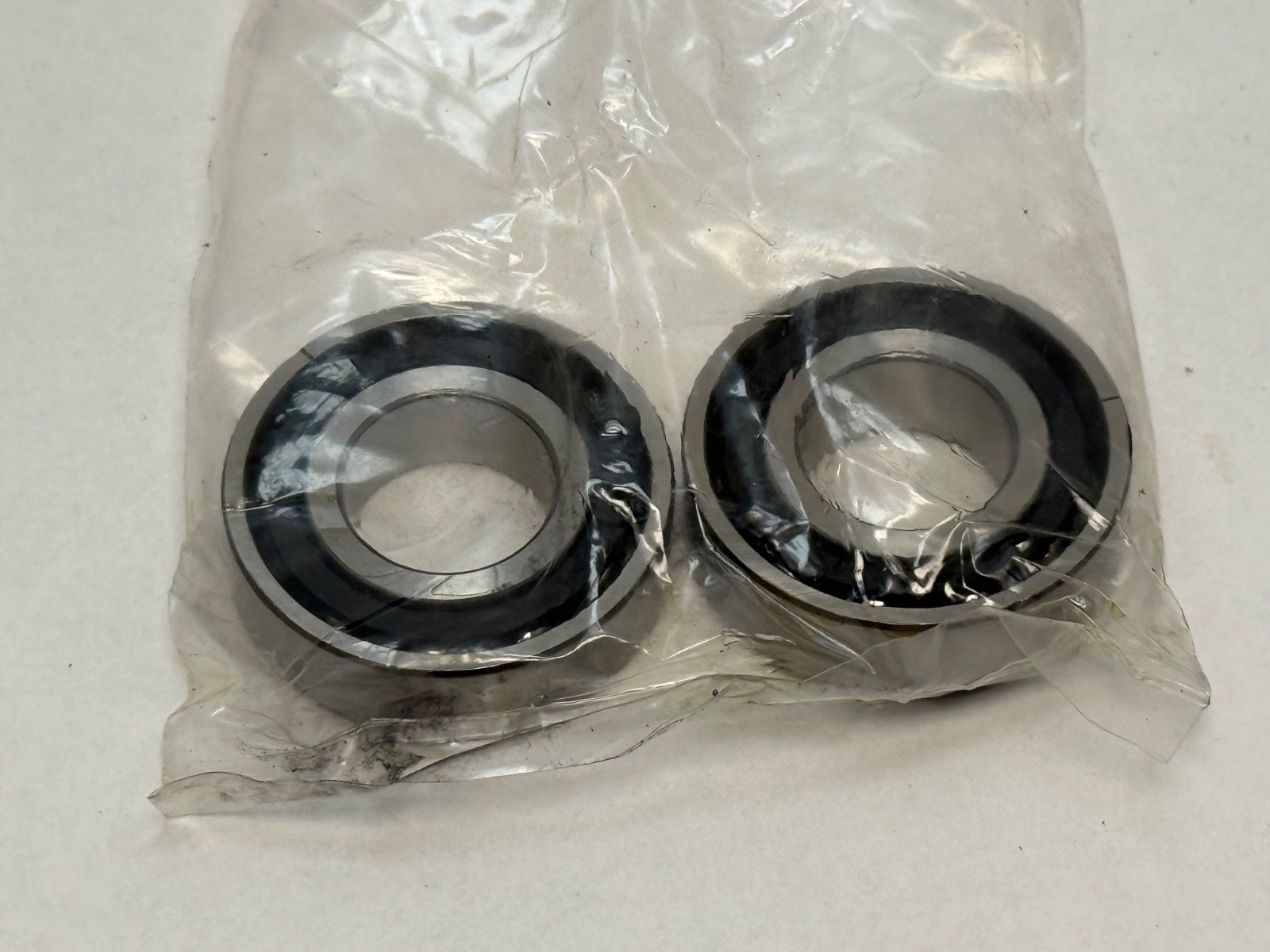

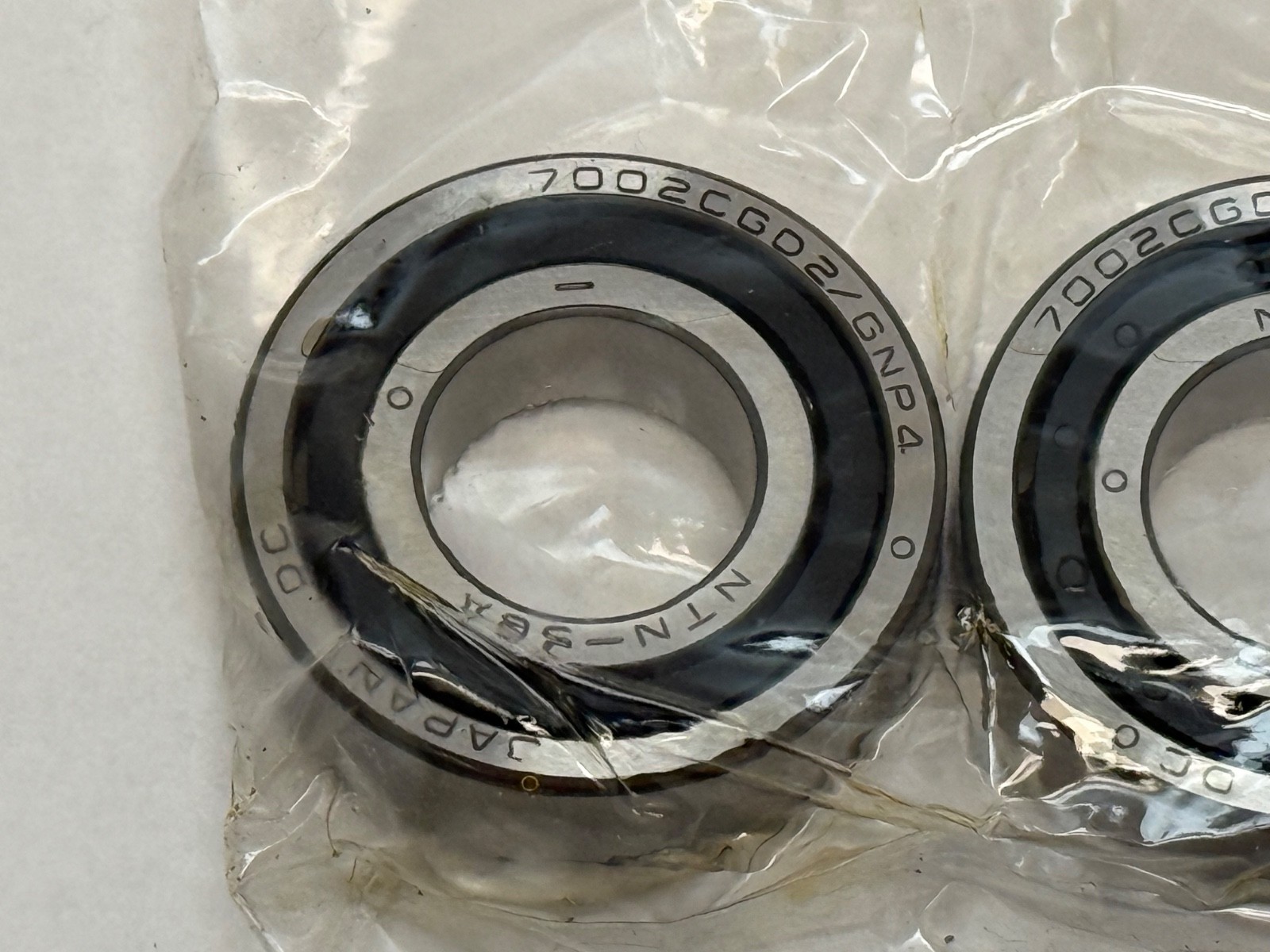

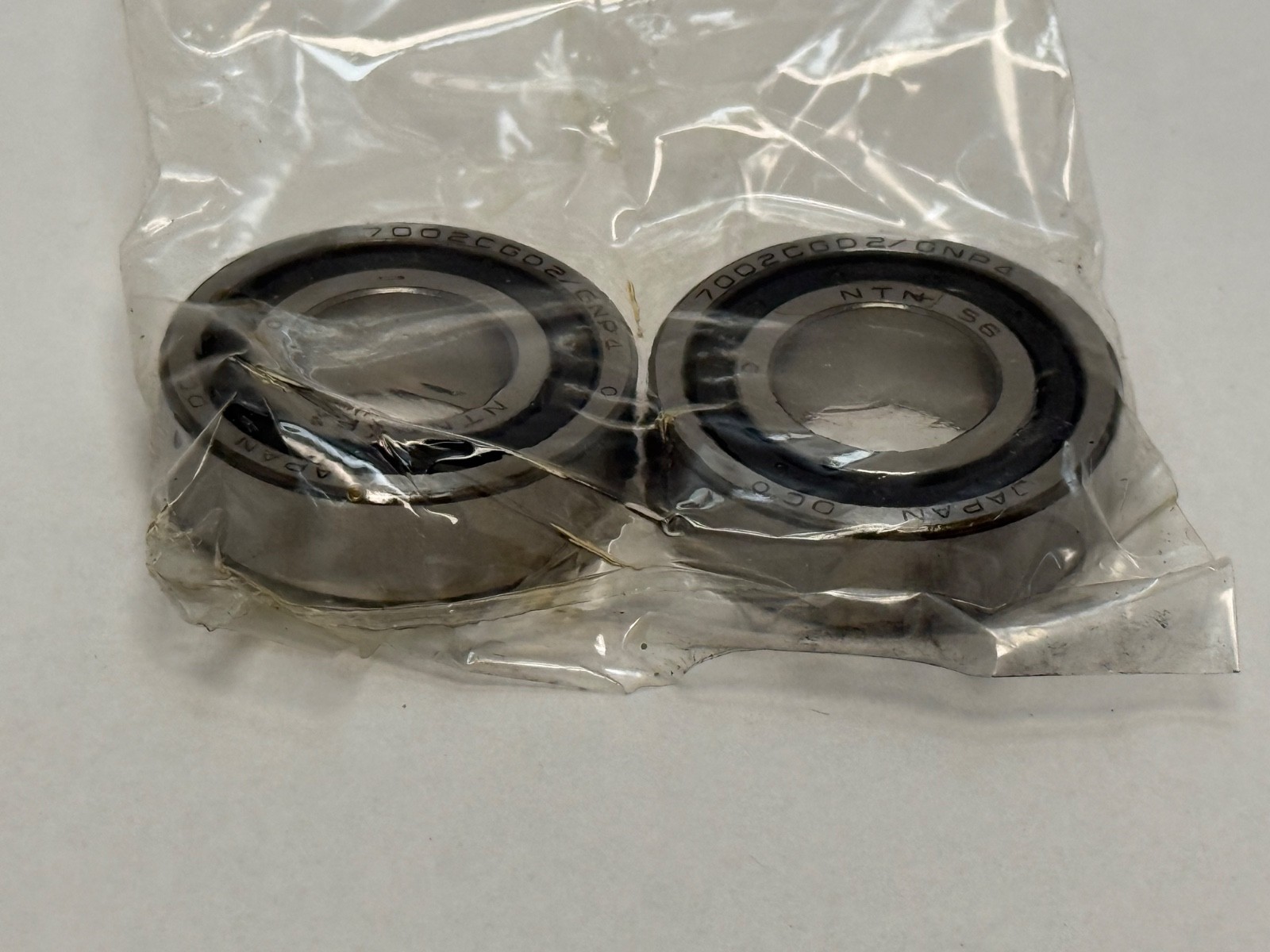

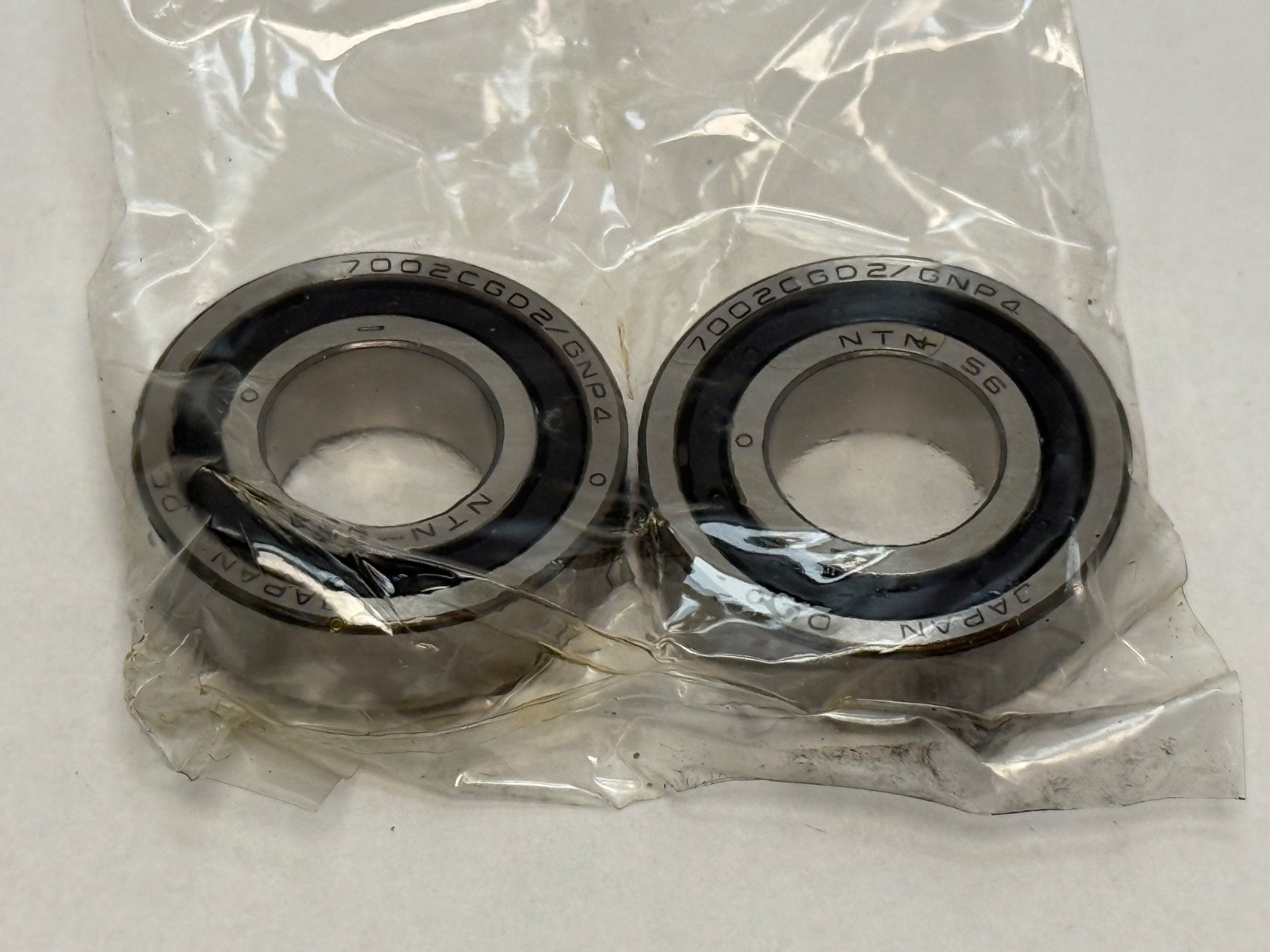

Angular contact ball bearing pair, 15 x 32 x 9 mm, 15° contact angle, ISO P4. NTN 7002CGD2/GNP4 universal flush-ground duplex set for spindles, 2 pieces.
List Price
$93.30
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7002C T DUL P4 / 2MM9102WI CR DUL / 7002 C V DU J74 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Total Width | 18 mm |
| Mpn Variants | 7002CGD2/GNP4, 7002CGD2GNP4, 7002-C-GD2-GN-P4, 7002-C-T-DUL-P4, 7002C |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 10,100 N (pair) |
| Static Load Rating | 6,750 N (pair) |
| Precision Rating | ABEC 7 / P4 |
| Series | 7000 |
| Max Temp | 120 °C |
| Item Weight | 0.058 kg (0.13 lb) pair |
| Cage Material | Glass-fibre reinforced polyamide |
| Limiting Speed | 27,000 rpm grease; 36,000 rpm oil |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Contact Angle | 15° |
| Mounting Arrangement | Universal pair (DB, DF or DT) |
| Cross Reference 1 | SKF 7002 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7002-C-T-P4S |
| Cross Reference 3 | NSK 7002CTYNSULP4 |
| Cross Reference 4 | Timken 2MM9102WI |
| Cross Reference 5 | Koyo 7002C P4 |
NTN 7002CGD2/GNP4 precision angular contact ball bearings, supplied as a universal flush-ground duplex pair. Bore Diameter: 15 mm. Outside Diameter: 32 mm. Width: 9 mm per bearing, 18 mm for the pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
7002 — ISO 70 series (light section), 15 mm bore.
C — 15° contact angle.
GD2 — universal flush-ground duplex set of two bearings, mountable back-to-back, face-to-face or in tandem.
P4 — ISO Class 4 precision, equivalent to ABEC 7.
Figures for the pair, from NTN. Dynamic Load Rating: 10,100 N. Static Load Rating: 6,750 N. Limiting Speed: 27,000 rpm grease; 36,000 rpm oil. Item Weight: 0.058 kg (0.13 lb) for the pair. Cage Material: Glass-fibre reinforced polyamide. Operating Temperature: -40 °C to 120 °C. A small-bore, high-speed pair for grinding spindles and high-frequency motor spindles.
Shaft abutment da min: 17.5 mm. Housing abutment Da max: 29.5 mm; Db max: 30.8 mm. Fillet ras max: 0.3 mm; r1as max: 0.15 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal pair (DB, DF or DT).
15° P4 parts from other makers: SKF 7002 CD/P4A, FAG B7002-C-T-P4S, NSK 7002CTYNSULP4, Timken 2MM9102WI, Koyo 7002C P4.
